ZJQCS1203Wireless Weather Station

Model CS1203: WIRELESS WEATHER STATION WIRELESS WEATHER STATION FCC INFORMATION: USER INFORMATION: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. CAUTION: changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the distance between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help 1 Main unit: LOCATION OF CONTROLS 1.LCD Display 2.TIME (Set) button 3.ALARM (Set/Off) button 4.UP button 5.Down button 6.CHANNEL (Selection) button 7.SNZ (Snooze) button 8.Battery Compartment 1 TIME ALARM UP DOWN CHANNELSNZ 2 3 4 5 678 2 Portable Sensor: 1.Bell Clip 2.Battery Compartment 3. C/ºF (Celsius/Fahrenheit) selection button 4.TX (Transmit) button 5.Channel selection button o BATTERY INSTALLATION AND CHANNEL SET UP Main unit: 1.Press the tabs on the battery door and lift it off. 2.Install two (2) x AAA size batteries (NOT included) into the battery compartment as shown on the figure below and the polarity markings inside battery compartment. 3.Replace the battery door. 4.Press the CHANNEL button repeatedly on the rear of cabinet to 1; 2 or 3 as desired. The selected channel number will appear on the display Left-Bottom corner. TIME ALARM UP DOWN CHANNELSNZ 1 2 3 4 5 C/ F TX AAA 1.5V AAA 1.5V AAA 1.5VAAA 1.5V AAA 1.5VAAA 1.5V TIME ALARM UP DOWN CHANNELSNZ TIME ALARM UP DOWN CHANNELSNZ 3 Portable Sensor: NOTES: 1.Slide the Bell Clip to either Left or Right and lift it off as shown on Fig. 1 below. 2.Remove the screws on the battery door. 3.Remove the battery door. 4.Install two (2) x AAA size batteries (NOT included) into the battery compartment as the Fig. 2 below and the polarity markings inside battery compartment. 5.Slide the channel selection switch to 1; 2 or 3 (Channel) as the Main Unit settings. 6.Press the ºC/ºF selection button repeatedly to select the unit of temperature. 7.Press the TX button, anicon will appear on the Main Unit Left-Bottom corner. Wait a few seconds, same Temperature and Humidity will show on both Main Unit and Portable Sensor. 8.Replace the battery door; screws and Bell Clip. 9.Place the Portable Sensor to anywhere you want it to detect the Temperature and Humidity. 1.The signal transmittance is in Radio Frequency. If any interference occurring in current channel. Set both units in others channels. 2.The maximum effective range between Main Unit and Portable Sensor is approximately 80 feet in distance in an open area. If the Main Unit cannot receive the signal from the Portable Sensor, put them closely. Pull up to replace batteries C/ F TX AAA 1.5V AAA 1.5V C/ F TX Fig.1Fig.2 4 BATTERY PRECAUTIONS Follow these precautions when using a battery in this device: 1.Use only the size and type of battery specified. 2.Be sure to follow the correct polarity when installing the battery as indicated in the battery compartment. A reversed battery may cause damage to the device. 3.Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones. 4.If the device is not to be used for a long period of time, remove the battery to prevent damage or injury from possible battery leakage. 5.Do not try to recharge the battery not intended to be recharged; it can overheat and rupture. (Follow battery manufacturer's directions.) 6.Do not dispose of batteries in fire. Battery may explodes or leak. 7.Clean the battery contacts and also those of the device prior to battery installation. LOCATION OF INDICATORS ON SCREEN 1.Weather Forecast 2.Temperature & Humidity 3.Comfort Index 4.Receiving Channel 5.Temperature trend indication 6.Hour and Minute 7.Second 8.PM Indicator 9.Alarm 10.Moon Phase 11.Day-Month and Day of Week 1 2 3 4 5 6789 PM 10 11 SunnyLight Cloud Cloud Rainy ComfortableNormalUncomfortable MAIN UNIT PORTABLE SENSOR 5 Portable Sensor: 1.Temperature 2.Humidity 3.Transmittance Channel 4.Transmitting OPERATION AND SETTINGS MAIN UNIT Unit of temperature: Display format of hour: Time set: NOTE: In 12 hour display format, make sure the PM indicator is appearing on the display if the time is PM and disappear if thetimeisAM. Alarm Set: NOTE: In 12 hour display format, make sure the PM indicator is appearing on the screen if the alarm time is PM and disappear if the alarm time is AM. Press the DOWN button repeatedly to set the unit of temperature to Celsius (ºC) or Fahrenheit (ºF) as desire. Press the UP button repeatedly to set the display format to 12 or 24 hour as desire. 1.Press and hold the TIME (set) button until the current year appears blinking on the screen. 2.Press the UP or DOWN button to set the year. When finished, press the TIME button. 3.The digits of Month will blink. Press the UP or DOWN button to set the month. When finished, press the TI…

Text truncated - open the document above for the full version.

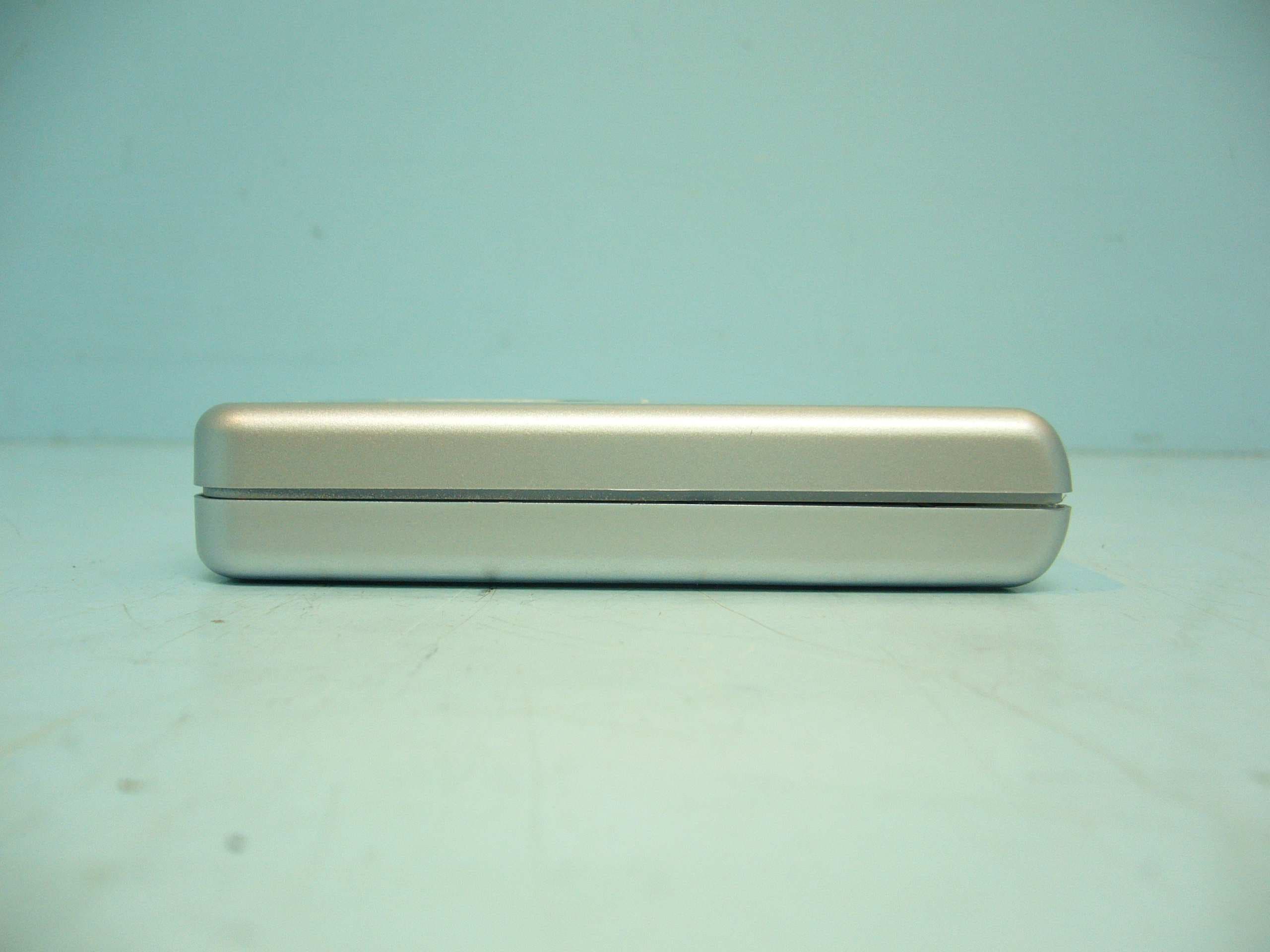

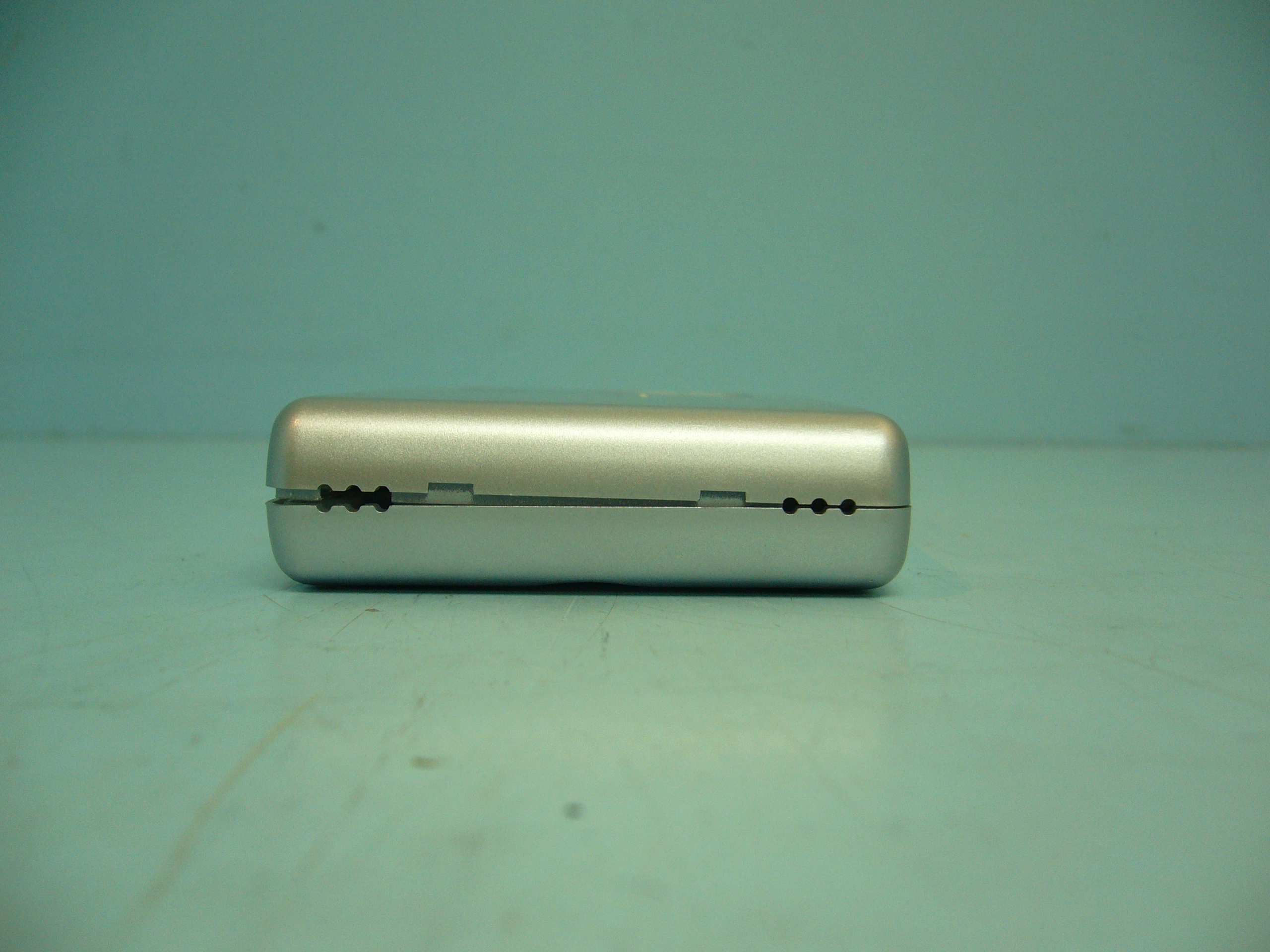

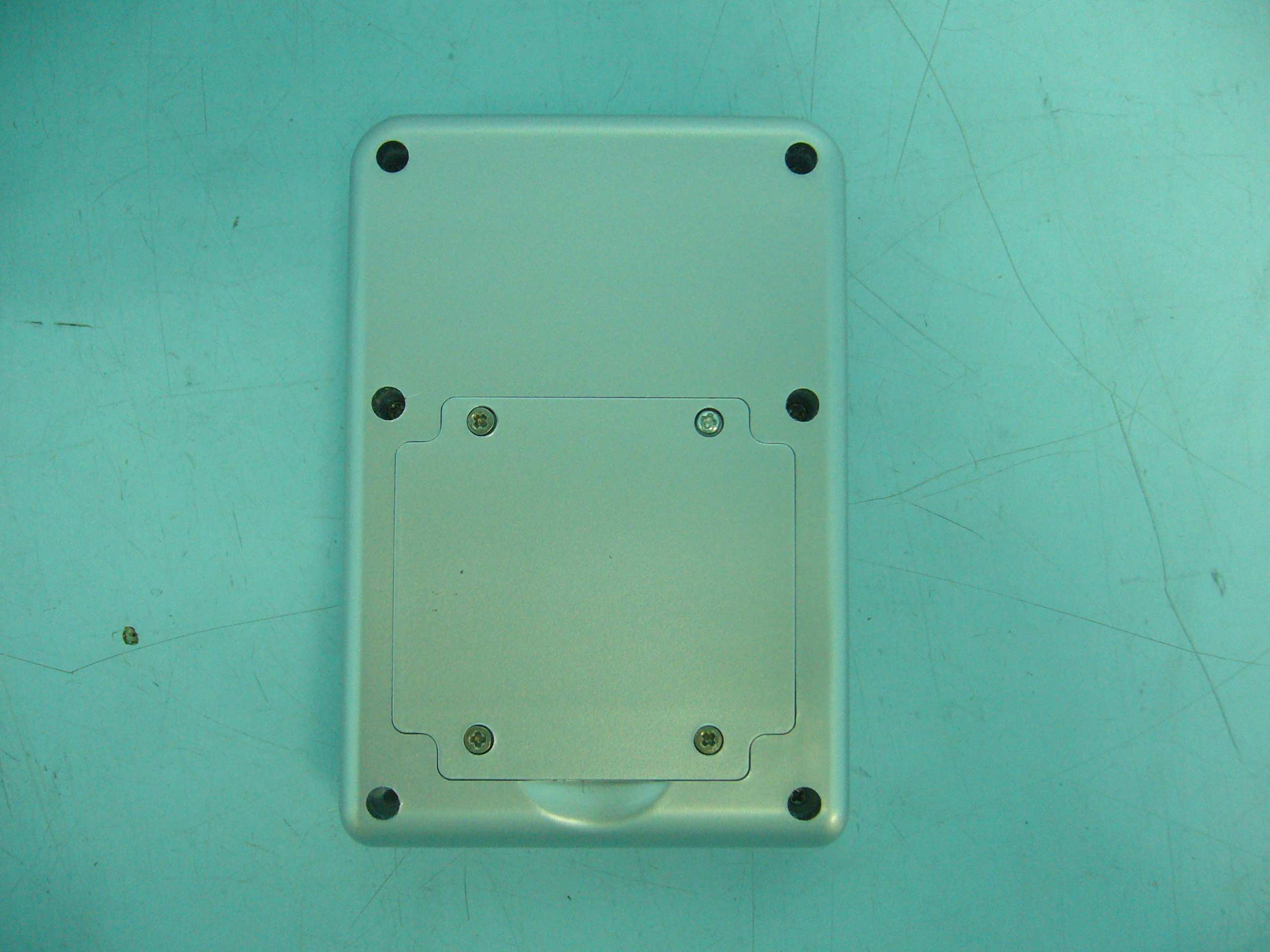

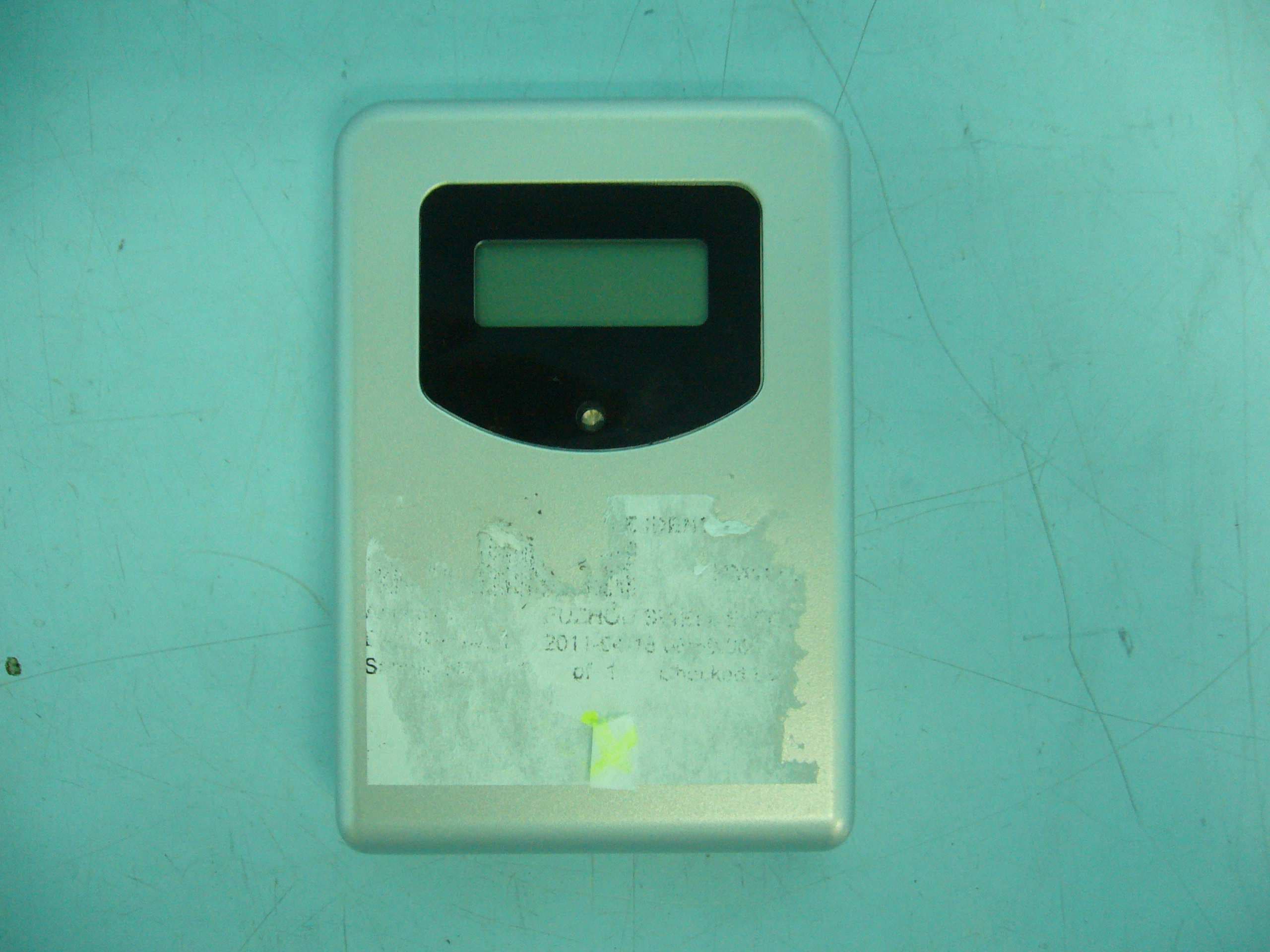

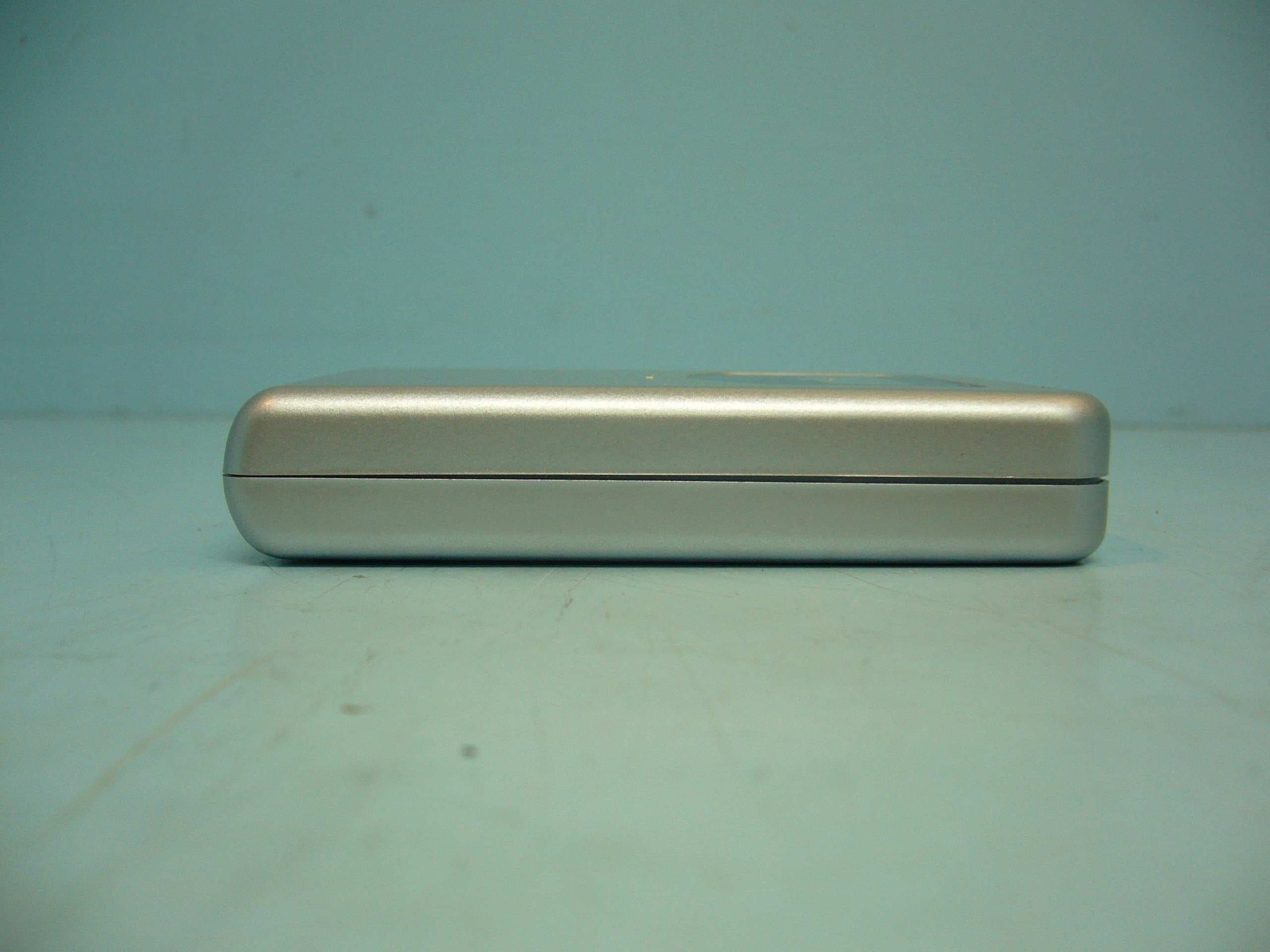

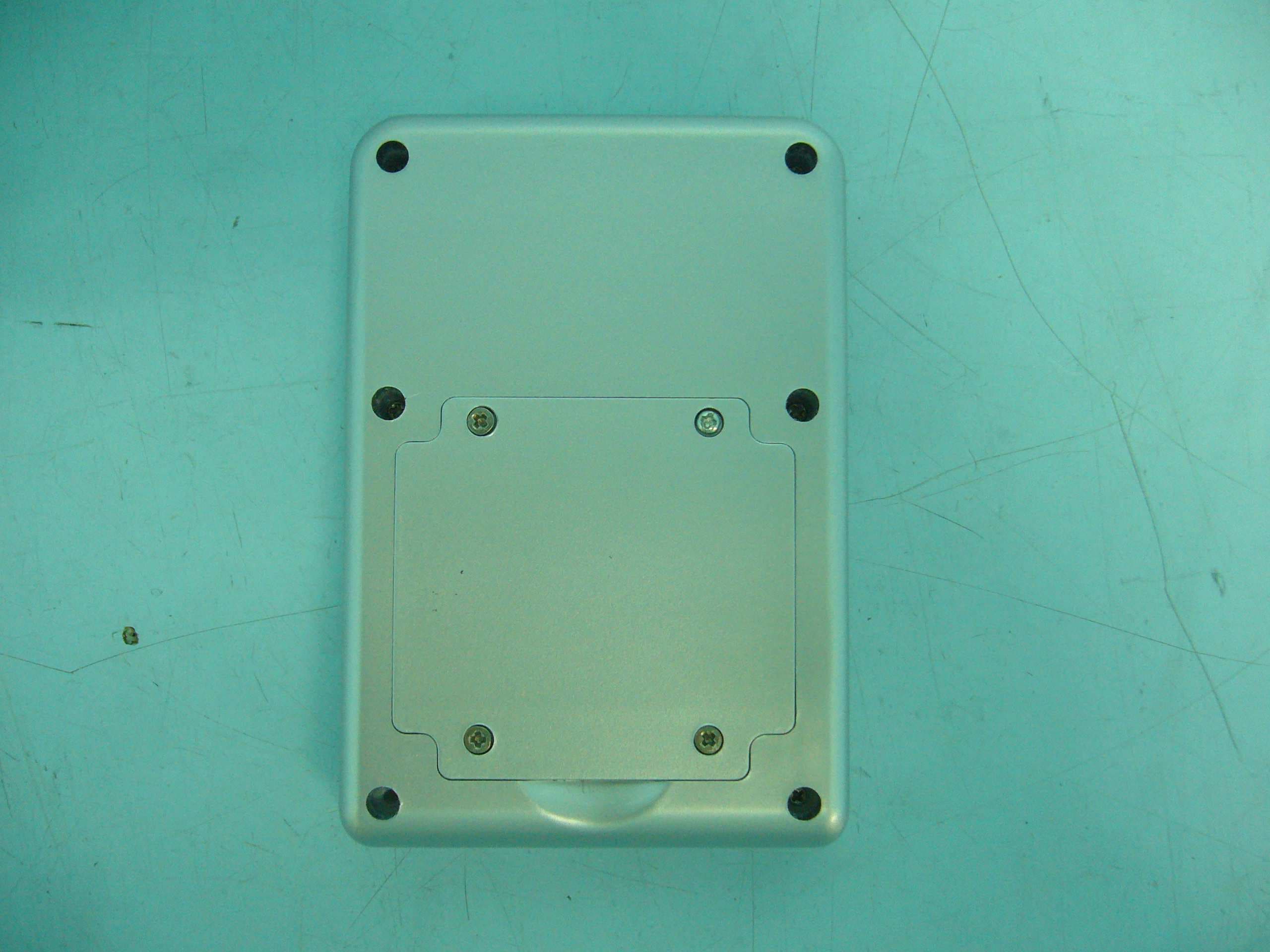

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT

STC Test Report Date : 2011-05-05 Page 1 of 22 No. : HM166582 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (FUS002): Fuzhou Swell Electronic Co., Ltd. Fl. 3 rd Bldg. A1, No. 56, Jinyan Road, Jinshan Industrial Zone, Fuzhou, Fujian, China Manufacturer: Fuzhou Swell Electronic Co., Ltd. Fl. 3 rd Bldg. A1, No. 56, Jinyan Road, Jinshan Industrial Zone, Fuzhou, Fujian, China Description of Sample(s): Submitted sample(s) said to be Product: Wireless Weather Station Brand Name: CRAIG Model Number: CS1203 FCC ID: ZJQCS1203 Date Sample(s) Received: 2011-04-18 Date Tested: 2011-05-03 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2010 and ANSI C63.4:2003 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): For additional brand name and model details, see page 4. Dr. LEE Kam Chuen Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2011-05-05 Page 2 of 22 No. : HM166582 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 22 Content Page 2-3 of 22 1.0 General Details 1.1 Equipment Under Test [EUT] Page 4 of 22 1.2 Description of EUT operation 1.3 Date of Order Page 4 of 22 1.4 Submitted Sample(s) Page 4 of 22 1.5 Test Duration Page 4 of 22 1.6 Country of Origin Page 4 of 22 2.0 Technical Details 2.1 Investigations Requested Page 5 of 22 2.2 Test Standards and Results Summary Page 5 of 22 3.0 Test Results 3.1 Emission Page 6-9 of 22 3.2 Bandwidth Measurement Page 10-11 of 22 STC Test Report Date : 2011-05-05 Page 3 of 22 No. : HM166582 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 12 of 22 Appendix B Duty Cycle Correction During 100 msec Page 13-18 of 22 Appendix C Periodic Operation Page 19 of 22 Appendix D Photographs Page 20-22 of 22 STC Test Report Date : 2011-05-05 Page 4 of 22 No. : HM166582 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Equipment Under Test [EUT] Description of Sample Submitted sample(s) said to be Product: Wireless Weather Station Manufacturer: Fuzhou Swell Electronic Co., Ltd. Brand Name: CRAIG Additional Brand Name(s): SWELL Model Number: CS1203 Additional Model Number(s): CS1201, CS1202, S3308B, S004B, S3607B, S3332B, S521B, S3318B, S3338B Rating: 3Vd.c. (“AAA” size battery x 2) 1.2 Description of EUT Operation The Equipment Under Test (EUT) is a Fuzhou Swell Electronic Co., Ltd..., Wireless Weather Station. The EUT is a portable sensor that detects weather conditions and sent it periodically to an associated weather station. A telegram (~ 870 ms) consisting of a control signal and data is transmitted periodically every 34 seconds. To avoid disturbances different channels (in fact there are codes) can be selected. 1.3 Date of Order 2011-04-18 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2011-05-03 1.6 Country of Origin China STC Test Report Date : 2011-05-05 Page 5 of 22 No. : HM166582 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 2010 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.231e ANSI C63.4:2003 N/A Radiated Emission FCC 47CFR 15.209 ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 N/A Note: N/A - Not Applicable STC Test Repor…
