ZJU01142309Enjoy TV

1 Enjoy TV Box User Manual V1.7 Introduction Enjoy TV box is a product connected to your TV via HDMI that turn your TV to a multifunction smart TV. It is a revolutionary entertainment on your TV. It is also an Android HD Media player, a mini Android PC, an IPTV Set-top box, a home media hub & NAS and a DLNA server, a photo viewer, a game player, a music player, a huge size screen e-book/ e-magazine/ e-newspaper reader, it provides a very powerful smart TV experience Features ARM Cortex™-A9 CPU, frequency is 800MHz~1GHz Embedded high-performance Open GL 3D GPU Mali-400 High Capability 1G DDR3 ROM Build in 802.11b/g/n Wi-Fi Module and 100M Rj45 Ethernet port HDMI 1.3 Digital Audio & Video Output Support SATA HDD Mass Storage IR remote control Support USB mouse and keyboard operation Support Free-to-air Digital TV Tuner (Depends on different model of Enjoy TV Box) Support flash player 10.2 hardware acceleration Support up to Full HD 1080P video decoding. High Connectivity for File Sharing Support Google play store Support Google Chrome browser Multi User Interface (optional) Video format support: DAT/MPEG/MPE/MPG/M2V/ISO/TS/VOB/AVI/MKV/MP4/MOV/3GP/3GPP/FLC/AVI/WMA/ TS/M2TS/M3TS/M4TS/M5TS/MTS/M4V/FLV/3G2. Audio format support: MP3/WMA/WAV/OGG/OGA/FLAC/ALAC/APE/AAC/M4A/AC-3/DTS/RM. Remote control There are several remote controllers for option. 2 Start Up 1 Plug in power adapter, and connect Enjoy TV Box to TV via HDMI cable. 2 There are two screens appear while starting, first screen is robotic logo, second is android text logo. 3 3 Standard launcher preview 4 Settings Settings provide individual preference setting functions. 1. Wi-Fi It will scan ambient Wi-Fi networks automatically while click “ ON” in Wi-Fi setting. Choose one encrypted Wi-Fi network to connect 5 2. Ethernet Click “ ON” in Ethernet setting, it will connect to network automatically. 3. Data usage Show data usage information. 4. More It includes VPN, Portable hotspot and Proxy settings. 6 Enable Portable hotspot Configure Wi-Fi hotspot. Choose different security way to share your network. Please note you need to disconnect Wi-Fi and connect Ethernet while using hotspot function. Wi-Fi and hotspot connection can’t be existed at the same time. 7 5. Sound If you enable Touch sound, you will hear the sound while move remote control. 6. Display Set wallpaper, output mode, display position and font size. 8 Output mode The default resolution Is 720P Display position Use direction and Enter/Ok buttons on remote control to adjust display position when the screen is not display as full screen on your TV. 9 Font size Change the font size of OSD. 7. Storage Shows the storage used of the OS and SD card. 10 8. Apps List all apps on different status. 9. Accounts & sync Click” ON” to enable accounts & sync. 11 10. Security Enable unknown sources, it will allow you to install non-market apps. 11. Language & input Change OSD language and input method. The default input method is android standard keyboard. If you are using our IR remote control, enter into “Default” option and switch to remote controller input method. 12 12. Factory reset Choose factory reset, it will erase all user data of the box. 13. Data & Time Set the time of the box. 13 14. Developer options If you are an engineer of android OS, and want to do some debugging on our box by ADB Enable USD debugging, you will get ADB function by Ethernet or Wi-Fi. 15. About Media Box. You will find firmware version under build number. 14 Movie player . Play videos in SD card, USB disk and USB / SATA HDD Click button to change video mode, subtitle, audio track, and get video information and so on. Browser 15 Visit any website around the world. Read news, view online videos. Click Menu button on the upper right corner or press F1 button on keyboard while running browser, enter into setting->advanced, and you can set browser type, the default is desktop mode. Network (SAMBA function) When you open network app at the first time, it will scan all shared folders in local area network. Scanned shared folders 16 Choose one of them, you will see a green icon appeared on the right. Click the second button to confirm the choice. Then, click and open the folder to browse videos, music, pictures and documents inside it. 17 Upgrade Upgrade the firmware from external storage device, no matter SD card, USB disk or HDD. Just need to copy the update.img file into the storage device. Upgrade online function has not been opened for M1 4.0. This manual is suitable for ATV series products. 18 FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures. - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. --Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. The distance between user and products should be no less than 20cm

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Shenzhen Geniatech INC.,LID (2014-10-30) To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ Shenzhen Geniatech INC.,LID _____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Enjoy TV, model number: ATV1220A ATV1620, ATV1612, ATV1800, ATV1220I, ATV1220S2, ATV1220C, ATV1220, ATV1220T, ATV1220T2, ATV1610) FCC ID: : ZJU01142309 Sincerely, Client’s signature Client’s name / title Mike Wu/ Manger Contact information / address: 18th F, GDC Building, No. 9 Gaoxin Middle 3rd Rd. Nanshan District, Shenzhen, China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 (Shenzhen Geniatech INC.,LID) (2014-10-30) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: ZJU01142309 We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Mike Wu/ Manager Contact information / address: 18th F, GDC Building, No. 9 Gaoxin Middle 3rd Rd. Nanshan District, Shenzhen, China

Shenzhen Geniatech INC., LTD 18th F, GDC Building, No. 9 Gaoxin Middle 3rd Rd. Nanshan District, Shenzhen, China Statement We Hereby that The product Enjoy TV, FCC ID: ZJU01142309, models no.: ATV1220A ATV1620, ATV1612, ATV1800, ATV1220I, ATV1220S2, ATV1220C, ATV1220, ATV1220T, ATV1220T2. ATV1610 are all identical in interior structure, electrical circuits and components, and just model names and the enclosure are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Company Name: Shenzhen Geniatech INC., LTD 18th F, GDC Building, No. 9 Gaoxin Middle 3rd Rd. Nanshan District, Shenzhen, China

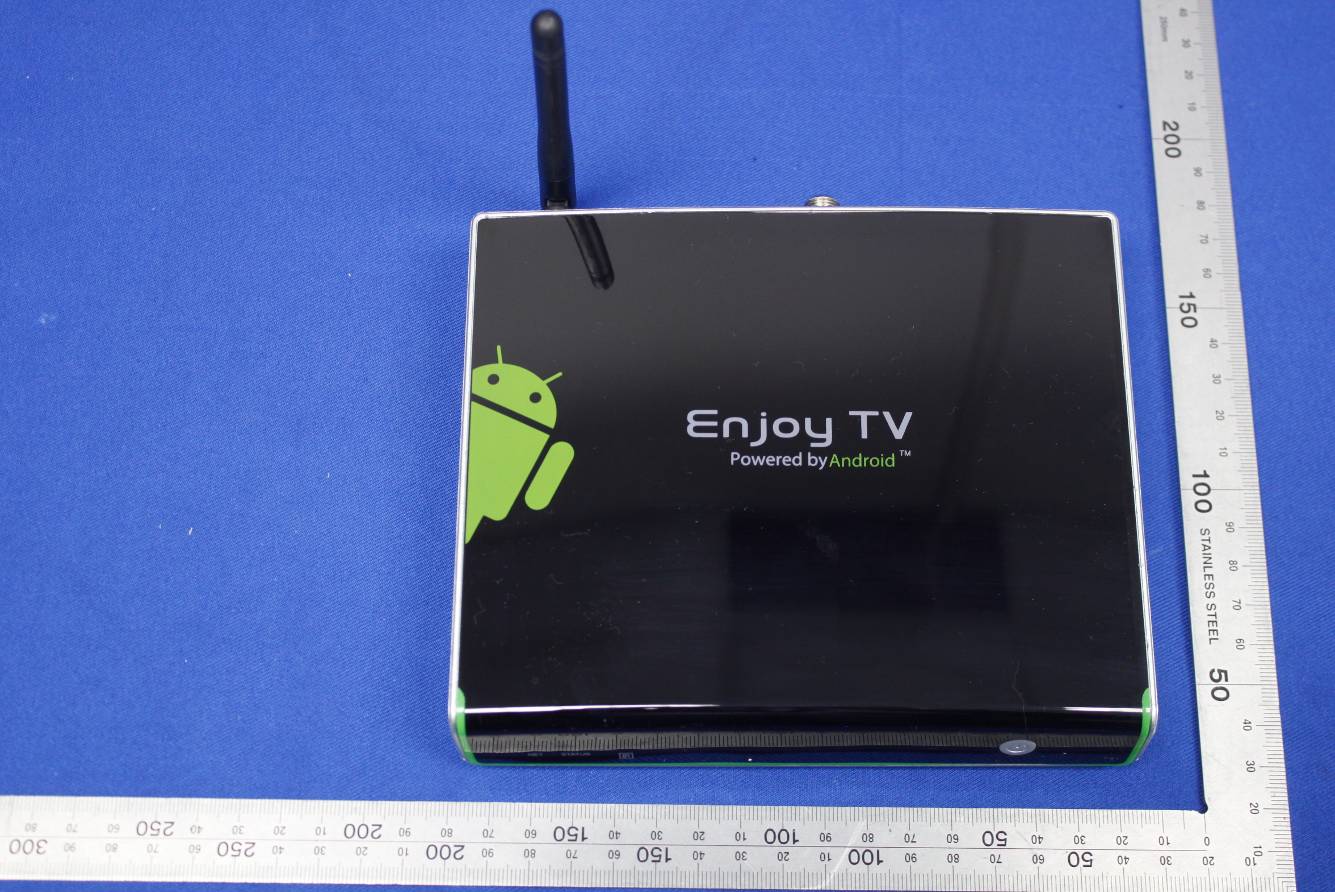

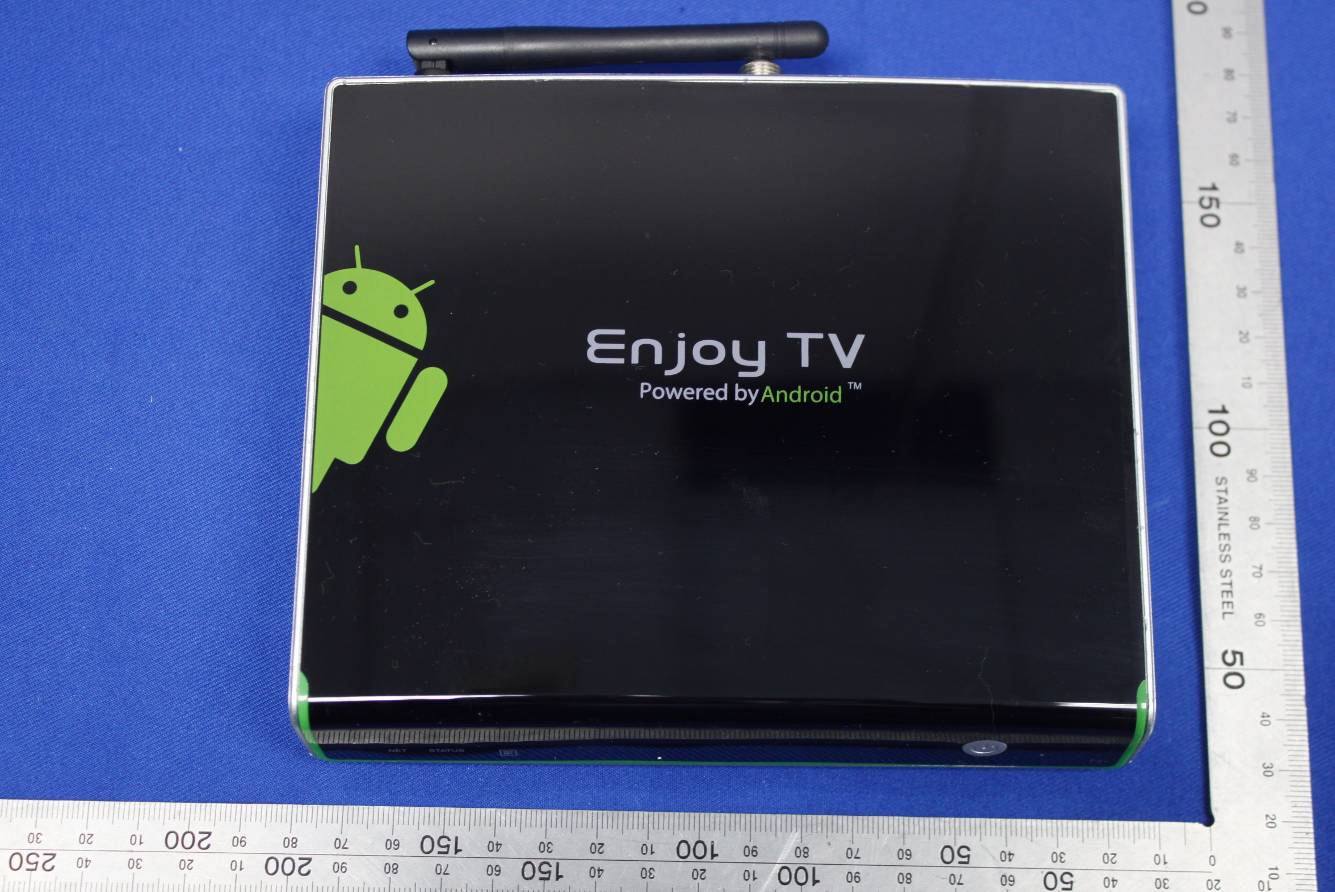

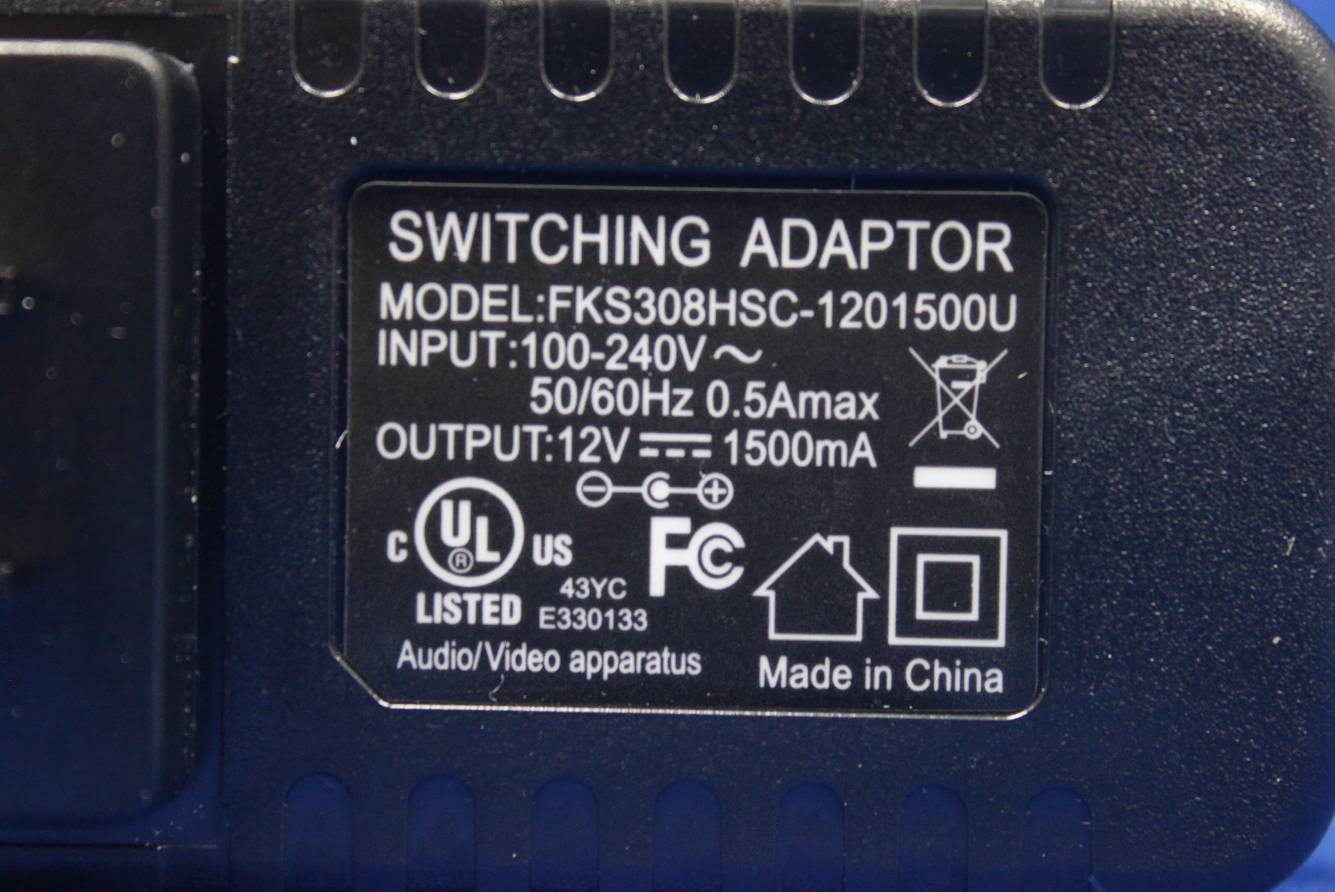

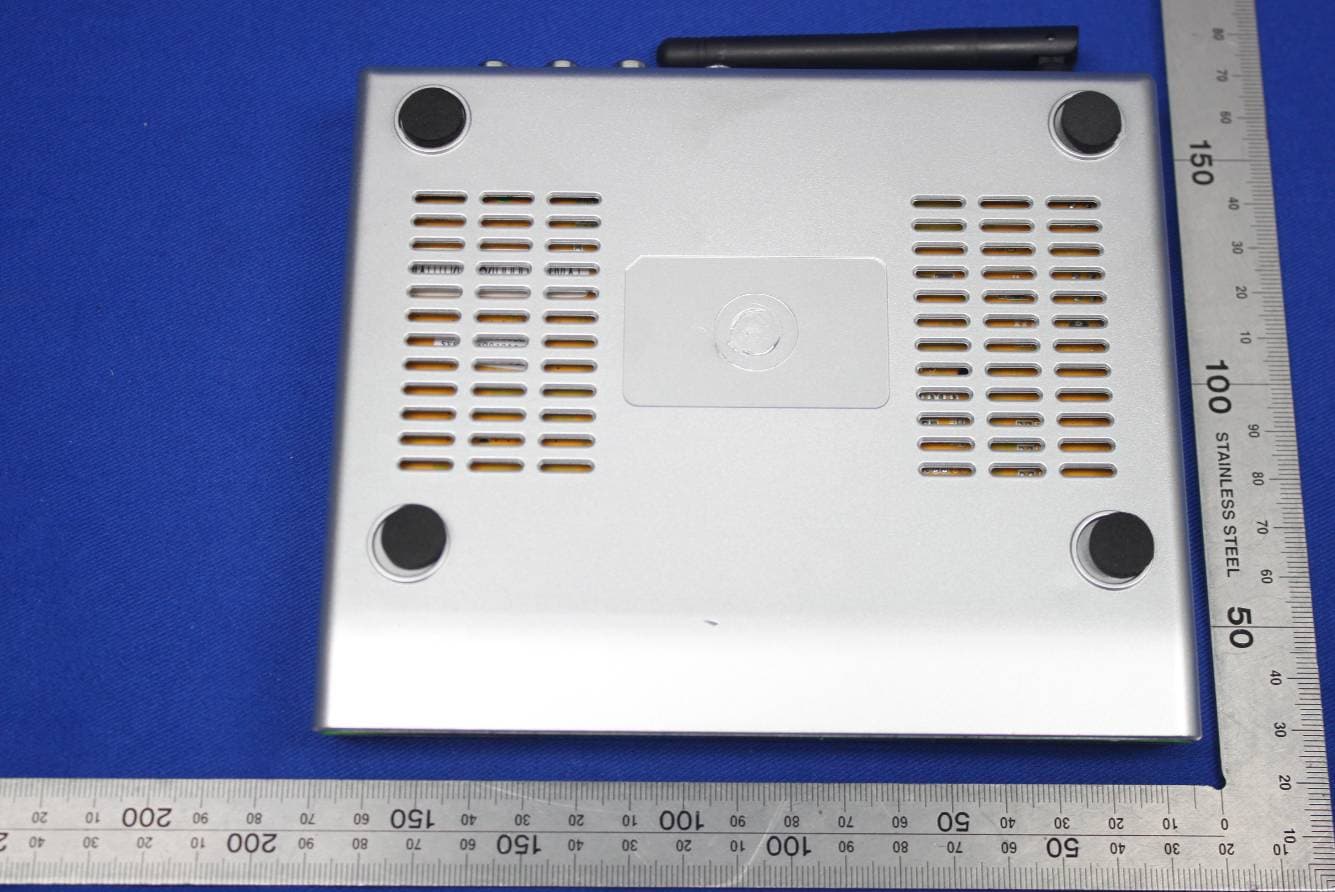

Compliance Certification Services Inc. Report No: C141009R01-RPW FCC ID: ZJU01142309 Date of Issue : November 4, 2014 IC:12373A-GT141A04D Page 1 of 5 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: C141009R01-RPW FCC ID: ZJU01142309 Date of Issue : November 4, 2014 IC:12373A-GT141A04D Page 2 of 5 Compliance Certification Services Inc. Report No: C141009R01-RPW FCC ID: ZJU01142309 Date of Issue : November 4, 2014 IC:12373A-GT141A04D Page 3 of 5 Compliance Certification Services Inc. Report No: C141009R01-RPW FCC ID: ZJU01142309 Date of Issue : November 4, 2014 IC:12373A-GT141A04D Page 4 of 5 Compliance Certification Services Inc. Report No: C141009R01-RPW FCC ID: ZJU01142309 Date of Issue : November 4, 2014 IC:12373A-GT141A04D Page 5 of 5

Enjoy TV Model: ATV1220A Rating: DC12V, 1.5A FCC ID: ZJU01142309 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Shenzhen Geniatech INC., LTD

Label location

Compliance Certification Services Inc. Report No: C141009R01-RPW FCC ID: ZJU01142309 Date of Issue : November 4, 2014 IC: 12373A-GT141A04D Page 1 of 6 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: C141009R01-RPW FCC ID: ZJU01142309 Date of Issue : November 4, 2014 IC: 12373A-GT141A04D Page 2 of 6 Compliance Certification Services Inc. Report No: C141009R01-RPW FCC ID: ZJU01142309 Date of Issue : November 4, 2014 IC: 12373A-GT141A04D Page 3 of 6 Compliance Certification Services Inc. Report No: C141009R01-RPW FCC ID: ZJU01142309 Date of Issue : November 4, 2014 IC: 12373A-GT141A04D Page 4 of 6 Compliance Certification Services Inc. Report No: C141009R01-RPW FCC ID: ZJU01142309 Date of Issue : November 4, 2014 IC: 12373A-GT141A04D Page 5 of 6 Compliance Certification Services Inc. Report No: C141009R01-RPW FCC ID: ZJU01142309 Date of Issue : November 4, 2014 IC: 12373A-GT141A04D Page 6 of 6

Compliance Certification Services Inc. Report No: C141009R01-RPB FCC ID: ZJU01142309 Date of Issue : November 11, 2014 IC: 12373A-GT141A04D Page 1 / 3 RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i) and §15.407(f), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b) of this chapter. EUT Specification EUT ATV1220A Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.15GHz ~ 5.25GHz WLAN: 5.25GHz ~ 5.35GHz WLAN: 5.47GHz ~ 5.725GHz WLAN: 5.725GHz ~ 5.85GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 2.412-2.462GHz 802.11b mode: 17.95dBm 802.11g mode: 13.67 dBm 802.11n HT20 MHz Channel mode: 12.69 dBm 802.11n HT40 MHz Channel mode: 12.54 dBm Antenna gain (Max) Dipole antennas for 2.4GHz Gain 2.0 dBi Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 17.95dBm (62.4mW) at 2412MHz (with 2.000 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm2 even if the calculation indicates that the power density would be larger. 4. All two antennas are completely uncorrelated with each other. Compliance Certification Services Inc. Report No: C141009R01-RPB FCC ID: ZJU01142309 Date of Issue : November 11, 2014 IC: 12373A-GT141A04D Page 2 / 3 TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No: C141009R01-RPB FCC ID: ZJU01142309 Date of Issue : November 11, 2014 IC: 12373A-GT141A04D Page 3 / 3 Modulation Mode Frequency band (MHz) Max. tune up power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b 2412-2462 18.00 2.0 20 0.019900 1 802.11g 14.00 2.0 20 0.007922 1 802.11 n(20MHz) 13.00 2.0 20 0.006293 1 802.11 n(40MHz) 13.00 2.0 20 0.006293 1 Note: Only the WLAN 2.4G can transmit, the formula of calculated the MPE is: CPD1 / LPD1 < 1 CPD = Calculation power density LPD = Limit of power density WLAN 2.4G Max Power density =0.0199 < 1 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No: C141009R01-RPW FCC ID:ZJU01142309 Date of Issue :November 11, 2014 IC : 12373A-GT141A04D Page 1 of 83 Rev. 00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC/ IC Radio Test Report For Product Name: Enjoy TV Brand Name: N/A Model No.: ATV1220A Series Model: ATV1620,ATV1612,ATV1800,ATV1220I,ATV1220S2,ATV1220C,ATV1220,ATV1220T, ATV1220T2,ATV1610 FCC ID: ZJU01142309 IC: 12373A-GT141A04D Test Report Number: C141009R01-RPW Issued for Shenzhen Geniatech INC., LTD 8th F, GDC Building, No. 9 Gaoxin Middle 3rd Rd. Nanshan District, Shenzhen, China Issued by Compliance Certification Services Inc. Kun shan Laboratory No.10 Weiye Rd., Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China TEL: 86-512-57355888 FAX: 86-512-57370818 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by A2LA or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No: C141009R01-RPW FCC ID:ZJU01142309 Date of Issue :November 11, 2014 IC : 12373A-GT141A04D Page 2 of 83 Rev. 00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Report NO. Effect Page Contents 00 November 11, 2014 N/A ALL N/A Compliance Certification Services Inc. Report No: C141009R01-RPW FCC ID:ZJU01142309 Date of Issue :November 11, 2014 IC : 12373A-GT141A04D Page 3 of 83 Rev. 00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ............................................................................ 4 2. EUT DESCRIPTION .................................................................................................... 5 3. TEST METHODOLOGY ............................................................................................ 6 3.1. EUT CONFIGURATION ............................................................................................................ 6 3.2. EUT EXERCISE ....................................................................................................................... 6 3.3. GENERAL TEST PROCEDURES ................................................................................................. 6 3.4. FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................ 7 3.5. DESCRIPTION OF TEST MODES................................................................................................ 8 3.6. ANTENNA DESCRIPTION ....................................................................................................... 9 4. INSTRUMENT CALIBRATION ................................................................................ 9 4.1. MEASURING INSTRUMENT CALIBRATION .......................................................................... 9 5. FACILITIES AND ACCREDITATIONS ................................................................ 11 5.1. FACILITIES .......................................................................................................................... 11 5.2. EQUIPMENT ......................................................................................................................... 11 5.3. LABORATORY ACCREDITATIONS AND LISTING .................................................................... 11 5.4. TABLE OF ACCREDITATIONS AND LISTINGS ......................................................................... 12 6. SETUP OF EQUIPMENT UNDER TEST ............................................................... 13 6.1. SETUP CONFIGURATION OF EUT ........................................................................................... 13 6.2. SUPPORT EQUIPMENT .................................................................................................. 13 7. FCC PART 15.247 REQUIREMENTS ..................................................................... 14 7.1. 6DB BANDWIDTH MEASUREMENT ........................................................................................ 14 7.2. 99% BANDWIDTH MEASUREMENT ....................................................................................... 22 7.3. PEAK POWER ....................................................................................................................... 30 7.4. PEAK POWER SPECTRAL DENSITY ........................................................................................ 32 7.5. SPURIOUS EMISSIONS ................................................................................................... 40 7.6. RADIATED EMISSIONS ................................................................................................. 63 7.7. POWERLINE CONDUCTED EMISSIONS ................................................................................... 81 Compliance Certification Services Inc. Report No: C141009R01-RPW FCC ID:ZJU01142309 Date of Issue :November 11, 2014 IC : 12373A-GT141A04D Page 4 of 83 Rev. 00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Product Name: Enjoy TV Trade Name: N/A Model Name.: ATV1220A Series Model: ATV1620,ATV1612,ATV1800,ATV1220I,ATV1220S2,ATV1220C,ATV1220, ATV1220T,ATV1220T2.ATV1610 Applicant Discrepancy: Initial Device Category: Mobile Device Date of Test: October 24, 2014 to November 1 , 2014 Applicant: Shenzhen Geniatech INC., LTD 8th F, GDC Building, No. 9 Gaoxin Middle 3rd Rd. Nanshan District, Shenzhen, China Manufacturer: S…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: C141009R01-RPW FCC ID: ZJU01142309 Date of Issue : November 11, 2014 IC: 12373A-GT141A04D Page 1 / 2 TEST SETUP PHOTOGRAPHS OF EUT RADIATED Compliance Certification Services Inc. Report No: C141009R01-RPW FCC ID: ZJU01142309Date of Issue : November 11, 2014 IC: 12373A-GT141A04D Page 2 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. CONDUCTIED
