ZKB-TZ3132Mobile Phone

-1-













-2- Content 1 General Information ................................................................................................................................................. 4 1.1 Profile ............................................................................................................................................................... 4 1.2 Safety Information ............................................................................................................................................ 4 1.3 Safety warning and Attentions ......................................................................................................................... 4 2 Your phone ................................................................................................................................................................. 7 2.1 Phone overview ................................................................................................................................................ 7 2.2 Functions of Keys ............................................................................................................................................. 7 2.3 Technical specifications ................................................................................................................................... 9 3 Getting started ......................................................................................................................................................... 10 3.1 Installing the SIM Cards and the Battery ....................................................................................................... 10 3.2 Installing T-Flash Card ................................................................................................................................... 12 3.3 Charging the Battery ....................................................................................................................................... 12 3.4 Powering On/Off the Mobile Phone ............................................................................................................... 15 3.5 Linking to the Network .................................................................................................................................. 15 3.6 Dialing Calls ................................................................................................................................................... 15 3.7 Using the Headset ........................................................................................................................................... 17 -3- 4 Input method ........................................................................................................................................................... 17 4.1 Icons for Input Methods ................................................................................................................................. 17 4.2 To Shift Entry Methods .................................................................................................................................. 18 4.3 Numeric Input ................................................................................................................................................. 18 4.4 English input and numeric input: ................................................................................................................... 18 4.5 Inserting a Symbol .......................................................................................................................................... 20 5 Using the Menus ...................................................................................................................................................... 20 5.1 Fun & Application .......................................................................................................................................... 20 5.2 Phonebook ...................................................................................................................................................... 21 5.3 Call Center ...................................................................................................................................................... 23 5.4 Multimedia ..................................................................................................................................................... 25 5.5 Messaging ....................................................................................................................................................... 26 5.6 Services ........................................................................................................................................................... 32 5.7 Organizer ........................................................................................................................................................ 33 5.8 File manager ................................................................................................................................................... 35 5.9 Settings ........................................................................................................................................................... 35 6 Appendix .................................................................................................................................................................. 40 -4- 1 General Information 1.1 Profile Please read this pamphlet carefully in order to make your phone in perfect condition. Perfectly combining humanized design and fine art, this mobile phone provides a streamlined outlook, comfortable hand-feeling, pleasant sounds and MP3 player which bring convenience and fun to your work. Our company may change this mobile phone without prior written notice and reserves the final right to interpret the per…

Text truncated - open the document above for the full version.

1、Circuit diagram LCD Audio SKY77542 MT6253 CPU Keypad Memory Battery SIM I/O Antenna Keypad backlight BlueTooth TV FM SIM crystal 27MHz crystal 32.768MHz 26MHz 2、 RF diagram Power Amplifier SKY77542 MT6253 Maching circuit Attenuation circuit Filter circuit Maching circuit

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (current)1.01.0Nov-14-2006 Revised wording (current)1.02.0Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 2.0 Authorization Letter SCS-F18: Project and Product Certification Representative Authorization Letter Page 3 of 3 Rev 2.0 COSMOCOM,SAC May 17, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, COSMOCOM,SAC hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description: Mobile Phone model name: TZ3132 FCC ID:ZKB-TZ3132) We affirm that between SIEMIC and COSMOCOM,SAC ,any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, JUAN GARCIA / Manager COSMOCOM,SAC LUIS ARIAS SCHEREIBER, 215-LIMA, PERU

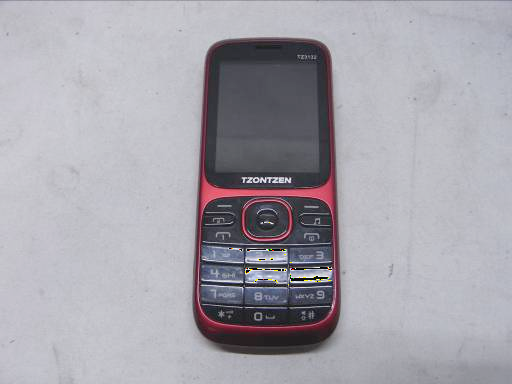

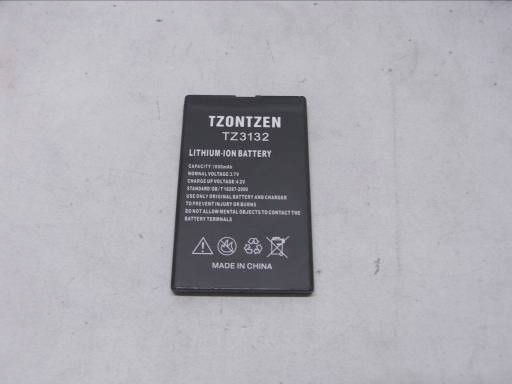

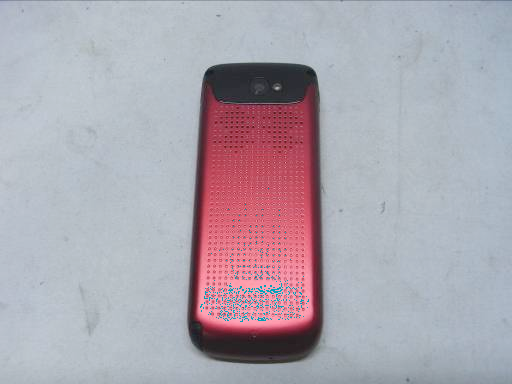

FCC ID: ZKB-TZ3132 Report No.: STS110421F1 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE FCC ID: ZKB-TZ3132 Report No.: STS110421F1 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE FCC ID: ZKB-TZ3132 Report No.: STS110421F1 TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE FCC ID: ZKB-TZ3132 Report No.: STS110421F1 PHOTO OF USB LINE PHOTO OF EARPHONE FCC ID: ZKB-TZ3132 Report No.: STS110421F1 PHOTO OF POWER SUPPLY PHOTO OF BATTERY FCC ID: ZKB-TZ3132 Report No.: STS110421F1 PHOTO OF THE ENTIRE SAMPLE

FCC ID: ZKB-TZ3132 Report No.: STS110421F1 INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE – 2 FCC ID: ZKB-TZ3132 Report No.: STS110421F1 INTERNAL PHOTO OF SAMPLE –3 INTERNAL PHOTO OF SAMPLE –4 FCC ID: ZKB-TZ3132 Report No.: STS110421F1 INTERNAL PHOTO OF POWER SUPPLY-1 INTERNAL PHOTO OF POWER SUPPLY-2

1/2 Operation Description OPERATIONAL DESCRIPTION APPLICANT: COSMOCOM, SAC Manufacturer:COSMOCOM, SAC FCC ID : ZKB-TZ3132 Instruction Book: Users Manual Frequency Range GSM Transmit Frequency Band: 824.2-848.8 MHz Receive Frequency Band: 849.2-893.8 MHz Transmit Frequency Band: 1850.2-1909.8 MHz Receive Frequency Band: 1930.2-1989.8 MHz Specific Operating Power Range: Power Class 1; Power Control Level 0 +30dBm +2.0dB/-2.0dB Power Control Level 1 +28dBm +3.0dB/-3.0dB Power Control Level 2 +26dBm +3.0dB/-3.0dB Power Control Level 3 +24dBm +3.0dB/-3.0dB Power Control Level 4 +22dBm +3.0dB/-3.0dB Power Control Level 5 +20dBm +3.0dB/-3.0dB Power Control Level 6 +18dBm +3.0dB/-3.0dB Power Control Level 7 +16dBm +3.0dB/-3.0dB Power Control Level 8 +14dBm +3.0dB/-3.0dB Power Control Level 9 +12dBm +4.0dB/-4.0dB Power Control Level 10 +10dBm +4.0dB/-4.0dB Power Control Level 11 +8dBm +4.0dB/-4.0dB Power Control Level 12 +6dBm +4.0dB/-4.0dB Power Control Level 13 +4dBm +4.0dB/-4.0dB Power Control Level 14 +2dBm +5.0dB/-5.0dB Power Control Level 15 +0dBm +5.0dB/-5.0dB Note; Effective radiation efficiency is –3.7dB DC Voltage and Current into the Final Amplifier Module: Supply Voltage = 5.0Vdc Supply Current = ~0.5Amp. Tune-up Procedure: Tune-up Procedure Equipment Identification: Equipment's Identification label and its intended Location are as shown in EXHIBIT Type “ID Label / Location Information” (FCC ID Nameplate), and in EXHIBIT Type “Internal Photo”(Photograph of inside) Photographs: A complete set of the Photographs showing External and Internal Views of Circuit Details and Construction are provided by from EXHIBIT Type “External Photos” and “Internal Photos”. Accessories: Accessorie s 2/2 Operation Description Figure 1.2: Terminal Components (Accessories) Technical Descriptions TX synthesizer uses an Offset-PLL circuit. The Offset-PLL circuit consists of PLL-IC and TX_VCO and loop filter. Reference frequency of the above synthesizers is 26MHz and generated by VCTCXO. Control signal is sent from Baseband section and keeps frequency stability. TX IQ signal is input from Baseband section to MT6235, The Bluetooth signal is input form MT6601 and FM signal is input form TLG1120 section to MT6235. TX IQ signal is applied to the quadrature up-converter, and the up-converter LO signal is generated from the transceiver VCO within MT6139B. This up-converter translates the GMSK-modulated signal to an intermediate frequency (IF) that forms one input to a frequency/phase detector circuit. This IF signal is the reference input to an Offset-PLL circuit. The feedback path of this Offset-PLL circuit includes a down-conversion from the RF output frequency range to the IF range. The two inputs to this down-conversion mixer are formed the TX_VCO output and the LO generation circuits. The mixer output is the offset feedback signal that forms the variable input to a frequency/phase detector circuit. The detector compares its variable input to its reference input and generates an error signal that is low-pass filtered by the loop filter and applied to TX_VCO to force the RF frequency in the direction that minimizes errors. The TX_VCO output passes PA, Antenna SW, Coaxial connector with switch and emitted from embedded antenna. Digital Modulation: Analog speech produced by a microphone is encoded to digital PCM samples using a CODEC. The PCM samples are passed to a Vocoder for AMR (Advanced Multi Rate) encoding, to compress the speech samples. The encoding rate is determined by the Vocoder which formats the speech samples as data packets. A new data packet with data rate information is read by the microprocessor every 20 ms. The speech CODEC becomes AMR, FR(Full Rate), EFR(Enhanced FR) and HR(Half Rate). The microprocessor then sends the data packet to the transmit subsystem, and passed DAC to covert analog signal. I/Q base band signal is filtered and is inputted into 6M4003 containing quadrature phase modulator. Battery AC Charge r Bluetooth Specification Power Supply DC 5V by USB port form Adapter Frequency Range 2402MHz -2480MHz Modulation Type FHSS Channel Spacing 1MHz Channel Number 79 (CH Low: 2402MHz, CH Mid: 2441MHz, CH High: 2480MHz) Antenna Type Internal Fixed Antenna Gain 0dBi Temperature Range -20°C ~ 50°C

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant : COSMOCOM, SAC Address : LUIS ARIAS SCHEREIBER, 215-LIMA-PERU Product Name : Mobile Phone Model Name : TZ3132 Brand Name : TZONTZEN FCC ID : ZKB-TZ3132 Report No. : STS110421F2 Date of Issue : May. 17, 2011 Issued by :Shenzhen Super Test Service Technology Co., Ltd. Address : No.5, Langshan 2nd Rd., North Hi-Tech Industrial park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-2795 8522 Fax : 86-755-2795 8022 The report consists 36 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by STS. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: ZKB-TZ3132 Report No.: STS110421F2 Page 2 of 36 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 2 2. GENERAL INFORMATION ............................................................................................................................ 4 2.1 Product Information ...................................................................................................................................... 4 2.2 Objective ...................................................................................................................................................... 5 2.3 Test Standards and Results .......................................................................................................................... 5 2.4 Environmental Conditions............................................................................................................................. 5 3. TEST FACILITY ............................................................................................................................................. 6 3.1TEST FACILITY............................................................................................................................................. 6 3.2 GENERAL TEST PROCEDURES ................................................................................................................ 6 3.3 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS..................................................................... 7 4. SETUP OF EQUIPMENT UNDER TEST ....................................................................................................... 8 4.1 SUPPORT EQUIPMENT.............................................................................................................................. 8 4.2 TEST EQUIPMENT LIST ............................................................................................................................. 9 5. 47 CFR Part 15C 15.249 Requirements..................................................................................................... 10 5.1 Spurious Emission Test .............................................................................................................................. 10 5.1.1 Requirement............................................................................................................................................ 10 5.1.2 Test Description ........................................................................................................................................11 5.1.3 Test Description ....................................................................................................................................... 12 5.1.4 Test Result............................................................................................................................................... 13 5.2 Band Edge................................................................................................................................................. 18 5.2.1 Requirement............................................................................................................................................ 18 5.2.2 Test Description ....................................................................................................................................... 18 5.2.3Test Result................................................................................................................................................ 18 5.3 Conducted Emission................................................................................................................................ 21 5.3.1 Definition ................................................................................................................................................. 21 5.3.2 Test Description ....................................................................................................................................... 21 5.3.3 Test Result............................................................................................................................................... 21 APPENDIX 1 .................................................................................................................................................... 24 PHOTOGRAPHS OF TEST SETUP ................................................................................................................ 24 APPENDIX 2 .................................................................................................................................................... 27 PHOTOGRAPHS OF EUT ............................................................................................................. .................. 27 FCC ID: ZKB-TZ3132 Report No.: STS110421F2 Page 3 of 36 1．VERIFICATION OF CONFORMITY Equipment Under Test: Mobile Phone Brand Name: TZONTZEN Model Number: TZ3132 FCC ID： ZKB-TZ3132 COS…

Text truncated - open the document above for the full version.

FCC ID: ZKB-TZ3132 Report No.: STS110421F2 CE TEST SETUP RE TEST SETUP FCC ID: ZKB-TZ3132 Report No.: STS110421F2
