All specifications are subject to change without prior notice. 1 Version：1006 Version:1.01 Product Name: GPS Tracker Model Name: PRIME AT (VL1000) Date: 20110609 PRIME AT (VL1000) Quick Start All specifications are subject to change without prior notice. 2 Version：1006 PRIME AT (VL1000) is a powerful GPS Locator with mini size, light weight and superior sensitive receiving ability, fast TTFF, more accuracy, low power consumption. The VL1000 has 2 press buttons, one for the SOS and another for power on/off. Its location can be real time tracked through internet or specified terminals. User can communicate with the service provider through GPRS/GSM network, transfer information of Emergency, Geo-Fence, Remote Control, Motion Detection, Freefall Detection and Lower power detection. PRIME AT (VL1000) is designed for many applications, such as vehicle, human body or pets. This device complies with part 15B, part 22 and part 24 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference (2) this device must accept any interference, including interference that may cause undesired operation. WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Version:1.01 Product Function Description All specifications are subject to change without prior notice. 3 Version：1006 Version:1.01 Part 1:Product Overview And Basic Operation 1 Part List 2 Product overview SOS Key Power LED GSM LED GPS LED SIM Cover USB Cover Power Key 3 SIMCard Install screw up simcard cover 4 Turn on PRIME AT (VL1000) Press the power key PRIME AT (VL1000) AC-DC charge Data and Charge cable 5 Install the Data cable driver Find the data cable driver ”PL-2303 driver Installer.exe”,and install the drive for the data cable Connect To PC 6 Mini USB Main Port Charge 7 Mini USB Main port screw down simcard cover All specifications are subject to change without prior notice. 4 Version：1006 Part 2:PRIME AT (VL1000) tools application 1 Main windows and Version Run the “VL1000 Manager(201005311546).exe” and the main windows is showed as below. The version is V1.02 now. Select the port for the communicated and the Baud rate is 115200 2 Basic configure Select the “Enable download this function” and input the public password “VL1000”. Then contact with the operator and get the APN information for the GPRS. 3 4 PRIME AT (VL1000) Is Tested By SMS When the “Basic configure” finished, select the report mode for NO6: Force On SMS and set the SMS gate PRIME AT (VL1000) Is Tested By GPRS When the “Basic configure” finished, select the report mode for NO4: Long_TCP_BUF_MODE , then set the main server IP and the backup server IP for the listening 5 SOS Key Configure Select the “Function Key” and Select the “Enable download this function", then input the password. Normally, choose “yes” for thepower key enable and you can choose one of thetwo modes : “First Start GPS, and report the real GPS information” and “report the last time GPS information” 6 After these steps, press the download button as below and the SOS function was ready for testing More test examples please refer tothe document “VL1000 Manager Tool User Guide V1.01.doc”

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (current)1.01.0Nov-14-2006 Revised wording (current)1.02.0Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Micron Electronics LLC June-20-2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _______ Micron Electronics LLC _______hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description:GSM/GPRS/GPS Tracker model name: PRIME AT (VL1000) FCC ID:) ZKQ-0609201100001 We affirm that between SIEMIC and __ Micron Electronics LLC __, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s name / title Michael Xu/CEO Contact information / address E-mail: [email protected] Tel:+1 888-538-3489 Address: 601 N. Congress Ave, Suite 439, Florida, USA

SCS-F19: Confidentiality Request LetterPage 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (current)1.01.0Nov-14-2006 Adding CFR 2.4591.02.0August – 11 - 2008 SCS-F19: Confidentiality Request LetterPage 2 of 2 Rev 2.0 Micron Electronics LLC June-20-2011 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: ZKQ- 0609201100001 We hereby request confidential treatment of information accompanying this application as outlined below: -Bloc kDiagram - Operational Description - Parts List/Tune Up Info - Schematics The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title Michael Xu/CEO Contact information / address E-mail: [email protected] Tel:+1 888-538-3489 Address: 601 N. Congress Ave, Suite 439, Florida, USA

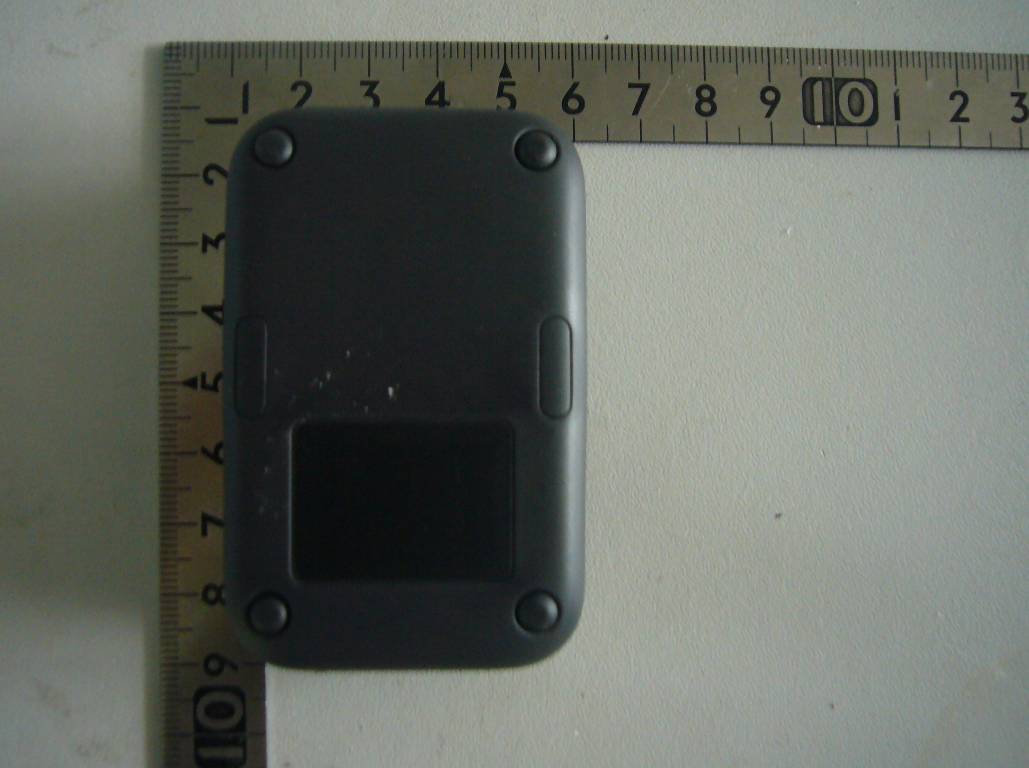

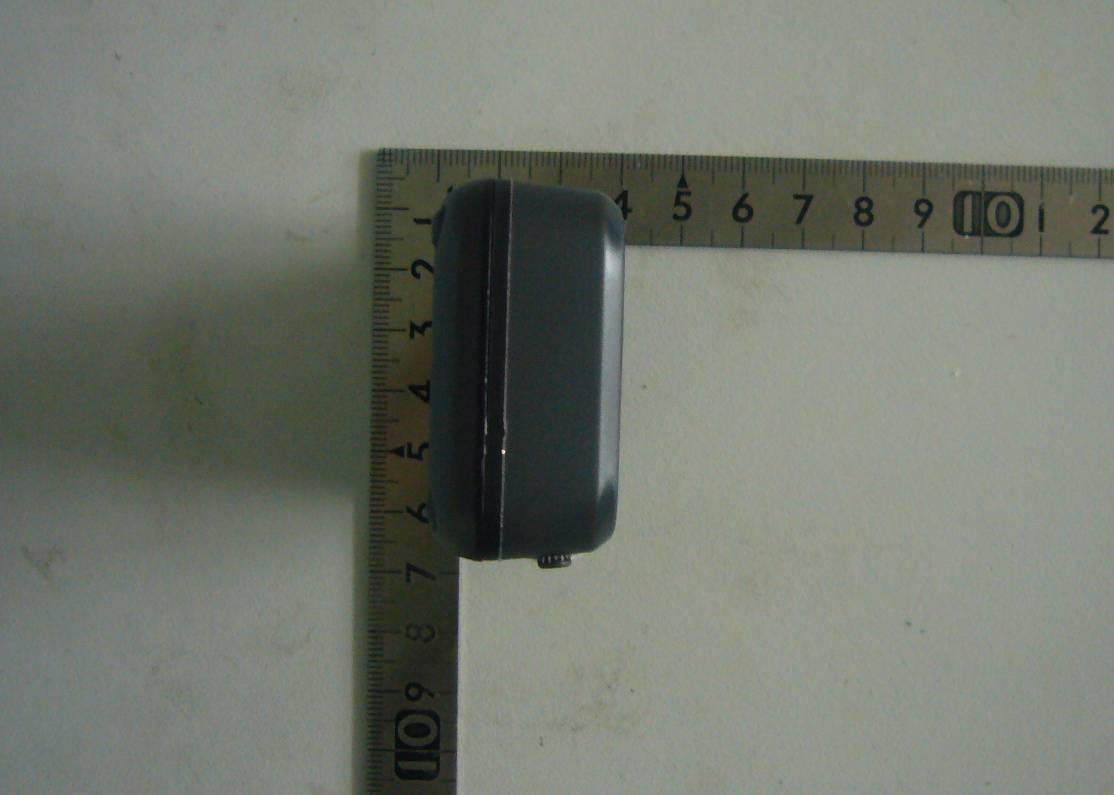

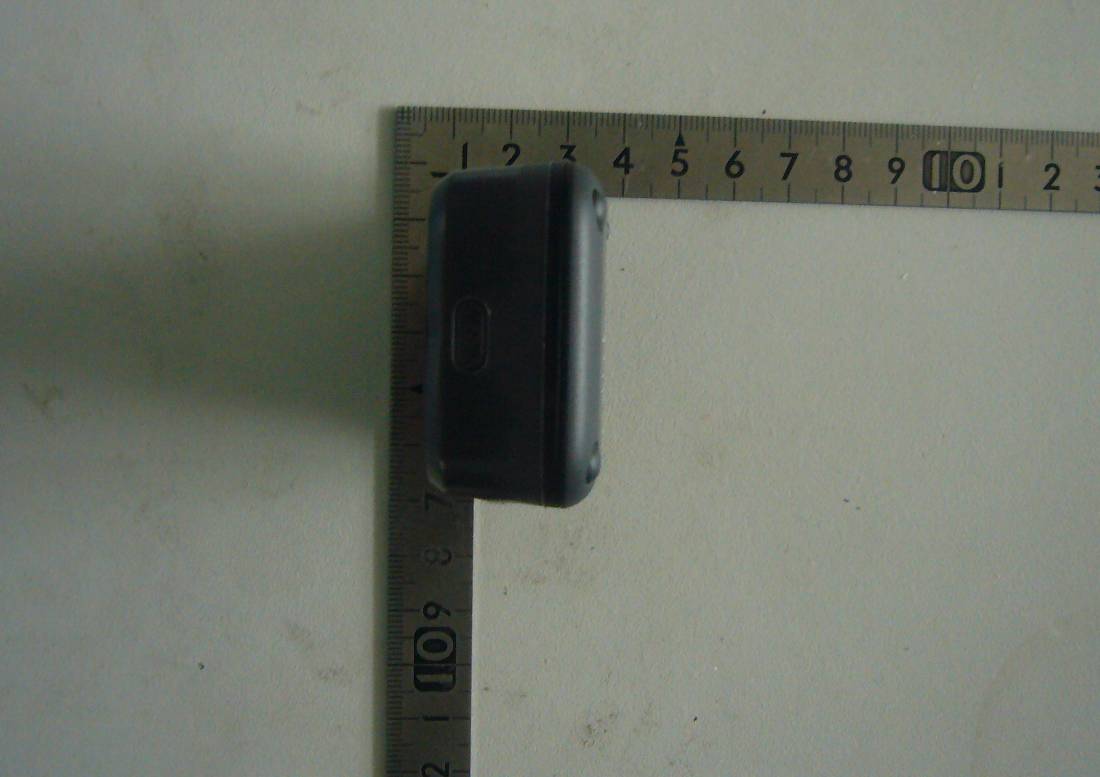

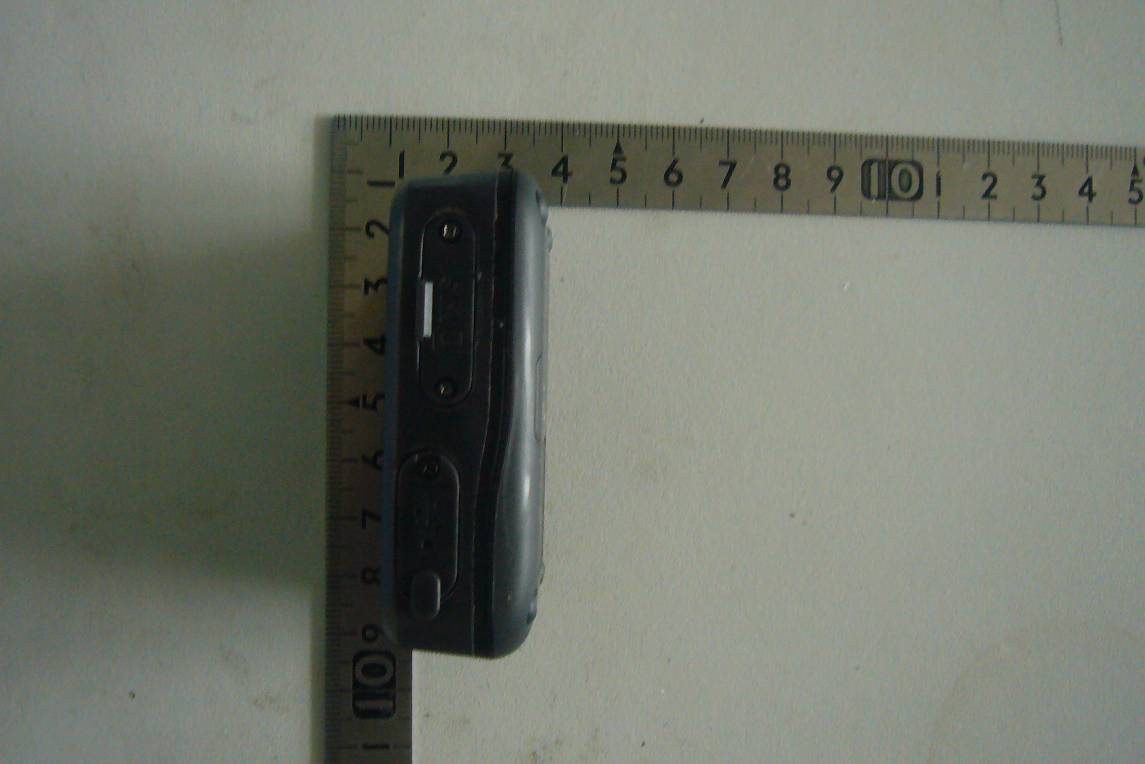

PRIME AT (VL1000) Front View Back View Top View Bottom View Left View Right View
