ZKQ-PLTGSM Tracker

1 GSM/GPRS/GPS Tracker Prime AT Plus User Manual Revision: 1.04 Document Title Prime AT Plus User manual Version 1.04 Finale Date 2012-08-28 Status Released Document Control ID TRACKER Prime AT Plus 2 Contents 1 Introduction .................................................................................................................................... 3 2 Product Overview .......................................................................................................................... 3 2.1 Appearance .......................................................................................................................... 3 2.2 Buttons/Mini USB Interface Description ............................................................................ 3 2.3 LED Description ................................................................................................................. 4 2.4 External Power Interface ..................................................................................................... 5 2.4.1 External DC Charger Interface ................................................................................. 5 2.4.2 External Battery Interface ........................................................................................ 6 3 Getting Started ............................................................................................................................... 7 3.1 Parts List ............................................................................................................................. 7 3.2 Battery Charging ................................................................................................................. 7 3.3 Prime AT Plus Data Cable ................................................................................................... 8 3.4 How to insert SIM Card ...................................................................................................... 8 3.5 Power on/Power off ............................................................................................................. 9 4 Trouble shooting and Safety info ................................................................................................... 9 4.1 Trouble shooting ................................................................................................................. 9 4.2 Safety info ......................................................................................................................... 10 5 warning statement...........................................................................................10 3 1 Introduction Prime AT Plus is a powerful GPS locator which is designed for vehicle, pets and assets tracking. With superior receiving sensitivity, fast TTFF and GSM frequencies 850/900/1800/1900. Its location can be real time or schedule tracked by backend server or specified terminals. Based on the embedded wireless tracking protocol, Prime AT Plus can communicate with the backend server through GPRS/GSM network, and transfer reports of emergency, Geo-fencing, device status and scheduled GPS position etc... Service provider is easy to setup their tracking platform based on the functional wireless tracking protocol. 2 Product Overview 2.1 Appearance Figure 1-1 2.2 Buttons/Mini USB Interface Description Button /Mini USB Interface Description KEY/interface Description 4 Power Key Power on Prime AT Plus Power off Prime AT Plus (If power key is enabled) Function Key Geo-Fence mode Long press the key to enable/disable Geo-Fence ID0 Geo-Fence in current position mode Long press the key to enable/disable Geo-Fence ID0. If enable Geo-Fence ID0, using the current position as the centre of Geo-Fence 0. SOS mode (default) Long press the key to active SOS alarm Mini USB interface Connect a 5V DC adapter can power on Prime AT Plus and charge the internal battery Connect a 3.7V Li-ion or Li-Polymer battery can power on Prime AT Plus Backend server developer or administrator can use the Data_Cable_M to configure Prime AT Plus Reset Key Click the key will turn off internal VBAT when OS is abnormal, and then press Power Key to restart Prime AT Plus. Note: Reset key is invalid when external battery is used. 2.3 LED Description Figure 1-2 There are three LED lights in Prime AT Plus device, the description as following. Light Event State GPS LED GPS fixed failed Slow flash (blue) GPS has been turned off Dark GSM LED Network has been registered Slow flash (green) Power off Dark Power LED Power on and normal Dark Fully charged Slow flash (green) 5 In charging Slow flash (red) Power key was pressed and prepare to power off Fast flash (red) Power key was pressed and prepare to power on Fast flash (green) 2.4 External Power Interface 2.4.1 External DC Charger Interface The Pin2 on Mini-USB connector is used for charging and named as VCHG pin, which can be connected to 5V DC power source to power on Prime AT Plus device and charge the current battery. Figure 1-3 PIN NO. NET NAME FUNCTION PIN1 NC Not used PIN2 +5V VCHG +5V input PIN3 NC Not used PIN4 NC Not used PIN5 NC Not used PIN6 NC Not used PIN7 NC Not used PIN8 NC Not used PIN9 NC Not used PIN10 GND Ground 6 2.4.2 External Battery Interface The Pin 8 and Pin9 on Mini-USB connector are used for external battery and named as EXTBAT pin, which can be connected to 3.7V Li-ion or Li-Polymer battery to power on Prime AT Plus device. The Pin6 on Mini-USB connector is used for external battery interrupt detection and named as EXT_VBAT INT, which must be connected to GND for EXT_VBAT detection. Figure 1-4 PIN NO. NET NAME FUNCTION PIN1 NC Not used PIN2 NC Not used PIN3 NC Not used PIN4 NC Not used PIN5 NC Not used PIN6 INT3_EXT_VBAT external battery interrupt detection PIN7 NC Not used PIN8 EXT_VBAT for external battery PIN9 EXT_VBAT for external battery PIN10 GND Ground 7 3 Getting Started 3.1 Parts List Name Picture Remark Prime AT Plus Locater The GSM/GPRS/GPS locator. AC-DC Pow…

Text truncated - open the document above for the full version.

Stay Connected...... Aug.3, 2012 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: Micron Electronics LLC., the undersigned, hereby authorizes Mr. Zhang Shuangwen from CCIC Southern Electronic Product Testing (Shenzhen) Co., Ltd., to act on the behalf of the Micron Electronics LLC. solely in matters relating to the application for an FCC equipment authorization for FCC ID #ZKQ-PLT including the signing of documents in connection with this Application. Necessary acts carried out by CCIC Southern Electronic Product Testing (Shenzhen) Co., Ltd. on the behalf of Micron Electronics LLC in connection with the Application shall have the same effect as acts of Micron Electronics LLC. The Micron Electronics LLC. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely, Ping Cheng Director Micron Electronics LLC. 600 N. Congress Ave. Suite 439 Delray Beach, FL 33445 561-252-1780 Stay Connected...... Aug.3, 2012 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: FCC Certification Confidentiality Request by Micron Electronics LLC (FCC ID: ZKQ-PLT) Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Micron Electronics LLC requests that the following documents regarding this submission for FCC ID: ZKQ-PLT be kept confidential: Exhibit Type File Name Block Diagram CONF APPENDIX ZKQ-PLT_Block Diagram.pdf Schematics CONF APPENDIX ZKQ-PLT_Schematics.pdf Operational Description CONF APPENDIX ZKQ-PLT_Operational Description.pdf Part list CONF APPENDIX ZKQ-PLT_BOM.pdf Tune-Up-Procedure CONF APPENDIX ZKQ-PLT Tune up procedure.pdf Those documents contain detailed system and equipment description and related information about the product which Micron Electronics LLC considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Micron Electronics LLC considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours Sincerely, Ping Cheng Director Micron Electronics LLC. 600 N. Congress Ave. Suite 439 Delray Beach, FL 33445 561-252-1780

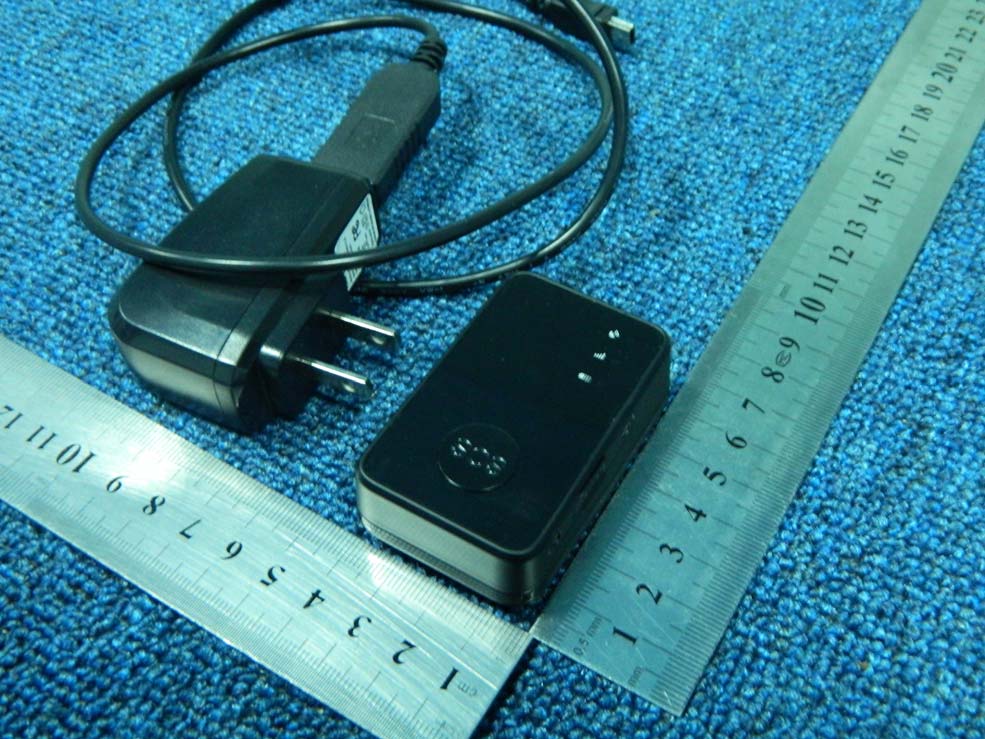

Fig.1 Appearance and size (obverse) Fig.2 Appearance and size (reverse) Fig.3 Appearance and ports (Side) Fig.4 Mainboard (obverse) Fig.5 Mainboard (reverse) Fig.6 Battery Fig.7 Adapter

Fig. 1 PCBA (obverse) Fig. 2 PCBA (obverse, remove the GSM antenna) Fig. 3 PCBA (reverse, shielding on) Fig. 4 PCBA (reverse, shielding off)

Report No.: FCC2012-8029E CCIC-SET/T（00） Page 1 of 18 EMC TEST REPORT Report No.: FCC2012-8029E Product: GSM Tracker Model No. : PRIME AT PLT Brand Name: PRIME Applicant: Address: RADISYS CORPORATION 601 North Congress Ave Suite 439, Delray Beach, FL 33445 Issued by: CCIC Southern Electronic Product Testing (Shenzhen) Co., Ltd. Lab Location: Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055, P. R. China Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 18 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 20 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: FCC2012-8029E CCIC-SET/T（00） Page 3 of 18 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 4 1.1 EUT Description ........................................................................................................................... 4 1.2 Test Standards and Results ........................................................................................................... 5 1.3 Facilities and Accreditations ......................................................................................................... 6 1.3.1 Facilities .................................................................................................................................... 6 1.3.2 Test Environment Conditions .................................................................................................... 6 1.3.3 Measurement Uncertainty ......................................................................................................... 6 2. TEST CONDITIONS SETTING............................................................................................... 7 2.1 Test Mode ..................................................................................................................................... 7 2.2 Test Setup and Equipments List ................................................................................................... 8 2.2.1 Conducted Emission.................................................................................................................. 8 2.2.2 Radiated Emission ..................................................................................................................... 8 3. 47 CFR PART 15B REQUIREMENTS .................................................................................. 12 3.1 Conducted Emission ................................................................................................................... 12 3.1.1 Requirement ............................................................................................................................ 12 3.1.2 Test Description ...................................................................................................................... 12 3.1.3 Test Result ............................................................................................................................... 12 3.2 Radiated Emission ...................................................................................................................... 15 3.2.1 Requirement ............................................................................................................................ 15 3.2.2 Test Description ...................................................................................................................... 15 3.2.3 Test Result ............................................................................................................................... 15 Change History Issue Date Reason for change 1.0 Oct 29, 2012 First edition Report No.: FCC2012-8029E CCIC-SET/T（00） Page 4 of 18 1. GENERAL INFORMATION 1.1 EUT Description EUT Type ............................. : GSM Tracker Serial No............................... : FCC ID ................................. : (n.a, marked #1 by test site) ZKQ-PLT Hardware Version ................. : V2.1 Software Version .................. : V01B15T01 Power Supply ....................... : Battery Brand Name: Micron Model No.: P21-1300 Serial No.: (n.a. marked #1 by test site) Capacitance: 1300mAh 4.8Wh Rated Voltage: 3.7V Charge Limit: 4.2V Ancillary Equipment 1 ......... : Ancillary Equipment 2........: AC Adapter (Charger for Battery) Brand Name: / Model Name: A361-0500500U Serial No.: (n.a. marked #1 by test site) Rated Input: 100-240V, 0.2A, 50/60Hz Rated Output: 5V, 500mA PC Brand Name:ThinkPad Model Name:E420 Serial No.:1141AH6 Note 1: The EUT is GSM Tracker, it supports GSM 850MHz, 1900MHz, GPRS, Note 2: The EUT is equipped with a T-Flash card slot; equipped with a USB port which can be connected to the ancillary equipments supplied by the manufacturer e.g. the AC Adapter and the USB Cable. Note 3: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Report No.: FCC2012-8029E CCIC-SET/T（00） Page 5 of 18 1.2 Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart B: No. Identity Document Title 1 47 CFR Part 15 (10-1-09 Edition) Radio Frequency Devices Test detailed items/section required by FCC rules and results are as below: No. Section Description Result 1 15.107 Conducted Emission PASS 2 15.109 Radiated Emission PASS NOTE: The EUT has been tested according to FCC part 15，Class B.The test procedure is according…

Text truncated - open the document above for the full version.

Conducted Emission test photo Radiated Emission test photo
