ZKR-MVT100NETMobile Video Telematics

Warranty service and responsibility scopeMVT100 Product Specification We shall not be responsible for the damages caused by errors or data loss of this product, plus the damages while this product is being operated by a user. This product is designed to record, store, transmit, play and analyze, the video andother data incurred by impacts and car accidents. Video can be also recorded even at user’s discretion. However, it is not assured to record all video in a specific environment or operation situation.Remarks;*1. Wider angle lens type is available. *2. SD memory card must be applied by recommended type.*3. Life cycle of Battery is for 12months. CONTENTS SPECIFICATION TYPE STD LUX NET Camera(*1) Digital 2Mega Pixel, CMOS O O O Recording Encrypted MPEG4 QVGA or VGA : 5 / 15 / 30 fps (default VGA-5fps) O O O Event Max. Pre-20sec / Post 25sec at QVGA (default 10sec-5sec, at VGA) O O O Normal Supports Normal Recording File O O O Audio ADPCM Supports Audio Recording (default ON) O O O Event List Shock 3D G-Sensor (default level 3) O O O Emergency Built-in Touch Button O O O Speed When happen Speed over during 1min by setting speed value O O O External Device When get Input signal from External devices (supports Max. 3devices) X X O Data Storage SD Memory Card(*2) Supports up to 32GB 2GB 4GB 4GB GPS Commercial European GPS Module O O O Display OLED Display Time, Event List, SD Capacitor, Recording Mode and etc. X O O Network Mobile(*4) UMTS/HSDPA 850/1900/2100MHz GSM/GPRS/EDGE 850/900/1900/2100MHz X X X Power Cigar Jack Cable Input DC 12V or 24V only O O O Battery(*3) Lithium Ion Polymer Supports to record data safely, When Main Power shut down during recording Event data and Support RTC time. 370mAh ← ← Accessory Stand Bracket, Cable Holder (6pcs) O O O Dimension 140 x 70 x 30mm (except of Stand Bracket) Temperature Operating -25 ° C~75 ° C / Storage -45 ° C~85 ° C / Relative Humidity 5%~95% noncondensing FCC InformationIMPORTANT NOTE:FCC Radiation Exposure Statement The Federal Communications Commission Radio Frequency Interference Statement includes thefollowing warning:NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate theequipment. This equipment complies with FCC radiation exposure limits set forth an uncontrolled environment.This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna ortransmitter. Doosan Venture Digm #522, Dongan-gu Pyeongchon-dong Anyang-city Gyeonggi-do, 431-070, Korea

Page 1 | 9 Published by MLOGSEE, INC. Mobile Video Telematics MVT100 Installation Guide „ High Quality 2Mega pixel CMOS Camera „ Normal and Event Recording with Audio „ 3axis G-Sensor Detecting „ High Performance GPS Tracking „ OLED Display for Status Information „ Emergency Touch Button „ Supports Various Mobile Communication „ Uploading Video and Snapshot „ Digital External Device Input „ Special Client Viewer S/W Page 2 | 9 Published by MLOGSEE, INC. Components Thanks for choosing our product. Before using, check the components of product which are properly included as shown below. MVT100 Installation Guide SD Memory Card Bracket Holder Cigar Jack Cable Cable Holder Antenna (included only for network type) * The specification of the components may be changed without prior notice in order to enhance the function or quality of the product. * Charging Lithium Ion Polymer Battery is included. * In case of Network type, the back office server system must be needed. So, please ask to your local distributor for Usage including USIM card. Warranty Service Notice Dear Customers, 1. Mlogsee, MVT100 warranty is 1year limited after purchase the product. 2. For details of coverage, please check to your local distributors. 3. The original manufactures warranty starts from the date of warranty registration at the time of delivery. 4. To keep the warranty valid the product must be properly maintained and serviced according to recommend service intervals. Abuse and neglect can void this warranty. Responsibility Scope We shall not be responsible for the damages caused by errors or data loss of this product, plus the damages while product is being operated by a user. This product is designed to record, store, transmit, play and analyze, the video and other data incurred by impacts and car accidents. The video can be also recorded even at user’s discretion. However, it is not assured to record and transmit all video in a specific environment or operation situation. Page 3 | 9 Published by MLOGSEE, INC. Product Overview MVT100 is a driver recorder called EDR for commercial, government and private vehicles. A user can check various data such as a driver’s location, speed, driving behaviors, audio, picture and video, and also a fleet manager can get such as the data via various mobile network for real-time monitoring. MVT100 provides the management back office solution for Eco-Driving needs and, 3kinds of major key tracking services such as GPS location, Video and Event. *Please, ask to your local distributor for the back office solution service. Product Specification CONTENTS SPECIFICATION STD LUX NET Camera Digital 2Mega CMOS(*1) Diagonal 122.8 ̊Lens Recording Encrypted MPEG4 QVGA / VGA : 5 / 15 / 30 fps (default VGA-5fps) O O O Event Max. Pre-20sec / Post 25sec at QVGA (default 10sec-5sec at VGA) O O O Normal Supports Normal Recording File O O O Audio ADPCM Supports Audio Recording (default ON by S/W setting) O O O Event List(*2) Shock Built-in G-Sensor (default level 3) O O O Emergency Built-in Touch Button O O O Speed When Speed over during 1mintue by setting speed value O O O External Device When get input signal from External devices (supports Max. 3devices) X X O Data Storage SD SD Memory Card (*3) 2GB 4GB 4GB GPS Commercial European GPS O O O Display OLED Time, Event List, SD Capacitor, GPS Detection Rate, Recording Mode X O O Network Mobile(*4) UMTS/HSDPA 850/1900/2100MHz GSM/GPRS/EDGE 850/900/1900/2100MHz X X O Power by Cigar Jack Cable Length 5m, Input DC 9V ~ 27V only O O O Battery(*5) Lithium Ion Polymer Support to record and transmit a last data safely, When the Power sudden shut down during recording and transmitting Event and Support RTC time. 370mAh Accessory Bracket Holder, Cable Holder (6pcs) O O O Dimension (W)idth x (D)epth x (H)eight (except of Stand Bracket) 140 x 70 x 30mm Temperature Operating -25°C~+75°C / Storage -45°C~85°C Relative Humidity 5%~95% noncondening ※ Remarks 1. Wider angle lens type is available. 2. The event list can be uploaded. (available only network type) 3. SD memory card must be applied by recommended type. 4. To use SIM card for data communication with server, please ask to your local distributors. And this mobile network is to support only data upload and download and is not support voice call. 5. Life Cycle of Battery is for 12months. Page 4 | 9 Published by MLOGSEE, INC. Name of the parts Camera Lens 2Mega pixels CMOS camera and wider angle lens can be supported OLED Display SD Memory Status, GPS Sensitivity and Event type are displayed Operation Indicator (LED) Shows the operating status SD Card Slot A slot connector for Insertion of SD memor y card Bracket Holder Attached to windshield of vehicle External Input Device Port Available additional event by external devices with special cable Power Input (DC Jack) Usually cigarette lighter power (DC 12V or 24V) supported Air Vent The heat is released inside to outside. Antenna Hole Use only for network type USIM Card Cover Use only for network type Emergency Touch Button Page 5 | 9 Published by MLOGSEE, INC. Installation Cautions when install For smooth capture of images and GPS signals, this device must be attached on the front glass of vehicle beneath room mirror to the forward direction. When the bracket holder of MVT100 is attached on the glass, you have to fix it as shown in the figure below. When there is dark tinting on the front glass, when the navigation and other devices are installed too close to the device, or when wrong placed substance is on the device, they may have bad effects on the capture of images and GPS signals. USIM and Antenna installation Before install this product to the vehicle, in case of network type, USIM and Antenna must be installed as shown below. The network type must use the back office server solution and ask to your local distributor including the data plan for your usage. ① USIM Card Installation ② Antenna Installation Mounting Place according to each car type As the ang…

Text truncated - open the document above for the full version.

MLOGSEE, INC. Doosan Venture Digm#522, Dongan-gu, Pyeongchon-dong 126-1, Anyang-si, Gyeonggi-do, Korea, 431-070 DATE: MARCH. 3, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: We, the undersigned, hereby authorize SGS Testing Korea Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Testing Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). In authorizing SGS Testing Korea Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; MLOGSEE, INC. Doosan Venture Digm#522, Dongan-gu, Pyeongchon-dong 126-1, Anyang-si, Gyeonggi-do, Korea, 431-070 h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, EONGI AN / General Manager / Mlogsee, Inc.

MLOGSEE, INC. Doosan Venture Digm#522, Dongan-gu, Pyeongchon-dong 126-1, Anyang-si, Gyeonggi-do, Korea, 431-070 Date: March 3, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046, USA Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. MLOGSEE, Incorporation would like the following documents regarding this submission for FCC ID:ZKR-MVT100NET to be kept confidential. 1. Schematics 2. Block diagram 3. Operating description 4. Tune up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, EONGI AN / General Manager / Mlogsee, Inc.

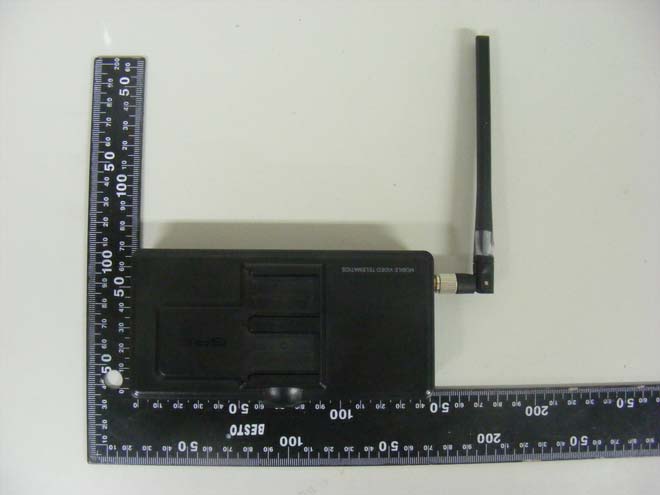

Model : MVT100NET External photos of EUT Model : MVT100NET Front view of EUT Rear view of EUT Model : MVT100NET Top view of EUT Bottom view of EUT Model : MVT100NET Side view of EUT

FCC Label 1. FCC Label Drawing 2. FCC Label Location MLOGSEE, INC. Model: MVT100NET FCC ID : ZKR- MVT100NET Made in Korea

Model : MVT100NET Internal photos of EUT Model : MVT100NET Internal Photo 1 Internal Photo 2 Model : MVT100NET Top view of main board Bottom view of main board Model : MVT100NET Top view of Sub board Bottom view of Sub board Model : MVT100NET Top view of GSM & WCDMA board Bottom view of GSM & WCDMA board Model : MVT100NET GPS board GPS Antenna

Report Number: F690501/RF-RTL004701 Page: 2 of 52 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee INDEX TABLE OF CONTENTS Page 1. General Information ---------------------------------------------------------------------------------------3 2. RF radiated output power & spurious radiated emission ----------------------------------------7 3. Conducted Output Power ------------------------------------------------------------------------------- 16 4. Occupied Bandwidth 99 % ------------------------------------------------------------------------------18 5. Spurious Emissions At Antenna Terminal----------------------------------------------------------- 25 6. Band Edge --------------------------------------------------------------------------------------------------35 7. Peak-Average Ratio-------------------------------------------------------------------------------------- 44 8. Frequency Stability ----------------------------------------------------------------------------------------46 9. RF Exposure Evaluation -------------------------------------------------------------------------------- 51 Report Number: F690501/RF-RTL004701 Page: 3 of 52 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1. General information 1.1. Testing laboratory SGS Korea Co., Ltd.(Gunpo Laboratory) - 705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. - Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.kr.sgs.com/ee Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of applicant Applicant :MLOGSEE, INC. Address : Doosan Venture Digm #522, Dongan-gu Pyeongchon-Dong 126-1, Anyang-city Gyeonggi-Do, Korea Contact Person : AN Eon-Gi Phone No. : +82 +31 4782 0620 1.3. Description of EUT Kind of Product Mobile Video Telematics Model Name MVT100NET Serial Number N/A Power Supply DC 12 ~ 24 V Conducted Power GSM850 : 31.60 ㏈m GSM1900 : 28.90 ㏈m WCDMA850 : 22.52 ㏈m WCDMA1900 : 22.73 ㏈m Frequency Range GSM850 : 824.2 ㎒ ~ 848.8 ㎒ GSM1900 : 1 850.2 ㎒ ~ 1 909.8 ㎒ WCDMA850 : 826.4 ㎒ ~ 846.6 ㎒ WCDMA1900 : 1 852.4 ㎒ ~ 1 907.6 ㎒ Class of GPRS Class 10, Class B Ant gain GSM850 : 1.875 dBi GSM1900 : 3.800 dBi WCDMA850 : 1.875 dBi WCDMA1900 : 3.800 dBi # The EUT is without voice mode Report Number: F690501/RF-RTL004701 Page: 4 of 52 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1.4. Description of test mode GPRS Data GPRS GPRS GPRS GPRS Voice GSM 1 TX Slot 2 TX Slot 3 TX Slot 4 TX Slot Band Frequency (㎒) (㏈m ) (㏈m ) (㏈m ) (㏈m ) (㏈m ) 824.2 N/A 31.10 29.50 N/A N/A 836.6 N/A 31.30 29.70 N/A N/A GSM 850 848.8 N/A 31.60 30.00 N/A N/A 1850.2 N/A 28.90 26.50 N/A N/A 1880.0 N/A 28.40 26.80 N/A N/A GSM 1 900 1909.8 N/A 28.40 26.80 N/A N/A EDGE Data EDGE EDGE EDGE EDGE 1 TX Slot 2 TX Slot 3 TX Slot 4 TX Slot Band Frequency (㎒) (㏈m ) (㏈m ) (㏈m ) (㏈m ) 824.2 26.30 25.30 N/A N/A 836.6 26.40 24.50 N/A N/A GSM 850 848.8 26.70 24.70 N/A N/A 1850.2 25.40 23.40 N/A N/A 1880.0 25.80 23.70 N/A N/A GSM 1 900 1909.8 25.70 23.70 N/A N/A 3GPP 34.121 Cellular Band[㏈m ] PCS Band[㏈m ] 3GPP Release version Mode Subtest 4132 4183 4233 9262 9400 9538 99 WCDMA 12.2kbps RMC 22.22 22.52 22.46 22.60 22.73 22.19 GSM (850 / 1900) We found out the test mode with the highest power level after we analyze all the data rates. So we chose GSM850 / GSM1900 1 TX slot and WCDMA 1900 12.2kbps RMC (worst case) as a representative. Report Number: F690501/RF-RTL004701 Page: 5 of 52 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1.5. Test equipment list Equipment Manufacturer Model Cal Due. Signal Generator Agilent E4438C Mar. 31, 2012 Signal Generator Rohde & Schwarz SMR40 Jul. 18, 2011 Spectrum Analyzer Agilent E4440A Mar. 31, 2012 Mobile Test Unit Rohde & Schwarz CMU200 Sep. 29, 2011 Directional Coupler KRYTAR 152661 Jun. 01, 2011 High Pass Filter Wainwright WHK3.0/18G-10SS Sep. 29, 2011 Band Reject Filter Wainwright WRCG824/849-814/85 960/10SS Apr. 01, 2012 DC power Supply Agilent U8002A Jan. 05, 2012 Preamplifier H.P. 8447F Jul. 05, 2011 Preamplifier Rohde & Schwarz 8449B Mar. 31, 2012 Bilog Antenna SCHWARZBECK MESSELEKTRONIK 396 Jul. 22, 2011 Horn Antenna Rohde & Schwarz HF 906 Oct. 08, 2011 Horn Antenna SCHWARZBECK BBH 9120D Nov. 09, 2011 Dipole Antenna VHAP/UHAP 975/958 Oct. 10, 2011 Antenna Master EMCO 1050 N.C.R. Turn Table Daeil EMC DI-1500 N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N.C.R. Report Number: F690501/RF-RTL004701 Page: 6 of 52 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fa…
