ZL2CECHYA0086Wireless Stereo Headset

Wireless stereo headset / Casque-micro stéréo sans fil Instruction Manual / Mode d’emploi CECHYA-0086 EN Precautions Before using this product, carefully read this manual and retain it for future reference. Read also the instructions for the PlayStation ® 3 system. Safety Observe all warnings, precautions and instructions. CHOKING HAZARD - Small parts. Keep out of the reach of small children. Use and handling Stop using the system immediately if you begin to feel tired or if you experience discomfort or pain in your head while operating the wireless stereo headset. If the condition persists, consult a doctor. The vibration function of the wireless stereo headset can aggravate injuries. Do not use the vibration function if you have any ailment or injury to the bones, joints or muscles of your head. Avoid prolonged use of the wireless stereo headset. Take a break at about 30-minute intervals. Permanent hearing loss may occur if the headset is used at high volume. Set the volume to a safe level. Over time, increasingly loud audio may start to sound normal but can actually be damaging your hearing. If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked. The louder the volume, the sooner your hearing could be affected. To protect your hearing: Limit the amount of time you use the headset at high volume. Avoid raising the volume to block out noisy surroundings. Lower the volume if you can’t hear people speaking near you. If you feel that the headset is irritating your skin, stop using it immediately. Do not expose the headset to high temperatures, high humidity or direct sunlight. Do not put heavy objects on the headset. Do not allow liquid or small particles to get into the headset. Do not throw or drop the headset or subject it to strong physical shock. Do not place any rubber or vinyl materials on the headset exterior for an extended period of time. Use a soft, dry cloth to clean the headset. Do not use solvents or other chemicals. Do not wipe with a chemically treated cleaning cloth. Do not disassemble or insert anything into the headset because this may cause damage to the internal components or cause injury to you. Observe all signs and instructions that require an electrical device or radio product to be switched off in designated areas, such as gas/refueling stations, hospitals, blasting areas, potentially explosive atmospheres or aircraft. The battery used in this device may present a risk of fire or chemical burn if mistreated. Do not disassemble, heat above 60 °C / 140 °F, or incinerate. FCC and IC Notice This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption rate (SAR). This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For assistance with this product, visit www.us.playstation.com or call SCEA Consumer Services at 1-800-345-7669. Declaration of Conformity Trade Name : Sony Computer Entertainment America LLC Model No. : CECHYA-0085, CECHYA-0086 Responsible Party : Sony Computer Entertainment America LLC Address : 919 E. Hillsdale Blvd., Foster City, CA 94404 U.S.A. Telephone No. : 650-655-8000 This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Before disposing of the wireless stereo headset The wireless stereo headset is made of plastics, metals and a Lithium-ion battery. Follow local regulations when disposing of the system. Sony products can be recycled for free in the United States and Canada by dropping the product off at a number of nationwide locations. Visit www.sony.com/ecotrade and www.eco.sony.ca for details.                        Using the headset with the PS3™ system Compatible with PS3™ system software version 4.20 or later. Only one headset at a time can be used with the PS3™ system. 1 Insert the wireless adaptor in the USB connector. 2 Slide the POWER switch on the headset to ON. Status display When the headset is used with a PS3™ system, the following status information is displayed in the upper right corner of the screen: Displayed when [Stereo Headset Audio Extension] is set to [On] * Displayed when Virtual Su…

Text truncated - open the document above for the full version.

Sony Computer Entertainment America LLC 919 East Hillsdale Blvd. Foster City, California 94404‐2175 July 13th, 2012 UL-CCS Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL-CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Simon Rate, Sr. Manager Product Safety and Compliance Sony Computer Entertainment America LLC

Sony Computer Entertainment America LLC 919 East Hillsdale Blvd. Foster City, California 94404‐2175 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: ZL2CECHYA0085 and ZL2CECHYA0086 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Antenna specification Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180 days. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely Yours, Simon Rate, Sr. Manager Product Safety and Compliance Sony Computer Entertainment America LLC July 13 th , 2012

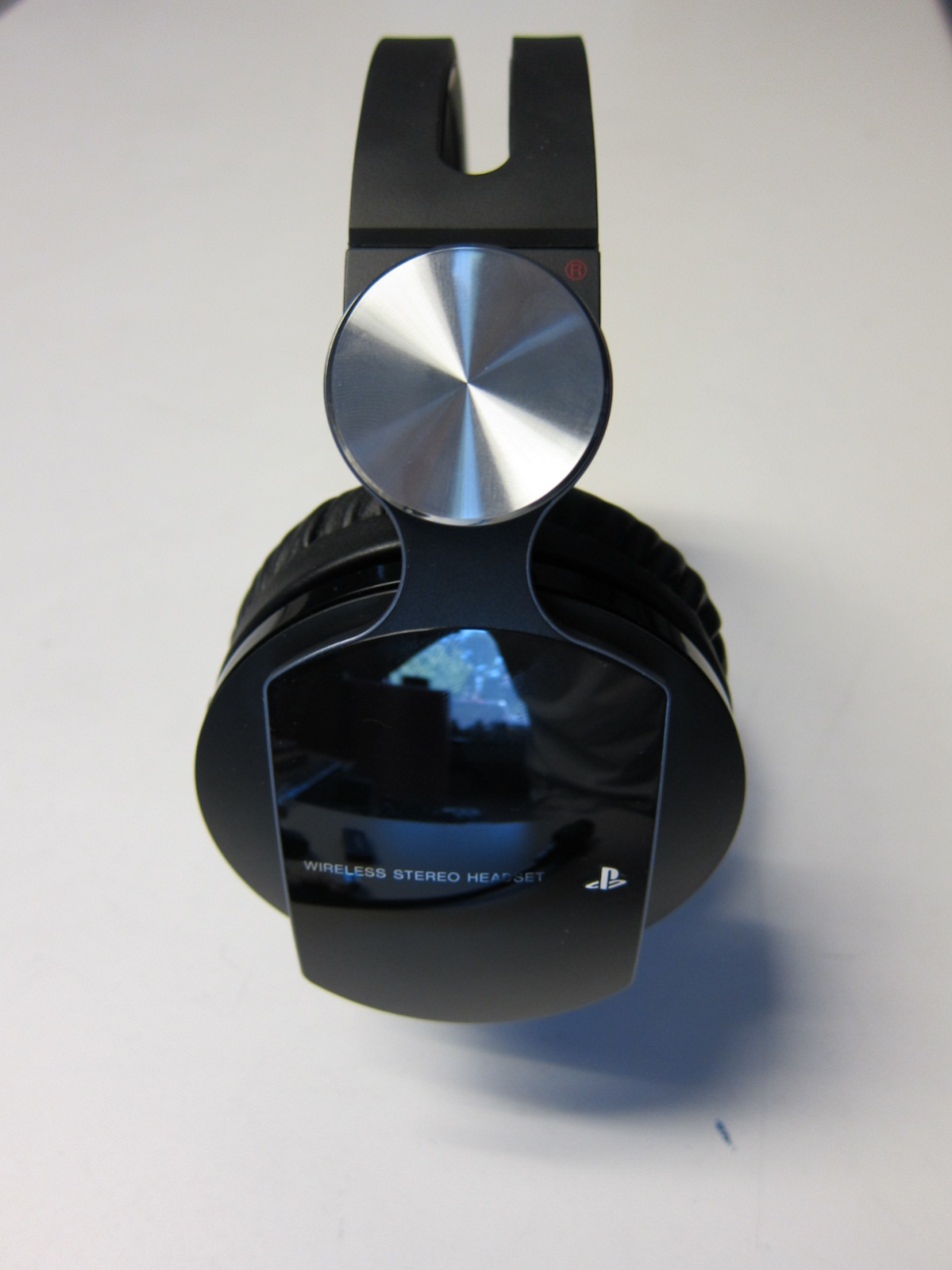

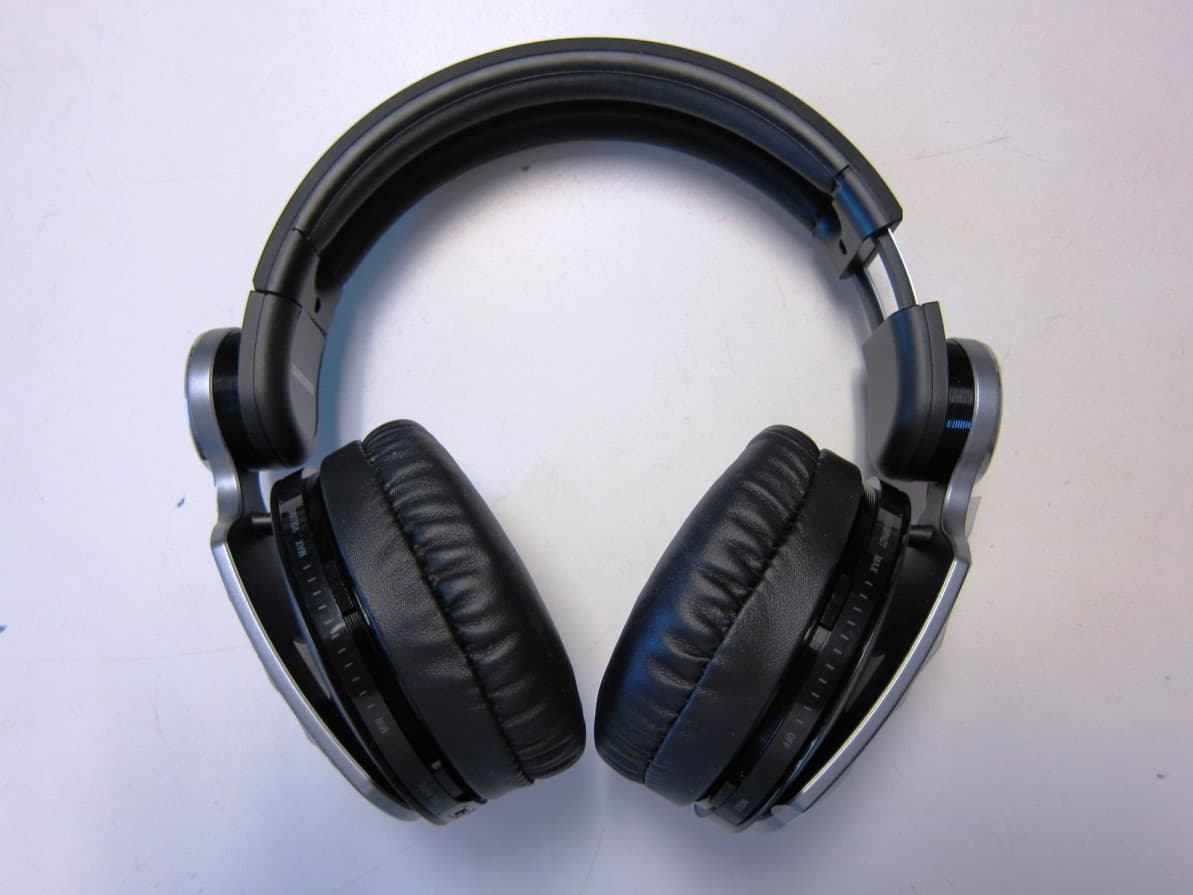

External photograph of Wireless Headset Model Number: CECHYA-0086 FCC ID: ZL2CECHYA0086 IC ID: 409P-CECHYA0086

CECHYA-0086 Label Label location on the product ( Green area) Model Number: CECHYA-0086 FCC ID: ZL2CECHYA0086 IC ID: 409P-CECHYA0086

NVLAP Lab code: 100414-0 FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR WIRELESS STEREO HEADSET MODEL NUMBER: CECHYA-0086 FCC ID: ZL2CECHYA0086 IC: 409P-CECHYA0086 REPORT NUMBER: 12U1487-1, Revision B ISSUE DATE: July 31, 2012 Prepared for Sony Computer Entertainment America 919 East Hillsdale Blvd. Foster City, CA 94404-2175 Prepared by UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 TEL: (847) 272-8800 REPORT NO: 12U1447-1B DATE: July 31, 2012 FCC ID: ZL2CECHYA0086 IC: 409P-CECHYA0086 Page 2 of 66 UL CCS FORM NO: CCSUP4701G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Revision History Rev. Issue Date Revisions Revised By -- 07/05/12 Initial Issue M.Ferrer A 07/11/12 Adding serial number M.Ferrer B 07/31/12 Revised Antenna and Worst Case description M.Ferrer REPORT NO: 12U1447-1B DATE: July 31, 2012 FCC ID: ZL2CECHYA0086 IC: 409P-CECHYA0086 Page 3 of 66 UL CCS FORM NO: CCSUP4701G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION .................................................................................... 5 4. CALIBRATION AND UNCERTAINTY .................................................................................. 5 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 5 4.2. SAMPLE CALCULATION ............................................................................................... 5 4.3. MEASUREMENT UNCERTAINTY ................................................................................. 5 5. EQUIPMENT UNDER TEST ................................................................................................. 6 5.1. DESCRIPTION OF EUT ................................................................................................. 6 5.2. MAXIMUM OUTPUT POWER ........................................................................................ 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................ 6 5.4. SOFTWARE AND FIRMWARE ...................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE ............................................................ 7 5.6. DESCRIPTION OF TEST SETUP .................................................................................. 8 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 10 7. ANTENNA PORT TEST RESULTS .................................................................................... 11 7.1. DTS MODE IN THE 2.4 GHz BAND ............................................................................. 11 7.1.1. 6 dB BANDWIDTH ................................................................................................ 11 7.1.2. 99% BANDWIDTH ................................................................................................ 15 7.1.3. OUTPUT POWER ................................................................................................. 19 7.1.4. AVERAGE POWER .............................................................................................. 23 7.1.5. POWER SPECTRAL DENSITY ............................................................................ 24 7.1.6. CONDUCTED SPURIOUS EMISSIONS ............................................................... 28 8. RADIATED TEST RESULTS .............................................................................................. 34 8.1. LIMITS AND PROCEDURE ......................................................................................... 34 8.2. TRANSMITTER ABOVE 1 GHz ................................................................................... 35 8.2.1. TX ABOVE 1 GHz FOR DTS TX MODE IN THE 2.4 GHz BAND ......................... 35 8.3. WORST-CASE Above 1 GHz ....................................................................................... 43 8.4. WORST-CASE BELOW 1 GHz .................................................................................... 49 9. AC POWER LINE CONDUCTED EMISSIONS ................................................................... 51 10. MAXIMUM PERMISSIBLE EXPOSURE ......................................................................... 56 11. SETUP PHOTOS ............................................................................................................. 60 REPORT NO: 12U1447-1B DATE: July 31, 2012 FCC ID: ZL2CECHYA0086 IC: 409P-CECHYA0086 Page 4 of 66 UL CCS FORM NO: CCSUP4701G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: Sony Computer Entertainment America 919 East Hillsdale Blvd. Foster City, CA 94404-2175 EUT DESCRIPTION: Wireless Stereo Headset MODEL: CECHYA-0086 SERIAL NUMBER: Conducted tests SN:181, Radiated Tests SN:PVT-000004 DATE TESTED: 06/26/12 – 07/03/12 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C Pass INDUSTRY CANADA RSS-210 Issue 8 Annex 8 Pass INDUSTRY CANADA RSS-GEN Issue 3 Pass UL tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are p…

Text truncated - open the document above for the full version.

REPORT NO: 12U1447-1B DATE: July 31, 2012 FCC ID: ZL2CECHYA0086 IC: 409P-CECHYA0086 Page 60 of 66 UL CCS FORM NO: CCSUP4701G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP During Power measurements the EUT was connected directly to the receiver, Cable and pad were removed. ANTENNA PORT CONDUCTED PHOTO REPORT NO: 12U1447-1B DATE: July 31, 2012 FCC ID: ZL2CECHYA0086 IC: 409P-CECHYA0086 Page 61 of 66 UL CCS FORM NO: CCSUP4701G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. OBW, PSD Average power Photo example shown. Same equipment was used but headset was connected during measurement REPORT NO: 12U1447-1B DATE: July 31, 2012 FCC ID: ZL2CECHYA0086 IC: 409P-CECHYA0086 Page 62 of 66 UL CCS FORM NO: CCSUP4701G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 12U1447-1B DATE: July 31, 2012 FCC ID: ZL2CECHYA0086 IC: 409P-CECHYA0086 Page 63 of 66 UL CCS FORM NO: CCSUP4701G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION X-AXIS FRONT PHOTO REPORT NO: 12U1447-1B DATE: July 31, 2012 FCC ID: ZL2CECHYA0086 IC: 409P-CECHYA0086 Page 64 of 66 UL CCS FORM NO: CCSUP4701G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Y-AXIS FRONT PHOTO REPORT NO: 12U1447-1B DATE: July 31, 2012 FCC ID: ZL2CECHYA0086 IC: 409P-CECHYA0086 Page 65 of 66 UL CCS FORM NO: CCSUP4701G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Z-AXIS FRONT PHOTO REPORT NO: 12U1447-1B DATE: July 31, 2012 FCC ID: ZL2CECHYA0086 IC: 409P-CECHYA0086 Page 66 of 66 UL CCS FORM NO: CCSUP4701G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP END OF REPORT LINE CONDUCTED FRONT PHOTO
