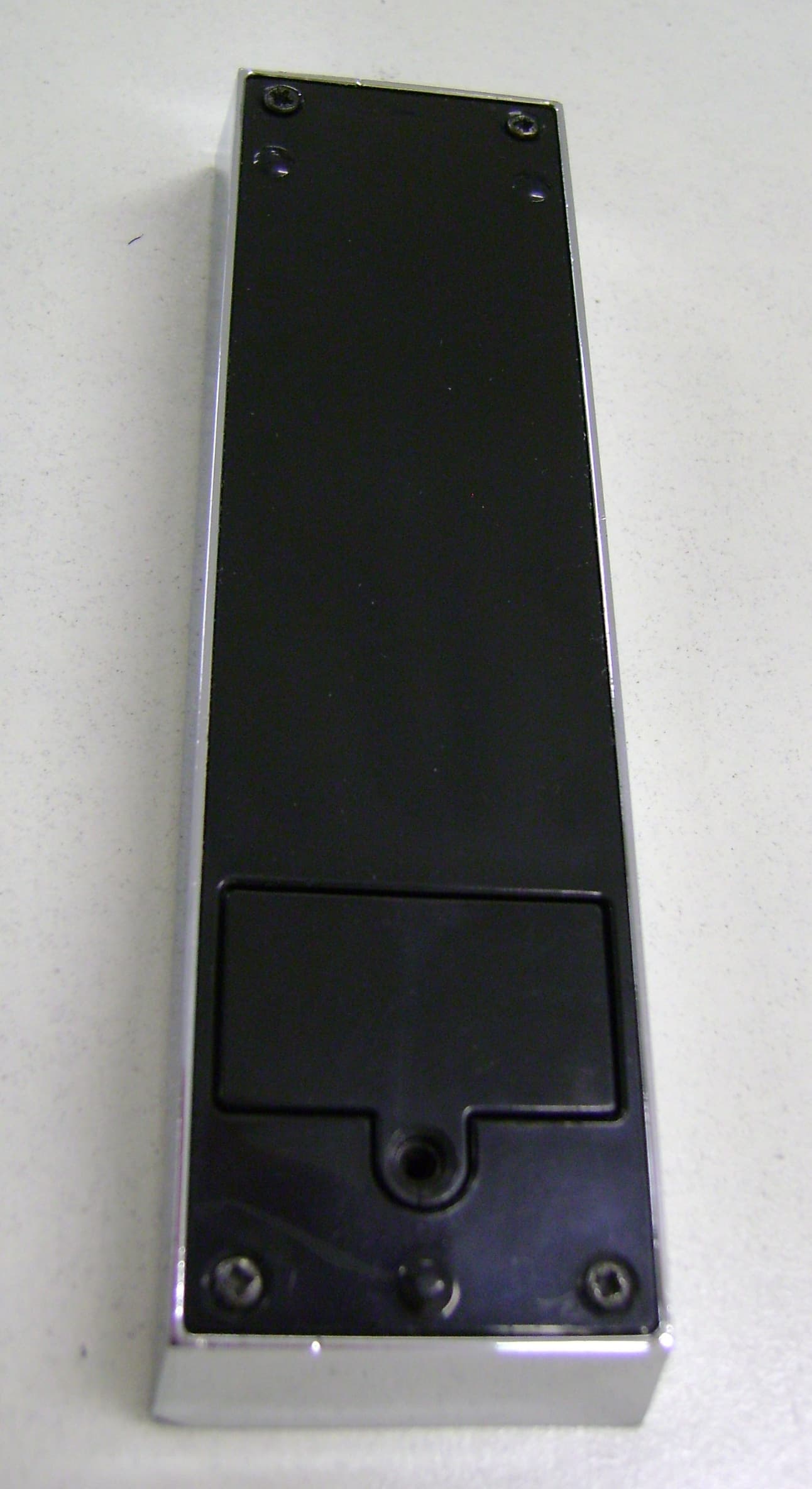

ZLIACR1Radio Control Device for Range Hoods

In USA - BEST Hartford, Wisconsin In CANADA - BEST Drummondville, QC, Canada REGISTER YOUR PRODUCT ONLINE AT : www.BestRangeHoods.com/register For additional Information visit www.BestRangeHoods.com 2 EN English P1 P2 P3P4 P5 Your Best ACR1 remote control is a Radio Frequency (RF) wireless device used to operate the fan, lights, and delay-off feature on compatible Best range hoods. Refer to your hood installation manual or product specifi cation sheet to ensure your hood is compatible with Best model ACR1 remote control. Unlike Infrared (IR) remotes, which are the most common, RF remotes are easier to use because they do not require line of sight, so they do not need to be aimed directly at the equipment they are controlling. RF is a very conve- nient, reliable method to transmit commands without wi- res for the operation of your compatible range hood. This system will offer exceptional performance in most cases. Although signals will often travel great distances, as well as around and through structures/walls, there are some limitations to the operating range. See troubleshooting guide on page 3 regarding these limitations. CONTROL OPERATION When a button is depressed on the remote control, it sends a coded signal to the receiver installed on a Best compatible hood, telling it which function to activate. P1: Activate/deactivate delay- off (10 minute) P2: Filter change indication timer reset P3: Decreases fan mo- tor speed until turned off (4>3>2>1>OFF) P4: Turns fan motor on and increased speed (OFF>1>2>3>4) P5: Turns lights on/off L1: LED Indicator Ring READ AND SAVE THESE INSTRUCTIONS LINKING PROCEDURE There exists a slight possibility of interference from other RF remote controls (garage door transmitter, home and car security systems, remote control paddle fans, other range hoods installed nearby). If the user experiences interferen- ce, the Best ACR1 remote control must be “re-linked” with the range hood that it intends to operate. To re-link the ACR1 remote control with the hood, turn off the hood fan and lights. Press and hold button P1 on the remote con- trol for 3-seconds (the LED indicator ring will illuminate). Determine the type of control on your hood (below), and press the button as indicated within 3-seconds of initiating the re-linking procedure. Note that in most cases, this will not be necessary. The product is shipped from the factory (transmitter and receiver) already linked. Assuming there are no interference issues, the user won’t need to re-link. P1 P2 P3 P4 P5 CLEANING AND MAINTENANCE Clean surfaces with a damp, clean cloth and mild detergent only. Do not immerse in water. Your remote is considered to be “splash-proof” not “waterproof”. Your Best remote transmitter is a user friendly device designed for years of trouble free operation. Under most circumstances it should require only periodic battery replacement. The transmitter is powered by a long life A23-style 12V battery available at most hardware stores or home centers. The replacement battery can also be ordered directly from the factory (P/N S97018267). To change the battery, remove the battery cover by removing the battery cover screw. Remove the existing battery and discard properly with consideration to local codes and recycling guidelines. Install the new battery while ensuring the “+” side of the battery lines up with the “+” terminal of the remote. Replace cover and screw. 23 A 3 EN WARNING – TO PREVENT POSSIBLE SERIOUS INJURY OR DEATH: NEVER ALLOW SMALL CHILDREN NEAR BATTERIES. IF THE BATTERY IS SWALLOWED, IMMEDIATELY NOTIFY A DOCTOR. FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause ha rmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. TROUBLE SHOOTING GUIDE Remote transmitting signal (LED ring) but hood not receiving - Ensure hood is powered - Battery is weak - install a fresh A23-12V battery - Remote is not linked to hood – perform linking procedure Transmission range short - Change orientation of remote when activating - Change location of remote to minimize obstructions - Battery is weak - install a fresh A23-12V battery Interference encountered with other RF transmitters or receivers - Re-link remote to hood ONE YEAR LIMITED WARRANTY FOR BEST PRODUCTS Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of Best products that such products will be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANT ABILITY OR FITNESS FOR A PARTICULAR PURPOSE. During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service. THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND INCAN- DESCENT BULBS, FUSE, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCT- ING. This warranty does not cover (a) normal maintenance and service or (b) any products or parts which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or instal- lation contrary to recommended installation instructions. The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. BROAN-NUTONE'S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE'S OPTION, SHALL BE THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some stat…

Text truncated - open the document above for the full version.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: ACR1 FCC ID: ZLIACR1 To: FCC Part 15.231: 2010 Test Report Serial No: RFI-RPT-RP80879JD01A Version 2.0 supersedes all previous Versions This Test Report Is Issued Under The Authority Of Chris Guy, Head of Global Approvals: Checked By: Ian Watch Signature: pp Date of Issue: 07 September 2011 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP80879JD01A VERSION NO. 2.0 ISSUE DATE: 07 SEPTEMBER 2011 Page 2 of 19 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP80879JD01A VERSION NO. 2.0 ISSUE DATE: 07 SEPTEMBER 2011 RFI Global Services Ltd Page 3 of 19 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 5 2.4. Deviations from the Test Specification 5 3. Equipment Under Test (EUT) ....................................................................................................... 6 3.1. Identification of Equipment Under Test (EUT) 6 3.2. Description of EUT 6 3.3. Modifications Incorporated in the EUT 6 3.4. Additional Information Related to Testing 7 3.5. Support Equipment 7 4. Operation and Monitoring of the EUT during Testing ............................................................... 8 4.1. Operating Modes 8 4.2. Configuration and Peripherals 8 5. Measurements, Examinations and Derived Results .................................................................. 9 5.1. General Comments 9 5.2. Test Results 10 5.2.1. Transmitter Fundamental Field Strength 10 5.2.2. Transmitter 20 dB Bandwidth 11 5.2.3. Transmitter Timeout 12 5.2.4. Transmitter Duty Cycle 13 5.2.5. Transmitter Radiated Emissions 14 5.2.6. Transmitter Radiated Emissions 16 6. Measurement Uncertainty .......................................................................................................... 18 Appendix 1. Test Equipment Used ................................................................................................ 19 TEST REPORT SERIAL NO: RFI-RPT-RP80879JD01A VERSION NO. 2.0 ISSUE DATE: 07 SEPTEMBER 2011 Page 4 of 19 RFI Global Services Ltd 1. Customer Information Company Name: Best S.p.A.. Address: Via Verdi, 34 60043 Cerreto d’Esi (AN) ITALY TEST REPORT SERIAL NO: RFI-RPT-RP80879JD01A VERSION NO. 2.0 ISSUE DATE: 07 SEPTEMBER 2011 RFI Global Services Ltd Page 5 of 19 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.231 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2010: Part 15 Subpart C (Radio Frequency Devices) - Section 15.231 Specification Reference: 47CFR15.209 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2010: Part 15 Subpart C (Intentional Radiators) – Section 15.209 Site Registration: FCC: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 22 July 2011 to 29 July 2011 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 15.231(e) Transmitter Fundamental Field Strength Part 15.231(c) Transmitter 20 dB Bandwidth Part 15.231(a) Transmitter Timeout Part 15.35(c) Transmitter Duty Cycle Note 1 Part 15.231(b) & 15.209 Transmitter Radiated Emissions Key to Results = Complied = Did not comply Note 1: The measurement was performed to assist in the calculation of the level of average and emissions as the EUT employs pulsed operation. 2.3. Methods and Procedures Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP80879JD01A VERSION NO. 2.0 ISSUE DATE: 07 SEPTEMBER 2011 Page 6 of 19 RFI Global Services Ltd 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: Best Model Name or Number: ACR1 Serial Number: 10091039360303851590432200053 Hardware Version Number: 08080358 Software Version Number: 1590 FCC ID: ZLIACR1 Brand Name: Best Model Name or Number: ACR1 Serial Number: 1045468160303561590432200358 Hardware Version Number: 08080358 Software Version Number: 1590 FCC ID: ZLIACR1 3.2. Description of EUT The equipment under test was a Radio Control for Range Hood which is used as a remote control transmitter. 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. TEST REPORT SERIAL NO: RFI-RPT-RP80879JD01A VERSION NO. 2.0 ISSUE DATE: 07 SEPTEMBER 2011 RFI Global Services Ltd Page 7 of 19 3.4. Additional Information Related to Testing Power Supply Requirement: Nominal 3.7 V Li-ion battery Type of Unit: Transceiver Transmit Frequency Range: 433 MHz 3.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Battery Brand Name: Duracell Model Name or Number: MN21/23 Serial Number: Not stated TEST REPORT SERIAL NO: RFI-RPT-RP80879JD01A VERSION NO…
