ZLSF7000SCA40Mouse

MOUSE SPECIFICATION Essential Parameter Voltage: DC5V Electric Current： ＜50mA DPI： 1000 Dimension： 120 mm *76 mm *40mm Function Description Interface: USB Buttons: Left, Middle, Right, Frt. Button, Bck. Button, Scroll Wheel. Compatibility: Windows 2000/XP/Vista/ 7 Specification Link this mouse to the USB port of your PC, after the PC identify the device correctly, start to use this mouse Plus and play, no need any drivers. Warning a) This Device Complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received. Including interference that may cause undesired operation. b) Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Model Differences Explanation FCC ID: ZLSF7000SCA40 The two models SCA40 and F7000 actually refer to the same product. The circuit schematic, PCB Layout and the structure are completely the same. There are only two kinds of naming models.

广 广 州 州 市 市 中 中 宏 宏 电 电 子 子 有 有 限 限 公 公 司 司 G G u u a a n n g g z z h h o o u u Z Z h h o o n n g g H H o o n n g g E E l l e e c c t t r r o o n n i i c c s s C C o o . . , , L L t t d d . . Tel: 86-20-86604659 Fax: 86-20-86604691 Authority to Act as Agent Date: 2011-4-22 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: _Guangzhou GRG Metrology And Test Technology LTD._____ ______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____ 8 – 12 months_____ By: __________________________ _________Jacky Ma__ _____________ (Signature 1 ) (Print name) Title: _____Export Dept. Manager________ On behalf of: Guangzhou Zhong Hong Electronics Co., Ltd. (Company Name) Telephone: ______86-20-86604659_ __________________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

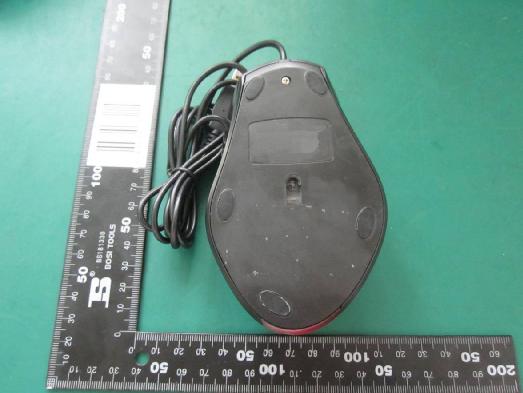

Front View Back View

Label of FCC ID: ZLSF7000SCA40 20mm 35mm 20mm 35mm Model No.: SCA40 FCC ID: ZLSF7000SCA40 Made in China This Device Complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received. Including interference that may cause undesired operation. Model No.: F7000 FCC ID: ZLSF7000SCA40 Made in China This Device Complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received. Including interference that may cause undesired operation. Label Location

PCB1 Front View PCB1 Back View PCB 2 Front View PCB 2 Back View

Basic Elements of Optical Mouse While the mouse moving, light information caused by the high-brightness LED, reflect off moving surface, passed through the glass and is caught by an sensor in the optical IC, encoded by the MCU, then sent to the PC through a cable to drive the cursor move according to the instruction of the computer

No.NameSpecificationQtw.PositonRemarks 1PCB 1HD-C5K7000 thickness:1.6mm1 2ICSPCP168A1IC1 310UF 4*72C3 C5 44.7UF 4*71C1 5ceramic capacitor104PF3C2 C4 C8 651 Ohm1R1 733 Ohm 2R2 R3 8conducting wirelength: 80mm3J1 J2 J3 93PIN2S1 S3 103PIN for scroll wheel1S2 11gasketthickness=2.0mm for scroll wheel switch1S2 12coderH13 Ø=1.69mm1EMC1 13high-brightness LED Ø 5=mm,brightness:8000-10000,matched with SENSOR 1LED 14lamp cap1LED 15terminal bed3PIN PIN=2.01CON3 16glass1 17USB cableModel No.:010-22 L=1.5m1CON4 Bill of Material inches switch electrolytic capacitor resistance Mouse Model No.: SCA40/7000 18 foot pad thickness=0.5mm 5 19 PCB 2 HD7000-KEY thickness=1.6mm1 20 inches switch 3PIN2 B4 B5 21 line with terminal 3PIN PIN=2.0mm L=50mm AVG321 PCB 2 Remark：If no special remarks, the power of resistance is 1/6W and Tolerance is±10% ;the tolerance of electrolytic capacitor is ±10%, rated voltage > 10V.

TEST REPORT FCC ID: ZLSF7000SCA40 Report No.: EM201100172 Client: Guangzhou Zhong Hong Electronics Co., Ltd. Address: No. 15, Gaotian Street, Datian, Jianggao Town, Baiyun District, Guangzhou China Sample Description: Mouse Model: SCA40, F7000 Test Location: EMC Laboratory of Guangzhou GRG Metrology and Test Technology Co., Ltd. Test Specification: FCC PART15 Subpart B:2009 Issue Date: 2011-05-31 Test Result: According to the kind and extend of tests performed the test item passed test specification. Tested By: Reviewed By: Approved By: Tiger Su/Test Engineer Dai Yong / Technical Manager Gavin Wu / Manager Date: Date: Date: Other Aspects: None Abbreviations: ok / P = passed; fail / F = failed; n.a. / N = not applicable The test result in this test report refers exclusively to the presented test sample. This report shall not be reproduced except in full, without the written approval of GRGT. GRG Metrology and Test Technology Co., Ltd. Address: 163, Pingyun Road, West of Huangpu Avenue, Guangzhou, Guangdong, P.R. China Tel:+86-20-38699960 Fax:+86-20-38695185 Email: [email protected] http://www.grgtest.com Ver.:2.0 / 01.Jan.2011 FCC ID: ZLSF7000SCA40 Report No.: EM201100172 Page 2 of 18 DIRECTIONS OF TEST 1. The test standards at this station are examined and given as public standards of measurement by the Metrological Unit of the Committee of National Defence Science Industry. The authorized certificate number is DL175. This station is also authorized by CNAS. The certificate number is L0446. This station carries out test task according to the national regulation of verifications which can be traced to National Primary Standards and BIPM. 2. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. 3. If there is any objection concerning the test, the client should inform the laboratory within 15 days from the date of receiving the test report. FCC ID: ZLSF7000SCA40 Report No.: EM201100172 Page 3 of 18 Table of Contents 1. TEST RESULT SUMMARY..........................................................................4 2. GENERAL DESCRIPTION OF EUT...............................................................5 2.1 APPLICANT.........................................................................................................................5 2.2 MANUFACTURER..............................................................................................................5 2.3 BASIC DESCRIPTION OF EQUIPMENT UNDER TEST.............................................5 2.4 LOCAL SUPPORTIVE INSTRUMENTS.........................................................................5 3. LABORATORY AND ACCREDITATIONS......................................................6 3.1 LABORATORY....................................................................................................................6 3.2 ACCREDITATIONS............................................................................................................6 3.3 MEASUREMENT UNCERTAINTY..................................................................................6 4. EMISSION TEST.......................................................................................7 4.1 CONDUCTED DISTURBANCE MEASUREMENT........................................................7 4.1.1 LIMITS................................................................................................................................7 4.1.2 TEST INSTRUMENTS.......................................................................................................7 4.1.3 TEST SETUP AND PROCEDURES..................................................................................7 4.1.4 TEST RESULTS..................................................................................................................8 4.1.5 PHOTOGRAPHS OF THE TEST CONFIGURATION...................................................11 4.2 RADIATED DISTURBANCE MEASUREMENT..........................................................12 4.2.1 LIMITS..............................................................................................................................12 4.2.2 TEST INSTRUMENTS.....................................................................................................12 4.2.3 TEST SETUP AND PROCEDURES................................................................................12 4.2.4 TEST RESULTS................................................................................................................13 4.2.5 PHOTOGRAPH OF THE TEST CONFIGURATION......................................................15 5. PHOTOGRAPHS OF EUT...........................................................................16 FCC ID: ZLSF7000SCA40 Report No.: EM201100172 Page 4 of 18 1. TEST RESULT SUMMARY EMISSION (FCC PART15 B) Item Test Requirement Test Method Result Remarks Conducted Emission FCC 15.107 ANSI C63.4:2009 P Meets the Class B requirement Radiated Emission FCC 15.109 ANSI C63.4:2009 P Meets the Class B requirement FCC ID: ZLSF7000SCA40 Report No.: EM201100172 Page 5 of 18 2. GENERAL DESCRIPTION OF EUT 2.1 APPLICANT Name: Guangzhou Zhong Hong Electronics Co., Ltd. Address: No. 15, Gaotian Street, Datian, Jianggao Town, Baiyun District, Guangzhou China 2.2 MANUFACTURER Name: Guangzhou Zhong Hong Electronics Co., Ltd. Address: No. 15, Gaotian Street, Datian, Jianggao Town, Baiyun District, Guangzhou China 2.3 BASIC DESCRIPTION OF EQUIPMENT UNDER TEST Equipment : Mouse Model No. : SCA40, F7000 Trade Name : / Power Supply Type : USB DC 5V Supplied by PC Note : The two models SCA40 and F7000 actually refer to the same product 2.4 LOCAL SUPPORTIVE INSTRUMENTS Name of Equipment Manufacturer Model Serial Number Keyboard DELL SK-8115 CN-0DJ313-71616-71 J-12WA LCD Lenovo LXM-L 15DB 7M0284881972270 Host Lenovo IJ3 L3DE358 Modem D-TECHS DI-56C Modem070112364 Printer DELL 1720 4512-2d0 NOTE: There are so…

Text truncated - open the document above for the full version.

Conducted Emission Test Setup Radiated Emission Test Setup
