ZMI-PH2-B1Wireless charging transmitter

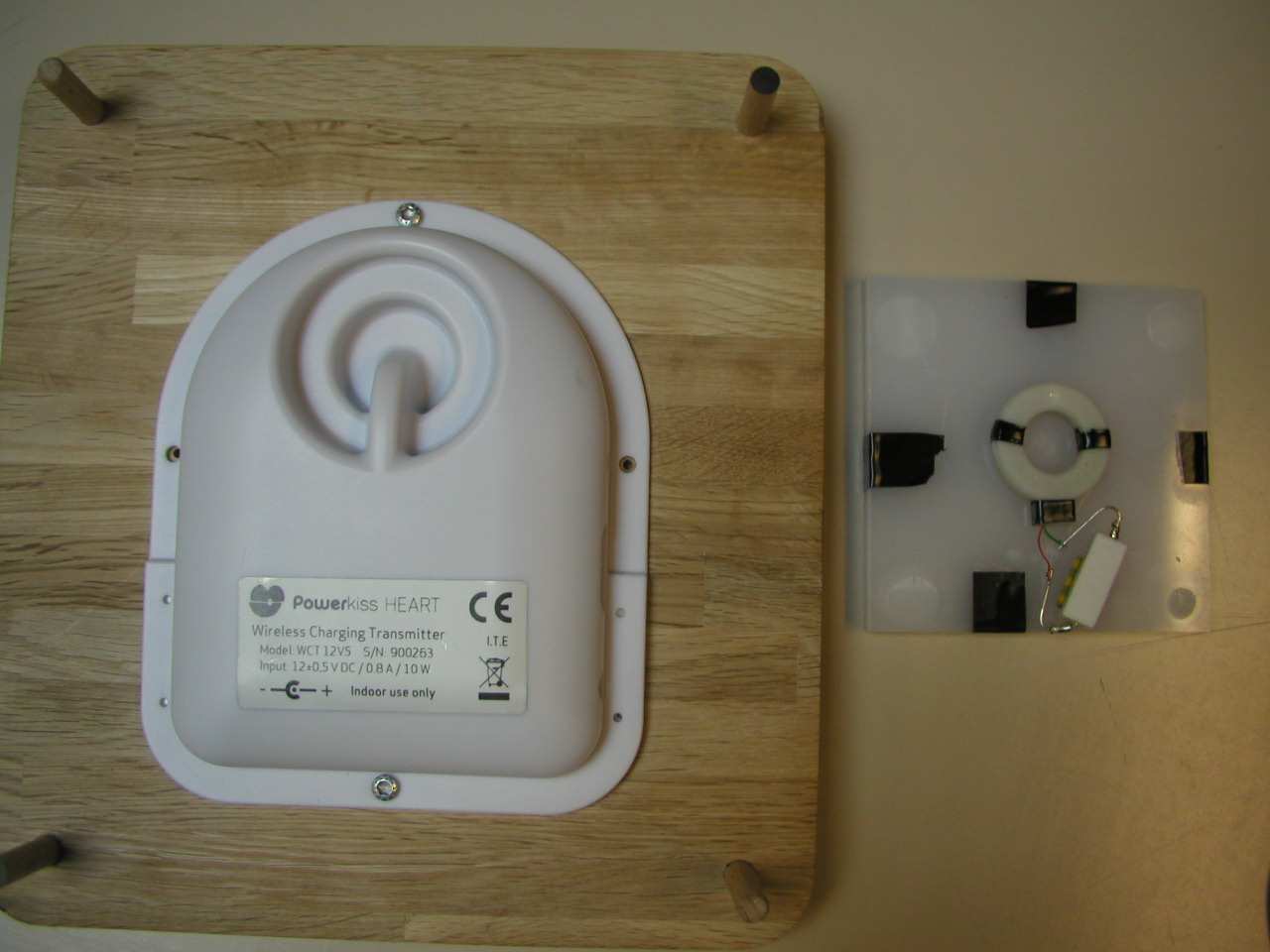

This is the On site milling guide for Heart The PowerKiss Heart is a different kind of transmitter for wireless charging. It does not take up space on your table as it is attached underneath the tabletop. From there it will charge your devices, without any cables while the furniture surfaces will remain clean and free just like you have planned them to be. For this, the Heart needs to be installed into a specific hole pattern that can be done either on site or at workshop. This booklet will guide you how to do the processing on site. To avoid injury, read all the installation instructions, operating instructions and safety information in this guide. Always use powertools and their accessories according to manufacturer’s instructions and with extreme caution. PowerKiss is not responsible for third-party products and their quality before or after the installation. WARNING IMPORTANT The operation of PowerKiss Heart is highly dependent on the accuracy of the performed milling - ensure that you have understood the specifications of the ready groove before starting, depicted on pages 9 - 10. If you are unsure about something, contact your PowerKiss representative. Before using the jig, it is recommended to practice a few joints with off-cuts of worktops or other materials to familiarize yourself with the jig plate. Specifications Requirements for the piece of furniture Feature Requirement Surface thickness range 22 - 57 mm (0.866 - 2.244 inches) Material restrictions No metal or magnetic materials directly above Charging Spot Minimum Charging Spot distance 200 mm (8 inches) from the user Optimal Charging Spot distance 400 x 200 mm (16 x 8 inches), see picture (p. 8) from the user 6 7How it should look like How it should look like 8How it should look like The ready table The Charging Spot The hole that is made through the surface is always on the left of the actual Charging Spot 400 mm 200 mm 9How it should look like Ø 75 ±1mm (2.95 ±.04 inches) Ø 3.5 mm (9/64 inches) 3 ±0.5mm (1/8 ±.02 inches) 45 ±0.5mm (1 ±.02 inches) 3 4 / 22 - 57 mm (0.866 - 2.244 inches) 10How it should look like Installation in short 11How it should look like 12How it should look like 13What you need What you need 14What you need The jig plate and screws The PowerKiss Router Jig is compatible with all plunge-capable routers that can be fitted with a 17 mm (0.6693 inches) copy ring 1 15What you need Plunge Router2 See that the used router bit has sufficient overall length for the target surface 16What you need Copy ring for the router 3 Ø17 mm (0.6693 inches) 17What you need Vacuum cleaner 4 Remember to clean after youself. Ø 3.5 mm (9/64 inches)T20 bit 18What you need Drill and the correct drill bits 5 19What you need Measuring equipment 6 1 6.00 mm 20What you need 21How to do it How to do it 22How to do it Check the target surface Measure the table surface thickness with extreme care, using a caliper. If the thickness is within the range specified, continue. 1 23How to do it Hole through the table top Drill a hole of d= 3.5mm (9/64 inches) through the surface of the furniture at the desired place for the PowerKiss Heart 2 24How to do it Turn the table and place jig plate Turn the table around and place the jig plate so that its dia = 5 mm (0.1969 inches) hole is directly above the just drilled 3.5 mm (9/64 inches) hole 3 Ø 3.5 mm (9/64 inches) Ø 5 mm (0.1969 inches) 25How to do it Attach the plate Attach the jig plate with the provided screws to the surface 4 26How to do it Attach copy ring Attach the copy ring to the router 5 27How to do it Measure and set the plunge depth Place the router on the jig plate and measure the needed plunge depth. The surface thickness at the ready groove must be 3 ±0.5mm (1/8 ±.02 inches). Double check the values before starting! 6 28How to do it 7 Do the hole Turn on the router and plunge it slowly. Guide the router against the edges of the circle so that the whole fixture of the guide is processed to the surface 3 ±0.5mm (1/8 ±.02 inches) 75 ±1mm (2.95 ±.04 inches) 29How to do it Check the result! 8 30How to do it 31Safety information Safety information 32Safety information Safety information When using power tools, basic precautions should always be followed. In particular: • Before using any power tool, check first for damaged parts and if found, do not use them before the part or parts have been replaced with new ones • Always ensure that the path of the router is kept clear of any obstruction e.g. clamps • Always ensure that the cable of the router is clear of the jig and is of sufficient length • Do not switch router on with the cutter touching the work piece • Do not force the router to work fast. This will result in a poor quality cut and can also damage expensive router bits • Never remove the router from the jig whilst it is still in motion • Always allow the router to stop and switch off before removing • Always keep the router base parallel to the jig, and the router in an upright position. Failure to do so will cause an unmatched joint 33Safety information • Don’t over reach; keep proper footing at all times to ensure correct balance • Wear safety goggles at all times, everyday glasses are not sufficient for eye protection as lenses are not impact resistant and could shatter. Use a face or dust mask if operation is likely to be dusty and ear defenders during periods of operations • Don’t wear loose clothing, neckties or jewellery or other items which may get caught in moving parts. Wear non-slip footwear, cover or tie back long hair and roll long sleeves above the elbow • Never exceed 10mm depth cut in one cut • Be sure to set plunge depth correctly, plunging through the table will remove the centre plug that guides the jig and create a serious hazard The images in this guide are examples only. POWERKISS and the “PowerKiss” Logo are trademarks or registered trademarks of PowerKiss Ltd. The “Qi” symbol is a trademark of the Wireless Power Consortium. © 2013 PowerKiss Ltd. All r…

Text truncated - open the document above for the full version.

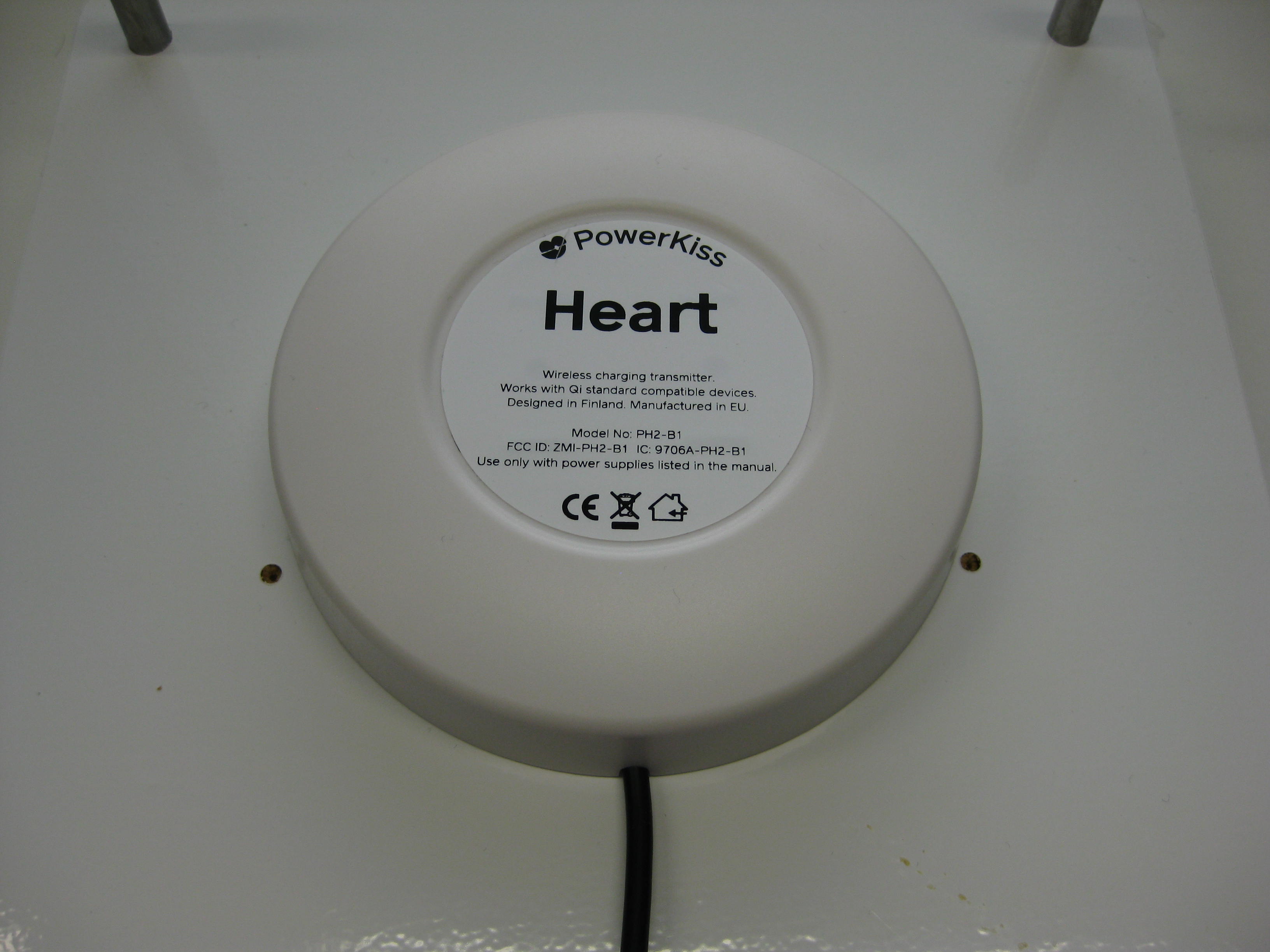

PowerKiss Heart 2 is designed to change your way of charging mobile devices. Attach Heart 2 under a piece of furniture and the furniture surface itself becomes an invisible charger. Simply, place the device on top of the surface and its battery is charged wirelessly. Heart 2 supports PowerKiss wireless charging accessories and Qi-compatible devices. To avoid injury, read all the installation instructions, operating instructions and safety information in this guide before using the PowerKiss Heart 2. Veillez à ce que le Heart 2 soit monté en respectant la configuration des trous illustrée sur les pages 6 et 7. Si vous n’êtes pas sûr que votre meuble soit adapté au Heart 2, veuillez contacter votre représentant PowerKiss. Le contenu de ce kit varie selon la région et le pays. Stellen Sie sicher, dass Sie das Heart 2 in das spezielle Lochmuster einsetzen, das auf den Seiten 6 und 7 dargestellt ist. Wenn Sie unsicher sind, ob Ihre Möbel für das Heart 2 geeignet sind, wenden Sie sich an Ihren PowerKiss-Vertreter. Der Inhalt dieses Pakets variiert je nach Region und Land. WARNING IMPORTANT Make sure that you are attaching the Heart 2 into the specific hole pattern shown on pages 6 and 7. If you are unsure is your furniture ready for the Heart 2, contact your PowerKiss representative. The contents of this package vary by region and country. AVERTISSEMENT IMPORTANT Afin de minimiser les risques de blessure, lire l’ensemble des instructions de montage, le mode d’emploi et les consignes de sécurité du présent manuel avant d’utiliser le PowerKiss Heart 2. WARNUNG Um Verletzungen zu vermeiden, lesen Sie die Installationsanweisungen, die Bedienungsanleitung und die Sicherheitshinweise in diesem Handbuch, bevor Sie PowerKiss Heart 2 verwenden. WICHTIG Antes de utilizar PowerKiss Heart 2, lea las instrucciones de instalación y funcionamiento completas, así como la información de seguridad que se proporciona en esta guía con el fin de evitar lesiones. Varmista, että olet kiinnittämässä Heart 2:n tiettyyn reikäkuvioon, joka on esitelty tarkemmin sivuilla 6 ja 7. Jos et ole varma siitä sopiiko Heart 2 huonekaluusi, ota yhteyttä Powerkiss edustajaan. Myyntipakkauksen sisältö saattaa vaihdella alueen ja maan mukaan. Se till att du fäster Heart 2 i det specifika hålmönstret som du kan se på sidorna 6 och 7. Om du inte är säker på att din möbel är klar för Heart 2 ska du kontakta din PowerKiss-säljare. Innehållet i paketet varierar beroende på region och land. ADVERTENCIA IMPORTANTE Asegúrese de acoplar Heart 2 en el patrón del orificio específico que se muestra en las páginas 6 y 7. Si no está seguro de si sus muebles están preparados para utilizar Heart 2, póngase en contacto con su representante de PowerKiss. El contenido de este paquete puede variar en función de la región y el país. VAROITUS TÄRKEÄÄ Ennen kuin alat käyttämään PowerKiss Heart 2:ta, lue kaikki tämän oppaan sisältämät asennusohjeet, käyttöohjeet sekä turvallisuusohjeet. VARNING För att undvika skaderisk ska du läsa igenom alla installationsanvisningar, bruksanvisningar och säkerhetsinformationen i den här guiden innan du börjar använda PowerKiss Heart 2. VIKTIGT 6 7 Ø 75 ±1mm (2.95 ±.04 inches) Ø 3.5 mm (9/64 inches) 3 ±0.5mm (1/8 ±.02 inches) 45 ±0.5mm (1 ±.02 inches) 3 4 / 22 - 57 mm (0.866 - 2.244 inches) 8 9 Setting up your Heart 10 1 11 2 mm inch M3x 22 - 27 0.866 - 1.063 M3x20 27 - 32 1.063 - 1.260 M3x25 32 - 37 1.260 - 1.457 M3x30 37 - 42 1.457 - 1.654 M3x35 42 - 47 1.654 - 1.850 M3x40 47 - 52 1.850 - 2.047 M3x45 52 - 57 2.047 - 2.244 M3x50 12 3 M3x (PZ1) M3x20M3x25M3x30M3x35M3x40M3x45M3x50 M3x10 13 4 14 5 T20 T20 15 6 16 7 T20 T20 T20 17 8 M3x10 (PZ1) 18 9 19 10 T20 T20 20 11 21 12 22 13 23English Using your Heart English 24English PowerKiss Heart 2 is going to change the way you charge mobile devices. 25English The Charging Spot If Heart 2 is The status light On Light is glowing white Charging a device Light is glowing red Off Light is off Having problems Light flashes yellow Charging area Status light 26English Charging your device Devices with in-built wireless charging Place your device on the Charging Spot so that the Qi-receiver inside the phone is directly above the charging area The status light starts glowing red when the device is charging 1 2 27English With wireless charging accessory Connect the accessory to your device Place the device on the Charging Spot so that the accessory is directly above the marked charging area The status light starts glowing red when the device is charging 1 2 3 28English Problem solving First steps Most problems with PowerKiss Heart 2 can be solved quickly by following the tips here. For additional troubleshooting information, send an email to [email protected] or contact your PowerKiss representative. If Heart 2 is not functioning as stated, first make sure: The power cords for Heart are securely connected to a working power source The device being charged is aligned properly on the charging area The wireless charging receiver is either PowerKiss branded or has the Qi compatible logo on it 1 2 3 29English Additional steps If the steps before did not solve the problem, try the following. If your device does not start to charge Check the status light: If there is none, the Heart is not powered. Re-connect the power cords If the status light is glowing white and does not change to red while you put the device on the charging area, make sure that you are aligning the device correctly and not too far away from the Charging Spot If the device is aligned correctly but the light on Heart does not still change from white to red, make sure that the wireless charging receiver used for charging is either Qi compatible with the logo or PowerKiss branded. If it is, wait for 30 seconds before moving the device If the charging does not start after trying the steps above, please remove the device from the area completely, reset the Heart 2 by disconnecting it from the power outlet. Wait 30 seconds, and t…

Text truncated - open the document above for the full version.

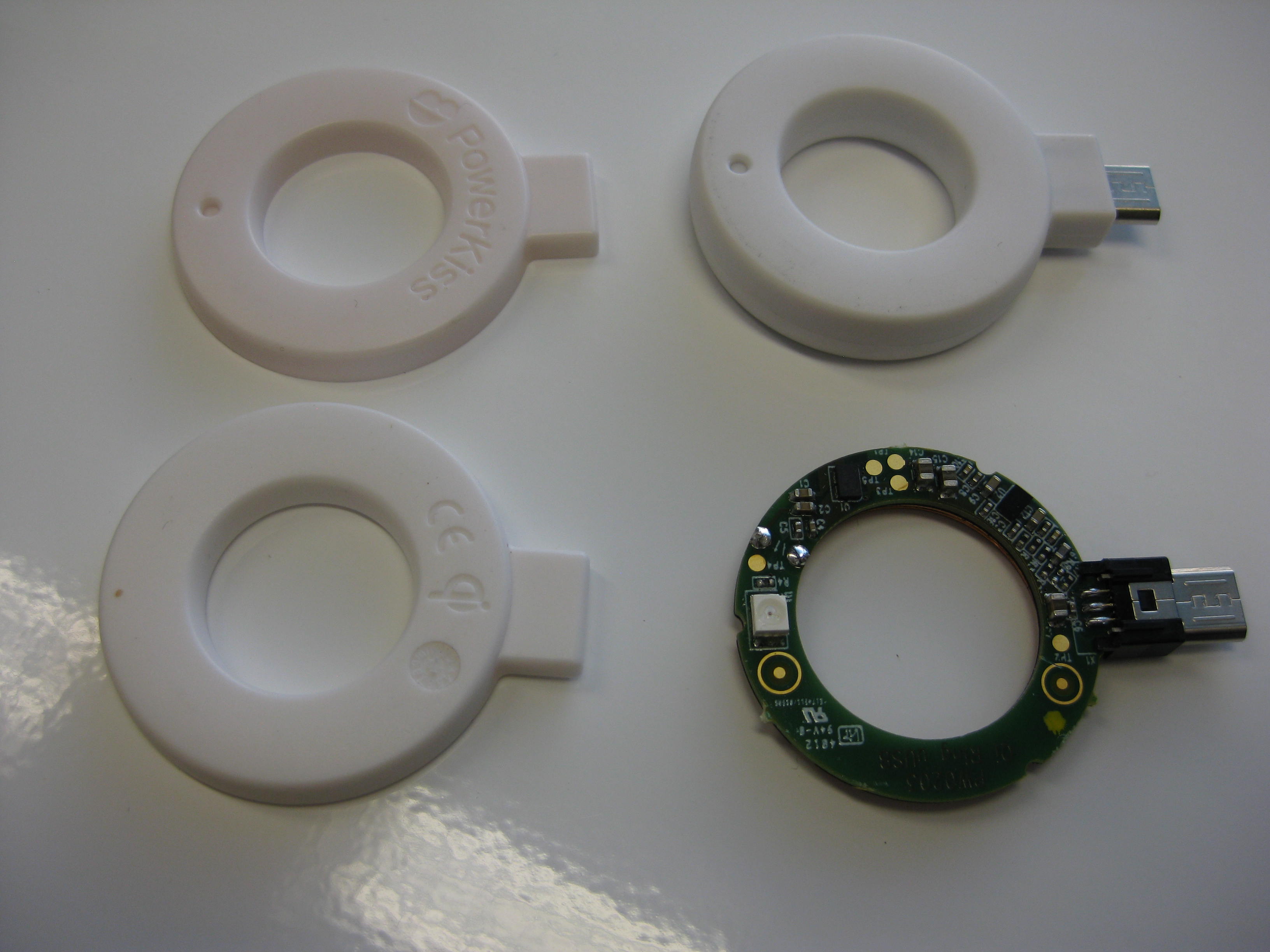

PowerKiss Ring Qi Use PowerKiss Ring Qi to charge your mobile devices on Qi wireless charging spots. Plug the Ring into your device’s power accessory port Place the device on the Qi wireless charging spot so that the Ring is directly above it Red light on the Ring indicates ongoing charging Problem solving If your device does not charge, first make sure: You have waited for 30 seconds before moving the device Ring is plugged into the right connector port. Devices compatible with this particular Ring are denoted in the original packaging 1 2 3 1 2 Ring Qi Qi wireless charging spot Ring is aligned directly on the charging spot. Thicker devices or those with covers may not reach the charging area. If you are using covers try charging the device without them The charging spot is powered and there are no other objects on the spot If any of these steps do not help, send an email to [email protected] or contact your PowerKiss representative. Safety information When using electrical devices, such as PowerKiss products, basic precautions should always be followed. In particular: • Use PowerKiss Ring Qi only with charging spots that are Qi compatible • Do not use damaged or otherwise altered PowerKiss devices for charging your devices • Use caution when handling the PowerKiss Ring immediately after or during the charging process as it might get warm • When charging a device wirelessly, keep your body 20 cm (8 inches) or more away from the device • Keep medical appliances, such as pacemakers, hearing aids or other similar devices at least 30 cm (12 inches) away from the turned on wireless charging devices • Wireless charging systems emit electromagnetic fields that may interfere in some situations with applications and external accessories using highly sensitive magnetic or radio frequency circuits. If you confront problems using these applications during the charging, discontinue the wireless charging before using the applications further English 3 4 PowerKiss Ring Qi Servez-vous de l’anneau PowerKiss Qi pour recharger vos appareils mobiles sur les points de charge Qi sans fil. Branchez l’anneau sur le connecteur d’alimentation de votre appareil Placez l’appareil sur le point de charge Qi sans fil de sorte que l’anneau soit positionné directement au-dessus Le voyant rouge de l’anneau indique que la charge est en cours Résolution des problèmes Si votre appareil ne se recharge pas, assurez-vous d’avoir bien suivi les étapes suivantes: Vous avez patienté 30 secondes avant de déplacer l’appareil L’anneau est branché sur le bon connecteur. Les appareils compatibles avec cet anneau spécifique sont répertoriés sur l’emballage d’origine 1 2 3 1 2 Anneau Qi Point de charge Qi sans fil L’anneau est directement aligné sur le point de charge. Il se peut que les appareils plus épais ou munis d’une housse de protection n’atteignent pas la zone de charge. Si vous utilisez une housse, essayez de charger l’appareil après l’avoir enlevée Le point de charge est sous tension et aucun autre objet ne se trouve dessus Si aucune de ces étapes ne permet de résoudre le problème, envoyez un courriel à [email protected] ou contactez votre représentant PowerKiss. Consignes de sécurité Lorsque vous utilisez des appareils électriques, tels que les produits PowerKiss, certaines précautions de base doivent systématiquement être suivies. En particulier: • Utilisez l’anneau PowerKiss Qi uniquement avec les points de charge compatibles Qi • N’utilisez en aucun cas des dispositifs PowerKiss endommagés ou autrement altérés pour recharger vos appareils • Prenez garde lorsque vous vous apprêtez à manipuler l’anneau PowerKiss Qi immédiatement après ou pendant le processus de charge car il se peut qu’il soit chaud • Lorsque vous rechargez un appareil à l’aide d’un dispositif sans fil, tenez-vous à une distance d’au moins 20 cm (8 pouces) de l’appareil • Maintenez les appareils médicaux (stimulateurs cardiaques, prothèses auditives ou autres dispositifs semblables) à une distance d’au moins 30 cm (12 pouces) des appareils de charge sans fil lorsque ces derniers sont en marche • Les systèmes de charge sans fil émettent des champs électromagnétiques qui peuvent parfois interférer avec les applications et accessoires externes utilisant des émetteurs magnétiques ou radiofréquence très sensibles. Si le fonctionnement de ces applications présente des problèmes pendant la charge, arrêtez le processus de charge sans fil avant de poursuivre leur utilisation Français 3 4 PowerKiss Ring Qi Nutzen Sie PowerKiss Ring Qi, um Ihre Mobilgeräte an drahtlosen Qi- Ladestationen aufzuladen. Stecken Sie den Ring in den Stromanschluss Ihres Geräts ein Legen Sie das Gerät so auf die drahtlose Qi-Ladestation, dass sich der Ring genau darüber befindet Ein rotes Licht am Ring zeigt den Ladevorgang an Problembehebung Wenn Ihr Gerät nicht aufgeladen wird, stellen Sie zunächst Folgendes sicher: Sie haben 30 Sekunden gewartet, bevor Sie das Gerät bewegt haben Der Ring wurde in den richtigen Anschluss eingesteckt Kompatible Geräte für diese Ring-Version sind auf der Originalverpackung angegeben 1 2 3 1 2 Ring Qi Drahtlose Qi Ladestation Der Ring wurde richtig auf die Ladestation gelegt Dickere Geräte oder Geräte mit Hüllen erreichen den Ladebereich möglicherweise nicht. Wenn Sie eine Hülle verwenden, versuchen Sie, das Gerät ohne sie aufzuladen Die Ladestation ist an das Stromnetz angeschlossen und es befinden sich keine anderen Gegenstände darauf Wenn keiner dieser Schritte hilfreich ist, senden Sie eine E-Mail an support@ powerkiss.com oder wenden Sie sich an Ihren PowerKiss-Händler. Sicherheitsinformationen Bei der Verwendung von elektrischen Geräten wie den Produkten von PowerKiss sind immer grundlegende Vorsichtsmaßnahmen zu beachten. Insbesondere: • Verwenden Sie PowerKiss Ring Qi nur auf Ladestationen, die mit Qi kompatibel sind • Verwenden Sie zum Aufladen Ihrer Geräte keine beschädigten oder veränderten PowerKiss-Geräte • Seien Sie vorsichtig, wenn Sie …

Text truncated - open the document above for the full version.

Nemko Oy  P.O.Box 19, FIN-02601 Espoo, Finland Street address: Perkkaantie 11, FIN-02600 Espoo Telephone +358 424 5454 1  Telefax +358 9 5489 6371 TEST REPORT Date: ESPOO 20.4.2013 Page: 1 (9) Appendices  Date of handing in: 15.08.2012 Number: 219872EMF No. 1 / 1 Tested by: Janne Nyman, Compliance Specialist Reviewed by: Timo Leismala, Test Manager SORT OF EQUIPMENT: Wireless charging transmitter and receiver MARKETING NAME: Heart 2 TYPE: PH2-B1 MANUFACTURER: Powerkiss Oy, Finland SERIAL NUMBER: - CLIENT: Powerkiss Oy, Finland ADDRESS: Melkonkatu 24, FI – 00210 HELSINKI, FINLAND TELEPHONE: +358 44 720 7347 TEST SPECIFICATION: OET BULLETIN 65, ED.97-01 + Supplement C ED. 01-01 SUMMARY: In regard to the performed tests the EUT fulfils the requirements defined in the test specification OET BULLETIN 65, ED.97-01, Table 1 (B) when using a minimum safety distance of 15 cm. Measurement results have been compared directly with the limit values without considering measurement uncertainties. The test results are valid for the tested unit only. Without a written permission of Nemko Oy it is allowed to copy this report as a whole, but not partially. Version e2.05 Type: PH2-B1 S/N: - OET BULLETIN 65, ED.97-01 + Supplement C ED. 01-01 Test report 219872EMF Page 2 (9) Date 20.4.2013 REVISIONS Initial report issue date 30.10.2012 Revisions: 1.1 Powerkiss mode results added, measuring distance for Qi mode converted. Revision number Date By Description 1.1 20.4.2013 JNm . DISTRIBUTION Copy number Date Distribution 1 Applicant original paper copy GENERAL REMARKS This report applies only to the sample(s) tested. It is the manufacturer's responsibility to assure the additional production units of this product are manufactured with identical electrical and mechanical components. The manufacturer is responsible to the Competent Authorities in Europe for any modifications made to the product, which result in non-compliance to the relevant regulations. This report shall not be reproduced except in full without the written approval of Nemko. CALIBRATION All instruments used in the tests given in this test report are calibrated and traceable to national or international standards. Between calibrations all test set-ups are controlled and verified on a regular basis. The instruments specified in immunity testing are subject to periodic calibration. Monthly controls ensure, with 95% confidence that the instruments remain within the calibrated levels. MEASUREMENT UNCERTAINTY Measurement uncertainties are calculated for all instruments and instrument set-ups used during the emission measurements. Uncertainty figures are informed in each test section in this report. Note: Further information about measurement uncertainties will be given on request. EVALUATION OF RESULTS If not explicitly stated otherwise in the standard, the test is passed if the measurement value is equal to or below the limit line, regardless of the uncertainty of the measurement. If the measurement value is above the limit line, the test is not passed - ref. IECEE/CTL (Sec) 056/94 (CTL = Committee of Testing Laboratories). The instrumentation accuracy is within limits agreed by the IECEE/CTL (ref. Nemko proc. P226). The argument for using this method is that it is commonly accepted that the limits have already taken into account the measurement uncertainties as long as the measurements are conducted according to a common good laboratory practice. VERDICTS Possible test case verdicts: P = Pass, F = Fail, N = Not applicable, — = No verdict required. Placed in the column to the right (Verdict). Type: PH2-B1 S/N: - OET BULLETIN 65, ED.97-01 + Supplement C ED. 01-01 Test report 219872EMF Page 3 (9) Date 20.4.2013 EQUIPMENT UNDER TEST (EUT) Description of product Wireless charging transmitter and receiver (fixed installation) Modes of operation A) Normal operating mode with a resistive 10 Ohm load B) Normal operating mode with sample mobile phone System functional block diagram No diagram available Note: System Components See table below SC no. Description Manufacturer Type Serial No. 1 Wireless charging transmitter unit (Heart 2) Powerkiss Oy, Finland PH2-B1 - 2 Receiving unit (Ring) Powerkiss Oy, Finland Qi - 3 Receiving unit (Ring) Powerkiss Oy, Finland Powerkiss - 4 External AC/DC Power Supply Phihong PSA30W-190A - Note: Cables This product has been tested with the following cable types and cable configurations. CA No. Connection Manufacturer Type Number of leads Length 1 AC/DC power supply - AC power supply network AC cable, unshielded 3 4.0 m 2 EUT - AC/DC power supply DC power cable with ferrite, unshielded 2 1.8 m Note: Product variants covered by this report No product variants VA no. Variant Description of deviation 1 Note: Additional information Type plate Transmitter Powerkiss mode Receiver Qi mode receiver Type: PH2-B1 S/N: - OET BULLETIN 65, ED.97-01 + Supplement C ED. 01-01 Test report 219872EMF Page 4 (9) Date 20.4.2013 GENERAL TEST CONDITIONS Location Facilities The tests documented in this report are all conducted in the facilities of Nemko Oy in Espoo, Finland Operating environment All tests and measurements were performed in a normal room. Environment was measured to be suitable for the tests conducted. Power Supplied to EuT General AC electrical power was available for operation of EuT in all test areas. Voltage 97.7 - 132.3 V AC 60 Hz Type AC Grounding Grounded through its power connection Climatic Conditions Ambient temperature 23 C (accepted range: 15 - 25C) Relative humidity 40 % Atmospheric pressure 1010 hPa Test positions Below the closest surface of the Heart unit Above the closest surface of the ring unit 1 2 4 5 6 Measurement distance 3 Type: PH2-B1 S/N: - OET BULLETIN 65, ED.97-01 + Supplement C ED. 01-01 Test report 219872EMF Page 5 (9) Date 20.4.2013 REQUIREMENTS Clause Requirement Information Verdict OET BULLETIN 65, ED.97-01: Table 1 (B) Magnetic and electric fields, general population / uncontrolled exposure - Claus…

Text truncated - open the document above for the full version.

Nemko Oy  P.O.Box 19, FI – 02601 Espoo, Finland Street address: Perkkaantie 11, FI – 02600 Espoo Telephone +358 424 5454 1  Telefax +358 9 5489 6371 TEST REPORT Version e2.07 Date: ESPOO 06.05.2013 Page: 1 (18) Appendices  Date of handing in: 19.10.2012 Number: 219872FCC No. 1 / 1 Tested by: Jonas Dahlgren, Test Engineer Reviewed by: Timo Leismala, Test Manager SORT OF EQUIPMENT: Wireless charging transmitter and receiver MARKETING NAME: Heart 2 TYPE: PH2-B1 MANUFACTURER: Powerkiss Oy, Finland SERIAL NUMBER: - CLIENT: Powerkiss Oy, Finland ADDRESS: Melkonkatu 24, FI – 00210 HELSINKI, FINLAND TELEPHONE: +358 44 720 7347 TEST LABORATORY: Nemko Oy FCC REG. NO. IC FILE NO. 359859 October 20, 2011 2040F-1 December 1, 2010 SUMMARY: In regard to the performed tests the EUT fulfils the requirements defined in the test specification, see page 2 for details. The test results are valid for the tested unit only. Without a written permission of Nemko Oy it is allowed to copy this report as a whole, but not partially. Type: PH2-B1 S/N: - Test report: 219872FCC Page 2 (18) Date 06.05.2013 Summary of performed tests and test results Section in CFR 47, Part 15C Section in RSS-210 Issue 8 and RSS- Gen Issue 3 Test Result 15.209 RSS-Gen 7.2.5 Radiated disturbance 9 kHz – 30 MHz PASS, margin > 24 dB 15.209 RSS-Gen 7.2.5 Radiated disturbance 30 MHz – 1000 MHz PASS, margin 5.7 dB 15.207 RSS-Gen 7.2.4 Conducted emissions at mains ports PASS, margin 8.0 dB - RSS-Gen 4.6.1 99% occupied bandwidth PASS Explanations: PASS The EUT passed that particular test. FAIL The EUT failed that particular test. Type: PH2-B1 S/N: - Test report: 219872FCC Page 3 (18) Date 06.05.2013 Contents 1. General ............................................................................................................................................... 4 2. System Configuration .......................................................................................................................... 4 2.1 Test set-up ................................................................................................................................ 4 2.2 Operating conditions and monitoring of the EUT...................................................................... 4 3. Test procedures .................................................................................................................................. 5 3.1 Emission tests ........................................................................................................................... 5 3.1.1 Radiated disturbance emission test 9 kHz – 30 MHz ............................................................... 5 3.1.2 Radiated disturbance emission test 30 MHz – 1000 MHz ........................................................ 5 3.1.3 Conducted disturbance at mains ports emission test ............................................................... 6 3.1.4 99% occupied bandwidth .......................................................................................................... 7 4. Test results .......................................................................................................................................... 8 4.1 Emission tests ........................................................................................................................... 8 4.1.1 Radiated Emission test 9 kHz – 30 MHz .................................................................................. 8 4.1.2 Radiated Emission test 30 MHz – 1000 MHz ......................................................................... 12 4.1.3 Conducted disturbance at mains ports emission test ............................................................. 13 4.1.4 99% occupied bandwidth results ............................................................................................ 16 5. List of test equipment ........................................................................................................................ 18 Type: PH2-B1 S/N: - Test report: 219872FCC Page 4 (18) Date 06.05.2013 1. General The equipment under test (EUT) was a Wireless charging transmitter and receiver. The purpose of the performed tests was to see if in regard to these tests the EUT fulfils the radiated emission requirements defined in CFR 47 Part 15, Subpart C. The test was performed in guidance of the CFR 47 Part 15, Subpart C and ANSI C63.4 - 2003. 2. System Configuration 2.1 Test set-up Equipment under test (EUT):  Wireless charging transmitter: Heart 2, type: PH2-B1, S/N: -  Wireless charging receiver: Qi Ring, Powerkiss Ring Auxiliary Equipment:  External Power Supply, type: Phihong PSA30W-190A Cables: From To Type Length [m] Power Supply Mains network AC power cable, unshielded 4.0 EUT Power Supply DC power cable with ferrite, unshielded 1.8 Operating voltage of the EUT:  19 V DC  AC/DC adapter: 97.7 - 132.3 V AC 60 Hz 2.2 Operating conditions and monitoring of the EUT The EUT was tested in normal charging operation mode: the receiver (Ring) was placed on top of the EUT Power coil (Heart), antenna to antenna distance representing the normal installation. The right position was indicated in the Ring by a red LED and in the Heart by a red LED. The receiver was connected to a 10 ohm resistive load, which was drawing maximum amount of current simulating the normal operation or charging process. No change in fundamental field strength due to variation of input voltage from 97.7 - 132.3 V AC 60 Hz was observed. The operation of the EUT was monitored visually by watching the LEDs with an eye. Qi mode: The frequency of operation from 120-205 kHz was verified by the following two operating modes: maximum antenna to antenna distance with 10 Ohm load (124 kHz) and minimum antenna to antenna distance without a load (203 kHz). Powerkiss mode: The frequency of operation was 124 kHz. Type: PH2-B1 S/N: - Test report: 219872FCC Page 5 (18) Date 06.05.2013 3. Test procedures 3.1 Emission tests …

Text truncated - open the document above for the full version.
