ZND54647864833KNE�s Automatic Cleaning System

太阳能自动清洁系统 KNE’s Automatic Cleaning system Table of Contents Product Introduction ---------------------------------------------------------------------------1 Features----------------------------------------------------------------------------------------1 Technical Data----------------------------------------------------------------------------------2 Operation manual--------------------------------------------------------------------------------3 Warnings----------------------------------------------------------------------------------------4 KING’S NEW ENERGY CO., LTD TEL: 86 750 5508966 FAX: 86 750 5509969 www.ksnwenergy.com 太阳能自动清洁系统 Product Introduction The solar panels are installed outdoors, and the dust, dirt, bird droppings, snow, and debris may accumulate on the panel’s surface. Hence this reduces the light transmittance of the solar panel, causing energy loss. It is proven that standard solar panels may lose up to 30% to 40% of their efficiency within one year due to unclean panel surfaces. Currently in the market, the automatic-cleaning solution does not have the capability to remove heavy dirt from panel surfaces. The most common maintenance of solar panels is to manually clean with a brush and solvent. Considering the manual nature of these services, it may be more costly and unsafe (especially cleaning roof-mounted systems.) our cleaning system targets these problems, making sure your investment in solar energy coupled with our cleaning system will give you the most economical benefit Features 1: Water spray along with wiper, enabling the effective removal of dirt, snows, bird droppings, and other pollutants from the surface of the panel. 2: Once activated, water sprays along the top of the frame, and then a wiper moves down the frame and back up. The cleaning capacity is at maximum 6kgs on the solar panel surface. 3: Our cleaning system can be mounted on multiple kinds of solar panels, new or existing, whether with frame or not. 4: Remote control and programmable settings makes cleaning convenient. 5: Our system has been tested under different climate conditions. It can work well under rain, sandstorm, typhoon, etc. Functions: The PV systems with our cleaning systems mounted on, provide the following functions: 1: Enable to clean the solar panel effectively, optimize their ability to absorb the solar energy, maintain its efficiency. It is proven that the pollutants attached on the solar panel for 1-5 months, the solar panel’s conversion efficiency will reduce from approximately 15% to 8-10%. It means that the rate of work decrease up to almost 50%. This is just considering everyday use, excluding heavy snow. Our cleaning systems enable the user to clean the panel’s surface anytime, optimize their ability to absorb solar energy, keep them working efficiently avoiding 30-40% energy loss caused from the unclean surfaces. 2: Protect the solar panel, minimize the risk of failure As debris and pollutants accumulate on the solar penal surface over frame over time, there is risk of burnout caused from overheating. Cleaning the solar panel often can well decrease this risk, especially in desert areas, or in snow covered areas, there are some pollutants that covers often covers on the solar panel. Removing the pollutants from its surface can well promise the PV system to maintain its good working condition. 3: Guarantee the life time of the other accessories in PV system, and bring down the high economical return. The PV system with our cleaning system mounted on, can work efficiently and stably. Hence it minimize the risk of failures for the it’s accessories, guarantee that’ life time. So that it can reduce the budget in the investment for equipment and maintenance. 太阳能自动清洁系统 Technical Data: Items: the frame integrating solar panel, The control box: can control 30 pcs of the frame integrating the solar panel Principle of operation: electronic board terminals--------control box------motor-----transmission synchronous belt------the silicon wiper blade The connection between solar frames is in series circuit Material: aluminum alloy (anti-oxidizing) The frame size :600cm、700cm、800cm、or custom-made length . Circuit board: maintenance-free electronic components, microcomputer data control Low-voltage motor: working voltage 24V/20R, maximum load 22.42kgs/cm The working hours: once a week / custom programmable settings The working temperature:-20°C to 60°C Power: DC Battery or AC current Power consumption: 0.2----0.5 kwh/year Recommended Working environment: solar streetlight and includes all characteristics of the roof, local factors, And wind suction, as well as snow load zones . Quality guarantee period: the whole module: 1 year the mounting system: 15 years Low-voltage motor: 1 year the controller: 5 years The remote controller: 15years the silica gel wiper: 10 years Packing list: the frame, the control box ID Installation Automatic operation Firstly connect the extensions (the frame) and the main engine (control box), then Press the button “up” and “two week” while getting the power on, Then press the button “menu”, the screen shows as ( picture 1.) ID: 01 means its ID is “the first one”. STATE means the conditions (pass is for success, fail is for failure.) if the state show “pass”, that means its ID is successfully recorded into the main engine (control box). Then getting the power off; disconnect the extensions (the frame) and the main engine (control box). And record this frame’s ID as “the first”, and takes note on this frame. Picture 1 The sam e operation on the following extensions (the frame) 2，3，4，5，6......30. Manual operation If the automatic operation is not workable, it can be operated manually. Firstly connect the extensions (the frame) and the main engine (control box), then get the power on , press the button “menu”, the screen show as (picture 2), press the button “up” or “down” to choose the ID in need , if the state show “pass”, that means its ID is successfully re…

Text truncated - open the document above for the full version.

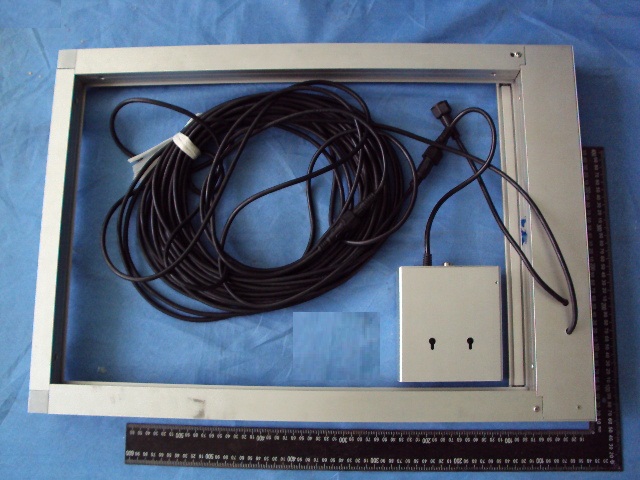

KNE’s Auto matic Cleaning System Frame: KCS / Control box: KP-A Input: D C 12V 4A . FCC ID: ZND54647864833 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal photos:

Operation description The product KNE’s automatic cleaning system include two parts, one is control box with a 433.92MHz receiver, and the other part is the clean frame. The two parts connect together with one signal cable. And should use together. It can receive the control signal from the corresponding transmitter to be controlled the working conditions. The receiver receive control signal from the transmitter. After demodulation, The product will operate as control signal from remote controller. The remote controller has four functions. 1) water spray 2) wiper 3) water spray + wiper 4) Stop
