ZNF306GMulti-Band WCDMA/GSM Phone with WLAN and Bluetooth

User Guide LG 306G MFL68006601 (1.0)www.lg.com Guía del Usuario LG 306G Printed in Chinawww.lg.com ENGLISH ESPAÑOL Congratulations on your purchase of the advanced and compact LG 306G phone by LG, designed to operate with the latest digital mobile communication technology. Some of the contents in this manual may differ from your phone depending on the software of the phone or your service provider. Copyright ©2013 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners. 2 Contents Getting to know your phone ...........4 Device components...........................4 Installing the SIM Card and Battery ...................................................6 Charging your phone ......................10 Installing a memory card ................11 Icon Glossary .....................................13 Connecting to Networks and Devices ............................................15 Connect to Wi-Fi ..............................15 Connecting to Bluetooth Devices 16 General Functions ...........................17 Making a Call ......................................17 Answering a Call ...............................18 Adjusting the Volume .....................18 Setting Profiles ..................................19 Entering Text .....................................20 Prepaid ...........................................25 Add Airtime ......................................25 Buy Airtime .......................................25 My Phone Number .........................25 My Airtime Info ................................25 Airtime Display .................................25 Serial Number ..................................26 SIM Number .....................................26 Code Entry Mode ............................26 In-Call Menu ..................................27 During a Call .....................................27 Your Home Screen .........................29 Home Screen ....................................31 Contacts .........................................35 Contact List .......................................35 Add New ............................................35 Groups ................................................36 Speed Dial ..........................................37 Messages ........................................39 Create Message ...............................39 Inbox ...................................................43 Drafts...................................................44 Outbox ................................................44 Message Settings............................45 Email ...................................................47 Multimedia .....................................50 Games & Apps ................................50 Facebook............................................50 3 Camera ...............................................50 Music Player ...................................55 Music Player ......................................55 Utilities............................................60 Audio ..................................................60 Pictures...............................................60 Video ...................................................60 Voice Recorder ..................................61 Calendar .............................................62 Notepad .............................................63 Tasks....................................................64 Stopwatch ..........................................65 Calculator ...........................................66 Tip Calculator ...................................66 Unit Converter ..................................66 Alarm ...................................................67 File Manager .....................................68 Browser ...........................................70 Settings ..........................................72 Display ................................................72 Phone...................................................73 Call ........................................................76 Touch ...................................................77 Accessibility ....................................77 Sound Settings ................................78 Bluetooth ...........................................80 Accessories ....................................84 For Your Safety ...............................85 4 Getting to know your phone Device components Home Screen Displays phone status icons, menu items, web items, web information, pictures and more in full color. You can select menu items by touching the corresponding icons on the touchpad. End Key Ends or rejects a call. Touch once to return to the Home screen from any other screen. Clear/Back Key Allows you to return to the previous screen and delete any text you have entered. Charger/USB Port 3.5 mm Headset Jack Earpiece Lets you hear the caller and automated prompts. Send Key Touch this key in standby mode to quickly access the most recent missed, dialed and received calls. 5 Volume Keys • On the Home screen: Allows you to set the Ringtone volume. Hold the Volume Down Key to toggle the Vibration Mode On and Off. • During a call: Allows you to change the Earpiece volume. • When playing music: Allows you to change the music volume. Power/Lock Key • Powers your phone on/off by pressing and holding the key. • Turns your screen on and off and locks it. Back Cover Camera Lens microSD™ Card Slot Battery SIM Card Slot 6 Getting to know your phone Installing the SIM Card and Battery Remove the back cover Hold the phone on your hand firmly. With the other hand, lift the back cover using the fingertip cutout located at the bottom of the cover to remove it. 7 Remove the battery Use the fingertip cutout at the bottom of the battery compartment to lift the battery out. 8 Getting to know your phone WARNING Do not remove the battery when the phone is switched on, as this may damage the pho…

Text truncated - open the document above for the full version.

Date: November 20, 2013 Federal Communicat ions Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNF306G Equipment Class: DTS: Digital Transmission System To Whom It Ma y Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics MobileComm USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics MobileComm USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

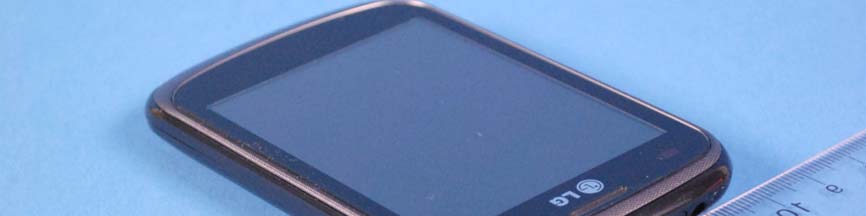

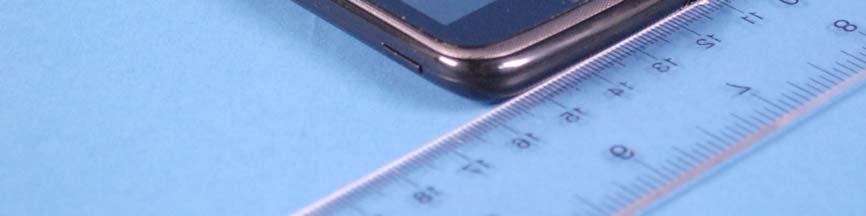

LG FCC ID: ZNF306G Model: LG306G External Photos EUT Type: Portable Handset Page 1 of 4 © 2013 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG FCC ID: ZNF306G Model: LG306G External Photos EUT Type: Portable Handset Page 2 of 4 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNF306G Model: LG306G External Photos EUT Type: Portable Handset Page 3 of 4 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNF306G Model: LG306G External Photos EUT Type: Portable Handset Page 4 of 4 © 2013 PCTEST Engineering Laboratory Inc.

※ FCC ID Label Form Note: The FCC ID shown will be readily visible at the time of purchase. Note! The label of the EUT is made of a white polypropylene laminate film and it's attached to the EUT by an adhesive. The adhesive is permanent type with strong strength. Additionally, the FCC ID is readily visible to the purchaser at the time of purchase because the phone will be marketed without the battery installed. Model No : LG306G FCC ID : ZNF306G S/N : Made in Korea

LG FCC ID: ZNF306G Model: LG306G Internal Photos EUT Type: Portable Handset Page 1 of 7 © 2013 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG FCC ID: ZNF306G Model: LG306G Internal Photos EUT Type: Portable Handset Page 2 of 7 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNF306G Model: LG306G Internal Photos EUT Type: Portable Handset Page 3 of 7 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNF306G Model: LG306G Internal Photos EUT Type: Portable Handset Page 4 of 7 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNF306G Model: LG306G Internal Photos EUT Type: Portable Handset Page 5 of 7 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNF306G Model: LG306G Internal Photos EUT Type: Portable Handset Page 6 of 7 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNF306G Model: LG306G Internal Photos EUT Type: Portable Handset Page 7 of 7 © 2013 PCTEST Engineering Laboratory Inc.

FCC ID: ZNF306G SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 32 0Y1310212060.R1.ZNF 10/21/13 - 10/24/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. 10/21/13 - 10/24/13 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Document Serial No.: 0Y1310212060.R1.ZNF FCC ID: ZNF306G APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A., INC. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): LG306G, 306G 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) PCEGSM/GPRS/EDGE Rx Only 850824.20 - 848.80 MHz33.441.030.75 PCEUMTS 850826.40 - 846.60 MHz23.330.770.65 PCEGSM/GPRS/EDGE Rx Only 1900 1850.20 - 1909.80 MHz30.550.740.54 PCEUMTS 19001852.4 - 1907.6 MHz22.881.120.94 DTS2.4 GHz WLAN2412 - 2462 MHz13.590.14< 0.1 DSSBluetooth2402 - 2480 MHz11.65 1.271.16 SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class N/A Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. This revised Test Report (S/N: 0Y1310212060.R1.ZNF) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: ZNF306G SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 32 0Y1310212060.R1.ZNF 10/21/13 - 10/24/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 INTRODUCTION ............................................................................................................................. 6 3 DOSIMETRIC ASSESSMENT ........................................................................................................ 7 4 DEFINITION OF REFERENCE POINTS ........................................................................................ 8 5 TEST CONFIGURATION POSITIONS FOR HANDSETS .............................................................. 9 6 RF EXPOSURE LIMITS ................................................................................................................ 12 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 13 8 RF CONDUCTED POWERS ......................................................................................................... 16 9 SYSTEM VERIFICATION .............................................................................................................. 19 10 SAR DATA SUMMARY ................................................................................................................. 21 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 25 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 27 13 EQUIPMENT LIST ......................................................................................................................... 28 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 29 15 CONCLUSION ............................................................................................................................... 30 16 REFERENCES .............................................................................................................................. 31 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: ZNF306G SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 32 0Y1310212060.R1.ZNF 10/21/13 - 10/24/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE Rx Only 850Voice/Data824.20 - 848.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz GSM/GPRS/EDGE Rx Only 1900Voice/Data1850.20 - 1909.80 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz 2.4 GHz WLANData2412 - 2462 MHz BluetoothData2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D01v05. Voice (dBm) 1 TX Slot 1 TX Slots 2 TX Slots Maximum33.7 33.7 31.7 Nominal33.2 33.2 31.2 Maximum30.7 30.7 28…

Text truncated - open the document above for the full version.

FCC ID: ZNF306G FCC Pt. 15.247 802.11b/g MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 42 0Y1310212062.ZNF 10/23 - 11/13/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 3.10 06/17/2013 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A 10/23 - 11/13/2013 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1310212062.ZNF FCC ID: ZNF306G APPLICANT: LG Electronics MobileComm U.S.A Application Type: Certification Model(s): LG306G, 306G EUT Type: Portable Handset FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r01 Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) 802.11b 2412 - 246223.28113.6743.15216.35 802.11g 2412 - 246215.27611.84127.05721.04 Avg Conducted Mode Tx Frequency (MHz) Peak Conducted This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 WLAN 802.11b/g FCC ID: ZNF306G FCC Pt. 15.247 802.11b/g MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 42 0Y1310212062.ZNF 10/23 - 11/13/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 3.10 06/17/2013 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11B/G ...................................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G (2.4GHZ) ...................................................................... 16 6.4 POWER SPECTRAL DENSITY (802.11B/G) ............................................................................................... 18 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE ...................................................................................... 23 6.6 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 26 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 31 6.8 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ...................................................................... 36 6.9 LINE-CONDUCTED TEST DATA ................................................................................................................. 40 7.0 CONCLUSION ....................................................................................................................................... 42 FCC ID: ZNF306G FCC Pt. 15.247 802.11b/g MEASURE…

Text truncated - open the document above for the full version.

FCC IDZNF306G SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 4 10/21/13 - 10/24/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC IDZNF306G SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 4 10/21/13 - 10/24/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 SAR Test Setup Photo 1 – Right Cheek SAR Test Setup Photo 2 – Right Tilt FCC IDZNF306G SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 4 10/21/13 - 10/24/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 SAR Test Setup Photo 3 – Left Cheek SAR Test Setup Photo 4 – Left Tilt FCC IDZNF306G SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 4 of 4 10/21/13 - 10/24/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 SAR Test Setup Photo 5 – Back Side at 1.5 cm SAR Test Setup Photo 6 – Horizontal and Vertical Reference Lines

LG FCC ID: ZNF306G Model: LG306G Test Set-Up Photos EUT Type: Portable Handset Page 1 of 3 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS LG FCC ID: ZNF306G Model: LG306G Test Set-Up Photos EUT Type: Portable Handset Page 2 of 3 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNF306G Model: LG306G Test Set-Up Photos EUT Type: Portable Handset Page 3 of 3 © 2013 PCTEST Engineering Laboratory Inc.
