ZNFA447Cellular/PCS GSM and AWS WCDMA Phone with Bluetooth

User Guide LG-A447 MFL67688801 (1.0) www.lg.com ENGLISH Printed in China t Some of the contents of this manual may not apply to your phone depending on your phone’s software or your service provider. t Copyright ©2012 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners. LG-A447 User Guide 2 Contents .......................... 2 Your Phone ........................ 5 Phone Components ....................... 5 Rear view .............................. 7 Getting Started ..................... 8 Installing the SIM card and battery. . . . . . . . . . . 8 Charging your phone ..................... 10 General Functions .................12 Before you begin ........................ 12 Making a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Answering a Call ........................ 13 Adjusting the Volume .................... 13 Entering Text ........................... 14 In-Call Menu ......................16 During a Call ........................... 16 Making a Second Call ................... 16 Swapping Between Two Calls .............. 16 Answering an Incoming Call ............... 16 Rejecting an Incoming Call ................ 17 Using the Speakerphone ................. 17 Contacts .........................18 Contact List ............................ 18 New Contact ........................... 18 Groups ................................ 18 Speed Dial ............................. 18 SIM Management ....................... 19 Own Number ........................... 19 My Business Card ....................... 19 Messages ........................20 Create Message ........................ 20 Inbox ................................. 23 Drafts ................................. 24 Outbox ................................ 24 Message Settings ....................... 25 Message Alert ......................... 25 Save To .............................. 25 Signature ............................. 25 Text Message ......................... 25 Multimedia Message .................... 26 Voicemail ............................. 26 Music. . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Music ................................. 27 Playing Music ......................... 27 Adding Music To Your Handset ............. 28 Additional Music Services ................. 28 Recent Calls ......................29 Games & Apps ....................29 Contents 3 Email ............................30 Sending an email using your new account .... 30 Retrieving your email .................... 30 Message folders ....................... 30 Changing your email settings .............. 31 Camera ..........................32 Take Photo ........................... 32 Record Video .......................... 33 Camera Album ......................... 34 My Folder ........................35 Audio ............................... 35 Pictures .............................. 35 Video ................................ 35 Other Files ............................ 35 File Manager .......................... 36 Tools ............................37 Voice Command ....................... 37 Alarm Clock ........................... 39 Calendar ............................. 39 Notepad ............................. 40 Calculator ............................ 41 Tasks ............................... 41 Stopwatch ............................ 42 Tip Calculator ......................... 42 Unit Converter ......................... 42 Voice Recorder ........................ 43 Browser ..........................44 Settings ..........................46 Audio & Ringtones ....................... 46 Ringtone ............................. 46 Message Tone ......................... 46 Alert Tone ............................ 46 Keypad Tone .......................... 47 Multimedia ........................... 47 Call ................................. 47 Phone Settings ......................... 47 Languages ........................... 47 Set Hotkeys ........................... 47 Flight Mode ........................... 47 Security .............................. 48 Reset Settings ......................... 48 Display ................................ 49 Wallpapers ........................... 49 Fonts ................................ 49 Clocks & Calendar ...................... 49 Brightness ............................ 49 Backlight Timer ........................ 49 Menu Styles .......................... 49 Call ................................... 49 Send My Number ....................... 49 Answer Mode ......................... 50 Senior Mode .......................... 50 Time & Cost .......................... 50 Accessibility ........................... 50 Bluetooth .............................. 50 Turn On/Off ........................... 51 Search New Device ..................... 51 4 My Devices ........................... 51 My Bluetooth Info ....................... 51 Memory ............................... 52 Used Space ........................... 52 Applications ............................ 53 Messages ............................ 53 Browser .............................. 53 Voice Command ....................... 54 TTS (Text-to Speech) .................... 55 Phone Information ....................... 55 Accessories ......................56 Safety ...........................57 Contents 5 Your Phone Phone Components 3 5 6 4 7 Press and hold to activate/deactivate Vibrating Mode. 8 9 10 11 1 2 13 12 6 1. Earpiece: Lets you hear the caller during a call. 2. Main LCD: Displays phone status icons, menu items, web items, web information, pictures and more, in full color. 3. Left Soft Key/Right Soft Key: Each of these keys perform the functions indicated by the text on the display immediately above them. 4. Camera Key: Lets you activate the Camera and take pictures. 5. Message Hot Key: Trigger this key to directly go to Create Message. 6. Navig…

Text truncated - open the document above for the full version.

          !"# Date: SEP 03#2 Federal Communications Commission Authorization and Evaluation Division 7435 Oakl and Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFA447 Equipment Class:%&%  '  (  )  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,  MobileComm hereby requests confidentiality and treatment of certain information accompanying this applicat ion. The materials contain trade secre ts and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  MobileComm temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits ar e listed as follows: %+,'- ./+'0'+,/12-'22' 3) 4 - 5  1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure %+,' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

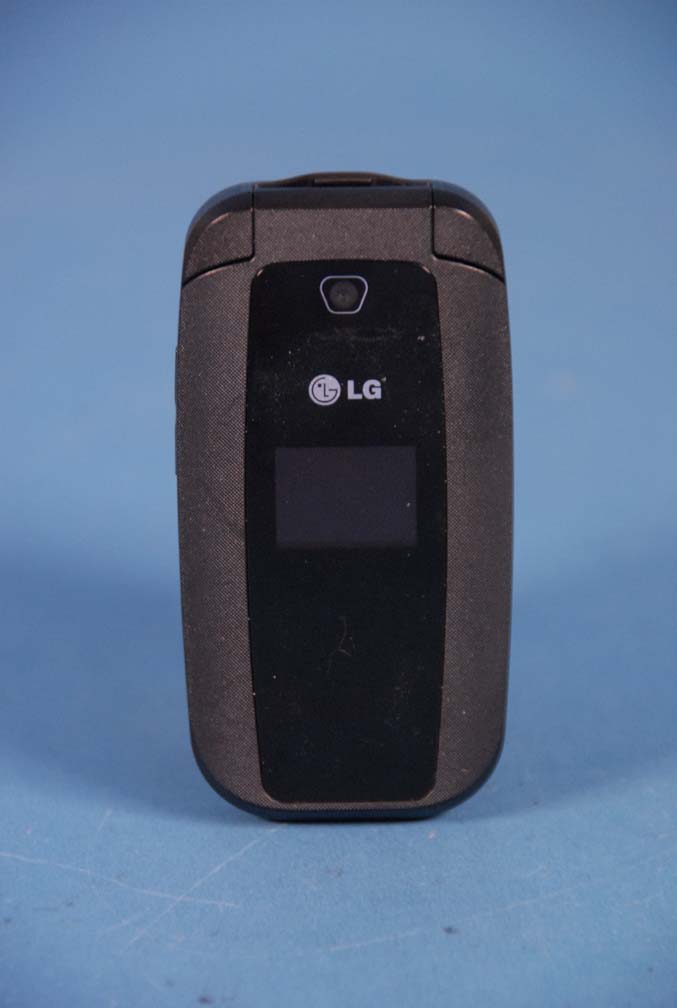

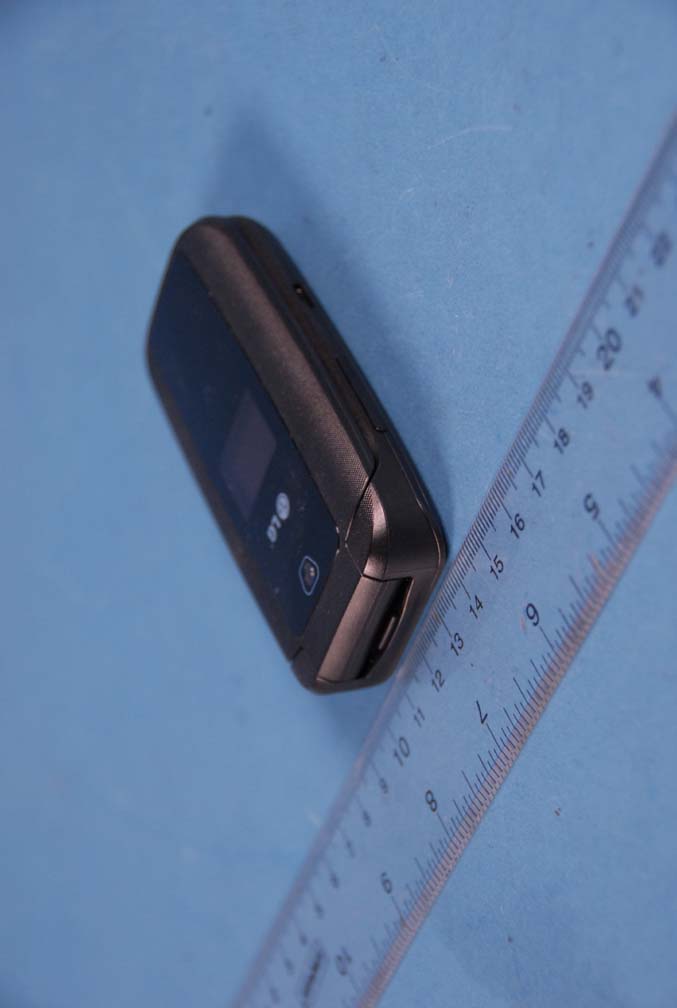

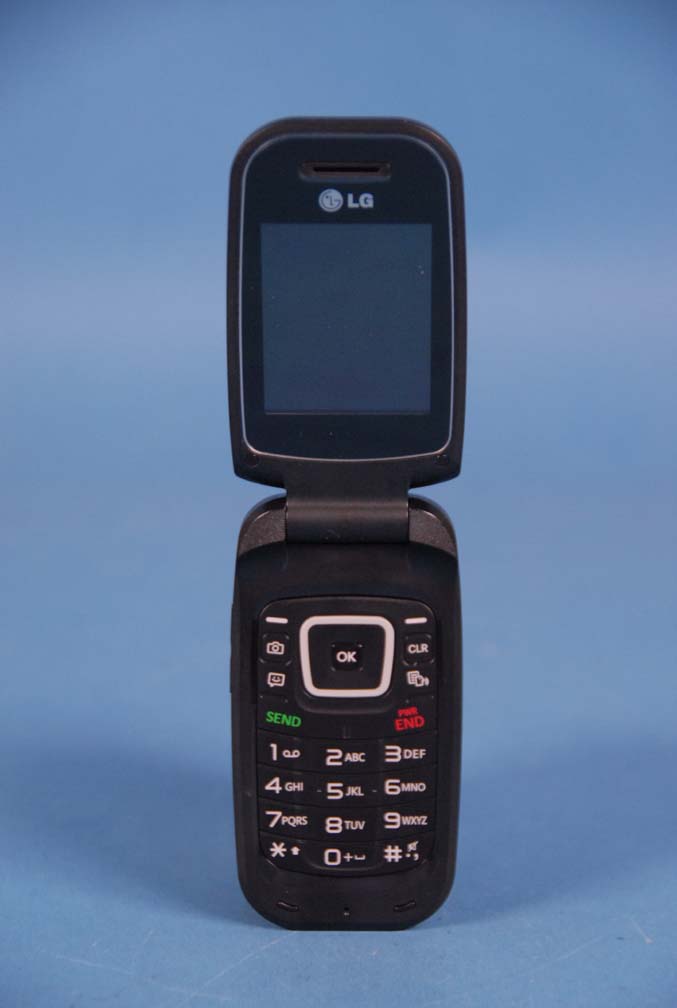

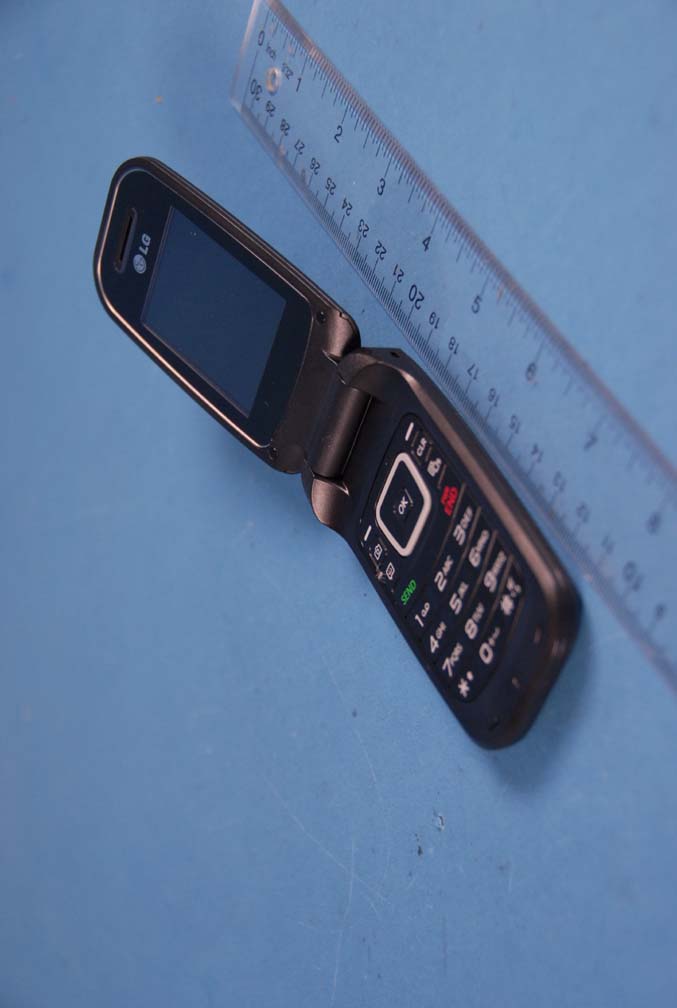

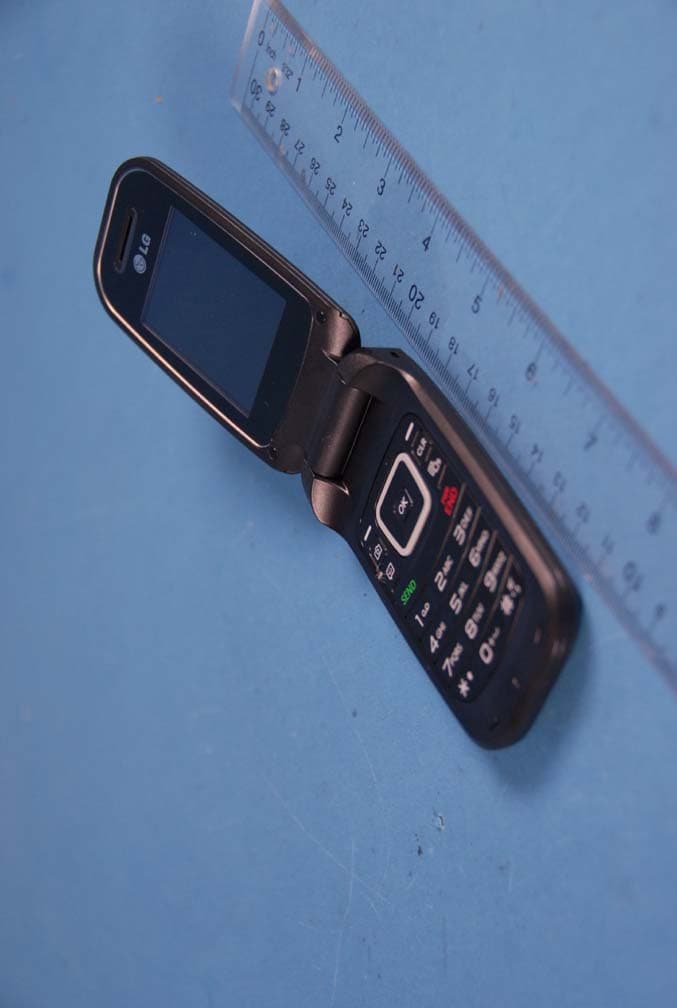

LG ELECTRONICS MOBILECOMM U.S.A. FCC ID: ZNFA447 Model: LG-A447 External Photos EUT Type: PORTABLE HANDSET Page 1 of 5 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG ELECTRONICS MOBILECOMM U.S.A. FCC ID: ZNFA447 Model: LG-A447 External Photos EUT Type: PORTABLE HANDSET Page 2 of 5 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A. FCC ID: ZNFA447 Model: LG-A447 External Photos EUT Type: PORTABLE HANDSET Page 3 of 5 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A. FCC ID: ZNFA447 Model: LG-A447 External Photos EUT Type: PORTABLE HANDSET Page 4 of 5 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A. FCC ID: ZNFA447 Model: LG-A447 External Photos EUT Type: PORTABLE HANDSET Page 5 of 5 © 2012 PCTEST Engineering Laboratory Inc.

Model No: LG-A447 FCC ID : ZNFA447 S/N : Made in Korea LG Electronics MobileComm USA, Inc. LGE

LG ELECTRONICS MOBILECOMM U.S.A. FCC ID: ZNFA447 Model: LG-A447 Internal Photos EUT Type: PORTABLE HANDSET Page 1 of 10 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG ELECTRONICS MOBILECOMM U.S.A. FCC ID: ZNFA447 Model: LG-A447 Internal Photos EUT Type: PORTABLE HANDSET Page 2 of 10 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A. FCC ID: ZNFA447 Model: LG-A447 Internal Photos EUT Type: PORTABLE HANDSET Page 3 of 10 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A. FCC ID: ZNFA447 Model: LG-A447 Internal Photos EUT Type: PORTABLE HANDSET Page 4 of 10 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A. FCC ID: ZNFA447 Model: LG-A447 Internal Photos EUT Type: PORTABLE HANDSET Page 5 of 10 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A. FCC ID: ZNFA447 Model: LG-A447 Internal Photos EUT Type: PORTABLE HANDSET Page 6 of 10 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A. FCC ID: ZNFA447 Model: LG-A447 Internal Photos EUT Type: PORTABLE HANDSET Page 7 of 10 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A. FCC ID: ZNFA447 Model: LG-A447 Internal Photos EUT Type: PORTABLE HANDSET Page 8 of 10 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A. FCC ID: ZNFA447 Model: LG-A447 Internal Photos EUT Type: PORTABLE HANDSET Page 9 of 10 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A. FCC ID: ZNFA447 Model: LG-A447 Internal Photos EUT Type: PORTABLE HANDSET Page 10 of 10 © 2012 PCTEST Engineering Laboratory Inc.

FCC ID: ZNFA447 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 26 0Y1209041299-R1.ZNF 09/04/12 - 09/12/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 Applicant Name: Date of Testing: LG Electronics MobileComm USA, Inc. 09/04/12 - 09/12/12 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA USA Document Serial No.: 0Y1209041299-R1.ZNF F C C I D : ZNF A4 4 7 AP P L I C AN T : LG E LE CT RO NI CS MO B ILE CO M M US A, IN C. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093 LG-A447 Test Device Serial No.: Pre-Production [S/N: SAR #1] 1 gm Head (W/kg) 1 gm Body-Worn (W/kg) GSM/GPRS 850824.20 - 848.80 MHz32.860.320.48 AWS WCDMA/HSDPA1712.4 - 1752.5 MHz23.180.500.37 GSM/GPRS 19001850.20 - 1909.80 MHz30.060.250.56 Bluetooth2402 - 2480 MHz9.97 SAR Band & ModeTx Frequency Conducted Power [dBm] N/A Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This revised Test Report (S/N: 0Y1209041299-R1.ZNF) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: ZNFA447 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 26 0Y1209041299-R1.ZNF 09/04/12 - 09/12/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 T A B L E O F C O N T E N T S 1 DEVICE UNDER TEST ....................................................................................................................3 2 INTRODUCTION ..............................................................................................................................5 3 SAR MEASUREMENT SETUP ........................................................................................................6 4 DOSIMETRIC ASSESSMENT .........................................................................................................7 5 DEFINITION OF REFERENCE POINTS .........................................................................................8 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ...............................................................9 7 FCC RF EXPOSURE LIMITS ........................................................................................................ 12 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 13 9 RF CONDUCTED POWERS ......................................................................................................... 14 10 SYSTEM VERIFICATION .............................................................................................................. 16 11 SAR DATA SUMMARY ................................................................................................................. 18 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 21 13 EQUIPMENT LIST ......................................................................................................................... 22 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 23 15 CONCLUSION ............................................................................................................................... 24 16 REFERENCES .............................................................................................................................. 25 FCC ID: ZNFA447 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 26 0Y1209041299-R1.ZNF 09/04/12 - 09/12/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 1 D E V I C E U N D E R T E S T 1.1 Device Overview GSM/GPRS 850824.20 - 848.80 MHz AWS WCDMA/HSDPA1712.4 - 1752.5 MHz GSM/GPRS 19001850.20 - 1909.80 MHz Bluetooth2402 - 2480 MHz Band & ModeTx Frequency 1.2 DUT Antenna Locations Figure 1-1 DUT Antenna Locations FCC ID: ZNFA447 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 4 of 26 0Y1209041299-R1.ZNF 09/04/12 - 09/12/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 1.3 SAR Test Exclusions Applied (A) WIFI/BT The separation between the main antenna and the Bluetooth Antenna is 65.36 mm. RF Conducted Power of Bluetooth Tx is 9.931 mW(Please refer to the EMC DSS Report for a full set of Bluetooth conducted powers). Per KDB…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ZNFA447 FCC Pt. 22/24 GSM MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1209041300.ZNF September 11-14, 2012Portable Handset Page 1 of 35 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.6GFI 05/21/2012 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A September 11-14, 2012 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1209041300.ZNF FCC ID: ZNFA447 IC CERTIFICATION NO.: 2703C-A447 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A Application Type: Certification Model(s): LG-A447 EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) IC Specification(s): RSS-132 Issue 2; RSS-133 Issue 5 Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 Test Device Serial No.: identical prototype [S/N: FCC RF#2] Max. Power (W) Max. Power (dBm) GSM850824.2 - 848.8242KGXW1.11430.47 GSM19001850.2 - 1909.8246KGXW0.85129.30 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Roads, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 / IC RSS-132/RSS-133 GSM Reviewed by: FCC ID: ZNFA447 FCC Pt. 22/24 GSM MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1209041300.ZNF September 11-14, 2012Portable Handset Page 2 of 35 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.6GFI 05/21/2012 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.5 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 EVALUATION PROCEDURE.............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 OCCUPIED BANDWIDTH ................................................................................................................... 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 8 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 9 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 9 4.0 TEST EQUIPMENT CALIBRATION DATA ....................................................................................10 5.0 SAMPLE CALCULATIONS ............................................................................................................11 6.0 TEST RESULTS .............................................................................................................................12 6.1 SUMMARY......................................................................................................................................... 12 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ........................................................................... 13 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA .................................................... 13 6.4 CELLULAR GSM RADIATED MEASUR…

Text truncated - open the document above for the full version.

FCC ID: ZNFA447 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: Page D1 of D4 09/04/12 - 09/12/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 A P P E N D I X D : S A R T E S T S E T U P P H O T O G R A P H S FCC ID: ZNFA447 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: Page D2 of D4 09/04/12 - 09/12/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 SAR Test Setup Photo 1: Right Cheek SAR Test Setup Photo 2: Right Tilt FCC ID: ZNFA447 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: Page D3 of D4 09/04/12 - 09/12/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 SAR Test Setup Photo 3: Left Cheek SAR Test Setup Photo 4: Left Tilt FCC ID: ZNFA447 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: Page D4 of D4 09/04/12 - 09/12/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 SAR Test Setup Photo 5: Body-Worn Back Side at 1.5 cm Note: Headset Cable is connected to the device during body-worn SAR assessment, as seen above.

LG ELECTRONICS MOBILECOMM U.S.A. FCC ID: ZNFA447 Model: LG-A447 Test Set-Up Photos EUT Type: PORTABLE HANDSET Page 1 of 2 © 2012 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS LG ELECTRONICS MOBILECOMM U.S.A. FCC ID: ZNFA447 Model: LG-A447 Test Set-Up Photos EUT Type: PORTABLE HANDSET Page 2 of 2 © 2012 PCTEST Engineering Laboratory Inc.
