ZNFAS730Cellular/PCS CDMA Phone with WLAN and Bluetooth
LG Electronics USA, Inc.
Click to zoom
Application Details
- Equipment Class
- PCE - PCS Licensed Transmitter held to ear
- Date of Grant
- May 24, 2012
- Application Purpose
- Original Equipment
- Date of Application
- May 15, 2012
- Equipment Note
- Cellular/PCS CDMA Phone with WLAN and Bluetooth
- Frequency Range
- 1851.25000000 - 1908.75000000
- Company
- LG Electronics USA, Inc.
- Country
- United States
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
LG-AS730 User Guide This guide helps you to get started using your phone. s 3OME OF THE CONTENTS OF THIS MANUAL MAY NOT APPLY TO YOUR PHONE DEPENDING ON THE SOFTWARE AND YOUR SERVICE PROVIDER s 4HIS HANDSET IS NOT SUITABLE FOR PEOPLE WHO HAVE A VISUAL IMPAIRMENT DUE TO THE TOUCH SCREEN KEYBOARD s #OPYRIGHT ¥ ,' %LECTRONICS )NC !LL RIGHTS RESERVED ,' AND THE ,' LOGO ARE REGISTERED TRADEMARKS OF ,' 'ROUP AND ITS RELATED ENTITIES !LL OTHER TRADEMARKS ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS s 'OOGLE© 'OOGLE -APS© 'MAIL© 9OU4UBE© 'OOGLE 4ALK© AND 0LAY 3TORE© ARE TRADEMARKS OF 'OOGLE )NC %.',)3( WARNING 4HIS PRODUCT CONTAINS CHEMICALS KNOWN TO THE 3TATE OF #ALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM Wash hands after handling. Contents Getting to know your phone ..................7 Your Home screen ............................... 26 Google account set up ........................ 36 Connecting to Networks and Devices 38 Calls ...................................................... 52 Contacts ............................................... 58 Messaging ............................................ 60 Email ..................................................... 63 Camera ................................................. 67 Video camera ....................................... 73 Multimedia ............................................77 Utilities..................................................80 The web ................................................ 84 Settings ................................................ 86 Accessories .......................................... 97 6IOLATION OF THE INSTRUCTIONS MAY CAUSE SERIOUS INJURY OR DEATH s .EVER USE AN UNAPPROVED BATTERY SINCE THIS COULD DAMAGE THE PHONE ANDOR BATTERY AND COULD CAUSE THE BATTERY TO EXPLODE s .EVER PLACE YOUR PHONE IN A MICROWAVE OVEN AS IT WILL CAUSE THE BATTERY TO EXPLODE s .EVER STORE YOUR PHONE IN TEMPERATURES LESS THAN ª& OR GREATER THAN ª& s $O NOT DISPOSE OF YOUR BATTERY NEAR lRE OR WITH HAZARDOUS OR mAMMABLE MATERIALS s 7HEN RIDING IN A CAR DO NOT LEAVE YOUR PHONE OR SET UP THE HANDS FREE KIT NEAR THE AIR BAG )F WIRELESS EQUIPMENT IS IMPROPERLY INSTALLED AND THE AIR BAG IS DEPLOYED YOU MAY BE SERIOUSLY INJURED s $O NOT USE THE PHONE IN AREAS WHERE ITS USE IS PROHIBITED &OR EXAMPLE AIRCRAFT s $O NOT EXPOSE THE BATTERY CHARGER OR ADAPTER TO DIRECT SUNLIGHT OR USE IT IN PLACES WITH HIGH HUMIDITY SUCH AS A BATHROOM s $O NOT USE HARSH CHEMICALS SUCH AS ALCOHOL BENZENE THINNERS ETC OR DETERGENTS TO CLEAN YOUR PHONE 4HIS COULD CAUSE A lRE s $O NOT DROP STRIKE OR SHAKE YOUR PHONE SEVERELY )T MAY HARM THE INTERNAL CIRCUIT BOARDS OF THE PHONE s $O NOT USE YOUR PHONE IN HIGH EXPLOSIVE AREAS AS THE PHONE MAY GENERATE SPARKS s $O NOT DAMAGE THE POWER CORD BY BENDING TWISTING PULLING OR HEATING $O NOT USE THE PLUG IF IT IS LOOSE AS IT MAY CAUSE ELECTRIC SHOCK OR lRE s $O NOT PLACE ANY HEAVY ITEMS ON THE POWER CORD $O NOT ALLOW THE POWER CORD TO BE CRIMPED AS IT MAY CAUSE ELECTRIC SHOCK OR lRE s $O NOT HANDLE THE PHONE WITH WET HANDS WHILE IT IS BEING CHARGED )T MAY CAUSE AN ELECTRIC SHOCK OR SERIOUSLY DAMAGE YOUR PHONE s $O NOT DISASSEMBLE THE PHONE s $O NOT PLACE OR ANSWER CALLS WHILE CHARGING THE PHONE AS IT MAY SHORT CIRCUIT THE PHONE ANDOR CAUSE ELECTRIC SHOCK OR lRE s $O NOT HOLD OR LET THE ANTENNA COME IN CONTACT WITH YOUR BODY DURING A CALL s -AKE SURE THAT NO SHARP EDGED ITEMS SUCH AS ANIMALS TEETH OR NAILS COME INTO CONTACT WITH THE BATTERY 4HIS COULD CAUSE A lRE s 3TORE THE BATTERY OUT OF REACH OF CHILDREN s "E CAREFUL THAT CHILDREN DO NOT SWALLOW ANY PARTS SUCH AS EARPHONE CONNECTION PARTS OF THE PHONE ETC 4HIS COULD CAUSE ASPHYXIATION OR SUFFOCATION RESULTING IN SERIOUS INJURY OR DEATH s 5NPLUG THE POWER CORD AND CHARGER DURING LIGHTNING STORMS TO AVOID ELECTRIC SHOCK OR lRE s /NLY USE THE BATTERIES AND CHARGERS PROVIDED BY ,' 4HE WARRANTY WILL NOT BE APPLIED TO PRODUCTS PROVIDED BY OTHER SUPPLIERS s /NLY AUTHORIZED PERSONNEL SHOULD SERVICE THE PHONE AND ITS ACCESSORIES &AULTY INSTALLATION OR SERVICE MAY RESULT IN ACCIDENTS AND CONSEQUENTLY INVALIDATE THE WARRANTY s !N EMERGENCY CALL CAN BE MADE ONLY WITHIN A SERVICE AREA &OR AN EMERGENCY CALL MAKE SURE THAT YOU ARE WITHIN A SERVICE AREA AND THAT THE PHONE IS TURNED ON s 9OUR PHONE IS AN ELECTRONIC DEVICE THAT GENERATES HEAT DURING NORMAL OPERATION %XTREMELY PROLONGED DIRECT SKIN CONTACT IN THE ABSENCE OF ADEQUATE VENTILATION MAY RESULT IN DISCOMFORT OR MINOR BURNS 4HEREFORE USE CARE WHEN HANDLING YOUR PHONE DURING OR IMMEDIATELY AFTER OPERATION Getting to know your phone Before you start using the phone, please read this! 0LEASE CHECK TO SEE WHETHER ANY PROBLEMS YOU ENCOUNTERED WITH YOUR PHONE ARE DESCRIBED IN THIS SECTION BEFORE TAKING THE PHONE IN FOR SERVICE OR CALLING A SERVICE REPRESENTATIVE 1. Phone memory 7HEN THERE IS LESS THAN OF SPACE AVAILABLE IN YOUR PHONE MEMORY YOUR PHONE CANNOT RECEIVE NEW MESSAGES 9OU NEED TO CHECK YOUR PHONE MEMORY AND DELETE SOME DATA SUCH AS APPLICATIONS OR MESSAGES TO MAKE MORE MEMORY AVAILABLE To uninstall applications: 1. 4OUCH Apps TAB Settings Apps FROM THE $%6)#% CATEGORY 2. /NCE ALL APPLICATIONS APPEAR SCROLL TO AND SELECT THE APPLICATION YOU WANT TO UNINSTALL 3. 4OUCH Uninstall Getting to know your phone 2. Optimising battery life %XTEND YOUR BATTERYgS LIFE BETWEEN CHARGES BY TURNING OFF FEATURES THAT YOU DONgT NEED TO HAVING RUNNING CONSTANTLY IN THE BACKGROUND 9OU CAN MONITOR HOW APPLICATIONS AND SYSTEM RESOURCES CONSUME BATTERY POWER Extending your phone's battery life: s 4URN OFF RADIO COMMUNICATIONS YOU ARE NOT USING )F YOU ARE NOT USING 7I &I "LUETOOTH OR '03 TURN THEM OFF s 2EDUCE SCREEN BRIGHTNESS AND SET A SHORTER SCREEN TIMEOUT s 4URN OFF AUTOMATIC SYNCING FOR 'OOGLE -AIL© #ALE…
Text truncated - open the document above for the full version.
Attestation Statements
Date: May 3, 2012 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 SUBJECT: LG Electronics Mobilecomm U.S.A FCC ID: ZNFAS730 Part 20.19 Certification Gentlemen: We, LG Electronics MobileComm USA, hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632
Attestation Statements
Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ElectronicsMobileCommU S ASUBJECT: LG ElectronicsMobileCommU.S.A FCC ID: ZNFAS730 Part 20.19 Certification To Whom It May Concern: The following are the model designations and their associated key features for this FCC ID, according to requirement in the TCB Guidance issued on June 20, 2008. FCC ID: ZNFAS730 Air Interfaces: CDMA Wireless Technologies: EVDO Rev. 0/A, 1x Advanced Bands: CDMA835/PCS1900 Should you have any questions or comments concerning the above Key Features: Bluetooth 3.0/WiFi 2.4GHz(802.11b/g/n) MP3 player, Camera GPS Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632
Attestation Statements
Date: May 25, 2012 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Electronics MobileComm U.S.A FCC ID: ZNFAS730 To whom it may concern: We, LG Electronics MobileComm U.S.A, confirm that the 4 special features below mentioned are not supported by the EUT. ppy Features: 1xEVDO Rev. B, HSPA+, BT4.0 and FM TX functions Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, JbChJacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632
Cover Letter(s)
!"# Date: May 3 #2 Federal Communications Commission Authorization and Evaluation Division 7435 Oakla nd Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFAS730 Equipment Class:%&% ' ( ) To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, MobileComm hereby requests confidentiality and treatment of certain information accompan ying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give MobileComm temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhib its are listed as follows: %+, ' -./+'0'+,/ 12- '22' 3) 4 - 5 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure %+, ' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632
External Photos

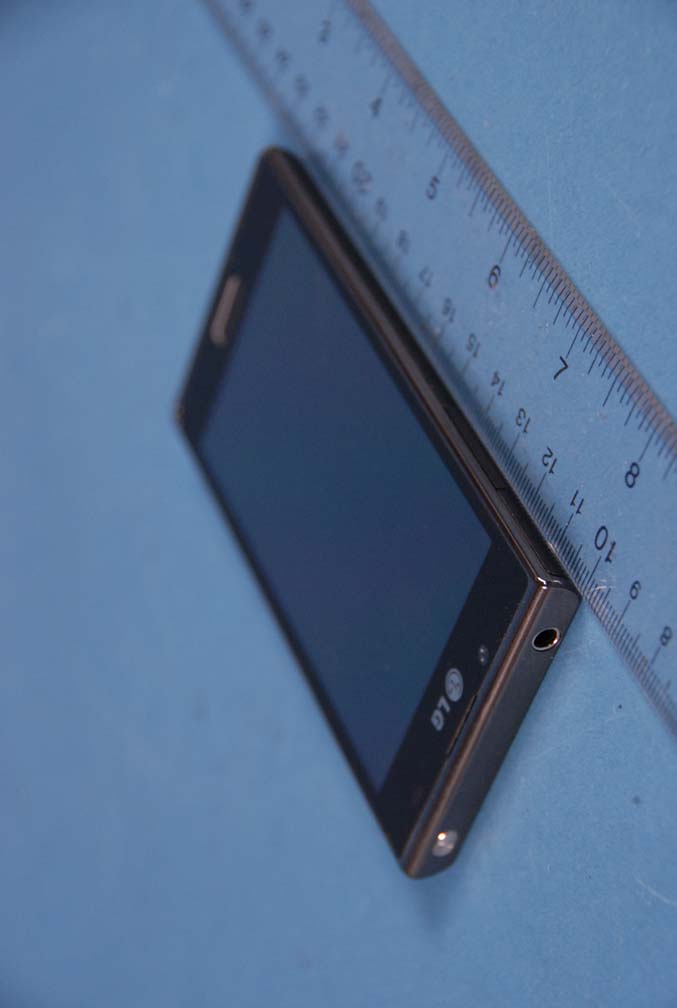

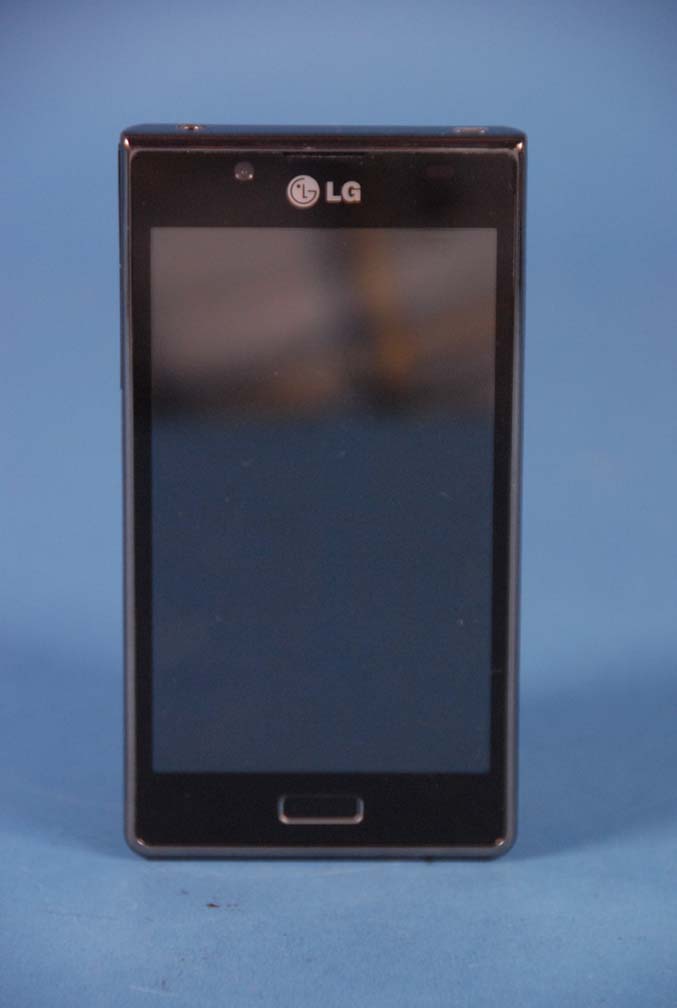

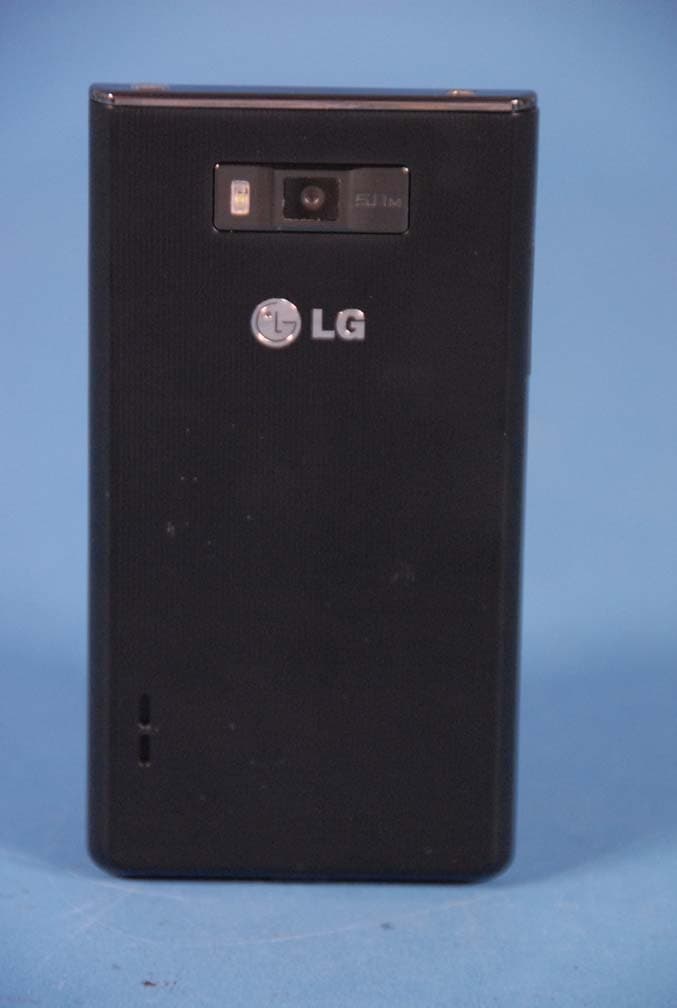

LG MobileComm FCC ID: ZNFAS730 Model: LG730 External Photos EUT Type: Portable Handset Page 1 of 4 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG MobileComm FCC ID: ZNFAS730 Model: LG730 External Photos EUT Type: Portable Handset Page 2 of 4 © 2012 PCTEST Engineering Laboratory Inc. LG MobileComm FCC ID: ZNFAS730 Model: LG730 External Photos EUT Type: Portable Handset Page 3 of 4 © 2012 PCTEST Engineering Laboratory Inc. LG MobileComm FCC ID: ZNFAS730 Model: LG730 External Photos EUT Type: Portable Handset Page 4 of 4 © 2012 PCTEST Engineering Laboratory Inc.
ID Label/Location Info
Model No: AS730 FCC ID : ZNFAS730 S/N : Made in Korea LG Electronics MobileComm USA, Inc. LGE
RF Exposure Info
FCC ID: ZNFAS730 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 32 0Y1204020393.ZNF 03/30/12 - 04/19/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. 03/30/12 - 04/19/12 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA USA Document Serial No.: 0Y1204020393.ZNF FCC ID: ZNFAS730 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A., INC. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093 LG730, AS730, LG-AS730, LGAS730, LGL86C Test Device Serial No.: Pre-Production [S/N: A0000031D1725C, A0000031D17249] 1 gm Head (W /kg) 1 gm Body-Worn (W /kg) 1 gm Hotspot (W /kg) Cell. CDMA/EVDO824.70 - 848.31 MHz24.670.770.871.29 PCS CDMA/EVDO1851.25 - 1908.75 MHz24.401.160.991.04 2.4 GHz WLAN2412 - 2462 MHz16.140.770.130.17 Bluetooth2402 - 2480 MHz9.41 1.541.121.42 SAR Band & ModeTx Frequency Conducted Power [dBm] N/A Simultaneous SAR per KDB 690783 D01: Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: ZNFAS730 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 32 0Y1204020393.ZNF 03/30/12 - 04/19/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 INTRODUCTION ..............................................................................................................................5 3 SAR MEASUREMENT SETUP ........................................................................................................6 4 DOSIMETRIC ASSESSMENT .........................................................................................................7 5 DEFINITION OF REFERENCE POINTS .........................................................................................8 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ...............................................................9 7 FCC RF EXPOSURE LIMITS ........................................................................................................ 12 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 13 9 RF CONDUCTED POWERS ......................................................................................................... 16 10 SYSTEM VERIFICATION .............................................................................................................. 19 11 SAR DATA SUMMARY ................................................................................................................. 21 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 26 13 EQUIPMENT LIST ......................................................................................................................... 28 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 29 15 CONCLUSION ............................................................................................................................... 30 16 REFERENCES .............................................................................................................................. 31 FCC ID: ZNFAS730 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 32 0Y1204020393.ZNF 03/30/12 - 04/19/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 1 DEVICE UNDER TEST 1.1 Device Overview Cell. CDMA/EVDO824.70 - 848.31 MHz PCS CDMA/EVDO1851.25 - 1908.75 MHz 2.4 GHz WLAN2412 - 2462 MHz Bluetooth2402 - 2480 MHz Band & ModeTx Frequency 1.2 DUT Antenna Locations Figure 1-1 DUT Antenna Locations Table 1-1 Mobile Hotspot Sides for SAR Testing ModeB ac kFrontTopBottomRi gh tLeft Cell. EVDOYesYesNoYesYesYes PCS EVDOYesYesNoYesYesYes 2.4 GHz WLANYesYesYesNoNoYes Mobile Hotspot Sides for SAR Testing Note: Particular DUT edges were not required to be evaluated for Wireless Router SAR if the edges were greater than 2.5 cm from the transmitting antenna according to FCC KDB Publication 941225 D06 guidance, page 2. The antenna document shows the distances between the transmit antennas and the edges of the device. FCC ID: ZNFAS730 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 4 of 32 0Y1204020393.ZNF 03/30/12 - 04/19/12 Portable Handse…
Text truncated - open the document above for the full version.
Test Report
Reviewed by: FCC ID: ZNFAS730 FCC Pt. 22/24 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1204020394.ZNF 04/11/12 - 4/14/12 Portable Handset Page 1 of 37 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.5CFI 02/13/2012 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A 04/11/12 - 4/14/12 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1204020394.ZNF FCC ID: ZNFAS730 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A Application Type: Certification Model(s): LG730, AS730, LG-AS730, LGAS730, LGL86C EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) IC Specification(s): RSS-132 Issue 2; RSS-133 Issue 5 Test Procedure(s): ANSI/TIA-603-C-2004 Test Device Serial No.: identical prototype [S/N: RF Radiated] Max. Power (W) Max. Power (dBm) CDMA850824.70 - 848.311M27F9W0.33825.29 CDMA19001851.25 - 1908.751M27F9W0.71328.53 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 / IC RSS-132/RSS-133 Reviewed by: FCC ID: ZNFAS730 FCC Pt. 22/24 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1204020394.ZNF 04/11/12 - 4/14/12 Portable Handset Page 2 of 37 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.5CFI 02/13/2012 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT...........................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.5 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 EVALUATION PROCEDURE.............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 OCCUPIED BANDWIDTH ................................................................................................................... 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 8 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 9 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 9 4.0 TEST EQUIPMENT CALIBRATION DATA ....................................................................................10 5.0 SAMPLE CALCULATIONS ............................................................................................................11 6.0 TEST RESULTS .............................................................................................................................12 6.1 SUMMARY......................................................................................................................................... 12 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ........................................................................... 13 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA .................................................... 13 6.4 CELLULAR CDMA RADIATED MEASURE…
Text truncated - open the document above for the full version.
Test Report
Reviewed by: FCC ID: ZNFAS730 HAC (RF EMISSIONS) TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0Y1204020397.ZNF April 24-26, 2012 Portable Handset Page 1 of 76 © 2012 PCTEST Engineering Laboratory, Inc. REV 8.4C 08/10/10 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A April 24-26, 2012 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA USA Test Report Serial No.: 0Y1204020397.ZNF FCC ID: ZNFAS730 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A Scope of Test: RF Emissions Testing Application Type: Certification FCC Rule Part(s): § 20.19(b) HAC Standard: ANSI C63.19-2007 §6.3(v), §7.3(v); EUT Type: Portable Handset Model(s): LG730, AS730, LG-AS730, LGAS730, LGL86C Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) 1851.25 - 1908.75 MHz (PCS CDMA) Test Device Serial No.: Pre-Production Sample [S/N: HAC RFE] C63.19-2007 HAC Category: M4 (RF EMISSIONS CATEGORY) This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2007 and had been tested in accordance with the specified measurement procedures. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. Test results reported herein relate only to the item(s) tested and are for North American Bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com HEARING AID COMPATIBILITY Reviewed by: FCC ID: ZNFAS730 HAC (RF EMISSIONS) TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0Y1204020397.ZNF April 24-26, 2012 Portable Handset Page 2 of 76 © 2012 PCTEST Engineering Laboratory, Inc. REV 8.4C 08/10/10 TABLE OF CONTENTS 1. INTRODUCTION ............................................................................................................................. 3 2. TEST SITE LOCATION ................................................................................................................... 4 3. EUT DESCRIPTION ........................................................................................................................ 5 4. ANSI/IEEE C63.19 PERFORMANCE CATEGORIES .................................................................... 6 5. SYSTEM SPECIFICATIONS...........................................................................................................7 6. TEST PROCEDURE ..................................................................................................................... 13 7. SYSTEM CHECK .......................................................................................................................... 15 8. MODULATION FACTOR...............................................................................................................18 9. FCC 3G MEASUREMENTS .......................................................................................................... 20 10. OVERALL MEASUREMENT SUMMARY ..................................................................................... 21 11. EQUIPMENT LIST......................................................................................................................... 24 12. MEASUREMENT UNCERTAINTY ................................................................................................ 25 13. TEST DATA ................................................................................................................................... 26 14. CALIBRATION CERTIFICATES.................................................................................................... 35 15. CONCLUSION............................................................................................................................... 71 16. REFERENCES .............................................................................................................................. 72 17. TEST PHOTOGRAPHS ................................................................................................................74 Reviewed by: FCC ID: ZNFAS730 HAC (RF EMISSIONS) TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0Y1204020397.ZNF April 24-26, 2012 Portable Handset Page 3 of 76 © 2012 PCTEST Engineering Laboratory, Inc. REV 8.4C 08/10/10 1. INTRODUCTION On July 10, 2003, the Federal Communications Commission (FCC) adopted new rules requiring wireless manufacturers and service providers to provide digital wireless phones that are compatible with hearing aids. The FCC has modified the exemption for wireless phones under the Hearing Aid Compatibility Act of 1998 (HAC Act) in WT Docket 01-309 RM-8658 1 to extend the benefits of wireless telecommunications to individuals with hearing disabilities. These benefits encompass business, social and emergency communications, which increase the value of the wireless network for everyone. An estimated more than 10% of the population in the United States show signs of hearing impairment and of that fraction, almost 80% use hearing aids. Approximately 500 million people worldwide suffer from hearing loss. Compatibility Tests Involved: The standard calls for wireless communications devices to be measured for: RF Electric-field emissions RF Magnetic-field emissions T-coil mode, magnetic-signal strength in the audio band T-coil mode, magnetic-signal frequen…
Text truncated - open the document above for the full version.
Test Report
Reviewed by: FCC ID: ZNFAS730 HAC (T-COIL) TEST REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1204020398.ZNF 4/5/2012 Portable Handset Page 1 of 37 © 2012 PCTEST Engineering Laboratory, Inc. REV 6.4C 04/05/10 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A 4/5/2012 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA USA Test Report Serial No.: 0Y1204020398.ZNF FCC ID: ZNFAS730 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A Scope of Test: Audio Band Magnetic Testing (T-Coil) Application Type: Certification FCC Rule Part(s): CFR § 20.19(b) HAC Standard: ANSI C63.19-2007 §6.3(v), §7.3(v) EUT Type: Portable Handset Model(s): LG730, AS730, LG-AS730, LGAS730, LGL86C Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) 1851.25 - 1908.75 MHz (PCS CDMA) Test Device Serial No.: Pre-Production Sample [S/N: HAC T-coil] C63.19-2007 HAC Category: T4 (SIGNAL TO NOISE CATEGORY) This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2007 and had been tested in accordance with the specified measurement p…
Text truncated - open the document above for the full version.
Contact Information
Applicant
David Kim(Team leader, LGEUS NA Policy & Regulatory Affairs)
Technical Contact
PCTEST Engineering Laboratory, Inc.Randy Ortanez
[email protected]410-290-6652
6660-B Dobbin Road · Columbia, Maryland · United States
Test Firm
Element Materials Technology Washington DC LLCRandy Ortanez
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 2 | 24E | 1.85 GHz - 1.91 GHz | 713.00 mW | 1M27F9W | 2.5 ppm |
