ZNFC520Cellular/PCS GSM/WCDMA Phone with WLAN and Bluetooth

MFL00000000 (1.0) E N G L I S H www.lg.com User Guide LG-C520 Part 15.21 statement Part 15.105 statement I LG-C520 User Guide - ENGLISH This guide will help you understand your new mobile phone. It will provide you with useful explanations of features on your phone. Some of the contents in this manual may differ from your phone depending on the software of the phone or your service provider. 2 Getting to know your phone ....................5 Installing the SIM Card and Charging the Battery.........................................................7 Installing the SIM Card ..........................7 Turning Your Phone On and Off .......10 Lock/Unlock Your Keypad ...................10 Calls ...........................................................10 Making a call ...........................................10 Answering and rejecting a call ..........10 Changing the call settings ...................11 Contacts .....................................................11 Searching for a contact.........................11 Adding a new contact ...........................11 Messaging .................................................12 Sending a message ..............................12 Facebook ...................................................13 E-mail ........................................................13 Sending an e-mail using your new account......................................................13 Camera .....................................................14 Video camera ...........................................14 Media Player .............................................14 FM radio ....................................................14 Contents 3 Voice recorder ..........................................14 Applications ..............................................14 Organizer ..................................................15 Setting your alarm ................................15 Using the calendar ...............................15 Adding an item to your to do list ....15 Adding a note ........................................15 Using your calculator ...........................15 Using the stopwatch ............................16 Converting a unit ..................................16 Adding a city to your world time .....16 Shortcuts .................................................16 Internet .....................................................16 Accessing the internet browser .........16 Settings .....................................................17 Switching your SIM cards ...................17 Changing your phone settings ..........17 Changing your security settings ......18 Activating SIM cards ...........................18 Changing your display settings ........19 Changing your connectivity settings 19 Changing your Bluetooth settings ..19 Resetting your phone .........................20 Phone Software update ..........................21 4 LG Mobile Phone Software update from internet ..........................................21 Guidelines for Safe and Efficient Use 22 Accessories ...............................................41 Technical Data .........................................42 Troubleshooting ......................................43 5 Getting to know your phone Main LCD OK key Selects menu options and confirms actions. Earpiece Soft keys (Left soft key / Right soft key) These keys perform the function indicated in the bottom of the display. Send key • Initiates call to dialed number and answers incoming calls. • In standby mode : Shows the call log. Navigation key In standby mode: Press Up, Down, Left and Right Navegation Keys to experience all features provided by your service provider. In menu: Scroll up, down, right & left. SIM Switch key Camera hot key Lock/Shortcuts key Short press to access Shortcuts key. Long press to Lock in any screen. Alpha numeric keys In standby mode: Input numbers to dial. Hold down below keys. - Insert '+' symbol to make international calls. - Connect voice mail center. To - Speed dials. - SOS Mode. In editing mode: Enter numbers & characters End key Switch on/off (hold down) End or reject a call. - Hold the key down to activate or deactivate silent mode. Facebook key 6 Headphone connector Charger/USB cable connector Microphone Battery pack Camera lens Back cover SIM Card holder 1 SIM Card holder 2 7 Installing the SIM Card and Charging the Battery Installing the SIM Card When you subscribe to a cellular network, you are provided with a SIM card loaded with your subscription details, such as your PIN, any optional services available and many others. Installing a Memory card Remove the Back cover and insert a micro SD card with the golden contact area facing downwards as shown in the diagram. To remove the Memory card, gently pull it. Note: Memory card is an optional accessory. Formatting the Memory card From your home screen, Press Menu and select Gallery, Select External memory and From Options choose Format and enter Phone Password to format the Memory card. WARNING: When you format your Memory card, all the content will be Erased. If you do not want to lose the data on your Memory card, take a backup first. 8 Important! › The SIM card can be easily damaged by scratches or bending, so be careful when handling, inserting or removing the card. Keep all SIM cards out of the reach of small children. › Only 2G/2.5G SIM cards are supported. Illustrations 1. Open back cover. 2. Remove the battery. 3. Insert your SIM Cards. 9 4. Insert your battery. 5. Close the back cover. 6. Charge your battery. WARNING: Do not remove the battery when the phone is switched on, as this may damage the phone. 10 Turning Your Phone On and Off You can power the phone on and off by pressing and holding the Power key. Lock/Unlock Your Keypad To lock, press Menu (LSK) in main screen and then press Keylock (RSK). To Unlock, press Unlock(LSK) and then press Yes(RSK). Calls Making a call 1. Enter the number using the keypad. To delete a digit press Clear. 2. Press to …

Text truncated - open the document above for the full version.

Date: August 12, 2013 Federal Communicat ions Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFC520 Equipment Class: DTS: Digital Transmission System To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics MobileComm USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics MobileComm USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

FCC ID: ZNFC520 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 EXTERNAL PHOTOGRAPHS FCC ID: ZNFC520 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 EXTERNAL PHOTO FCC ID: ZNFC520 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 EXTERNAL PHOTO FCC ID: ZNFC520 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 EXTERNAL PHOTO FCC ID: ZNFC520 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 EXTERNAL PHOTO FCC ID: ZNFC520 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 EXTERNAL PHOTO FCC ID: ZNFC520 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 EXTERNAL PHOTO

※ FCC ID Label Form Note: The FCC ID shown will be readily visible at the time of purchase. Note! The label of the EUT is made of a white polypropylene laminate film and it's attached to the EUT by an adhesive. The adhesive is permanent type with strong strength. Additionally, the FCC ID is readily visible to the purchaser at the time of purchase because the phone will be marketed without the battery installed. Model No : LG-C520 FCC ID : ZNFC520 S/N : Made in Korea

FCC ID: ZNFC520 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 10 INTERNAL PHOTOGRAPHS FCC ID: ZNFC520 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 10 Main Antenna INTERNAL PHOTO Main Antenna FCC ID: ZNFC520 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 10 BT&WLAN Antenna_INTERNAL PHOTO BT / WiFi Antenna FCC ID: ZNFC520 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 10 INTERNAL PHOTO FCC ID: ZNFC520 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 10 INTERNAL PHOTO FCC ID: ZNFC520 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 10 INTERNAL PHOTO FCC ID: ZNFC520 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 10 INTERNAL PHOTO FCC ID: ZNFC520 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 10 INTERNAL PHOTO FCC ID: ZNFC520 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 10 INTERNAL PHOTO FCC ID: ZNFC520 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 10 INTERNAL PHOTO

Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 2 of 141 Table of Contents 1. INTRODUCTION .......................................................................................................................................... ４ 2. TEST METHODOLOGY ............................................................................................................................... ５ 3. DESCRIPTION OF DEVICE ......................................................................................................................... ６ 4. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... ７ 5. SAR MEASUREMENT PROCEDURE ..................................................................................................... １５ 6. DESCRIPTION OF TEST POSITION ....................................................................................................... １７ 7. MEASUREMENT UNCERTAINTY ........................................................................................................... １９ 8. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................................................. ２０ 9. SAR SYSTEM VALIDATION .................................................................................................................... ２１ 10. SYSTEM VERIFICATION ....................................................................................................................... ２２ 11. RF CONDUCTED POWER MEASUREMENT ....................................................................................... ２４ 12. Antenna Information ............................................................................................................................. ３５ 13. SAR TEST DATA SUMMARY ................................................................................................................ ３６ 13.1 Measurement Results (GSM850 Head SAR) ................................................................................ ３６ 13.2 Measurement Results (GSM1900 Head SAR) .............................................................................. ３７ 13.3 Measurement Results (WCDMA850 Head SAR) .......................................................................... ３８ 13.4 Measurement Results (WCDMA1900 Head SAR) ........................................................................ ３９ 13.5 Measurement Results (DTS Head SAR) ....................................................................................... ４０ 13.7 Measurement Results (GSM850 Body-worn SAR) ....................................................................... ４１ 13.8 Measurement Results (GSM1900 Body-worn SAR) ..................................................................... ４２ 13.9 Measurement Results (WCDMA850 Body-worn SAR) ................................................................. ４３ 13.10 Measurement Results (WCDMA1900 Body-worn SAR) ............................................................. ４４ 13.11 Measurement Results (DTS Body-worn) ..................................................................................... ４５ 14. SAR Measurement Variability and Uncertainty.................................................................................. ４６ 15. SAR Summation Scenario ................................................................................................................... ４７ 16. CONCLUSION ........................................................................................................................................ ５１ 17. REFERENCES ....................................................................................................................................... ５２ Attachment 1. – SAR Test Plots ................................................................................................................ ５３ Attachment 2. – Dipole Verification Plots ................................................................................................. ７６ Attachment 3. – Probe Calibration Data ................................................................................................... ８３ Attachment 4. – Dipole Calibration Data ............................................................................................... １１７ Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 3 of 141 Version Rev DATE DESCRIPTION Aug. 13, 2013 First Approval Report 1 Aug. 20, 2013 Page 5, 23, 25, 26, 34, 37, 39, 40, 41, 42, 46 Page was revised 2 Aug. 23, 2013 Page 5, 6, 34, 41, 42, 43, 44, 45, 46, 49, 50, 59, 60, 65, 71, 72 Page was revised Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 4 of 141 1. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017. The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous…

Text truncated - open the document above for the full version.

Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 91 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 92 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 93 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 94 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 95 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 96 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 97 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 98 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 99 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 100 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 101 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 102 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 103 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 104 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 105 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 106 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 107 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 108 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 109 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 110 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 111 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 112 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 113 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 114 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 115 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 116 of 141 Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 23, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 117 of 141 Attachment 4. – Dipole Calibration Data Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: …

Text truncated - open the document above for the full version.

FCCPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1308FR18-2 Date of Issue: August 22, 2013 EUT Type: Cellular/PCS GSM/GPRS/EDGE(RX Only)/WCDMA/HSDPA with Bluetooth, WLAN FCC ID: ZNFC520 Page of 97 Version TEST REPORT NO. DATE DESCRIPTION HCTR1308FR18 August 06, 2013 - First Approval Report HCTR1308FR18-1 August 20, 2013 - Revised the Result in the table on Page 12 HCTR1308FR18-2 August 22, 2013 - Insert the Note about Equipment Calibration Date FCCPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1308FR18-2 Date of Issue: August 22, 2013 EUT Type: Cellular/PCS GSM/GPRS/EDGE(RX Only)/WCDMA/HSDPA with Bluetooth, WLAN FCC ID: ZNFC520 Page of 97 Table of Contents 1. GENERAL INFORMATION .......................................................................................................................... 2. EUT DESCRIPTION ..................................................................................................................................... 3. TEST METHODOLOGY ............................................................................................................................... 3.1 EUT CONFIGURATION ...................................................................................................................... 3.2 EUT EXERCISE .................................................................................................................................. 3.3 GENERAL TEST PROCEDURES ...................................................................................................... 3.4 DESCRIPTION OF TEST MODES ..................................................................................................... 4. INSTRUMENT CALIBRATION..................................................................................................................... 5. FACILITIES AND ACCREDITATIONS ......................................................................................................... 5.1 FACILITIES ......................................................................................................................................... 5.2 EQUIPMENT ....................................................................................................................................... 6. ANTENNA REQUIREMENTS ...................................................................................................................... 7. SUMMARY TEST OF RESULTS ................................................................................................................. 8. TEST RESULT ............................................................................................................................................. 8.1 DUTY CYCLE ...................................................................................................................................... 8.2 6dB BANDWIDTH (802.11b/g) ....................................................................................................... 8.3 OUTPUT POWER (802.11b/g) ....................................................................................................... 8.4 POWER SPECTRAL DENSITY (802.11b/g) .................................................................................. 8.5 OUT OF BAND EMISSIONS AT THE BAND EDGE/ CONDUCTED SPURIOUS EMISSIONS ... 8.6 RADIATED MEASUREMENT. ........................................................................................................ 8.6.1 RADIATED SPURIOUS EMISSIONS. .................................................................................. 8.6.2 RADIATED RESTRICTED BAND EDGES .......................................................................... 8.7 POWERLINE CONDUCTED EMISSIONS ..................................................................................... 9. LIST OF TEST EQUIPMENT ................................................................................................................... FCCPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1308FR18-2 Date of Issue: August 22, 2013 EUT Type: Cellular/PCS GSM/GPRS/EDGE(RX Only)/WCDMA/HSDPA with Bluetooth, WLAN FCC ID: ZNFC520 Page of 97 1. GENERAL INFORMATION Applicant: LG Electronics MobileComm U.S.A., Inc. Address: 1000 Sylvan Avenue, Englewood Cliffs NJ 07632 FCC ID: ZNFC520 EUT Type: Cellular/PCS GSM/GPRS/EDGE(RX Only)/WCDMA/HSDPA with Bluetooth, WLAN Model name(s): LG-C520 Additional Model name(s): C520, LGC520 Date(s) of Tests: July 22, 2013 ~ July 31, 2013 Place of Tests: HCT Co., Ltd. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA. (IC Recognition No. : 5944A-3) 2. EUT DESCRIPTION EUT Type Cellular/PCS GSM/GPRS/EDGE(RX Only)/WCDMA/HSDPA with Bluetooth, WLAN FCC Model Name LG-C520 Additional FCC Model Name C520, LGC520 Power Supply DC 3.7 V Battery type Li-ion Battery(Standard) Frequency Range TX: 2412 MHz ~ 2462 MHz RX: 2412 MHz ~ 2462 MHz Max. RF Output Power Peak Wi-Fi 802.11b(21.07 dBm) / Wi-Fi 802.11g (20.82 dBm) Average Wi-Fi 802.11b(15.36 dBm) / Wi-Fi 802.11g (12.57 dBm) Modulation Type DSSS/CCK(802.11b), OFDM(802.11g) Antenna Specification Manufacturer: Partron Antenna type: Chip Antenna Peak Gain : 0.6 dBi FCCPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1308FR18-2 Date of Issue: August 22, 2013 EUT Type: Cellular/PCS GSM/GPRS/EDGE(RX Only)/WCDMA/HSDPA with Bluetooth, WLAN FCC ID: ZNFC520 Page of 97 3. TEST METHODOLOGY FCC KDB 558074 D01 DTS Meas Guidance v03r01 dated April 09, 2013 entitled “Guidance for Performing Compliance Measurements on Digital Transmission Systems(DTS) and the measurement procedure described in the American National Standard for Testing Unlicensed Wireless Devices(ANSI C63.4-2003) Operating Under §15.247” were used in the measurement. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and o…

Text truncated - open the document above for the full version.

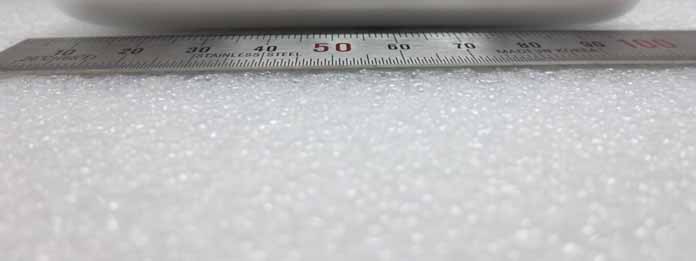

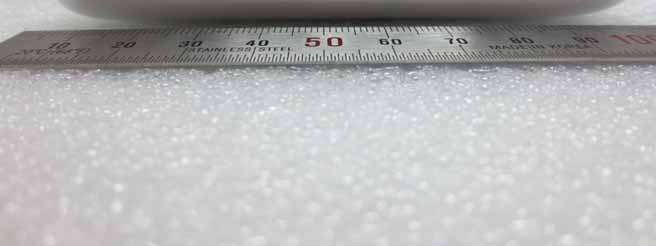

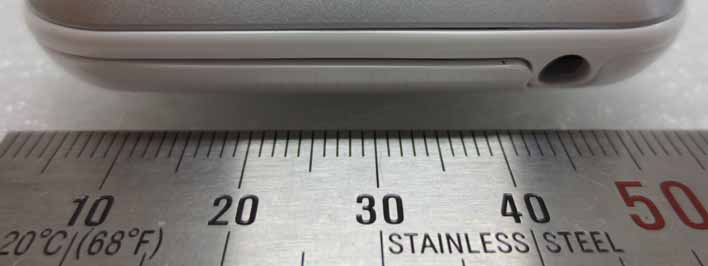

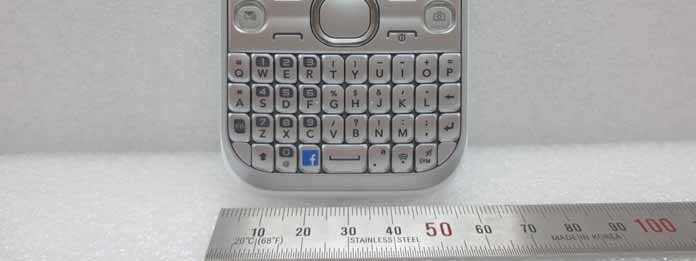

Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 13, 2013 HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr １ of 8 SAR Test Setup Photographs Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 13, 2013 HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr ２ of 8  Test Setup Photo Report No.: HCTA1308FS07 FCC ID: ZNFC520 Date of Issue: Aug. 13, 2013 HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, …

Text truncated - open the document above for the full version.
