ZNFC800Cellular/PCS GSM/EDGE and AWS WCDMA Phone with WLAN and Bluetooth

User Guide LG-C800 P/N : MFL0000000 (1.0) www.lg.com ENGLISH Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Part 15 Class B Compliance This device and its accessories comply with part15 of FCC rules. Operation is subject to the following two conditions: (1) This device & its accessories may not cause harmful interference. (2) This device & its accessories must accept any interference received, including interference that may cause undesired operation. Body-worn Operation This device has been tested for typical body-worn operations with the distance of 0.79inches (2.0cm) from the user’s body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.79inches(2.0cm) must be maintained from the user's body. For example, this device must be maintained from the user's body with an appropriatebelt-clip accessory.[More than 0.79inches(2.0cm)] Additionally, Belt clips, holsters & other body-worn accessories may not contain metallic components. 19 . d 2.1 r . s e" P Getting to know your phone To turn the phone on, press and hold the Power key for 3 seconds. To turn the phone off, press the Power key for 3 seconds and touch Power Off. TIP! When screen is locked 1. Drag your finger from left to right to unlock the screen. 2. To turn the phone off, press the Power key for 3 seconds and touch Power Off. Home key - Returns to the home screen from any screen. Menu key - Check what options are available. Earpiece Back key - Returns to the previous screen. Search key - Search the web and contents in your phone. Power/Lock key - Powers your phone on/off by pressing and holding the key. - Turns the screen off and locks the phone. WARNING: Placing a heavy object on the phone or sitting on it can damage its LCD and touch-screen functionalities. Send key Tip! Press Menu key whenever you tap an application to check what options are available. Tip! LG-C800 does not support video call. Tip! If LG-C800 has errors when you use it or you cannot turn it on, remove battery, install it again and turn it on after 5 seconds. st! 20 Charger, micro USB cable connector Stereo earphone connector Volume keys - On the home screen: controls ringer volume. - During a call: controls your earpiece volume. - When playing a track: controls volume continuously. Microphone Back cover Battery SIM card slot micro SD memory card slot Camera lens Ins an Bef you set and 1 Getting to know your phone 21 n: ols me. ck: Installing the SIM card and battery Before you can start exploring your new phone, you’ll need to set it up. To insert the SIM card and battery: To remove the back cover, hold the phone firmly in your hand. With your other hand, firmly press your thumb on the back cover. Lift off the battery cover with your forefinger. 1 Slide the SIM card into the SIM card holder. Make sure the gold contact area on the card is facing downwards. 2 22 Insert the battery into place by aligning the gold contacts on the phone and the battery. Replace the back cover of the phone. Tip! To remove the battery, fi rst remove the back cover and hold the phone fi rmly in your hand. With your other hand, fi rmly press down the top of the battery using your thumb and lift off the battery. 3 4 Charging your phone Slide back the cover of the charger connector on the side of your LG-C800. Insert the charger, and plug it into an electrical outlet. Your LG-C800 must be charged until you can see . NOTE: The battery must be initially fully charged to improve battery lifetime. Ins ca To as bui a m NOT to a To 1 Getting to know your phone 23 0 ally y Installing the memory card To store multimedia files such as captured images by using a built-in camera, you must insert a memory card to your phone. NOTE: The LG-C800 supports up to a 32GB memory card. To insert a memory card: Turn the phone off before inserting or removing the memory card. Remove the back cover. 1 Insert the memory card into the slot. Make sure the gold contact area is facing downwards. 2 24 WARNING! Do not insert or remove the memory card when the phone is on. Otherwise, it may damage the memory card as well as your phone, and the data stored on the memory card may be corrupted. Formatting the memory card Your memory card may already be formatted. If it isn’t, you must format it before you can use it. NOTE: All fi les on the card are deleted when you format the card. On the home screen, touch the Applications tab to open the applications menu. Scroll and touch Settings. Scroll and touch SD card & phone storage . Unmount SD card. Touch Format SD card, then confirm your choice. If you set the pattern lock, input the pattern lock and select Erase everything. The card will then be formatted and ready to use. NOTE: If there is content on your memory card, the folder structure may be different after formatting …

Text truncated - open the document above for the full version.

Date: July 28, 2011 PCTEST TCB/CB Div. of PCTEST En gineering Lab., Inc.gg, 6660-B Dobbin Road, Columbia, MD 21045 SUBJECT: LG Electronics USA FCC ID: ZNFC800FCC ID: ZNFC800 To whom it may concern: We, LG Electronics USA, confirm that the purpose of the power reduction for Mobile hotspot is to meet SAR complianceis to meet SAR compliance. When Mobile hotspot mode is activated, power reduction is applied until Mobile hotspot is deactivated by the user. Other conditions may also disable mobile hotspot and power reduction such as inadvertent power outage, etc. Additional information regarding hotspot power condition scenarios is given in the operational description. We also confirm that the power reduction design scheme for the C800 is implemented as described in the Power Reduction Operational Description and is effective in reducing the dib d hiibil hdhbilTx power as described when operating in mobile hotspot mode. The Mobile Hotspot & Power Reduction Operational Description document includes information regarding the status of the power reduction during various operating modes and conditions of the C800. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Christopher Johnson Senior Manager LG Electronics USA

Date: June , 2011 Federal Communications Commissi on Authorization and Evaluation Division 7435 Oaklan d Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: =1)& Equipment Class: DTS: Digital Transmission System To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics 0RELOH&RPPUSA h ereby requests confidentiality and treatment of certain inf ormation accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics 0RELOH&RPPUSA temporary confidentiality of comme rcially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Christopher Johnson Senior Manager LG Electronics USA LG Electronics Inc. LGE LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

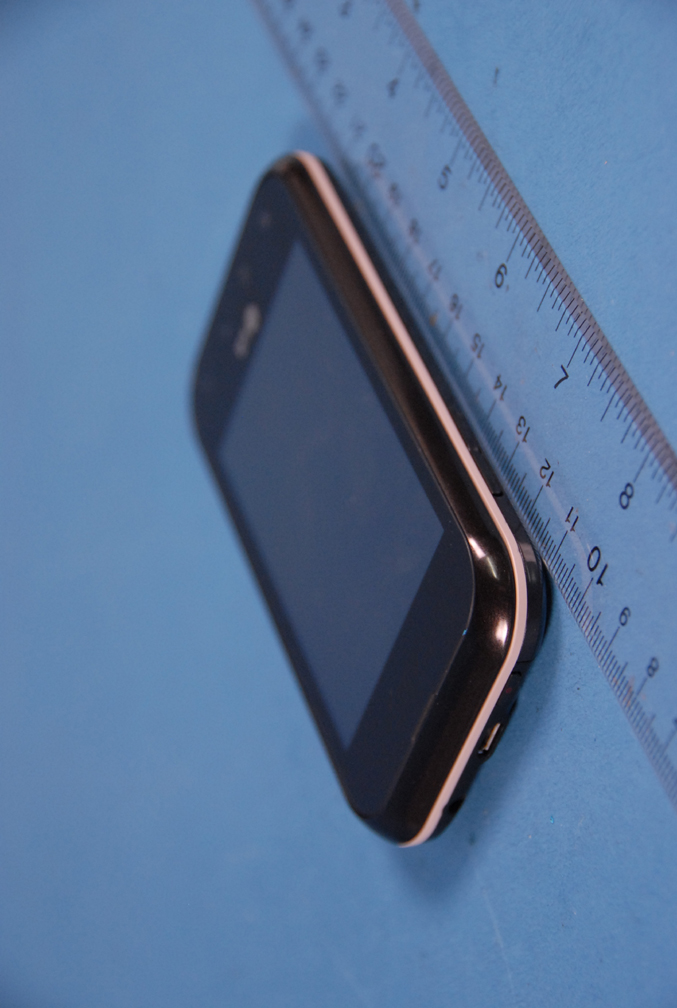

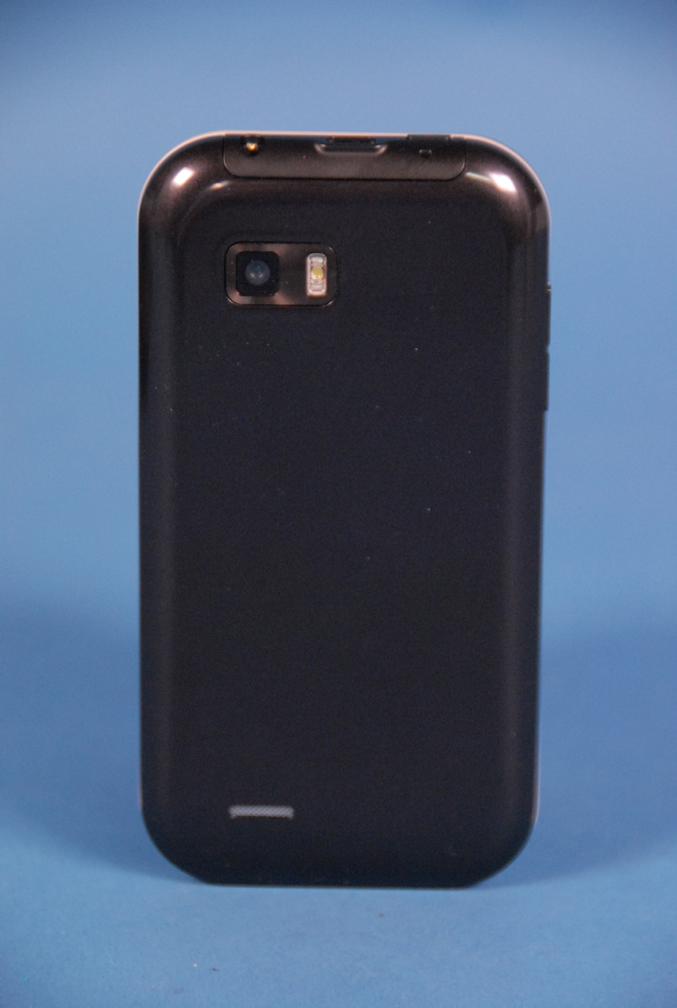

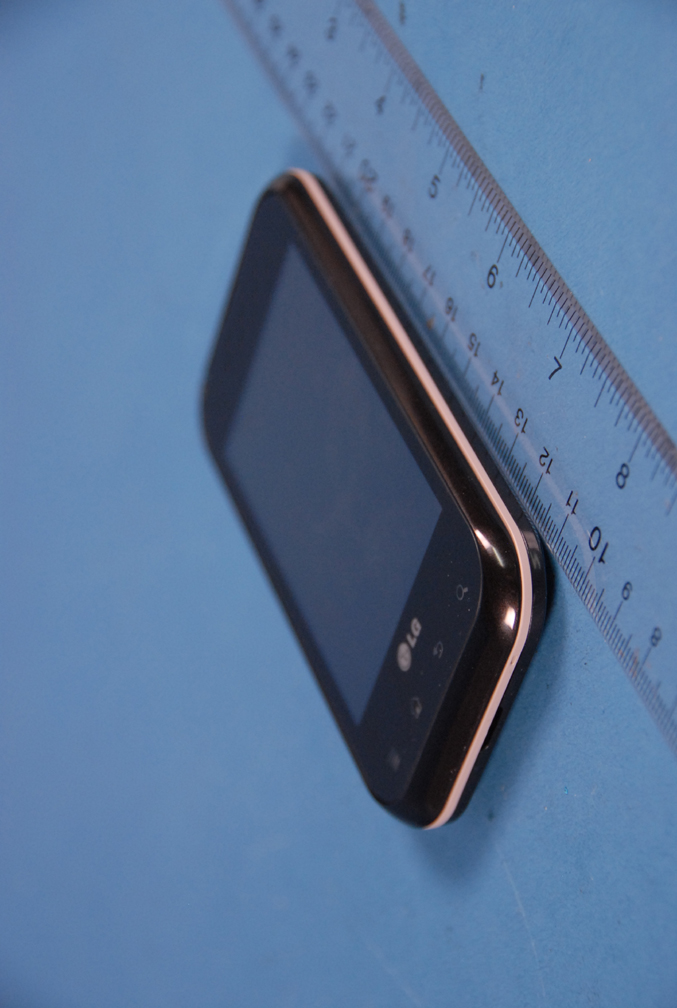

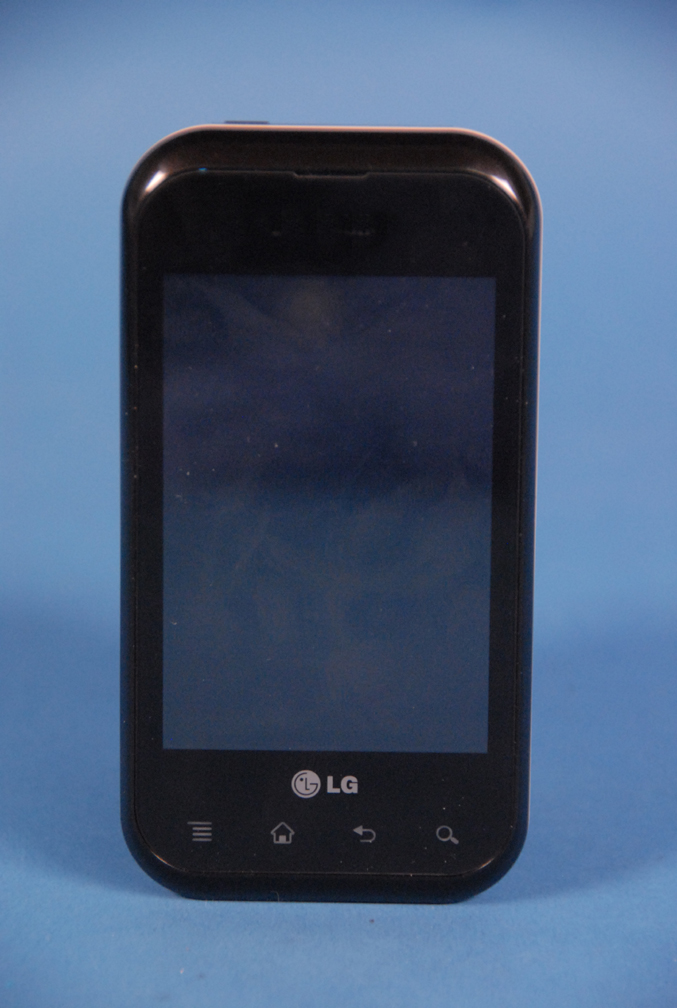

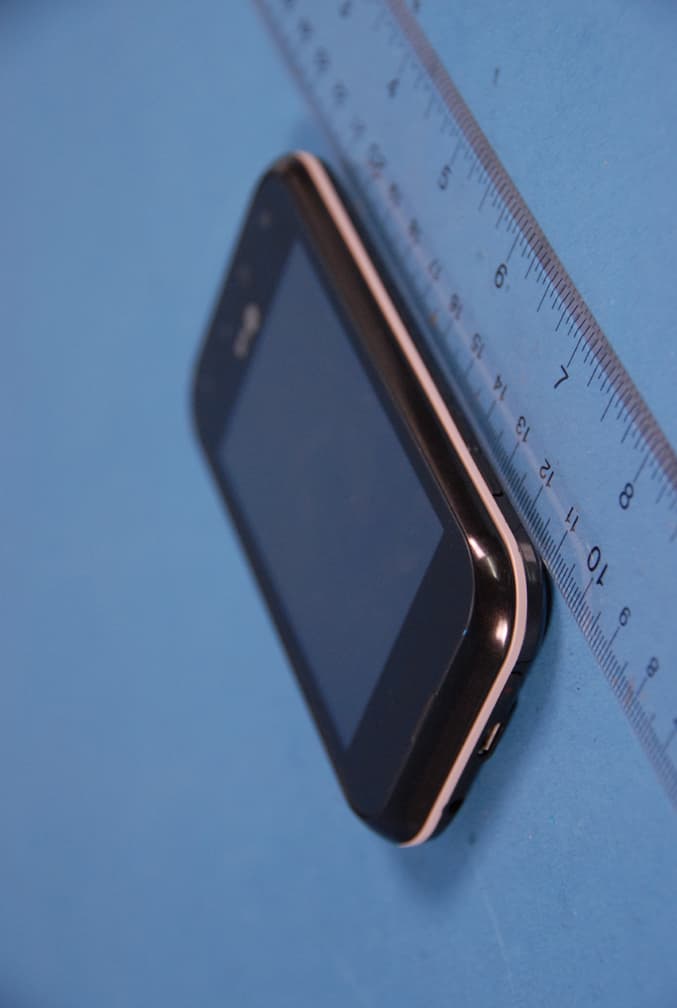

LG ELECTRONICS MOBILECOMM U.S.A., INC. FCC ID: ZNFC800 Model: C800 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN Page 1 of 5 © 2011 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG ELECTRONICS MOBILECOMM U.S.A., INC. FCC ID: ZNFC800 Model: C800 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN Page 2 of 5 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A., INC. FCC ID: ZNFC800 Model: C800 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN Page 3 of 5 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A., INC. FCC ID: ZNFC800 Model: C800 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN Page 4 of 5 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A., INC. FCC ID: ZNFC800 Model: C800 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN Page 5 of 5 © 2011 PCTEST Engineering Laboratory Inc.

Model No: C800 FCC ID : ZNFC800 S/N : Made in Korea LG Electronics Inc. LGE

LG ELECTRONICS MOBILECOMM U.S.A., INC. FCC ID: ZNFC800 Model: C800 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN Page 1 of 11 © 2011 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG ELECTRONICS MOBILECOMM U.S.A., INC. FCC ID: ZNFC800 Model: C800 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN Page 2 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A., INC. FCC ID: ZNFC800 Model: C800 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN Page 3 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A., INC. FCC ID: ZNFC800 Model: C800 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN Page 4 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A., INC. FCC ID: ZNFC800 Model: C800 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN Page 5 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A., INC. FCC ID: ZNFC800 Model: C800 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN Page 6 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A., INC. FCC ID: ZNFC800 Model: C800 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN Page 7 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A., INC. FCC ID: ZNFC800 Model: C800 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN Page 8 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A., INC. FCC ID: ZNFC800 Model: C800 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN Page 9 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A., INC. FCC ID: ZNFC800 Model: C800 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN Page 10 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A., INC. FCC ID: ZNFC800 Model: C800 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN Page 11 of 11 © 2011 PCTEST Engineering Laboratory Inc.

APPENDIX C: PROBE CALIBRATION

FCC ID: ZNFC800 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 43 0Y1106201031-R2.ZNF 06/20/11 - 06/28/11 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.2M 06/28/2011 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc 06/20/11 - 06/28/11 10101 Old Grove Road Test Site/Location: San Diego, CA 92131 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1106201031-R2.ZNF FCC ID: ZNFC800 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A., INC EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with Bluetooth and WLAN Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] C800, LG-C800 Test Device Serial No.: Pre-Production [S/N: SAR, WIFI SAR] 1 gm Head (W/kg) 1 gm Body-Worn (W/kg) 1 gm Hotspot (W/kg) GSM 850824.20 - 848.80 MHz (GSM 850)33.430.210.360.61 GSM 19001850.20 - 1909.80 MHz (GSM 1900)31.310.210.180.51 UMTS IV1712.4 - 1752.5 MHz (AWS WCDMA)23.900.580.541.02 2.4 GHz WLAN2412 - 2462 MHz (WLAN)18.270.320.180.18 SAR Band & ModeTx Frequency Conducted Power [dBm] All models are confirmed to be electrically identical per the manufacturer. Note: This revised Test Report (S/N: 0Y1106201031-R2.ZNF) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti -Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: ZNFC800 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 43 0Y1106201031-R2.ZNF 06/20/11 - 06/28/11 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.2M 06/28/2011 TABLE OF CONTENTS 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES .......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 FCC RF EXPOSURE LIMITS ........................................................................................................ 15 11 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 16 12 SAR TESTING WITH IEEE 802.11 TRANSMITTERS .................................................................. 21 13 FCC PERSONAL WIRELESS ROUTER CONFIGURATIONS ..................................................... 24 14 SYSTEM VERIFICATION .............................................................................................................. 26 15 SAR DATA SUMMARY ................................................................................................................. 28 16 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 36 17 EQUIPMENT LIST ......................................................................................................................... 39 18 MEASUREMENT UNCERTAINTIES ............................................................................................ 40 19 CONCLUSION ............................................................................................................................... 41 20 REFERENCES .............................................................................................................................. 42 FCC ID: ZNFC800 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 43 0Y1106201031-R2.ZNF 06/20/11 - 06/28/11 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.2M 06/28/2011 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmen…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ZNFC800 FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1106201029.ZNF June 23 - 30, 2011 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN Page 1 of 45 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.5WBGNFI 01/27/2011 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. June 23 - 30, 2011 10101 Old Grove Road, Test Site/Location: San Diego, CA 92131 PCTEST Lab, Columbia, MD, USA USA Test Report Serial No.: 0Y1106201029.ZNF FCC ID: ZNFC800 APPLICANT: LG Electronics MobileComm U.S.A., Inc. Application Type: Certification Model(s): C800, LG-C800 EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN Max. RF Output Power: 67.14 mW (18.27 dBm) Conducted (b) 25.94 mW (14.14 dBm) Conducted (g) 20.61 mW (13.14 dBm) Conducted (n) Frequency Range: 2412 - 2462 MHz (DSSS/OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 Test Device Serial No.: 104KPFX018051 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is conducted. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11b/g/n Reviewed by: FCC ID: ZNFC800 FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1106201029.ZNF June 23 - 30, 2011 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN Page 2 of 45 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.5WBGNFI 01/27/2011 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.3 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11B/G/N.............................................................................. 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B...................................................................................... 17 6.4 OUTPUT POWER MEASUREMENT – 802.11G/N .................................................................................. 18 6.5 POWER SPECTRAL DENSITY (802.11B/G/N) ....................................................................................... 19 6.6 CONDUCTED EMISSIONS AT THE BAND EDGE.................................................................................. 25 6.7 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 29 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 33 6.9 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 37 6.10 LINE-CONDUCTED TEST DATA............................................................................................................. 39 7.0 CONCLUSION ..............................…

Text truncated - open the document above for the full version.

FCC ID: ZNFC800 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page i of vii 06/20/11 - 06/28/11 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 APPENDIX D: SAR TEST SETUP PHOTOGRAPHS FCC ID: ZNFC800 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page ii of vii 06/20/11 - 06/28/11 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 1: Right Touch SAR Test Setup Photo 2: Right Tilt FCC ID: ZNFC800 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page iii of vii 06/20/11 - 06/28/11 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 3: Left Touch SAR Test Setup Photo 4: Left Tilt FCC ID: ZNFC800 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page iv of vii 06/20/11 - 06/28/11 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 5: Back at 1.0 cm SAR Test Setup Photo 6: Front at 1.0 cm FCC ID: ZNFC800 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page v of vii 06/20/11 - 06/28/11 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 7: Top at 1.0 cm SAR Test Setup Photo 8: Bottom at 1.0 cm FCC ID: ZNFC800 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page vi of vii 06/20/11 - 06/28/11 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 9: Right at 1.0 cm SAR Test Setup Photo 10: Left at 1.0 cm FCC ID: ZNFC800 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page vii of vii 06/20/11 - 06/28/11 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 11: Body Worn at 2.0 cm Note: Headset Cable is connected to the device during Body Worn SAR assessment, as seen above.

LG ELECTRONICS MOBILECOMM U.S.A., INC. FCC ID: ZNFC800 Model: C800 Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN 1 of 3 © 2011 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS LG ELECTRONICS MOBILECOMM U.S.A., INC. FCC ID: ZNFC800 Model: C800 Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN 2 of 3 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM U.S.A., INC. FCC ID: ZNFC800 Model: C800 Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA/HSPA Phone with BT and WLAN 3 of 3 © 2011 PCTEST Engineering Laboratory Inc.
