ZNFCR820WCDMA & LTE Wireless Router with WLAN

ENGLISH User Guide CR820 MFL67846801 (1.0)www.lg.com CR820 User Guide ENGLISH 2 Supplied Accessories .....................................3 Precautions....................................................4 Before Using this Terminal .............................8 Setting Up ....................................................34 Connecting to the Internet ...........................45 Settings .......................................................46 Overseas Use ...............................................80 Troubleshooting ...........................................82 Guidelines for safe and efficient use ............96 Contents 3 CR820 Terminal (including the warranty) CR820 INSTRUCTION MANUAL Back CoverData cable Travel Adapter Battery Pack IMEI Label SSID: CR820_EF31C1E0 Security Key: B83A3F60 351876050000001 *351876050000001* Supplied Accessories 4 Precautions Technical data Ambient temperatures Max: +35°C (discharging), +45°C (charging) Min: 0°C Battery information and care • You do not need to completely discharge the battery before recharging. Unlike other battery systems, there is no memory effect that could compromise the battery's performance. • Use only LG batteries and chargers. LG chargers are designed to maximise the battery life. • Do not disassemble or short-circuit the battery. • Keep the metal contacts of the battery clean. 5 • Replace the battery when it no longer provides acceptable performance. The battery pack may be recharged hundreds of times before it needs replacing. • Recharge the battery if it has not been used for a long time to maximise usability. • Do not expose the battery charger to direct sunlight or use it in high humidity, such as in the bathroom. • Do not leave the battery in hot or cold places, as this may deteriorate battery performance. • There is risk of explosion if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufacturer's instructions. Please recycle when possible. Do not dispose as household waste. • If you need to replace the battery, take it to the nearest authorised LG Electronics service point or dealer for assistance. • Always unplug the charger from the wall socket after the phone is fully charged to save unnecessary power consumption of the charger. 6 Precautions • Actual battery life will depend on network configuration, product settings, usage patterns, battery and environmental conditions. • Make sure that no sharp-edged items such as animal’s teeth or nails, come into contact with the battery. This could cause a fire. Adapter • Charge the battery pack in a place with an ambient temperature between 0 °C and 45 °C. • Do not charge the battery pack in the following areas. - In areas of excessive humidity, dust or vibration - Near land-line phones, TVs or radios • It is normal for the adapters to become warm while using or charging the terminal. You can continue to use it. • Use the DC adapter only when the car engine is running. - Otherwise, the car battery may be exhausted. • Do not give a strong impact to the adapter. Also, do not deform the charging terminals. Malfunction may result. 7 Micro USIM • Do not put excessive force on the Micro USIM when inserting or removing it into this terminal. • Do not insert and use the Micro USIM with another IC card reader/writer. Please note that you are wholly liable for any damage or malfunction as a result of such action. • Always keep the IC portion of the Micro USIM clean. • Clean the Micro USIM with a soft, dry cloth (Lens cleaning cloth). • Be sure to keep a separate note of the information registered to this terminal. Claro assumes no responsibility for the loss of any of your data. • Visit service center to return the expended Micro USIM for the environmental purpose. • Do not scratch, touch carelessly or short circuit the IC portion. Data loss or malfunction may result. • Do not drop or give shock to the Micro USIM. Malfunction may result. 8 Before Using this Terminal Names of Parts and Functions Display Power button: Hold down the button for over 2 seconds to turn on or off. Wi-Fi button: Hold down the button for over 2 seconds to set/cancel power saving mode. During power saving mode, wireless LAN function and network communication function are off. When the display has gone off, press the Power button to lighten the display, then press the Wi-Fi button. WPS button: Hold down the button for over 2 seconds to connect the other wireless LAN device to the wireless LAN of this terminal using WPS function (Unavailable when WEP is set). When the display has gone off, press the Power button to lighten the display, then press the WPS button. 9 Back cover: Removing the back cover, the Micro USIM slot guide is under the battery pack. External connector: This connects to AC Adapter or microUSB Connection Cable. NOTE: When this terminal is put on the metal objects such as a steel desk or table, the performance of the antenna is affected and the communication speed may become lower. 10 Before Using this Terminal Display Overview The signs (icons) that appear on the display indicate these states (press the power button to display the icons): Levels of radio wave reception StrongWeak Types of networks available during connection LTE 3G (HSDPA/HSUPA, W-CDMA) Internet connection is unavailable when an icon shows not connected appears on the display of this terminal. Activating global roaming 11 States of network connection Connected Not connected Pending state of connection WPS function available Wi-Fi auto off function set Battery level HighLow Blinking: The battery is almost exhausted. Charge the battery. Wireless LAN function ON It disappears when wireless LAN function is OFF. Number of connecting terminals to wireless LAN Network data usage The amount of data communication is displayed. Data communication in overseas is not be added to this amount. Also, the amount of data communication within the international roaming area is not displayed. 12 Be…

Text truncated - open the document above for the full version.

Date: March 13, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFCR820 Equipment Class: DTS : Digital Transmission System To Whom It May Concern: Pursu ant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics MobileComm USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics MobileComm USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are liste d as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

LG Electronics MobileComm USA, Inc. 1000 Sylvan Ave., Englewood Cliffs, New Jersey 07632, United States Tel: 201-266-2534 ; Fax: 201-816-2003 Date: March 18, 2013 Power of Attorney To whom it may concern, Please be notified that I, Jacob Cho, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: ZNFCR820 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Jacob Cho Company: LG Electronics MobileComm USA, Inc. TEL: 201-266-2534 FAX: 201-816-2003 E-mail: [email protected]

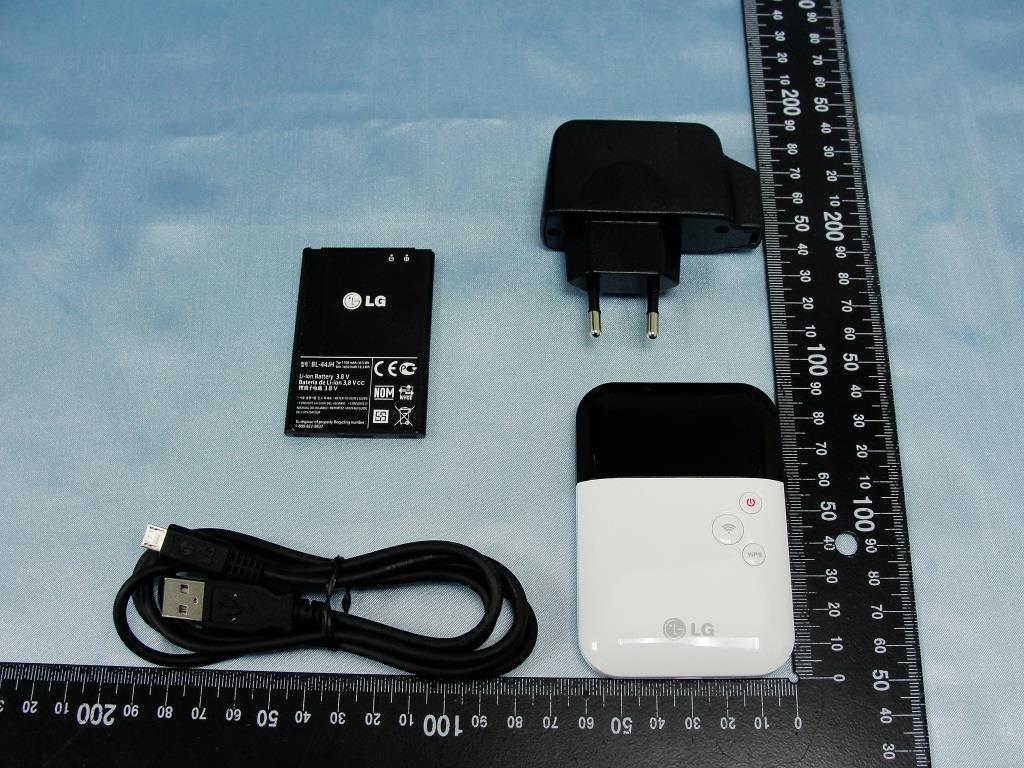

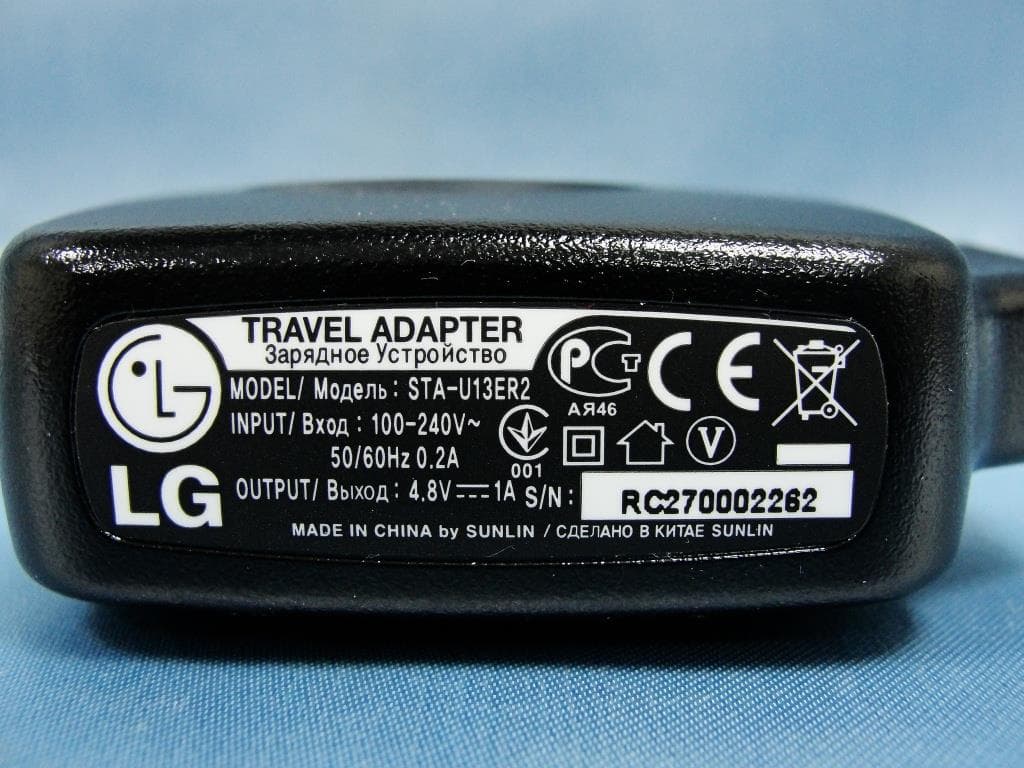

Photographs of EUT Report No.: EP330402 Brand Name: LG / Model Name: CR820 / Marketing Name: CR820 SPORTON INTERNATIONAL INC. Page Number : 1 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 03, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZNFCR820 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP330402 Brand Name: LG / Model Name: CR820 / Marketing Name: CR820 SPORTON INTERNATIONAL INC. Page Number : 2 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 03, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZNFCR820 Photographs of EUT Report No.: EP330402 Brand Name: LG / Model Name: CR820 / Marketing Name: CR820 SPORTON INTERNATIONAL INC. Page Number : 3 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 03, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZNFCR820 List of Accessory: Specification of Accessory AC Adapter Brand Name SUNLIN Model Name STA-U13ER2 Battery Brand Name TOCAD DONG-HWA Model Name BL-44JH USB Cable Brand Name KSD Model Name SGDY0016701 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP330402 Brand Name: LG / Model Name: CR820 / Marketing Name: CR820 SPORTON INTERNATIONAL INC. Page Number : 4 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 03, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZNFCR820 720510 Photographs of EUT Report No.: EP330402 Brand Name: LG / Model Name: CR820 / Marketing Name: CR820 SPORTON INTERNATIONAL INC. Page Number : 5 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 03, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZNFCR820 Photographs of EUT Report No.: EP330402 Brand Name: LG / Model Name: CR820 / Marketing Name: CR820 SPORTON INTERNATIONAL INC. Page Number : 6 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 03, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZNFCR820

Model No: CR820 FCC ID : ZNFCR820 S/N : Made in Korea LG Electronics MobileComm USA, Inc. LGE

Photographs of EUT Report No.: EP330402 Brand Name: LG / Model Name: CR820 / Marketing Name: CR820 SPORTON INTERNATIONAL INC. Page Number : 7 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 03, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZNFCR820 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP330402 Brand Name: LG / Model Name: CR820 / Marketing Name: CR820 SPORTON INTERNATIONAL INC. Page Number : 8 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 03, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZNFCR820 Photographs of EUT Report No.: EP330402 Brand Name: LG / Model Name: CR820 / Marketing Name: CR820 SPORTON INTERNATIONAL INC. Page Number : 9 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 03, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZNFCR820 Photographs of EUT Report No.: EP330402 Brand Name: LG / Model Name: CR820 / Marketing Name: CR820 SPORTON INTERNATIONAL INC. Page Number : 10 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 03, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZNFCR820 Photographs of EUT Report No.: EP330402 Brand Name: LG / Model Name: CR820 / Marketing Name: CR820 SPORTON INTERNATIONAL INC. Page Number : 11 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 03, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZNFCR820 Photographs of EUT Report No.: EP330402 Brand Name: LG / Model Name: CR820 / Marketing Name: CR820 SPORTON INTERNATIONAL INC. Page Number : 12 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 03, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZNFCR820 WWAN Main Antenna <Tx / Rx> Photographs of EUT Report No.: EP330402 Brand Name: LG / Model Name: CR820 / Marketing Name: CR820 SPORTON INTERNATIONAL INC. Page Number : 13 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 03, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZNFCR820 Photographs of EUT Report No.: EP330402 Brand Name: LG / Model Name: CR820 / Marketing Name: CR820 SPORTON INTERNATIONAL INC. Page Number : 14 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 03, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZNFCR820 Diversity Antenna for LTE Band 7 <Rx> WLAN Antenna <Tx / Rx> Diversity Antenna for LTE Band 7 <Rx> WLAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP330402 Brand Name: LG / Model Name: CR820 / Marketing Name: CR820 SPORTON INTERNATIONAL INC. Page Number : 15 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 03, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZNFCR820

SPORTON INTERNATIONAL INC. Page Number : 1 of 44 TEL : 886-3-327-3456 Report Issued Date : Apr. 03, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZNFCR820 FCC SAR Test Report Report No. : FA330402 FCC SAR Test Report APPLICANT : LG Electronics Inc. EQUIPMENT : WCDMA & LTE Wireless Router with WLAN. BRAND NAME : LG MODEL NAME : CR820 MARKETING NAME : CR820 FCC ID : ZNFCR820 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Mar. 25, 2013. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Eric Huang / Vice Manager Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 44 TEL : 886-3-327-3456 Report Issued Date : Apr. 03, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZNFCR820 FCC SAR Test Report Report No. : FA330402 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 6 3.2 Maximum RF output power among production units .............................................................................................. 7 3.3 Applied Standard .................................................................................................................................................... 9 3.4 Device Category and SAR Limits ........................................................................................................................... 9 3.5 Test Conditions ....................................................................................................................................................... 9 4. Specific Absorption Rate (SAR) ..................................................................................................................................10 4.1 Introduction ...........................................................................................................................................................10 4.2 SAR Definition .......................................................................................................................................................10 5. SAR Measurement System ..........................................................................................................................................11 5.1 E-Field Probe ........................................................................................................................................................12 5.2 Data Acquisition Electronics (DAE) .......................................................................................................................13 5.3 Robot ....................................................................................................................................................................14 5.4 Measurement Server .............................................................................................................................................14 5.5 Phantom ................................................................................................................................................................15 5.6 Device Holder........................................................................................................................................................16 5.7 Data Storage and Evaluation ................................................................................................................................17 5.8 Test Equipment List ...............................................................................................................................................19 6. Tissue Simulating Liquids ...........................................................................................................................................20 7. SAR System Verification .............................................................................................................................................22 7.1 Purpose of System Performance check ................................................................................................................22 7.2 System Setup .....................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : A1 of A1 TEL : 886-3-327-3456 Report Issued Date : Apr. 03, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZNFCR820 FCC SAR Test Report Report No. : FA330402 Appendix A. Plots of System Performance Check The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/6 System Check_Body_835MHz_130306 DUT: D835V2-SN:499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_130306 Medium parameters used: f = 835 MHz; σ = 0.963 mho/m; ε r = 54.498; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.08, 6.08, 6.08); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1127 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.5 (6469) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.64 mW/g Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 54.202 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.494 mW/g SAR(1 g) = 2.45 mW/g; SAR(10 g) = 1.62 mW/g Maximum value of SAR (measured) = 2.65 mW/g 0 dB = 2.65 mW/g = 8.46 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/6 System Check_Body_1900MHz_130306 DUT: D1900V2-SN:5d041 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL1900_130306 Medium parameters used: f = 1900 MHz; σ = 1.526 mho/m; ε r = 52.813; ρ = 1000 kg/m 3 Ambient Temperature：22.2 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.58, 4.58, 4.58); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1127 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.5 (6469) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 10.9 mW/g Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 90.528 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 14.561 mW/g SAR(1 g) = 9.66 mW/g; SAR(10 g) = 5.55 mW/g Maximum value of SAR (measured) = 10.6 mW/g 0 dB = 10.6 mW/g = 20.51 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/8 System Check_Body_2450MHz_130308 DUT: D2450V2-SN:736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130308 Medium parameters used: f = 2450 MHz; σ = 1.904 mho/m; ε r = 51.836; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.17, 4.17, 4.17); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 17.4 mW/g Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 92.762 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 26.452 mW/g SAR(1 g) = 12.5 mW/g; SAR(10 g) = 5.86 mW/g Maximum value of SAR (measured) = 16.3 mW/g 0 dB = 16.3 mW/g = 24.24 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/19 System Check_Body_2600MHz_130319 DUT: D2600V2-SN:1008 Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: MSL_2600_130319 Medium parameters used: f = 2600 MHz; σ = 2.165 mho/m; ε r = 53.823; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(6.84, 6.84, 6.84); Calibrated: 2012/6/21; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: SAM Right; Type: QD000P40CC; Serial: TP:1383 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 23.4 mW/g Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 102.0 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 32.149 mW/g SAR(1 g) = 13.8 mW/g; SAR(10 g) = 6.06 mW/g Maximum value of SAR (measured) = 21.9 mW/g 0 dB = 21.9 mW/g = 26.81 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/25 System Check_Body_2600MHz_130325 DUT: D2600V2-SN:1008 Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: MSL_2600_130325 Medium parameters used: f = 2600 MHz; σ = 2.201 mho/m; ε r = 52.823; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.4, 6.4, 6.4); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: SAM RIGHT; Type: SAM; Serial: 1719 -Measurement SW: DASY52, Version 52.8 (4); SEMCAD X Version 14.6.8 (7028) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 25.1 mW/g Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 104.4 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 34.064 mW/g SAR(1 g) = 14.7 mW/g; SAR(10 g) = 6.48 mW/g Maximum value of SAR (measured) = 23.2 mW/g 0 dB = 23.2 mW/g = 27.31 dB mW/g

SPORTON INTERNATIONAL INC. Page Number : B1 of B1 TEL : 886-3-327-3456 Report Issued Date : Apr. 03, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZNFCR820 FCC SAR Test Report Report No. : FA330402 Appendix B. Plots of SAR Measurement The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/6 #10_WCDMA V_RMC 12.2Kbps_Front_1cm_Ch4182 DUT: 330402 Communication System: WCDMA; Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: MSL_850_130306 Medium parameters used: f = 836.4 MHz; σ = 0.965 mho/m; ε r = 54.481; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.08, 6.08, 6.08); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v5.0 Left; Type: QDOVA002AA; Serial: TP:1131 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.5 (6469) Configuration/Ch4182/Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.940 mW/g Configuration/Ch4182/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 27.298 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.184 mW/g SAR(1 g) = 0.885 mW/g; SAR(10 g) = 0.607 mW/g Maximum value of SAR (measured) = 0.956 mW/g 0 dB = 0.956 mW/g = -0.39 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/6 #11_WCDMA V_RMC 12.2Kbps_Front_1cm_Ch4132 DUT: 330402 Communication System: WCDMA; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium: MSL_850_130306 Medium parameters used: f = 826.4 MHz; σ = 0.955 mho/m; ε r = 54.588; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.08, 6.08, 6.08); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v5.0 Left; Type: QDOVA002AA; Serial: TP:1131 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.5 (6469) Configuration/Ch4132/Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.888 mW/g Configuration/Ch4132/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 26.686 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 1.099 mW/g SAR(1 g) = 0.820 mW/g; SAR(10 g) = 0.563 mW/g Maximum value of SAR (measured) = 0.885 mW/g 0 dB = 0.885 mW/g = -1.06 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/6 #12_WCDMA V_RMC 12.2Kbps_Front_1cm_Ch4233 DUT: 330402 Communication System: WCDMA; Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium: MSL_850_130306 Medium parameters used: f = 847 MHz; σ = 0.975 mho/m; ε r = 54.378; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.08, 6.08, 6.08); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v5.0 Left; Type: QDOVA002AA; Serial: TP:1131 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.5 (6469) Configuration/Ch4233/Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.894 mW/g Configuration/Ch4233/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 26.748 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.107 mW/g SAR(1 g) = 0.827 mW/g; SAR(10 g) = 0.569 mW/g Maximum value of SAR (measured) = 0.890 mW/g 0 dB = 0.890 mW/g = -1.01 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/6 #13_WCDMA V_RMC 12.2Kbps_Back_1cm_Ch4182 DUT: 330402 Communication System: WCDMA; Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: MSL_850_130306 Medium parameters used: f = 836.4 MHz; σ = 0.965 mho/m; ε r = 54.481; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.08, 6.08, 6.08); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v5.0 Left; Type: QDOVA002AA; Serial: TP:1131 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.5 (6469) Configuration/Ch4182/Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.07 mW/g Configuration/Ch4182/Zoom Scan (5x…

Text truncated - open the document above for the full version.
