1 ENGLISH MFL00000000 (1.0) User Guide LG-D213n www.lg.com User Guide ENGLISH • Screen displays and illustrations may differ from those you see on actual phone. • Some of the contents of this guide may not apply to your phone, depending on the software and your service provider. All information in this document is subject to change without notice. • This handset is not suitable for people who have a visual impairment due to the touch screen keyboard. • Copyright ©2014 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners. • Google™, Google Maps™, Gmail™, YouTube™, Hangouts™ and Google Play™ are trademarks of Google, Inc. 2 Guidelines for safe and efficient use ....5 Important notice ..................................14 Getting to know your phone ................19 Phone overview.....................................19 Installing the SIM card and battery ........21 Charging the phone ...............................23 Using the memory card .........................24 Locking and unlocking the screen .........25 Knock Code ...........................................25 KnockOn ...............................................26 Switching between and exiting applications...........................................26 Your Home screen ................................27 Touch screen tips ..................................27 Home screen .........................................28 Customizing the Home screen .............29 Notifications ..........................................30 Quick Settings .....................................31 Notification icons on the Status Bar ......31 On-screen keyboard..............................33 Entering special characters ..................33 Google account setup ..........................34 Creating your Google account ...............34 Signing in to your Google account .........34 Connecting to Networks and Devices .35 Wi-Fi .....................................................35 Connecting to Wi-Fi networks ..............35 Turning Wi-Fi on and connecting to a Wi-Fi network .....................................35 Bluetooth ..............................................36 PC connections with a USB cable ..........38 Calls .....................................................39 Making a call ........................................39 Calling your contacts .............................39 Answering and rejecting a call ..............39 When the screen is locked/unlocked ....39 Adjusting the in-call volume ..................40 Making a second call ............................40 Viewing your call logs ...........................40 Call settings ..........................................41 Contacts ...............................................42 Searching for a contact .........................42 Adding a new contact ...........................42 Favorite contacts ...................................42 Creating a group ...................................43 Messaging ............................................44 Sending a message ..............................44 View mode ...........................................45 Changing your message settings ..........45 Table of contents 3 E-mail ...................................................46 Managing an email account ..................46 Working with account folders ................46 Composing and sending email ..............47 Multimedia ...........................................48 Camera .................................................48 Getting to know the viewfinder .............48 Using the advanced settings ................49 Taking a quick photo ..........................50 Once you've taken a photo ..................50 Viewing your saved photos ..................51 Video camera ........................................52 Getting to know the viewfinder .............52 Using the advanced settings ................53 Recording a quick video ......................54 After recording a video ........................54 Watching your saved videos ................54 Adjusting the volume when viewing a video ..................................................54 Gallery...................................................55 Viewing pictures ..................................55 Playing videos .....................................55 Editing photos/videos ..........................56 Deleting images ..................................56 Setting a photo as the wallpaper ..........56 Videos ...................................................56 Playing a video ....................................56 Music ....................................................58 Playing a song ....................................58 Utilities .................................................60 Alarm/Clock ..........................................60 Using your calculator ............................61 Adding an event to your calendar ..........61 Voice Recorder ......................................62 ThinkFree Viewer ..................................63 Google+ ................................................63 Guest Mode ...........................................64 Voice Search .........................................64 Downloads ............................................64 QuickMemo...........................................64 FM radio ................................................66 Searching for stations ...........................66 LG SmartWorld ......................................67 The Web ...............................................68 Internet .................................................68 Using the web toolbar ..........................68 Viewing webpages ..............................68 Opening a page ..................................69 Searching the web by voice .................69 Bookmarks .........................................69 History ................................................…

Text truncated - open the document above for the full version.

51 NOTE: Additional charges may apply when multimedia messages are downloaded while roaming. Tap the Menu Key to open the following advanced options. Set image as – Tap to use the photo as a Contact photo, Home screen wallpaper, Lock screen wallpaper , or Wallpaper. Move – Tap to move the photo to another album. Copy – Tap to copy the selected photo and save it to another album. Rename – Tap to edit the name of the selected photo. Rotate left/right – Tap to rotate the picture to the left or right. Crop – Tap to crop your photo. Edit – Tap to edit the photo. Slideshow – Displays a slideshow using all of your photos. Add location – Add location information to your photo. Details – Displays information about the photo. Viewing your saved photos You can access your saved photos when in camera mode. Just tap the image preview at the bottom of the screen and your Gallery will be displayed. • To view more photos, scroll left or right. • To zoom in or out, double-tap the screen or place two fingers and spread them apart (move your fingers closer together to zoom out). 52 Video camera To open the video camera, tap Camera on the Home screen, then tap to switch to video mode. Getting to know the viewfinder Flash – Choose from Off , On , Auto . Swap camera – Switch between the rear–facing camera lens and the front-facing camera lens. Settings – Tap this icon to open the settings menu. Camera mode – Tap and slide up this icon to switch to camera mode. Start recording Gallery – Tap to view the last video you recorded. This enables you to access your gallery and view your saved videos while in video mode. NOTE: While recording a video, place two fingers on the screen and pinch to use the Zoom function. 53 Using the advanced settings Using the viewfinder, tap to open the advanced options. After selecting the option, tap the Back Key . Tap to set the size (in pixels) of the video you are recording. This defines and controls the amount of sunlight entering the video. Improves white balance in various lighting conditions. Choose a color effect to use for your video. Activate this to use your phone's location-based services for geo-tagging purposes. NOTE: This function is available when the GPS function is active or connected network. Select what action to take when pressing the Volume Keys. Choose from Record or Zoom. Select the location where you want to save your videos. Tap this whenever you want to know how a function works. This icon will provide you with a quick help guide. Restore all video camera settings back to default. 54 Recording a quick video 1 Open the Camera application and tap the Video mode button . 2 The video camera viewfinder appears on the screen. 3 Hold your phone, point the lens towards the subject you wish to capture in your video. 4 Tap once to start recording. 5 A timer showing the length of the video is displayed. 6 Tap to stop recording. After recording a video Tap the image preview at the bottom to view the last video you recorded. Tap to record another video immediately. Tap to send your video to others or share it via social network services. Tap to delete the video. Watching your saved videos 1 In the viewfinder, tap the image preview at the bottom of the screen. 2 Your Gallery will appear on the screen. 3 Tap a video to play it automatically. Adjusting the volume when viewing a video To adjust the volume of a video while it is playing, use the Volume Keys on the left side of the phone. 55 Gallery You can store multimedia files in the internal and external memory for easy access to all your multimedia files. Use this application to view multimedia files like pictures and videos. • From the Home screen, tap > Apps tab (if necessary) > Gallery . NOTE: • Some file formats are not supported, depending on the software installed on the device. • Some files may not play properly, depending on how they are encoded. Viewing pictures Open the Gallery to display your available albums. When another application, such as Email, saves a picture, the download folder is automatically created to contain the picture. Likewise, capturing a screenshot automatically creates the Screenshots folder. Select a folder to open it. Pictures are displayed by creation date in a folder. Select a picture to view it full screen. Scroll left or right to view the next or previous image. Zooming in and out Use one of the following methods to zoom in on an image: • Double-tap anywhere to zoom in. • Spread two fingers apart on any place to zoom in. Pinch to zoom out, or double-tap to return. Playing videos Video files show the icon in the preview. Select a video to watch it and tap . 56 NOTE: • Some file formats are not supported, depending on the device software. • If the file size exceeds the available memory, an error can occur when you open files. Editing photos/videos When viewing an photo/video, tap the Menu Key and use the advanced editing options. Deleting images Use one of the following methods: • In an album, tap and select photos/videos by tapping them, then tap Delete. • When viewing a photo/video, tap . Setting a photo as the wallpaper When viewing a photo, tap the Menu Key and select Set image as to set the image as the Home screen or Lock screen wallpaper. Videos Your phone has a video player that lets you play all of your favorite videos. Playing a video 1 From the Home screen, tap > Apps tab (if necessary) > Videos . 2 Select the video you want to play. 57 Touch to pause/resume video playback. Touch to go 10 seconds forward. Touch to go 10 seconds backward. Touch to manage the video volume. Touch to change the ratio of the video screen. Tap to capture image during playing a video. Touch to lock/unlock a video screen. To change the volume while watching a video, press the Volume Keys on the left side of the phone. Touch and hold a video in the list. The Share, Delete and Details options will be displayed. NOTE: While watching a video, slide the left side of the screen up and down to adjust the br…

Text truncated - open the document above for the full version.

          !"# Date: May 26, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFD213N Equipment Class:DXX&Part15Low Power Communication Device Transmitter To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information ActElectronicsMobileComm hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for , days after the grant as outlined in Public Notice DA 04-1705. This provision will give  MobileComm temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: '-.+%/0-+1+-.023%+33+ 45 6  %e )  1 Block Diagram 2 Operational Descriptions '-.+ 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos /0-+1+-. 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

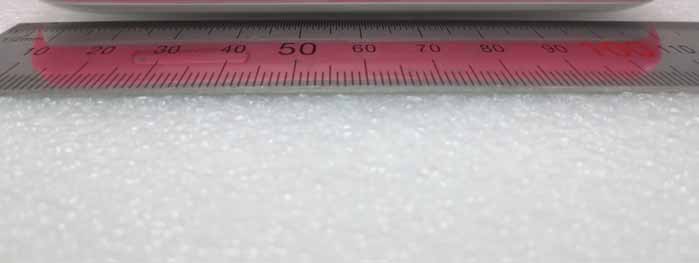

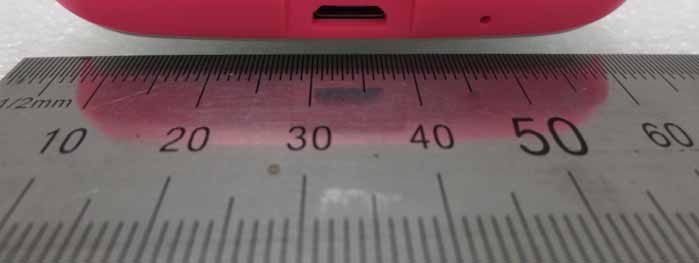

FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 EXTERNAL PHOTOGRAPHS FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO

※ FCC ID Label Form Note: The FCC ID shown will be readily visible at the time of purchase. Note! The label of the EUT is made of a white polypropylene laminate film and it's attached to the EUT by an adhesive. The adhesive is permanent type with strong strength. Additionally, the FCC ID is readily visible to the purchaser at the time of purchase because the phone will be marketed without the battery installed. Model No : LG-D213n FCC ID : ZNFD213N S/N : Made in Korea

FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 INTERNAL PHOTOGRAPHS FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ Main Antenna INTERNAL PHOTO Main Antenna FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ BT&WLAN Antenna_INTERNAL PHOTO BT / WiFi Antenna FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFD213N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO

FCCPT.15.225 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCT-R-1405-F032-2 Date of Issue: Jun 02, 2014 EUT Type: GSM Phone with Bluetooth4.0, WIFI802.11 b/g/n(2.4GHz_HT20, HT40), VoIP, Hotspot support, NFC FCC ID: ZNFD213N Page of 27 HCT CO., LTD. CERTIFICATE OF COMPLIANCE FCC Certification Applicant Name: LG Electronics MobileComm U.S.A., Inc. Address: 1000 Sylvan Avenue, Englewood Cliffs NJ 07632 Date of Issue: Jun 02, 2014 Test Site/Location: HCT CO., LTD., 74, Seoicheon-ro 578beon-gil, Majang- myeon, Icheon-si, Gyeonggi-do, Korea Report No.: HCT-R-1405-F032-2 HCT FRN: 0005866421 FCC ID APPLICANT : ZNFD213N : LG Electronics MobileComm U.S.A., Inc. FCC Model(s): LG-D213n Additional FCC Model(s): LGD213n, D213n EUT Type: GSM Phone with Bluetooth4.0, WIFI802.11 b/g/n(2.4GHz_HT20, HT40), VoIP, Hotspot support, NFC RF Output Field Strength 15.06 dBuV/m Frequency of Operation: 13.56042 MHz Modulation type ASK FCC Classification: Low Power Communication Device – Transmitter FCC Rule Part(s): FCC Part 15.225 Subpart C Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. HCT CO., LTD. Certifies that no party to this application has subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1998,21 U.S. C.853(a) Report prepared by : Jong Seok Lee Test Engineer of RF Team Approved by : Chang Seok Choi Manager of RF Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. FCCPT.15.225 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCT-R-1405-F032-2 Date of Issue: Jun 02, 2014 EUT Type: GSM Phone with Bluetooth4.0, WIFI802.11 b/g/n(2.4GHz_HT20, HT40), VoIP, Hotspot support, NFC FCC ID: ZNFD213N Page of 27 Version TEST REPORT NO. DATE DESCRIPTION HCT-R-1405-F032 May 23, 2014 - First Approval Report HCT-R-1405-F032-1 May 30, 2014 - Added to the calculation formula HCT-R-1405-F032-2 Jun 02, 2014 -Retested the radiated emission FCCPT.15.225 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCT-R-1405-F032-2 Date of Issue: Jun 02, 2014 EUT Type: GSM Phone with Bluetooth4.0, WIFI802.11 b/g/n(2.4GHz_HT20, HT40), VoIP, Hotspot support, NFC FCC ID: ZNFD213N Page of 27 Table of Contents 1. GENERAL INFORMATION .......................................................................................................................... 2. EUT DESCRIPTION ..................................................................................................................................... 3. TEST METHODOLOGY ............................................................................................................................... 3.1 EUT CONFIGURATION ...................................................................................................................... 3.2 EUT EXERCISE .................................................................................................................................. 3.3 GENERAL TEST PROCEDURES ...................................................................................................... 3.4 DESCRIPTION OF TEST MODES ..................................................................................................... 3.5 STANDARDS ...................................................................................................................................... 4. INSTRUMENT CALIBRATION..................................................................................................................... 5. FACILITIES AND ACCREDITATIONS ......................................................................................................... 5.1 FACILITIES ......................................................................................................................................... 5.2 EQUIPMENT ....................................................................................................................................... 6. ANTENNA REQUIREMENTS ...................................................................................................................... 7. TEST SUMMARY ......................................................................................................................................... 8. RADIATED EMISSION MEASUREMENT ................................................................................................... 8.1. RADIATED EMISSION 9 kHz – 30 MHz ....................................................................................... 8.2. RADIATED EMISSION 30 MHz – 1000 MHz ................................................................................ 9. EMISSION BANDWIDTH PLOT. .............................................................................................................. 10. FREQUENCY TOLERANCE .................................................................................................................. 11. POWERLINE CONDUCTE EMISSIONS................................................................................................ 12. LIST OF TEST EQUIPMENT ................................................................................................................. 12.1 LIST OF TEST EQUIPMENT(Conducted Test) .......................................................................... 12.2 LIST OF TEST EQUIPMENT(Radiated Test) .............................................................................. FCCPT.15.225 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCT-R-1405-F032-2 Date of Issue: Jun 02, 2014 EUT Type: GSM Phone with Bluetooth4.0, WIFI802.11 b/g/n(2.4GHz_HT20, HT40)…
