ENGLISH User Guide LG-D285g MFL00000000 (1.0) www.lg.com User Guide • Screen displays and illustrations may differ from those you see on actual phone. • Some of the contents of this guide may not apply to your phone, depending on the software and your service provider. All information in this document is subject to change without notice. • This handset is not suitable for people who have a visual impairment due to the tap screen keyboard. • Copyright ©2014 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners. • Google™, Google Maps™, Gmail™, YouTube™, Hangouts™ and Play Store™ are trademarks of Google, Inc. ENGLISH 2 Table of contents For your safety ....................................................5 Safety instructions ...........................................11 Important notice ...............................................18 Getting to know your phone .............................23 Phone overview ...............................................23 Charging your phone .......................................27 Using the memory card ...................................28 Locking and unlocking the screen ...................29 Knock Code .....................................................30 KnockON .........................................................30 Plug & Pop ......................................................30 Your Home screen .............................................31 Touch screen tips ............................................31 Home screen ...................................................31 Extended home screen ..................................32 Customizing the Home screen .......................33 Returning to recently-used applications...........33 Notifications panel...........................................34 Using Dual SIM ................................................34 Opening the notifications panel ......................35 Indicator icons on the Status Bar....................35 On-screen keyboard ........................................37 Entering accented letters ...............................37 Google account setup .......................................38 Connecting to Networks and Devices ..............39 Wi-Fi ...............................................................39 Connecting to Wi-Fi networks ........................39 Turning Wi-Fi on and connecting to a Wi-Fi network ........................................................39 Bluetooth ........................................................40 Sharing your phone's data connection .............41 Wi-Fi Direct .....................................................42 PC connections with a USB cable ....................42 Calls ..................................................................44 Making a call ..................................................44 Calling your contacts .......................................44 Answering and rejecting a call.........................44 Adjusting the in-call volume ............................44 Making a second call ......................................45 Viewing your call logs ......................................45 Call settings ....................................................45 Contacts ............................................................46 Searching for a contact ...................................46 Adding a new contact ......................................46 Favourites contacts .........................................46 Creating a group .............................................47 Messaging .........................................................48 Sending a message .........................................48 Threaded box .................................................49 Changing your message settings .....................49 E-mail ................................................................50 Managing an email account ............................50 Working with account folders ..........................50 Composing and sending email .........................50 Camera ..............................................................51 Getting to know the viewfinder ........................51 Using the advanced settings ............................52 Taking a quick photo ......................................53 Once you've taken a photo ..............................54 From your Gallery ............................................55 3 Video camera ....................................................56 Getting to know the viewfinder ........................56 Using the advanced settings ............................57 Recording a quick video ..................................57 After recording a video ....................................58 From your Gallery ............................................58 Adjusting the volume when viewing a video ....58 Function ............................................................59 QuickMemo .....................................................59 Using the QuickMemo options .......................60 Viewing the saved QuickMemo .....................60 QSlide .............................................................61 LG SmartWorld ................................................62 How to Get to LG SmartWorld from Your Phone ..........................................................62 How to use LG SmartWorld ............................62 Multimedia ........................................................63 Gallery ............................................................63 Viewing pictures ...........................................63 Playing videos...............................................63 Editing photos ...............................................63 Deleting photos/videos ..................................63 Setting as wallpaper ......................................64 Videos ...........................................…

Text truncated - open the document above for the full version.

50 E-mail You can use the E-mail application to read emails from services like Gmail. The E-mail application supports the following account types: POP3, IMAP and Exchange. Your service provider or system administrator can provide you with the account settings you need. Managing an email account The first time you open the E-mail application, a set-up wizard opens to help you to set up an email account. After the initial set-up, E-mail displays the contents of your inbox. To add another email account: • Ta p > > Apps tab > E-mail >tap > Settings > Add account. To change an email account's settings: • Ta p > > Apps tab > E-mail > tap > Settings > General settings. To delete an email account: • Ta p > > Apps tab > E-mail > tap > Settings > tap > Remove account > Select the account to delete > Remove > select Yes. Working with account folders Ta p > > Apps tab > E-mail > tap and select Folders. Each account has an Inbox, Outbox, Sent and Drafts folder. Depending on the features supported by your account's service provider, you may have additional folders. Composing and sending email To compose and send a message 1 While in the E-mail application, tap the . 2 Enter an address for the message's intended recipient. As you enter text, matching addresses will be proposed from your Contacts. Separate multiple addresses using semicolons. 3 Tap the to add a Cc/Bcc and tap to attach files, if required. 4 Enter the text of the message. 5 Ta p . TIP! When a new email arrives in your Inbox, you will be notified by a sound or vibration. 51 Camera To open the Camera application, tap > > Apps tab > . Getting to know the viewfinder Flash – Choose from Off , On , Auto . Swap camera – Switch between the rear–facing camera lens and the front–facing camera lens. Shot mode – Choose from Normal, Panorama, Continuous shot or Sports. Settings – Tap this icon to open the settings menu. Video mode – Tap and slide down this icon to switch to video mode. Capture button Gallery – Tap to view the last photo you captured. This enables you to access your gallery and view saved photos while in camera mode. NOTE: Please ensure the camera lens is clean before taking pictures. 52 Using the advanced settings In the viewfinder, tap to open the advanced options. You can change the camera settings by scrolling through the list. After selecting the option, tap . To take a photo, say one of the following words: Cheese, Smile, Whisky, Kimchi or LG. Defines and controls the amount of sunlight entering the photo. Tap to select the focus mode. Selects photo resolution. If you choose high resolution, file size will increase, which means you will be able to store fewer photos in the memory. The ISO rating determines the sensitivity of the camera's light sensor. The higher the ISO, the more sensitive the camera. This is useful in darker conditions when you cannot use the flash. Improves color quality in various lighting conditions. Applies artistic effects to your pictures. Sets a delay after the capture button is pressed. This is ideal if you want to be in the photo. Activate this to use your phone's location-based services. NOTE: This function is available when the GPS function is active or connected network. Selects a shutter sound. Set the Volume Key whether to use for the capture or zoom. Select storage to save images. Opens the help guide to know how a function operates. Restores all camera default settings. Camera 53 TIP! • When you exit the camera, some settings return to their defaults, such as white balance, color effect, timer and shot mode. Check these before you take your next photo. • The setting menu is superimposed over the viewfinder, so when you change photo color or quality elements, you will see a preview of the changed image behind the Settings menu. Taking a quick photo 1 Open the Camera application and point the lens toward the subject your want to photograph. 2 Focus boxes will appear in the center of the viewfinder screen. You can also tap anywhere on the screen to focus on that spot. 3 When the focus box turns green, the camera has focused on your subject. 4 Ta p to capture the photo. 54 Once you've taken a photo Tap the image thumbnail at the bottom of the Camera screen to view the last photo you took. Tap to take another photo immediately. Tap to send your photo to others or share it via social network services. Tap to delete the photo. TIP! If you have an SNS account set up on your phone, you can share your photo with your SNS community. NOTE: Additional charges may apply when MMS messages are downloaded while roaming. Tap to open all advanced options. Set image as – Tap to use the photo as a Contact photo, Home screen wallpaper, Lock screen wallpaper, Wallpaper. Move – Tap to move the photo to another place. Copy – Tap to copy the selected photo and save it to another album. Copy to Clip Tray – Tap to copy the photo and store in the Clip Tray. Rename – Tap to edit the name of the selected photo. Rotate left/right – To rotate left or right. Crop – Crop your photo. Move your finger across the screen to select the area to be cropped. Edit – View and edit the photo. Slideshow – Automatically shows you the images in the current folder one after the other. Add location – To add the location information. Details – Find out more information about the file. Camera 55 From your Gallery Ta p Gallery and select Camera. • To view more photos, scroll left or right. • To zoom in or out, double-tap the screen or place two fingers and spread them apart (move your fingers closer together to zoom out). 56 Video camera Getting to know the viewfinder Flash – Choose from Off , On , Auto . Swap camera – Switch between the rear–facing camera lens and the front-facing camera lens. Recording mode – Choose from Normal or Live effect. Settings – Tap this icon to open the settings menu. Camera mode – Tap and slide up this icon to switch to camera mode. Start recording Gallery – Tap to view the last video you recorded. This enables you to …

Text truncated - open the document above for the full version.

63 Gallery Open the Gallery application to view albums of your pictures and videos. 1 Ta p > > Apps tab > Gallery. You can manage and share all your image and video files with Gallery. NOTE: • Some file formats are not supported, depending on the software installed on the device. • Some files may not play properly, depending on how they are encoded. Viewing pictures Launching Gallery displays your available folders. When another application, such as Email, saves a picture, the download folder is automatically created to contain the picture. Likewise, capturing a screenshot automatically creates the Screenshots folder. Select a folder to open it. Pictures are displayed by creation date in a folder. Select a picture to view it full screen. Scroll left or right to view the next or previous image. Zooming in and out Use one of the following methods to zoom in on an image: • Double-tap anywhere to zoom in. • Spread two fingers apart on any place to zoom in. Pinch to zoom out, or double-tap to return. Playing videos Video files show the icon in the preview. Select a video to watch it and tap . The Videos application will launch. Editing photos When viewing an photo, tap > Edit. Deleting photos/videos Use one of the following methods: • In a folder, tap and select photos/videos by ticking, and then tap on Delete. • When viewing a photo, tap . Multimedia 64 Setting as wallpaper When viewing a photo, tap > Set image as to set the image as wallpaper or assign to a contact. NOTE: • Some file formats are not supported, depending on the device software. • If the file size exceeds the available memory, an error can occur when you open files. Videos Your phone has a built-in video player that lets you play all of your favorite videos. To access the video player, touch > Apps tab > Videos. Playing a video 1 Touch > Apps tab > Videos. 2 Select the video you want to play. Touch to pause/resume video playback. Touch to go 10 seconds forward. Multimedia 65 Touch to go 10 seconds backward. Touch to manage the video volume. Touch to change the ratio of the video screen. Tap to capture image during playing a video. Touch to use QSlide. Touch to lock/unlock a video screen. To change the volume while watching a video, press the up and down volume keys on the left-hand side of the phone. Touch and hold a video in the list. The Share, Delete, Trim and Details options will be displayed. Music Your phone has a built-in music player that lets you play all your favorite tracks. To access the music player, tap > > Apps tab > Music. Playing a song 1 Ta p > > Apps tab > Music. 2 Ta p Songs. 3 Select the song you want to play. 66 / Tap to pause/ resume playback. Tap to skip to the next track in the album, playlist, or shuffle. Touch and hold to fast forward. Tap to restart the current track or skip to the previous track in the album, playlist, or shuffle. Touch and hold to rewind. Tap to display the Volume slider bar, then adjust the playback volume on the slider bar. Touch to see all song list. Tap to find the files with YouTube. Tap to open the current playlist. Tap to add the song to your favourites. Tap to play the current playlist in shuffle mode (tracks are played in random order). Multimedia 67 Tap to toggle through the repeat modes to repeat all songs, repeat current song, or repeat off. To change the volume while listening to music, press the up and down volume keys on the left-hand side of the phone. Touch and hold any song in the list. The Play, Add to playlist, Share, Set as ringtone, Delete, Details and Search options will be displayed. Add music files to your phone Start by transferring music files to your phone: • Transfer music using Media sync (MTP). • Download from the wireless Web. • Synchronize your phone to a computer. • Receive files via Bluetooth. Transfer music using Media sync (MTP) 1 Connect the phone to your PC using the USB cable. 2 Select the Media sync (MTP) option. Your phone will appear as another hard drive on your computer. Click on the drive to view it. Copy the files from your PC to the drive folder. 3 When you’re finished transferring files, swipe down on the Status Bar and tap USB connected > Charge phone. You may now safely unplug your device. NOTE: • Some file formats are not supported, depending on the device software. • If the file size exceeds the available memory, an error can occur when you open files. • Music file copyrights may be protected by international treaties and national copyright laws. Therefore, it may be necessary to obtain permission or a licence to reproduce or copy music. In some countries, national laws prohibit private copying of copyrighted material. Before downloading or copying the file, check the national laws of the relevant country concerning the use of such material. 68 FM radio Your phone has a built-in FM radio so you can tune in to your favorite stations and listen on the go. NOTE: You need to use your headphones to listen to the radio. Insert it into the headphone jack. Multimedia 69 Guest Mode To protect your privacy or limit some applications to your children, you can use the Guest mode. When you lend your phone to others, you can limit the applications to be displayed. In advance, set the Guest mode and customize the options. NOTE: To use the Guest mode, the pattern lock should be set in advance. 1 Ta p > > Apps tab > Settings > General tab > Guest mode. 2 Tap the Guest Mode switch to enable this mode. Setting your alarm 1 Ta p > > Apps tab > Alarm/Clock > . 2 After you set the alarm, your phone lets you know how much time is left before the alarm will go off. 3 Set Repeat, Snooze duration, Vibration, Alarm sound, Alarm volume, Auto app starter, Puzzle lock and Memo. 4 Ta p Save. NOTE: To change alarm settings in the alarm list screen, tap the Menu key and select Settings. Using your calculator 1 Ta p > > Apps tab > Calculator. 2 Tap the number keys to enter numbers. 3 For simple calculations, tap the function you want to perform (+, –, x or ÷) f…

Text truncated - open the document above for the full version.

          !"# Date: March 24#4 Federal Communications Commission Authorization and Evaluation Division 7435 Oakla nd Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFD285G Equipment Class:%&%  '  (  )  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,  MobileComm hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. Th e public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  MobileComm temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: %+,'-./+'0'+,/12-'22' 3) 4 - 5  1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure %+,' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

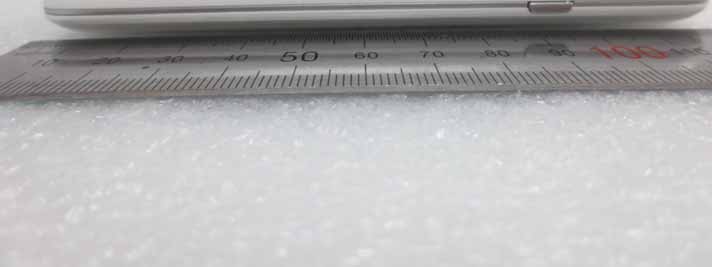

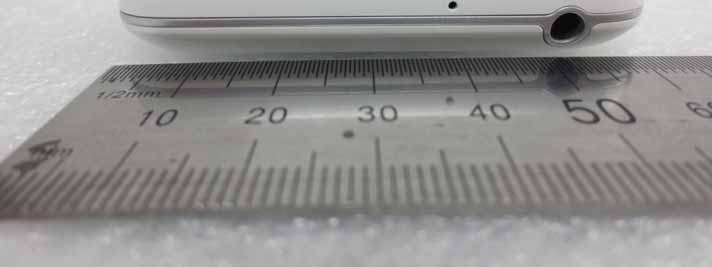

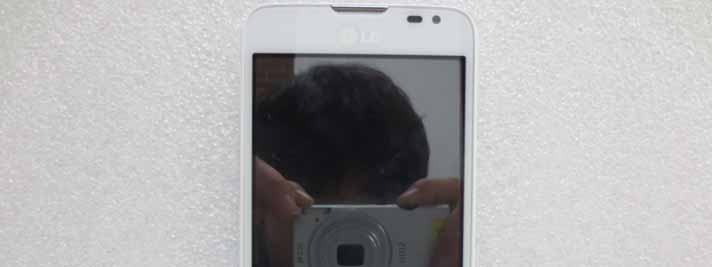

FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 EXTERNAL PHOTOGRAPHS FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO

※ FCC ID Label Form Note: The FCC ID shown will be readily visible at the time of purchase. Note! The label of the EUT is made of a white polypropylene laminate film and it's attached to the EUT by an adhesive. The adhesive is permanent type with strong strength. Additionally, the FCC ID is readily visible to the purchaser at the time of purchase because the phone will be marketed without the battery installed. Model No : LG-D285g FCC ID : ZNFD285G S/N : Made in Korea

FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 INTERNAL PHOTOGRAPHS FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 ■ Main Antenna INTERNAL PHOTO Main Antenna FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 ■ INTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 ■ INTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 ■ INTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 ■ BT&WLAN Antenna_INTERNAL PHOTO BT / WiFi Antenna FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 ■ INTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 ■ INTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 ■ INTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 ■ INTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 ■ INTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 ■ INTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 ■ INTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 ■ INTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 ■ INTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 ■ INTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 ■ INTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 ■ INTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 ■ INTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 ■ INTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 ■ INTERNAL PHOTO FCC ID: ZNFD285G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 22 ■ INTERNAL PHOTO

FCC ID: ZNFD285G Issue Date: Mar. 31, 2014 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 2 of 107 HCT-A-1403-F009-1 TEL: +82 31 645 6300 FAX: +82 31 645 6401 Revision History Rev. Issue DATE DESCRIPTION HCT-A-1403-F009 Mar. 24, 2014 Initial Issue HCT-A-1403-F009-1 Mar. 31, 2014 Sec.3 was revised.(Revised highest simultaneous SAR) Sec 15 and Sec.15.2 was reivsed. (Add GPRS VoIP + Bluetooth bodyworn). FCC ID: ZNFD285G Issue Date: Mar. 31, 2014 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 3 of 107 HCT-A-1403-F009-1 TEL: +82 31 645 6300 FAX: +82 31 645 6401 Table of Contents 1. INTRODUCTION .......................................................................................................................................... 2. TEST METHODOLOGY ............................................................................................................................... 3. DESCRIPTION OF DEVICE ......................................................................................................................... 4. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... 6. DESCRIPTION OF TEST POSITION ....................................................................................................... 7. MEASUREMENT UNCERTAINTY ........................................................................................................... 8. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................................................. 9. SAR SYSTEM VALIDATION .................................................................................................................... 10. SYSTEM VERIFICATION ....................................................................................................................... 11. RF CONDUCTED POWER MEASUREMENT ....................................................................................... 11.5 Test Exclusions Applied ..................................................................................................................... 12. SAR Test configuration & Antenna Information ................................................................................ 13. SAR TEST DATA SUMMARY ................................................................................................................ 13.1-1 Measurement Results (GSM850 Head SAR) ............................................................................ 13.1-2 Measurement Results (GSM1900 Head SAR) .......................................................................... 13.1-3 Measurement Results (WCDMA850 Head SAR) ....................................................................... 13.1-3 Measurement Results (WCDMA1900 Head SAR) ..................................................................... 13.1-4 Measurement Results (DTS Head SAR) ................................................................................... 13.2-1 Measurement Results (GSM850 Hotspot SAR) ......................................................................... 13. 2-2 Measurement Results (GSM1900 Hotspot SAR)...................................................................... 13. 2-3 Measurement Results (WCDMA850 Hotspot SAR) .................................................................. 13. 2-3 Measurement Results (WCDMA1900 Hotspot SAR) ................................................................ 13. 2-4 Measurement Results (WLAN Hotspot SAR) ........................................................................... 13.3-1 Measurement Results (DTS Body-worn SAR) ........................................................................... 13.3-2 Measurement Results (Body-worn SAR) ...............................................................................…
