ZNFD321Cellular/PCS GSM/EDGE/WCDMA Phone with WLAN and Bluetooth

User Guide LG-D321 MFL68301001 (1.0) www.lg.com ENGLISH • Screen displays and illustrations may differ from those you see on the actual phone. • Some of the contents of this guide may not apply to your phone, depending on the software and your service provider. All information in this document is subject to change without notice. • This handset is not suitable for people who have a visual impairment due to the touch screen keyboard. • Copyright ©2014 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners. • Google™, Google Maps™, Gmail™, YouTube™, Hangouts™ and Google Play™ are trademarks of Google, Inc. LG-D321LG-D321 User Guide English 2 About this user guide Please read this user guide carefully before you use your phone and keep it handy for future reference. Should your phone fails to operate correctly, refer to the FAQ section. • Some features and service may vary by area, phone, carrier, plan and version of phone software. • Screen displays and illustrations on this user manual may differ from those you see on the actual phone. • Designs and specifications of the phone and other accessories are subject to change without any notice. SERVICE ACTIVATION 3 Table of contents SERVICE ACTIVATION ................................2 Important notice .......................................6 Getting to know your phone ...................12 Phone overview .....................................12 Installing the Micro SIM card and battery ...................................................14 Charging your phone .............................16 Inserting a microSD card .......................18 Removing the microSD card ..................19 Formatting the microSD card .................19 Locking and unlocking the screen ..........20 Your Home screen ...................................21 Touch Screen tips ..................................21 Home screen .........................................22 Customizing the Home screen ..............22 Returning to recently-used applications .23 Notifi cations ..........................................23 Accessing notifi cations .........................24 Quick Settings .....................................24 Notifi cation icons on the Status Bar .......25 On-screen keyboard ..............................26 Entering special characters ..................27 Google account setup .............................28 Connecting to Networks and Devices ....29 Wi-Fi .....................................................29 Connecting to Wi-Fi networks ...............29 Turning Wi-Fi on and connecting to a Wi-Fi network ......................................29 Bluetooth ...............................................29 USB tethering ........................................32 Smartphone Mobile Hotspots .................32 Calls ........................................................34 Making a call .........................................34 Calling your contacts .............................34 Answering and rejecting a call ...............34 Adjusting the in-call volume ...................35 Making a second call .............................35 Ending a Call .........................................35 Ending a Call from the Status Bar ..........36 Viewing your call logs ............................36 Call settings ...........................................36 Contacts ..................................................37 Searching for a contact ..........................37 Adding a new contact ............................37 Favorite Contacts ...................................37 Creating a group ....................................38 Messaging ...............................................39 Conversation view .................................39 Sending a message ...............................39 Using smilies .........................................40 Changing your message settings ...........40 Email .......................................................41 Managing an email account ...................41 Working with account folders .................41 Composing and sending email ...............42 4 Table of contents Camera ....................................................43 Getting to know the viewfi nder ..............43 Using the advanced settings ..................44 Taking a quick photo .............................45 Once you've taken a photo.....................46 Viewing your saved photos ....................47 Camcorder ..............................................48 Getting to know the viewfi nder ..............48 Using the advanced settings ..................49 Recording a quick video .........................50 After recording a video...........................50 Watching your saved videos ..................51 Adjusting the volume when viewing a video .....................................................51 Functions ................................................52 QuickMemo ...........................................52 Using the QuickMemo options ..............53 Viewing the saved QuickMemo .............53 QSlide ....................................................54 Multimedia ..............................................55 Gallery ...................................................55 Viewing pictures ..................................55 Zooming in and out ..............................55 Playing videos .....................................55 Viewing photo options ..........................56 Deleting images and videos ..................56 Setting as wallpaper ............................56 Videos ...................................................56 Playing a video ....................................56 Music ....................................................57 Add music fi les to your phone ...............57 Transfer music using Media sync (MTP) 58 Playing a song .....................................58 Utilities .....…

Text truncated - open the document above for the full version.

60 Utilities Guest Mode To protect your privacy or limit some applications to your children, you can use the Guest mode. When you lend your phone to others, you can limit the applications to be displayed. NOTE: To use the Guest mode, the pattern lock should be set in advance. 1 Press the Home Key and tap Apps > Apps tab > Settings > General tab > Guest mode. 2 Ta p Set pattern and draw the pattern you want to use to unlock the screen for Guest Mode. 3 Ta p Set apps, then tap and select the apps you want to make available for Guest Mode. 4 Tap the switch to enable this mode. Setting your alarm 1 From the Home screen, tap Apps > Clock > New alarm . 2 Set the desired alarm time. 3 Set Repeat, Snooze duration, Vibration, Alarm sound, Alarm volume, Auto app starter, Puzzle lock and Memo. 4 Touch Save. NOTE: To change alarm settings in the alarm list screen, touch the Menu Key and select Settings. 61 Using your calculator 1 From the Home screen, tap Apps > Calculator . 2 Touch the number keys to enter numbers. 3 For simple calculations, touch the function you want to perform (, , or ) followed by . 4 For more complex calculations, touch the Menu Key , select the Scientifi c calculator, then choose sin, cos, tan, log etc. • To view the calculation history, touch the Menu Key and select the Calculation history. Adding an event to your calendar 1 From the Home screen, tap Apps > Calendar . 2 On the screen, you can fi nd the different view types for the Calendar (Day, Week, Month, Year, Agenda). 3 Tap on the date for which you wish to add an event and tap . 4 Touch the Event name fi eld and enter the event name. 5 Touch the Location fi eld and enter the location. Check the date and enter the time you wish your event to start and fi nish. 6 If you wish to add a note to your event, touch the Description fi eld and enter the details. 7 If you wish to repeat the alarm, set REPEAT and set REMINDERS, if necessary. 8 Touch Save to save the event in the calendar. ThinkFree Viewer ThinkFree Viewer is a professional mobile office solution that lets users conveniently view various types of office documents, including Word, Excel and PowerPoint files, anywhere or anytime, using their mobile devices. 62 Press the Home Key and tap Apps > Apps tab > ThinkFree Viewer. Viewing files Mobile users can now easily view a wide variety of file types, including Microsoft Office documents and Adobe PDF, right on their mobile devices. When viewing documents using ThinkFree Viewer, the objects and layout remain the similar in the original documents. LG Backup About backing up and restoring smartphone data It is recommended that you regularly create and save a backup file of your data, especially before updating any software. Maintaining a current backup file may allow you to recover smartphone data if your smartphone is lost, stolen, or corrupted by an unforeseen issue. This LG Backup application is supported between LG smartphones, other software or operating system versions. As a result, when you buy the new LG smartphone, you can restore the current phone data to your new phone. If you have the Backup application preloaded on your smartphone, you can backup and restore most of your smart phone data, including downloaded and pre-installed applications, LG Home screen, personal data and system settings. You may also: • Perform a manual LG Backup of your smartphone data. • Schedule automatic backups of your smartphone data. • Restore your smartphone data. NOTE: Please note that the Backup function does not support the backup of User data and media data (Picture/Video/Music). Please backup those files using the Media sync (MTP). Connect your phone to your computer using a USB cable and touch Media sync (MTP). Utilities 63 Warning! To protect against unexpected shutoff during backup or restore operations, due to insufficient battery power, you should always keep your battery fully charged. LG Backup your smart phone data 1 From the Home screen, tap Apps > LG Backup > Backup. 2 Select the check box for the items you want to backup, tap Next. 3 Select the desired location and tap Next > Start. NOTE: Checkmark the lock option to set a password for the backup file. 4 When all selected fi les have been backed up, you will see the message Backup completed. Scheduling automatic backups You can also program automatic backups for the data on your smartphone according to your schedule setting. To do this, complete the following steps: 1 From the Home screen, tap Apps > LG Backup > Scheduled backup. 2 Set the desired options and tap to turn the feature on. NOTE: Checkmark the lock option to set a password for the backup file. Restoring smartphone data NOTE: All files that are stored on your smart phone are deleted before the backup file is restored. 1 From the Home screen, tap Apps > LG Backup > File restore & management. 2 On the Restore screen, select a backup fi le that contains the data you wish to restore. 3 If the backup fi le is encrypted, type the password that you created to encrypt it. 64 4 Select the check box next to the item you wish to restore and select Next to restore it to your phone. NOTE: Please note that your phone data will be overwritten with the content of your backup. 5 Ta p Start to begin restoration. When all selected fi les have been restored, the phone will automatically restart. NOTE: You can set the Lock option when creating backups to encrypt your backup files for extra protection. From the Backup home screen, tap the Menu Key > Set password. And enter a password and hint in case you forgot your password. Once you have set up a password, you need to enter it every time you want to do backup/restore. Google+ Use this application to stay connected with people via Google’s social network service. From the Home screen, tap Apps > Google > Google+ . NOTE: This application may not be available depending on the region or service provider. Voice Search Use this application to search web pages using voice. 1 From t…

Text truncated - open the document above for the full version.

          !"# Date: April 4, #4 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFD321 Eq uipment Class:%&' () ) *+  *  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of th e Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act   MobileComm hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to th e Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for , days after the grant as outlined in Public Notice DA 04-1705. This provision will give  MobileComm temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: '-.+%/0-+1+-.023%+33+ 45 6  %e )  1 Block Diagram 2 Operational Descriptions '-.+ 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos /0-+1+-. 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

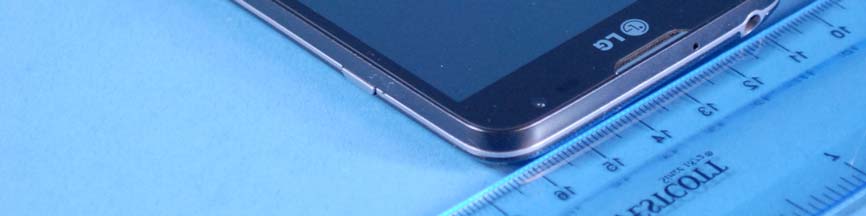

LGE FCC ID: ZNFD321 Model: LG-D321 External Photos EUT Type: Portable Handset Page 1 of 4 © 2014 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LGE FCC ID: ZNFD321 Model: LG-D321 External Photos EUT Type: Portable Handset Page 2 of 4 © 2014 PCTEST Engineering Laboratory Inc. LGE FCC ID: ZNFD321 Model: LG-D321 External Photos EUT Type: Portable Handset Page 3 of 4 © 2014 PCTEST Engineering Laboratory Inc. LGE FCC ID: ZNFD321 Model: LG-D321 External Photos EUT Type: Portable Handset Page 4 of 4 © 2014 PCTEST Engineering Laboratory Inc.

※ FCC ID Label Form Note: The FCC ID shown will be readily visible at the time of purchase. Note! The label of the EUT is made of a white polypropylene laminate film and it's attached to the EUT by an adhesive. The adhesive is permanent type with strong strength. Additionally, the FCC ID is readily visible to the purchaser at the time of purchase because the phone will be marketed without the battery installed. Model No : LG-D321 FCC ID : ZNFD321 S/N : Made in Korea

LGE FCC ID: ZNFD321 Model: LG-D321 Internal Photos EUT Type: Portable Handset Page 1 of 8 © 2014 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LGE FCC ID: ZNFD321 Model: LG-D321 Internal Photos EUT Type: Portable Handset Page 2 of 8 © 2014 PCTEST Engineering Laboratory Inc. LGE FCC ID: ZNFD321 Model: LG-D321 Internal Photos EUT Type: Portable Handset Page 3 of 8 © 2014 PCTEST Engineering Laboratory Inc. LGE FCC ID: ZNFD321 Model: LG-D321 Internal Photos EUT Type: Portable Handset Page 4 of 8 © 2014 PCTEST Engineering Laboratory Inc. LGE FCC ID: ZNFD321 Model: LG-D321 Internal Photos EUT Type: Portable Handset Page 5 of 8 © 2014 PCTEST Engineering Laboratory Inc. LGE FCC ID: ZNFD321 Model: LG-D321 Internal Photos EUT Type: Portable Handset Page 6 of 8 © 2014 PCTEST Engineering Laboratory Inc. LGE FCC ID: ZNFD321 Model: LG-D321 Internal Photos EUT Type: Portable Handset Page 7 of 8 © 2014 PCTEST Engineering Laboratory Inc. LGE FCC ID: ZNFD321 Model: LG-D321 Internal Photos EUT Type: Portable Handset Page 8 of 8 © 2014 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: ZNFD321 FCC Pt. 15.247 BLUETOOTH TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1403110559.ZNF 3/11 - 3/17/2014 Portable Handset Page 1 of 46 © 2014 PCTEST Engineering Laboratory, Inc. V 3.3 06/10/2013 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A 3/11 - 3/17/2014 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab. Columbia, MD, USA United States Test Report Serial No.: 0Y1403110559.ZNF FCC ID: ZNFD321 APPLICANT: LG Electronics MobileComm U.S.A Application Type: Certification Model(s): LG-D321, D321, LGD321, LGL42G, L42G EUT Type: Portable Handset Max. RF Output Power: 6.825 mW (8.34dBm) Conducted Frequency Range: 2402 – 2480MHz (Bluetooth for US) Type of Modulation: GFSK, /4-DQPSK, 8DPSK FCC Classification: FCC Part 15 Spread Spectrum Transmitter (DSS) FCC Rule Part(s): Part 15 Subpart C (15.247) Test Procedure(s): DA 00-705 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in DA 00-705. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 Bluetooth Reviewed by: FCC ID: ZNFD321 FCC Pt. 15.247 BLUETOOTH TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1403110559.ZNF 3/11 - 3/17/2014 Portable Handset Page 2 of 46 © 2014 PCTEST Engineering Laboratory, Inc. V 3.3 06/10/2013 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................. 5 2.3 TEST CONFIGURATION ........................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.5 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS......................................................................................................... 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 20DB BANDWIDTH MEASUREMENT .....................................................................................................11 6.3 OUTPUT POWER MEASUREMENT .......................................................................................................17 6.4 BAND EDGE COMPLIANCE.................................................................................................................... 27 6.5 CARRIER FREQUENCY SEPARATION.................................................................................................. 30 6.6 TIME OF OCCUPANCY ........................................................................................................................... 32 6.7 NUMBER OF HOPPING CHANNELS......................................................................................................33 6.8 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 35 6.9 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 39 6.10 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 43 6.11 LINE-CONDUCTED TEST DATA............................................................................................................. 44 7.0 CONCLUSION ..........…

Text truncated - open the document above for the full version.

LGE FCC ID: ZNFD321 Model: LG-D321 Test Set-Up Photos EUT Type: Portable Handset Page 1 of 3 © 2014 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS LGE FCC ID: ZNFD321 Model: LG-D321 Test Set-Up Photos EUT Type: Portable Handset Page 2 of 3 © 2014 PCTEST Engineering Laboratory Inc. LGE FCC ID: ZNFD321 Model: LG-D321 Test Set-Up Photos EUT Type: Portable Handset Page 3 of 3 © 2014 PCTEST Engineering Laboratory Inc.
