ZNFD405Cellular/PCS GSM/EDGE and PCS WCDMA Phone with WLAN and Bluetooth

ENGLISH User Guide LG-D405 MFL00000000 (1.0) www.lg.com Part 15.21 statement Part 15.105 statement I User Guide • Screen displays and illustrations may differ from those you see on actual phone. • Some of the contents of this guide may not apply to your phone, depending on the software and your service provider. All information in this document is subject to change without notice. • This handset is not suitable for people who have a visual impairment due to the tap screen keyboard. • Copyright ©2014 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners. • Google™, Google Maps™, Gmail™, YouTube™, Hangouts™ and Play Store™ are trademarks of Google, Inc. ENGLISH 21 Phone overview Proximity Sensor Volume keys Earpiece Home Key Return to the Home screen from any screen. Back Key • Return to the previous screen. • Exit an app after using it. Menu Key Display the available options. Power/Lock Key • Switch your phone on/off by pressing and holding this key. • Short press to lock/unlock the screen. Front-Facing Camera lens NOTE: Proximity sensor When receiving and making calls, the proximity sensor automatically turns the backlight off and locks the touch screen by sensing when the phone is near your ear. This extends battery life and prevents you from unintentionally activating the touch screen during calls. WARNING Placing a heavy object on the phone or sitting on it can damage the LCD and touch screen functions. Do not cover the LCD proximity sensor with protective film. This could cause the sensor to malfunction. Getting to know your phone 22 Getting to know your phone Charger/USB Port IR LED Microphone Earphone Jack Power/Lock Key Volume keys • In the Home screen: Control ringer volume. • During a call: Control your earpiece volume. • When playing a song: Control volume continuously. Battery cover Camera lens microSD Card slot SIM card slot Speaker Battery Flash NFC touch point 23 Installing the SIM card and battery Before you can start exploring your new phone, you'll need to set it up. To insert the SIM card and battery. 1 To remove the battery cover, hold the phone firmly in one hand. With your other hand, lift off the battery cover with your index finger as shown in figure. 24 Getting to know your phone 2 Slide the SIM card into its slots as shown in the fi gure. Make sure the gold contact area on the card is facing downwards. 3 Insert the battery into place by aligning the gold contacts on the phone and the battery (1) and pressing it down until it clicks into place (2). 25 4 Align the battery cover over the battery compartment (1) and press it down until it clicks into place (2). Charging your phone Charge the battery before using it for the first time. Use the charger to charge the battery. A computer can be also used to charge the device by connecting them via the USB cable. WARNING Use only LG-approved chargers, batteries, and cables. When using unapproved chargers or cables, it may cause battery charging delay or pop-up message regarding slow charging. Or, unapproved chargers or cables can cause the battery to explode or damage the device, which are not covered by the warranty. The charger connector is at the bottom of the phone. Insert the charger and plug it into an electrical outlet. 26 Getting to know your phone NOTE: • The battery must be fully charged initially to improve battery lifetime. • Do not open the back cover while your phone is charging. Using the memory card Your phone supports the use of microSD TM or microSDHC TM memory cards of up to 32 GB capacity. These memory cards are specifically designed for mobile phones and other ultra-small devices, and are ideal for storing media-rich files such as music, programs, videos, and photographs for use with your phone. To insert a memory card: Insert the memory card into the slot. Make sure the gold contact area is facing downwards. To safely remove the memory card: Touch > Apps tab > Settings > General tab > Storage > Unmount SD card. 27 NOTE: • Use only compatible memory cards with your phone. Using incompatible memory cards may damage the card and data stored on the card, as well as the phone. • As the device uses FAT32, the maximum size for any given file is 4 GB. WARNING Do not insert or remove the memory card when the phone is ON. Doing so may damage the memory card as well as your phone, and the data stored on the memory card may become corrupt. To format the memory card: Your memory card may already be formatted. If it isn't, you must format it before you can use it. NOTE: All files on your memory card are deleted when it is formatted. 1 Touch to open the application list. 2 Scroll and touch Settings > General tab > Storage. 3 Touch Unmount SD card. 4 Touch Erase SD card > Erase SD card > Erase everything. 5 If you have set a pattern lock, input the pattern lock then select Erase everything. NOTE: If there is content on your memory card, the folder structure may be different after formatting, as all the files will have been deleted. Locking and unlocking the screen If you do not use the phone for a while, the screen will be automatically turned off and locked. This helps to prevent accidental taps and saves battery power. When you are not using the phone, press the Power/Lock key to lock your phone. If there are any programs running when you lock your screen, they may be still running in Lock mode. It is recommended that you exit all programs before entering Lock mode to avoid unnecessary charges (e.g. phone calls, web access and data communications). To wake up your phone, press the Power/Lock key . The Lock screen will appear. Touch and slide the Lock screen in any direction to unlock your Home screen. The last screen you viewed will open. 28 KnockON You can lock or unlock the screen by just double-tap. To activate KnockON feature 1 Press > > Apps tab > Settings > General tab > Ges…

Text truncated - open the document above for the full version.

Date: January 22, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFD405 Equipment Class: DTS: Digital Transmission System To Whom It May Concern: Pursu ant to Sections 0. 457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics MobileComm USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade se crets and proprietary information not customarily released to the public . The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics MobileComm USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND S HORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

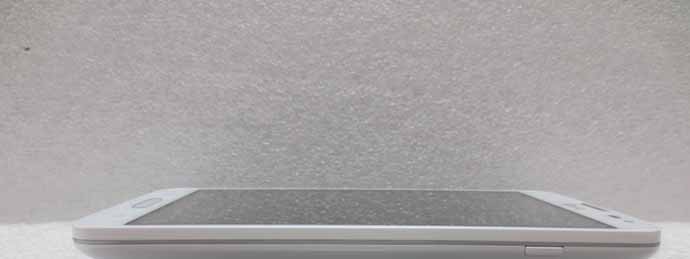

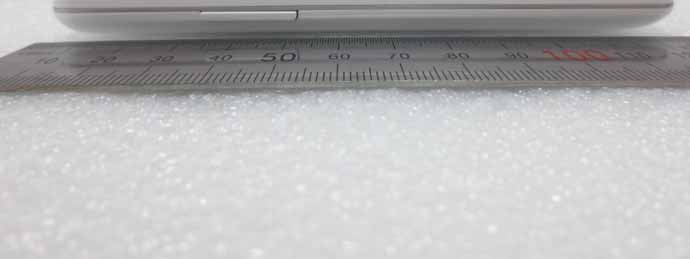

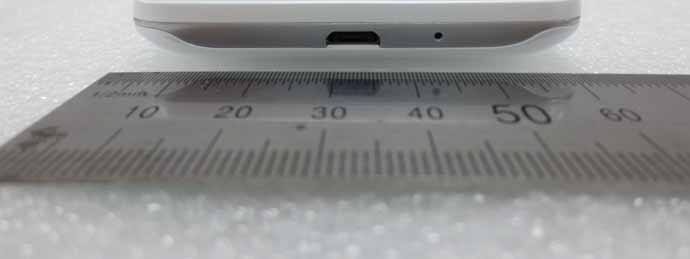

FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 EXTERNAL PHOTOGRAPHS FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO

※ FCC ID Label Form Note: The FCC ID shown will be readily visible at the time of purchase. Note! The label of the EUT is made of a white polypropylene laminate film and it's attached to the EUT by an adhesive. The adhesive is permanent type with strong strength. Additionally, the FCC ID is readily visible to the purchaser at the time of purchase because the phone will be marketed without the battery installed. Model No : LG-D405 FCC ID : ZNFD405 S/N : Made in Korea

FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 20 INTERNAL PHOTOGRAPHS FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 20 ■ Main Antenna INTERNAL PHOTO Main Antenna FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 20 ■ INTERNAL PHOTO FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 20 ■ INTERNAL PHOTO FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 20 ■ INTERNAL PHOTO FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 20 ■ BT&WLAN Antenna_INTERNAL PHOTO BT / WiFi Antenna FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 20 ■ INTERNAL PHOTO FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 20 ■ INTERNAL PHOTO FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 20 ■ INTERNAL PHOTO FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 20 ■ INTERNAL PHOTO FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 20 ■ INTERNAL PHOTO FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 20 ■ INTERNAL PHOTO FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 20 ■ INTERNAL PHOTO FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 20 ■ INTERNAL PHOTO FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 20 ■ INTERNAL PHOTO FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 20 ■ INTERNAL PHOTO FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 20 ■ INTERNAL PHOTO FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 20 ■ INTERNAL PHOTO FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 20 ■ INTERNAL PHOTO FCC ID: ZNFD405 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 20 ■ INTERNAL PHOTO

FCC ID: ZNFD405 Issue Date: Jan. 29, 2014 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 2 of 103 HCTA1401FS03-1 TEL: +82 31 645 6300 FAX: +82 31 645 6401 Table of Contents 1. INTRODUCTION .......................................................................................................................................... 2. TEST METHODOLOGY ............................................................................................................................... 3. DESCRIPTION OF DEVICE ......................................................................................................................... 4. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... 6. DESCRIPTION OF TEST POSITION ....................................................................................................... 7. MEASUREMENT UNCERTAINTY ........................................................................................................... 8. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS .................................................................................. 9. SAR SYSTEM VALIDATION ..................................................................................................................... 10. SYSTEM VERIFICATION ....................................................................................................................... 11. RF CONDUCTED POWER MEASUREMENT ....................................................................................... 11.5 Test Exclusions Applied ........................................................................................................................ 12. SAR Test configuration & Antenna Information ...................................................................................... 13. SAR TEST DATA SUMMARY ................................................................................................................. 13.1-1 Measurement Results (GSM850 Head SAR) ............................................................................ 13.1-2 Measurement Results (GSM1900 Head SAR) .......................................................................... 13.1-3 Measurement Results (WCDMA1900 Head SAR) ..................................................................... 13.1-4 Measurement Results (DTS Head SAR) ................................................................................... 13.2-1 Measurement Results (GSM850 Hotspot SAR) ......................................................................... 13. 2-2 Measurement Results (GSM1900 Hotspot SAR)...................................................................... 13. 2-3 Measurement Results (WCDMA1900 Hotspot SAR) ................................................................ 13. 2-4 Measurement Results (WLAN Hotspot SAR) ........................................................................... 13.3-1 Measurement Results (DTS Body-worn SAR) ........................................................................... 13.3-2 Measurement Results (Body-worn SAR) ................................................................................... 13.5 SAR Test Notes ............................................................................................................................. 14. SAR Measurement Variability and Uncertainty ...................................................................................... 15. SAR Summation Scenario ...................................................................................................................... 16. CONCLUSION ........................................................................................................................................ 17. REFERENCES ....................................................................................................................................... Attachment 1. – SAR Test Plots ................................................................................................................... Attachment 2. – Dipole Verification Plots...................................................................................................... Attachment 3. – Probe Calibration Data ....................................................................................................... Attachment 4. – Dipole Calibration Data ...................................................................................................... FCC ID: ZNFD405 Issue Date: Jan. 29, 2014 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 3 of 103 HCTA1401FS03-1 TEL: +82 31 645 6300 FAX: +82 31 645 6401 Revision History Rev. Issue DATE DESCRIPTION HCTA1401FS03 Jan. 28, 2014 Initial Issue HCTA1401FS03-1 Jan. 29, 2014 KDB version and revision : was revised entire report. (typo) FCC ID: ZNFD405 Issue Date: Jan. 29, 2014 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 4 of 103 HCTA1401FS03-1 TEL: +82 31 645 6300 FAX: +82 31 645 6401 1. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017. The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measureme…

Text truncated - open the document above for the full version.

FCCPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1401F009-1 Date of Issue: February 04,2014 EUT Type: Cellular/PCS GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA Phone with Bluetooth and WLAN FCC ID: ZNFD405 Page of 55 Version TEST REPORT NO. DATE DESCRIPTION HCTR1401F009 January 15, 2014 - First Approval Report HCTR1401F009-1 February 04, 2014 - Retest radiated restricted band edges using integration method FCCPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1401F009-1 Date of Issue: February 04,2014 EUT Type: Cellular/PCS GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA Phone with Bluetooth and WLAN FCC ID: ZNFD405 Page of 55 Table of Contents 1. GENERAL INFORMATION .......................................................................................................................... 2. EUT DESCRIPTION ..................................................................................................................................... 3. TEST METHODOLOGY ............................................................................................................................... 3.1 EUT CONFIGURATION ...................................................................................................................... 3.2 EUT EXERCISE .................................................................................................................................. 3.3 GENERAL TEST PROCEDURES ...................................................................................................... 3.4 DESCRIPTION OF TEST MODES ..................................................................................................... 4. INSTRUMENT CALIBRATION..................................................................................................................... 5. FACILITIES AND ACCREDITATIONS ......................................................................................................... 5.1 FACILITIES ......................................................................................................................................... 5.2 EQUIPMENT ....................................................................................................................................... 6. ANTENNA REQUIREMENTS ...................................................................................................................... 7. SUMMARY TEST OF RESULTS ................................................................................................................. 8. TEST RESULT ............................................................................................................................................. 8.1 DUTY CYCLE ...................................................................................................................................... 8.2 6dB BANDWIDTH MEASUREMENT ................................................................................................. 8.3 OUTPUT POWER MEASUREMENT .............................................................................................. 8.4 POWER SPECTRAL DENSITY ...................................................................................................... 8.5 OUT OF BAND EMISSIONS AT THE BAND EDGE/ CONDUCTED SPURIOUS EMISSIONS ... 8.6 RADIATED MEASUREMENT. ........................................................................................................ 8.6.1 RADIATED SPURIOUS EMISSIONS. .................................................................................. 8.6.2 RADIATED RESTRICTED BAND EDGES .......................................................................... 8.7 POWERLINE CONDUCTED EMISSIONS ..................................................................................... 9. LIST TEST EQUIPMENT ......................................................................................................................... FCCPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1401F009-1 Date of Issue: February 04,2014 EUT Type: Cellular/PCS GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA Phone with Bluetooth and WLAN FCC ID: ZNFD405 Page of 55 1. GENERAL INFORMATION Applicant: LG Electronics MobileComm U.S.A., Inc. Address: 1000 Sylvan Avenue, Englewood Cliffs NJ 07632 FCC ID: ZNFD405 EUT Type: Cellular/PCS GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA Phone with Bluetooth and WLAN Model name(s): LG-D405 Additional Model name(s): D405, LGD405 Date(s) of Tests: December 22, 2013 ~ January 08, 2014 Place of Tests: HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea (IC Recognition No. : 5944A-3) 2. EUT DESCRIPTION EUT Type Cellular/PCS GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA Phone with Bluetooth and WLAN FCC Model Name LG-D405 Additional FCC Model Name D405, LGD405 Power Supply DC 3.8 V Battery type Li-ion Battery(Standard) Frequency Range TX: 2402 MHz ~ 2480 MHz RX: 2402 MHz ~ 2480 MHz Max. RF Output Power Peak 0.168 dBm (1.0394 mW) Average -0.09 dBm (0.9795 mW) BT Operating Mode BT 4.0_Low Energy Mode Modulation Type GFSK Number of Channels 40 Channels Antenna Specification Manufacturer: LS Mtron Co. Ltd. Antenna type: Internal Antenna Peak Gain : 2.425 dBi FCCPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1401F009-1 Date of Issue: February 04,2014 EUT Type: Cellular/PCS GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA Phone with Bluetooth and WLAN FCC ID: ZNFD405 Page of 55 3. TEST METHODOLOGY FCC KDB 558074 D01 DTS Meas Guidance v03r01 dated April 09, 2013 entitled “Guidance for Performing Compliance Measurements on Digital Transmission Systems(DTS) and the measurement procedure described in the American National Standard for Testing Unlicensed Wireless Devices(ANSI C63.4-2003) Operating Under 15.247” were used in the measurement. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a man…

Text truncated - open the document above for the full version.

FCCPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1401F010 Date of Issue: January 15, 2014 EUT Type: Cellular/PCS GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA Phone with Bluetooth and WLAN FCC ID: ZNFD405 Page of 59 Version TEST REPORT NO. DATE DESCRIPTION HCTR1401F010 January 15, 2014 - First Approval Report FCCPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1401F010 Date of Issue: January 15, 2014 EUT Type: Cellular/PCS GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA Phone with Bluetooth and WLAN FCC ID: ZNFD405 Page of 59 Table of Contents 1. GENERAL INFORMATION .......................................................................................................................... 2. EUT DESCRIPTION ..................................................................................................................................... 3. TEST METHODOLOGY ............................................................................................................................... 3.1 EUT CONFIGURATION ...................................................................................................................... 3.2 EUT EXERCISE .................................................................................................................................. 3.3 GENERAL TEST PROCEDURES ...................................................................................................... 3.4 DESCRIPTION OF TEST MODES ..................................................................................................... 4. INSTRUMENT CALIBRATION..................................................................................................................... 5. FACILITIES AND ACCREDITATIONS ......................................................................................................... 5.1 FACILITIES ......................................................................................................................................... 5.2 EQUIPMENT ....................................................................................................................................... 6. ANTENNA REQUIREMENTS ...................................................................................................................... 7. SUMMARY TEST OF RESULTS ................................................................................................................. 8. TEST RESULT ............................................................................................................................................. 8.1 DUTY CYCLE ...................................................................................................................................... 8.2 6dB BANDWIDTH (802.11b/g/n) ................................................................................................... 8.3 OUTPUT POWER (802.11b/g/n) .................................................................................................... 8.4 POWER SPECTRAL DENSITY (802.11b/g/n) ............................................................................... 8.5 OUT OF BAND EMISSIONS AT THE BAND EDGE/ CONDUCTED SPURIOUS EMISSIONS ... 8.6 RADIATED MEASUREMENT. ........................................................................................................ 8.6.1 RADIATED SPURIOUS EMISSIONS. .................................................................................. 8.6.2 RADIATED RESTRICTED BAND EDGES .......................................................................... 8.7 POWERLINE CONDUCTED EMISSIONS ..................................................................................... 9. LIST OF TEST EQUIPMENT ................................................................................................................... FCCPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1401F010 Date of Issue: January 15, 2014 EUT Type: Cellular/PCS GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA Phone with Bluetooth and WLAN FCC ID: ZNFD405 Page of 59 1. GENERAL INFORMATION Applicant: LG Electronics MobileComm U.S.A., Inc. Address: 1000 Sylvan Avenue, Englewood Cliffs NJ 07632 FCC ID: ZNFD405 EUT Type: Cellular/PCS GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA Phone with Bluetooth and WLAN Model name(s): LG-D405 Additional Model name(s): D405, LGD405 Date(s) of Tests: December 22, 2013 ~ January 08, 2014 Place of Tests: HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea. (IC Recognition No. : 5944A-3) 2. EUT DESCRIPTION EUT Ty…

Text truncated - open the document above for the full version.
