ZNFD405NCellular/ PCS GSM/ EDGE and PCS WCDMA Phone with WLAN, Bluetooth, and RFID

ENGLISH User Guide LG-D405n MFL00000000 (1.0) www.lg.com Part 15.21 statement Part 15.105 statement I User Guide t
Screen displays and illustrations may differ from those you see on actual phone. t
Some of the contents of this guide may not apply to your phone, depending on the software and your service provider. All information in this document is subject to change without notice. t
This handset is not suitable for people who have a visual impairment due to the tap screen keyboard. t
Copyright ©2013 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners. t
Google™, Google Maps™, Gmail™, YouTube™, Hangouts™ and Play Store™ are trademarks of Google, Inc. ENGLISH 20 Phone overview Proximity Sensor Earpiece Home Key Return to the Home screen from any screen. Back Key Return to the previous screen. Menu Key Display the available options. Power/Lock Key t
Switch your phone on/off by pressing and holding this key. t
Short press to lock/unlock the screen. NOTE: Proximity sensor When receiving and making calls, the proximity sensor automatically turns the backlight off and locks the touch screen by sensing when the phone is near your ear. This extends battery life and prevents you from unintentionally activating the touch screen during calls. WARNING Placing a heavy object on the phone or sitting on it can damage the LCD and touch screen functions. Do not cover the LCD proximity sensor with protective film. This could cause the sensor to malfunction. Getting to know your phone 21 Charger/USB Port Microphone Earphone Jack Power/Lock Key QuickMemo function KeyVolume keys t
In the Home screen: Control ringer volume. t
During a call: Control your earpiece volume. t
When playing a song: Control volume continuously. Battery cover Flash SIM cards slot microSD Card slot Speaker Battery Camera lens 22 Installing the SIM card and battery Before you can start exploring your new phone, you'll need to set it up. To insert the SIM card and battery. 1 To remove the battery cover, hold the phone firmly in one hand. With your other hand, lift off the battery cover with your index finger as shown in figure. Getting to know your phone 23 2 Slide the SIM card into its slots as shown in the figure. Make sure the gold contact area on the card is facing downwards. 3 Insert the battery into place by aligning the gold contacts on the phone and the battery (1) and pressing it down until it clicks into place (2). 24 4 Align the battery cover over the battery compartment (1) and press it down until it clicks into place (2). Charging your phone Charge the battery before using it for the first time. Use the charger to charge the battery. A computer can be also used to charge the device by connecting them via the USB cable. WARNING Use only LG-approved chargers, batteries and cables. If you use unapproved chargers, batteries or cables, it may cause battery charging delay or pop up the message regarding slow charging, Or this can cause the battery to explode or damage the device, which are not covered by the warranty. The charger connector is at the bottom of the phone. Insert the charger and plug it into an electrical outlet. Getting to know your phone 25 NOTE: t
The battery must be fully charged initially to improve battery lifetime. t
Do not open the back cover while your phone is charging. Locking and unlocking the screen If you do not use the phone for a while, the screen will be automatically turned off and locked. This helps to prevent accidental taps and saves battery power. When you are not using the phone, press the Power/Lock key to lock your phone. If there are any programs running when you lock your screen, they may be still running in Lock mode. It is recommended that you exit all programs before entering Lock mode to avoid unnecessary charges (e.g. phone calls, web access and data communications). To wake up your phone, press the Power/Lock key . The Lock screen will appear. Touch and slide the Lock screen in any direction to unlock your Home screen. The last screen you viewed will open. 26 Getting to know your phone KnockON You can lock or unlock the screen by just double-tap. To activate KnockON feature 1 Ta p > > Apps tab > Settings > General tab > Gestures. 2 Place a checkmark on Screen on/off. Double-tap the center screen quickly to unlock the screen. To lock the screen, double- tap the status bar in any screen (except on the camera viewfinder) or empty area on the Home screen. NOTE: When turning the screen on, make sure you do not cover the proximity sensor. Doing so will turn the screen off immediately after turning it on in order to prevent abnormal turning on in your pocket or bag. Plug & Pop Plug & Pop allows you to quickly choose apps to use when plugging in an earphone or On-the-Go device, such as a mouse or keyboard. 1 Plug in earphone or OTG (On-the-Go) device (i.e., mouse, keyboard, etc.). 2 The applications panel will display and you can select an app to run. NOTE: You can edit the applications to display on the panel and set not to show the applications panel. XTa p > > Apps tab > Settings > General tab > Accessory > USB storage or Earphone. 27 Your Home screen Touch screen tips Here are some tips on how to navigate on your phone. Tap or touch – A single finger tap selects items, links, shortcuts and letters on the on-screen keyboard. Touch and hold – Touch and hold an item on the screen by tapping it and not lifting your finger until an action occurs. For example, to open a contact's available options, touch and hold the contact in the Contacts list until the context menu opens. Drag – Touch and hold an item for a moment and then, without lifting your finger, move your finger on the screen until you reach the target position. You can drag items on the Home screen to reposition them. Swipe or slide – To swipe or slide, quickly move your finger across the sur…

Text truncated - open the document above for the full version.

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: January 22, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality fo r FCC ID: ZNFD405N Eq uipment Class: JBP: Part 15 Class B Co mputing Device Peripheral To Whom It May Concern: Pursuan t to Sections 0.457 and 0.459 of t he Commi ssion’s Rules (CFR 4 7), and Section 552 (b) (4) of the Freedom of Information Act, LG Electroni cs MobileComm USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade se crets and proprietary information not customarily released to the public. Th e public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics MobileComm USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TE RM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram PERMANENT 2 Operational Descriptions 3 External Photos 4 Internal Photos 5 Test-Setup Photos SHORT-TERM 6 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

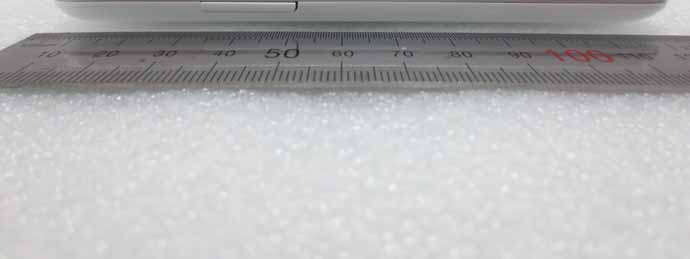

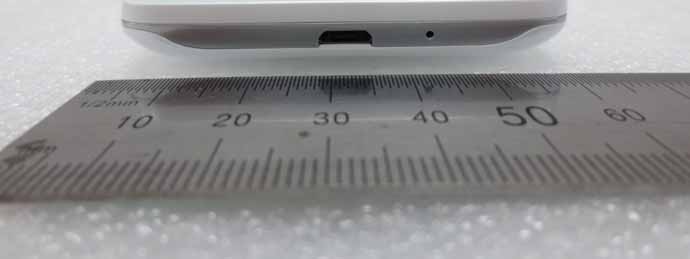

FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 EXTERNAL PHOTOGRAPHS FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO

※ FCC ID Label Form Note: The FCC ID shown will be readily visible at the time of purchase. Note! The label of the EUT is made of a white polypropylene laminate film and it's attached to the EUT by an adhesive. The adhesive is permanent type with strong strength. Additionally, the FCC ID is readily visible to the purchaser at the time of purchase because the phone will be marketed without the battery installed. Model No : LG-D405n FCC ID : ZNFD405N S/N : Made in Korea

FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 21 INTERNAL PHOTOGRAPHS FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 21 ■ Main Antenna INTERNAL PHOTO Main Antenna FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 21 ■ INTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 21 ■ INTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 21 ■ INTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 21 ■ BT&WLAN Antenna_INTERNAL PHOTO BT / WiFi Antenna FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 21 ■ INTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 21 ■ INTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 21 ■ INTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 21 ■ INTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 21 ■ INTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 21 ■ INTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 21 ■ INTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 21 ■ INTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 21 ■ INTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 21 ■ INTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 21 ■ INTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 21 ■ INTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 21 ■ INTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 21 ■ INTERNAL PHOTO FCC ID: ZNFD405N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 21 ■ INTERNAL PHOTO
