ZNFD520Multi-Band GSM/EDGE/WCDMA/LTE phone with WLAN, Bluetooth, and RFID

User Guide ENGLISH www.lg.comMFLOOOOOOOO (1.0) -D520 LG-D520LG-D520 User Guide English • Screen displays and illustrations may differ from those you see on actual phone. • Some of the contents of this guide may not apply to your phone, depending on the software and your service provider. All information in this document is subject to change without notice. • This handset is not suitable for people who have a visual impairment due to the touch screen keyboard. • Copyright ©2013 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners. • Google™, Google Maps™, Gmail™, YouTube™, Google Talk™ and Google Play™ are trademarks of Google, Inc. 2 If you are a new T-Mobile® customer and your service has not been activated, simply call Customer Care at 1-800-937-8997 from your landline phone and a T-Mobile Activations representative will assist you. You will need the following information when activating service: • Service Agreement and agent code on your Agreement. • Your name, home address, home phone, and billing address. NOTE: For business and government accounts, please provide the name of your company or government agency, address, and tax ID. • Your Social Security number, current driver’s license number, and date of birth for credit check purposes. • Your choice of T-Mobile rate plan and services (see www.t-mobile.com for the latest plan information). • SIM serial number and IMEI number (located on the box bar code label). By activating service, you acknowledge that you have read, understand, and agree to be bound by each of T-Mobile’s Terms and Conditions and your Service Agreement. About this user guide Please read this user guide carefully before you use your phone and keep it handy for future reference. Should your phone fails to operate correctly, refer to the FAQ section. • Some features and service may vary by area, phone, carrier, plan and version of phone software. • Screen displays and illustrations on this user manual may differ from those you see on the actual phone. • Designs and specifications of the phone and other accessories are subject to change without any notice. SERVICE ACTIVATION 3 Table of contents SERVICE ACTIVATION ......................2 Important notice ................................6 Getting to know your phone ........... 12 Phone overview ...................................... 12 Installing the Micro SIM card and battery ...................................................... 14 Charging your phone ........................... 16 Inserting a microSD card .................... 17 Removing the microSD card..............18 Formatting the microSD card ............ 19 Locking and unlocking the screen ... 19 Your Home screen ........................... 20 Touch Screen tips ................................20 Home screen .......................................... 21 Customizing the Home screen ...... 21 Returning to recently-used applications............................................22 No tifi cations ...........................................22 Swipe down for notifi cations & se ttings ................................................23 Quick Settings ...................................23 Indicator icons on the Status Bar .24 On-screen keyboard ............................ 2 6 Entering accented letters................26 Google account setup ..................... 27 Connecting to Networks and Devices ...................................... 28 Wi-Fi ........................................................28 Connecting to Wi-Fi networks.......28 Turning Wi-Fi on and connecting to a Wi-Fi network .................................28 Bluetooth ................................................28 USB T e thering .......................................30 Smartphone Mobile Hotspots ........... 31 Enabling Wi-Fi Direct to share through SmartShare ............................ 31 SmartShare ............................................32 Calls .................................................. 35 Making a call .........................................35 Calling your contacts ...........................35 Answering and rejecting a call .........35 Adjusting the in-call volume .............36 Making a second call ..........................36 Ending a Call .........................................36 Ending a Call from the Status Bar... 37 Viewing your call logs .......................... 37 Call settings ...........................................38 Contacts ........................................... 39 Searching for a contact ......................39 Adding a new contact .........................39 Favorite Contacts..................................39 Creating a group ..................................40 Messaging ......................................... 41 Conversation view ................................. 41 Sending a message ............................. 41 Using smilies .........................................42 Changing your message settings ....42 Email ................................................. 43 Managing an email account..............43 Working with account folders............43 Composing and sending email ........44 4 Camera ............................................. 45 Getting to know the viewfi nder .........45 Using the advanced settings ............46 Taking a quick photo .......................... 47 Once you've taken a photo ................ 47 Viewing your saved photos ................49 Camcorder ........................................ 50 Getting to know the viewfi nder .........50 Using the advanced settings ............. 51 Recording a quick video ...................... 51 After recording a video .......................52 Watching your saved videos ..............52 Adjusting the volume when viewing a video .....................................................52 LG Unique Functions ...................... 53 QuickMemo ....…

Text truncated - open the document above for the full version.

Date: August 12, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of C onfidentiality for FCC ID: ZNFD520 Equipment Class: DTS: Digital Transmission System To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics MobileComm USA hereby requests confidentiality and treatment of certain informat ion accompanying this application. The materials contain tr ade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics MobileComm USA temporary confidentiality of commercially sensitive information prior to product release. The requ ested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

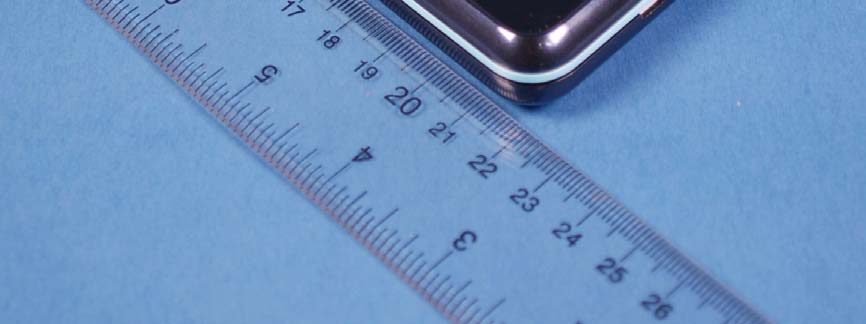

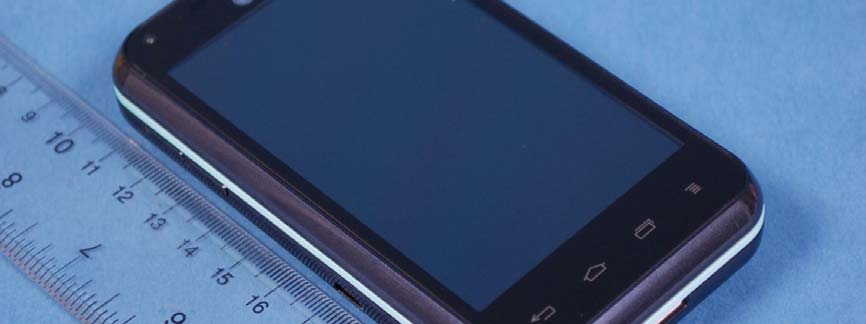

LG FCC ID: ZNFD520 Model: LG-D520 External Photos EUT Type: Portable Handset Page 1 of 5 © 2013 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG FCC ID: ZNFD520 Model: LG-D520 External Photos EUT Type: Portable Handset Page 2 of 5 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFD520 Model: LG-D520 External Photos EUT Type: Portable Handset Page 3 of 5 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFD520 Model: LG-D520 External Photos EUT Type: Portable Handset Page 4 of 5 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFD520 Model: LG-D520 External Photos EUT Type: Portable Handset Page 5 of 5 © 2013 PCTEST Engineering Laboratory Inc.

Model No: LG-D520 FCC ID : ZNFD520 S/N : Made in Korea LG Electronics MobileComm USA, Inc. LGE

LG FCC ID: ZNFD520 Model: LG-D520 Internal Photos EUT Type: Portable Handset Page 1 of 11 © 2013 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG FCC ID: ZNFD520 Model: LG-D520 Internal Photos EUT Type: Portable Handset Page 2 of 11 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFD520 Model: LG-D520 Internal Photos EUT Type: Portable Handset Page 3 of 11 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFD520 Model: LG-D520 Internal Photos EUT Type: Portable Handset Page 4 of 11 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFD520 Model: LG-D520 Internal Photos EUT Type: Portable Handset Page 5 of 11 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFD520 Model: LG-D520 Internal Photos EUT Type: Portable Handset Page 6 of 11 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFD520 Model: LG-D520 Internal Photos EUT Type: Portable Handset Page 7 of 11 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFD520 Model: LG-D520 Internal Photos EUT Type: Portable Handset Page 8 of 11 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFD520 Model: LG-D520 Internal Photos EUT Type: Portable Handset Page 9 of 11 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFD520 Model: LG-D520 Internal Photos EUT Type: Portable Handset Page 10 of 11 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFD520 Model: LG-D520 Internal Photos EUT Type: Portable Handset Page 11 of 11 © 2013 PCTEST Engineering Laboratory Inc.

FCC ID: ZNFD520 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 55 0Y1307231375.ZNF 07/25/13 - 08/21/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. 07/25/13 - 08/21/13 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Document Serial No.: 0Y1307231375.ZNF FCC ID: ZNFD520 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A., INC. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): LG-D520, D520, LGD520, LG-D520BK 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz33.100.190.470.60 PCEUMTS 850826.40 - 846.60 MHz23.670.150.540.54 PCEUMTS 17501712.4 - 1752.5 MHz24.430.390.930.93 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz31.530.280.610.61 PCEUMTS 19001852.4 - 1907.6 MHz23.620.260.530.53 PCELTE Band 17706.5 - 713.5 MHz23.700.110.290.29 PCELTE Band 4 (AWS)1712.5 - 1752.5 MHz24.490.491.101.10 PCELTE Band 2 (PCS)1852.5 - 1907.5 MHz23.490.300.640.64 DTS2.4 GHz WLAN2412 - 2462 MHz16.460.300.100.10 DTS5.8 GHz WLAN5745 - 5825 MHz12.080.200.11N/A NII5.2 GHz WLAN5180 - 5240 MHz12.530.120.14N/A NII5.3 GHz WLAN5260 - 5320 MHz12.640.140.12N/A NII5.5 GHz WLAN5500 - 5700 MHz12.690.160.11N/A DSS/DTSBluetooth2402 - 2480 MHz8.94 0.731.271.20 Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class N/A SAR Band & Mode Tx Frequency Measured Conducted Power [dBm] Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.8 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1. 410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: ZNFD520 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 55 0Y1307231375.ZNF 07/25/13 - 08/21/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 LTE INFORMATION .........................................................................................................................9 3 INTRODUCTION ........................................................................................................................... 10 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 11 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 12 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 13 7 RF EXPOSURE LIMITS ................................................................................................................ 17 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 18 9 RF CONDUCTED POWERS ......................................................................................................... 22 10 SYSTEM VERIFICATION .............................................................................................................. 33 11 SAR DATA SUMMARY ................................................................................................................. 35 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 44 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 49 14 EQUIPMENT LIST ......................................................................................................................... 50 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 51 16 CONCLUSION ............................................................................................................................... 53 17 REFERENCES .............................................................................................................................. 54 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: ZNFD520 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 55 0Y1307231375.ZNF 07/25/13 - 08/21/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz UMTS 1750Voice/Data1712.4 - 1752.5 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz LTE Band 17Data706.5 - 713.5 MHz LTE Band 4 (AWS)Data1712.5 - 1752.5 MHz LTE Band 2 (PCS)Data1852.5 - 1907.5 MHz 2.4 GHz WLANData2412 - …

Text truncated - open the document above for the full version.

FCC ID: ZNFD520 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 65 0Y1307231378.ZNF 7/29 - 8/3/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 3.10 06/17/2013 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A 7/29 - 8/3/2013 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1307231378.ZNF FCC ID: ZNFD520 APPLICANT: LG Electronics MobileComm U.S.A Application Type: Certification Model(s): LG-D520, D520, LGD520, LG-D520BK EUT Type: Portable Handset FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r01 Max. Power (mW ) Max. Power (dBm) Max. Power (mW ) Max. Power (dBm) 802.11b 2412 - 246244.36116.4782.41419.16 802.11g 2412 - 246228.90714.61159.22122.02 802.11n 2412 - 246218.57812.69111.42920.47 802.11a 5745 - 582516.82712.2673.62118.67 802.11n (20MHz) 5745 - 582510.30410.1351.16817.09 802.11n (40MHz) 5755 - 579510.06910.0351.88017.15 Avg Conducted Mode Tx Frequency (MHz) Peak Conducted This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 WLAN 802.11a/b/g/n FCC ID: ZNFD520 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 65 0Y1307231378.ZNF 7/29 - 8/3/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 3.10 06/17/2013 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11A/B/G/N ............................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G/N (2.4GHZ) ................................................................... 22 6.4 OUTPUT POWER MEASUREMENT – 802.11A/N (5GHZ) ......................................................................... 24 6.5 POWER SPECTRAL DENSITY (802.11A/B/G/N) ........................................................................................ 25 6.6 CONDUCTED EMISSIONS AT THE BAND EDGE ...................................................................................... 36 6.7 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 43 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 51 6.9 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ...................................................................... 57 6.10 LINE-CONDUCTED …

Text truncated - open the document above for the full version.

FCC ID: ZNFD520 FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 78 0Y1307231379.ZNF 7/29 - 8/9/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 2.3 05/07/2013 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A 7/29 - 8/9/2013 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1307231379.ZNF FCC ID: ZNFD520 APPLICANT: LG Electronics MobileComm U.S.A Application Type: Certification Model(s): LG-D520, D520, LGD520, LG-D520BK EUT Type: Portable Handset FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 Test Procedure(s): KDB 789033 v01r03 Max. Power (mW) Max. Power (dBm) 1205180 - 524017.90612.53 2205260 - 532018.57812.69 3205500 - 570018.57812.69 1205180 - 524011.66810.67 2205260 - 532011.72210.69 3205500 - 570011.35010.55 1405190 - 523010.00010.00 2405270 - 531010.30410.13 3405510 - 567010.49510.21 802.11n Channel Bandwidth (MHz) 802.11a 802.11n Conducted Powe r Mode Tx Frequency (MHz) UNII Band This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 v01r03. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 (UNII) FCC ID: ZNFD520 FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 78 0Y1307231379.ZNF 7/29 - 8/9/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 2.3 05/07/2013 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N .................................................................................... 11 6.3 UNII OUTPUT POWER MEASUREMENT – 802.11A/N .............................................................................. 27 6.4 PEAK POWER SPECTRAL DENSITY – 802.11A/N .................................................................................... 29 6.5 PEAK EXCURSION RATIO – 802.11A/N ..................................................................................................... 44 6.6 FREQUENCY STABILITY ............................................................................................................................ 47 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 50 6.8 RADIATED BAND EDGE MEASUREMENTS (20MHZ BW) ........................................................................ 58 6.9 RADIATED BAND EDGE MEASUREMENTS (40MHZ BW) ........................................................................ 65 6.1…

Text truncated - open the document above for the full version.

FCC ID: ZNFD520 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 35 0Y1307231381.ZNF 7/29 - 8/3/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 2.7 06/10/2013 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A 7/29 - 8/3/2013 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1307231381.ZNF FCC ID: ZNFD520 APPLICANT: LG Electronics MobileComm U.S.A Application Type: Certification Model: LG-D520, D520, LGD520, LG-D520BK EUT Type: Portable Handset Max. RF Output Power: 5.077 mW (7.06 dBm) Peak Conducted Frequency Range: 2402 - 2480 MHz FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r01 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 Bluetooth (Low Energy) FCC ID: ZNFD520 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 35 0Y1307231381.ZNF 7/29 - 8/3/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 2.7 06/10/2013 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT ...........................................…
