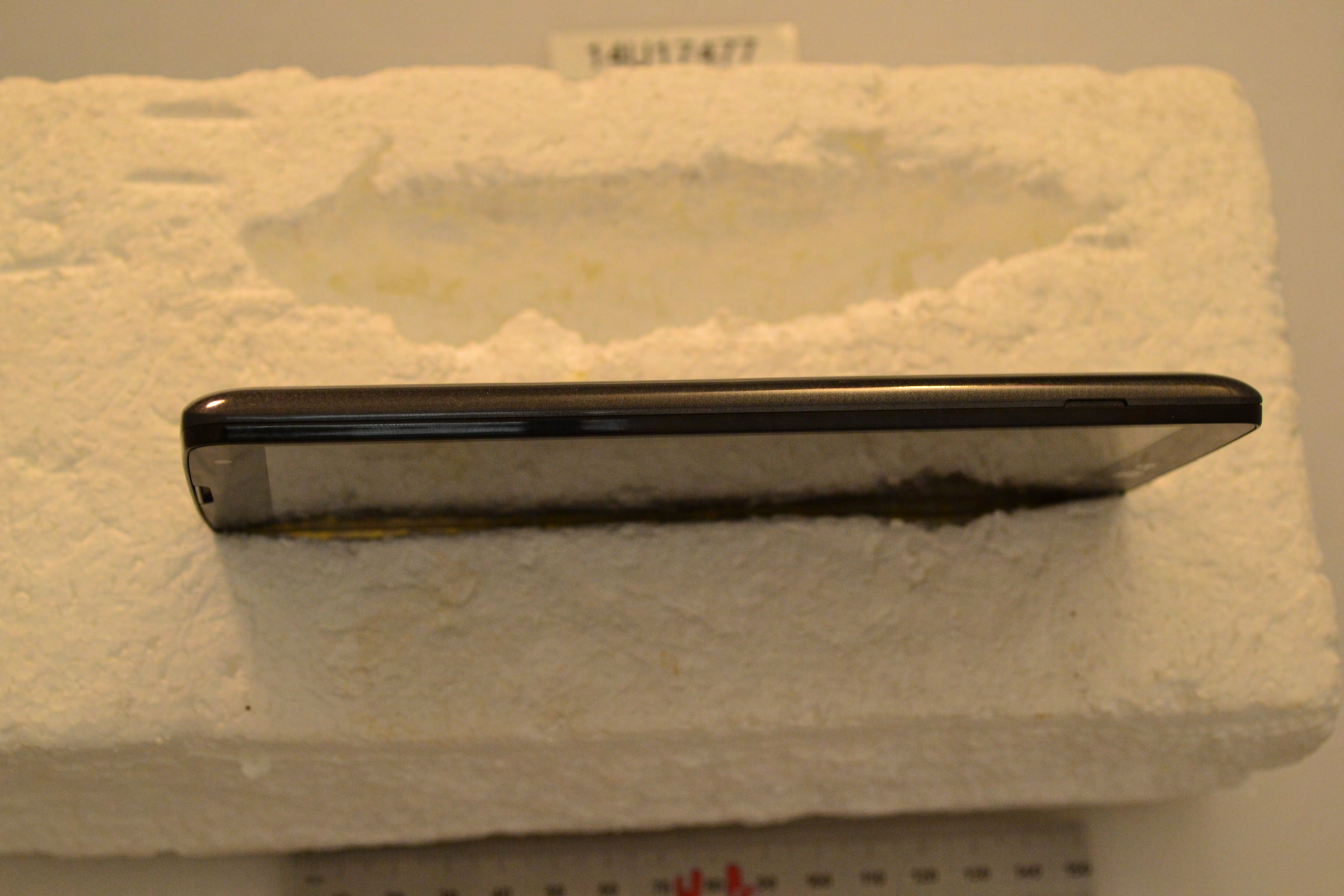

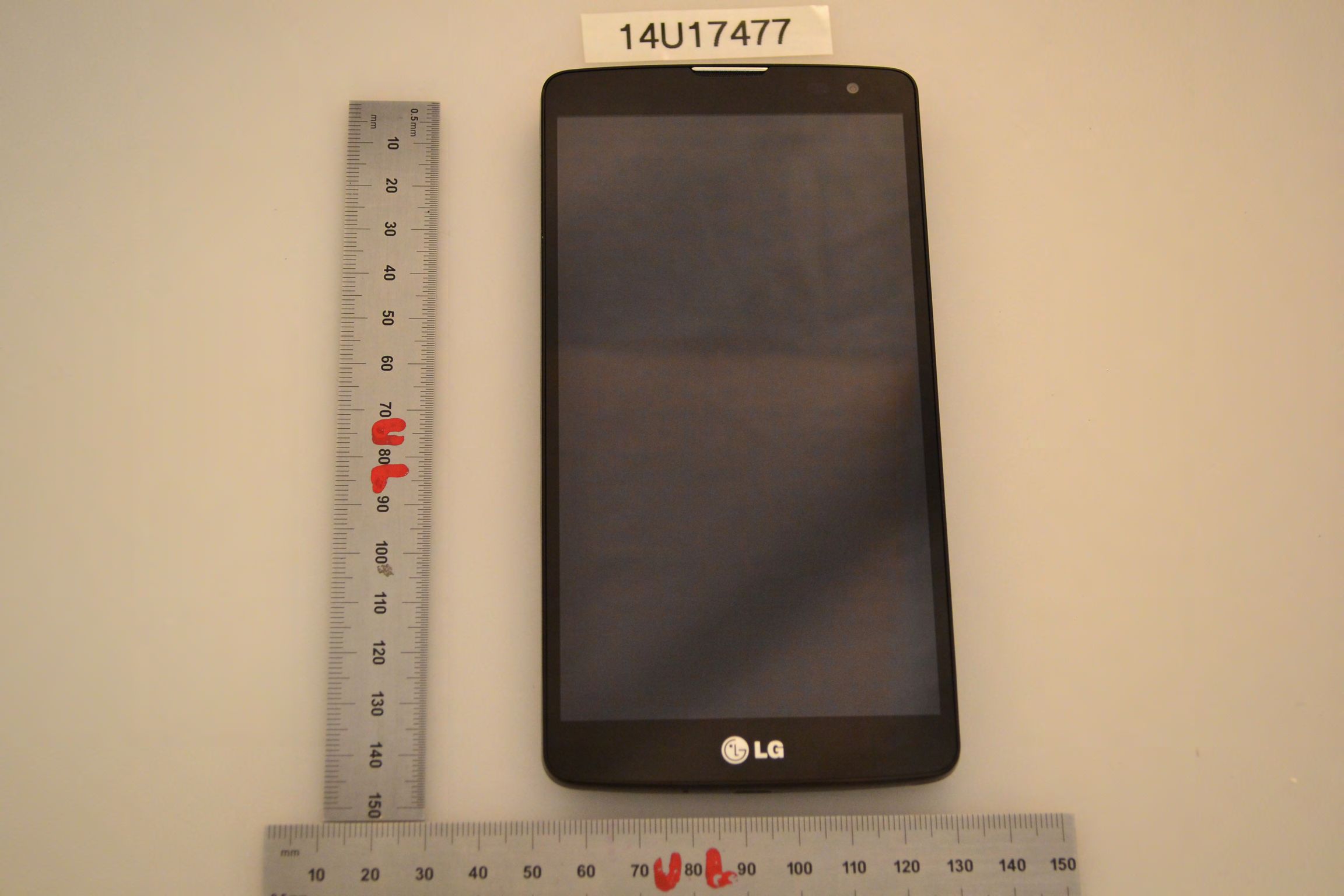

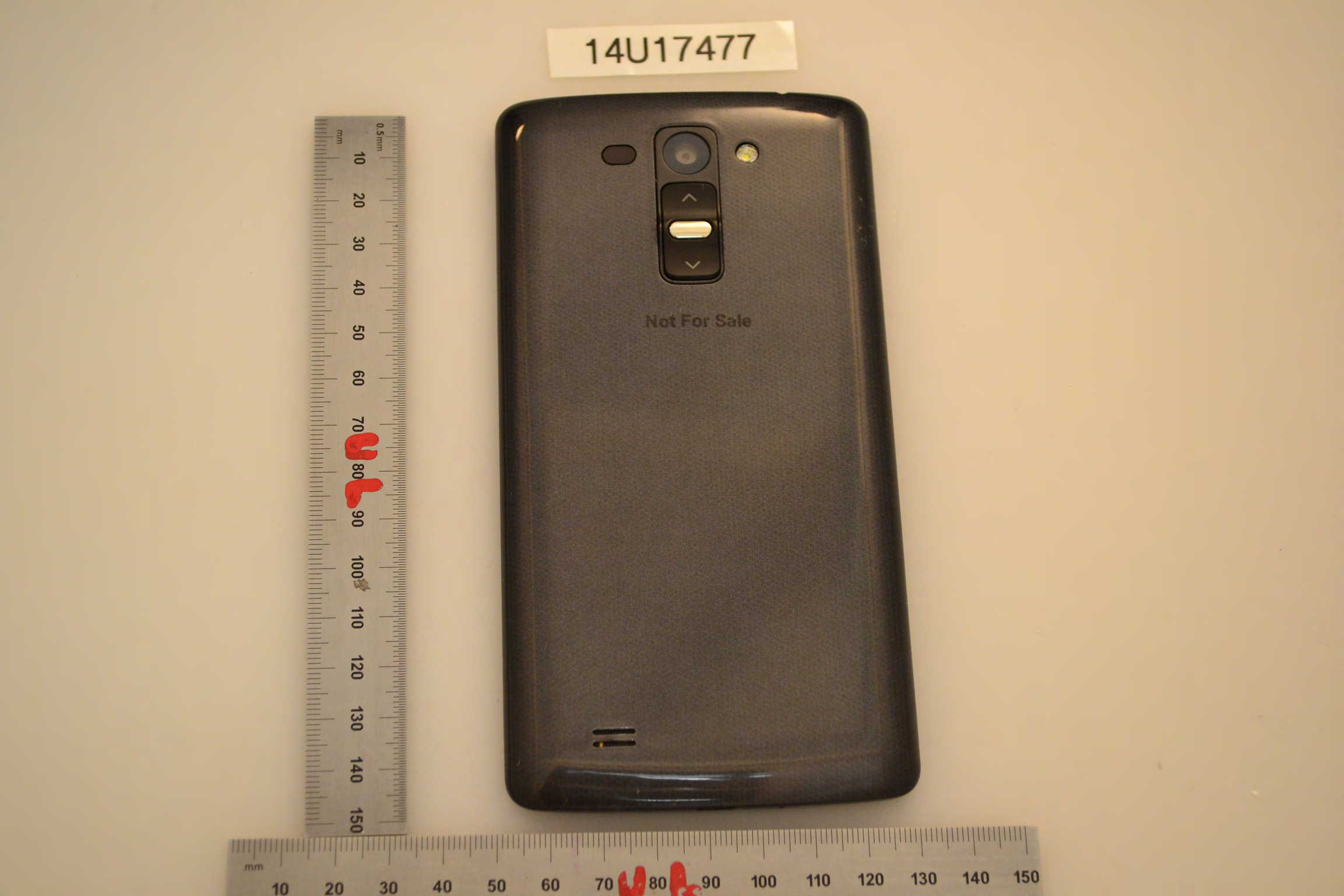

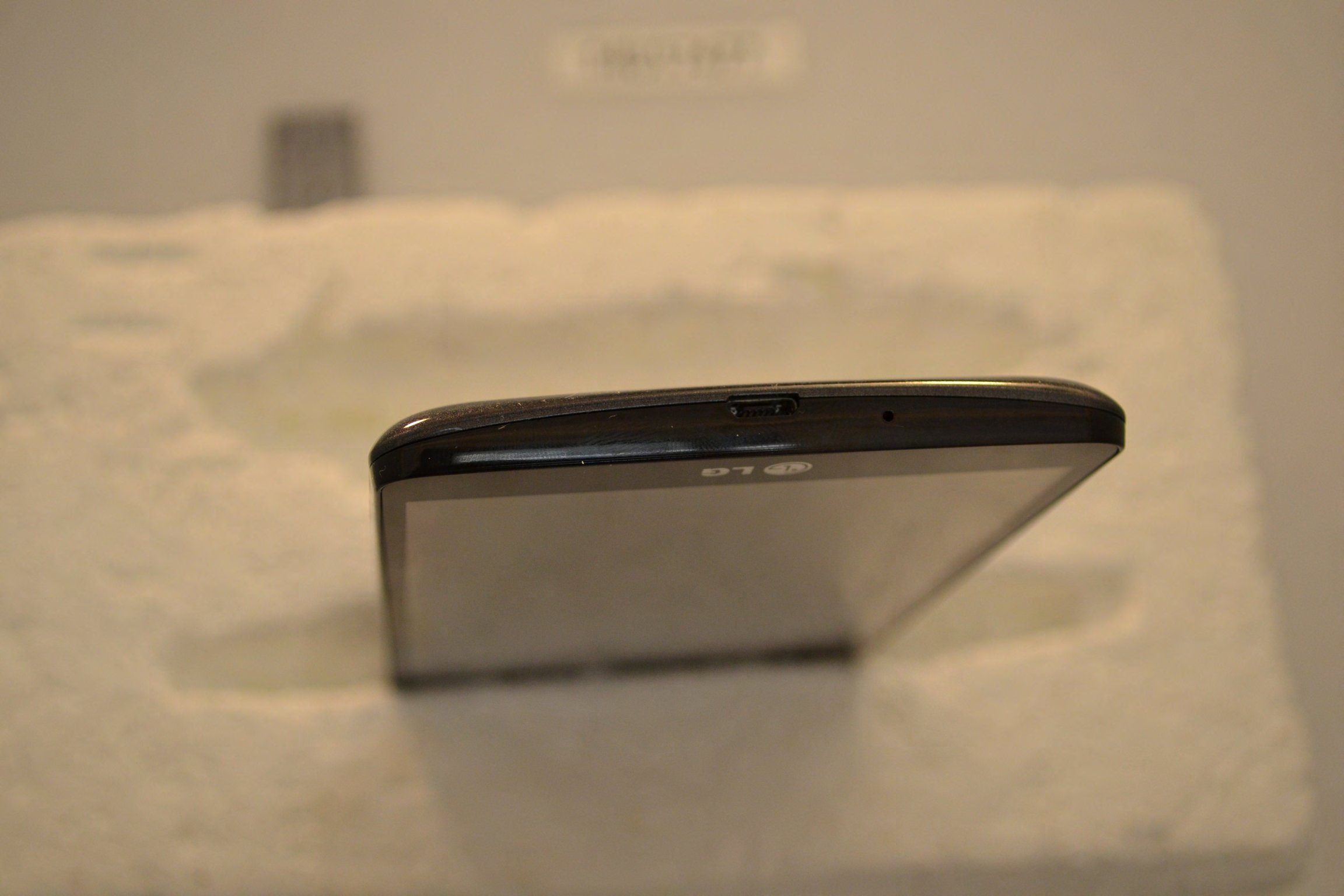

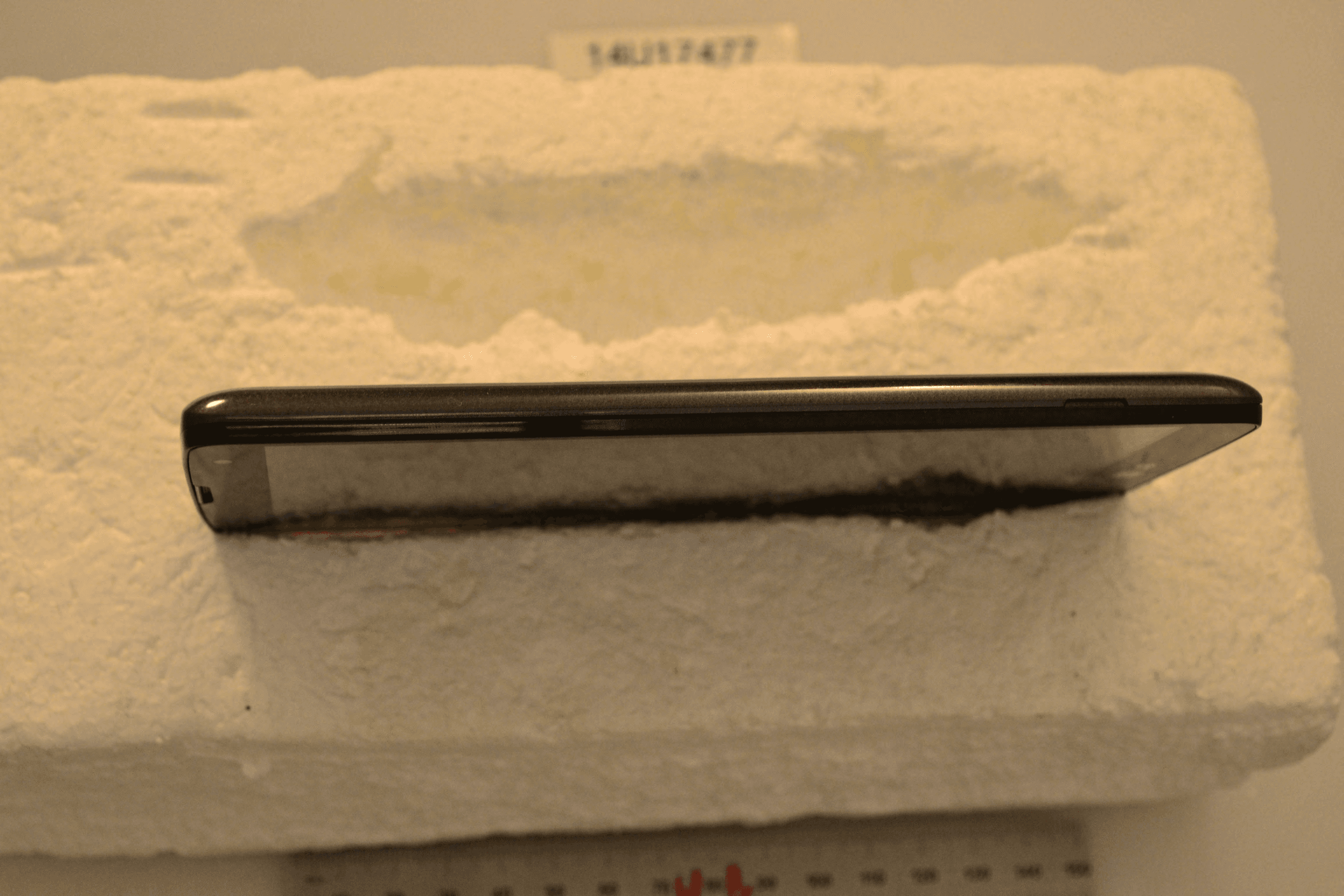

ZNFD631GSM/WCDMA/LTE Phone + Bluetooth & DTS/UNII a/b/g/n + NFC

Product Safety & Warranty Information This booklet is made from 30% post-consumer recycled paper. This booklet is printed with soy ink. ©All Rights Reserved. Printed in China MBM64596801 (1.0) Información sobre la garantía y seguridad del producto 1 Violation of the instructions may cause serious injury or death. WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. ● Never use an unapproved battery since this could damage the phone and/or battery and could cause the battery to explode. ● Never place your phone in a microwave oven as it will cause the battery to explode. ● Never store your phone in temperatures less than -4°F or greater than 122°F. ● Do not dispose of your battery near fire or with hazardous or flammable materials. ● When riding in a car, do not leave your phone or set up the hands-free kit near the air bag. If wireless equipment is improperly installed and the air bag is deployed, you may be seriously injured. ● Do not use the phone in areas where its use is prohibited. (For example: aircraft) ● Do not expose the battery charger or adapter to direct sunlight or use it in places with high humidity, such as a bathroom. ● Do not use harsh chemicals (such as alcohol, benzene, thinners, etc.) or detergents to clean your phone. This could cause a fire. ● Do not drop, strike, or shake your phone severely. It may harm the internal circuit boards of the phone. 2 ● Do not use your phone in high explosive areas as the phone may generate sparks. ● Do not damage the power cord by bending, twisting, pulling, or heating. Do not use the plug if it is loose as it may cause electric shock or fire. ● Do not place any heavy items on the power cord. Do not allow the power cord to be crimped as it may cause electric shock or fire. ● Do not handle the phone with wet hands while it is being charged. It may cause an electric shock or seriously damage your phone. ● Do not disassemble the phone. ● Do not place or answer calls while charging the phone as it may short-circuit the phone and/or cause electric shock or fire. ● Do not hold or let the antenna come in contact with your body during a call. ● Make sure that no sharp-edged items, such as animal’s teeth or nails, come into contact with the battery. This could cause a fire. ● Store the battery out of reach of children. ● Be careful that children do not swallow any parts (such as earphone, connection parts of the phone, etc.) This could cause asphyxiation or suffocation resulting in serious injury or death. ● Unplug the power cord and charger during lightning storms to avoid electric shock or fire. ● Only use the batteries and chargers provided by LG. The warranty will not be applied to products provided by other suppliers. ● Only authorized personnel should service the phone and its accessories. Faulty installation or service may result in accidents and consequently invalidate the warranty. 3 ● An emergency call can be made only within a service area. For an emergency call, make sure that you are within a service area and that the phone is turned on. ● Your phone is an electronic device that generates heat during normal operation. Extremely prolonged, direct skin contact in the absence of adequate ventilation may result in discomfort or minor burns. Therefore, use care when handling your phone during or immediately after operation. HAC statement This phone has been tested and rated for use with hearing aids for some of the wireless technologies that it uses. However, there may be some newer wireless technologies used in this phone that have not been tested yet for use with hearing aids. It is important to try the different features of this phone thoroughly and in different locations, using your hearing aid or cochlear implant, to determine if you hear any interfering noise. Consult your service provider or the manufacturer of this phone for information on hearing aid compatibility. If you have questions about return or exchange policies, consult your service provider or phone retailer. FCC RF Exposure Information WARNING! Read this information before operating the phone. In August 1996, the Federal Communications Commission (FCC) of the United States, with its action in Report and Order FCC 96-326, adopted an updated safety standard for human exposure to Radio Frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. or by ts 4 to F D ind FD th a g co th us he at (88 W In Pr o sa wi te no ex of co Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 0.39 inches (1cm) between the user’s body and the back of the phone. To comply with FCC RF exposure requirements, a minimum separation distance of 0.39 inches (1cm) must be maintained between the user’s body and the back of the phone. Third-party belt-clips, holsters, and similar accessories containing metallic components may not be used. Body-worn accessories that cannot maintain 0.39 inches (1cm) separation distance between the user’s body and the back of the phone, and have not been tested for typical body-worn operations may not comply with FCC RF exposure limits and should be avoided. Caution Use only the supplied antenna. Use of unauthorized antennas (or modifications to the antenna) could impair call quality, damage the phone, void your warranty and/or violate FCC regulations. Don't use the phone with a damaged antenna. A damaged antenna could cause a minor skin burn. Contact your local dealer for a replacement antenna. Consumer Information About Radio Frequency Emissions Your wireless phone, which contains a radio transmitter and receiver, emits radio frequency energy during use. The following consum…

Text truncated - open the document above for the full version.

Date: June 26, 2014 UL Verification Services Inc. Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc.as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Ce rtification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with re quirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jacob Cho Director On behalf of LG Electronics MobileComm USA, Inc.

Date : June 27, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: ZNFD631 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG ELECTRONICS MobileComm USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG ELECTRONICS MobileComm USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram, Operational Descriptions and Tune-Up Procedure 2 Schematics, Part placement, and Part List 3 Antenna Specification, Antenna Distance SHORT-TERM 1 External Photos 2 Internal Photos 3 Test -Setup Photos 4 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Jacob Cho Director On behalf of LG Electronics Mobilecomm U.S.A.,Inc

Date: June 27, 2014 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : LG Electronics MobileComm U.S.A. FCC ID : ZNFD631 Part 20.19 Certification To Whom It May Concern: The following are the model designations and their associated key features for this FCC ID, according to requirement in the TCB Guidance issued on June 20, 2008. FCC ID: ZNFD631 Air Interface: GSM/WCDMA/LTE Wireless Technologies: LTE/GSM/GPRS/EDGE/WCDMA/HSPA Band: LTE B4,B17 GSM 850/1900, WCDMA 850/1900 Key Features: Bluetooth 4.0, WiFi 2.4GHz(802.11 b/g/n), 5GHz(802.11a/n) MP3 player, Camera, GPS, NFC Should you have any questions or comments concerning the above, please contact the undersigned Sincerely Yours, Jaco b Cho Director On behalf of LG Electronics Mobilecomm U.S.A.,Inc

Date: June 27, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 SUBJECT: LG Electronics MobileComm USA FCC ID: ZNFD631 To whom it may concern: We, LG Electronics MobileComm USA, hereby confirm that For this device, the only Rel.10 feature supported is downlink carrier aggregation; no other features from Rel.10 are supported by this device. Other capabilities are unchanged from Rel.8. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

※ FCC ID Label Form *Note: This label and its location complies with 47 CFR 2.925(d) that FCC ID is readily visible to the purchaser at the time of purchase, and be permanently affixed to the product. We, LG Electronics MobileComm USA, state that our device, FCC ID ZNFD631, has a battery. However, th e b at ter y will not be placed in the battery compartment when delivery, so the label is visible to the users as they purchase the p ro duct and install the battery. Additionally, the label is permanently attached. The label it's attached to the EUT by an adhesive. The adhesive is a strong permanent type. Model No: LG-D631 FCC ID: ZNFD631 IMEI : XXXXXXXXX Made in Korea Model No: L G - D631 FCC ID: ZNF D631 Mad e in K orea Fig.1 Representation of FCC Label information

FCC 47 CFR Parts 1 & 2 Published RF Exposure KDB Procedures IEEE Standard 1528-2013 SAR EVALUATION REPORT For GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n and NFC Model: LG-D631, D631, LGD631 FCC ID: ZNFD631 Report Number: 14U17477-S7A Issue Date: 7/1/2014 Prepared for LG ELECTRONICS MOBILECOMM U.S.A., INC. 1000 SYLVAN AVE. ENGLEWOOD CLIFFS, NJ 07632 Prepared by UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 14U17477-S7A Issue Date: 7/1/2014 FCC ID: ZNFD631 Page 2 of 61 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 4/30/2014 Initial Issue -- A 7/1/2014 Updated section 15.1 to reflect appropriate measurements Nathan Sousa Report No.: 14U17477-S7A Issue Date: 7/1/2014 FCC ID: ZNFD631 Page 3 of 61 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ............................................................................................................. 6 2. Test Methodology ........................................................................................................................... 7 3. Facilities and Accreditation ........................................................................................................... 7 4. Calibration and Uncertainty ........................................................................................................... 8 4.1. Measuring Instrument Calibration .............................................................................................. 8 4.2. Measurement Uncertainty .......................................................................................................... 9 5. Measurement System Description and Setup ............................................................................. 10 6. SAR Measurement Procedure ...................................................................................................... 11 6.1. Normal SAR Measurement Procedure ..................................................................................... 11 6.2. Volume Scan Procedures ........................................................................................................ 13 7. Device Under Test ......................................................................................................................... 14 7.1. General Information ................................................................................................................. 14 7.2. Wireless Technologies ............................................................................................................. 15 7.3. RF Output Power Tolerance .................................................................................................... 16 7.4. Simultaneous Transmission Condition ..................................................................................... 17 7.5. General LTE SAR Test and Reporting Considerations ............................................................. 18 8. RF Exposure Conditions .............................................................................................................. 20 8.1. Head Exposure Conditions ...................................................................................................... 20 8.2. Body-worn Accessory Exposure Conditions ............................................................................. 20 8.3. Hotspot Exposure Conditions and Wi-Fi Direct ........................................................................ 20 9. RF Output Power Measurement ................................................................................................... 22 9.1. GSM ........................................................................................................................................ 22 9.2. W-CDMA ................................................................................................................................. 23 9.3. LTE Band ................................................................................................................................. 27 9.3.1. LTE Rel. 10 Carrier Aggregation ....................................................................................... 32 9.4. Wi-Fi (2.4 GHz Band) .............................................................................................................. 36 9.5. Wi-Fi (5 GHz Bands) ................................................................................................................ 37 9.6. Bluetooth ................................................................................................................................. 40 10. Tissue Dielectric Properties ..................................................................................................... 41 10.1. Composition of Ingredients for the Tissue Material Used in the SAR Tests .......................... 42 10.2. Tissue Dielectric Parameter Check Results .......................................................................... 43 11. System Performance Check ..................................................................................................... 46 Report No.: 14U17477-S7A Issue Date: 7/1/2014 FCC ID: ZNFD631 Page 4 of 61 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 11.1. Sy…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc., SAR Lab 2 Date: 4/7/2014 20140407_SystemPerformanceCheck-D1750V2 SN 1053 Frequency: 1750 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1750 MHz; σ = 1.35 S/m; ε r = 39.358; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1359; Calibrated: 2/17/2014 - Probe: EX3DV3 - SN3531; ConvF(8.9, 8.9, 8.9); Calibrated: 11/21/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM with CRP; Type: QD000P40CA; Serial: 1185 Head/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 32.682 V/m; Power Drift = -0.14 dB Fast SAR: SAR(1 g) = 3.47 W/kg; SAR(10 g) = 1.85 W/kg Maximum value of SAR (interpolated) = 4.65 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 32.682 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 6.18 W/kg SAR(1 g) = 3.4 W/kg; SAR(10 g) = 1.81 W/kg Maximum value of SAR (measured) = 4.54 W/kg 0 dB = 4.54 W/kg = 6.57 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc., SAR Lab 2 Date: 4/7/2014 20140407_SystemPerformanceCheck-D1750V2 SN 1053 Frequency: 1750 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 4.08 W/kg Plot No. 3 Test Laboratory: UL Verification Services Inc., SAR Lab 4 Date: 4/9/2014 20140409 SystemPerformanceCheck-D750V3 SN 1024 Frequency: 750 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 750 MHz; σ = 0.899 S/m; ε r = 40.345; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1380; Calibrated: 7/15/2013 - Probe: EX3DV4 - SN3936; ConvF(9.77, 9.77, 9.77); Calibrated: 7/22/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM with CRP; Type: SAM; Head/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 33.325 V/m; Power Drift = -0.03 dB Fast SAR: SAR(1 g) = 0.840 W/kg; SAR(10 g) = 0.570 W/kg Maximum value of SAR (interpolated) = 0.992 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 33.325 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 1.24 W/kg SAR(1 g) = 0.811 W/kg; SAR(10 g) = 0.528 W/kg Maximum value of SAR (measured) = 0.991 W/kg 0 dB = 0.991 W/kg = -0.04 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc., SAR Lab 4 Date: 4/9/2014 20140409 SystemPerformanceCheck-D750V3 SN 1024 Frequency: 750 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 0.973 W/kg Plot No. 5 Test Laboratory: UL Verification Services Inc., SAR Lab 4 Date: 4/10/2014 20140410 SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 1.996 S/m; ε r = 50.971; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1380; Calibrated: 7/15/2013 - Probe: EX3DV4 - SN3936; ConvF(6.76, 6.76, 6.76); Calibrated: 7/22/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI-B V5.0; Type: QDOVA001BB; Serial: S/n:1216 Body/Pin=100 mW/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Reference Value = 65.713 V/m; Power Drift = -0.03 dB Fast SAR: SAR(1 g) = 5.15 W/kg; SAR(10 g) = 2.24 W/kg Maximum value of SAR (interpolated) = 7.52 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 65.713 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 10.6 W/kg SAR(1 g) = 5.17 W/kg; SAR(10 g) = 2.41 W/kg Maximum value of SAR (measured) = 7.32 W/kg 0 dB = 7.32 W/kg = 8.65 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc., SAR Lab 4 Date: 4/10/2014 20140410 SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 7.35 W/kg Plot No. 7 Test Laboratory: UL Verification Services Inc., SAR Lab 4 Date: 4/14/2014 20140414 SystemPerformanceCheck-D5GHzV2 SN 1138 Frequency: 5600 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5600 MHz; σ = 5.85 S/m; ε r = 47.734; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1380; Calibrated: 7/15/2013 - Probe: EX3DV4 - SN3936; ConvF(3.72, 3.72, 3.72); Calibrated: 7/22/2013; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI A (v5.0); Type: QDOVA001BB; Serial: S/n:1212 Body/5.6 GHz, Pin=100mW/Area Scan (61x61x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 52.507 V/m; Power Drift = 0.20 dB Fast SAR: SAR(1 g) = 7.61 W/kg; SAR(10 g) = 2.06 W/kg Maximum value of SAR (interpolated) = 20.8 W/kg Body/5.6 GHz, Pin=100mW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 52.507 V/m; Power Drift = 0.20 dB Peak SAR (extrapolated) = 36.6 W/kg SAR(1 g) = 8.35 W/kg; SAR(10 g) = 2.32 W/kg Maximum value of SAR (measured) = 20.0 W/kg 0 dB = 20.0 W/kg = 13.01 dBW/kg Plot No. 8 Test Laboratory: UL Verification Services Inc., SAR Lab 4 Date: 4/14/2014 20140414 SystemPerformanceCheck-D5GHzV2 SN 1138 Frequency: 5600 MHz; Duty Cyc…

Text truncated - open the document above for the full version.

FCC CFR47 PART 22 SUBPART H FCC CFR47 PART 24 SUBPART E FCC CFR47 PART 27 SUBPART E FCC CFR47 PART 27 SUBPART L CERTIFICATION TEST REPORT FOR GSM/WCDMA/LTE Phone + Bluetooth & DTS/UNII a/b/g/n + NFC MODEL NUMBER: LG-D631, D631, LGD631 FCC ID: ZNFD631 REPORT NUMBER: 14U17477-1 ISSUE DATE: April 8, 2014 Prepared for LG ELECTRONICS MOBILECOMM U.S.A., INC 1000 SYLVAN AVENUE ENGLEWOOD CLIFFS, NEW JERSEY, 07632, U.S.A. Prepared by UL VERIFICATION SERVICES, INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 14U17477‐1 DATE: April 8, 2014 FCC ID: ZNFD631 Page 2 of 138 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By - 4/8/14 Initial Issue P. Kim REPORT NO: 14U17477‐1 DATE: April 8, 2014 FCC ID: ZNFD631 Page 3 of 138 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ............................................................................... 5 2. TEST METHODOLOGY ................................................................................................... 6 3. FACILITIES AND ACCREDITATION ............................................................................... 6 4. CALIBRATION AND UNCERTAINTY .............................................................................. 6 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 6 4.2. SAMPLE CALCULATION ............................................................................................... 6 4.3. MEASUREMENT UNCERTAINTY ................................................................................. 6 5. EQUIPMENT UNDER TEST ............................................................................................. 7 5.1. DESCRIPTION OF EUT ................................................................................................. 7 5.2. MAXIMUM OUTPUT POWER ........................................................................................ 7 5.3. MAXIMUM OUTPUT POWER (LTE) .............................................................................. 8 5.4. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................ 9 5.5. DESCRIPTION OF TEST SETUP ................................................................................ 10 6. TEST AND MEASUREMENT EQUIPMENT ................................................................... 13 7. Summary Table ............................................................................................................. 14 8. RF POWER OUTPUT VERIFICATION ........................................................................... 15 8.1. GSM/GPRS/EDGE ....................................................................................................... 15 8.1.1. GSM OUTPUT POWER RESULT ......................................................................... 16 8.2. UMTS REL 99 .............................................................................................................. 17 8.2.1. UMTS REL 99 OUTPUT POWER RESULT .......................................................... 17 8.3. UMTS HSDPA .............................................................................................................. 18 8.3.1. UMTS HSDPA OUTPUT POWER RESULT ......................................................... 18 8.3.2. UMTS HSUPA ....................................................................................................... 20 8.3.3. UMTS HSUPA OUTPUT POWER RESULT ......................................................... 21 8.4. LTE OUTPUT VERIFICATION ..................................................................................... 22 8.4.1. LTE OUTPUT RESULT ......................................................................................... 22 9. PEAK TO AVERAGE RATIO ......................................................................................... 26 9.1. CONDUCTED PEAK TO AVERAGE RESULT ............................................................ 26 10. LIMITS AND CONDUCTED RESULTS .......................................................................... 32 10.1. OCCUPIED BANDWIDTH ........................................................................................ 32 REPORT NO: 14U17477‐1 DATE: April 8, 2014 FCC ID: ZNFD631 Page 4 of 138 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 10.1.1. OCCUPIED BANDWIDTH RESULTS ............................................................... 33 10.1.2. LTE OCCUPIED BANDWIDTH RESULTS ........................................................ 34 10.1.3. OCCUPIED BANDWI…

Text truncated - open the document above for the full version.
