ZNFD722PMulti-band GSM/EDGE/WCDMA/LTE phone with Bluetooth, WLAN, and RFID

ENGLISH User Guide LG-D722p MFL00000000 (1.0) www.lg.com User Guide • Screen displays and illustrations may differ from those you see on actual phone. • Some of the contents of this guide may not apply to your phone, depending on the software and your service provider. All information in this document is subject to change without notice. • This handset is not suitable for people who have a visual impairment due to the tap screen keyboard. • Copyright ©2014 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners. • Google™, Google Maps™, Gmail™, YouTube™, Hangouts™ and Play Store™ are trademarks of Google, Inc. ENGLISH 2 Table of contents For Your Safety....................................................5 Safety instructions ...........................................10 Important notice ...............................................17 Getting to know your phone .............................21 Phone overview ...............................................21 Installing the SIM card and battery ..................23 Charging your phone .......................................25 Using the memory card ...................................26 Locking and unlocking the screen ...................27 Your Home screen .............................................28 Touch screen tips ............................................28 Home screen ...................................................28 Extended home screen ..................................29 Customizing the Home screen .......................30 Returning to recently-used applications...........31 Notifi cations panel...........................................31 Opening the notifi cations panel ......................32 Indicator icons on the Status Bar....................32 On-screen keyboard ........................................34 Entering accented letters ...............................34 Google account setup .......................................35 Connecting to Networks and Devices ..............36 Wi-Fi ...............................................................36 Connecting to Wi-Fi networks ........................36 Turning Wi-Fi on and connecting to a Wi-Fi network ........................................................36 Bluetooth ........................................................37 Sharing your phone's data connection .............38 Wi-Fi Direct .....................................................39 SmartShare .....................................................39 Enjoying the content from Nearby devices .......40 PC connections with a USB cable ....................40 Calls ..................................................................42 Making a call ..................................................42 Calling your contacts .......................................42 Answering and rejecting a call.........................42 Adjusting the in-call volume ............................42 Making a second call ......................................43 Viewing your call logs ......................................43 Call settings ....................................................43 Contacts ............................................................44 Searching for a contact ...................................44 Adding a new contact ......................................44 Favourites contacts .........................................44 Creating a group .............................................45 Messaging .........................................................46 Sending a message .........................................46 Threaded box .................................................46 Changing your message settings .....................47 E-mail ................................................................48 Managing an email account ............................48 Working with account folders ..........................48 Composing and sending email .........................48 Camera and Video .............................................49 Getting to know the viewfi nder ........................49 Using the advanced settings ............................50 Taking a quick photo ......................................50 3 Once you've taken a photo ..............................51 Gesture shot ....................................................52 Using Panorama mode ...................................52 Recording a quick video ..................................53 After recording a video ....................................53 From your Gallery ............................................54 Function ............................................................55 Guest Mode ...................................................55 Knock Code .....................................................55 KnockON .........................................................55 QuickMemo+ ..................................................56 Using the QuickMemo+ options .....................57 Viewing the saved QuickMemo+ ...................57 QSlide .............................................................58 QuickRemote ..................................................59 Smart Keyboard ..............................................60 Live Zooming ..................................................61 Multimedia ........................................................62 Gallery ............................................................62 Viewing pictures ...........................................62 Playing videos...............................................62 Editing photos ...............................................63 Deleting photos/videos ..................................64 Setting as wallpaper ......................................64 Music ..............................................................64 Playing a song ..............................................64 Add music fi les to yo…

Text truncated - open the document above for the full version.

          !"# Date: September 24#4 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE:  Request of Confidentiality for FCC ID: ZNFD722P Equipment Class:%&%  '  (  )  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,  MobileComm hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  MobileComm temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: %+,'-./+'0'+,/12-'22' 3) 4 - 5  1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure %+,' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

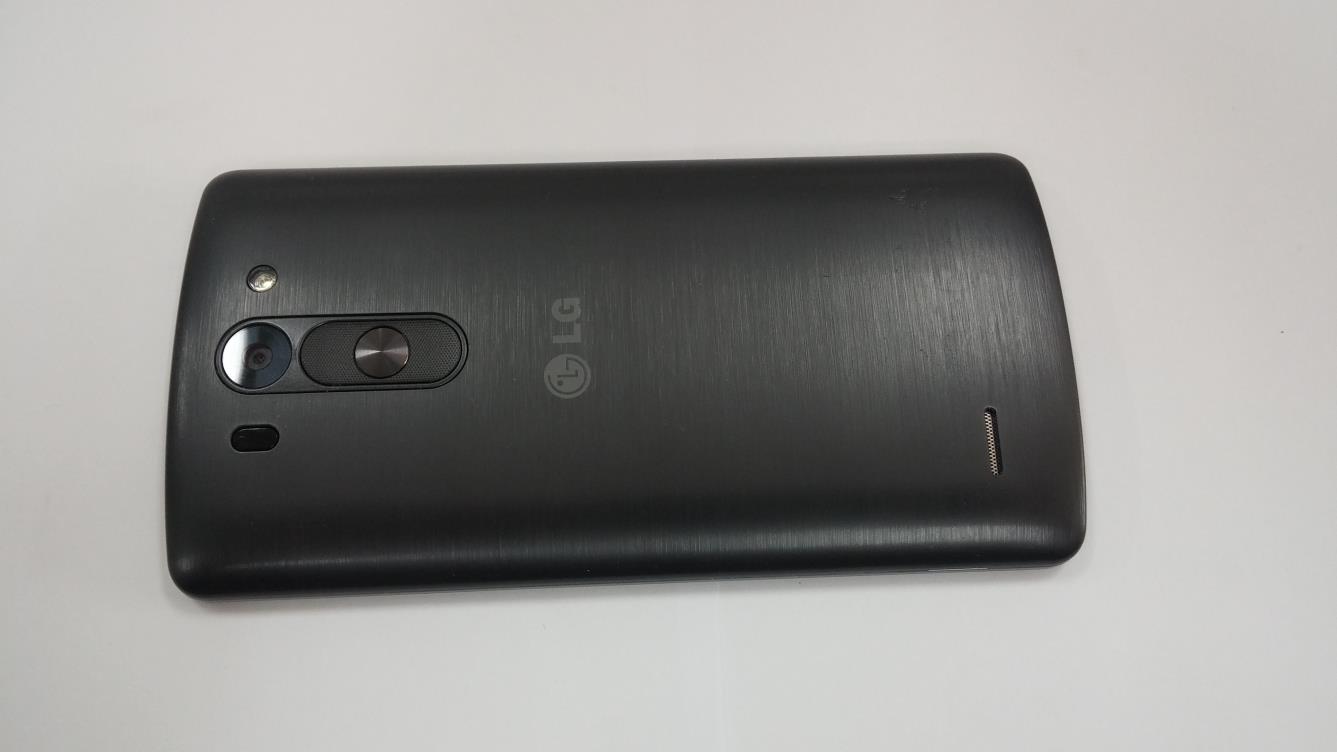

FCCID: ZNFD722P Copyright Ⓒ 2014, DT&C Co., Ltd. View 1 FCCID: ZNFD722P Copyright Ⓒ 2014, DT&C Co., Ltd. View 2 FCCID: ZNFD722P Copyright Ⓒ 2014, DT&C Co., Ltd. View 3 FCCID: ZNFD722P Copyright Ⓒ 2014, DT&C Co., Ltd. View 4

Model No: LG-D722p FCC ID : ZNFD722P S/N : Made in Korea LG Electronics MobileComm USA, Inc. LGE

FCCID: ZNFD722P Copyright Ⓒ 2014, DT&C Co., Ltd. View 1 FCCID: ZNFD722P Copyright Ⓒ 2014, DT&C Co., Ltd. View 2 FCCID: ZNFD722P Copyright Ⓒ 2014, DT&C Co., Ltd. View 3 FCCID: ZNFD722P Copyright Ⓒ 2014, DT&C Co., Ltd. View 4 FCCID: ZNFD722P Copyright Ⓒ 2014, DT&C Co., Ltd. View 5 < WLAN, BT ANTENNA> < MAIN Antenna> FCCID: ZNFD722P Copyright Ⓒ 2014, DT&C Co., Ltd. View 6 <NFC Antenna>

Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page2 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Table of Contents 1. DESCRIPTION OF DEVICE ........................................................................................... 5 1.1 Guidance Applied .................................................................................................... 6 1.2 Device Overview ...................................................................................................... 6 1.3 Nominal and Maximum Output Power Specifications .............................................. 7 1.4 DUT Antenna Locations ........................................................................................... 8 1.5 Near Field Communications (NFC) Antenna ........................................................... 9 1.6 SAR Test Exclusions Applied ................................................................................... 9 1.7 Power Reduction for SAR ...................................................................................... 10 1.8 Device Serial Numbers .......................................................................................... 10 1.9 LTE Information .................................................................................................. 11 2. INTROCUCTION .......................................................................................................... 12 3. DESCRIPTION OF TEST EQUIPMENT ...................................................................... 13 3.1 SAR MEASUREMENT SETUP ............................................................................. 13 3.2 EX3DV4 Probe Specification ................................................................................. 14 3.3 Probe Calibration Process ..................................................................................... 15 3.3.1 E-Probe Calibration ........................................................................................... 15 3.4 Data Extrapolation ................................................................................................. 16 3.5 SAM Twin PHANTOM ............................................................................................ 17 3.6 Device Holder for Transmitters .............................................................................. 17 3.7 Brain & Muscle Simulation Mixture Characterization ............................................. 18 3.8 SAR TEST EQUIPMENT ....................................................................................... 19 4. TEST SYSTEM SPECIFICATIONS .............................................................................. 20 5. SAR MEASUREMENT PROCEDURE ......................................................................... 21 5.1 Measurement Procedure ....................................................................................... 21 6. DEFINITION OF REFERENCE POINTS ...................................................................... 22 6.1 Ear Reference Point .............................................................................................. 22 6.2 Handset Reference Points ..................................................................................... 22 7. TEST CONFIGURATION POSITIONS FOR HANDSETS ........................................... 23 7.1 Device Holder ........................................................................................................ 23 7.2 Positioning for Cheek/Touch .................................................................................. 23 7.3 Positioning for Ear / 15 ° Tilt .................................................................................. 23 7.4 Body-Worn Accessory Configurations ................................................................... 24 7.5 Extremity Exposure Configurations ....................................................................... 24 7.6 Wireless Router Configurations ............................................................................. 25 8. RF EXPOSURE LIMITS ............................................................................................... 26 9. FCC MEASUREMENT PROCEDURES ....................................................................... 27 9.1 Measured and Reported SAR ............................................................................... 27 9.2 Procedures Used to Establish RF Signal for SAR ................................................. 27 9.3 SAR Measurement Conditions for WCDMA (UMTS) ............................................. 27 9.3.1 Output Power Verification ................................................................................. 27 9.3.2 Head SAR Measurements for Handsets ........................................................... 27 9.3.3 Body SAR Measurements ................................................................................. 28 9.3.4 SAR Measurements for Handsets with Rel 5 HSDPA ....................................... 28 9.3.5 SAR Measurements for Handsets with Rel 6 HSUPA ....................................... 28 Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page3 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. 9.3.6 SAR Measurements Conditions for DC-HSDPA ............................................... 29 9.4 SAR Measurement Conditions for LTE .................................................................. 29 9.4.1 Spectrum Plots for RB Configurations .............................................................. 29 9.4.2 MPR .................................................................................................................. 29 9.4.3 A-MPR ............................................................................................................... 29 9.4.4 Required RB Size and RB Offsets for SAR Testing .......................................... 29 9.5 SAR Testing with 802.11 Transmitters…

Text truncated - open the document above for the full version.

Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page111 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Attachment 2. – Dipole Calibration Data Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page112 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page113 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page114 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page115 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page116 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page117 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page118 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page119 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page120 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page121 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page122 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page123 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page124 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page125 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page126 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page127 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page128 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page129 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page130 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page131 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page132 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page133 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page134 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page135 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page136 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page137 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page138 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page139 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page140 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page141 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page142 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page143 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page144 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page145 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page146 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page147 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page148 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page149 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page150 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page151 / 153 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 TRF-RF-601(00)120709 Page152 / 153 Copyright Ⓒ 2014, DT&C Co., L…

Text truncated - open the document above for the full version.

Report No.: DRTFCC1409-1229 FCC ID: ZNFD722P Date of issue: Sep. 24, 2014 Copyright Ⓒ 2014, DT&C Co., Ltd. SAR Plots  Verification Plots  SAR Test Plots DT&C Co., Ltd. DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d159 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.912 S/m; ε r = 41.889; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 - SN3933; ConvF(10.06, 10.06, 10.06); Calibrated: 2013-09-24; Electronics: DAE4 Sn1394 Phantom: SAM with CRP_20120521; Type: SAM; Serial: 1679 Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Test Date: 2014-08-27; Ambient Temp: 21.0; Tissue Temp:21.3 835 MHz System Verification Area Scan (51x121x1): Interpolated grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.57 W/kg SAR(1 g) = 2.33 W/kg; SAR(10 g) = 1.52 W/kg 0 dB = 2.98 W/kg DT&C Co., Ltd. DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d159 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.912 S/m; ε r = 41.889; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 - SN3933; ConvF(10.06, 10.06, 10.06); Calibrated: 2013-09-24; Electronics: DAE4 Sn1394 Phantom: SAM with CRP_20120521; Type: SAM; Serial: 1679 Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Test Date: 2014-08-27; Ambient Temp: 21.0; Tissue Temp:21.3 835 MHz System Verification Area Scan (51x121x1): Interpolated grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.57 W/kg SAR(1 g) = 2.33 W/kg; SAR(10 g) = 1.52 W/kg DT&C Co., Ltd. DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d159 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.989 S/m; ε r = 53.31; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 - SN3933; ConvF(9.79, 9.79, 9.79); Calibrated: 2013-09-24; Electronics: DAE4 Sn1394 Phantom: SAM with CRP_20120521; Type: SAM; Serial: 1679 Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Test Date: 2014-08-27; Ambient Temp: 21.0; Tissue Temp:21.3 835 MHz System Verification Area Scan (51x121x1): Interpolated grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.07 dB Peak SAR (extrapolated) = 3.76 W/kg SAR(1 g) = 2.41 W/kg; SAR(10 g) = 1.58 W/kg 0 dB = 3.18 W/kg DT&C Co., Ltd. DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d159 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.989 S/m; ε r = 53.31; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 - SN3933; ConvF(9.79, 9.79, 9.79); Calibrated: 2013-09-24; Electronics: DAE4 Sn1394 Phantom: SAM with CRP_20120521; Type: SAM; Serial: 1679 Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Test Date: 2014-08-27; Ambient Temp: 21.0; Tissue Temp:21.3 835 MHz System Verification Area Scan (51x121x1): Interpolated grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.07 dB Peak SAR (extrapolated) = 3.76 W/kg SAR(1 g) = 2.41 W/kg; SAR(10 g) = 1.58 W/kg DT&C Co., Ltd. DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:464 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.91 S/m; ε r = 40.831; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 - SN3933; ConvF(10.06, 10.06, 10.06); Calibrated: 2013-09-24; Electronics: DAE4 Sn1394 Phantom: SAM with CRP_20120521; Type: SAM; Serial: 1679 Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Test Date: 2014-08-25; Ambient Temp: 21.1; Tissue Temp:21.6 835 MHz System Verification Area Scan (51x101x1): Interpolated grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.03 dB Peak SAR (extrapolated) = 3.23 W/kg SAR(1 g) = 2.27 W/kg; SAR(10 g) = 1.49 W/kg 0 dB = 2.57 W/kg DT&C Co., Ltd. DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d159 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.91 S/m; ε r = 40.831; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 - SN3933; ConvF(10.06, 10.06, 10.06); Calibrated: 2013-09-24; Electronics: DAE4 Sn1394 Phantom: SAM with CRP_20120521; Type: SAM; Serial: 1679 Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Test Date: 2014-08-25; Ambient Temp: 21.1; Tissue Temp:21.6 835 MHz System Verification Area Scan (51x101x1): Interpolated grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.03 dB Peak SAR (extrapolated) = 3.23 W/kg SAR(1 g) = 2.27 W/kg; SAR(10 g) = 1.49 W/kg DT&C Co., Ltd. DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d159 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.99 S/m; ε r = 53.351; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 - SN3933; ConvF(9.79, 9.79, 9.79); Calibrated: 2013-09-24; Electronics: DAE4 Sn1394 Phantom: SAM with CRP_20120521; Type: SAM; Serial: 1679 Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Test Date: 2014-08-25; Ambient Temp: 21.1; Tissue Temp:21.6 835 MHz System Verification Area Scan (51x121x1): Interpolated grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.05 dB Peak SAR (extrapolated) = 3.75 W/kg SAR(1 g) = 2.42 W/kg; SAR(10 g) = 1.58 W/kg 0 dB = 3.16 W/kg DT&C Co., Ltd. DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d159 …

Text truncated - open the document above for the full version.

FCCID: ZNFD722P DEMC1408-03374 Report No.: DRTFCC1409-1217 TRF-RF-210(04)140901 Page 2 / 78 Copyright ○ C 2014, DT&C Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1409-1217 Sep. 24, 2014 Initial issue FCCID: ZNFD722P DEMC1408-03374 Report No.: DRTFCC1409-1217 TRF-RF-210(04)140901 Page 3 / 78 Copyright ○ C 2014, DT&C Co., Ltd. Table of Contents 1. GENERAL INFORMATION ........................................................ 4 2. INTRODUCTION ........................................................................ 5 2.1. EUT DESCRIPTION .......................................................................................... 5 2.2. MEASURING INSTRUMENT CALIBRATION.................................................... 5 2.3. TEST FACILITY ................................................................................................ 5 3. DESCRIPTION OF TESTS ......................................................... 6 3.1 ERP & EIRP ....................................................................................................... 6 3.2 PEAK TO AVERAGE RATIO .............................................................................. 8 3.3 OCCUPIED BANDWIDTH. ............................................................................... 10 3.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL. .................................... 11 3.5 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL. .......... 12 3.6 RADIATED SPURIOUS EMISSIONS ............................................................... 13 3.7 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ........ 14 4. LIST OF TEST EQUIPMENT .................................................... 15 5. SUMMARY OF TEST RESULTS .............................................. 16 6. SAMPLE CALCULATION ........................................................ 17 7. TEST DATA .............................................................................. 18 7.1 PEAKTOAVERAGERATIO ............................................................................... 18 7.2 OCCUPIED BANDWIDTH ................................................................................ 18 7.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ........... 18 7.4 BAND EDGE .................................................................................................... 18 7.5 EFFECTIVE RADIATED POWER..................................................................... 19 7.6 EQUIVALENT ISOTROPIC RADIATED POWER ............................................. 20 7.7 RADIATED SPURIOUS EMISSIONS ............................................................... 21 7.7.1 RADIATED SPURIOUS EMISSIONS (GSM850) ......................................... 21 7.7.2 RADIATED SPURIOUS EMISSIONS (WCDMA850) .................................... 22 7.7.3 RADIATED SPURIOUS EMISSIONS (HSUPA850) ..................................... 23 7.7.4 RADIATED SPURIOUS EMISSIONS (GSM1900) ....................................... 24 7.8.5 RADIATED SPURIOUS EMISSIONS (WCDMA1900) .................................. 25 7.8.6 RADIATED SPURIOUS EMISSIONS (HSUPA1900) ................................... 26 7.8 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ........ 27 7.8.1 FREQUENCY STABILITY (GSM850) .......................................................... 27 7.8.2 FREQUENCY STABILITY (WCDMA850)…

Text truncated - open the document above for the full version.
