ZNFD722VCellular/PCS GSM/EDGE/WCDMA Phone with WLAN, Bluetooth, and RFID

ENGLISH User Guide LG-D722v MFL00000000 (1.0) www.lg.com User Guide • Screen displays and illustrations may differ from those you see on actual phone. • Some of the contents of this guide may not apply to your phone, depending on the software and your service provider. All information in this document is subject to change without notice. • This handset is not suitable for people who have a visual impairment due to the tap screen keyboard. • Copyright ©2014 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners. • Google™, Google Maps™, Gmail™, YouTube™, Hangouts™ and Play Store™ are trademarks of Google, Inc. ENGLISH 2 Table of contents For Your Safety....................................................5 Safety instructions ...........................................10 Important notice ...............................................17 Getting to know your phone .............................21 Phone overview ...............................................21 Installing the SIM card and battery ..................23 Charging your phone .......................................25 Using the memory card ...................................26 Locking and unlocking the screen ...................27 Your Home screen .............................................28 Touch screen tips ............................................28 Home screen ...................................................28 Extended home screen ..................................29 Customizing the Home screen .......................30 Returning to recently-used applications...........31 Notifi cations panel...........................................31 Opening the notifi cations panel ......................32 Indicator icons on the Status Bar....................32 On-screen keyboard ........................................34 Entering accented letters ...............................34 Google account setup .......................................35 Connecting to Networks and Devices ..............36 Wi-Fi ...............................................................36 Connecting to Wi-Fi networks ........................36 Turning Wi-Fi on and connecting to a Wi-Fi network ........................................................36 Bluetooth ........................................................37 Sharing your phone's data connection .............38 Wi-Fi Direct .....................................................39 SmartShare .....................................................39 Enjoying the content from Nearby devices .......40 PC connections with a USB cable ....................40 Calls ..................................................................42 Making a call ..................................................42 Calling your contacts .......................................42 Answering and rejecting a call.........................42 Adjusting the in-call volume ............................42 Making a second call ......................................43 Viewing your call logs ......................................43 Call settings ....................................................43 Contacts ............................................................44 Searching for a contact ...................................44 Adding a new contact ......................................44 Favourites contacts .........................................44 Creating a group .............................................45 Messaging .........................................................46 Sending a message .........................................46 Threaded box .................................................46 Changing your message settings .....................47 E-mail ................................................................48 Managing an email account ............................48 Working with account folders ..........................48 Composing and sending email .........................48 Camera and Video .............................................49 Getting to know the viewfi nder ........................49 Using the advanced settings ............................50 Taking a quick photo ......................................50 Once you've taken a photo ..............................51 Gesture shot ....................................................52 3 Using Panorama mode ...................................52 Recording a quick video ..................................53 After recording a video ....................................53 From your Gallery ............................................54 Function ............................................................55 Guest Mode ...................................................55 Knock Code .....................................................55 KnockON .........................................................55 QuickMemo+ ..................................................56 Using the QuickMemo+ options .....................57 Viewing the saved QuickMemo+ ...................57 QSlide .............................................................58 QuickRemote ..................................................59 Smart Keyboard ..............................................60 Live Zooming ..................................................61 Multimedia ........................................................62 Gallery ............................................................62 Viewing pictures ...........................................62 Playing videos...............................................62 Editing photos ...............................................63 Deleting photos/videos ..................................64 Setting as wallpaper ......................................64 Music ..............................................................64 Playing a song ..............................................64 Add music fi les to yo…

Text truncated - open the document above for the full version.

49 Camera and Video To open the Camera application, tap > > Apps tab > . Getting to know the viewfinder 1 6 2 7 3 4 5 Flash – Choose from Off , On , Auto . Swap camera – Switch between the rear–facing camera lens and the front–facing camera lens. Shot mode – Choose from Auto or Panorama. Settings – Tap this icon to open the settings menu. Gallery – Tap to view the last photo you captured. This enables you to access your gallery and view saved photos while in camera mode. Record – Allows you to start recording. Capture – Allows you to take a photo. NOTE: Please ensure the camera lens is clean before taking pictures. 50 Using the advanced settings In the viewfinder, tap to open the advanced options. You can change the camera settings by scrolling through the list. After selecting the option, tap . Combines photos taken at multiple exposures into one optimal photo to get a better photo in tricky lighting situations. Selects photo resolution. If you choose high resolution, file size will increase, which means you will be able to store fewer photos in the memory. To take a photo, say one of the following words: Cheese, Smile, Whiskey, Kimchi or LG. Sets a delay after the capture button is pressed. This is ideal if you want to be in the photo. It is easily used to take better pictures to keeping horizontal and verticals. Opens the help guide to know how a function operates. TIP! • The setting menu is superimposed over the viewfinder, so when you change photo color or quality elements, you will see a preview of the changed image behind the Settings menu. Taking a quick photo 1 Open the Camera application and point the lens toward the subject your want to photograph. 2 Focus boxes will appear in the center of the viewfi nder screen. You can also tap anywhere on the screen to focus on that spot. 3 When the focus box turns blue, the camera has focused on your subject. 4 Ta p to capture the photo. Camera and Video 51 Once you've taken a photo Tap the image thumbnail at the bottom of the Camera screen to view the last photo you took. Tap to edit the photo. Tap to take another photo immediately. Tap to send your photo to others or share it via social network services. Tap to delete the photo. Tap to access SmartShare, Set image as, Move, Copy, Copy to Clip Tray, Slideshow, Rotate left, Rotate right, Crop, Add location, Rename, Print, or Details. Tap to add the photo to Favourites. TIP! If you have an SNS account set up on your phone, you can share your photo with your SNS community. NOTE: Additional charges may apply when MMS messages are downloaded while roaming. Ta p to open all advanced options. SmartShare – Tap to share your photo using the SmartShare function. Set image as – Tap to use the photo as a Contact photo, Home screen wallpaper, Lock screen wallpaper, Wallpaper. Move – Tap to move the photo to another place. Copy – Tap to copy the selected photo and save it to another album. Copy to Clip Tray – Tap to copy the photo and store in the Clip Tray. Slideshow – Automatically shows you the images in the current folder one after the other. Rotate left/right – To rotate left or right. Crop – Crop your photo. Move your finger across the screen to select the area to be cropped. 52 Add location – To add the location information. Rename – Tap to edit the name of the selected photo. Details – Find out more information about the file. Gesture shot Take a picture with hand gesture. To take photo, raise your hand until front camera detects it and a box appears on the screen. Using Panorama mode Allows you to take a picture a long way over a wide area of land. 1 Open the Camera application. 2 > Panorama. 3 Ta p to start. 4 Pan your phone slowly to one direction. 5 Fit focus area to blue guideline to take photo. 6 Tap stop button when fi nished. Camera and Video 53 Recording a quick video 1 Open the Camera application. 2 Holding the phone, point the lens towards the subject you wish to capture in your video. 3 Ta p once to start recording. 4 A red light will appear at the top left corner of the viewfi nder with a timer showing the length of the video. 5 Tap on the screen to stop recording. TIP! – Tap to capture an image during recording a video. – Tap to pause recording a video. After recording a video In the viewfinder, tap the video thumbnail at the top of the screen to view the last video you took. Tap to record another video immediately. Tap to send your video to others or share it via social network services. Tap to delete the video. Tap to access SmartShare, Move, Copy, Trim, Rename, Details. NOTE: Additional charges may apply when MMS messages are downloaded while roaming. 54 From your Gallery Ta p Gallery. • To view more photos, scroll left or right. • To zoom in or out, double-tap the screen or place two fingers and spread them apart (move your fingers closer together to zoom out). • Tap on video play icon to play the video. Camera and Video 55 Function Guest Mode To protect your privacy or limit some applications to your children, you can use the Guest mode. When you lend your phone to others, you can limit the applications to be displayed. In advance, set the Guest mode and customize the options. NOTE: To use the Guest mode, the pattern lock should be set in advance. 1 Ta p > > Apps tab > Settings > General tab > Guest mode. 2 Tap the Guest Mode switch to enable this mode. Knock Code You can unlock the screen when screen is off by taping the correct area and sequence. To activate Knock Code feature 1 Ta p > > Apps tab > Settings > Display tab > Lock screen > Select screen lock > Knock Code. 2 This opens a screen that will guide you through how to select the unlock sequence. You have to create a Backup PIN as a safety measure in case you forget your unlock sequence. KnockON You can turn on/off the screen by just double-tap. Double-tap the center screen quickly to unlock the screen. To lock the screen, double-tap the status bar in any screen (except on the camera viewfinder) or empty area on the …

Text truncated - open the document above for the full version.

Date: June 26, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFD722V Equipment Class: DTS: Digital Transmission System To Whom It May Conce rn: Pursuant to S ections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics MobileComm USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily rel eased to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics MobileComm USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND S HORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

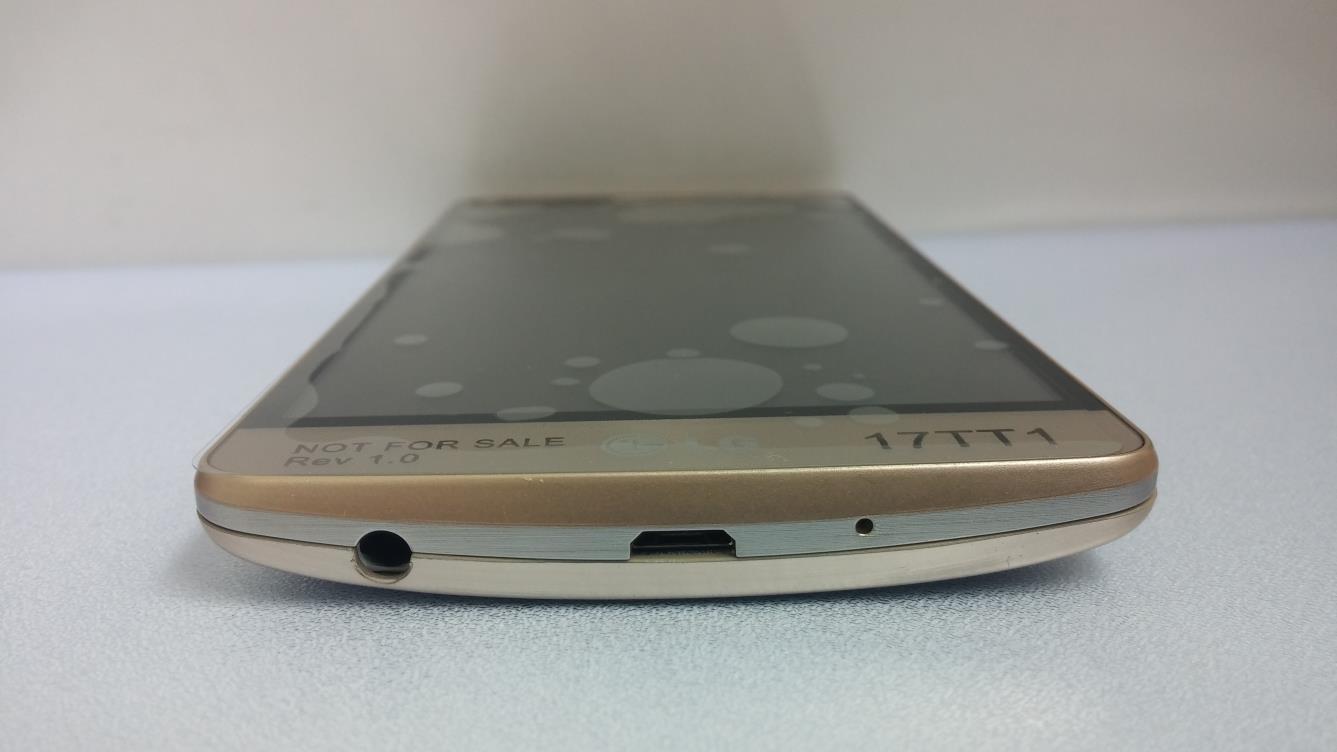

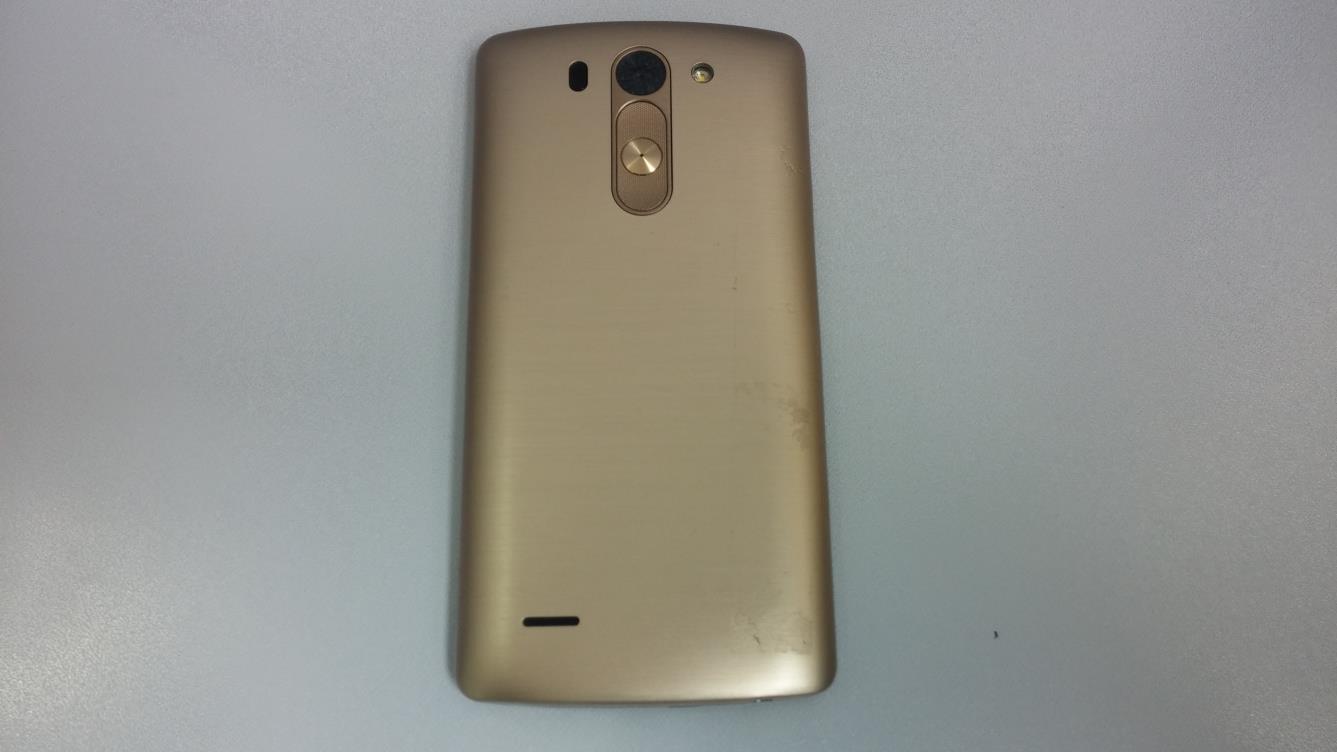

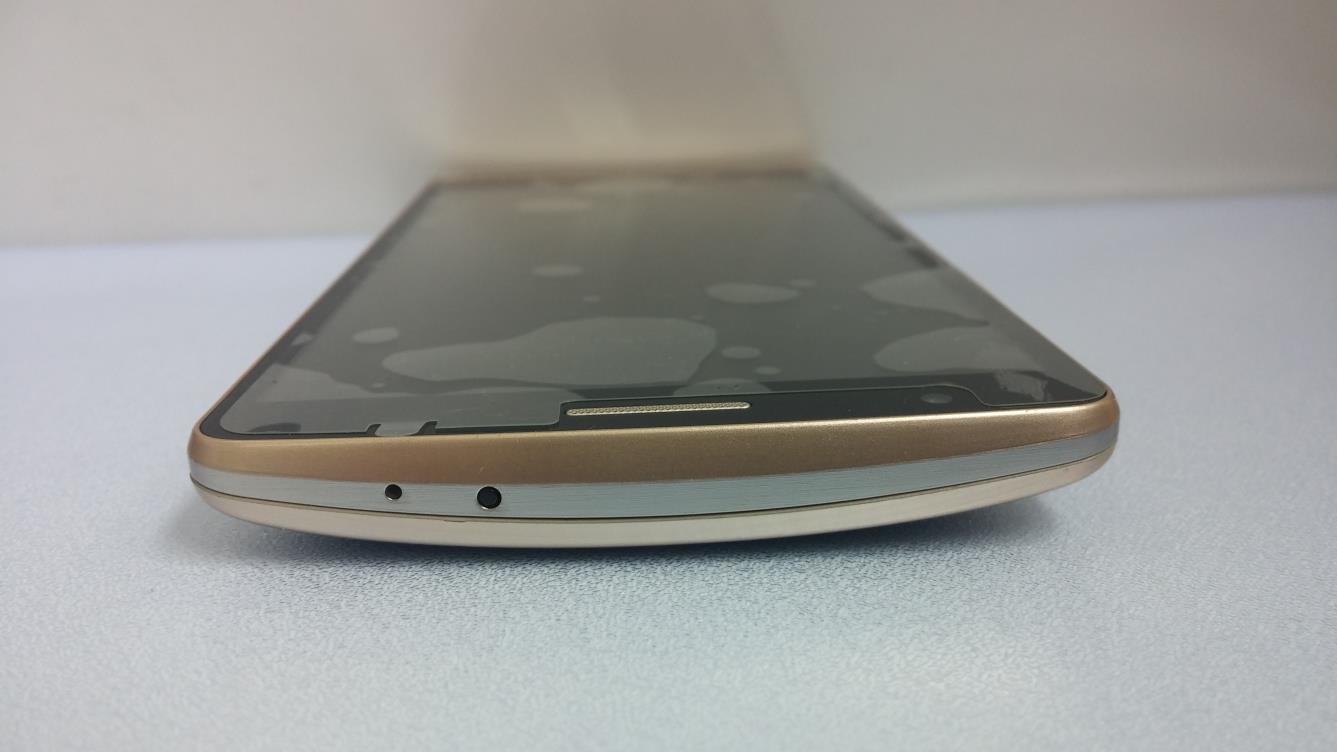

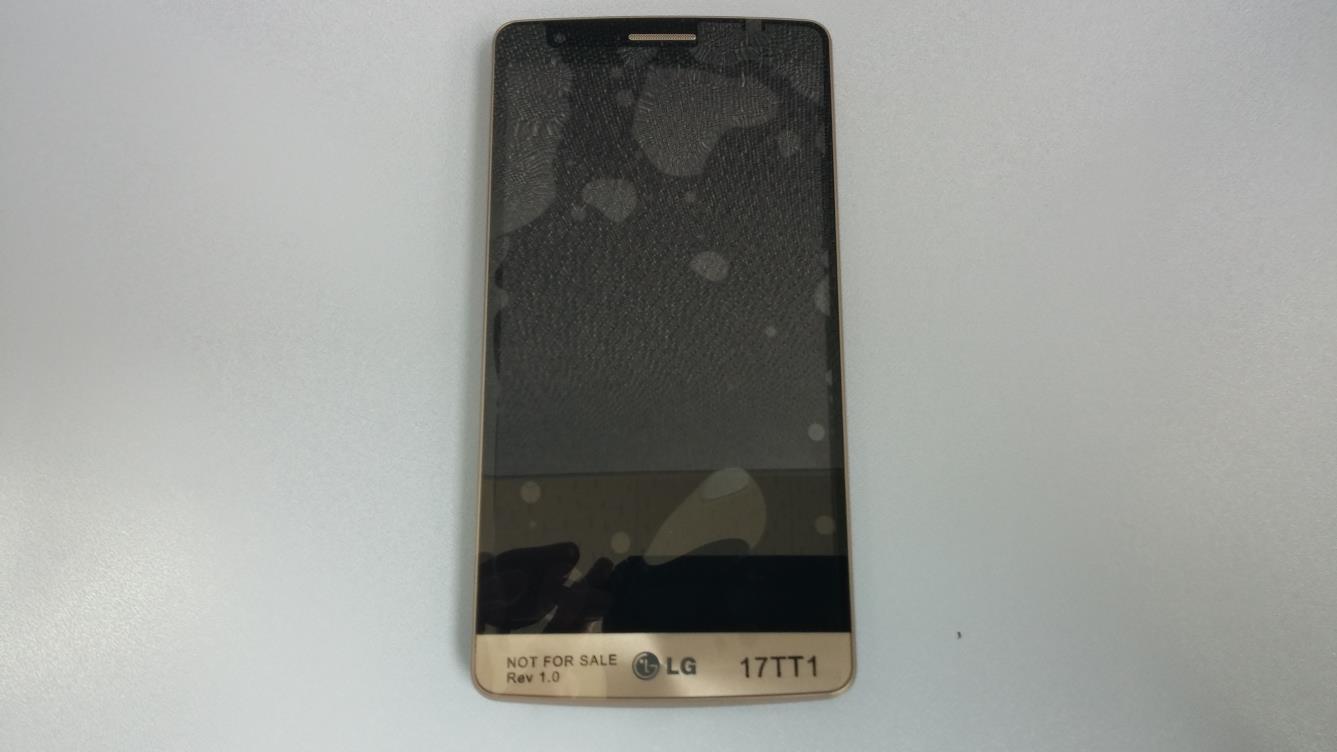

FCCID: ZNFD722V Copyright Ⓒ 2014, DT&C Co., Ltd. View 1 FCCID: ZNFD722V Copyright Ⓒ 2014, DT&C Co., Ltd. View 2 FCCID: ZNFD722V Copyright Ⓒ 2014, DT&C Co., Ltd. View 3 FCCID: ZNFD722V Copyright Ⓒ 2014, DT&C Co., Ltd. View 4

Model No: LG-D722v FCC ID : ZNFD722V S/N : Made in Korea LG Electronics MobileComm USA, Inc. LGE

FCCID: ZNFD722V Copyright Ⓒ 2014, DT&C Co., Ltd. View 1 FCCID: ZNFD722V Copyright Ⓒ 2014, DT&C Co., Ltd. View 2 FCCID: ZNFD722V Copyright Ⓒ 2014, DT&C Co., Ltd. View 3 FCCID: ZNFD722V Copyright Ⓒ 2014, DT&C Co., Ltd. View 4 FCCID: ZNFD722V Copyright Ⓒ 2014, DT&C Co., Ltd. View 5 FCCID: ZNFD722V Copyright Ⓒ 2014, DT&C Co., Ltd. View 6 < WLAN, BT ANTENNA> < MAIN Antenna> FCCID: ZNFD722V Copyright Ⓒ 2014, DT&C Co., Ltd. View 7 <NFC Antenna>

Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page2 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Table of Contents 1. DESCRIPTION OF DEVICE .......................................................................................................... 5 1.1 Guidance Applied ................................................................................................................... 6 1.2 Device Overview .................................................................................................................... 6 1.3 Nominal and Maximum Output Power Specifications ............................................................ 6 1.4 DUT Antenna Locations ......................................................................................................... 7 1.5 SAR Test Exclusions Applied ................................................................................................. 8 1.6 Power Reduction for SAR ...................................................................................................... 8 1.7 Device Serial Numbers .......................................................................................................... 8 2. INTROCUCTION ........................................................................................................................... 9 3. DESCRIPTION OF TEST EQUIPMENT ..................................................................................... 10 3.1 SAR MEASUREMENT SETUP ............................................................................................ 10 3.2 EX3DV4 Probe Specification ............................................................................................... 11 3.3 Probe Calibration Process ................................................................................................... 12 3.3.1 E-Probe Calibration ......................................................................................................... 12 3.4 Data Extrapolation ................................................................................................................ 13 3.5 SAM Twin PHANTOM .......................................................................................................... 14 3.6 Device Holder for Transmitters ............................................................................................. 14 3.7 Brain & Muscle Simulation Mixture Characterization ........................................................... 15 3.8 SAR TEST EQUIPMENT ..................................................................................................... 16 4. TEST SYSTEM SPECIFICATIONS ............................................................................................. 17 5. SAR MEASUREMENT PROCEDURE ........................................................................................ 18 5.1 Measurement Procedure ...................................................................................................... 18 6. DEFINITION OF REFERENCE POINTS .................................................................................... 19 6.1 Ear Reference Point ............................................................................................................. 19 6.2 Handset Reference Points ................................................................................................... 19 7. TEST CONFIGURATION POSITIONS FOR HANDSETS .......................................................... 20 7.1 Device Holder ....................................................................................................................... 20 7.2 Positioning for Cheek/Touch ............................................................................................... . 20 7.3 Positioning for Ear / 15 ° Tilt ................................................................................................. 20 7.4 Body-Worn Accessory Configurations.................................................................................. 21 7.5 Extremity Exposure Configurations ...................................................................................... 21 7.6 Wireless Router Configurations ........................................................................................... 22 8. RF EXPOSURE LIMITS .............................................................................................................. 23 9. FCC MEASUREMENT PROCEDURES...................................................................................... 24 9.1 Measured and Reported SAR .............................................................................................. 24 9.2 Procedures Used to Establish RF Signal for SAR ............................................................... 24 9.3 SAR Measurement Conditions for WCDMA (UMTS) ........................................................... 24 9.3.1 Output Power Verification ................................................................................................ 24 9.3.2 Head SAR Measurements for Handsets ......................................................................... 24 9.3.3 Body SAR Measurements ............................................................................................... 25 9.3.4 SAR Measurements for Handsets with Rel 5 HSDPA..................................................... 25 9.3.5 SAR Measurements for Handsets with Rel 6 HSUPA..................................................... 25 9.4 SAR Testing with 802.11 Transmitters ................................................................................. 26 9.4.1 General Device Setup ..................................................................................................... 26 9.4.2 Frequency Channel Configurations ................................................................................. 26 10. RF CONDUCTED POWERS ...............................................................…

Text truncated - open the document above for the full version.

Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page54 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Attachment 1. – Probe Calibration Data Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page55 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page56 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page57 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page58 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page59 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page60 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page61 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page62 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page63 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page64 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page65 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page66 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Attachment 2. – Dipole Calibration Data Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page67 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page68 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page69 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page70 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page71 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page72 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page73 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page74 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page75 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page76 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page77 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page78 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page79 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page80 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page81 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page82 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page83 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page84 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page85 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page86 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page87 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page88 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page89 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page90 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page91 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. Attachment 3. – SAR SYSTEM VALIDATION Report No.: DRTFCC1406-0857(1) FCC ID: ZNFD722V Date of issue: Jul. 04, 2014 TRF-RF-601(00)120709 Page92 / 92 Copyright Ⓒ 2014, DT&C Co., Ltd. SAR System Validation Per FCC KDB 865664 D02v01r01, SAR system validation status should be documented to confirm measurement accuracy. The SAR systems (including SAR probes, system components and software versions) used for this device were validated against its performance specifications prior to the SAR…

Text truncated - open the document above for the full version.

Report No.: DRTFCC1406-0687 FCC ID: ZNFD722V Date of issue: Jun. 30, 2014 Copyright Ⓒ 2014, DT&C Co., Ltd. SAR Plots  Verification Plots  SAR Test Plots DT&C Co., Ltd. DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d159 Communication System: CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.892 S/m; ε r = 40.278; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 - SN3933; ConvF(10.06, 10.06, 10.06); Calibrated: 9/24/2013; ; Electronics: DAE4 Sn1396 Phantom: SAM with CRP_2013_10_08_middle; Type: QD000P40CD; Serial: TP:1786 Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Test Date: 2014-06-07; Ambient Temp: 20.4; Tissue Temp:20.9 835 MHz System Verification Area Scan (41x121x1): Interpolated grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.14 dB Peak SAR (extrapolated) = 3.36 W/kg SAR(1 g) = 2.27 W/kg; SAR(10 g) = 1.51 W/kg 0 dB = 2.85 W/kg DT&C Co., Ltd. DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d159 Communication System: CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.892 S/m; ε r = 40.278; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 - SN3933; ConvF(10.06, 10.06, 10.06); Calibrated: 9/24/2013; ; Electronics: DAE4 Sn1396 Phantom: SAM with CRP_2013_10_08_middle; Type: QD000P40CD; Serial: TP:1786 Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Test Date: 2014-06-07; Ambient Temp: 20.4; Tissue Temp:20.9 835 MHz System Verification Area Scan (41x121x1): Interpolated grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.14 dB Peak SAR (extrapolated) = 3.36 W/kg SAR(1 g) = 2.27 W/kg; SAR(10 g) = 1.51 W/kg DT&C Co., Ltd. DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d159 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.99 S/m; ε r = 54.792; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 - SN3933; ConvF(9.79, 9.79, 9.79); Calibrated: 9/24/2013; ; Electronics: DAE4 Sn1396 Phantom: SAM with CRP_2013_10_08_middle; Type: QD000P40CD; Serial: TP:1786 Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Test Date: 2014-06-09; Ambient Temp: 20.7; Tissue Temp:21.3 835 MHz System Verification Area Scan (51x121x1): Interpolated grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.05 dB Peak SAR (extrapolated) = 3.27 W/kg SAR(1 g) = 2.19 W/kg; SAR(10 g) = 1.43 W/kg 0 dB = 2.57 W/kg DT&C Co., Ltd. DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d159 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.99 S/m; ε r = 54.792; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 - SN3933; ConvF(9.79, 9.79, 9.79); Calibrated: 9/24/2013; ; Electronics: DAE4 Sn1396 Phantom: SAM with CRP_2013_10_08_middle; Type: QD000P40CD; Serial: TP:1786 Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Test Date: 2014-06-09; Ambient Temp: 20.7; Tissue Temp:21.3 835 MHz System Verification Area Scan (51x121x1): Interpolated grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.05 dB Peak SAR (extrapolated) = 3.27 W/kg SAR(1 g) = 2.19 W/kg; SAR(1…

Text truncated - open the document above for the full version.
