ZNFD800Portable Handset with Multi-Band GSM/EDGE/LTE/WCDMA Phone with WLAN, Bluetooth and RFID

Product Safety & Warranty Information This booklet is made from 30% post-consumer recycled paper. This booklet is printed with soy ink. ©All Rights Reserved. Printed in Korea MBM00000000 1.0 LG-D800 1 Violation of the instructions may cause serious injury or death. WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. ● Never use an unapproved battery since this could damage the phone and/or battery and could cause the battery to explode. ● Never place your phone in a microwave oven as it will cause the battery to explode. ● Never store your phone in temperatures less than -4°F or greater than 122°F. ● Do not dispose of your battery near fire or with hazardous or flammable materials. ● When riding in a car, do not leave your phone or set up the hands-free kit near the air bag. If wireless equipment is improperly installed and the air bag is deployed, you may be seriously injured. ● Do not use the phone in areas where its use is prohibited. (For example: aircraft) 2 ● Do not expose the battery charger or adapter to direct sunlight or use it in places with high humidity, such as a bathroom. ● Do not use harsh chemicals (such as alcohol, benzene, thinners, etc.) or detergents to clean your phone. This could cause a fire. ● Do not drop, strike, or shake your phone severely. It may harm the internal circuit boards of the phone. ● Do not use your phone in high explosive areas as the phone may generate sparks. ● Do not damage the power cord by bending, twisting, pulling, or heating. Do not use the plug if it is loose as it may cause electric shock or fire. ● Do not place any heavy items on the power cord. Do not allow the power cord to be crimped as it may cause electric shock or fire. 3 ● Do not handle the phone with wet hands while it is being charged. It may cause an electric shock or seriously damage your phone. ● Do not disassemble the phone. ● Do not place or answer calls while charging the phone as it may short-circuit the phone and/or cause electric shock or fire. ● Do not hold or let the antenna come in contact with your body during a call. ● Make sure that no sharp- edged items, such as animal’s teeth or nails, come into contact with the battery. This could cause a fire. ● Store the battery out of reach of children. ● Be careful that children do not swallow any parts (such as earphone, connection parts of the phone, etc.) This could cause asphyxiation or suffocation resulting in serious injury or death. 4 ● Unplug the power cord and charger during lightning storms to avoid electric shock or fire. ● Only use the batteries and chargers provided by LG. The warranty will not be applied to products provided by other suppliers. ● Only authorized personnel should service the phone and its accessories. Faulty installation or service may result in accidents and consequently invalidate the warranty. ● An emergency call can be made only within a service area. For an emergency call, make sure that you are within a service area and that the phone is turned on. 5 ● Your phone is an electronic device that generates heat during normal operation. Extremely prolonged, direct skin contact in the absence of adequate ventilation may result in discomfort or minor burns. Therefore, use care when handling your phone during or immediately after operation. 6 HAC This phone has been tested and rated for use with hearing aids for some of the wireless technologies that it uses. However, there may be some newer wireless technologies used in this phone that have not been tested yet for use with hearing aids. It is important to try the different features of this phone thoroughly and in different locations, using your hearing aid or cochlear implant, to determine if you hear any interfering noise. Consult your service provider or the manufacturer of this phone for information on hearing aid compatibility. If you have questions about return or exchange policies, consult your service provider or phone retailer. FCC Part 15 Class B Compliance This device and its accessories comply with part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device and its accessories may not cause harmful interference, and (2) this device and its accessories must accept any interference received, including interference that causes undesired operation. Any changes or modifications not expressly approved in this user guide could void your warranty for this equipment. Use only the supplied antenna. 7 Use of unauthorized antennas (or modifications to the antenna) could impair call quality, damage the phone, void your warranty and/or violate FCC regulations. Don’t use the phone with a damaged antenna. A damaged antenna could cause a minor skin burn. Contact your local dealer for a replacement antenna. FCC RF Exposure Information WARNING! Read this information before operating the phone. In August 1996, the Federal Communications Commission (FCC) of the United States, with its action in Report and Order FCC 96-326, adopted an updated safety standard for human exposure to Radio Frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Bodily Contact During Operation This device was tested for typical use with the back of the phone kept 0.39 inches (1.0 cm) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.39 inches (1.0 cm) must be maintained between the 8 user’s body and the back of the phone, including the antenna, whether extended or retracted. Third-party belt-clips, holsters, and similar accessories containing metallic components may not be used. Avoid the use of accessories that cannot maintain 0.39 inches (1.0 cm) distance betwe…

Text truncated - open the document above for the full version.

k Date : July 22, 2013 Fed eral Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: ZNFD800 Equipment Class : DXX: Low Power Communications Device Transmitter To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG ELECTRONICS MobileComm USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG ELECTRONICS MobileComm USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Descriptions 3 Schematics SHORT-TERM 1 External Photos 2 Internal Photos 3 Test -Setup Photos 4 User’s Manual 5 Antenna Distance The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Jacop Cho Director On behalf of LG Electronics Mobilecomm U.S.A.,Inc

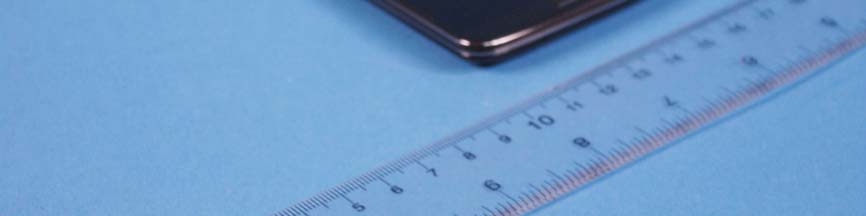

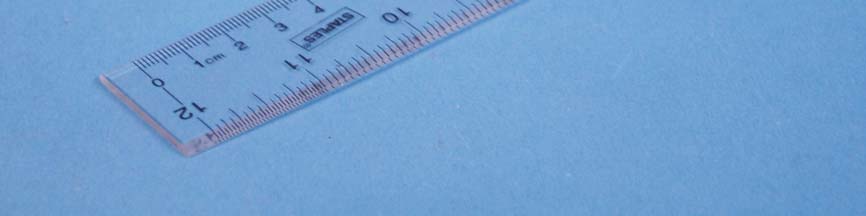

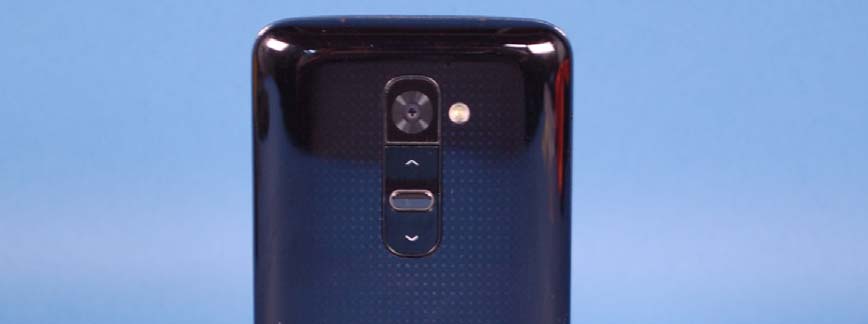

LG ELECTRONICS MOBILECOMM USA FCC ID: ZNFD800 Model: LG-D800 External Photos EUT Type: PORTABLE HANDSET Page 1 of 4 © 2013 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG ELECTRONICS MOBILECOMM USA FCC ID: ZNFD800 Model: LG-D800 External Photos EUT Type: PORTABLE HANDSET Page 2 of 4 © 2013 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM USA FCC ID: ZNFD800 Model: LG-D800 External Photos EUT Type: PORTABLE HANDSET Page 3 of 4 © 2013 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM USA FCC ID: ZNFD800 Model: LG-D800 External Photos EUT Type: PORTABLE HANDSET Page 4 of 4 © 2013 PCTEST Engineering Laboratory Inc.

※ FCC ID Label Form *Note: This label and its location complies with 47 CFR 2.925(d) that FCC ID is readily visible to the purchaser at the time of purchase, and be permanently affixed to the prod uct. We, LG Electronics MobileComm USA, state that our device, FCC ID ZNFD800, has a battery. However, the battery will not be placed in the battery compartm ent when delivery, so it is visible to the users as they purchase the product and install the batte ry. Additionally, the label is per manently attached. The label it's attached to the EUT by an adhesive. The adhesive is permanent type with strong strength. Model No: LG-D800 FCC ID: ZNFD800 IMEI : XXXXXXXXX Made in Korea Model No: LG-D800 FCC ID: ZNFED800 Made in Korea Fig.1 Representation of FCC Label information

Reviewed by: FCC ID: ZNFD800 FCC Pt. 15.225 MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Date(s): EUT Type: 0Y1306241079.ZNF 07/16 - 07/17/2013 Portable Handset Page 1 of 21 © 2013 PCTEST Engineering Laboratory, Inc. v3.2 06/10/2013 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A 07/16 - 07/17/2013 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1306241079.ZNF FCC ID: ZNFD800 APPLICANT: LG Electronics MobileComm U.S.A Application Type: Certification Model(s): LG-D800, D800, LGD800 EUT Type: Portable Handset Frequency: 13.56MHz FCC Classification: Low Power Communications Device Transmitter (DXX) FCC Rule Part(s): FCC Part 15 Subpart C (15.225) Test Procedure(s): ANSI C63.10-2009 Test Device Serial No.: NFC Rad.; NFC Cond. The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in ANSI C63.10-2009 (See Test Report). These measurements were performed with no deviation from the standards. Test results reported herein relate only to the item(s) tested. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 15.225 NFC Reviewed by: FCC ID: ZNFD800 FCC Pt. 15.225 MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Date(s): EUT Type: 0Y1306241079.ZNF 07/16 - 07/17/2013 Portable Handset Page 2 of 21 © 2013 PCTEST Engineering Laboratory, Inc. v3.2 06/10/2013 TABLE OF CONTENTS FCC Part 15.225 MEASUREMENT REPORT .............................................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE .................................................................................................................................................. 4 1.2 PCTEST TEST LOCATION ................................................................................................................... 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION ................................................................................................................ 5 2.2 DEVICE CAPABILITIES ........................................................................................................................ 5 2.3 TEST CONFIGURATION ...................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ............................................................................. 5 2.5 LABELING REQUIREMENTS ............................................................................................................... 5 3.0 DESCRIPTION OF TEST.................................................................................................................6 3.1 EVALUATION PROCEDURE................................................................................................................ 6 3.2 AC LINE CONDUCTED EMISSIONS ....................................................................................................6 3.3 RADIATED EMISSIONS........................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..........................................................................................................8 5.0 SAMPLE CALCULATIONS ..............................................................................................................9 5.1 CONDUCTED EMISSION MEASUREMENT SAMPLE CALCULATION ............................................... 9 5.2 RADIATED EMISSION MEASUREMENT SAMPLE CALCULATION.................................................... 9 6.0 TEST EQUIPMENT CALIBRATION DATA ....................................................................................10 7.0 ENVIRONMENTAL CONDITIONS .................................................................................................11 8.0 TEST DATA ....................................................................................................................................12 8.1 SUMMARY .......................................................................................................................................... 12 8.2 20DB BANDWIDTH MEASUREMENT ................................................................................................ 13 8.3 FREQUENCY STABILITY TEST DATA............................................................................................... 14 8.4 IN-BAND RADIATED SPURIOUS EMISSION MEASUREMENTS...................................................... 16 8.5 RADIATED SPURIOUS EMISSION MEASUREMENTS, OUT-OF-BAND .......................................... 17 8.6 LINE CONDUCTED MEASUREMENT DATA ..................................................................................... 19 9.0 CONCLUSION.............................................…

Text truncated - open the document above for the full version.

LG ELECTRONICS MOBILECOMM USA ID: ZNFD800 Model: LG-D800 Test Set-Up Photos EUT Type: PORTABLE HANDSET Page 1 of 3 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS LG ELECTRONICS MOBILECOMM USA ID: ZNFD800 Model: LG-D800 Test Set-Up Photos EUT Type: PORTABLE HANDSET Page 2 of 3 © 2013 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM USA ID: ZNFD800 Model: LG-D800 Test Set-Up Photos EUT Type: PORTABLE HANDSET Page 3 of 3 © 2013 PCTEST Engineering Laboratory Inc.
