ZNFD801Portable Handset with Multi-Band GSM/EDGE/WCDMA/LTE Phone with WLAN, Bluetooth and RFID

User Guide -D801 MFL00000000 (1.0) ENGLISH www.lg.com LG-D801LG-D801 User Guide • Screen displays and illustrations may differ from those you see on actual phone. • Some of the contents of this guide may not apply to your phone, depending on the software and your service provider. All information in this document is subject to change without notice. • This handset is not suitable for people who have a visual impairment due to the touch screen keyboard. • Copyright ©2013 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners. • Google™, Google Maps™, Gmail™, YouTube™, Google Talk™ and Google Play™ are trademarks of Google, Inc. English 2 If you are a new T-Mobile® customer and your service has not been activated, simply call Customer Care at 1-800-937-8997 from your landline phone and a T-Mobile Activations representative will assist you. You will need the following information when activating service: • Service Agreement and agent code on your Agreement. • Your name, home address, home phone, and billing address. NOTE: For business and government accounts, please provide the name of your company or government agency, address, and tax ID. • Your Social Security number, current driver’s license number, and date of birth for credit check purposes. • Your choice of T-Mobile rate plan and services (see www.t-mobile.com for the latest plan information). • SIM serial number and IMEI number (located on the box bar code label). By activating service, you acknowledge that you have read, understand, and agree to be bound by each of T-Mobile’s Terms and Conditions and your Service Agreement. About this user guide Please read this user guide carefully before you use your phone and keep it handy for future reference. Should your phone fails to operate correctly, refer to the FAQ section. • Some features and service may vary by area, phone, carrier, plan and version of phone software. • Screen displays and illustrations on this user manual may differ from those you see on the actual phone. • Designs and specifications of the phone and other accessories are subject to change without any notice. SERVICE ACTIVATION 3 Table of contents SERVICE ACTIVATION ......................2 Important notice ................................6 Getting to know your phone ........... 12 Phone overview ...................................... 12 Installing the Micro SIM card and battery ......................................................14 Charging your phone ........................... 15 Inserting a microSD card .................... 17 Removing the microSD card..............18 Formatting the microSD card ............18 Locking and unlocking the screen ... 19 Your Home screen ........................... 20 Touch Screen tips ................................20 Home screen .......................................... 21 Customizing the Home screen ...... 21 Returning to recently-used applications............................................22 Notifi cations ...........................................22 Swipe down for notifi cations & settings ................................................23 Quick Settings ...................................23 Indicator icons on the Status Bar....23 On-screen keyboard ............................25 Entering accented letters................25 Google account setup ..................... 26 Connecting to Networks and Devices ............................................. 27 Wi-Fi ........................................................ 27 Connecting to Wi-Fi networks....... 27 Turning Wi-Fi on and connecting to a Wi-Fi network ............................ 27 Bluetooth ................................................28 Tethering .................................................29 Smartphone Mobile Hotspots ..........30 Enabling Wi-Fi Direct to share through SmartShare ...........................30 SmartShare ............................................. 31 Calls .................................................. 34 Making a call .........................................34 Calling your contacts ...........................34 Answering and rejecting a call .........34 Adjusting the in-call volume .............35 Making a second call ..........................35 Ending a Call .........................................35 Ending a Call from the Status Bar...36 Viewing your call logs ..........................36 Contacts ............................................37 Searching for a contact ...................... 37 Adding a new contact ......................... 37 Favorite Contacts.................................. 37 Creating a group ..................................38 Messaging ........................................ 39 Conversation view ................................39 Sending a message ............................39 Using smilies .........................................40 Changing your message settings ....40 Email .................................................. 41 Managing an email account............... 41 Working with account folders............. 41 Composing and sending email ........42 Camera ............................................. 43 Getting to know the viewfi nder .........43 4 Using the advanced settings ............44 Taking a quick photo ..........................45 Once you've taken a photo ................46 Viewing your saved photos ................ 47 Video camera ................................... 48 Getting to know the viewfi nder .........48 Using the advanced settings ............49 Recording a quick video .....................49 After recording a video .......................50 Watching your saved videos ..............50 Adjusting the volume when viewing a video .....................................................50 LG Unique Functions ....................... 51 QuickMemo ............................................ 51 Using the QuickMe…

Text truncated - open the document above for the full version.

42 Composing and sending email To compose and send a message 1 While in the Email application, tap Compose . 2 Enter an address for the message’s intended recipient. As you enter text, matching addresses will be proposed from your Contacts. Separate multiple addresses using semicolons. 3 Tap the Cc and Bcc fi elds to copy contacts and tap Attach to attach fi les, if required. 4 Enter the subject and your message. 5 Tap Send to send the message. If you aren’t connected to a network, for example, if you’re working in airplane mode, the messages that you send will be stored in your Outbox folder until you connect to a network again. If it contains any pending messages, the Outbox will be displayed on the Accounts screen. TIP! When a new email arrives in your Inbox, you will be notified by a sound or vibration. Tap the email notification to stop receiving notifications. Email 43 Camera To open the Camera application, tap Camera on the Home screen. Getting to know the viewfinder Swap camera – Switch between the rear–facing camera lens and the front– facing camera lens. Voice shutter – To take a photo, say one of the following words: Cheese, Smile, Whisky, Kimchi or LG. Shot mode – Choose from Normal, Panorama or Continuous shot. Flash – Allows you to turn on the flash when taking a photo in dark conditions. Settings – Touch this icon to open the settings menu. See Using the advanced settings on the following page. Swap mode – Touch this icon and drag it downwards to switch to video mode. Capture – Touch to capture a picture. Gallery – Touch to view the last photo you captured. This enables you to access your Gallery and view saved photos while in camera mode. NOTE: Please ensure the camera lens is clean before taking pictures. 44 Using the advanced settings In the viewfinder, tap to open the advanced options. You can change the camera settings by scrolling through the list. After selecting the option, tap the Back Key . Touch if you want to change the viewfinder menu. Zoom in or out. Defines and controls the amount of sunlight entering the photo. Focuses on a specific spot. Selects photo resolution. If you choose high resolution, file size will increase, which means you will be able to store fewer photos in the memory. Finds the appropriate color and light settings for the current environment. The ISO rating determines the sensitivity of the camera's light sensor. The higher the ISO, the more sensitive the camera. This is useful in darker conditions when you cannot use the flash. Improves color quality in various lighting conditions. Applies artistic effects to your pictures. Sets a delay after the capture button is pressed. This is ideal if you want to be in the photo. Activate this to use your phone's location-based services. Take pictures wherever you are and tag them with the location. If you upload tagged pictures to a blog that supports geo tagging, you can see the pictures displayed on a map. NOTE: This function is only available when the GPS function is active. Camera 45 Selects a shutter sound. Automatically shows you the picture you just took. Set the storage location for your pictures. Choose from Internal memory and SD card. Restore all camera default settings. Touch this whenever you want to know how a function works. This icon will provide you with a quick guide. TIP! • When you exit the camera, some settings return to their defaults, such as white balance, color effect, timer and scene mode. Check these before you take your next photo. • The setting menu is superimposed over the viewfinder, so when you change photo color or quality elements, you will see a preview of the changed image behind the Settings menu. Taking a quick photo 1 Open the Camera application. 2 Holding the phone horizontally, point the lens towards the subject you want to photograph. 3 A focus box will appear in the center of the viewfi nder screen. You can also tap anywhere on the screen to focus on that spot. 4 When the focus box turns green, the camera has focused on your subject. 5 Touch to capture the photo. 46 Once you've taken a photo Your captured photo will appear on the screen if Auto review is set to On (refer to Using the advanced settings). Touch image preview in the bottom right corner of the screen to view the last photo you took. The following options are available: Tap to view the Gallery of your saved photos. Touch to share your photo using the SmartShare function. Touch to take another photo immediately. Touch to send your photo to others or share it via social network services. Touch to delete the photo. TIP! If you have a social networking account and set it up on your phone, you can share your photo with your social networking community. Touch the Menu Key to open all advanced options. Set image as – Touch to use the photo as a Contact photo, Home screen wallpaper or Lock screen wallpaper. Move – Touch to move the photo to another place. Copy – Touch to copy the selected photo and save it to another album. Rename – Touch to edit the name of the selected photo. Rotate left/right – To rotate left or right. Crop – Crop your photo. Move your finger across the screen to select the area to be cropped. Edit – View and edit the photo. Applies a brightness effect to your photo. Camera 47 Applies artistic effects to your photos. Applies color effects to your photos. Applies additional options to your photos. Slideshow – Automatically shows you the images in the current folder one after the other. Details – Find out more information about the contents. Viewing your saved photos You can access your saved photos when in camera mode. Just tap the image preview in the bottom right corner of the screen and your Gallery will be displayed. • To view more photos, scroll left or right. • To zoom in or out, double-tap the screen or place two fingers and spread them apart (move your fingers closer together to zoom out). 48 Video camera Getting to know the viewfinder Swap camera – Switch between the rear–facin…

Text truncated - open the document above for the full version.

Date: July 01, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFD801 Equip ment Class: DTS: Digital Transmission System To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics MobileComm USA hereby requests confidentiality and treatment of certain informa tion accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics MobileComm USA temporary confidentiality of commercially sensitive information prior to product release. The requested Pe rmanent and Temporary Confidential exhibits are listed as follows: The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Descriptions and Tune-Up Procedure 3 Schematics 4 Part List 5 Antenna Specification 6. Antenna distance 7 PCB Layout 8 simultaneous scenarios for SAR analysis SHORT-TERM 1 External Photos 2 Internal Photos 3 Test-Setup Photos 4 User’s Manual

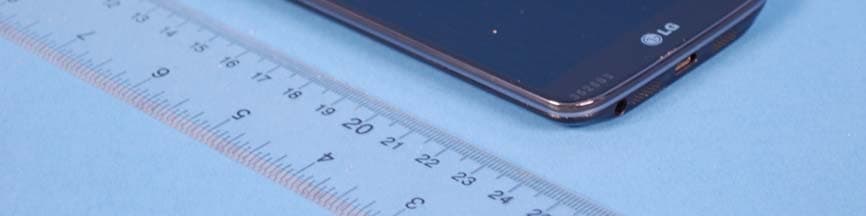

LG FCC ID: ZNFD801 Model: LG-D801 External Photos EUT Type: Portable Handset Page 1 of 4 © 2013 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG FCC ID: ZNFD801 Model: LG-D801 External Photos EUT Type: Portable Handset Page 2 of 4 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFD801 Model: LG-D801 External Photos EUT Type: Portable Handset Page 3 of 4 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFD801 Model: LG-D801 External Photos EUT Type: Portable Handset Page 4 of 4 © 2013 PCTEST Engineering Laboratory Inc.

Note: The FCC ID shown will be readily visible at the time of purchase. Note! FCC ID Label is attached inside the battery. And LG-D801 Model is applied an embedded type battery. So, FCC ID is stamped to the outside surface of a battery cover. so it is visible to the users as they purchase the product. ※ FCC ID Label Form IMEI Label Sticker LG-D801 Made in Korea * Carved stamp Position of FCC ID Label Position of FCC ID Stamp FCC ID : ZNFD801 Model No: LG-D801 FCC ID : ZNFD801 Model No: LG-D801 FCC ID : ZNFD801

LG FCC ID: ZNFD801 Model: LG-D801 Internal Photos EUT Type: Portable Handset Page 1 of 9 © 2013 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG FCC ID: ZNFD801 Model: LG-D801 Internal Photos EUT Type: Portable Handset Page 2 of 9 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFD801 Model: LG-D801 Internal Photos EUT Type: Portable Handset Page 3 of 9 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFD801 Model: LG-D801 Internal Photos EUT Type: Portable Handset Page 4 of 9 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFD801 Model: LG-D801 Internal Photos EUT Type: Portable Handset Page 5 of 9 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFD801 Model: LG-D801 Internal Photos EUT Type: Portable Handset Page 6 of 9 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFD801 Model: LG-D801 Internal Photos EUT Type: Portable Handset Page 7 of 9 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFD801 Model: LG-D801 Internal Photos EUT Type: Portable Handset Page 8 of 9 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFD801 Model: LG-D801 Internal Photos EUT Type: Portable Handset Page 9 of 9 © 2013 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: ZNFD801 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1305200870-R2.ZNF 05/21/13 – 06/04/13 Portable Handset Page 1 of 50 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. 05/21/13 – 06/04/13 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Document Serial No.: 0Y1305200870-R2.ZNF FCC ID: ZNFD801 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A., INC. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): LG-D801, LGD801, D801 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Wireless Router (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz33.17 0.510.810.81 PCEUMTS 850826.40 - 846.60 MHz23.080.27 0.470.47 PCEUMTS 17501712.4 - 1752.5 MHz24.040.28 1.121.12 PCEGSM/GPRS/EDGE 1900 1850.20 - 1909.80 MHz31.150.28 0.720.78 PCEUMTS 19001852.4 - 1907.6 MHz23.870.35 0.740.78 PCELTE Band 17706.5 - 713.5 MHz23.580.15 0.250.25 PCELTE Band 4 (AWS)1712.5 - 1752.5 MHz23.850.23 0.810.81 PCELTE Band 2 (PCS)1852.5 - 1907.5 MHz23.690.11 0.290.39 DTS2.4 GHz WLAN2412 - 2462 MHz15.500.33 < 0.1< 0.1 DTS5.8 GHz WLAN5745 - 5825 MHz8.83< 0.1< 0.1< 0.1 NII5.2 GHz WLAN5180 - 5240 MHz9.72< 0.1< 0.1< 0.1 NII5.3 GHz WLAN5260 - 5320 MHz9.87< 0.1< 0.1< 0.1 NII5.5 GHz WLAN5500 - 5700 MHz9.53< 0.1< 0.1< 0.1 DSS/DTSBluetooth2402 - 2480 MHz8.73 0.841.331.21 Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class N/ A SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. Note: This revised test report (S/N: 0Y1305200870-R2.ZNF) supersedes and replaces the previously issued test report on the same subject DUT for the same type of testing indicated. Please discard or destroy the previously issued tests report(s) and dispose of accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.8 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT Reviewed by: FCC ID: ZNFD801 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1305200870-R2.ZNF 05/21/13 – 06/04/13 Portable Handset Page 2 of 50 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ........................................................................................................................ 9 3 INTRODUCTION ........................................................................................................................... 10 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 11 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 12 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 13 7 RF EXPOSURE LIMITS ................................................................................................................ 15 8 FCC MEASUREMENT PROCEDURES........................................................................................ 16 9 RF CONDUCTED POWERS......................................................................................................... 20 10 SYSTEM VERIFICATION.............................................................................................................. 28 11 SAR DATA SUMMARY ................................................................................................................. 30 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS......................................................... 39 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 44 14 EQUIPMENT LIST......................................................................................................................... 45 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 46 16 CONCLUSION............................................................................................................................... 48 17 REFERENCES .............................................................................................................................. 49 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS Reviewed by: FCC ID: ZNFD801 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1305200870-R2.ZNF 05/21/13 – 06/04/13 Portable Handset Page 3 of 50 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz UMTS…

Text truncated - open the document above for the full version.

© 2012 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

FCC ID: ZNFD801 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 35 0Y1305200876.ZNF 5/28 - 6/3/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 2.6 04/30/2013 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A 5/28 - 6/3/2013 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1305200876.ZNF FCC ID: ZNFD801 APPLICANT: LG Electronics MobileComm U.S.A Application Type: Certification Model: LG-D801, LGD801, D801 EUT Type: Portable Handset Max. RF Output Power: 3.082 mW (4.89 dBm) Peak Conducted Frequency Range: 2402 - 2480 MHz FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r01 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 Bluetooth (Low Energy) FCC ID: ZNFD801 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 35 0Y1305200876.ZNF 5/28 - 6/3/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 2.6 04/30/2013 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 CONDUCTED EMISSIONS ........................................................................................................................... 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – BLUETOOTH (LE) ......................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – BLUETOOTH (LE) .......................................................................... 14 6.4 POWER SPECTRAL DENSITY – BLUETOOTH (LE) .................................................................................. 17 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE ...................................................................................... 20 6.6 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 22 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 27 6.8 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ...................................................................... 32 6.9 LINE-CONDUCTED TEST DATA ................................................................................................................. 33 7.0 CONCLUSION ....................................................................................................................................... 35 FCC ID: ZNFD801 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 35 0Y1305200876.ZNF 5…

Text truncated - open the document above for the full version.

FCC ID: ZNFD801 FCC Pt. 15.247 802.11b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 47 0Y1305200873.ZNF 5/23 - 6/6/2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. V 3.9 04/30/2013 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A 5/23 - 6/6/2013 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1305200873.ZNF FCC ID: ZNFD801 APPLICANT: LG Electronics MobileComm U.S.A Application Type: Certification Model(s): LG-D801, LGD801, D801 EUT Type: Portable Handset FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r01 Max. Power (mW ) Max. Power (dBm) Max. Power (mW ) Max. Power (dBm) 802.11b 2412 - 246235.64515.5268.54918.36 802.11g 2412 - 246215.95912.0374.81718.74 802.11n 2412 - 246212.91211.1163.97318.06 802.11ac2412 - 246211.69510.6861.09417.86 Avg Conducted Mode Tx Frequency (MHz) Peak Conducted This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART …

Text truncated - open the document above for the full version.
