ZNFD820GSM/CDMA/WCDMA+LTE Phone BT,WLAN(2.4.5GHz),NFC

For online help and support, visit support.google.com/nexus Quick Start Guide MBM00000000 (1.0) G Printed in Korea LG-D820 ENGLISH NEXUS 4 QUICK START GUIDE 1 Google, Android, Gmail, Google Maps, Nexus, Google Play, YouTube, Google+, and other trademarks are property of Google Inc. A list of Google trademarks is available at http://www. google. com/permissions/guidelines.html. LG and the LG logo are trademarks of LG Electronics Inc. All other trademarks are properties of their respective owners. The content of this guide may differ in some details from the product or its software. All information in this document is subject to change without notice. For online help and support, visit support.google.com/nexus 2 NEXUS 4 QUICK START GUIDENE P s V k S t Y 3 h j What’s in the box This Quick Start Guide and a Safety & Warranty booklet are also included. • If any item is damaged or missing, contact your point of purchase for assistance. • Use only approved accessories. • Accessories may vary by country or region. LG-D820 Trave l adapte r SIM ejection tool Micro USB cable DENEXUS 4 QUICK START GUIDE 3 FRONT TOP Earpiece Proximity sensor Volume key SIM card tray Your Nexus 4 Front- facing camera Micro- phone LED Power/ Lock key 3.5mm headset jack et nt 4 NEXUS 4 QUICK START GUIDENE C Yo un th If p h po th po BACK BOTTOM Camera lens Flash Volume key Speaker Charger/USB/ SlimPort 3.5mm headset jack Power/ Lock key Induction coil Micro- phone DENEXUS 4 QUICK START GUIDE 5 Charge the battery Your battery will not be fully charged when you fi rst unpack your LG-D820. It’s a good idea to fully charge the battery as soon as you get a chance. If you’re using the travel adapter that comes with the phone, connect one end of the data cable to the charger port at the bottom of the phone, and the other end to the travel adapter. Then connect the travel adapter to a power outlet. r 6 NEXUS 4 QUICK START GUIDENE In Be in m s c Th ph sm a 1. • The travel adapter varies by country or region. • Use only the travel adapter and Micro USB cable that come with your LG-D820. Using a different travel adapter or cable may damage your phone. • The input voltage range between the wall outlet and this travel adapter is AC 100V– 240V, and the travel adapter’s output voltage is DC 5V, 1.2A. • Charging your phone through a USB cable attached to another device, such as a laptop computer, takes longer than charging with a travel adapter. • LG-D820’s battery can’t be removed. Don’t attempt to open the phone. If you’re using a wireless charger, see the instructions that come with the charger. IMPORTANT: If you use a wireless charger, you must use an approved model and only as direct- ed. The LG-D820 travel adapter may not generate enough current to power a wireless charger. DENEXUS 4 QUICK START GUIDE 7 Insert Micro SIM card & turn on phone Before you start using your phone, you may need to insert your Micro SIM card. If no card is installed, the message “No SIM card” appears on the phone’s lock screen. Eject button aperture The SIM card tray is located on the left side of the phone below the volume button. The eject button is a small round aperture just above the tray door. To install a new Micro SIM card: 1. Insert the SIM ejection tool that comes with the phone (or a thin pin) into the eject button aperture, and push fi rmly but gently until the tray pops out. 8 NEXUS 4 QUICK START GUIDENE W pu To bu OK To pr se 2. Remove the tray and place the micro SIM card inside it, with the contacts out and the angled corner to the right. There is only one possible way to fi t the card snugly into the tray. 3. Carefully reposition the tray in the slot and push it gently back into the phone. TIP: Your phone’s IMEI identifi cation number is on the SIM card tray. You may need this number later to identify your phone for service purposes. Write the IMEI number down in your QSG or take a photo of the label on the product box. To turn on your LG-D820, press and hold the Power button on the right edge near the top for a few seconds. Power/ Lock key DENEXUS 4 QUICK START GUIDE 9 When LG-D820 is on, press the Power button again to put it into sleep mode or wake it up. To turn off your LG-D820, press and hold the Power button until a confi rmation dialog appears. Then touch OK to complete the shut down. To restart your LG-D820 if it becomes unresponsive, press and hold the Power/Lock key for at least 10 seconds. TIP: To quickly silence your phone or toggle airplane mode, press and hold the power button for one or two seconds to see a quick confi rmation dialog – even from the lock screen. e e s. 10 NEXUS 4 QUICK START GUIDENE A Ch LG re al t a Th X- be th he ca Bu de Set up your LG-D820 The fi rst time you turn on your phone, you’ll see a Welcome screen. To choose a different language, touch the menu. Then touch Start and follow the on-screen instructions. A series of screens takes you through the setup process. If you already have Gmail, use your Gmail address and password when asked. If you don’t have Gmail or any other Google Account, go ahead and create one. A Google Account lets you access your personal information from any computer or mobile device. If you skipped some of the steps in the Setup Wizard, you can confi gure new accounts (including Gmail) and adjust many other settings at any time. Touch the All Apps icon from any Home screen, then Settings. For additional help and support, visit support.google. com/nexus. DENEXUS 4 QUICK START GUIDE 11 Airplane precautions Check with airline personnel if you want to use your LG-D820 on board an aircraft. Most airlines have restrictions for using electronic devices. Most airlines allow electronic use only between and not during takeoffs and landings. There are three main types of airport security devices: X-ray machines (used on items placed on conveyor belts), magnetic detectors (used on people walking through security checks), and magnetic wands (hand- held devices used on people or individual i…

Text truncated - open the document above for the full version.

Date: June 12, 2013 UL Verification Services Inc. Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc.as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jacob Cho Director On behalf of LG Electronics MobileComm USA, Inc.

Date : July 22, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: ZNFD820 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG ELECTRONICS MobileComm USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG ELECTRONICS MobileComm USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Descriptions and Tune-Up Procedure 3 Schematics 4 Part List 5 Antenna Specification SHORT-TERM 1 External Photos 2 Internal Photos 3 Test-Setup Photos 4 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Jacop Cho Director On behalf of LG Electronics Mobilecomm U.S.A.,Inc

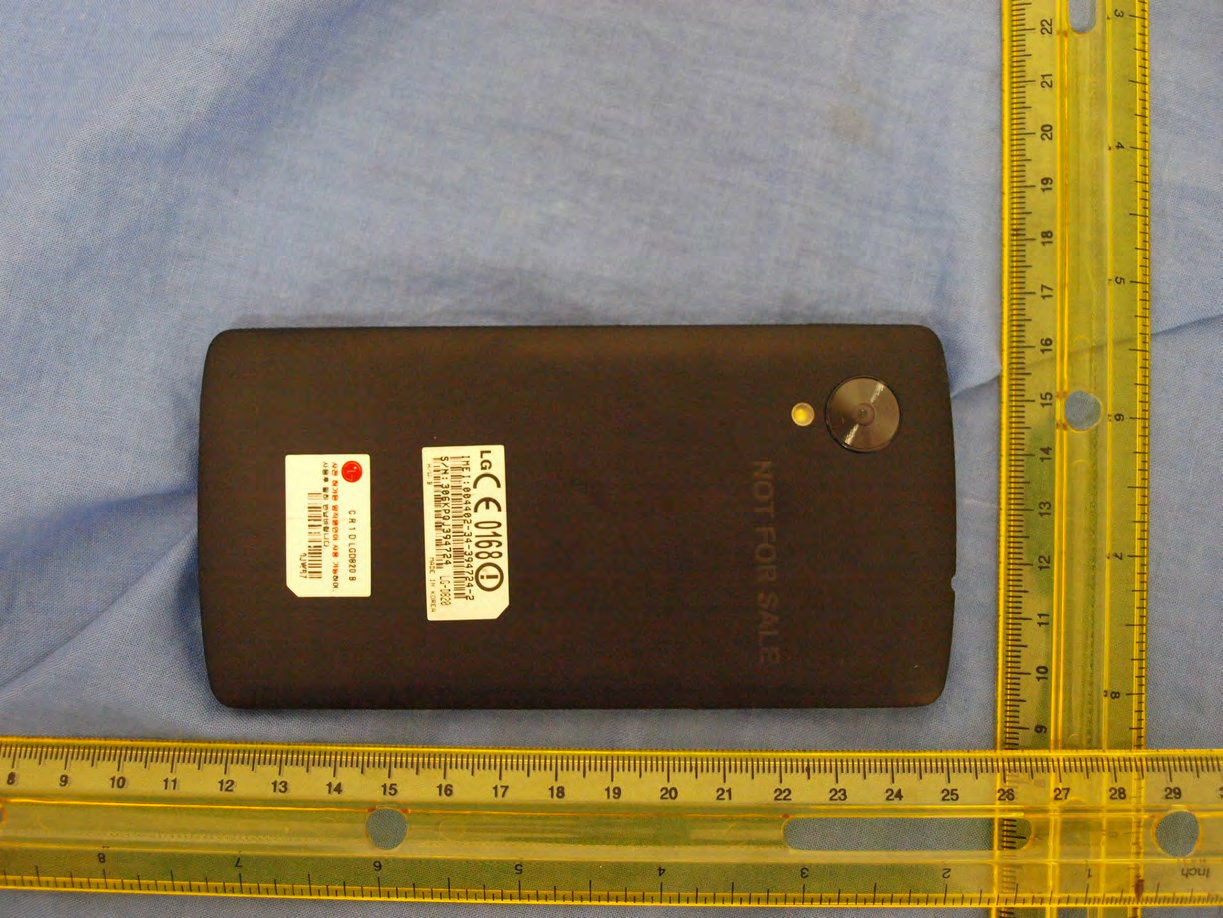

※ FCC ID Label Form *Note: This label and its location complies with 47 CFR 2.925(d) that FCC ID is readily visible to the purchaser at the time of purchase, and be permanently affixed to the product. And LG-D820 Model is applied an embedded type battery. And customer do not remove this back cover FCC ID is engraved to the outside surface of a battery cover. so it is visible to the users as they purchase the product. Below Fig.1 is representation of FCC Label information, Other information may be include on the label. FCC ID: ZNFD820 IC :2703C-D820 Model : LG-D820 Made in Korea FCC ID: ZNFD820 IC :2703C-D820 Model : LG-D820 Made in Korea Fig.1 Representation of FCC Label information Back side

① BT/WIFI ANT ② Main Ant (RX&TX) - GSM850 - WCDMA 850 - LTE B5/B17/B26/B41 - CDMA BC0, BC10 ③ Main Ant (RX&TX) - GSM 1900 - WCDMA 1700/1900 - LTE B2/B4/B25/B41 - CDMA BC1 D820 Antenna Distance For SAR Left Right Top ① ③ 111.3mm 128mm 7mm 60.9mm 117.5mm Front 2.75mm 1.4mm 0.6mm 1.4mm 0.6mm Bottom 68.2 mm 14.1mm ② 42.2mm 38.2mm D820 Antenna Distance ① BT/WIFI ANT ② Main Ant (RX&TX) - GSM850 - WCDMA 850 - LTE B5/B17/B26/B41 - CDMA BC0, BC10 ③ Main Ant (RX&TX) - GSM 1900 - WCDMA 1700/1900 - LTE B2/B4/B25/B41 - CDMA BC1 ④ MIMO Ant (RX) - LTE B5/B17/B20/B26 - Band Class 10 - WCDMA900/1700/1900/2100 ⑤ GPS/LTE7/LTE41 Ant (RX) Left Right Top ① 111.3mm ⑤ 7mm 60.9mm 54.33mm 117.5mm Front 3.9mm 2.75mm 2.5mm 131.9 mm ④ 37mm 106.4mm 125.3mm 12.1mm 2.5mm 1.5mm 26.7mm 6mm 14.1mm 1.4mm 0.6mm 1.4mm 0.6mm Bottom 68.2 mm ③ ② 42.2mm 38.2mm 128mm D820 Antenna Distance with NFC ① BT/WIFI ANT ② Main Ant (RX&TX) - GSM850 - WCDMA 850 - LTE B5/B17/B26/B41 - CDMA BC0, BC10 ③ Main Ant (RX&TX) - GSM 1900 - WCDMA 1700/1900 - LTE B2/B4/B25/B41 - CDMA BC1 ④ MIMO Ant (RX) - LTE B5/B17/B20/B26 - Band Class 10 - WCDMA900/1700/1900/2100 ⑤ GPS/LTE7/LTE41 Ant (RX) ⑥ NFC Left Right Top ① ⑤ Front 131.9 mm ④ 11.0 mm 27.0 mm 3.5 mm 9.2mm 21.1 mm 20.5 mm 7.5 mm 11.6 mm 42.8 mm 27.2 mm 13.0 mm 20.9 mm 32.7mm 14.2mm ⑥ ③ 1.4mm 0.6mm 1.4mm 0.6mm Bottom 68.2 mm ② 20.5 mm 38.2mm 42.2mm 7mm 3.9mm 2.75mm 2.5mm 1.5mm

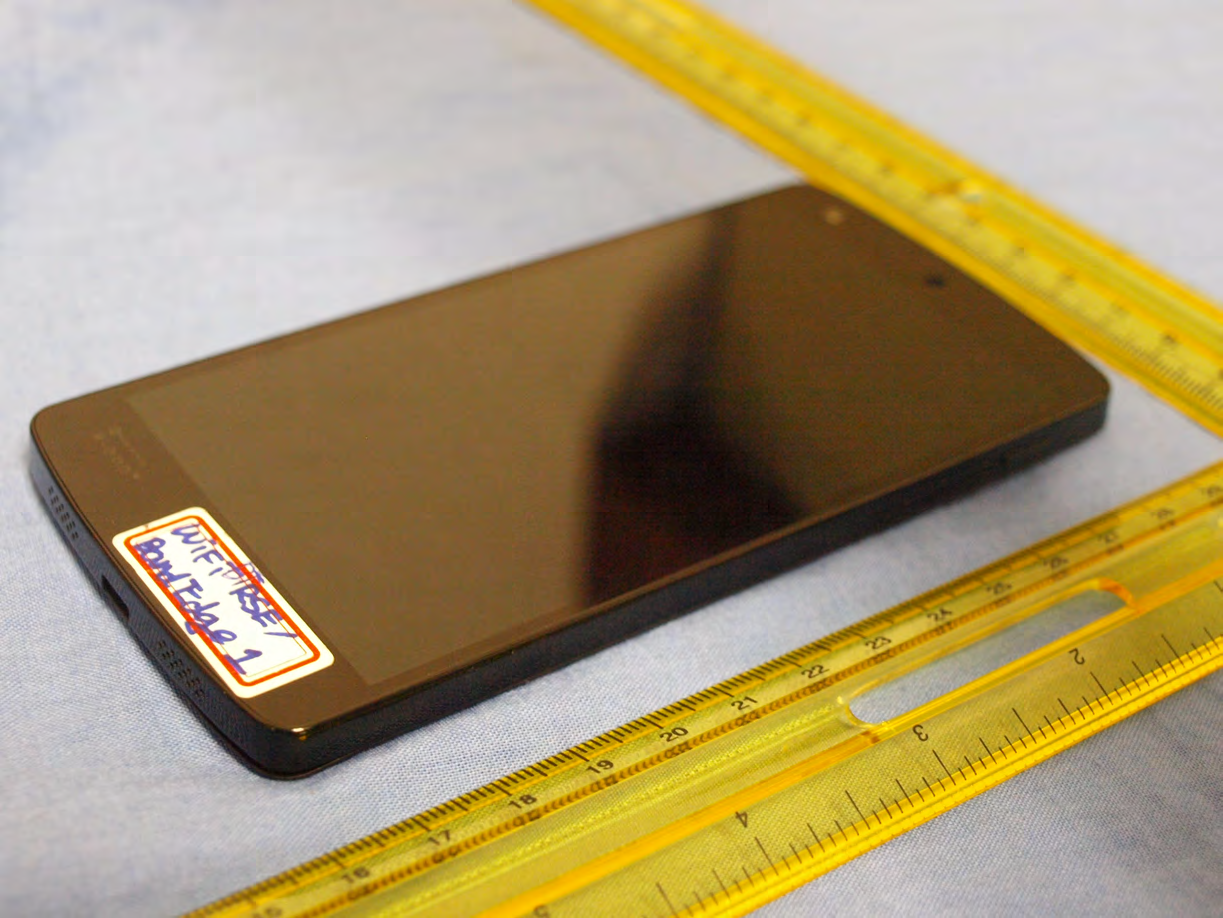

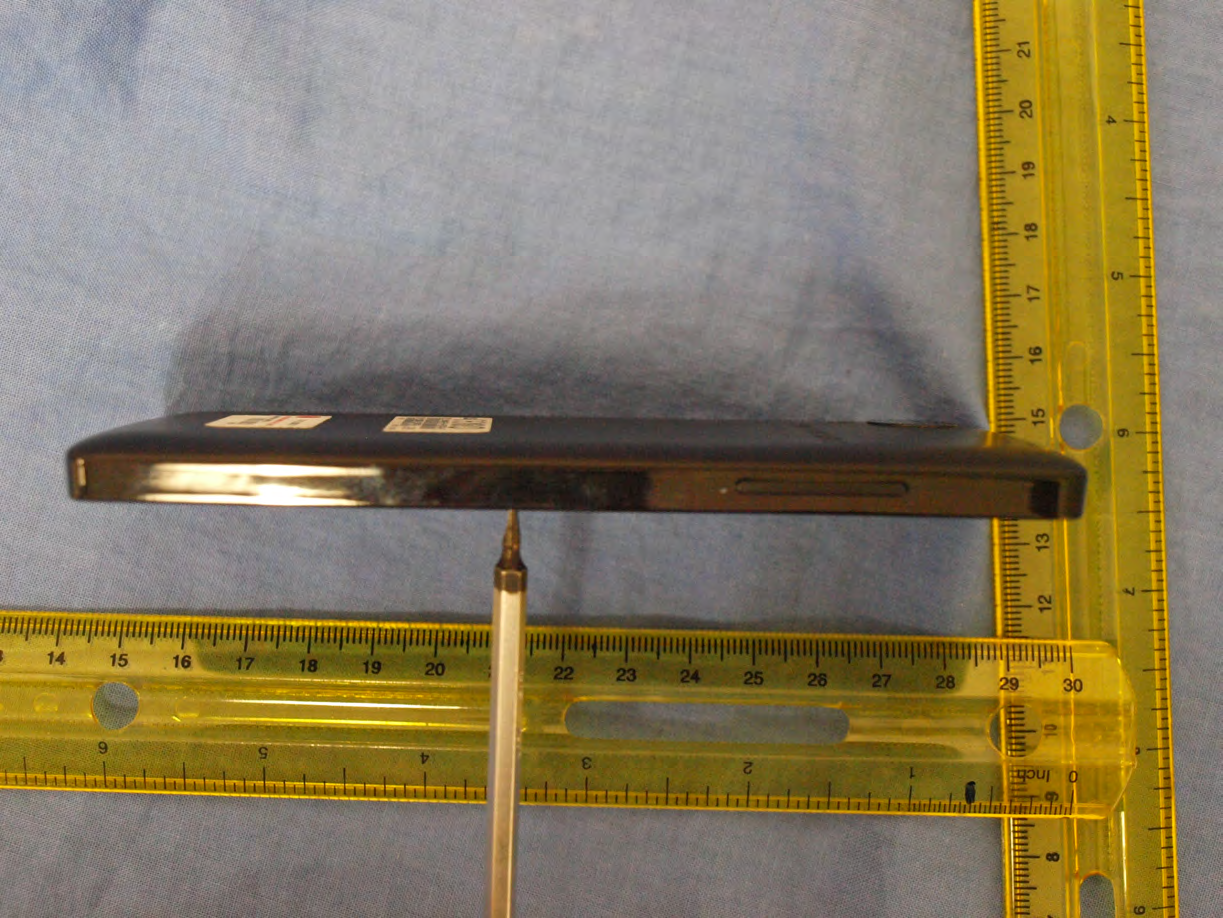

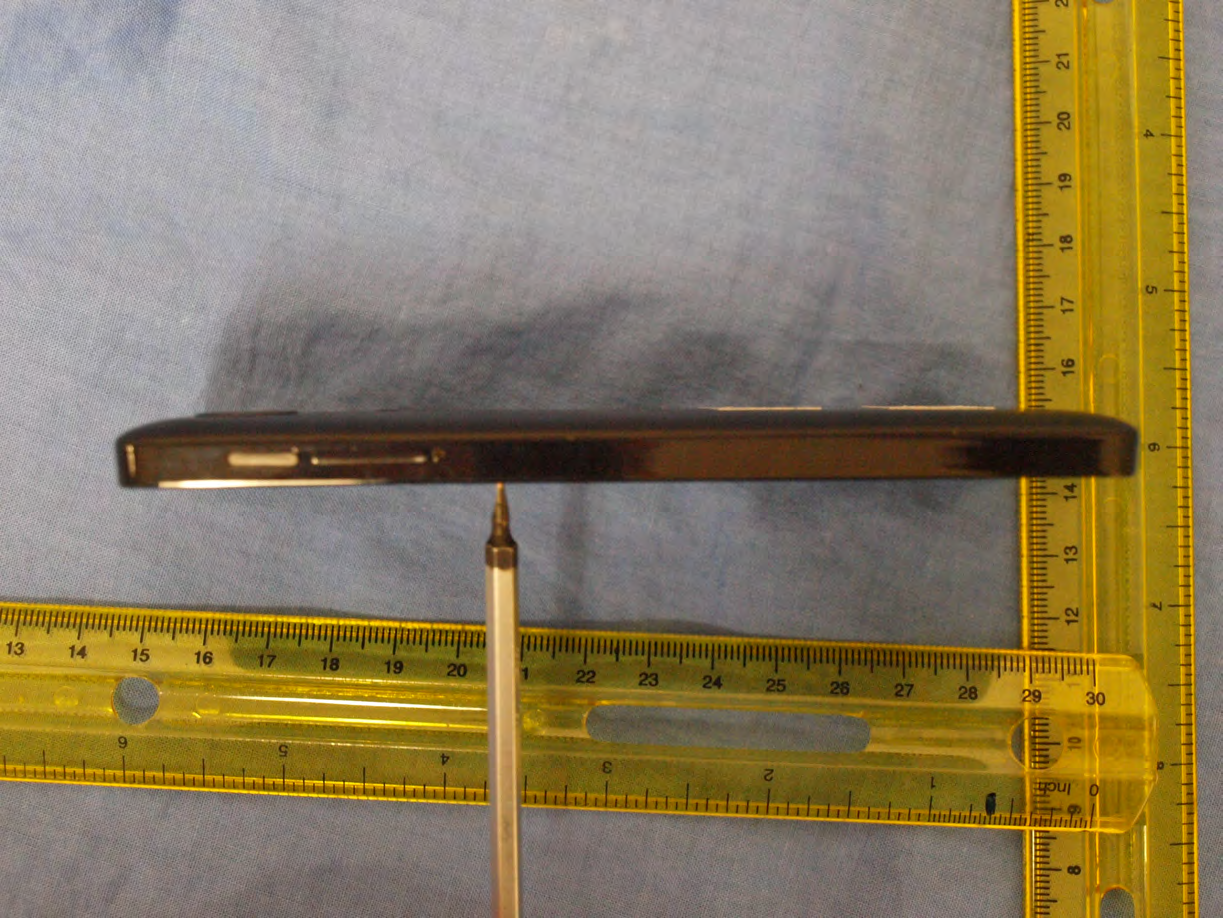

FCC 47 CFR Parts 1 & 2 Published RF Exposure KDB Procedures IEEE Std 1528-2003 and IEEE Std 1528a-2005 SAR EVALUATION REPORT For GSM/CDMA/WCDMA/LTE Phone + Bluetooth & WLAN (2.4GHz & 5GHz) and NFC Model: LG-D820, LGD820 and D820 FCC ID: ZNFD820 Report Number: 13U15420-7B Issue Date: 08/22/2013 Prepared for LG ELECTRONICS MOBILECOMM U.S.A., INC. 1000 SYLVAN AVE. ENGLEWOOD CLIFFS, NJ 07632 Prepared by UL Verification Services Inc. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 13U15420-7B Issue Date: 8/22/2013 FCC ID: ZNFD820 Page 2 of 180 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 7/24/2013 Initial Issue -- A 7/31/2013 Sec. 7.1.: Updated General Information regarding tunable antenna & added Back Cover information Sec. 7.2.: Updated SV-LTE & SV-DO to Not Supported Sec. 7.4.: Updated LTE Band 26 table Sec. 7.4.1.: Added statement from KDB 941225 D05 Kenneth Mak B 8/22/2013  Sec. 17.: Updated antenna distance diagram  Added missing SAR due to updated antenna location diagram  Updated report to reflect FCC OET Bulletin 65 Supplement C 01-01 not being recognized as FCC standard  Updated appendices Kenneth Mak Report No.: 13U15420-7B Issue Date: 8/22/2013 FCC ID: ZNFD820 Page 3 of 180 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ......................................................................................................... 8 2. Test Methodology ........................................................................................................................ 9 3. Facilities and Accreditation ........................................................................................................ 9 4. Calibration and Uncertainty ...................................................................................................... 10 4.1. Measuring Instrument Calibration ............................................................................................ 10 4.2. Measurement Uncertainty ........................................................................................................ 12 5. Measurement System Description and Setup ......................................................................... 13 6. SAR Measurement Procedure .................................................................................................. 14 6.1. Normal SAR Measurement Procedure ..................................................................................... 14 6.2. Volume Scan Procedures ........................................................................................................ 16 7. Device Under Test ..................................................................................................................... 17 7.1. General Information ................................................................................................................. 17 7.2. Wireless Technologies ............................................................................................................. 18 7.3. Simultaneous Transmission Condition ..................................................................................... 19 7.4. General LTE SAR Test and Reporting Considerations ............................................................. 20 7.4.1. TDD LTE Considerations .................................................................................................. 22 8. Exposure Conditions ................................................................................................................ 23 8.1. Head Exposure Conditions ...................................................................................................... 23 8.2. Body-worn Accessory Exposure Conditions ............................................................................. 23 8.3. Hotspot Exposure Conditions ................................................................................................... 24 8.4. WiFi Direct Exposure Conditions ............................................................................................. 24 9. RF Output Power Measurement ............................................................................................... 25 9.1. GSM850 .................................................................................................................................. 25 9.2. GSM1900 ................................................................................................................................ 26 9.3. W-CDMA Band V ..................................................................................................................... 27 9.4. W-CDMA Band IV .................................................................................................................... 33 9.5. W-CDMA Band II ..................................................................................................................... 39 9.6. CDMA BC0 .............................................................................................................................. 45 9.7. CDMA BC1 .............................................................................................................................. 46 9.8. CDMA BC10 ............................................................................................................................ 47 9.9. LTE Band 2 ...........................................................................................................…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc. SAR Lab A Date: 6/27/2013 20130627_SystemPerformanceCheck-D750V3 SN 1071 Frequency: 750 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 750 MHz; σ = 0.97 S/m; ε r = 53.664; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1343; Calibrated: 8/20/2012 - Probe: EX3DV4 - SN3749; ConvF(8.78, 8.78, 8.78); Calibrated: 1/15/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (B); Type: QDOVA001BB; Serial: 1118 Body/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 26.778 V/m; Power Drift = 0.18 dB Fast SAR: SAR(1 g) = 0.818 W/kg; SAR(10 g) = 0.553 W/kg Maximum value of SAR (interpolated) = 0.966 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.778 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 1.18 W/kg SAR(1 g) = 0.805 W/kg; SAR(10 g) = 0.537 W/kg Maximum value of SAR (measured) = 0.976 W/kg 0 dB = 0.976 W/kg = -0.11 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc. SAR Lab A Date: 6/27/2013 20130627_SystemPerformanceCheck-D750V3 SN 1071 Frequency: 750 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.03 W/kg Plot No. 3 Test Laboratory: UL Verification Services Inc. SAR Lab A Date: 7/1/2013 20130701_SystemPerformanceCheck-D1750V2 SN 1050 Frequency: 1750 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1750 MHz; σ = 1.456 S/m; ε r = 52.649; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1343; Calibrated: 8/20/2012 - Probe: EX3DV4 - SN3749; ConvF(7.36, 7.36, 7.36); Calibrated: 1/15/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1119 Body/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 59.706 V/m; Power Drift = 0.03 dB Fast SAR: SAR(1 g) = 3.91 W/kg; SAR(10 g) = 2.04 W/kg Maximum value of SAR (interpolated) = 5.14 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 59.706 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 6.97 W/kg SAR(1 g) = 3.88 W/kg; SAR(10 g) = 2.06 W/kg Maximum value of SAR (measured) = 5.20 W/kg 0 dB = 5.20 W/kg = 7.16 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc. SAR Lab A Date: 7/1/2013 20130701_SystemPerformanceCheck-D1750V2 SN 1050 Frequency: 1750 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 5.19 W/kg Plot No. 5 Test Laboratory: UL Verification Services Inc. SAR Lab B Date: 6/20/2013 20130620_SystemPerformanceCheck-D1900V2 SN 5d163 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.434 S/m; ε r = 39.246; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE3 Sn427; Calibrated: 1/9/2013 - Probe: EX3DV4 - SN3751; ConvF(7.18, 7.18, 7.18); Calibrated: 11/15/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1629 Head/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 57.008 V/m; Power Drift = 0.04 dB Fast SAR: SAR(1 g) = 4.26 W/kg; SAR(10 g) = 2.24 W/kg Maximum value of SAR (interpolated) = 5.72 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.008 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 7.88 W/kg SAR(1 g) = 4.17 W/kg; SAR(10 g) = 2.16 W/kg Maximum value of SAR (measured) = 5.64 W/kg 0 dB = 5.64 W/kg = 7.51 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc. SAR Lab B Date: 6/20/2013 20130620_SystemPerformanceCheck-D1900V2 SN 5d163 Frequency: 1900 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 4.65 W/kg Plot No. 7 Test Laboratory: UL Verification Services Inc. SAR Lab 1 Date: 6/23/2013 20130623_SystemPerformanceCheck-D835V2 SN 4d002 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 0.92 S/m; ε r = 42.48; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1259; Calibrated: 2/7/2013 - Probe: EX3DV3 - SN3531; ConvF(10.08, 10.08, 10.08); Calibrated: 11/15/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: TP 1751 Head/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 33.207 V/m; Power Drift = -0.03 dB Fast SAR: SAR(1 g) = 1.04 W/kg; SAR(10 g) = 0.703 W/kg Maximum value of SAR (interpolated) = 1.23 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 33.207 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 1.50 W/kg SAR(1 g) = 1.01 W/kg; SAR(10 g) = 0.668 W/kg Maximum value of SAR (measured) = 1.23 W/kg 0 dB = 1.23 W/kg = 0.90 dBW/kg Plot No. 8 Test Laboratory: UL Verification Services Inc. SAR Lab 1 Date: 6/23/2013 20130623_SystemPerformanceCheck-D835V2 SN 4d002 Frequency: 835 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR GSM/CDMA/WCDMA/LTE Phone + Bluetooth & WLAN (2.4GHz & 5GHz) and NFC MODEL NUMBER: LG-D820, LGD820 and D820 FCC ID: ZNFD820 IC: 2703C-D820 REPORT NUMBER: 13U15420-2A ISSUE DATE: JULY 31, 2013 Prepared for LG ELECTRONICS MOBILECOMM U.S.A., INC. 1000 SYLVAN AVENUE ENGLEWOOD CLIFFS, NJ 07632 Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 13U15420-2A DATE: July 31, 2013 FCC ID: ZNFD820 IC: 2703C-D820 Page 2 of 123 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 7/17/13 Initial Issue P. Kim A 7/31/13 Update data and labels P. Kim REPORT NO: 13U15420-2A DATE: July 31, 2013 FCC ID: ZNFD820 IC: 2703C-D820 Page 3 of 123 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 5 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................ 6 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 6 4.2. SAMPLE CALCULATION ............................................................................................ 6 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 6 5. EQUIPMENT UNDER TEST ............................................................................................... 7 5.1. DESCRIPTION OF EUT .............................................................................................. 7 5.2. MAXIMUM OUTPUT POWER...................................................................................... 7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 7 5.4. SOFTWARE AND FIRMWARE .................................................................................... 7 5.5. WORST-CASE CONFIGURATION AND MODE .......................................................... 8 5.6. DESCRIPTION OF TEST SETUP ................................................................................ 9 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................11 7. ANTENNA PORT TEST RESULTS ...................................................................................12 7.1. BASIC DATA RATE GFSK MODULATION .................................................................12 7.1.1. 20 dB AND 99% BANDWIDTH ............................................................................12 7.1.2. HOPPING FREQUENCY SEPARATION .............................................................19 7.1.3. NUMBER OF HOPPING CHANNELS ..................................................................21 7.1.4. AVERAGE TIME OF OCCUPANCY ....................................................................26 7.1.5. OUTPUT POWER ...............................................................................................33 7.1.6. AVERAGE POWER .............................................................................................37 7.1.7. CONDUCTED SPURIOUS EMISSIONS ..............................................................38 7.2. ENHANCED DATA RATE 8PSK MODULATION ........................................................47 7.2.1. 20 dB AND 99% BANDWIDTH ............................................................................47 7.2.2. OUTPUT POWER ...............................................................................................54 7.2.3. AVERAGE POWER .............................................................................................58 7.2.4. CONDUCTED SPURIOUS EMISSIONS ..............................................................59 8. RADIATED TEST RESULTS .............................................................................................69 8.1. LIMITS AND PROCEDURE ........................................................................................69 8.2. TRANSMITTER ABOVE 1 GHz ..................................................................................70 8.2.1. BASIC DATA RATE GFSK MODULATION ..........................................................70 8.2.2. ENHANCED DATA RATE 8PSK MODULATION .................................................87 8.3. WORST-CASE BELOW 1 GHz ................................................................................. 104 9. AC POWER LINE CONDUCTED EMISSIONS ................................................................ 107 REPORT NO: 13U15420-2A DATE: July 31, 2013 FCC ID: ZNFD820 IC: 2703C-D820 Page 4 of 123 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This rep…

Text truncated - open the document above for the full version.
