          !"# Date: March 20#3 Federal Communications Commission Authorization and Evaluation Division 7435 Oakla nd Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFE425J Eq uipment Class:%&%  '  (  )  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,  MobileComm hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information no t customarily released to the public. The pub lic disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  MobileComm temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: %+,'-./+'0'+,/12-'22' 3) 4 - 5  1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure %+,' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

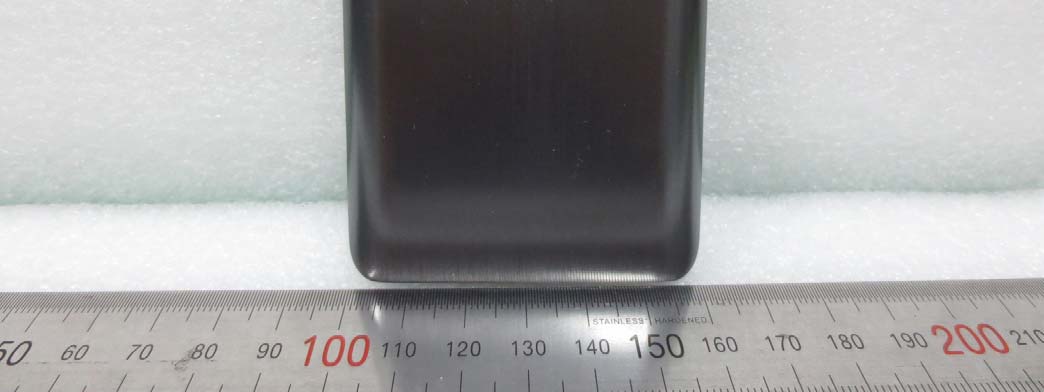

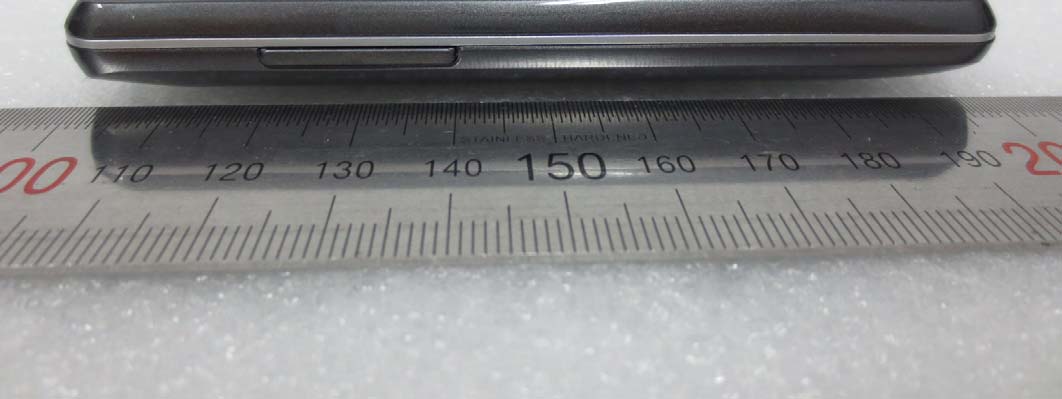

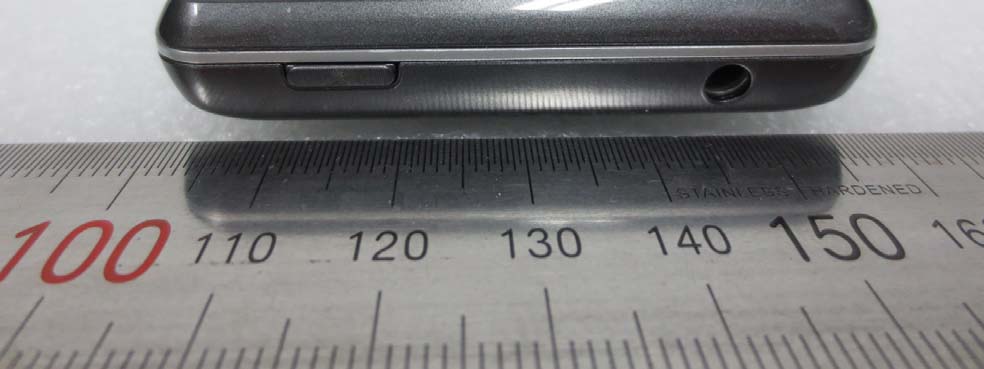

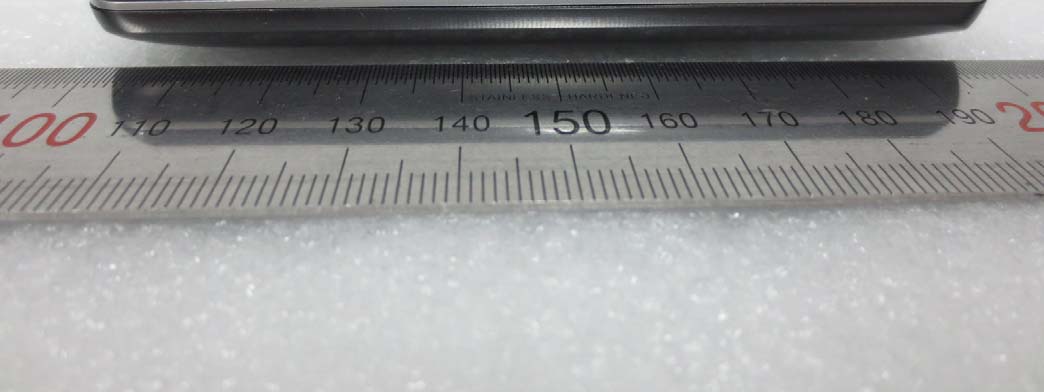

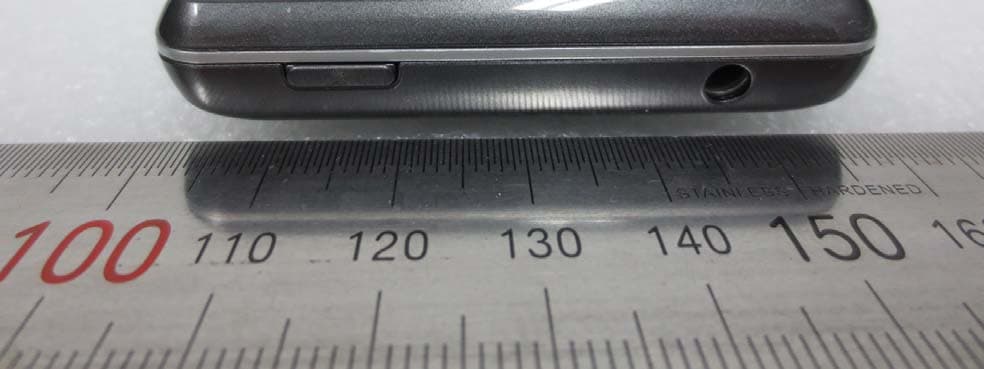

FCC ID: ZNFE425J HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 7 EXTERNAL PHOTOGRAPHS FCC ID: ZNFE425J HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 7 ■ EXTERNAL PHOTO FCC ID: ZNFE425J HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 7 ■ EXTERNAL PHOTO FCC ID: ZNFE425J HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 7 ■ EXTERNAL PHOTO FCC ID: ZNFE425J HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 7 ■ EXTERNAL PHOTO FCC ID: ZNFE425J HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 7 ■ EXTERNAL PHOTO FCC ID: ZNFE425J HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 7 ■ EXTERNAL PHOTO

※ FCC ID Label Form Note: The FCC ID shown will be readily visible at the time of purchase. Note! The label of the EUT is made of a white polypropylene laminate film and it's attached to the EUT by an adhesive. The adhesive is permanent type with strong strength. Additionally, the FCC ID is readily visible to the purchaser at the time of purchase because the phone will be marketed without the battery installed. Model No : LG-E425j FCC ID : ZNFE425J S/N : Made in Korea

FCC ID: ZNFE425J HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 13 INTERNAL PHOTOGRAPHS FCC ID: ZNFE425J HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 13 ■ Main Antenna_1 INTERNAL PHOTO Main Antenna 1 FCC ID: ZNFE425J HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 13 ■ Main Antenna_2 INTERNAL PHOTO Main Antenna 2 FCC ID: ZNFE425J HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 13 ■ BT&WLAN Antenna_INTERNAL PHOTO BT / WiFi Antenna FCC ID: ZNFE425J HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 13 ■ BT&WLAN Antenna-1 INTERNAL PHOTO BT / WiFi Antenna-1 FCC ID: ZNFE425J HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 13 ■ INTERNAL PHOTO FCC ID: ZNFE425J HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 13 ■ INTERNAL PHOTO FCC ID: ZNFE425J HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 13 ■ INTERNAL PHOTO FCC ID: ZNFE425J HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 13 ■ INTERNAL PHOTO FCC ID: ZNFE425J HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １０ of 13 ■ INTERNAL PHOTO FCC ID: ZNFE425J HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １１ of 13 ■ INTERNAL PHOTO FCC ID: ZNFE425J HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １２ of 13 ■ INTERNAL PHOTO FCC ID: ZNFE425J HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １３ of 13 ■ INTERNAL PHOTO

SAR TEST REPORT HCT CO., LTD EUT Type: Cellular /PCS GSM/GPRS/EDGE(RX Only) /WCDMA /HSDPA Phone with Bluetooth, WLAN FCC ID: ZNFE425J Model: LG-E425j Additional Model LG-E425J, LGE425J, E425J, E425j, LGE425j Date of Issue: Apr.03, 2013 Test report No.: HCTA1303FS01 Test Laboratory: HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL: +82 31 645 6300 FAX: +82 31 645 6401 Applicant : LG Electronics, MobileComm U.S.A., Inc. 1000 Sylvan Avenue, Englewood Cliffs NJ 07632 Testing has been carried out in accordance with: RSS-102 Issue 4; Health Canada Safety Code 6 47CFR §2.1093 FCC OET Bulletin 65(Edition 97-01), Supplement C (Edition 01-01) ANSI/ IEEE C95.1 – 1992 IEEE 1528-2003 Test result: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Signature Report prepared by Approved by : Young-Soo Jang : Jae-Sang So Test Engineer of SAR Part Manager of SAR Part Report No.: HCTA1303FS01 FCC ID: ZNFE425J Date of Issue: Apr. 03, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 2 of 148 Table of Contents 1. INTRODUCTION .......................................................................................................................................... ４ 2. TEST METHODOLOGY ............................................................................................................................... ５ 3. DESCRIPTION OF DEVICE ......................................................................................................................... ６ 4. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... ７ 5. SAR MEASUREMENT PROCEDURE ..................................................................................................... １４ 6. DESCRIPTION OF TEST POSITION ....................................................................................................... １６ 7. MEASUREMENT UNCERTAINTY ........................................................................................................... １８ 8. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................................................. １９ 9. SAR SYSTEM VALIDATION .................................................................................................................... ２０ 10. SYSTEM VERIFICATION ....................................................................................................................... ２１ 11. RF CONDUCTED POWER MEASUREMENT ....................................................................................... ２３ 12. SAR Test configuration & Antenna Information ................................................................................ ３２ 13. SAR TEST DATA SUMMARY ................................................................................................................ ３３ 13.1 Measurement Results (GSM 850 Head SAR) ............................................................................... ３３ 13.2 Measurement Results (GSM 1 900 Head SAR) ............................................................................ ３４ 13.3 Measurement Results (WCDMA 1 900 Head SAR) ...................................................................... ３５ 13.4 Measurement Results (802.11b/g/n Head SAR) ........................................................................... ３６ 13.5 Measurement Results (GSM850 Hotspot SAR) ............................................................................ ３７ 13.6 Measurement Results (GSM1900 Hotspot SAR) .......................................................................... ３８ 13.9 Measurement Results (WCDMA 1 900 Hotspot SAR) .................................................................. ３９ 13.10 Measurement Results (802.11b/g/n Hotspot SAR) ..................................................................... ４０ 13.11 Measurement Results (Body-worn SAR) ..................................................................................... ４１ 14. SAR Measurement Variability and Uncertainty.................................................................................. ４２ 15. SAR Summation Scenario ................................................................................................................... ４３ 16. CONCLUSION ........................................................................................................................................ ４６ 17. REFERENCES ....................................................................................................................................... ４７ Attachment 1. – SAR Test Plots ................................................................................................................ ４８ Attachment 2. – Dipole Verification Plots .............................................................................................. １０５ Attachment 3. – Probe Calibration Data ................................................................................................ １１２ Attachment 4. – Dipole Calibration Data ............................................................................................... １２４ Report No.: HCTA1303FS01 FCC ID: ZNFE425J Date of Issue: Apr. 03, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 3 of 148 Version Rev DATE DESCRIPTION Mar. 27, 2013 First Approval Report 1 Apr. 3, 2013 Page 43, 44 is reviesed Report No.: HCTA1303FS01 FCC ID: ZNFE425J Date of Issue: Apr. 03, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr …

Text truncated - open the document above for the full version.

Report No.: HCTA1303FS01 FCC ID: ZNFE425J Date of Issue: Apr. 03, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 96 of 148 Test Laboratory: HCT CO., LTD EUT Type: Cellular /PCS GSM/GPRS/EDGE(RX Only) /WCDMA /HSDPA Phone with Bluetooth, WLAN Liquid Temperature: 21.2 °C Ambient Temperature: 21.4 °C Test Date: Mar.18, 2013 Plot NO. 48 Separation Distance 1.0 cm DUT: LG-E425J; Type: bar; Serial: # 1 Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:2.77 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.987 mho/m; ε r = 56.8; ρ = 1000 kg/m 3 Phantom section: Center Section ; Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1605; ConvF(6.52, 6.52, 6.52); Calibrated: 2012-04-26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn466; Calibrated: 2013-02-21 - Phantom: Triple Flat Phantom 5.1C_20120905; Type: QD 000 P51 CA Body rear GPRS 3Tx 190 repeatation/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.913 mW/g Body rear GPRS 3Tx 190 repeatation/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.25 V/m; Power Drift = -0.187 dB Peak SAR (extrapolated) = 1.00 W/kg SAR(1 g) = 0.870 mW/g; SAR(10 g) = 0.693 mW/g Maximum value of SAR (measured) = 0.914 mW/g 0 dB = 0.914mW/g Report No.: HCTA1303FS01 FCC ID: ZNFE425J Date of Issue: Apr. 03, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 97 of 148 Test Laboratory: HCT CO., LTD EUT Type: Cellular /PCS GSM/GPRS/EDGE(RX Only) /WCDMA /HSDPA Phone with Bluetooth, WLAN Liquid Temperature: 21.2°C Ambient Temperature: 21.4°C Test Date: Mar.18, 2013 Plot NO. 7 DUT: LG-E425J; Type: bar; Serial: # 1 Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:2.77 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.92 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Right Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1605; ConvF(6.64, 6.64, 6.64); Calibrated: 2012-04-26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn466; Calibrated: 2013-02-21 - Phantom: 835/900 Phamtom ; Type: SAM Right touch GPRS 3Tx 190ch/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.753 mW/g Right touch GPRS 3Tx 190ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.11 V/m; Power Drift = -0.197 dB Peak SAR (extrapolated) = 0.933 W/kg SAR(1 g) = 0.705 mW/g; SAR(10 g) = 0.496 mW/g Maximum value of SAR (measured) = 0.755 mW/g Report No.: HCTA1303FS01 FCC ID: ZNFE425J Date of Issue: Apr. 03, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 98 of 148 Test Laboratory: HCT CO., LTD EUT Type: Cellular /PCS GSM/GPRS/EDGE(RX Only) /WCDMA /HSDPA Phone with Bluetooth, WLAN Liquid Temperature: 21.2 °C Ambient Temperature: 21.4 °C Test Date: Mar.18, 2013 Plot NO. 26 DUT: LG-E425J; Type: bar; Serial: # 1 Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:2.77 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.987 mho/m; ε r = 56.8; ρ = 1000 kg/m 3 Phantom section: Center Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1605; ConvF(6.52, 6.52, 6.52); Calibrated: 2012-04-26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn466; Calibrated: 2013-02-21 - Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA Body rear GPRS 3Tx 190/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.978 mW/g Body rear GPRS 3Tx 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.25 V/m; Power Drift = -0.123 dB Peak SAR (extrapolated) = 1.17 W/kg SAR(1 g) = 0.888 mW/g; SAR(10 g) = 0.633 mW/g Maximum value of SAR (measured) = 0.943 mW/g Body rear GPRS 3Tx 190/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.25 V/m; Power Drift = -0.123 dB Peak SAR (extrapolated) = 1.18 W/kg SAR(1 g) = 0.794 mW/g; SAR(10 g) = 0.548 mW/g Maximum value of SAR (measured) = 0.853 mW/g Report No.: HCTA1303FS01 FCC ID: ZNFE425J Date of Issue: Apr. 03, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 99 of 148 Test Laboratory: HCT CO., LTD EUT Type: Cellular /PCS GSM/GPRS/EDGE(RX Only) /WCDMA /HSDPA Phone with Bluetooth, WLAN Liquid Temperature: 21.4 °C Ambient Temperature: 21.6 °C Test Date: Mar.19, 2013 Plot NO. 13 DUT: LG-E425J; Type: bar; Serial: # 1 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:2.77 Medium parameters used: f = 1880 MHz; σ = 1.35 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 Phantom section: Left Section ; Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1605; ConvF(5.26, 5.26, 5.26); Calibrated: 2012-04-26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn466; Calibrated: 2013-02-21 - Phantom: 800/900 Phantom; Type: SAM Left Touch 661 GPRS 3Tx/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.632 mW/g Left Touch 661 GPRS 3Tx/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.52 V/m; Power Drift = -0.073 dB Peak SAR (extrapolated) = 0.920 W/kg SAR(1 g) = 0.597 mW/g; SAR(10 g) = 0.356 mW/g Maximum value of SAR (measured) = 0.632 mW/g Report No.: HCTA1303FS01 FCC ID: ZNFE425J Date of Issue: Apr. 03, 2013 HCT CO., LTD. 10…

Text truncated - open the document above for the full version.

FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1303FR24-1 Date of Issue: April 03, 2013 EUT Type: Cellular/PCS GSM/GPRS/EDGE(RX Only)/WCDMA/HSDPA Phone with Bluetooth, WLAN FCC ID: ZNFE425J Page 2 of 48 Version TEST REPORT NO. DATE DESCRIPTION HCTR1303FR24 March 26, 2013 First Approval Report HCTR1303FR24-1 April 03, 2013 Revise page 8 FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1303FR24-1 Date of Issue: April 03, 2013 EUT Type: Cellular/PCS GSM/GPRS/EDGE(RX Only)/WCDMA/HSDPA Phone with Bluetooth, WLAN FCC ID: ZNFE425J Page 3 of 48 Table of Contents 1. GENERAL INFORMATION ........................................................................................................................... 4 2. INTRODUCTION ........................................................................................................................................... 5 2.1. EUT DESCRIPTION ............................................................................................................................ 5 2.2. MEASURING INSTRUMENT CALIBRATION .................................................................................... 5 2.3. TEST FACILITY .................................................................................................................................. 5 3. DESCRIPTION OF TESTS ........................................................................................................................... 6 3.1 ERP/EIRP RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ..................................... 6 3.2 PEAK- TO- AVERAGE RATIO ............................................................................................................ 6 3.3 OCCUPIED BANDWIDTH. .................................................................................................................. 7 3.4 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL. ........................................... 8 3.6 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ........................................ 9 4. LIST OF TEST EQUIPMENT ...................................................................................................................... 10 5. SUMMARY OF TEST RESULTS ................................................................................................................. 11 6. SAMPLE CALCULATION ........................................................................................................................... 12 7. TEST DATA ................................................................................................................................................. 13 7.1 EFFECTIVE RADIATED POWER OUTPUT (GSM) .......................................................................... 13 7.2 EQUIVALENT ISOTROPIC RADIATED POWER (GSM / WCDMA) ................................................ 14 7.3 RADIATED SPURIOUS EMISSIONS ................................................................................................ 15 7.3.1 RADIATED SPURIOUS EMISSIONS (GSM850) .................................................................... 15 7.3.2 RADIATED SPURIOUS EMISSIONS (GSM1900) .................................................................. 16 7.3.3 SPURIOUS EMISSIONS (WCDMA1900) ................................................................................ 17 7.4 PEAK-TO-AVERAGE RATIO ............................................................................................................ 18 7.5 OCCUPIED BANDWIDTH ................................................................................................................. 18 7.6 CONDUCTED SPURIOUS EMISSIONS ........................................................................................... 19 7.6.1 BAND EDGE ............................................................................................................................ 19 7.7 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ...................................... 20 7.7.1 FREQUENCY STABILITY (GSM850) ..................................................................................... 20 7.7.2 FREQUENCY STABILITY (GSM1900) ................................................................................... 21 7.7.3 FREQUENCY STABILITY (WCDMA1900) ............................................................................. 22 8. TEST PLOTS ............................................................................................................................................... 23 FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1303FR24-1 Date of Issue: April 03, 2013 EUT Type: Cellular/PCS GSM/GPRS/EDGE(RX Only)/WCDMA/HSDPA Phone with Bluetooth, WLAN FCC ID: ZNFE425J Page 4 of 48 MEASUREMENT REPORT 1. GENERAL INFORMATION Applicant Name: LG Electronics MobileComm U.S.A., Inc. Address: 1000 Sylvan Avenue, Englewood Cliffs NJ 07632 FCC ID: ZNFE425J Application Type: Certification FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §22, §24, §2 EUT Type: Cellular/PCS GSM/GPRS/EDGE(RX Only)/WCDMA/HSDPA Phone with Bluetooth, WLAN FCC Model(s): LG-E425j Additional FCC Model(s): LG-E425J, LGE425J, E425J, E425j, LGE425j Tx Frequency: 824.20 - 848.80 MHz (GSM850) 1 850.20 - 1 909.80 MHz (GSM1900) 1 852.40 – 1 907.60 MHz (WCDMA1900) Rx Frequency: 869.20 - 893.80 MHz (GSM850) 1 930.20 - 1 989.80 MHz (GSM1900) 1 932.40 – 1 987.60 MHz (WCDMA1900) Max. RF Output Power: 0.533 W GSM850 (27.27 dBm) / 1.050 W GSM1900 (30.21 dBm) 0.394 W WCDMA1900 (25.96 dBm) Emission Designator(s): 249 KGXW (GSM850) / 250 KGXW (GSM1900) 4M18F9W (WCDMA1900) Date(s) of Tests: March 18, 2…
