ZNFE440JCellular/PCS GSM/WCDMA Phone with WLAN and Bluetooth

User Guide LG-E440j MFL00000000 (1.0) www.lg.com ENGLISH User Guide ENGLISH • Screen displays and illustrations may differ from those you see on actual phone. • Some of the contents of this guide may not apply to your phone, depending on the software and your service provider. All information in this document is subject to change without notice. • This handset is not suitable for people who have a visual impairment due to the touch screen keyboard. • Copyright ©2013 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners. • Google™, Google Maps™, Gmail™, YouTube™, Google Talk™ and Play Store™ are trademarks of Google, Inc. 2 Guidelines for safe and effi cient use .......5 Important notice .....................................13 Getting to know your phone ...................19 Phone overview .....................................19 Installing the SIM card and battery .........21 Charging the phone ...............................23 Using the memory card..........................24 Locking and unlocking the screen ..........24 Your Home screen ...................................25 Touch screen tips ..................................25 Home screen .........................................26 Customizing the Home screen ..............26 Returning to recently-used applications .27 Notifi cations ..........................................27 Swipe down for notifi cations & settings .28 Quick Settings .....................................28 Indicator icons on the Status Bar ..........29 On-screen keyboard ..............................30 Entering accented letters ......................31 Google account setup .............................32 Connecting to Networks and Devices ....33 Wi-Fi .....................................................33 Connecting to Wi-Fi networks ...............33 Turning Wi-Fi on and connecting to a Wi-Fi network ...............................................33 Bluetooth ...............................................34 Sharing your phone's data connection ...35 PC connections with a USB cable ...........37 Calls ........................................................39 Making a call .........................................39 Calling your contacts .............................39 Answering and rejecting a call ...............39 Adjusting the in-call volume ...................40 Making a second call .............................40 Viewing your call logs ............................40 Call settings ...........................................41 Contacts ..................................................42 Searching for a contact ..........................42 Adding a new contact ............................42 Favorite contacts ...................................42 Creating a group ....................................43 Messaging ...............................................44 Sending a message ...............................44 Threaded box .......................................45 Changing your message settings ...........45 E-mail ......................................................46 Managing an email account ...................46 Working with account folders .................46 Composing and sending email ...............47 Camera ....................................................48 Getting to know the viewfi nder ..............48 Using the advanced settings ..................49 Taking a quick photo .............................50 Once you've taken a photo.....................51 Table of contents 3 Viewing your saved photos ....................52 Video camera ..........................................53 Getting to know the viewfi nder ..............53 Using the advanced settings ..................54 Recording a quick video .........................54 After recording a video...........................55 Watching your saved videos ..................55 Adjusting the volume when viewing a video .....................................................55 LG Unique Function.................................56 QuickMemo function ..............................56 Using the QuickMemo options ..............57 Viewing the saved QuickMemo ............57 LG SmartWorld ......................................58 How to Get to LG SmartWorld from Your Phone ..........................................58 How to use LG SmartWorld ...................58 Multimedia ..............................................60 Gallery ...................................................60 Viewing pictures ..................................60 Playing videos .....................................60 Editing photos/videos ...........................61 Deleting images ...................................61 Setting as wallpaper ............................61 Videos ...................................................61 Playing a video ....................................61 Music ....................................................62 Playing a song .....................................62 FM Radio ...............................................64 Searching for stations ............................64 Tuning in automatically .........................64 Utilities ....................................................65 Setting your alarm .................................65 Using your calculator .............................65 Adding an event to your calendar ...........65 Voice Recorder ......................................66 Recording a sound or voice ..................66 Tasks .....................................................66 Polaris Viewer ........................................67 Google+ ................................................67 Voice Search..........................................67 Downloads ............................................67 The Web ..................................................68 Internet ..................................................68 Using the Web to…

Text truncated - open the document above for the full version.

42 Contacts Add contacts to your phone and synchronize them with the contacts in your Google account or other accounts that support contact syncing. Searching for a contact On the Home screen 1 Touch to open your contacts. 2 Touch Search contacts and enter the contact name using the keyboard. Adding a new contact 1 Touch , enter the new contact's number, then touch the Menu key . Touch Add to Contacts > Create new contact. 2 If you want to add a picture to the new contact, touch the image area. Choose from Take photo or Select from Gallery. 3 Select the contact type by touching . 4 Touch a category of contact information and enter the details about your contact. 5 Touch Save. Favorite contacts You can classify frequently called contacts as favorites. Adding a contact to your favorites 1 Touch to open your contacts. 2 Touch a contact to view its details. 3 Touch the star to the right of the contact's name. The star will turn yellow color. 43 Removing a contact from your favorites list 1 Touch to open your contacts. 2 Touch the tab, and choose a contact to view its details. 3 Touch the yellow color star to the right of the contact's name. The star turns grey color and the contact is removed from your favorites. Creating a group 1 Touch to open your contacts. 2 Touch Groups and touch the Menu key . Select New group. 3 Enter a name for the new group. You can also set a ringtone for the newly created group. 4 Touch Save to save the group. NOTE: If you delete a group, the contacts assigned to that group will not be lost. They will remain in your contacts. 44 Messaging Your phone combines SMS and MMS into one intuitive, easy-to-use menu. Sending a message 1 Touch on the Home screen and touch to open a blank message. 2 Enter a contact name or contact number in the To field. As you enter the contact name, matching contacts will appear. You can touch a suggested recipient. You can add more than one contact. NOTE: You will be charged for a text message for every person you send the message to. 3 Touch the Enter message field and begin composing your message. 4 Touch to open the Options menu. Choose from Quick message, Insert smiley, Schedule sending and Add subject. TIP! You can touch the icon to attach the file you want to share to your message. 5 Touch Send to send your message. 6 Responses will appear on the screen. As you view and send additional messages, a message thread is created. WARNING • The 160-character limit may vary from country to country, depending on the language and how the SMS is coded. • If an image, video or audio file is added to an SMS message, it is automatically converted into an MMS message and you are charged accordingly. 45 Threaded box Unread messages (SMS, MMS) are located on the top. And the others exchanged with another party can be displayed in chronological order so that you can conveniently see an overview of your conversation. Changing your message settings Your phone message settings are pre-defined, so you can send messages immediately. You can change the settings according to your preferences. • Touch the Messaging icon on the Home screen, touch and then tap Settings. 46 E-mail You can use the E-mail application to read emails from services like Gmail. The E-mail application supports the following account types: POP3, IMAP and Exchange. Your service provider or system administrator can provide you with the account settings you need. Managing an email account The first time you open the E-mail application, a set-up wizard opens to help you to set up an email account. After the initial set-up, E-mail displays the contents of your inbox. If you have added more than one account, you can switch among accounts. To add another email account: • Touch > Apps tab > E-mail > touch > Accounts > touch > Add account. To change an email account's settings: • Touch > Apps tab > E-mail > touch > Accounts > touch > Entire settings. To delete an email account: • Touch > Apps tab > E-mail > touch > Accounts > touch > Remove account > touch an account you want to delete > Remove > select Yes. Working with account folders Touch > Apps tab > E-mail > touch and select Folders. Each account has an Inbox, Outbox, Sent and Drafts folder. Depending on the features supported by your account's service provider, you may have additional folders. 47 Composing and sending email To compose and send a message 1 While in the E-mail application, touch the . 2 Enter an address for the message's intended recipient. As you enter text, matching addresses will be proposed from your Contacts. Separate multiple addresses using semicolons. 3 Touch the Cc/Bcc field to add a Cc/Bcc and Touch to attach files, if required. 4 Enter the text of the message. 5 Touch . If you aren't connected to a network, for example, if you're working in airplane mode, the messages that you send will be stored in your Outbox folder until you connect to a network again. If it contains any pending messages, the Outbox will be displayed on the Accounts screen. TIP! When a new email arrives in your Inbox, you will be notified by a sound or vibration. Tap the email notification to stop receiving notifications. 48 Camera To open the Camera application, tap Camera on the Home screen. Getting to know the viewfinder Zoom - Zoom in or out. Cheese shutter – This enables you to take a picture as voice command. Say "Cheese" when you get ready to take a photo. Brightness – This defines and controls the amount of sunlight entering the image. Flash – Automatically turns on the flash when taking a photo in a dark place. Settings – Touch this icon to open the Settings menu. Video mode – Touch this icon to switch to video mode. Capture – Takes a photo. Gallery – Touch to view the last photo you captured. This enables you to access your gallery and view saved photos within camera mode. NOTE: The memory capacity may differ depending on the shooting scene or shooting conditions. 49 Using the advanced settings In the viewfinder, tap to open the adva…

Text truncated - open the document above for the full version.

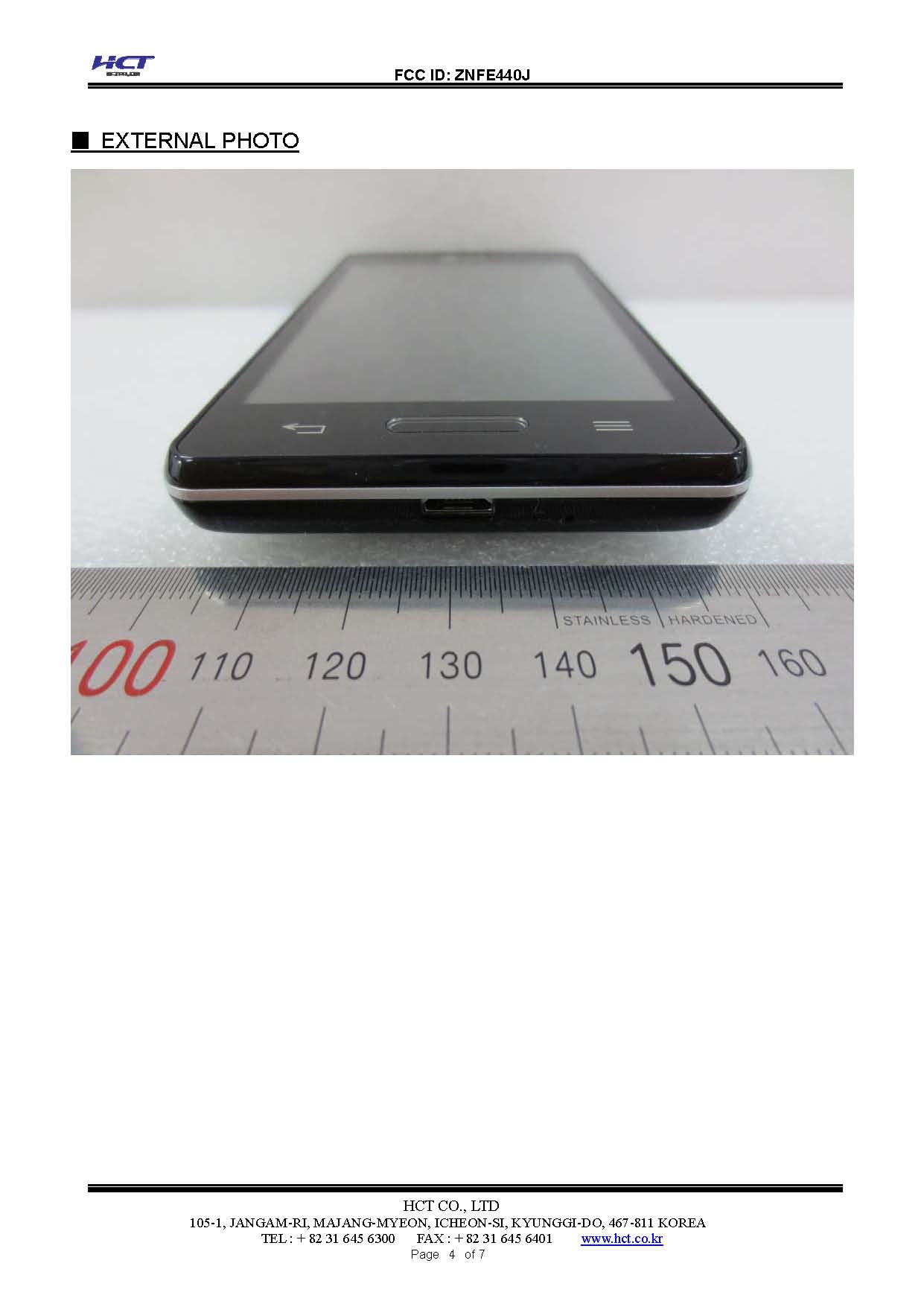

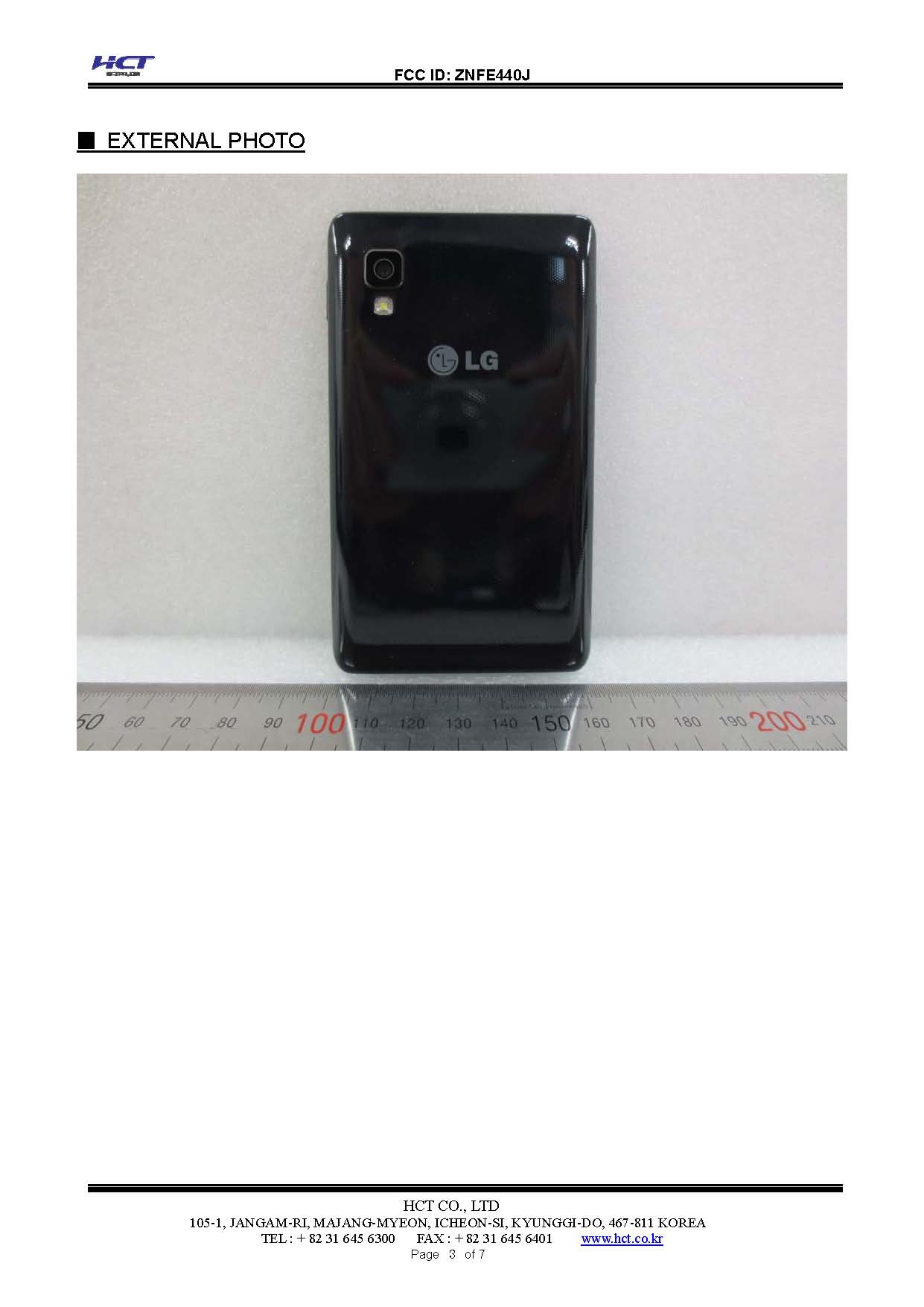

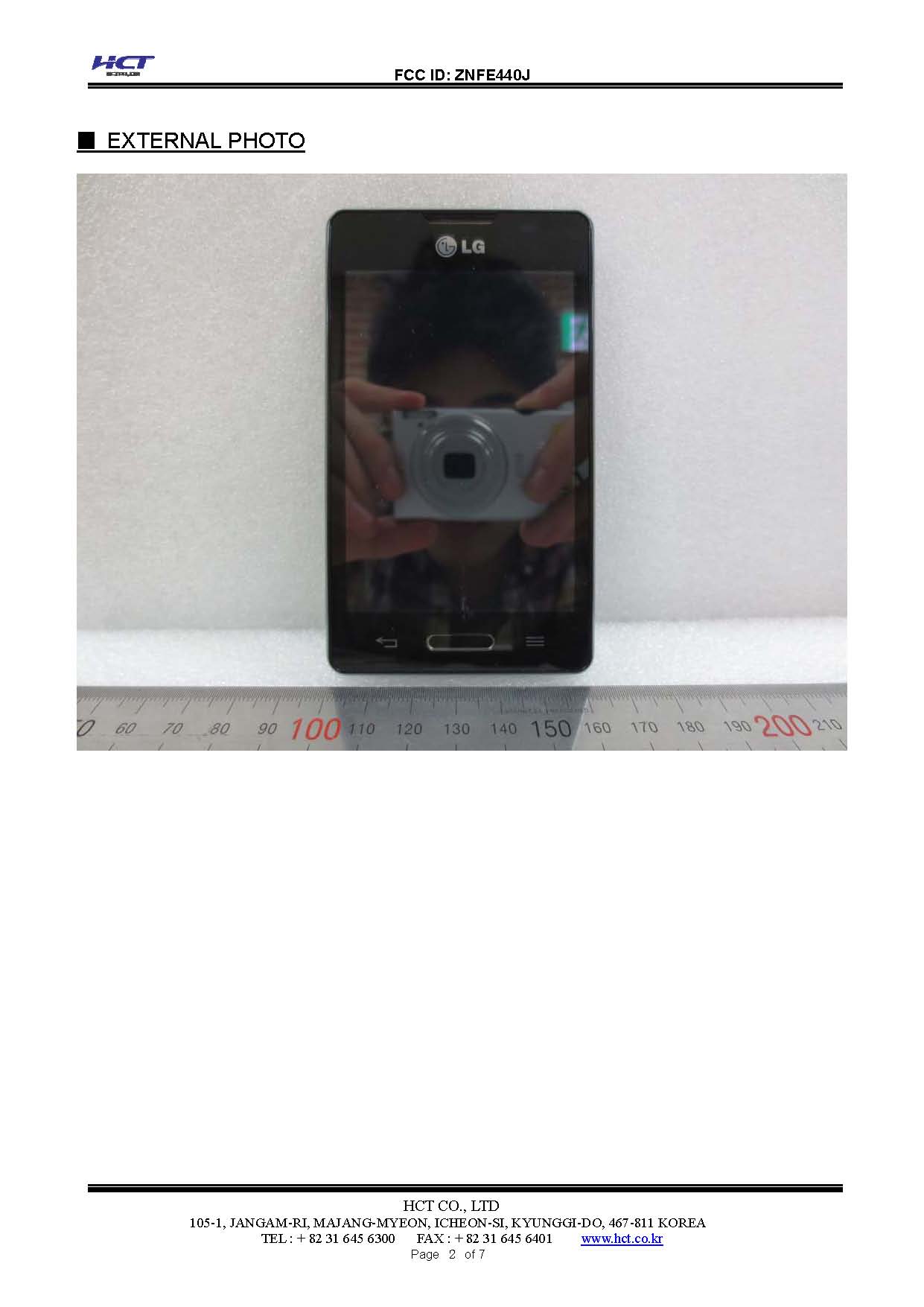

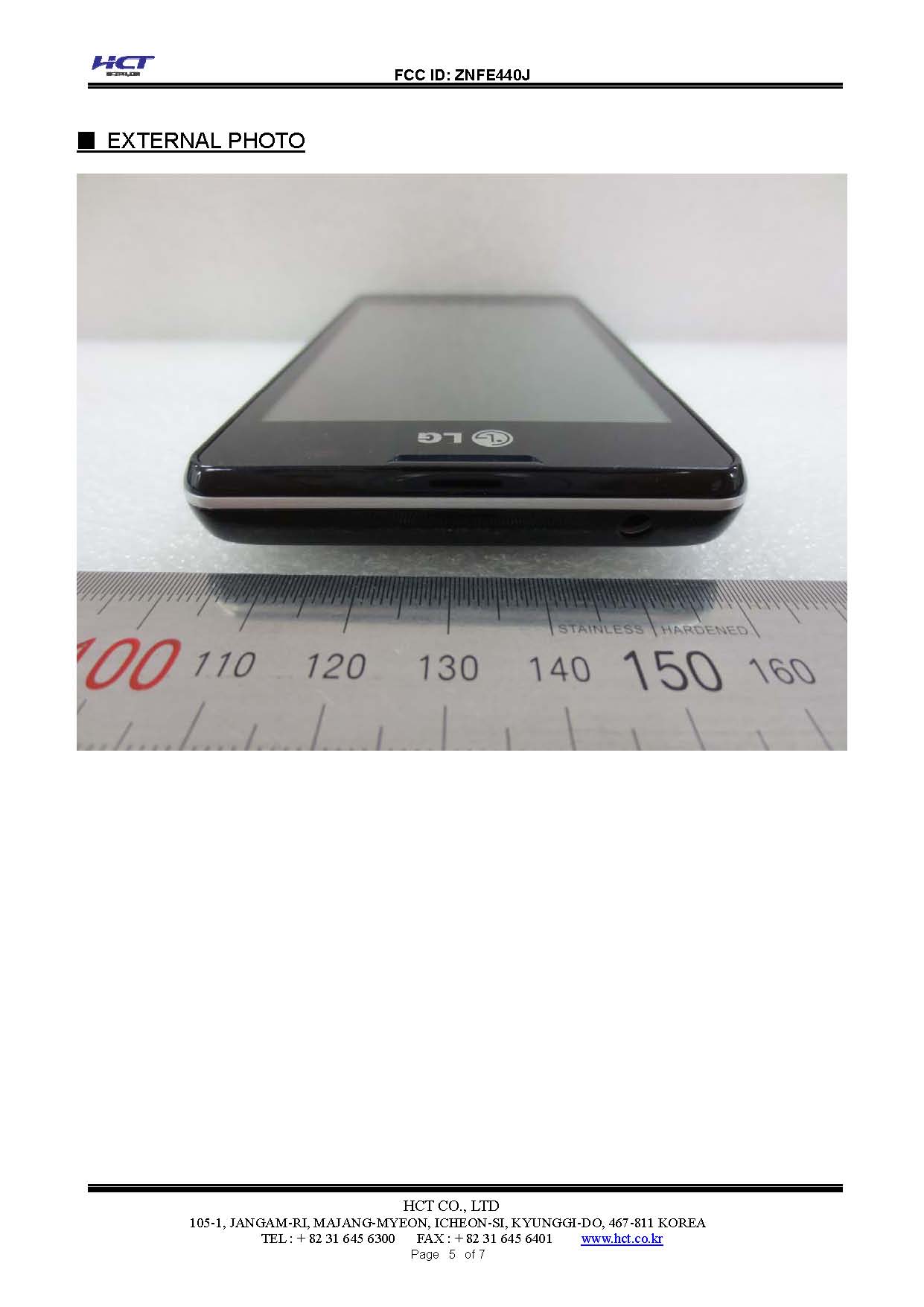

          !"# Date: May 14#3 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Requ est of Confidentiality for FCC ID: ZNFE440J Equipment Class:%&%  '  (  )  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,  MobileComm hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and p roprietary information not customarily released to the pub lic. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  MobileComm temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: %+,'-./+'0'+,/12-'22' 3) 4 - 5  1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure %+,' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

※ FCC ID Label Form Note: The FCC ID shown will be readily visible at the time of purchase. Note! We, LG Electronics MobileComm USA, state that our device, FCC ID ZNFE440J, has a battery. Howev er, the battery will not be placed in the battery compartment when delivery, so it is visible to the users as they purchase the product and install the battery. Additionally, the label is permanently attached. The label it's attached to the EUT by an adhesive. Model No : LG-E440j FCC ID : ZNFE440J S/N : Made in Korea

SAR TEST REPORT HCT CO., LTD EUT Type: GSM/WCDMA Phone with Bluetooth3.0, WIFI802.11 b/g/n FCC ID: ZNFE440J Model: LG-E440J Additional Model: LGE440J, E440J Date of Issue: May. 27, 2013 Test report No.: HCTA1305FS04 Test Laboratory: HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL: +82 31 645 6300 FAX: +82 31 645 6401 Applicant : LG Electronics, MobileComm U.S.A., Inc. 1000 Sylvan Avenue, Englewood Cliffs NJ 07632 Testing has been carried out in accordance with: RSS-102 Issue 4; Health Canada Safety Code 6 47CFR §2.1093 FCC OET Bulletin 65(Edition 97-01), Supplement C (Edition 01-01) ANSI/ IEEE C95.1 – 1992 IEEE 1528-2003 Test result: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Signature Report prepared by Approved by : Young-Soo Jang : Jae-Sang So Test Engineer of SAR Part Manager of SAR Part Report No.: HCTA1305FS04 FCC ID: ZNFE440J Date of Issue: May. 27, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 2 of 124 Table of Contents 1. INTRODUCTION .......................................................................................................................................... ４ 2. TEST METHODOLOGY ............................................................................................................................... ５ 3. DESCRIPTION OF DEVICE ......................................................................................................................... ６ 4. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... ７ 5. SAR MEASUREMENT PROCEDURE ..................................................................................................... １４ 6. DESCRIPTION OF TEST POSITION ....................................................................................................... １６ 7. MEASUREMENT UNCERTAINTY ........................................................................................................... １８ 8. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................................................. １９ 9. SAR SYSTEM VALIDATION .................................................................................................................... ２０ 10. SYSTEM VERIFICATION ....................................................................................................................... ２１ 11. RF CONDUCTED POWER MEASUREMENT ....................................................................................... ２３ 12. SAR Test configuration & Antenna Information ................................................................................ ３４ 13. SAR TEST DATA SUMMARY ................................................................................................................ ３５ 13.1 Measurement Results (GSM850 Head SAR) ................................................................................ ３５ 13.2 Measurement Results (GSM1900 Head SAR) .............................................................................. ３６ 13.3 Measurement Results (WCDMA 1900 Head SAR) ....................................................................... ３７ 13.4 Measurement Results (802.11b/g/n Head SAR) ........................................................................... ３８ 13.5 Measurement Results (GSM850 Hotspot SAR) ............................................................................ ３９ 13.6 Measurement Results (GSM1900 Hotspot SAR) .......................................................................... ４０ 13.7 Measurement Results (WCDMA 1900 Hotspot SAR) ................................................................... ４１ 13.8 Measurement Results (802.11b/g/n Hotspot SAR) ....................................................................... ４２ 14. SAR Measurement Variability and Uncertainty.................................................................................. ４３ 15. SAR Summation Scenario ................................................................................................................... ４４ 16. CONCLUSION ........................................................................................................................................ ４８ 17. REFERENCES ....................................................................................................................................... ４９ Attachment 1. – SAR Test Plots ................................................................................................................ ５０ Attachment 2. – Dipole Verification Plots ................................................................................................. ７０ Attachment 3. – Probe Calibration Data ................................................................................................... ７７ Attachment 4. – Dipole Calibration Data ............................................................................................... １００ Report No.: HCTA1305FS04 FCC ID: ZNFE440J Date of Issue: May. 27, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 3 of 124 Version Rev DATE DESCRIPTION May 15, 2013 First Approval Report 1 May 27, 2013 Page 24 is revised Report No.: HCTA1305FS04 FCC ID: ZNFE440J Date of Issue: May. 27, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 4 of 124 1. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the p…

Text truncated - open the document above for the full version.

Report No.: HCTA1305FS04 FCC ID: ZNFE440J Date of Issue: May. 27, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 61 of 124 Test Laboratory: HCT CO., LTD EUT Type: GSM/WCDMA Phone with Bluetooth3.0, WIFI802.11 b/g/n Liquid Temperature: 20.7 °C Ambient Temperature: 20.9 °C Test Date: May. 03, 2013 Plot No. 11 DUT: LG-E440j; Type: bar; Serial: #1 Communication System: WCDMA1900; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.53 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Phantom section: Center Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: EX3DV4 - SN3863; ConvF(7.46, 7.46, 7.46); Calibrated: 2012-07-13 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn466; Calibrated: 2013-02-21 - Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA Body rear 9400/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.29 mW/g Body rear 9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.7 V/m; Power Drift = -0.029 dB Peak SAR (extrapolated) = 1.83 W/kg SAR(1 g) = 1.14 mW/g; SAR(10 g) = 0.696 mW/g Maximum value of SAR (measured) = 1.24 mW/g 0 dB = 1.24mW/g Report No.: HCTA1305FS04 FCC ID: ZNFE440J Date of Issue: May. 27, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 62 of 124 Test Laboratory: HCT CO., LTD EUT Type: GSM/WCDMA Phone with Bluetooth3.0, WIFI802.11 b/g/n Liquid Temperature: 21.2 °C Ambient Temperature: 21.4 °C Test Date: May. 01, 2013 Plot No. 1 DUT: LG-E440j; Type: bar; Serial: #1 Communication System: GSM 850; Frequency: 848.8 MHz;Duty Cycle: 1:2.075 Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.929 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Phantom section: Right Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: EX3DV4 - SN3863; ConvF(9.3, 9.3, 9.3); Calibrated: 2012-07-13 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn466; Calibrated: 2013-02-21 - Phantom: 835/900 Phamtom ; Type: SAM Right Touch 251 4Tx/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.874 mW/g Right Touch 251 4Tx/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.84 V/m; Power Drift = -0.010 dB Peak SAR (extrapolated) = 1.04 W/kg SAR(1 g) = 0.822 mW/g; SAR(10 g) = 0.599 mW/g Maximum value of SAR (measured) = 0.868 mW/g Report No.: HCTA1305FS04 FCC ID: ZNFE440J Date of Issue: May. 27, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 63 of 124 Test Laboratory: HCT CO., LTD EUT Type: GSM/WCDMA Phone with Bluetooth3.0, WIFI802.11 b/g/n Liquid Temperature: 20.8 °C Ambient Temperature: 21.0 °C Test Date: May. 02, 2013 Plot No. 2 DUT: LG-E440j; Type: bar; Serial: #1 Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:2.075 Medium parameters used: f = 1910 MHz; σ = 1.43 mho/m; ε r = 39.5; ρ = 1000 kg/m 3 Phantom section: Left Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: EX3DV4 - SN3863; ConvF(8.22, 8.22, 8.22); Calibrated: 2012-07-13 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn466; Calibrated: 2013-02-21 - Phantom: 1800/1900 Phantom; Type: SAM Left Touch GPRS 4Tx 810/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.921 mW/g Left Touch GPRS 4Tx 810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.0 V/m; Power Drift = 0.001 dB Peak SAR (extrapolated) = 1.40 W/kg SAR(1 g) = 0.863 mW/g; SAR(10 g) = 0.512 mW/g Maximum value of SAR (measured) = 0.896 mW/g Report No.: HCTA1305FS04 FCC ID: ZNFE440J Date of Issue: May. 27, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 64 of 124 Test Laboratory: HCT CO., LTD EUT Type: GSM/WCDMA Phone with Bluetooth3.0, WIFI802.11 b/g/n Liquid Temperature: 20.8 °C Ambient Temperature: 21.0 °C Test Date: May. 02, 2013 Plot No. 3 DUT: LG-E440j; Type: bar; Serial: #1 Communication System: WCDMA1900; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.39 mho/m; ε r = 39.5; ρ = 1000 kg/m 3 Phantom section: Left Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: EX3DV4 - SN3863; ConvF(8.22, 8.22, 8.22); Calibrated: 2012-07-13 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn466; Calibrated: 2013-02-21 - Phantom: 1800/1900 Phantom; Type: SAM Left Touch 9400/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.13 mW/g Left Touch 9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.0 V/m; Power Drift = -0.077 dB Peak SAR (extrapolated) = 1.70 W/kg SAR(1 g) = 1.07 mW/g; SAR(10 g) = 0.647 mW/g Maximum value of SAR (measured) = 1.14 mW/g Left Touch 9400/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.0 V/m; Power Drift = -0.077 dB Peak SAR (extrapolated) = 1.24 W/kg SAR(1 g) = 0.802 mW/g; SAR(10 g) = 0.485 mW/g Maximum value of SAR (measured) = 0.855 mW/g Left Touch 9400/Zoom Scan (5x5x7)/Cube 2: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.0 V/m; Power Drift = -0.077 dB Peak SAR (extrapolated) = 1.23 W/kg SAR(1 g) = 0.769 mW/g; SAR(10 g) = 0.491 mW/g Maximum value of SAR (measured) = 0.927 mW/g Report No.: HCTA1305FS04 FCC ID: ZNFE440J Date of Issue: May. 27, 2013 HCT CO., LTD. 105-1, Jangam-ri, …

Text truncated - open the document above for the full version.

Report No.: HCTA1305FS04 FCC ID: ZNFE440J Date of Issue: May. 15, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr １ of 12 SAR Test Setup Photographs Report No.: HCTA1305FS04 FCC ID: ZNFE440J Date of Issue: May. 15, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr ２ of 12  Test Setup Photo Report No.: HCTA1305FS04 FCC ID: ZNFE440J Date of Issue: May. 15, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr ３ of 12  Test Setup Photo Report No.: HCTA1305FS04 FCC ID: ZNFE440J Date of Issue: May. 15, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr ４ of 12  Test Setup Photo Report No.: HCTA1305FS04 FCC ID: ZNFE440J Date of Issue: May. 15, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr ５ of 12  Test Setup Photo Report No.: HCTA1305FS04 FCC ID: ZNFE440J Date of Issue: May. 15, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr ６ of 12  Test Setup Photo Report No.: HCTA1305FS04 FCC ID: ZNFE440J Date of Issue: May. 15, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr ７ of 12  Test Setup Photo(Rear) [Distance of 1.0 cm from the EUT] Report No.: HCTA1305FS04 FCC ID: ZNFE440J Date of Issue: May. 15, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr ８ of 12  Test Setup Photo (Front) [Distance of 1.0 cm from the EUT] Report No.: HCTA1305FS04 FCC ID: ZNFE440J Date of Issue: May. 15, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr ９ of 12  Test Setup Photo (Right) [Distance of 1.0 cm from the EUT] Report No.: HCTA1305FS04 FCC ID: ZNFE440J Date of Issue: May. 15, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr １０ of 12 Test Setup Photo (Left) [Distance of 1.0 cm from the EUT] Report No.: HCTA1305FS04 FCC ID: ZNFE440J Date of Issue: May. 15, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr １１ of 12  Test Setup Photo (Bottom) [Distance of 1.0 cm from the EUT] Report No.: HCTA1305FS04 FCC ID: ZNFE440J Date of Issue: May. 15, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr １２ of 12  Test Setup Photo (Top) [Distance of 1.0 cm from the EUT]
