ZNFE450FCellular/PCS GSM and Cellular WCDMA Phone with WLAN and Bluetooth

ENGLISH 00000000 (1.0) User Guide LG-E450f www.lg.com User Guide ENGLISH • Screen displays and illustrations may differ from those you see on actual phone. • Some of the contents of this guide may not apply to your phone, depending on the software and your service provider. All information in this document is subject to change without notice. • This handset is not suitable for people who have a visual impairment due to the touch screen keyboard. • Copyright ©2013 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners. • Google™, Google Maps™, Gmail™, YouTube™, Google Talk™ and Play Store™ are trademarks of Google, Inc. 2 Guidelines for safe and efficient use .......5 Important notice .....................................15 Getting to know your phone ...................21 Phone overview .....................................21 Installing the SIM card and battery .........23 Charging the phone ...............................25 Using the memory card..........................25 Locking and unlocking the screen ..........26 Your Home screen ...................................27 Touch screen tips ..................................27 Home screen .........................................28 Customizing the Home screen ..............28 Returning to recently-used applications ...........................................29 Notifications ..........................................29 Swipe down for notifications & settings ...............................................30 Quick Settings .....................................30 Indicator icons on the Status Bar ..........31 On-screen keyboard ..............................32 Entering accented letters ......................32 Google account setup .............................33 Connecting to Networks and Devices ....34 Wi-Fi .....................................................34 Connecting to Wi-Fi networks ...............34 Turning Wi-Fi on and connecting to a Wi-Fi network ...................................34 Bluetooth ...............................................35 Sharing your phone's data connection ...36 PC connections with a USB cable ...........38 Calls ........................................................40 Making a call .........................................40 Calling your contacts .............................40 Answering and rejecting a call ...............40 Adjusting the in-call volume ...................41 Making a second call .............................41 Viewing your call logs ............................41 Call settings ...........................................42 Contacts ..................................................43 Searching for a contact ..........................43 Adding a new contact ............................43 Favorite contacts ...................................43 Creating a group ....................................44 Messaging ...............................................45 Sending a message ...............................45 Threaded box .......................................46 Changing your message settings ...........46 Email .......................................................47 Managing an email account ...................47 Working with account folders .................47 Composing and sending email ...............48 Camera ....................................................49 Getting to know the viewfinder ..............49 Using the advanced settings ..................50 Table of contents 3 Taking a quick photo .............................51 Once you've taken a photo.....................52 Viewing your saved photos ....................53 Video camera ..........................................54 Getting to know the viewfinder ..............54 Using the advanced settings ..................55 Recording a quick video .........................55 After recording a video...........................56 Watching your saved videos ..................56 Adjusting the volume when viewing a video ..................................................56 LG Unique Function.................................57 QuickMemo function ..............................57 Using the QuickMemo options ..............58 Viewing the saved QuickMemo ............58 LG SmartWorld ......................................59 How to Get to LG SmartWorld from Your Phone ..........................................59 How to use LG SmartWorld ...................59 Multimedia ..............................................61 Gallery ...................................................61 Viewing pictures ..................................61 Playing videos .....................................61 Editing photos/videos ...........................62 Deleting images ...................................62 Setting as wallpaper ............................62 Videos ...................................................62 Playing a video ....................................62 Music ....................................................63 Playing a song .....................................63 FM Radio ...............................................65 Searching for stations ............................65 Tuning in automatically .........................65 Utilities ....................................................66 Setting your alarm .................................66 Using your calculator .............................66 Adding an event to your calendar ...........66 Voice Recorder ......................................67 Recording a sound or voice ..................67 Tasks .....................................................67 Polaris Viewer ........................................68 Google+ ................................................68 Voice Search..........................................68 Downloads ............................................68 The Web ..................................................69 Internet ....…

Text truncated - open the document above for the full version.

57 QuickMemo function Use the QuickMemo function to practically and efficiently create memos during a call, with a saved picture or on the current phone screen. 1 Enter the QuickMemo function screen by pressing QuickMemo function key. OROR Touch and slide the status bar downward and touch . 2 Select the desired menu option from Pen type, Color, Eraser and create a memo. LG Unique Function 58 LG Unique Function 3 Touch in the Edit menu to save the memo with the current screen. NOTE: Please use a fingertip while using the QuickMemo function. Do not use your fingernail. Using the QuickMemo options You can easily use the QuickMenu options when using the QuickMemo function. Touch to keep the current memo on the screen and use the phone simultaneously. Selects whether to use the background screen or not. Undo or Redo. Selects the pen type and the colour. Erases the memo that you created. Touch to send your memo to others or share it via social network services. Saves the memo with the current screen in the Gallery. Viewing the saved QuickMemo Touch Gallery and select the QuickMemo album. 59 LG SmartWorld LG SmartWorld offers an assortment of exciting content - games, applications, wallpaper and ringtones - giving LG phone users the chance to enjoy richer "Mobile Life" experiences. How to Get to LG SmartWorld from Your Phone 1 Touch > Apps tab > tap the icon to access LG SmartWorld. 2 Tap Sign in and enter ID/PW for LG SmartWorld. If you have not signed up yet, tap Register to receive your LG SmartWorld membership. 3 Download the content you want. NOTE: What if there is no icon? 1 Using a mobile Web browser, access LG SmartWorld (www.lgworld.com) and select your country. 2 Download the LG SmartWorld App. 3 Run and install the downloaded file. 4 Access LG SmartWorld by tapping the icon. How to use LG SmartWorld • Participate in monthly LG SmartWorld promotions. Search content. Find content by category (e.g. Games, Education, Entertainment etc). List of downloaded/to-be updated content. 60 LG Unique Function • Try the easy "Menu" buttons to find what you’re looking for fast. Apps for you – Recommended content based on your previous choices. Settings – Set Profile and Display. Sign in – Set your ID and Password. • Try other useful functions as well. (Content Detail screen) NOTE: LG SmartWorld may not be available from all carriers or in all countries. 61 Gallery You can store multimedia files in internal memory for easy access to all your multimedia files. Use this application to view multimedia files like pictures and videos. 1 Touch > Apps tab > Gallery. Open a list of catalog bars that store your multimedia files. NOTE: • Some file formats are not supported, depending on the software installed on the device. • Some files may not play properly, depending on how they are encoded. Viewing pictures Launching Gallery displays your available folders. When another application, such as Email, saves a picture, the download folder is automatically created to contain the picture. Likewise, capturing a screenshot automatically creates the Screenshots folder. Select a folder to open it. Pictures are displayed by creation date in a folder. Select a picture to view it full screen. Scroll left or right to view the next or previous image. Zooming in and out Use one of the following methods to zoom in on an image: • Double-tap anywhere to zoom in. • Spread two fingers apart on any place to zoom in. Pinch to zoom out, or double-tap to return. Playing videos Video files show the icon in the preview. Select a video to watch it and tap . The Videos application will launch. Multimedia 62 Multimedia Editing photos/videos When viewing an photo/video, tap the Menu key and use the advanced editing options. • Slideshow: start a slideshow with the images in the current folder. Deleting images Use one of the following methods: • In a folder, tap and select photos/videos by ticking, and then tap on Delete. • When viewing a photo/Video, tap . Setting as wallpaper When viewing a photo, touch the Menu key > Set image as to set the image as wallpaper or to assign it to a contact. NOTE: • Some file formats are not supported, depending on the device software. • If the file size exceeds the available memory, an error can occur when you open files. Videos Your phone has a built-in video player that lets you play all of your favorite videos. To access the video player, touch > Apps tab > Videos. Playing a video 1 Touch > Apps tab > Videos. 2 Select the video you want to play. 63 Touch to pause video playback. Touch to resume video playback. Touch to go 10 seconds forward. Touch to go 10 seconds backward. Touch to manage the video volume. Touch to change the ratio of the video screen. Touch to lock a video screen. To change the volume while watching a video, press the up and down volume keys on the left-hand side of the phone. Touch and hold a video in the list. The Share, Delete and Details options will be displayed. Music Your phone has a built-in music player that lets you play all your favorite tracks. To access the music player, touch > Apps tab > Music. Playing a song 1 Touch > Apps tab > Music. 2 Touch Songs. 3 Select the song you want to play. Touch to find the files with YouTube. Touch to set shuffle mode. Touch to set repeat mode. 64 Multimedia Touch to manage the music volume. Touch to pause playback. Touch to resume playback. Touch to skip to the next track on the album or in the playlist. Touch to go back to the beginning of the song. Touch twice to return to the previous song. Touch to set the favourites. Touch to see the current playlist. Touch to see all song list. To change the volume while listening to music, press the up and down volume keys on the left-hand side of the phone. Touch and hold any song in the list. The Play, Add to playlist, Share, Set as ringtone, Delete, Details and Search options will be displayed. NOTE: • Some file formats are not supported, depending on the device software. • If the file size exc…

Text truncated - open the document above for the full version.

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: January 22, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia , MD 21046 RE: Request of Co nfidentiality for FCC ID: ZNFE450F Eq uipm ent Class: JBP: Part 15 Class B Com puting Device Peripheral To Whom It May Concern: Pursuant to Se ctions 0.457 and 0.459 of the Commission’s Rule s (CFR 47), and Section 552 (b) (4) of the Freedom of Info rmation Act, LG Electronics MobileComm USA hereby requests confidentiality and treatment of certain information accompanying thi s application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics MobileComm USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibi ts are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram PERMANENT 2 Operational Descriptions 3 External Photos 4 Internal Photos 5 Test-Setup Photos SHORT-TERM 6 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

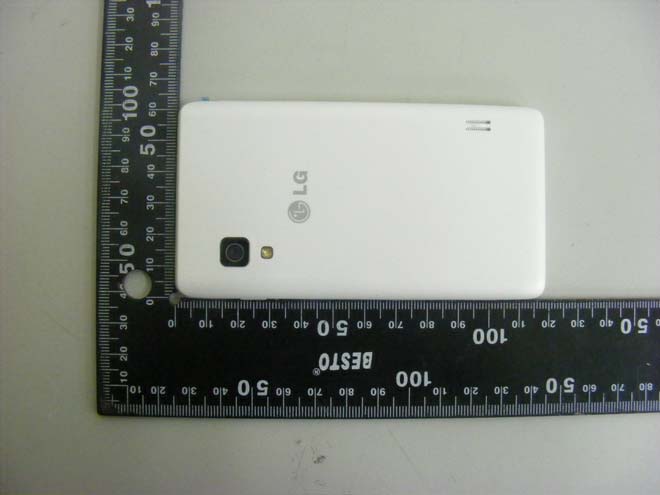

External photos of EUT Front view of EUT Rear view of EUT Side view of EUT

Model No: LG-E450F FCC ID : ZNFE450F S/N : Made in Korea LG Electronics MobileComm USA, Inc. LGE

Internal photos of EUT Internal view of EUT Top view of main board Bottom view of main board 2G, 3G Antenna WLAN/Bluetooth Antenna WLAN/Bluetooth Antenna

Test Report No. : F690501/RF-EMG004638-1 Page : 2 of 14 Contents 1. General Information ................................................................................................... 3 1.1 Client Information ................................................................................................ 3 1.2 Test Laboratory ................................................................................................... 3 1.3 General Information of E.U.T. ............................................................................. 3 1.4 Operating Modes and Conditions ........................................................................ 3 1.5 Auxiliary Equipments .......................................................................................... 4 1.6 Cable List ............................................................................................................ 5 1.7 System Configurations ........................................................................................ 6 1.8 Test System Layout ............................................................................................ 6 1.9 Modifications ....................................................................................................... 6 1.10 Applicable Standards for Testing ...................................................................... 6 1.11 Summary of Test Results .................................................................................. 6 2. Emission Test ............................................................................................................ 7 2.1 Test Results ........................................................................................................ 7 2.2 Test Method and Limits ....................................................................................... 7 2.2.1 Test Method ............................................................................................... 7 2.2.2 Test Limits .................................................................................................. 7 2.3 Conducted Emission ........................................................................................... 8 2.3.1 Test Equipments ........................................................................................ 8 2.3.2 Test Site ..................................................................................................... 8 2.3.3 Environment Conditions ............................................................................. 9 2.4 Radiated Emission ............................................................................................ 10 2.4.1 Test Equipments ...................................................................................... 10 2.4.2 Test Site ................................................................................................... 10 2.4.3 Environment Conditions ........................................................................... 11 Appendix A : Conducted Emission .............................................................................. 13 Appendix B : Radiated Emission ................................................................................. 14 Test Report No. : F690501/RF-EMG004638-1 Page : 3 of 14 1. General Information 1.1 Client Information Applicant : LG Electronics MobileComm U.S.A., Inc. Address of Applicant : 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Manufacturer : LG Electronics MobileComm U.S.A., Inc. Address of Manufacturer : 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 1.2 Test Laboratory Name and Address : SGS Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo, Gyeonggi-do, Korea 435-040 FCC Registration No. : 367021 IC Company No. : 4620F Phone : + 82 31 428 5700 Fax : + 82 31 427 2370 e-mail : [email protected] 1.3 General Information of E.U.T. Product Name GSM & WCDMA Phone with Bluetooth and WLAN Model Name LG-E450f Serial No. 004402-34-253467-8 FCC ID ZNFE450F EMI Classification Class B Hardware Version Rev.1.0 Software Version V05e Highest Internal Frequency Max. 1 Test Voltage 120 ., 60 (from Notebook Computer) Battery 3.8 , 1700 ,6.5 1.4 Operating Modes and Conditions Operating mode Operating condition USB Mode USB Data Communication Note : The EUT was exercised through batch file during testing. Test Report No. : F690501/RF-EMG004638-1 Page : 4 of 14 1.5 Auxiliary Equipments Description Model Serial No. Manufacturer FCC ID USB Mouse Basic Optical Mouse 1.0A USB/PS2 Compatible - MICROSOFT CORPORATION DOC Micro SD Card Mobile Ultra 16GB- SanDisk DOC Notebook Computer 7665-AH6 L3-E5323 LENOVO DOC Wireless Router WG602 1PA11C5000896NETGEAR PY3WG602V4 Test Report No. : F690501/RF-EMG004638-1 Page : 5 of 14 1.6 Cable List Start END Cable Spec. Name I/O Port Name I/O Port Length Shield Mobile Phone USB Notebook Computer USB 0.8 Shield IO Ear-MIC Phone - 1.1 Shield Micro SD Card Slot Micro SD Card - - - Notebook Computer USB Mobile PhoneUSB 0.8 Shield USB USB Mouse - 1.8 Shield DC IN AC Adapter DC OUT 1.5 Unshield LAN Port Wireless Router LAN 1.2 Unshield AC Adapter DC OUT Notebook Computer DC IN 1.5 Unshield AC IN AC Source - 1.5 Unshield Wireless Router DC IN Power Adapter - 1.5 Unshield Power Adapter AC IN AC Source - - - Test Report No. : F690501/RF-EMG004638-1 Page : 6 of 14 1.7 System Configurations 1.8 Test System Layout 1.9 Modifications There was no modified item during the test. 1.10 Applicable Standards for Testing 1.11 Summary of Test Results Test Item Basic Standards Results Conducted Emission ANSI C63.4 : 2003 Complied Radiated Emission ANSI C63.4 : 2003 Complied Note : Test methods of all test items are performed according to the basic standards in this table. Description Model Serial No. Manufacturer Ear MIC Phone EAB62209201 - - USB Cable - - - Battery BL-44JH EAC61839001 LLL LG Standards Status Deviation FCC Part 15 : 2010, Subpart B Applicable No Deviation Notebook Computer USB Mouse Ear-MIC Phone Mobile Phone Micro SD Card W…

Text truncated - open the document above for the full version.

Page : 1 of 9 Set-Up Photo Reference No. : G-45-2012-3210 Applicant : LG Electronics Inc. Equipment Under Test (EUT) : Product Name : GSM & WCDMA Phone with Bluetooth and WLAN Model Name : LG-E450f Page : 2 of 9 Contents 1. Photographs of Conducted Emission .................................................................... 3 2. Photographs of Radiated Emission (3m method below 1㎓) ................................ 4 3. Photographs of Radiated Emission (3m method above 1㎓) ............................... 5 4. Photographs of EUT ............................................................................................. 6 Page : 3 of 9 1. Photographs of Conducted Emission Page : 4 of 9 2. Photographs of Radiated Emission (3m method below 1㎓) Page : 5 of 9 3. Photographs of Radiated Emission (3m method above 1㎓) Page : 6 of 9 4. Photographs of EUT  Front View  Rear View Page : 7 of 9  Top View of Battery  Bottom View of Battery Page : 8 of 9  Ear-MIC Phone  USB Cable Page : 9 of 9  Inside
