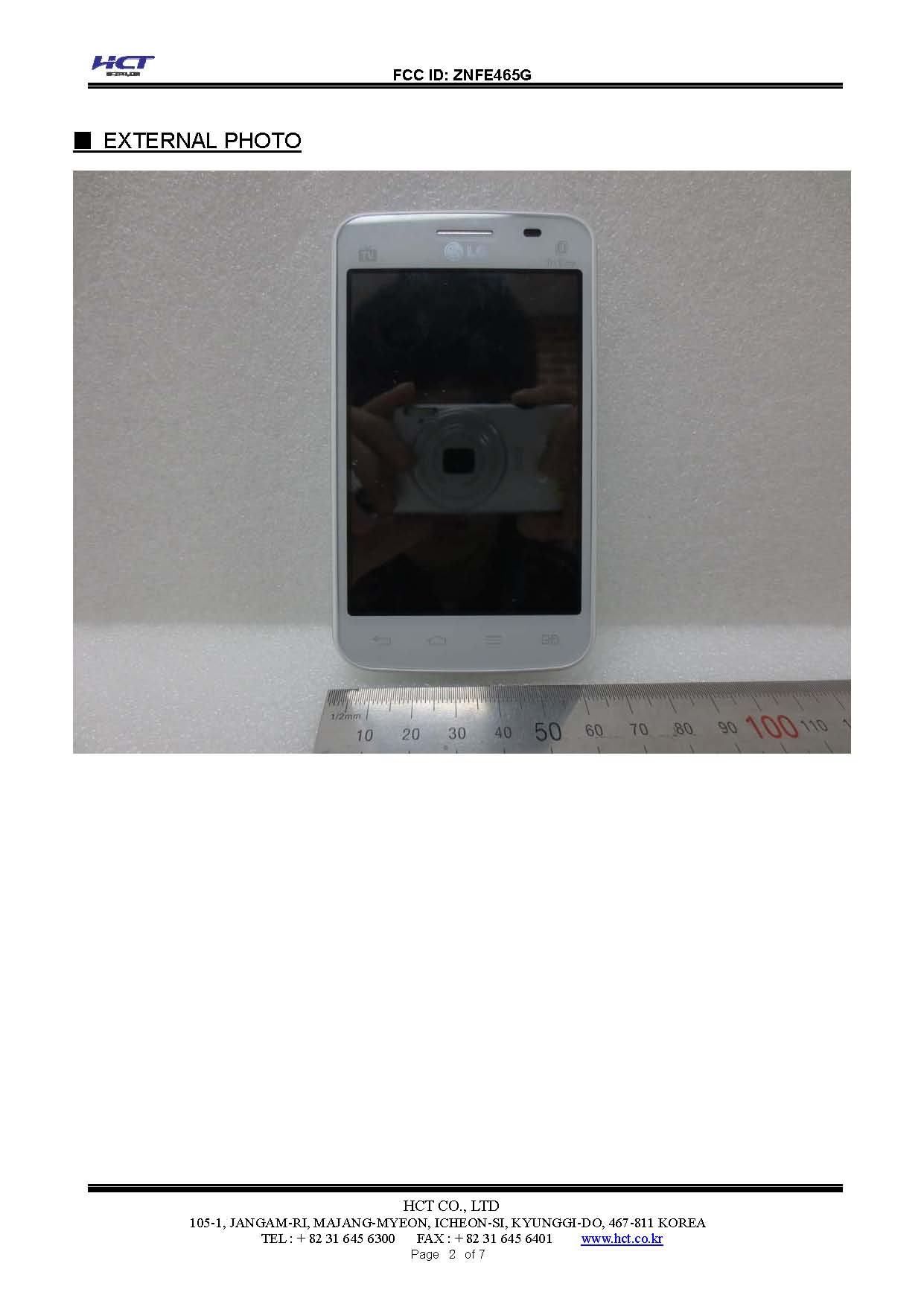

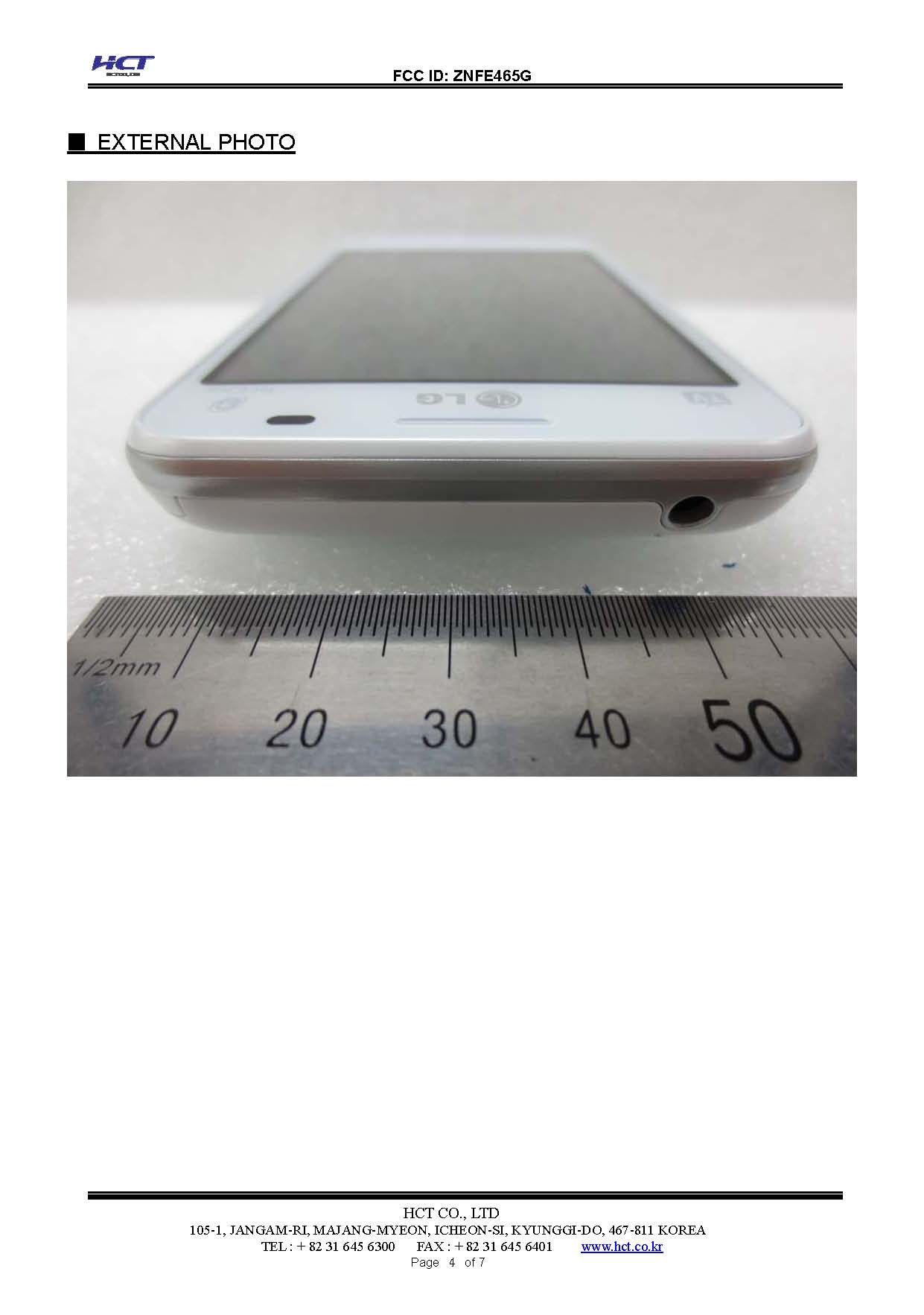

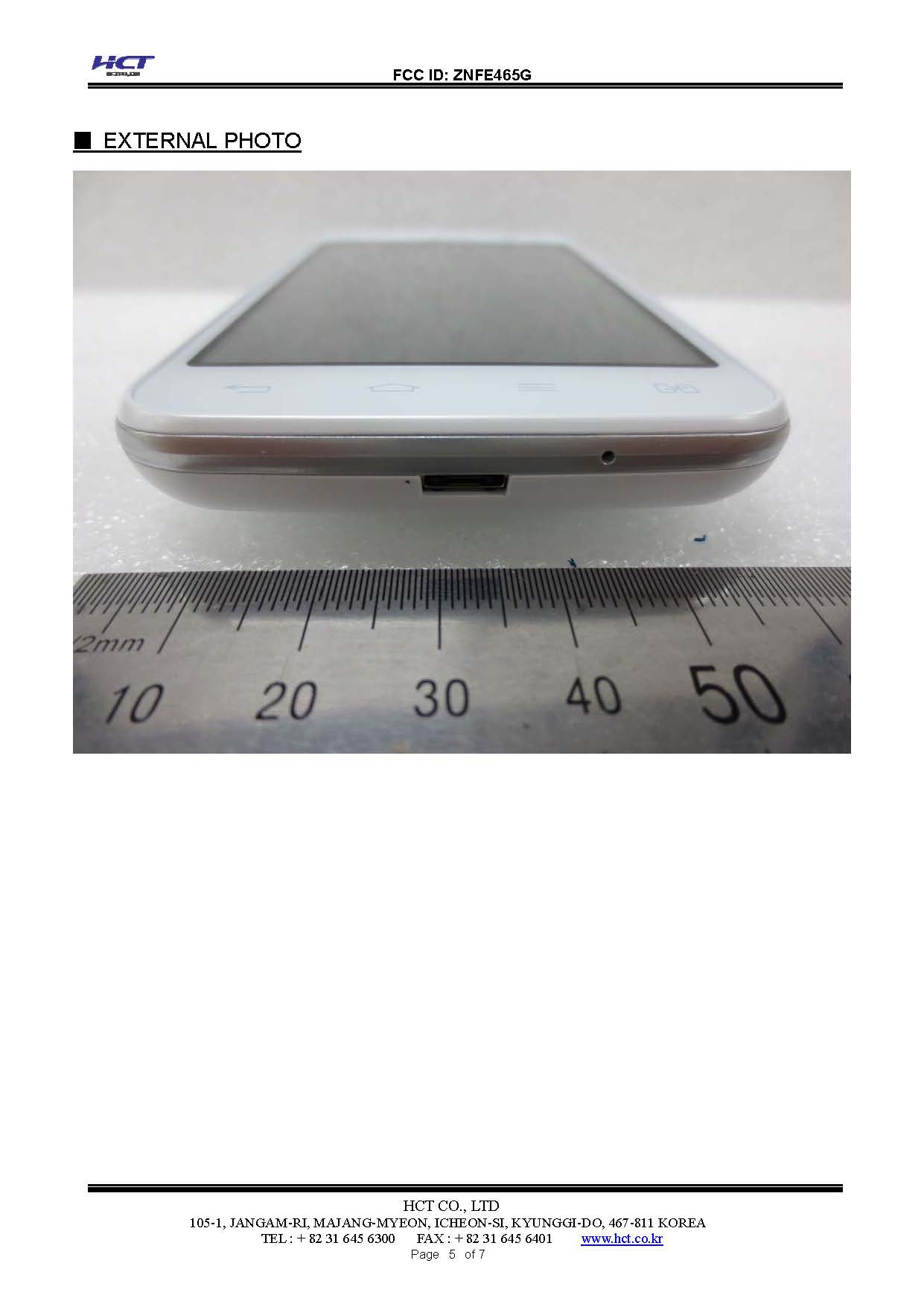

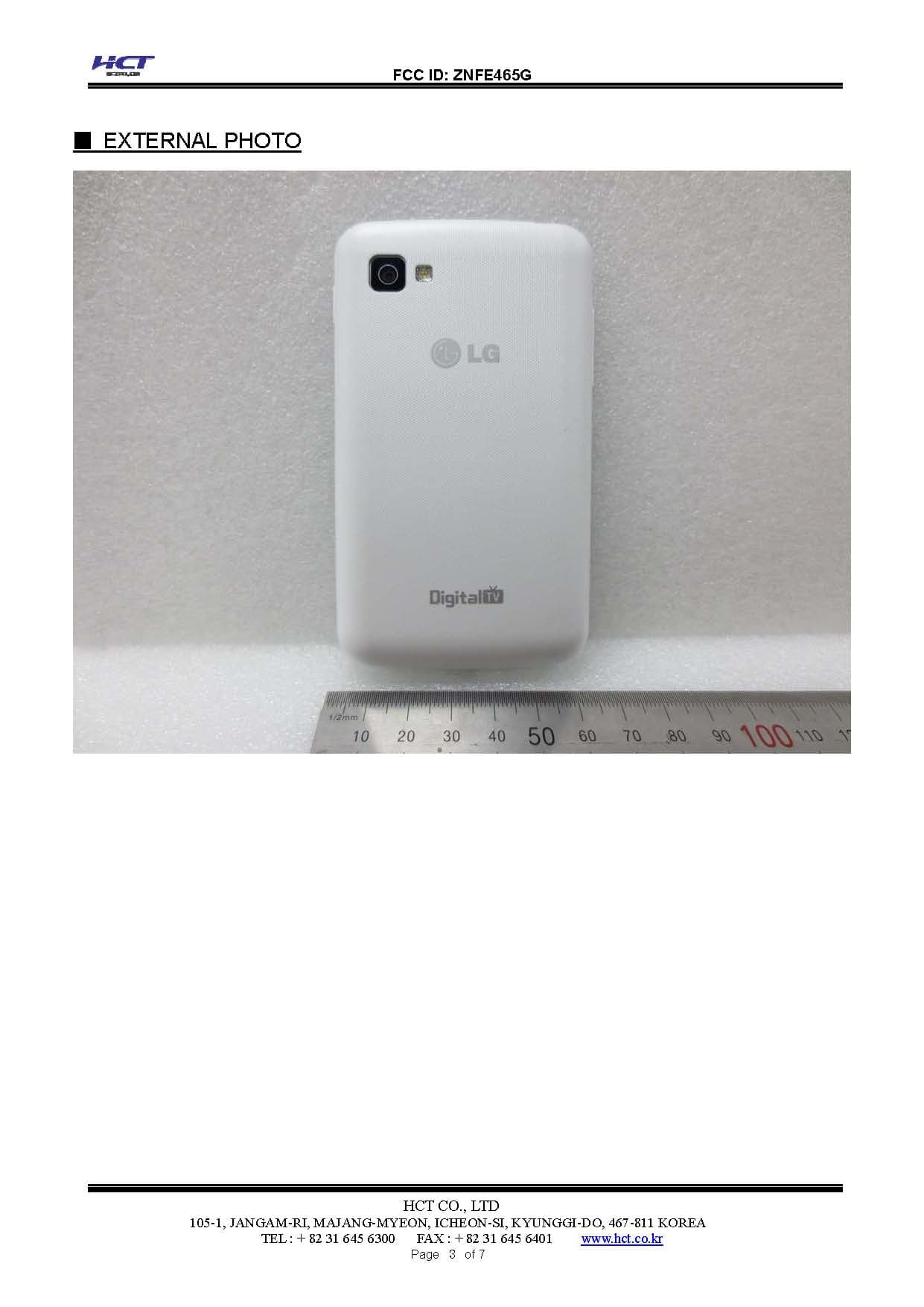

ZNFE465GCellular/PCS GSM/WCDMA Phone with WLAN and Bluetooth

User Guide LG-E465g MFL00000000 (1.0) www.lg.com ENGLISH User Guide ENGLISH • Screen displays and illustrations may differ from those you see on actual phone. • Some of the contents of this guide may not apply to your phone, depending on the software and your service provider. All information in this document is subject to change without notice. • This handset is not suitable for people who have a visual impairment due to the touch screen keyboard. • Copyright ©2013 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners. • Google™, Google Maps™, Gmail™, YouTube™, Google Talk™ and Play Store™ are trademarks of Google, Inc. 2 Important notice .......................................5 Getting to know your phone ...................11 Phone overview .....................................11 Installing the SIM card and battery .........13 Charging the phone ...............................15 Using the memory card..........................16 Locking and unlocking the screen ..........16 Your Home screen ...................................17 Touch screen tips ..................................17 Home screen .........................................18 Customizing the Home screen ..............18 Returning to recently-used applications .19 Notifi cations ..........................................19 Swipe down for notifi cations & settings .20 Quick Settings .....................................20 Indicator icons on the Status Bar ..........21 On-screen keyboard ..............................22 Entering accented letters ......................23 Google account setup .............................24 Connecting to Networks and Devices ....25 Wi-Fi .....................................................25 Connecting to Wi-Fi networks ...............25 Turning Wi-Fi on and connecting to a Wi-Fi network ...............................................25 Bluetooth ...............................................26 Sharing your phone's data connection ...27 PC connections with a USB cable ...........29 Calls ........................................................31 Making a call .........................................31 Calling your contacts .............................31 Answering and rejecting a call ...............31 Adjusting the in-call volume ...................32 Making a second call .............................32 Viewing your call logs ............................32 Call settings ...........................................33 Contacts ..................................................34 Searching for a contact ..........................34 Adding a new contact ............................34 Favorite contacts ...................................34 Creating a group ....................................35 Messaging ...............................................36 Sending a message ...............................36 Threaded box .......................................37 Changing your message settings ...........37 E-mail ......................................................38 Managing an email account ...................38 Working with account folders .................38 Composing and sending email ...............39 Camera ....................................................40 Getting to know the viewfi nder ..............40 Using the advanced settings ..................41 Taking a quick photo .............................42 Once you've taken a photo.....................43 Viewing your saved photos ....................44 Table of contents 3 Video camera ..........................................45 Getting to know the viewfi nder ..............45 Using the advanced settings ..................46 Recording a quick video .........................46 After recording a video...........................47 Watching your saved videos ..................47 Adjusting the volume when viewing a video .....................................................47 LG Unique Function.................................48 QuickMemo function ..............................48 Using the QuickMemo options ..............49 Viewing the saved QuickMemo ............49 LG SmartWorld ......................................50 How to Get to LG SmartWorld from Your Phone ..........................................50 How to use LG SmartWorld ...................50 Multimedia ..............................................52 Gallery ...................................................52 Viewing pictures ..................................52 Playing videos .....................................52 Editing photos/videos ...........................53 Deleting images ...................................53 Setting as wallpaper ............................53 Videos ...................................................53 Playing a video ....................................53 Music ....................................................54 Playing a song .....................................54 TV ..........................................................56 Searching for TV channels ....................56 Tuning in automatically .........................56 FM Radio ...............................................57 Searching for stations ............................57 Tuning in automatically .........................57 Utilities ....................................................58 Setting your alarm .................................58 Using your calculator .............................58 Adding an event to your calendar ...........58 Voice Recorder ......................................59 Recording a sound or voice ..................59 Tasks .....................................................59 Polaris Viewer ........................................60 Google+ ................................................60 Voice Search..........................................60 Downloads ............................................60 The Web .............…

Text truncated - open the document above for the full version.

46 Using the advanced settings Using the viewfinder, touch to open all the advanced options. Touch if you want to change the viewfinder menu. Improves color quality in various lighting conditions. Choose a colour tone to use for your new view. Activate this to use your phone's location-based services. Choose Off to record a video without sound. Auto review automatically shows you the video you just recorded. Select storage to save videos. Restore all video camera default settings. Recording a quick video 1 Open the Camera application and touch the Video mode button. 2 The video camera viewfinder appears on the screen. 3 Hold your phone, point the lens towards the subject you wish to capture in your video. 4 Touch once to start recording. 5 A red light will appear at the top left corner of the viewfinder with a timer showing the length of the video. 6 Touch on the screen to stop recording. Video camera 47 After recording a video Touch to view the last video you took. Touch to record another video immediately. Touch to send your video to others or share it via social network services. Touch to delete the video. NOTE: Additional charges may apply when MMS messages are downloaded while roaming. Watching your saved videos 1 In the viewfinder, tap . 2 Your Gallery will appear on the screen. 3 Tap a video to play it automatically. Adjusting the volume when viewing a video To adjust the volume of a video while it is playing, use the volume keys on the left side of the phone. 48 LG Unique Function QuickMemo function Use the QuickMemo function to practically and efficiently create memos during a call, with a saved picture or on the current phone screen. 1 Enter the QuickMemo function screen by pressing QuickMemo function key. OROR Touch and slide the status bar downward and touch . 2 Select the desired menu option from Pen type, Color, Eraser and create a memo. 49 3 Touch in the Edit menu to save the memo with the current screen. NOTE: Please use a fingertip while using the QuickMemo function. Do not use your fingernail. Using the QuickMemo options You can easily use the QuickMenu options when using the QuickMemo function. Touch to keep the current memo on the screen and use the phone simultaneously. Selects whether to use the background screen or not. Undo or Redo. Selects the pen type and the colour. Erases the memo that you created. Touch to send your memo to others or share it via social network services. Saves the memo with the current screen in the Gallery. Viewing the saved QuickMemo Touch Gallery and select the QuickMemo album. 50 LG Unique Function LG SmartWorld LG SmartWorld offers an assortment of exciting content - games, applications, wallpaper and ringtones - giving LG phone users the chance to enjoy richer "Mobile Life" experiences. How to Get to LG SmartWorld from Your Phone 1 Touch > Apps tab > tap the icon to access LG SmartWorld. 2 Tap Sign in and enter ID/PW for LG SmartWorld. If you have not signed up yet, tap Register to receive your LG SmartWorld membership. 3 Download the content you want. NOTE: What if there is no icon? 1 Using a mobile Web browser, access LG SmartWorld (www.lgworld.com) and select your country. 2 Download the LG SmartWorld App. 3 Run and install the downloaded file. 4 Access LG SmartWorld by tapping the icon. How to use LG SmartWorld • Participate in monthly LG SmartWorld promotions. Search content. Find content by category (e.g. Games, Education, Entertainment etc). List of downloaded/to-be updated content. 51 • Try the easy "Menu" buttons to find what you’re looking for fast. Apps for you – Recommended content based on your previous choices. Settings – Set Profile and Display. Sign in – Set your ID and Password. • Try other useful functions as well. (Content Detail screen) NOTE: LG SmartWorld may not be available from all carriers or in all countries. 52 Multimedia Gallery You can store multimedia files in internal memory for easy access to all your multimedia files. Use this application to view multimedia files like pictures and videos. 1 Touch > Apps tab > Gallery. Open a list of catalog bars that store your multimedia files. NOTE: • Some file formats are not supported, depending on the software installed on the device. • Some files may not play properly, depending on how they are encoded. Viewing pictures Launching Gallery displays your available folders. When another application, such as Email, saves a picture, the download folder is automatically created to contain the picture. Likewise, capturing a screenshot automatically creates the Screenshots folder. Select a folder to open it. Pictures are displayed by creation date in a folder. Select a picture to view it full screen. Scroll left or right to view the next or previous image. Zooming in and out Use one of the following methods to zoom in on an image: • Double-tap anywhere to zoom in. • Spread two fingers apart on any place to zoom in. Pinch to zoom out, or double-tap to return. Playing videos Video files show the icon in the preview. Select a video to watch it and tap . The Videos application will launch. 53 Editing photos/videos When viewing an photo/video, tap the Menu key and use the advanced editing options. • Slideshow: start a slideshow with the images in the current folder. Deleting images Use one of the following methods: • In a folder, tap and select photos/videos by ticking, and then tap on Delete. • When viewing a photo/Video, tap . Setting as wallpaper When viewing a photo, touch the Menu key > Set image as to set the image as wallpaper or to assign it to a contact. NOTE: • Some file formats are not supported, depending on the device software. • If the file size exceeds the available memory, an error can occur when you open files. Videos Your phone has a built-in video player that lets you play all of your favorite videos. To access the video player, touch > Apps tab > Videos. Playing a video 1 Touch > Apps tab > Videos. 2 Select the video you want to play. 54 Multimedia Touch to p…

Text truncated - open the document above for the full version.

Date: May 20, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFE465G Equipment Class: DTS: Digital Transmission System To Whom It May Concern: Pursuan t to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics MobileComm USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not cu stomarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics MobileComm USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibi ts are listed as foll ows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

※ FCC ID Label Form Note: The FCC ID shown will be readily visible at the time of purchase. Note! We, LG Electronics MobileComm USA, state that our device, FCC ID ZNFE465G, has a battery. Howev er, the battery will not be placed in the battery compartment when delivery, so it is visible to the users as they purchase the product and install the battery. Additionally, the label is permanently attached. Model No : LG-E465g FCC ID : ZNFE465G S/N : Made in Korea

Report No.: HCTA1305FS06 FCC ID: ZNFE465G Date of Issue: Jun. 5, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 2 of 137 Table of Contents 1. INTRODUCTION .......................................................................................................................................... ４ 2. TEST METHODOLOGY ............................................................................................................................... ５ 3. DESCRIPTION OF DEVICE ......................................................................................................................... ６ 4. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... ７ 5. SAR MEASUREMENT PROCEDURE ..................................................................................................... １４ 6. DESCRIPTION OF TEST POSITION ....................................................................................................... １６ 7. MEASUREMENT UNCERTAINTY ........................................................................................................... １８ 8. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................................................. １９ 9. SAR SYSTEM VALIDATION .................................................................................................................... ２０ 10. SYSTEM VERIFICATION ....................................................................................................................... ２１ 11. RF CONDUCTED POWER MEASUREMENT ....................................................................................... ２３ 12. SAR Test configuration & Antenna Information ................................................................................ ３５ 13. SAR TEST DATA SUMMARY ................................................................................................................ ３６ 13.1 Measurement Results (GSM850 Head SAR) ................................................................................ ３６ 13.2 Measurement Results (GSM1900 Head SAR) .............................................................................. ３７ 13.3 Measurement Results (WCDMA850 Head SAR) .......................................................................... ３８ 13.4 Measurement Results (WCDMA 1900 Head SAR) ....................................................................... ３９ 13.5 Measurement Results (802.11b/g/n Head SAR) ........................................................................... ４０ 13.6 Measurement Results (GSM850 Hotspot SAR) ............................................................................ ４１ 13.7 Measurement Results (GSM1900 Hotspot SAR) .......................................................................... ４２ 13.8 Measurement Results (WCDMA850 Hotspot SAR) ...................................................................... ４３ 13.9 Measurement Results (WCDMA 1900 Hotspot SAR) ................................................................... ４４ 13.10 Measurement Results (802.11b/g/n Hotspot SAR) ..................................................................... ４５ 13.11 Measurement Results (Body-worn SAR) ..................................................................................... ４６ 14. SAR Measurement Variability and Uncertainty.................................................................................. ４８ 15. SAR Summation Scenario ................................................................................................................... ４９ 16. CONCLUSION ........................................................................................................................................ ５３ 17. REFERENCES ....................................................................................................................................... ５４ Attachment 1. – SAR Test Plots ................................................................................................................ ５５ Attachment 2. – Dipole Verification Plots ................................................................................................. ８１ Attachment 3. – Probe Calibration Data ................................................................................................... ８８ Attachment 4. – Dipole Calibration Data ............................................................................................... １１３ Report No.: HCTA1305FS06 FCC ID: ZNFE465G Date of Issue: Jun. 5, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 3 of 137 Version Rev DATE DESCRIPTION May 21, 2013 First Approval Report 1 Jun. 3, 2013 Page 6/21/49/51 are revised 2 Jun. 5, 2013 Page 6/41/46/48/51/52/61/68/69 are revised Report No.: HCTA1305FS06 FCC ID: ZNFE465G Date of Issue: Jun. 5, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 4 of 137 1. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017. The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the M…

Text truncated - open the document above for the full version.

Report No.: HCTA1305FS06 FCC ID: ZNFE465G Date of Issue: Jun. 5, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 61 of 137 Test Laboratory: HCT CO., LTD EUT Type: GSM/WCDMA Phone with Bluetooth3.0, WIFI802.11 b/g/n Liquid Temperature: 20.2 °C Ambient Temperature: 20.4 °C Test Date: May 14, 2013 Plot No. 6 DUT: LG-E465g; Type: bar; Serial: #1 Communication System: GSM 850; Frequency: 848.8 MHz;Duty Cycle: 1:4.15 Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.999 mho/m; ε r = 56.5; ρ = 1000 kg/m 3 Phantom section: Center Section ; Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1798; ConvF(6.46, 6.46, 6.46); Calibrated: 2013-04-29 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn446; Calibrated: 2013-01-16 - Phantom: Triple Flat Phantom 5.1C_20120905; Type: QD 000 P51 CA GSM850 Body rear GPRS 2Tx 251ch/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.28 mW/g GSM850 Body rear GPRS 2Tx 251ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.9 V/m; Power Drift = -0.063 dB Peak SAR (extrapolated) = 1.61 W/kg SAR(1 g) = 1.21 mW/g; SAR(10 g) = 0.855 mW/g Maximum value of SAR (measured) = 1.29 mW/g 0 dB = 1.29mW/g Report No.: HCTA1305FS06 FCC ID: ZNFE465G Date of Issue: Jun. 5, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 62 of 137 Test Laboratory: HCT CO., LTD EUT Type: GSM/WCDMA Phone with Bluetooth3.0, WIFI802.11 b/g/n Liquid Temperature: 20.5 °C Ambient Temperature: 20.7 °C Test Date: May 16, 2013 Plot No. 7 DUT: LG-E465g; Type: bar; Serial: #1 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:4.15 Medium parameters used: f = 1880 MHz; σ = 1.54 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 Phantom section: Center Section ; Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1630; ConvF(4.73, 4.73, 4.73); Calibrated: 2013-01-24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn446; Calibrated: 2013-01-16 - Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA Body rear 661 2Tx/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.857 mW/g Body rear 661 2Tx/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.9 V/m; Power Drift = 0.001 dB Peak SAR (extrapolated) = 1.21 W/kg SAR(1 g) = 0.762 mW/g; SAR(10 g) = 0.473 mW/g Maximum value of SAR (measured) = 0.811 mW/g 0 dB = 0.811mW/g Report No.: HCTA1305FS06 FCC ID: ZNFE465G Date of Issue: Jun. 5, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 63 of 137 Test Laboratory: HCT CO., LTD EUT Type: GSM/WCDMA Phone with Bluetooth3.0, WIFI802.11 b/g/n Liquid Temperature: 20.2 °C Ambient Temperature: 20.4 °C Test Date: May 13, 2013 Plot No. 8 DUT: LG-E465g; Type: bar; Serial: #1 Communication System: WCDMA850; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.988 mho/m; ε r = 56.6; ρ = 1000 kg/m 3 Phantom section: Center Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1798; ConvF(6.46, 6.46, 6.46); Calibrated: 2013-04-29 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn446; Calibrated: 2013-01-16 - Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA Body rear 4183/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.748 mW/g Body rear 4183/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.16 V/m; Power Drift = 0.037 dB Peak SAR (extrapolated) = 0.941 W/kg SAR(1 g) = 0.701 mW/g; SAR(10 g) = 0.498 mW/g Maximum value of SAR (measured) = 0.747 mW/g 0 dB = 0.747mW/g Report No.: HCTA1305FS06 FCC ID: ZNFE465G Date of Issue: Jun. 5, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 64 of 137 Test Laboratory: HCT CO., LTD EUT Type: GSM/WCDMA Phone with Bluetooth3.0, WIFI802.11 b/g/n Liquid Temperature: 20.5 °C Ambient Temperature: 20.7 °C Test Date: May 16, 2013 Plot No. 9 DUT: LG-E465g; Type: bar; Serial: #1 Communication System: WCDMA1900; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.54 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 Phantom section: Center Section ; Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1630; ConvF(4.73, 4.73, 4.73); Calibrated: 2013-01-24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn446; Calibrated: 2013-01-16 - Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA Body rear 9400/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.984 mW/g Body rear 9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.6 V/m; Power Drift = 0.001 dB Peak SAR (extrapolated) = 1.33 W/kg SAR(1 g) = 0.863 mW/g; SAR(10 g) = 0.536 mW/g Maximum value of SAR (measured) = 0.915 mW/g 0 dB = 0.915mW/g Report No.: HCTA1305FS06 FCC ID: ZNFE465G Date of Issue: Jun. 5, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 65 of 137 Test Laboratory: HCT CO., LTD EUT Type: GSM/WCDMA Phone with Bluetooth3.0, WIFI802.11 b/g/n Liquid Temperature: 20.6 °C Ambient Temperature: 20.8 °C Test Date: May 17, 2013 Plot No. 10 DUT: LG-E465g; Type: bar; Serial: #1 Communication System: 2450MHz FCC; Frequency: 2437 …

Text truncated - open the document above for the full version.

Report No.: HCTA1305FS06 FCC ID: ZNFE465G Date of Issue: May. 21, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr １ of 12 SAR Test Setup Photographs Report No.: HCTA1305FS06 FCC ID: ZNFE465G Date of Issue: May. 21, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr ２ of 12  Test Setup Photo Report No.: HCTA1305FS06 FCC ID: ZNFE465G Date of Issue: May. 21, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr ３ of 12  Test Setup Photo Report No.: HCTA1305FS06 FCC ID: ZNFE465G Date of Issue: May. 21, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr ４ of 12  Test Setup Photo Report No.: HCTA1305FS06 FCC ID: ZNFE465G Date of Issue: May. 21, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr ５ of 12  Test Setup Photo Report No.: HCTA1305FS06 FCC ID: ZNFE465G Date of Issue: May. 21, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr ６ of 12  Test Setup Photo Report No.: HCTA1305FS06 FCC ID: ZNFE465G Date of Issue: May. 21, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr ７ of 12  Test Setup Photo(Rear) [Distance of 1.0 cm from the EUT] Report No.: HCTA1305FS06 FCC ID: ZNFE465G Date of Issue: May. 21, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr ８ of 12  Test Setup Photo (Front) [Distance of 1.0 cm from the EUT] Report No.: HCTA1305FS06 FCC ID: ZNFE465G Date of Issue: May. 21, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr ９ of 12  Test Setup Photo (Right) [Distance of 1.0 cm from the EUT] Report No.: HCTA1305FS06 FCC ID: ZNFE465G Date of Issue: May. 21, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr １０ of 12 Test Setup Photo (Left) [Distance of 1.0 cm from the EUT] Report No.: HCTA1305FS06 FCC ID: ZNFE465G Date of Issue: May. 21, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr １１ of 12  Test Setup Photo (Bottom) [Distance of 1.0 cm from the EUT] Report No.: HCTA1305FS06 FCC ID: ZNFE465G Date of Issue: May. 21, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr １２ of 12  Test Setup Photo (Top) [Distance of 1.0 cm from the EUT]
