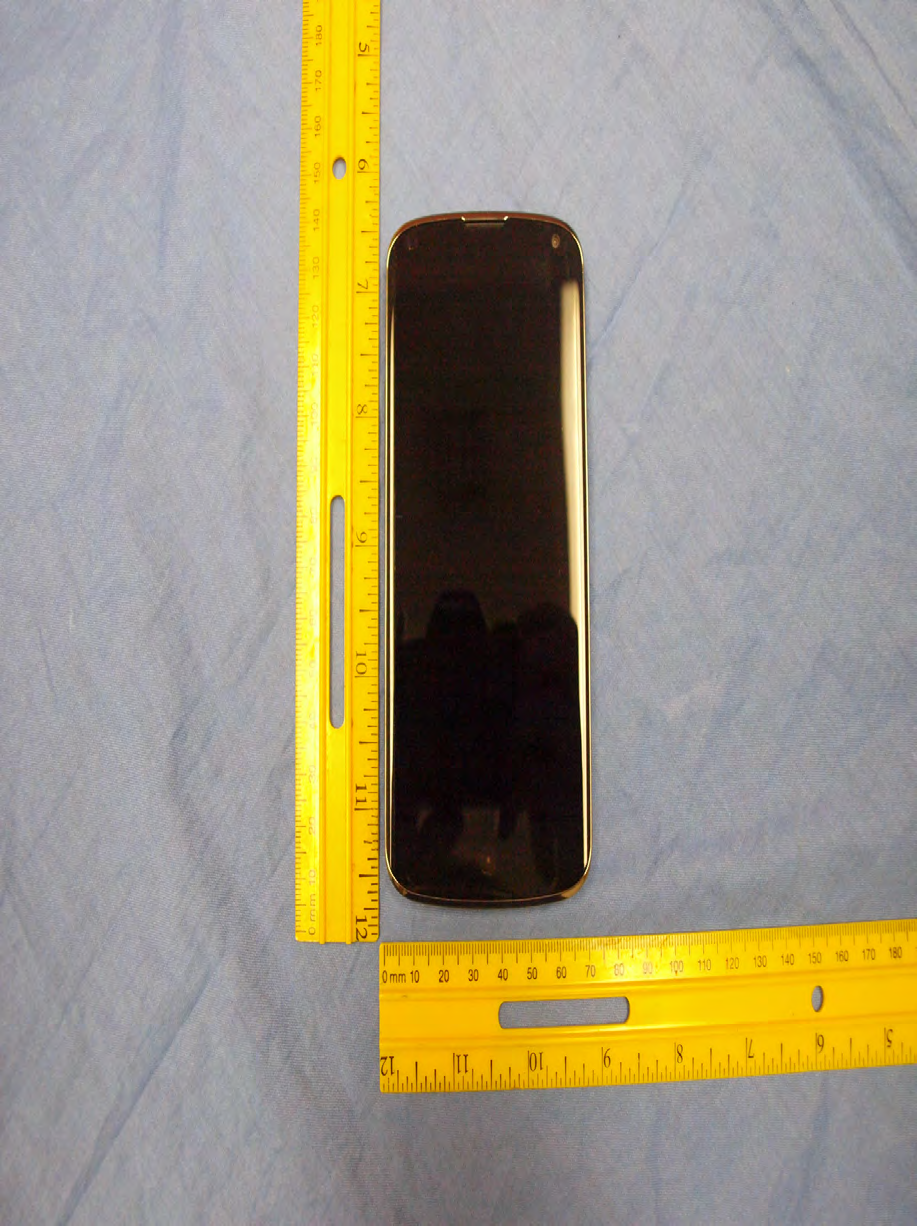

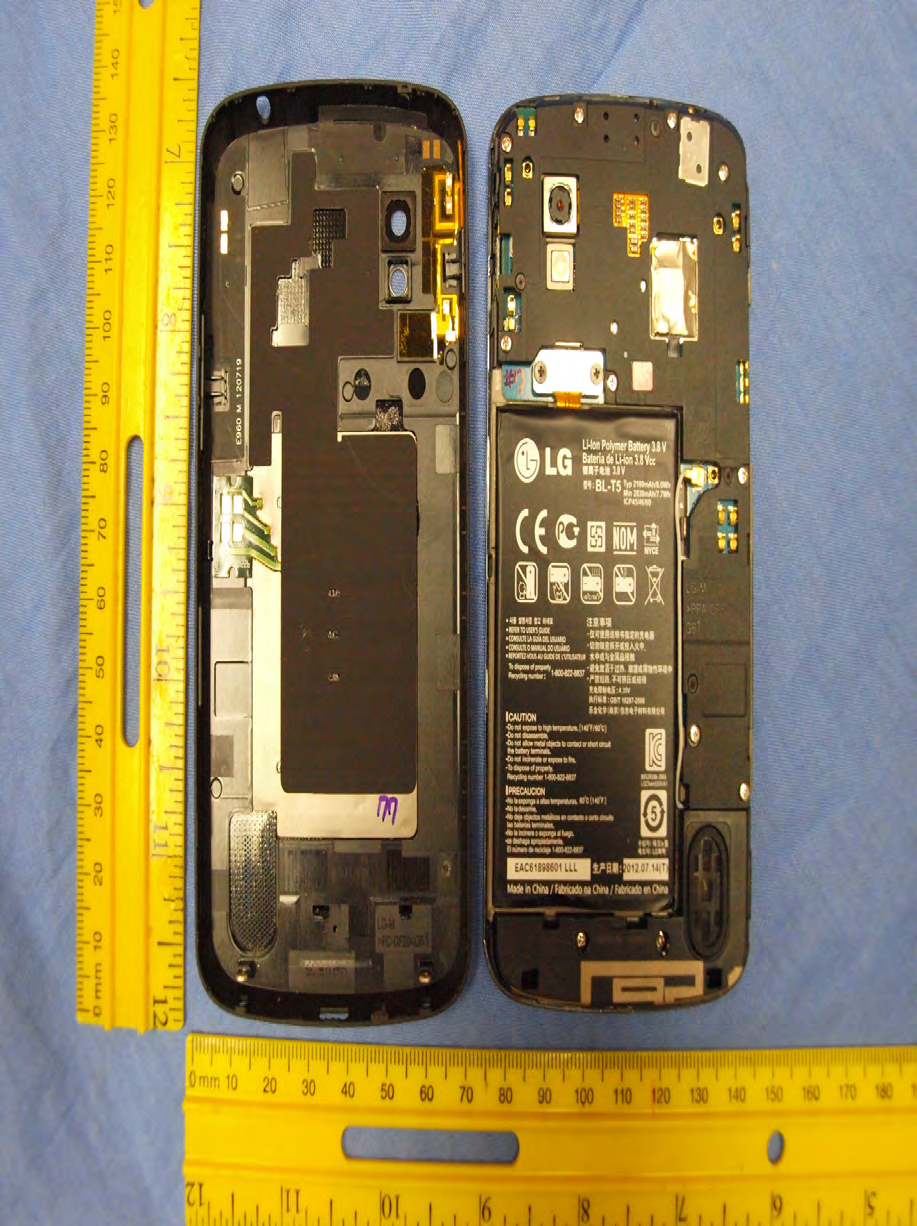

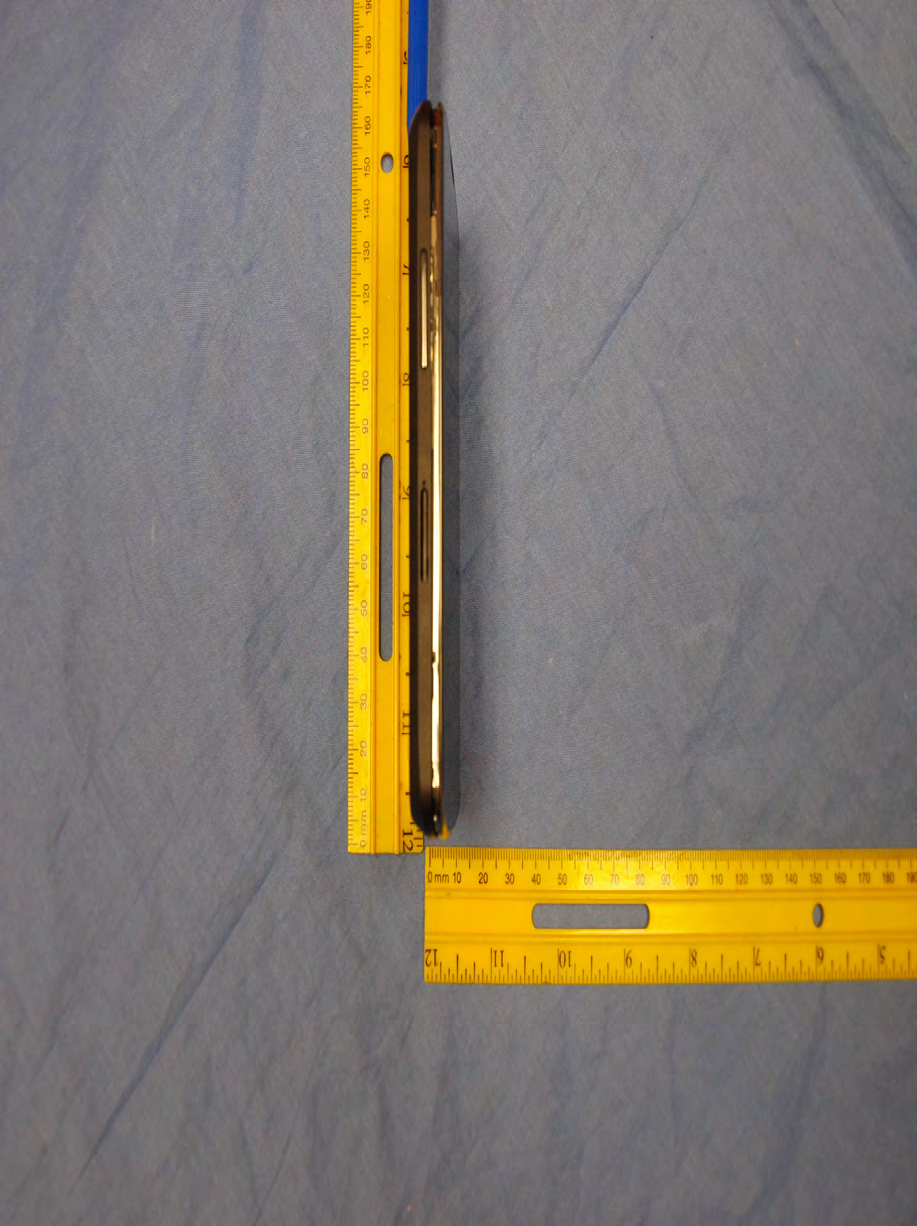

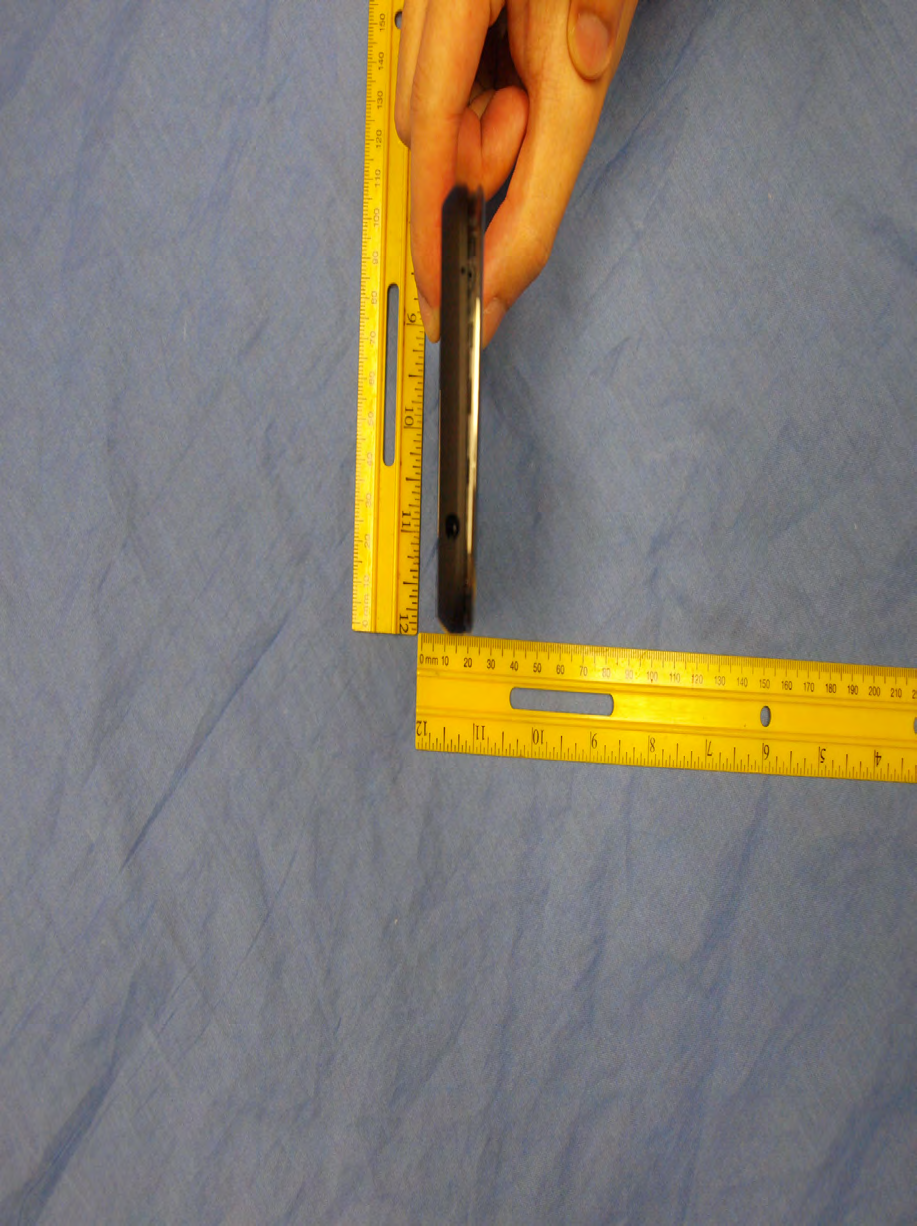

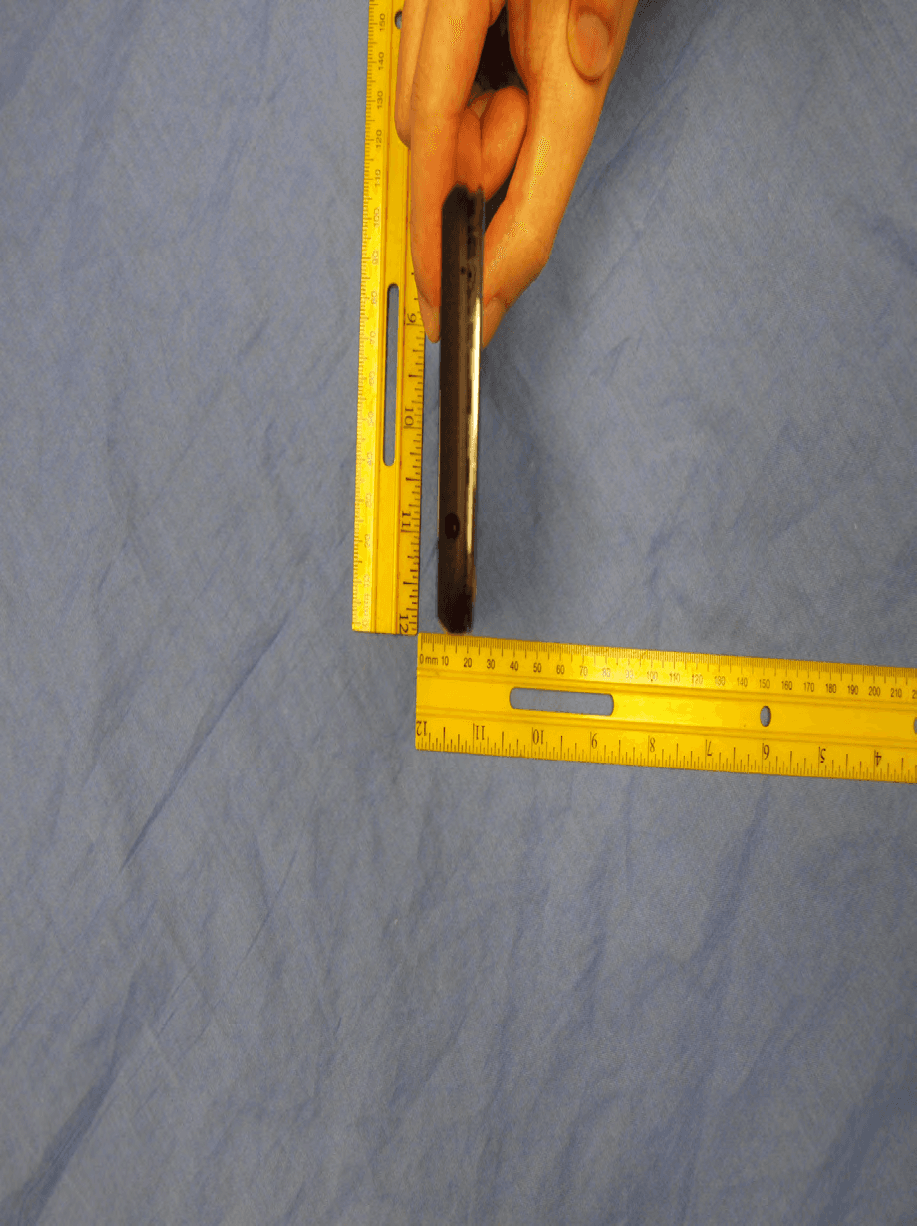

ZNFE960Cell/PCS GSM/GPRS/EDGE & WCDMA HSPA+BT, NFC & WLAN

LG-E960 User Guide This guide helps you to get started using your phone. • Some of the contents of this manual may not apply to your phone, depending on the software and your service provider. • This handset is not suitable for people who have a visual impairment due to the touch screen keyboard. • Copyright ©2012 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the p roperty of their respective owners. • Google™, Google Maps™, Gmail™, YouTube™, Google Talk™ and Play Store™ are t rademarks of Google, Inc. ENGLISH 2 Contents For Your Safety ..........................................4 Device components .................................29 QuickMemo ............................................31 Installing the SIM card and battery ...........32 Charging your phone ...............................33 Using the memory card ...........................33 Locking and unlocking the screen ............34 Secure your lock screen ..........................35 Your Home screen ...................................36 Touch screen tips ....................................36 Home .....................................................36 Customising the Home screen .................37 Returning to recently-used applications ....37 Notification drawer ..................................37 Viewing the status bar .............................38 Onscreen keyboard .................................39 Entering accented letters .........................39 Google account set up .............................40 Connecting to Networks and Devices ......41 Wi-Fi ......................................................41 Connecting to Wi-Fi networks ..................41 Bluetooth ................................................41 Sharing your phone's data connection ......42 To rename or secure your portable hotspot ...................................................43 Using the Wi-Fi Cast................................44 Enabling Wi-Fi Direct to share through SmartShare ............................................44 Using SmartShare ...................................45 Calls .........................................................47 Making a call ..........................................47 Calling your contacts ...............................47 Answering and rejecting a call .................47 Adjusting call volume ..............................47 Making a second call ..............................47 Viewing your call logs ..............................48 Call settings ...........................................48 Contacts ...................................................50 Searching for a contact ...........................50 Adding a new contact..............................50 Favourite contacts ...................................50 Moving contacts from your Old Device to your New Device .....................................51 Messaging ...............................................52 Sending a message ................................52 Threaded box ........................................52 Using Smilies ..........................................52 Changing your message settings .............52 E-mail ......................................................53 Managing an email account .....................53 Email account screen ..............................53 E-mail ......................................................54 Working with account folders ...................54 Composing and sending email .................54 Camera ....................................................55 Getting to know the viewfinder .................55 Taking a quick photo ..............................56 3 Once you've taken the photo ...................56 Using the advanced settings ....................57 Video camera ...........................................58 Getting to know the viewfinder .................58 Shooting a quick video ............................59 After shooting a video .............................59 Using the advanced settings ....................59 Adjusting the volume when viewing a video ......................................................60 Multimedia ...............................................61 Video Player ...........................................61 Playing a video .......................................61 Gallery ...................................................61 Music Player ...........................................61 Transferring music files using USB mass storage devices ......................................61 Playing a song ........................................62 FM Radio ................................................62 Searching for stations .............................63 LG T ag+ .................................................63 Media Home ...........................................64 LG SmartWorld .........................................65 How to Get to LG SmartWorld from Your Phone ....................................................65 How to use LG SmartWorld ......................65 Utilities .....................................................66 Setting your alarm...................................66 Using your calculator ...............................66 Adding an event to your calendar .............66 Polaris Office ..........................................67 Backup ..................................................67 Back up your smart phone data ...............68 Scheduling automatic backups ................68 Restoring smart phone data .....................68 The web ...................................................70 Internet ..................................................70 Using the web toolbar .............................70 Using options ..........................................70 Settings ...................................................71 WIRELESS & NETWORKS.........................71 DEVICE ...................................................72 PERSONAL ..…

Text truncated - open the document above for the full version.

Date: August 24, 2012 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Electronics MobileComm U.S.A FCC ID: ZNFE960 We, LG Electronics MobileComm USA, Inc., hereby declare that the model P769 has the following frequency scanning plan: The following will be programmed at the factory to only operate and actively scan on these specific channels, where it can initiate transmissions and act as a master device for the 2.4 GHz band: Channels 1-11, 2412-2462Mhz 802.11b/g/n mode (20MHz Bandwidth) The following channels will be programmed at the factory to passively scan and will only listen and cannot send a probe/beacon request to initiate communication on these specific channels. Ad-hoc mode is always disabled and this device cannot operate as an Access Point on these passive channels: 1) Channels 36-48, 5180 & 5240Mhz 802.11a/n mode (20MHz channel) 2) Channels 52-64, 5260 & 5320Mhz 802.11a/n mode (20MHz channel) 3) Channels 100-140, 5500 & 5700Mhz 802.11a/n mode (20MHz channel) 4) Channels 149-165, 5745 & 5825Mhz 802.11a/n mode (20MHz channel) This device does not act as an access point on the non-DFS legacy frequencies(5.15 – 5.25 MHz) This device meets the FCC 15.202 requirements as a Client Device. This client device does not have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular operation which configures the modes of operations through software. On DFS channels, the WLAN subsystem operates under the control of an AP at all times. The client SW and associated drivers will not initiate any transmissions on DFS frequencies without initiation by a master. This includes restriction on transmission for beacons and supports for ad-hoc and peer-to-peer modes. This device SW is set in non-volatile memory. Only LG engineer can access this SW because this SW is cryptographic code that can be accessed through LG internal SW complier. Therefore this device will not allow the user settings to select any non-US frequency and will not be accessible and can’t be changed by the end user or by host configuration setting. Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc.

Date: August 24, 2012 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jacop Cho Director On behalf of LG Electronics Mobilecomm U.S.A.,Inc REMARK: 1.This authorization letter will be sent along with your application when filing with the Certification Division. 2.Please follow the format and type it on company letterhead and send original to us. 3.Authorized signature must be in agreement with grantee code contact in FCC database.

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: ZNF E960 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operation Descriptions Tune-up Procedure Antenna Specification Parts list PCB Layout Antenna distance Wireless charging scenario Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after the grant as outlined in Public Notice DA 04-1705. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely Yours, Jacop Cho Director On behalf of LG Electronics Mobilecomm U.S.A.,Inc August 24, 2012

location FCC ID is etched, near the bottom of the EUT. And customer do not remove this back cover. Below Fig.1 is representation of FCC Label information, Other informations may be include on the label. To p Bottom Back plate of Product ■ FCC ID Label Model No: LG-E960 FCC ID: ZNFE960 Maid in Korea *Note: This label and its location complies with 47 CFR 2.925(d) that FCC ID is readily visible to the purchaser at the time of purchase, and be permanently affixed to the product. Fig.1 Representation of FCC Label information

Test Laboratory: UL CCS SAR Lab C Date: 8/14/2012 20120814 SystemPerformanceCheck-D1750V2 SN 1050 Frequency: 1750 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1750 MHz; σ = 1.339 mho/m; ε r = 41.591; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1239; Calibrated: 6/6/2012 - Probe: EX3DV4 - SN3773; ConvF(7.89, 7.89, 7.89); Calibrated: 3/14/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 Head/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 4.437 mW/g Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.602 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 6.1220 SAR(1 g) = 3.4 mW/g; SAR(10 g) = 1.81 mW/g Maximum value of SAR (measured) = 4.522 mW/g 0 dB = 4.520mW/g = 13.10 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 8/14/2012 20120814 SystemPerformanceCheck-D1750V2 SN 1050 Frequency: 1750 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 4.418 mW/g Test Laboratory: UL CCS SAR Lab A Date: 8/14/2012 20120814 SystemPerformanceCheck-D5GHzV2 SN 1075 (5.2GHz) Frequency: 5200 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 25.0C; Liquid Temperature: 24.0C Medium parameters used: f = 5200 MHz; σ = 5.337 mho/m; ε r = 48.22; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1258; Calibrated: 3/8/2012 - Probe: EX3DV4 - SN3772; ConvF(4.17, 4.17, 4.17); Calibrated: 2/16/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1119 Body/5.2 GHz, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 12.401 mW/g Body/5.2 GHz, Pin=100mW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 53.555 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 30.7630 SAR(1 g) = 7.83 mW/g; SAR(10 g) = 2.21 mW/g Maximum value of SAR (measured) = 17.922 mW/g 0 dB = 17.920mW/g = 25.07 dB mW/g Test Laboratory: UL CCS SAR Lab A Date: 8/14/2012 20120814 SystemPerformanceCheck-D5GHzV2 SN 1075 (5.2GHz) Frequency: 5200 MHz; Duty Cycle: 1:1 Body/5.2 GHz, Pin=100mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 13.391 mW/g Test Laboratory: UL CCS SAR Lab C Date: 8/14/2012 20120814 SystemPerformanceCheck-D2450V2 SN 748 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 1.941 mho/m; ε r = 51.792; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1239; Calibrated: 6/6/2012 - Probe: EX3DV4 - SN3773; ConvF(6.67, 6.67, 6.67); Calibrated: 3/14/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (B); Type: QDOVA001BB; Serial: 1099 Body/Pin=100 mW/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 6.004 mW/g Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 60.347 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 10.9590 SAR(1 g) = 5.42 mW/g; SAR(10 g) = 2.54 mW/g Maximum value of SAR (measured) = 7.647 mW/g 0 dB = 7.650mW/g = 17.67 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 8/14/2012 20120814 SystemPerformanceCheck-D2450V2 SN 748 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 7.074 mW/g Test Laboratory: UL CCS SAR Lab C Date: 8/15/2012 20120815 SystemPerformanceCheck-D5GHzV2 SN 1003 (5.8GHz) Frequency: 5800 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 25.0C; Liquid Temperature: 24.0C Medium parameters used: f = 5800 MHz; σ = 6.03 mho/m; ε r = 47.808; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1239; Calibrated: 6/6/2012 - Probe: EX3DV4 - SN3773; ConvF(3.57, 3.57, 3.57); Calibrated: 3/14/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection), Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1120 Body/5.8 GHz, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 13.953 mW/g Body/5.8 GHz, Pin=100mW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 52.571 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 32.8840 SAR(1 g) = 7.75 mW/g; SAR(10 g) = 2.18 mW/g Maximum value of SAR (measured) = 18.768 mW/g 0 dB = 18.770mW/g = 25.47 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 8/15/2012 20120815 SystemPerformanceCheck-D5GHzV2 SN 1003 (5.8GHz) Frequency: 5800 MHz; Duty Cycle: 1:1 Body/5.8 GHz, Pin=100mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 14.201 mW/g Test Laboratory: UL CCS SAR Lab A Date: 8/15/2012 20120815 SystemPerformanceCheck-D5GHzV2 SN 1075 (5.2GHz) Frequency: 5200 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 25.0C; Liquid Temperature: 24.0C Medium parameters used: f = 5200 MHz; σ = 5.318 mho/m; ε r = 48.459; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1258; Calibrated: 3/8/2012 - Probe: EX3DV4 - SN3772; ConvF(4.17, 4.17, 4.17); Calibrated: 2/16/20…

Text truncated - open the document above for the full version.

Test Laboratory: UL CCS SAR Lab C Date: 8/17/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.904 mho/m; ε r = 42.921; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1239; Calibrated: 6/6/2012 - Probe: EX3DV4 - SN3773; ConvF(8.79, 8.79, 8.79); Calibrated: 3/14/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 LHS/Touch_GMSK_ch 190/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.279 mW/g LHS/Touch_GMSK_ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.947 V/m; Power Drift = -0.0098 dB Peak SAR (extrapolated) = 0.3160 SAR(1 g) = 0.257 mW/g; SAR(10 g) = 0.198 mW/g Maximum value of SAR (measured) = 0.284 mW/g 0 dB = 0.280mW/g = -11.06 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 8/17/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.904 mho/m; ε r = 42.921; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1239; Calibrated: 6/6/2012 - Probe: EX3DV4 - SN3773; ConvF(8.79, 8.79, 8.79); Calibrated: 3/14/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 LHS/Tilt_GMSK_ch 190/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.173 mW/g LHS/Tilt_GMSK_ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.914 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.1950 SAR(1 g) = 0.160 mW/g; SAR(10 g) = 0.125 mW/g Maximum value of SAR (measured) = 0.179 mW/g 0 dB = 0.180mW/g = -14.89 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 8/17/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.904 mho/m; ε r = 42.921; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1239; Calibrated: 6/6/2012 - Probe: EX3DV4 - SN3773; ConvF(8.79, 8.79, 8.79); Calibrated: 3/14/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 RHS/Touch_GMSK_ch 190/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.295 mW/g RHS/Touch_GMSK_ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.213 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.3240 SAR(1 g) = 0.263 mW/g; SAR(10 g) = 0.203 mW/g Maximum value of SAR (measured) = 0.293 mW/g 0 dB = 0.290mW/g = -10.75 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 8/17/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8.00018 RHS/Touch_GMSK_ch 190/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 0.291 mW/g Test Laboratory: UL CCS SAR Lab C Date: 8/17/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.904 mho/m; ε r = 42.921; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1239; Calibrated: 6/6/2012 - Probe: EX3DV4 - SN3773; ConvF(8.79, 8.79, 8.79); Calibrated: 3/14/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 RHS/Tilt_GMSK_ch 190/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.163 mW/g RHS/Tilt_GMSK_ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.463 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.1840 SAR(1 g) = 0.152 mW/g; SAR(10 g) = 0.119 mW/g Maximum value of SAR (measured) = 0.167 mW/g 0 dB = 0.170mW/g = -15.39 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 8/23/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:4.00037; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.893 mho/m; ε r = 42.188; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1239; Calibrated: 6/6/2012 - Probe: EX3DV4 - SN3773; ConvF(8.79, 8.79, 8.79); Calibrated: 3/14/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 LHS/Touch_GPRS 2slot_ch 190/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.223 mW/g LHS/Touch_GPRS 2slot_ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.011 V/m; Power Drift = 0.0097 dB Peak SAR (extrapolated) = 0.2520 SAR(1 g) = 0.201 mW/g; SAR(10 g) = 0.155 mW/g Maximum value of SAR (measured) = 0.255 mW/g 0 dB = 0.220mW/g = -13.15 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 8/23/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:4.00037; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolat…

Text truncated - open the document above for the full version.

Test Laboratory: UL CCS SAR Lab C Date: 8/16/2012 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.37 mho/m; ε r = 39.879; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1239; Calibrated: 6/6/2012 - Probe: EX3DV4 - SN3773; ConvF(7.51, 7.51, 7.51); Calibrated: 3/14/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 LHS/Touch_GMSK_ch 661/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.307 mW/g LHS/Touch_GMSK_ch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.944 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.4160 SAR(1 g) = 0.286 mW/g; SAR(10 g) = 0.181 mW/g Maximum value of SAR (measured) = 0.343 mW/g 0 dB = 0.340mW/g = -9.37 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 8/16/2012 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:8.00018 LHS/Touch_GMSK_ch 661/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 0.294 mW/g Test Laboratory: UL CCS SAR Lab C Date: 8/16/2012 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.37 mho/m; ε r = 39.879; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1239; Calibrated: 6/6/2012 - Probe: EX3DV4 - SN3773; ConvF(7.51, 7.51, 7.51); Calibrated: 3/14/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 LHS/Tilt_GMSK_ch 661/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.148 mW/g LHS/Tilt_GMSK_ch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.630 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.2220 SAR(1 g) = 0.141 mW/g; SAR(10 g) = 0.081 mW/g Maximum value of SAR (measured) = 0.177 mW/g 0 dB = 0.180mW/g = -14.89 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 8/16/2012 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.37 mho/m; ε r = 39.879; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1239; Calibrated: 6/6/2012 - Probe: EX3DV4 - SN3773; ConvF(7.51, 7.51, 7.51); Calibrated: 3/14/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 RHS/Touch_GMSK_ch 661/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.180 mW/g RHS/Touch_GMSK_ch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.599 V/m; Power Drift = 0.00083 dB Peak SAR (extrapolated) = 0.2260 SAR(1 g) = 0.154 mW/g; SAR(10 g) = 0.099 mW/g Maximum value of SAR (measured) = 0.185 mW/g RHS/Touch_GMSK_ch 661/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.599 V/m; Power Drift = 0.00083 dB Peak SAR (extrapolated) = 0.2020 SAR(1 g) = 0.135 mW/g; SAR(10 g) = 0.087 mW/g Maximum value of SAR (measured) = 0.166 mW/g 0 dB = 0.170mW/g = -15.39 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 8/16/2012 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.37 mho/m; ε r = 39.879; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1239; Calibrated: 6/6/2012 - Probe: EX3DV4 - SN3773; ConvF(7.51, 7.51, 7.51); Calibrated: 3/14/2012 - S…

Text truncated - open the document above for the full version.
