Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: ZNFE980 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operation Descriptions Tune-up Procedure Antenna Specification Parts list Ab ove mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after the grant as outlined in Public Notice DA 04-1705. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely Yours, Jacop Cho Director On behalf of LG Electronics Mobilecomm U.S.A.,Inc Feb 4, 2013

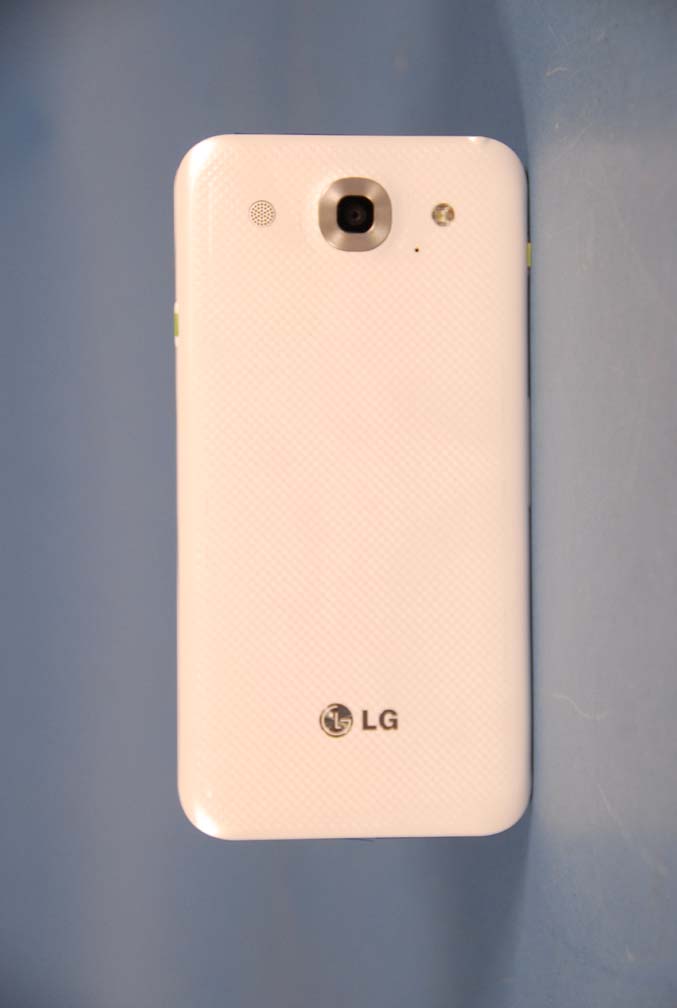

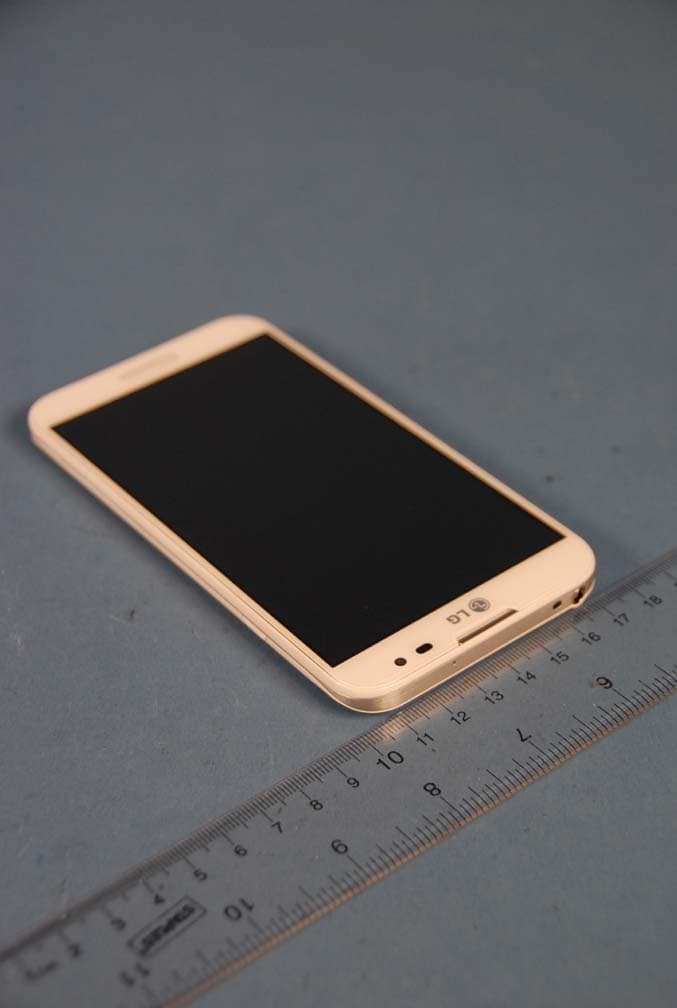

LG FCC ID: ZNFE980 Model: E980 External Photos EUT Type: Portable Handset Page 1 of 4 © 2013 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG FCC ID: ZNFE980 Model: E980 External Photos EUT Type: Portable Handset Page 2 of 4 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFE980 Model: E980 External Photos EUT Type: Portable Handset Page 3 of 4 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFE980 Model: E980 External Photos EUT Type: Portable Handset Page 4 of 4 © 2013 PCTEST Engineering Laboratory Inc.

Model No: LG-E980 FCC ID : ZNFE980 S/N : Made in Korea LG Electronics Inc. LGE

LG FCC ID: ZNFE980 Model: E980 Internal Photos EUT Type: Portable Handset Page 1 of 10 © 2013 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG FCC ID: ZNFE980 Model: E980 Internal Photos EUT Type: Portable Handset Page 2 of 10 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFE980 Model: E980 Internal Photos EUT Type: Portable Handset Page 3 of 10 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFE980 Model: E980 Internal Photos EUT Type: Portable Handset Page 4 of 10 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFE980 Model: E980 Internal Photos EUT Type: Portable Handset Page 5 of 10 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFE980 Model: E980 Internal Photos EUT Type: Portable Handset Page 6 of 10 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFE980 Model: E980 Internal Photos EUT Type: Portable Handset Page 7 of 10 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFE980 Model: E980 Internal Photos EUT Type: Portable Handset Page 8 of 10 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFE980 Model: E980 Internal Photos EUT Type: Portable Handset Page 9 of 10 © 2013 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFE980 Model: E980 Internal Photos EUT Type: Portable Handset Page 10 of 10 © 2013 PCTEST Engineering Laboratory Inc.

FCC ID:ZNFE980 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 55 0Y1301020025.ZNF 01/05/13 - 01/15/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. 01/05/13 - 01/15/13 1000 Sylvan Avenue, Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA USA Document Serial No.: 0Y1301020025.ZNF FCC ID: ZNFE980 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A., INC. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): LG-E980, E980, LGE980 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz33.62 0.370.430.53 PCEUMTS 850826.40 - 846.60 MHz23.550.15 0.270.35 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz30.390.18 1.291.29 PCEUMTS 19001852.4 - 1907.6 MHz23.540.14 0.850.85 PCELTE Band 17706.5 - 713.5 MHz23.650.19 0.360.50 PCELTE Band 5 (Cell)826.5 - 846.5 MHz23.690.16 0.300.36 PCELTE Band 4 (AWS)1712.5 - 1752.5 MHz23.700.240.360.42 PCELTE Band 2 (PCS)1852.5 - 1907.5 MHz23.700.241.081.08 DTS2.4 GHz WLAN2412 - 2462 MHz16.85< 0.1< 0.1< 0.1 DTS5.8 GHz WLAN5745 - 5825 MHz14.89< 0.10.200.00 UNII5.2 GHz WLAN5180 - 5240 MHz14.86< 0.1< 0.10.00 UNII5.3 GHz WLAN5260 - 5320 MHz14.80< 0.1< 0.10.00 UNII5.5 GHz WLAN5500 - 5700 MHz14.26< 0.10.190.00 DSS/DTSBluetooth2402 - 2480 MHz11.12 0.41 1.581.32 Equipment Class N/ A SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.8 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID:ZNFE980 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 55 0Y1301020025.ZNF 01/05/13 - 01/15/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ...................................................................................................................... 10 3 INTRODUCTION ........................................................................................................................... 11 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 12 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 13 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 14 7 RF EXPOSURE LIMITS ................................................................................................................ 17 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 18 9 RF CONDUCTED POWERS ......................................................................................................... 22 10 SYSTEM VERIFICATION .............................................................................................................. 33 11 SAR DATA SUMMARY ................................................................................................................. 35 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 44 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 49 14 EQUIPMENT LIST ......................................................................................................................... 50 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 51 16 CONCLUSION ............................................................................................................................... 53 17 REFERENCES .............................................................................................................................. 54 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID:ZNFE980 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 55 0Y1301020025.ZNF 01/05/13 - 01/15/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz LTE Band 17Data706.5 - 713.5 MHz LTE Band 5 (Cell)Data826.5 - 846.5 MHz LTE Band 4 (AWS)Data1712.5 - 1752.5 MHz LTE Band 2 (PCS)Data1852.5 - 1907.5 MHz 2.4 GHz WLANData24…

Text truncated - open the document above for the full version.

© 2012 PCTEST Engineering Laboratory, Inc. APPENDIX B: SYSTEM VERIFICATION DUT: Dipole 750 MHz; Type: D750V3; Serial: 1054 Communication System: CW; Frequency: 750 MHz; Duty Cycle: 1:1 Medium: 750 Head; Medium parameters used (interpolated): f = 750 MHz; σ = 0.906 S/m; ε r = 42.367; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.5 cm Test Date: 01-14-2013; Ambient Temp: 23.8°C; Tissue Temp: 23.4°C Probe: ES3DV3 - SN3288; ConvF(6.67, 6.67, 6.67); Calibrated: 9/20/2012; Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1323; Calibrated: 9/19/2012 Phantom: SAM v5.0 front; Type: QD000P40CD; Serial: TP-1646 Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.8 (7028) 750 MHz System Verification Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) Peak SAR (extrapolated) = 1.25 W/kg SAR(1 g) = 0.834 W/kg; SAR(10 g) = 0.545 W/kg Deviation = -2.11% 0 dB = 0.900 W/kg = -0.46 dBW/kg B1 DUT: SAR Dipole 835 MHz; Type: D835V2; Serial: 4d047 Communication System: CW; Frequency: 835 MHz; Duty Cycle: 1:1 Medium: 835 Head; Medium parameters used: f = 835 MHz; σ = 0.908 S/m; ε r = 42.24; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.5 cm Test Date: 01-07-2013; Ambient Temp: 23.4°C; Tissue Temp: 21.5°C Probe: ES3DV3 - SN3288; ConvF(6.41, 6.41, 6.41); Calibrated: 9/20/2012; Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1323; Calibrated: 9/19/2012 Phantom: SAM v5.0 front; Type: QD000P40CD; Serial: TP-1646 Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.8 (7028) 835 MHz System Verification Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 19.54 dBm (90 mW) Peak SAR (extrapolated) = 1.28 W/kg SAR(1 g) = 0.858 W/kg; SAR(10 g) = 0.559 W/kg Deviation = 1.31% 0 dB = 0.928 W/kg = -0.32 dBW/kg B2 DUT: SAR Dipole 835 MHz; Type: D835V2; Serial: 4d133 Communication System: CW; Frequency: 835 MHz; Duty Cycle: 1:1 Medium: 835 Head; Medium parameters used: f = 835 MHz; σ = 0.878 S/m; ε r = 41.49; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.5 cm Test Date: 01-11-2013; Ambient Temp: 23.9°C; Tissue Temp: 22.3°C Probe: ES3DV3 - SN3288; ConvF(6.41, 6.41, 6.41); Calibrated: 9/20/2012; Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1323; Calibrated: 9/19/2012 Phantom: SAM v5.0 front; Type: QD000P40CD; Serial: TP-1646 Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.8 (7028) 835 MHz System Verification Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) Peak SAR (extrapolated) = 1.32 W/kg SAR(1 g) = 0.885 W/kg; SAR(10 g) = 0.578 W/kg Deviation = -6.35% 0 dB = 0.957 W/kg = -0.19 dBW/kg B3 DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d026 Communication System: CW; Frequency: 835 MHz; Duty Cycle: 1:1 Medium: 835 Head; Medium parameters used: f = 835 MHz; σ = 0.917 S/m; ε r = 41.31; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.5 cm Test Date: 01-15-2013; Ambient Temp: 23.7°C; Tissue Temp: 23.3°C Probe: ES3DV3 - SN3209; ConvF(6.22, 6.22, 6.22); Calibrated: 3/16/2012; Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 2/20/2012 Phantom: SAM Sub Dasy B; Type: SAM 5.0; Serial: TP-1626 Measurement SW: DASY4, Version 4.7 (80);SEMCAD X Version 14.6.8 (7028) 835MHz System Verification Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) Peak SAR (extrapolated) = 1.34 W/kg SAR(1 g) = 0.937 W/kg; SAR(10 g) = 0.618 W/kg Deivation = -0.21% 0 dB = 1.01 W/kg = 0.04 dBW/kg B4 DUT: Dipole 1750 MHz; Type: D1750V2; Serial: 1051 Communication System: CW; Frequency: 1750 MHz; Duty Cycle: 1:1 Medium: 1750 Head; Medium parameters used: f = 1750 MHz; σ = 1.399 S/m; ε r = 39.68; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 01-09-2013; Ambient Temp: 24.3°C; Tissue Temp: 21.2°C Probe: ES3DV3 - SN3263; ConvF(5.3, 5.3, 5.3); Calibrated: 5/18/2012; Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1334; Calibrated: 5/7/2012 Phantom: SAM 5.0 front; Type: QD000P40CD; Serial: TP:-1648 Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.8 (7028) 1750 MHz System Verification Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) Peak SAR (extrapolated) = 6.76 W/kg SAR(1 g) = 3.67 W/kg; SAR(10 g) = 1.92 W/kg Deviation = 0.27% 0 dB = 4.04 W/kg = 6.06 dBW/kg B5 DUT: SAR Dipole 1900 MHz; Type: D1900V2; Serial: 5d148 Communication System: CW; Frequency: 1900 MHz; Duty Cycle: 1:1 Medium: 1900 Head; Medium parameters used (interpolated): f = 1900 MHz; σ = 1.44 S/m; ε r = 38.86; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 01-14-2013; Ambient Temp: 24.6°C; Tissue Temp: 22.9°C Probe: ES3DV3 - SN3213; ConvF(5.02, 5.02, 5.02); Calibrated: 4/24/2012; Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 4/19/2012 Phantom: SAM Right; Type: QD000P40CD; Serial: 1686 Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.8 (7028) 1900 MHz System Verification Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) Peak SAR (extrapolated) = 7.61 W/kg SAR(1 g) = 4.02 W/kg; SAR(10 g) = 2.05 W/kg Deviation = -0.74% 0 dB = 4.52 W/kg = 6.55 dBW/kg B6 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 719 Communication System: CW; Frequency: 2450 MHz; Duty Cycle: 1:1 Medium: 2450 Head; Medium parameters used: f = 2450 MHz; σ = 1.852 S/m; ε r = 37.68; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm T…

Text truncated - open the document above for the full version.

FCC ID: ZNFE980 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 34 0Y1301020031.ZNF January 3-18, 2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 2.0BTLE 09/21/2012 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A January 3-18, 2013 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1301020031.ZNF FCC ID: ZNFE980 APPLICANT: LG Electronics MobileComm U.S.A Application Type: Certification Model: E980, LGE980, LG-E980 EUT Type: Portable Handset Max. RF Output Power: 8.004 mW (9.03 dBm) Peak Conducted Frequency Range: 2402 - 2480 MHz FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): ANSI C63.10-2009 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 Bluetooth (Low Energy) FCC ID: ZNFE980 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 34 0Y1301020031.ZNF January 3-18, 2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 2.0BTLE 09/21/2012 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 CONDUCTED EMISSIONS ........................................................................................................................... 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – BLUETOOTH (LE) ......................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – BLUETOOTH (LE) .......................................................................... 14 6.4 POWER SPECTRAL DENSITY – BLUETOOTH (LE) .................................................................................. 16 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE ...................................................................................... 19 6.6 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 21 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 26 6.8 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ...................................................................... 31 6.9 LINE-CONDUCTED TEST DATA ................................................................................................................. 32 7.0 CONCLUSION ....................................................................................................................................... 34 FCC ID: ZNFE980 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 34 0Y1301020031.ZNF…

Text truncated - open the document above for the full version.

FCC ID: ZNFE980 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 65 0Y1301020028.ZNF January 7-18, 2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 2.0WN40 11/08/2012 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A January 7-18, 2013 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1301020028.ZNF FCC ID: ZNFE980 APPLICANT: LG Electronics MobileComm U.S.A Application Type: Certification Model(s): E980, LGE980, LG-E980 EUT Type: Portable Handset FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): ANSI C63.10-2009, KDB 558074 v02 Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) 802.11b 2412 - 246249.88816.9887.29719.41 802.11g 2412 - 246224.94613.97140.92921.49 802.11n 2412 - 246219.27512.85115.87820.64 802.11a 5745 - 582531.18914.94177.01122.48 802.11n (20MHz) 5745 - 582518.49312.67111.42920.47 802.11n (40MHz) 5755 - 579521.52813.33126.47421.02 Avg Conducted Mode Tx Frequency (MHz) Peak Conducted This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009 and KDB 558074. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 WLAN 802.11a/b/g/n FCC ID: ZNFE980 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 65 0Y1301020028.ZNF January 7-18, 2013 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 2.0WN40 11/08/2012 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11A/B/G/N ............................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G/N (2.4GHZ) ................................................................... 22 6.4 OUTPUT POWER MEASUREMENT – 802.11A/N (5GHZ) ......................................................................... 24 6.5 POWER SPECTRAL DENSITY (802.11A/B/G/N) ........................................................................................ 25 6.6 CONDUCTED EMISSIONS AT THE BAND EDGE ...................................................................................... 36 6.7 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 43 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 51 6.9 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ...................................................................... 57…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ZNFE980 SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 01/05/13 - 01/15/13 Portable Handset APPENDIX F: Page 1 of 7 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 A P P E N D I X F : S A R T E S T S E T U P P H O T O G R A P H S Reviewed by: FCC ID: ZNFE980 SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 01/05/13 - 01/15/13 Portable Handset APPENDIX F: Page 2 of 7 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 SAR Test Setup Photo 1 – Right Cheek SAR Test Setup Photo 2 – Right Tilt Reviewed by: FCC ID: ZNFE980 SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 01/05/13 - 01/15/13 Portable Handset APPENDIX F: Page 3 of 7 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 SAR Test Setup Photo 3 – Left Cheek SAR Test Setup Photo 4 – Left Tilt Reviewed by: FCC ID: ZNFE980 SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 01/05/13 - 01/15/13 Portable Handset APPENDIX F: Page 4 of 7 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 SAR Test Setup Photo 5 – Back side at 1.0 cm SAR Test Setup Photo 6 – Front Side at 1.0 cm Reviewed by: FCC ID: ZNFE980 SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 01/05/13 - 01/15/13 Portable Handset APPENDIX F: Page 5 of 7 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 SAR Test Setup Photo 7 – Bottom Edge at 1.0 cm SAR Test Setup Photo 8 – Right Edge at 1.0 cm Reviewed by: FCC ID: ZNFE980 SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 01/05/13 - 01/15/13 Portable Handset APPENDIX F: Page 6 of 7 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 SAR Test Setup Photo 9 – Left Edge at 1.0 cm SAR Test Setup Photo 10 – Back side with Headset Cable at 1.0 cm Reviewed by: FCC ID: ZNFE980 SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 01/05/13 - 01/15/13 Portable Handset APPENDIX F: Page 7 of 7 © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 SAR Test Setup Photo 11 – DUT Horizontal and Vertical Reference Lines

LG FCC ID: ZNFE980 Model: E980 Test Set-Up Photos EUT Type: Portable Handset Page 1 of 3 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS LG FCC ID: ZNFE980 Model: E980 Test Set-Up Photos EU…
