ZNFG900TMPortable Handset

ENGLISH www.lg.com USER GUIDE Copyright ©2020 LG Electronics Inc. All rights reserved. MFLXXXXXXXX (1.0) LM-G900TM 1 About this user guide Thank you for choosing this LG product. Please carefully read this user guide before using the device for the first time to ensure safe and proper use. • Always use genuine LG accessories. The supplied items are designed only for this device and may not be compatible with other devices. • Descriptions are based on the device default settings. • Default apps on the device are subject to updates, and support for these apps may be withdrawn without prior notice. If you have any questions about an app provided with the device, please contact a LG Authorized Service Center. For user-installed apps, please contact the relevant service provider. • Modifying the device’s operating system or installing software from unofficial sources may damage the device and lead to data corruption or data loss. Such actions will violate your LG license agreement and void your warranty. • Some content and illustrations may differ from your device, depending on the area, service provider, software version, or OS version, and are subject to change without prior notice. • Software, audio, wallpaper, images, and other media supplied with your device are licensed for limited use. If you extract and use these materials for commercial or other purposes, you may be infringing copyright laws. As a user, you are fully responsible for the illegal use of media. • Additional charges may incur for data services, such as messaging, uploading, downloading, auto-syncing and location services. To avoid additional charges, select a data plan suitable to your needs. Contact your service provider to obtain additional details. • Failure to follow the instructions in this guide and improper use may damage the device. 2 Instructional notices WARNING: Situations that could cause injury to the user and third parties. CAUTION: Situations that may cause minor injury or damage to the device. NOTE: Notices or additional information. 3Table of contents Table of contents 02 Basic Functions 25 Product components and accessories 26 Parts overview 29 Turning the power on or off 30 Installing the SIM card and memory card 32 R emoving the memory card 32 Battery 35 Touch screen 38 Home screen 46 Scr een lock 50 Multi-tasking feature 55 Memor y card encryption 56 T aking screenshots 57 Entering text 65 Cont ent sharing 67 D o not disturb 68 AOD (always-on display) 69 Quick Help 69 No tes on Water Resistant Properties 01 Custom-designed Features 7 Camera features 12 Audio features 14 L G Pay 16 LG Dual Screen 18 Google Assistant 20 Finger print Recognition 4Table of contents 03 Useful Apps 73 Installing and uninstalling apps 75 App Shortcuts 76 Phone 80 Messaging 81 Camera 99 Gallery 107 Chrome 108 Google apps 110 QuickMemo+ 113 Contacts 115 Clock 116 Calendar 116 Music 117 Calculator 118 ThinQ 118 LG Health 120 HD Audio R ecorder 122 FM Radio 122 LG Pay 126 L G Mobile Switch 127 SmartWorld 127 Game Launcher 04 Settings 129 Settings 129 Network & internet 136 Connected devices 141 Sound 142 Notifications 143 Display 144 Wallpaper & theme 145 Lock screen & security 146 Privacy 147 Location 148 Extensions 152 Apps 152 Battery 153 Storage 153 Accounts 153 Digital Wellbeing & parental controls 154 Google 154 System 157 Accessibility 5Table of contents 05 Appendix 161 LG Language Settings 161 LG Bridge 162 Phone software update 164 Anti-Thef t Guide 165 Open Source Software Notice Information 165 Regulatory information (FCC ID number, etc.) 166 Trademarks 167 Laser safety stat ement 168 More information 170 FA Q 06 For Your Safety 07 LIMITED WARRANTY USA 08 LG Dual Screen (LM-V905N) 209 Getting to Know LG Dual Screen 210 Product components and accessories 211 Parts overview 212 Plugging the V60 ThinQ int o the Dual Screen 214 Removing the V60 ThinQ from the Dual Screen 217 Using the Charging Adap ter 219 Using the Dual Screen 238 More Dual Screen information 239 Safety Information 241 Limited Warranty – USA Custom-designed Features 01 Custom-designed Features7 Camera features Time-lapse control You can record time-lapse videos optimized for the situation. Videos can be recorded with optimal speed and steady motion by analyzing various shooting environments. The time-lapse speed can be automatically adjusted according to the shooting target and environment. You can also select the time-lapse speed manually. 1 Tap and select Time-lapse by swiping camera modes. • Select a zoom from standard angle x1 zoom x1.0 / standard angle x2 zoom / wide angle x0.5 zoom . • Select a time-lapse speed from Auto / x1 / x5 / x10 / x15 / x30 / x60. Select Time Lapse from camera modes Select time-lapse speed Select zoom Select flash option Set steady cam Set camera options Select screen ratio Custom-designed Features8 2 Tap to record a video. • You can change a zoom and time-lapse speed while recording. • To pause the recording, tap . To resume the recording, tap . 3 Tap to stop recording. • The recorded video will be saved in Gallery. • Audio is not recorded during time-lapse recording. • You can save storage space by setting the Save as HEVC option in . It compresses the video file in HEVC format. • Other devices may not support video files in HEVC format. 3D AR Sticker Z-camera on the back of the device allows you to create realistic 3D AR stickers by recognizing facial contours in greater detail. 1 Tap and select Sticker by swiping camera modes. 2 Tap on the screen. 3 Swipe the sticker list left or right to select the AR sticker to use. • The face detected by the camera is scanned in 3D. Sticker list Custom-designed Features9 4 Tap to take a photo. • The photo is taken with 3D AR Sticker applied. • The 3D scanning feature of Z-camera is available only for close-up portrait shooting. 3D Photo Effect 3D Photo Effect allows you to take 3D photos that give a greater sense of depth to portraits by using the Z-camera on the back of the device.…

Text truncated - open the document above for the full version.

221 Getting to know Dual Screen Home layout You can use various functions by running the icons provided on the home screen. Quick access area Navigation bar • The background of the Dual Screen may differ from the figure depending on the manufacturer’s policies, user settings, software versions, services provided by telecommunication providers, etc. • Quick access area: Fix main apps at the bottom of the screen so that they can be accessed from any Home screen canvas. • Navigation bar: Use some gestures to go to the Home screen, previous screen, Overview screen, or quickly switch between apps. 222 Using the Dual Screen Panel You can open the Dual Screen panel by dragging down the top of the screen. • You can adjust the screen brightness on the Dual Screen panel. - If you activate synchronization by selecting Sync, the screen brightness of the Dual Screen comes in sync with that of the connected phone. • You can tap Screenshot to capture what’s on the Dual Screen. - It is automatically saved in Gallery. • You can turn off the Dual Screen by tapping Dual Screen. - The Dual Screen and the connected mobile phone are disconnected. • You can tap to access the settings menu of Dual Screen. Screenshot Adjust screen brightness Dual Screen Dual Screen settings 223 Editing Dual Screen Home Touch and hold an empty area on the Dual Screen home and run a desired function. • To add a widget to the Home screen, touch and hold on a blank area of the Home screen, then select Widgets. • To change wallpapers, touch and hold on a blank area of the Home screen, then select Wallpapers. • To change the default screen, touch and hold on a blank area of the Home screen, move to desired screen, tap , then tap the screen once more. Default screen WallpapersWidgets 224 Viewing the Dual Screen background You can view only the background image by hiding the apps and widgets on the Home screen. Spread two fingers apart on the Home screen. • To return to the original screen, which displays apps and widgets, pinch your fingers on the Home screen or tap . 225 Setting Dual Screen environment You can set the Dual Screen environment on the mobile phone connected to the Dual Screen. 1 On the home screen, tap Settings Display Dual Screen. • You must connect your mobile phone to the Dual Screen to see the menu item for Dual Screen environment setting. 2 Select and set the desired functions. • Cover Display: You can set whether to use cover display on the front of the Dual Screen. -Display timeout: Automatically turns off the Dual screen when the device is left idle for the time you set. -Daily timeout: Set the schedule for which you want to turn off the Dual screen. • Dual Screen Tool: If you connect your mobile phone to the Dual Screen, the Dual Screen Tools menu icon appears on the screen. You can show or hide this icon on the screen. • Use Dual Screen: You can turn on and off the Dual Screen, switch screens between the mobile phone and the Dual Screen. • Brightness: You can adjust the screen brightness by moving the control bar to the left or right. • Keep the same as main screen: You can synchronize the brightness level with that of the connected mobile phone. • Wide view: Select apps to expand the view to both screens. • Wallpaper: You can select the wallpaper for the Home screen. • App drawer Icon: You can show or hide the App drawer on your Dual Screen. • My Pick App: You can select apps to run automatically every time you turn on the Dual Screen. • The list of apps that appear on the screen may differ depending on the installed apps. 226 Dual Screen Tool If you connect your mobile phone to the Dual Screen and turn on the Dual Screen, the Dual Screen Tools menu icon appears on the side of the mobile phone screen. Tap to open the Dual Screen Tools menu and access the options shown below. / You can tap it lightly to show or hide the Dual Screen Tools menu. You can switch the screens between the Dual Screen and the mobile phone. You can send the screen from the mobile phone to the Dual Screen. You can bring the screen from the Dual Screen to the mobile phone. If you use the Dual Screen only, you can lower the brightness level of the mobile phone screen (main screen) to save battery. If you do not want to use this function, swipe the main screen. You can have a web browser screen extended to the Dual Screen to use in Wide view. You can turn off the Dual Screen. Dual Screen Tool Swap screens Show main on Dual Screen Show Dual Screen on main Put main screen to sleep Wide view Turn off Dual Screen 227 • If you turn off your mobile phone, the Dual Screen also turns off. However, if you turn off the Dual Screen, the mobile phone stays on. • This feature is not available on the lock screen and is activated when you unlock the screen. • The Wide view icon appears among the Dual Screen tools only when you are using specific Google apps. Using Multi-Page Mode You can extend the use of an app to the main screen and the Dual Screen for convenience. • This function is also available in partner apps in addition to the Camera and Gallery apps. • The UI may differ depending on the app used. 228 Using Multi-Page Mode in Camera You can take a photo or video on the phone or Dual Screen and view the result on the other screen. 1 On the home screen, tap on the phone or Dual Screen and take a photo or video. 2 After taking a photo or video, select the Preview icon. • You can view the photo or video you have taken on the other screen where the camera is not running. • Once you tap the Preview icon to view a photo or video, the preview screen stays on and automatically displays the last photo or video taken as you shoot more photos and videos. • This function does not remain active if you close the Camera app and open again. 229 Using Multi-Page Mode in Gallery Tap in a folder in Gallery on the Dual Screen or mobile phone to view enlarged photo or video on the opposite screen. 1 On the home screen, tap on the phone or Dual Screen. 2 Select an album…

Text truncated - open the document above for the full version.

Date : June 1, 2020

          !"# Date: July 27, #20 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE:  Request of Confidentiality for FCC ID: ZNFG900TM Equipment Class:%&' () ) *+  *  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act USA, Inc.hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for , day s after the grant as outlined in Public Notice DA 04- 1705. This provision will give  USA, Inc.temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: '-.+%/0-+1+-.023%+33+ 45 6  %e )  1 Block Diagram 2 Operational Descriptions '-.+ 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos /0-+1+-. 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Kyung-Su Han Director LG Electronics USA, Inc. LG Electronics USA, Inc. 111 Sylvan Avenue Englewood Cliffs, NJ 07632

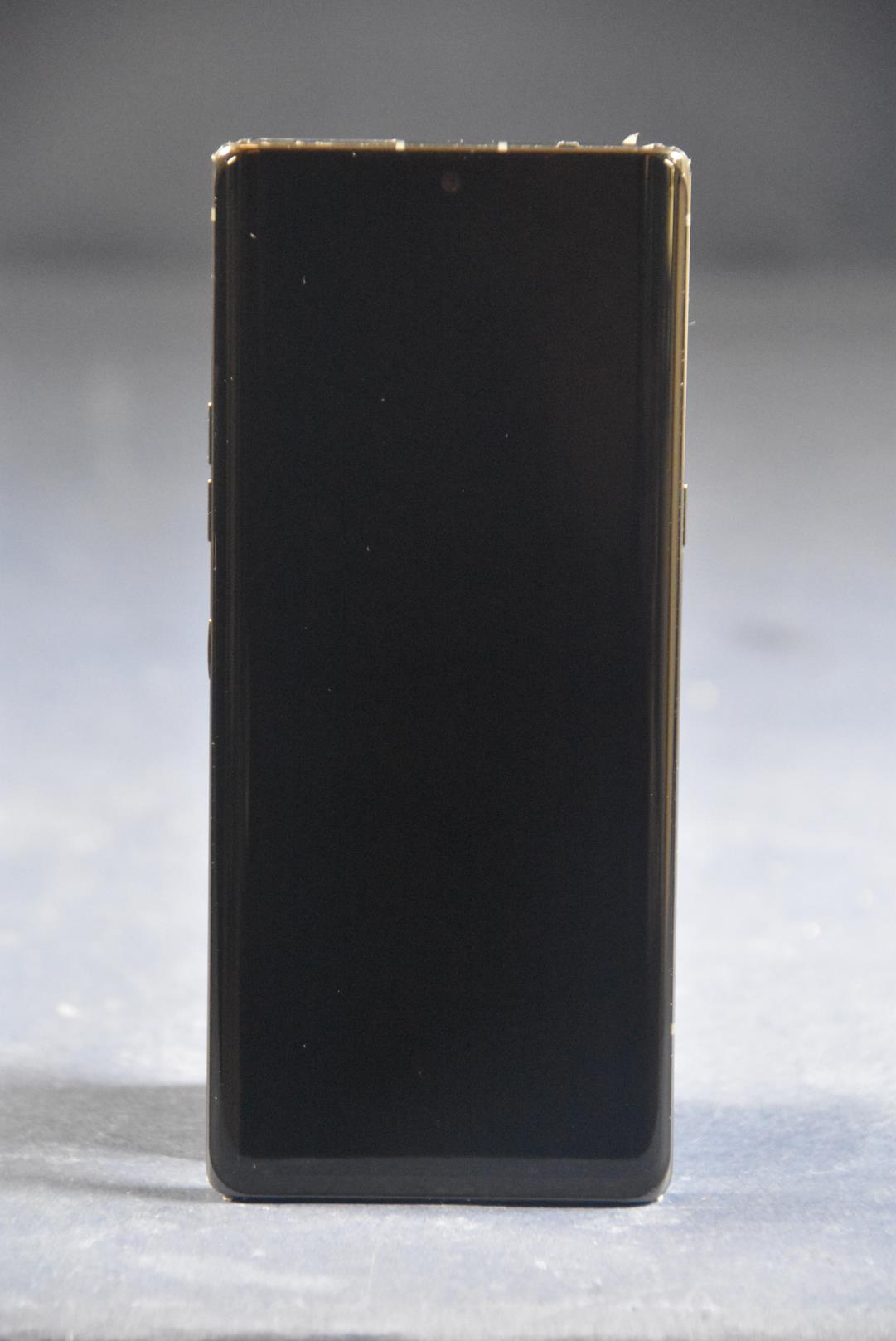

LG Electronics USA, Inc. FCC ID: ZNFG900TM Model: LM-G900TM External Photos EUT Type: Portable Handset Page 1 of 5 © 2020 PCTEST V 9.0 02/01/2019 E X T E R N A L P H O T O G R A P H S LG Electronics USA, Inc. FCC ID: ZNFG900TM Model: LM-G900TM External Photos EUT Type: Portable Handset Page 2 of 5 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFG900TM Model: LM-G900TM External Photos EUT Type: Portable Handset Page 3 of 5 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFG900TM Model: LM-G900TM External Photos EUT Type: Portable Handset Page 4 of 5 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFG900TM Model: LM-G900TM External Photos EUT Type: Portable Handset Page 5 of 5 © 2020 PCTEST V 9.0 02/01/2019

LGE Internal Use Only Description of E-Label for ZNFG900TM ※ FCC ID is applied by E-Label on the device Settings Menu Step 1 Select “Setting” Step 2 Select “System” Step 3 Select “Regulatory & safety” ※ FCC ID is applied on the packaging Label FCC ID: ZNFG900TM ※ Instruction of E-Label on the User Manual

LG Electronics USA, Inc. FCC ID: ZNFG900TM Model: LM-G900TM Internal Photos EUT Type: Portable Handset Page 1 of 6 © 2020 PCTEST V 9.0 02/01/2019 INTERNAL PHOTOGRAPHS LG Electronics USA, Inc. FCC ID: ZNFG900TM Model: LM-G900TM Internal Photos EUT Type: Portable Handset Page 2 of 6 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFG900TM Model: LM-G900TM Internal Photos EUT Type: Portable Handset Page 3 of 6 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFG900TM Model: LM-G900TM Internal Photos EUT Type: Portable Handset Page 4 of 6 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFG900TM Model: LM-G900TM Internal Photos EUT Type: Portable Handset Page 5 of 6 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFG900TM Model: LM-G900TM Internal Photos EUT Type: Portable Handset Page 6 of 6 © 2020 PCTEST V 9.0 02/01/2019

© 2020 PCTEST APPENDIX A: SAR TEST DATA A1 PCTEST DUT: ZNFG900TM; Type: Portable Handset; Serial: 00342 Communication System: UID 0, Cellular CDMA; Frequency: 820.1 MHz; Duty Cycle: 1:1 Medium: 835 Head; Medium parameters used (interpolated): f = 820.1 MHz; σ = 0.891 S/m; ε r = 41.951; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 06/29/2020; Ambient Temp: 23.1°C; Tissue Temp: 21.9°C Probe: EX3DV4 - SN7410; ConvF(9.88, 9.88, 9.88) @ 820.1 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V8.0; Type: QD 000 P41 Ax; Serial: 1966 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: Cell. EVDO Rev. A, Rule Part 90S, Left Head, Cheek, Mid.ch Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan(5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.66 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 0.133 W/kg SAR(1 g) = 0.105 W/kg 0 dB = 0.123 W/kg = -9.10 dBW/kg A2 PCTEST DUT: ZNFG900TM; Type: Portable Handset; Serial: 00342 Communication System: UID 0, Cellular CDMA; Frequency: 836.52 MHz; Duty Cycle: 1:1 Medium: 835 Head; Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.908 S/m; ε r = 41.728; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 06/29/2020; Ambient Temp: 23.1°C; Tissue Temp: 21.9°C Probe: EX3DV4 - SN7410; ConvF(9.88, 9.88, 9.88) @ 836.52 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V8.0; Type: QD 000 P41 Ax; Serial: 1966 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: Cell. EVDO Rev. A, Rule Part 22H, Left Head, Cheek, Mid.ch Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.32 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.137 W/kg SAR(1 g) = 0.107 W/kg 0 dB = 0.127 W/kg = -8.96 dBW/kg A3 PCTEST DUT: ZNFG900TM; Type: Portable Handset; Serial: 00342 Communication System: UID 0, CDMA; Frequency: 1880 MHz; Duty Cycle: 1:1 Medium: 1900 Head; Medium parameters used: f = 1880 MHz; σ = 1.388 S/m; ε r = 40.304; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 06/26/2020; Ambient Temp: 24.6°C; Tissue Temp: 21.8°C Probe: EX3DV4 - SN7410; ConvF(8.11, 8.11, 8.11) @ 1880 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V8.0; Type: QD 000 P41 Ax; Serial: 1966 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: PCS EVDO Rev A, Right Head, Cheek, Mid.ch Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.871 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 0.158 W/kg SAR(1 g) = 0.103 W/kg 0 dB = 0.135 W/kg = -8.70 dBW/kg A4 PCTEST DUT: ZNFG900TM; Type: Portable Handset; Serial: 00342 Communication System: UID 0, GSM GPRS; 4 Tx slots; Frequency: 836.6 MHz; Duty Cycle: 1:2.076 Medium: 835 Head; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.908 S/m; ε r = 41.726; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 06/29/2020; Ambient Temp: 23.1°C; Tissue Temp: 21.9°C Probe: EX3DV4 - SN7410; ConvF(9.88, 9.88, 9.88) @ 836.6 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V8.0; Type: QD 000 P41 Ax; Serial: 1966 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: GPRS 850, Left Head, Cheek, Mid.ch, 4 Tx slots Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (6x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.00 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 0.179 W/kg SAR(1 g) = 0.140 W/kg 0 dB = 0.165 W/kg = -7.83 dBW/kg A5 PCTEST DUT: ZNFG900TM; Type: Portable Handset; Serial: 00342 Communication System: UID 0, GSM GPRS; 3 Tx slots; Frequency: 1880 MHz; Duty Cycle: 1:2.76 Medium: 1900 Head; Medium parameters used: f = 1880 MHz; σ = 1.388 S/m; ε r = 40.304; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 06/26/2020; Ambient Temp: 24.6°C; Tissue Temp: 21.8°C Probe: EX3DV4 - SN7410; ConvF(8.11, 8.11, 8.11) @ 1880 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V8.0; Type: QD 000 P41 Ax; Serial: 1966 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: GPRS 1900, Right Head, Cheek, Mid.ch, 3 Tx slots Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.363 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 0.0780 W/kg SAR(1 g) = 0.050 W/kg 0 dB = 0.0686 W/kg = -11.64 dBW/kg A6 PCTEST DUT: ZNFG900TM; Type: Portable Handset; Serial: 00342 Communication System: UID 0, UMTS; Frequency: 836.6 MHz; Duty Cycle: 1:1 Medium: 835 Head; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.908 S/m; ε r = 41.726; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 06/29/2020; Ambient Temp: 23.1°C; Tissue Temp: 21.9°C Probe: EX3DV4 - SN7410; ConvF(9.88, 9.88, 9.88) @ 836.6 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V8.0; Type: QD 000 P41 Ax; Serial: 1966 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: UMTS 850, Left Head, Cheek, Mid.ch Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.960 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 0.126 W/kg SAR(1 g) = 0.098 W/kg 0 dB = 0.116 W/kg = -9.36 dBW/kg PCTEST A7 DUT: ZNFG900…

Text truncated - open the document above for the full version.

FCC ID: ZNFG900TM SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 7 06/15/20 - 07/30/20 Portable Handset © 2020 PCTEST REV 21.3 M 02/15/2019 1.1 LTE Downlink Only Carrier Aggregation Test Reduction Methodology SAR test exclusion for LTE downlink Carrier Aggregation is determined by power measurements according to the number of component carriers (CCs) supported by the product implementation. Per April 2018 TCBC Workshop Notes, the following test reduction methodology was applied to determine the combinations required for conducted power measurements. LTE DLCA Test Reduction Methodology: • The supported combinations were arranged by the number of component carriers in columns. • Any limitations on the PCC or SCC for each combination were identified alongside the combination (e.g. CA_2A-2A-4A-12A, but B12 can only be configured as a SCC). • Power measurements were performed for "supersets" (LTE CA combinations with multiple components carriers) and any "subsets" (LTE CA combinations with fewer component carriers) that were not completely covered by the supersets. • Only subsets that have the exact same components as a superset were excluded for measurement. • When there were certain restrictions on component carriers that existed in the superset that were not applied for the subset, the subset configuration was additionally evaluated. • Both inter-band and intra-band downlink carrier aggregation scenarios were considered. • Downlink CA combinations for SISO and 4x4 Downlink MIMO operations were measured independently, per May 2017 TCBC Workshop notes. Table 1 – Example of Exclusion Table for SISO Configurations Table 2 – Example of Exclusion Table for 4x4 Downlink MIMO Configurations Note: [CC] indicates component carrier with 4x4 DL MIMO antenna configuration CC1 CC2 CC1 CC2 CC3 CC1 CC2 CC3 CC4 CC1 CC2 CC3 CC4 CC5 2CC #1 CA_2C 5, 10, 15, 20 5, 10, 15, 20 3CC #4 3CC #1 CA_2A-2A-4A 5, 10, 15, 20 5, 10, 15, 20 5, 10, 15, 20 4CC #1 4CC #1 CA_2A-2A-4A-5A 5, 10, 15, 20 5, 10, 15, 20 5, 10, 15, 20 5, 10 No 5CC #1 CA_2A-5B-30A-66A 5, 10, 15, 20 5, 10 5, 10 5, 10 5, 10, 15, 20 No 2CC #2 CA_2A-5A 5, 10, 15, 20 5, 10 4CC #1 3CC #2 CA_2A-2A-5A 5, 10, 15, 20 5, 10, 15, 20 5, 10 4CC #1 4CC #2 CA_2A-2A-4A-12A 5, 10, 15, 20 5, 10, 15, 20 5, 10, 15, 20 5, 10 B12 SCC Only No 5CC #2 CA_2A-5B-66A-66A 5, 10, 15, 20 5, 10 5, 10 5, 10, 15, 20 5, 10, 15, 20 No 2CC #3 CA_2A-12A 5, 10, 15, 20 5, 10 3CC #3 3CC #3 CA_2A-2A-12A 5, 10, 15, 20 5, 10, 15, 20 5, 10 No 4CC #3 CA_2A-2A-5A-30A 5, 10, 15, 20 5, 10, 15, 20 5, 10 5, 10 No 2CC #4 CA_2A-13A 5, 10, 15, 20 10 3CC #9 3CC #4 CA_2C-66A 5, 10, 15, 20 5, 10, 15, 20 5, 10, 15, 20 No 4CC #4 CA_2A-2A-5A-66A 5, 10, 15, 20 5, 10, 15, 20 5, 10 5, 10, 15, 20 No 2CC #5 CA_2A-17A 5, 10 5, 10 No 3CC #5 CA_2A-2A-71A 5, 10, 15, 20 5, 10, 15, 20 5, 10, 15, 20 No 4CC #5 CA_2A-5B-30A 5, 10, 15, 20 5, 10 5, 10 5, 10 5CC #1 2CC #6 CA_2A-30A 5, 10, 15, 20 5, 10 3CC #14 3CC #6 CA_2A-4A-4A 5, 10, 15, 20 5, 10, 15, 20 5, 10, 15, 20 No 4CC #6 CA_2A-5B-66A 5, 10, 15, 20 5, 10 5, 10 5, 10, 15, 20 5CC #1 2CC #8 CA_2A-66A (2) 5, 10, 15, 20 5, 10, 15, 20 5CC #1 3CC #7 CA_2A-4A-5A 5, 10, 15, 20 5, 10, 15, 20 5, 10 4CC #1 4CC #7 CA_5B-30A-66A 5, 10 5, 10 5, 10 5, 10 5CC #1 2CC #9 CA_2A-71A 5, 10, 15, 20 5, 10, 15, 20 3CC #10 3CC #8 CA_2A-4A-12A 5, 10, 15, 20 5, 10, 15, 20 5, 10 No 4CC #8 CA_5B-66A-66A 5, 10 5, 10 5, 10, 15, 20 5, 10, 15, 20 5CC #2 2CC #10 CA_4A-4A 5, 10, 15, 20 5, 10, 15, 20 3CC #6 3CC #9 CA_2A-4A-13A 5, 10, 15, 20 5, 10, 15, 20 10 No 4CC #9 CA_5A-30A-66A-66A 5, 10 5, 10 5, 10, 15, 20 5, 10, 15, 20 No 2CC #11 CA_4A-5A (1) 5, 10, 15, 20 5, 10 4CC #1 3CC #10 CA_2A-4A-71A 5, 10, 15, 20 5, 10, 15, 20 5, 10, 15, 20 No 4CC #10 CA_41E 15, 20 15, 20 15, 20 20 No 2CC #12 CA_4A-12A (4) 5, 10, 15, 20 5, 10 3CC #8 3CC #11 CA_2A-5B 5, 10, 15, 20 5, 10 5, 10 4CC #5 2CC #13 CA_4A-13A 5, 10, 15, 20 10 3CC #9 3CC #12 CA_2A-7A-12A 5, 10, 15, 20 5, 10, 15, 20 5, 10 No 2CC #14 CA_4A-17A 5, 10 5, 10 B17 SCC Only No 3CC #13 CA_2A-12B 5, 10, 15, 20 5 5, 10 No 2CC #15 CA_5B 5, 10 5, 10 5CC #1 3CC #14 CA_2A-12A-30A 5, 10, 15, 20 5, 10 5, 10 No 2CC #16 CA_5A-25A 5, 10 5, 10, 15, 20 No 3CC #15 CA_4A-4A-5A 5, 10, 15, 20 5, 10, 15, 20 5, 10 No 2CC #17 CA_7C 15, 20 15, 20 No 3CC #16 CA_5B-30A 5, 10 5, 10 5, 10 5CC #1 2CC #18 CA_7A-7A (1) 5, 10, 15, 20 5, 10, 15, 20 No 3CC #17 CA_5B-66A 5, 10 5, 10 5, 10, 15, 20 5CC #1 2CC #19 CA_7A-12A 5, 10, 15, 20 5, 10 3CC #12 3CC #18 CA_5A-30A-66A 5, 10 5, 10 5, 10, 15, 20 4CC #9 2CC #20 CA_12B 5 5, 10 3CC #13 3CC #19 CA_12A-66C 5, 10 5, 10, 15, 20 5, 10, 15, 20 No 2CC #21 CA_12A-25A 5, 10 5, 10, 15, 20 No 3CC #20 CA_30A-66A-66A 5, 10 5, 10, 15, 20 5, 10, 15, 20 4CC #9 2CC #22 CA_12A-30A 5, 10 5, 10 3CC #14 3CC #21 CA_41D 10, 15, 20 10, 15, 20 10, 15, 20 No 2CC #23 CA_41A-41A (1) 5, 10, 15, 20 5, 10, 15, 20 No 3CC #22 CA_41A-41C 5, 10, 15, 20 5, 10, 15, 20 5, 10, 15, 20 No 3CC #23 CA_66D 5, 10, 15, 20 5, 10, 15, 20 5, 10, 15, 20 No 3CC #24 CA_66A-66C 5, 10, 15, 20 5, 10, 15, 20 5, 10, 15, 20 No Index Index 2CC Supported Channel Bandwidth [MHz] Restriction Completely Covered by Measurement Superset 3CC Supported Channel Bandwidth [MHz] Restriction Completely Covered by Measurement Superset Index 5CC Supported Channel Bandwidth [MHz] Restriction Completely Covered by Measurement Superset 4CC Supported Channel Bandwidth [MHz] Restriction Completely Covered by Measurement Superset Index CC1 CC2 CC1 CC2 CC3 CC1 CC2 CC3 CC4 2CC #M1 CA_[2C] 5, 10, 15, 20 5, 10, 15, 20 3CC #M6 3CC #M1 CA_[2A]-2A-4A 5, 10, 15, 20 5, 10, 15, 20 5, 10, 15, 20 No 4CC #M1 CA_[2A]-5B-66A 5, 10, 15, 20 5, 10 5, 10 5, 10, 15, 20 No 2CC #M2 CA_[2A]-2A 5, 10, 15, 20 5, 10, 15, 20 3CC #M1 3CC #M2 CA_[2A]-2A-5A 5, 10, 15, 20 5, 10, 15, 20 5, 10 No 4CC #M2 CA_2A-5B-[66A] 5, 10, 15, 20 5, 10 5, 10 5, 10, 15, 20 No 2CC #M3 CA_[2A]-[2A] 5, 10, 15, 20 5, 10, 15, 20 No 3CC #M3 CA_[2A]-2A-12A 5, 10, 15, 20 5, 10, 15, 20 5, 10 No 4CC #M3 CA_[2A]-5A-66B 5, 10, 15, 20 5, 1…

Text truncated - open the document above for the full version.

Object: Date Issued: Page 1 of 4 D2450V2 – SN: 981 08/09/2019 Certification of Calibration Object D2450V2 – SN: 981 Calibration procedure(s) Procedure for Calibration Extension for SAR Dipoles. Calibration date: 08/09/2019 Description: SAR Validation Dipole at 2450 MHz. Calibration Equipment used: Measurement Uncertainty = ±23% (k=2) Name Function Signature Calibrated By: Brodie Halbfoster Test Engineer Approved By: Kaitlin O’Keefe Senior Technical Manager Manufacturer Model Description Cal Date Cal Interval Cal Due Serial Number Agilent 8753ES S-Parameter Network Analyzer 10/2/2018 Annual 10/2/2019 US39170118 Agilent N5182A MXG Vector Signal Generator 6/27/2019 Annual 6/27/2020 US46240505 Amplifier Research 15S1G6 Amplifier CBTN/A CBT343972 Anritsu ML2495A Power Meter 10/21/2018 Annual 10/21/2019 941001 Anritsu MA2411B Pulse Power Sensor 10/30/2018 Annual 10/30/2019 1207470 Anritsu MA2411B Pulse Power Sensor 11/20/2018 Annual 11/20/2019 1339007 Control Company 4040Temperature / Humidity Monitor 2/28/2018 Biennial 2/28/2020 150761911 Control Company 4352Ultra Long Stem Thermometer 2/28/2018 Biennial 2/28/2020 170330160 Keysight 772D Dual Directional Coupler CBTN/A CBT MY52180215 Keysight Technologies 85033E Standard Mechanical Calibration Kit (DC to 9GHz, 3.5mm) 7/2/2019 Annual 7/2/2020 MY53401181 Mini-Circuits BW-N20W5+ DC to 18 GHz Precision Fixed 20 dB Attenuator CBTN/A CBTN/A Mini-Circuits NLP-2950+ Low Pass Filter DC to 2700 MHz CBTN/A CBTN/A Narda 4772-3 Attenuator (3dB) CBTN/A CBT9406 Pasternack PE2209-10 Bidirectional Coupler CBTN/A CBTN/A Pasternack NC-100 Torque Wrench 5/23/2018 Biennial 5/23/2020 N/A SPEAG EX3DV4 SAR Probe 2/19/2019 Annual 2/19/2020 7417 SPEAG DAE4 Dasy Data Acquisition Electronics 2/13/2019 Annual 2/13/2020 665 SPEAG EX3DV4 SAR Probe 7/15/2019 Annual 7/15/2020 7547 SPEAG DAE4 Dasy Data Acquisition Electronics 7/11/2019 Annual 7/11/2020 1323 SPEAG DAK-3.5 Dielectric Assessment Kit 9/11/2018 Annual 9/11/2019 1091 PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctest.com Object: Date Issued: Page 2 of 4 D2450V2 – SN: 981 08/09/2019 DIPOLE CALIBRATION EXTENSION Per KDB 865664 D01, calibration intervals of up to three years may be considered fo…

Text truncated - open the document above for the full version.
