ZNFG900VMPortable Handset

ENGLISH MFL71742401 (1.0)www.lg.com Copyright ©2020 LG Electronics Inc. All rights reserved. USER GUIDE LM-G900VM OS: Android 10 1 Important Customer Information Before you begin using your new phone Included in the box with your phone are separate information leaflets. These leaflets provide you with important information regarding your new device. Please read all of the information provided. This information will help you to get the most out of your phone, reduce the risk of injury, avoid damage to your device, and make you aware of legal regulations regarding the use of this device. It’s important to review the Product Safety and Warranty Information guide before you begin using your new phone. Please follow all of the product safety and operating instructions and retain them for future reference. Observe all warnings to reduce the risk of injury, damage, and legal liabilities. 2 Table of Contents Important Customer Information...............................................1 Table of Contents .......................................................................2 Feature Highlight ........................................................................5 Camera features ...................................................................................................5 Audio recording features .....................................................................................8 LG Pay ..................................................................................................................10 Google Assistant .................................................................................................12 Fingerprint recognition .......................................................................................12 Multi-tasking feature ..........................................................................................16 Notes on Water Resistant Properties ................................................................18 The Basics ................................................................................20 Phone Overview ..................................................................................................20 Installing the SIM card and memory card .......................................................24 Removing the memory card ..............................................................................25 Charging Your Phone .........................................................................................26 Turning Your Phone On and Off .......................................................................29 Touch Screen ......................................................................................................30 Getting to Know the Home Screen ..................................................................33 Setting Your Lock Screen ..................................................................................42 Memory card encryption ...................................................................................44 Entering text .......................................................................................................45 Capturing a Screenshot .....................................................................................50 Content sharing ..................................................................................................50 Useful App ...............................................................................52 App Shortcuts ....................................................................................................52 AOD (always-on display) ...................................................................................53 Audio recording features ...................................................................................54 Calculator ............................................................................................................55 Camera ................................................................................................................56 Clock ....................................................................................................................77 Contacts ..............................................................................................................79 Gallery .................................................................................................................83 Game launcher ...................................................................................................85 LG Health ............................................................................................................85 Table of Contents 3 Messaging ...........................................................................................................87 Music ...................................................................................................................90 Phone ..................................................................................................................92 LG Pay .................................................................................................................97 QuickMemo+ .....................................................................................................101 Voicemail ...........................................................................................................105 Google Apps .....................................................................................................106 Settings ..................................................................................108 Settings .............................................................................................................108 Network & internet ...........................................................................................108 Connected devices ............................................................................................114 Sound ........…

Text truncated - open the document above for the full version.

Useful App 73 Auto-Exposure/Auto-Focus lock You can fix the current exposure level and focus position by touching and holding the screen. To turn off the feature, tap a blank area on the screen. Auto-Exposure/ Auto-Focus lock NOTEThis feature is available only in specific modes. Useful App 74 Switching between cameras You can switch between the front and rear cameras to suit your environment. On the camera screen, tap to switch between the front and rear cameras. or On the camera screen, swipe the screen up or down. NOTEUse the front camera to take selfies. See Selfie shot for details. Zoom in or out You may spread or pinch two fingers to zoom in or out when you take photos or videos. NOTES• Zoom in/out function is not available in the selfie mode (front camera). • This function is not supported in a number of modes. Useful App 75 Using the Burst Shot You can take consecutive photos and view them as moving pictures in the Gallery. 1. Tap Camera and select Photo. 2. Tap and hold Capture.  Multiple, consecutive photos are taken while you are holding down Capture. Gesture shot You can take selfies by using gestures. Show your palm to the front camera and then clench your fist. You can also clench your fist and then open it towards the front camera.  In three seconds, a photo is taken. NOTES • To use this feature, switch to the front camera mode, then tap Settings > Selfie shot > Gesture shot. • Make sure that your palm and fist are within the reference line so that the camera can detect them. • This feature may not be available while using some of the camera features. Useful App 76 Auto shot You can use the face detection feature to take selfies easily and conveniently. You can set the device so that, when you look at the screen, the front camera detects your face and takes a selfie automatically.  The white colored guide frame appears when the front camera detects your face. If the subject within the guide frame stops moving, the guide frame color turns yellow, then the camera takes a photo. NOTE Tap Settings > Selfie shot > Auto shot to enable the Auto shot feature. Interval shot You can take selfies at an interval. While using the front camera with Gesture shot enabled, you can show your palm to the camera, then clench your fist twice quickly.  Four photos are taken at regular intervals after a timer delay of three seconds. Save as flipped Before taking a photo with the front camera, tap Settings > Save as flipped. The image is flipped horizontally. NOTEWhen using the front camera, you can change selfie shot settings in the camera options. See Customizing the camera options for details. Selfie shot You can use the front camera to view your face on the screen and take selfies. 1. Tap Camera and select Photo by swiping camera modes. 2. Tap Swap to switch to the front camera. 3. Tap Capture to take photos.  Tap Beauty effects to apply various beauty effects. Useful App 77 Clock You use the Clock app to access the Alarm, World clock, Timer, and Stopwatch functions. Access these functions by tapping the tabs across the top of the screen or swiping horizontally across the screen. Alarm 1. On the home screen, tap Essentials folder > Clock > Alarm > Add. 2. Set an alarm by tapping the hour or minutes and selecting the desired time on the clock graphic. Tap Keypad to set the time using a keypad instead of the clock graphic. Tap AM or PM as necessary. 3. Set days, Alarm sound and volume, Alarm with vibration, Snooze duration, Animated weather, Alarm note, and Puzzle lock. 4. Tap SAVE. NOTE To access (and change) the alarm settings from the alarm list screen, tap the Options then tap Settings. World clock The World clock allows you to set up a list of cities to easily check current times in other time zones with a quick glance. 1. On the home screen, tap Essentials folder > Clock > World clock. 2. Tap New City, search through the available cities, then tap the desired one. NOTEA network connection is necessary to search for cities. Useful App 78 Timer The Timer can alert you with an audible signal when a set amount of time has passed. 1. On the home screen, tap Essentials folder > Clock > Timer. 2. Set the desired time on the timer. 3. Tap Start to start the timer.  Tap Pause to pause the timer. 4. Tap Stop to stop the timer. Stopwatch The Stopwatch allows you to use your device as a stopwatch. 1. On the home screen, tap Essentials folder > Clock > Stopwatch. 2. Tap Start to initiate the stopwatch.  Tap Lap to record lap times. 3. Tap Pause to suspend the stopwatch.  To resume the stopwatch, tap Resume.  To clear all the records and reset the stopwatch, tap Reset. Useful App 79 Contacts The Contacts app allows you to store names, phone numbers, and other information in your phone’s memory. Entries are listed alphabetically. You can scroll through the list or select the Groups tab. Use the Contacts app to add, view, and communicate with your friends, acquaintances, and associates. To open your Contacts app  On the home screen, tap Essentials folder > Contacts. NOTEYou can also tap the Contacts tab from the Phone app. If you don't have any contacts in your Google Account or on your SIM card, hints will be displayed to help you start adding contacts to your phone. Contacts list When you open the Contacts app, your contacts list is displayed. The alphabet is displayed vertically along the right side of the screen. You can drag along it or tap the desired letter. To search for a contact 1. On the home screen, tap Essentials folder > Contacts. 2. Tap the Search contacts box and enter the contact name. Matches are displayed as you begin to type. Searching your online contacts simultaneously You can search for your contacts simultaneously from all of your online accounts. To set your phone to search simultaneously, 1. On the home screen, tap Essentials folder > Contacts. 2. Tap Options > Contacts settings > Online search. Useful App 80 To open your groups list  Open the Contacts app and tap Grou…

Text truncated - open the document above for the full version.

Date : June 1, 2020

          !"# Date: July 20#20 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Subject : E-Label FCC ID : ZNFG900VM To Whom It May Concern: We, LG Electronics USA, Inc. state that at the time of purchase, the FCC ID is readily and physically visible to the purchaser on the packaging Label per 2.925(d). The FCC ID will be able to survive normal shipping and handling, so it is visible for inspection at the time of import. We have programmed the e-label and it is not able to be modified by any third party. Also, SIM Card in is not required to access the FCC ID number. Sincerely, LG Electronics USA, Inc. 111 Sylvan Avenue Englewood Cliffs, NJ 07632 Kyung-Su Han Director LG Electronics USA,Inc

          !"# Date: July 20, #20 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE:  Request of Confidentiality for FCC ID: ZNFG900VM Equipment Class:%&' () ) *+  *  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act USA, Inc.hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for , day s after the grant as outlined in Public Notice DA 04- 1705. This provision will give  USA, Inc.temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: '-.+%/0-+1+-.023%+33+ 45 6  %e )  1 Block Diagram 2 Operational Descriptions '-.+ 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos /0-+1+-. 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Kyung-Su Han Director LG Electronics USA, Inc. LG Electronics USA, Inc. 111 Sylvan Avenue Englewood Cliffs, NJ 07632

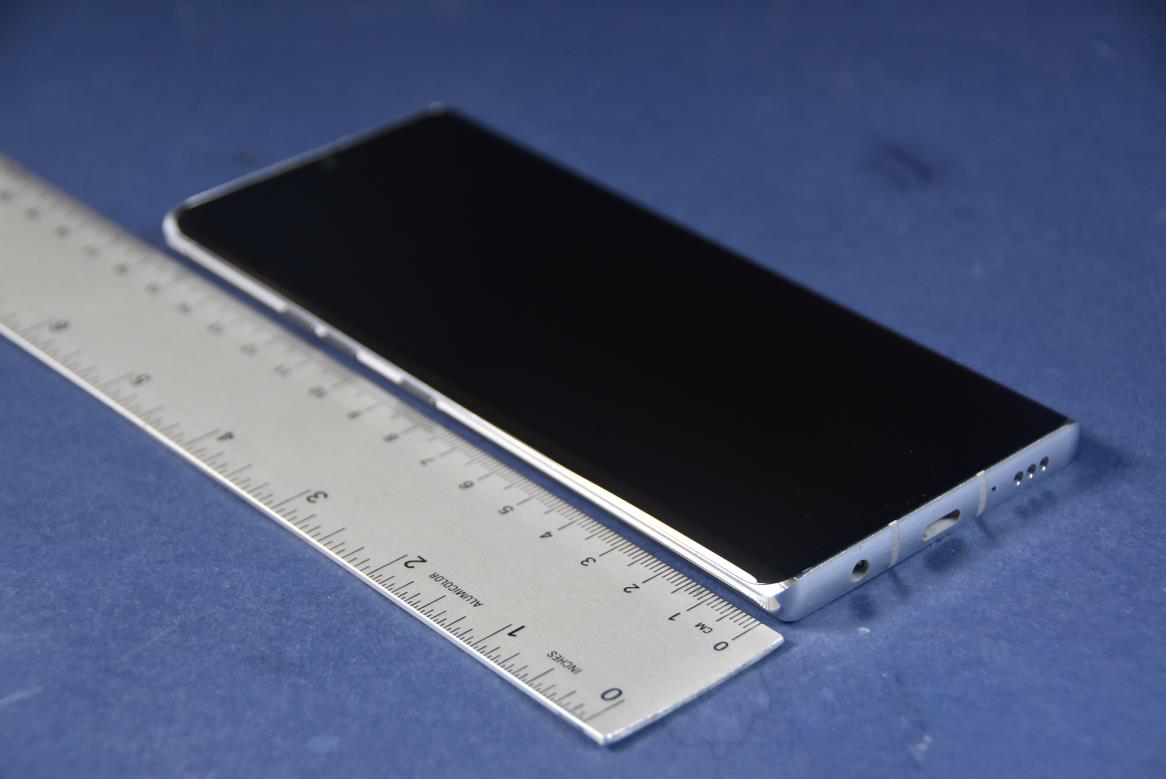

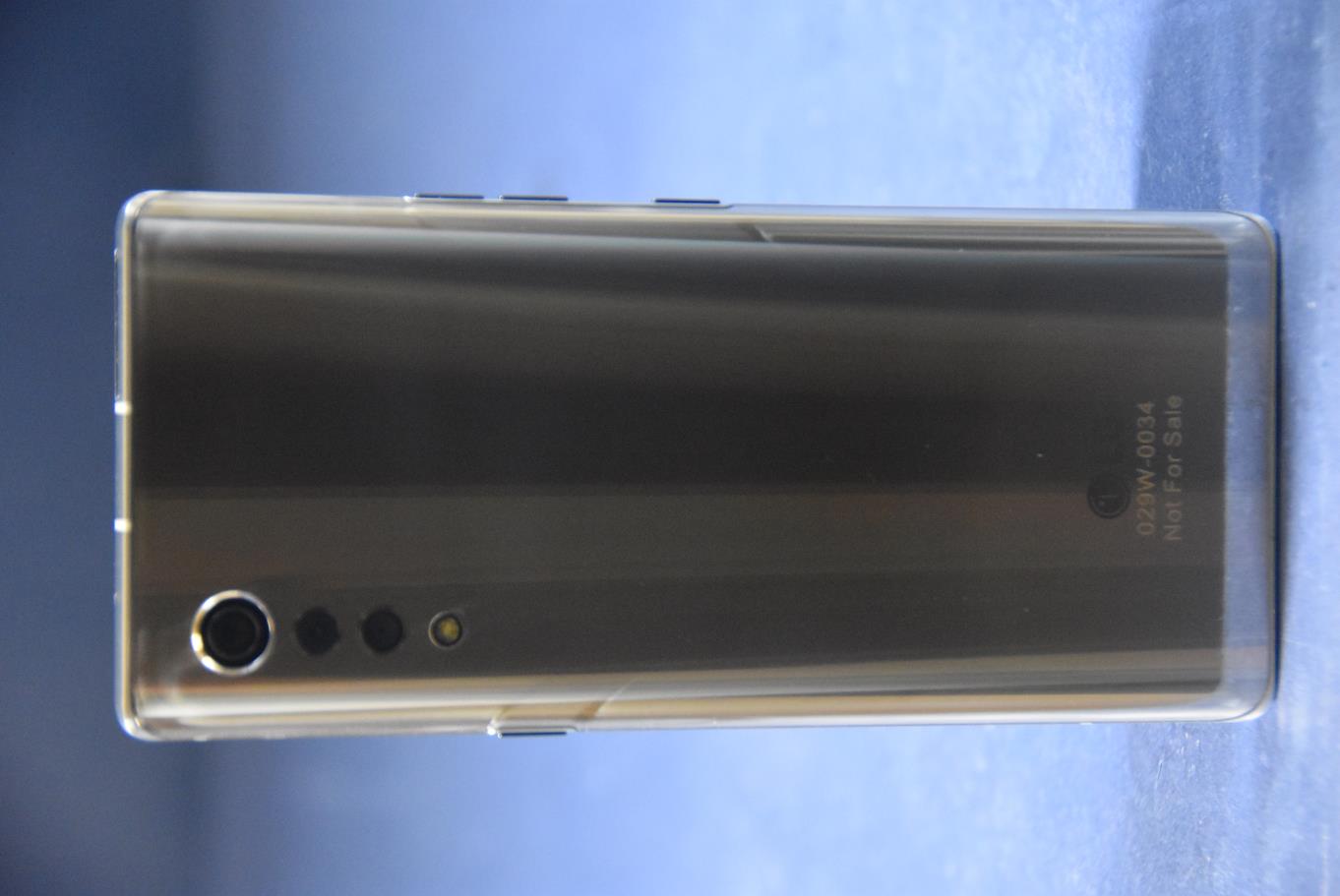

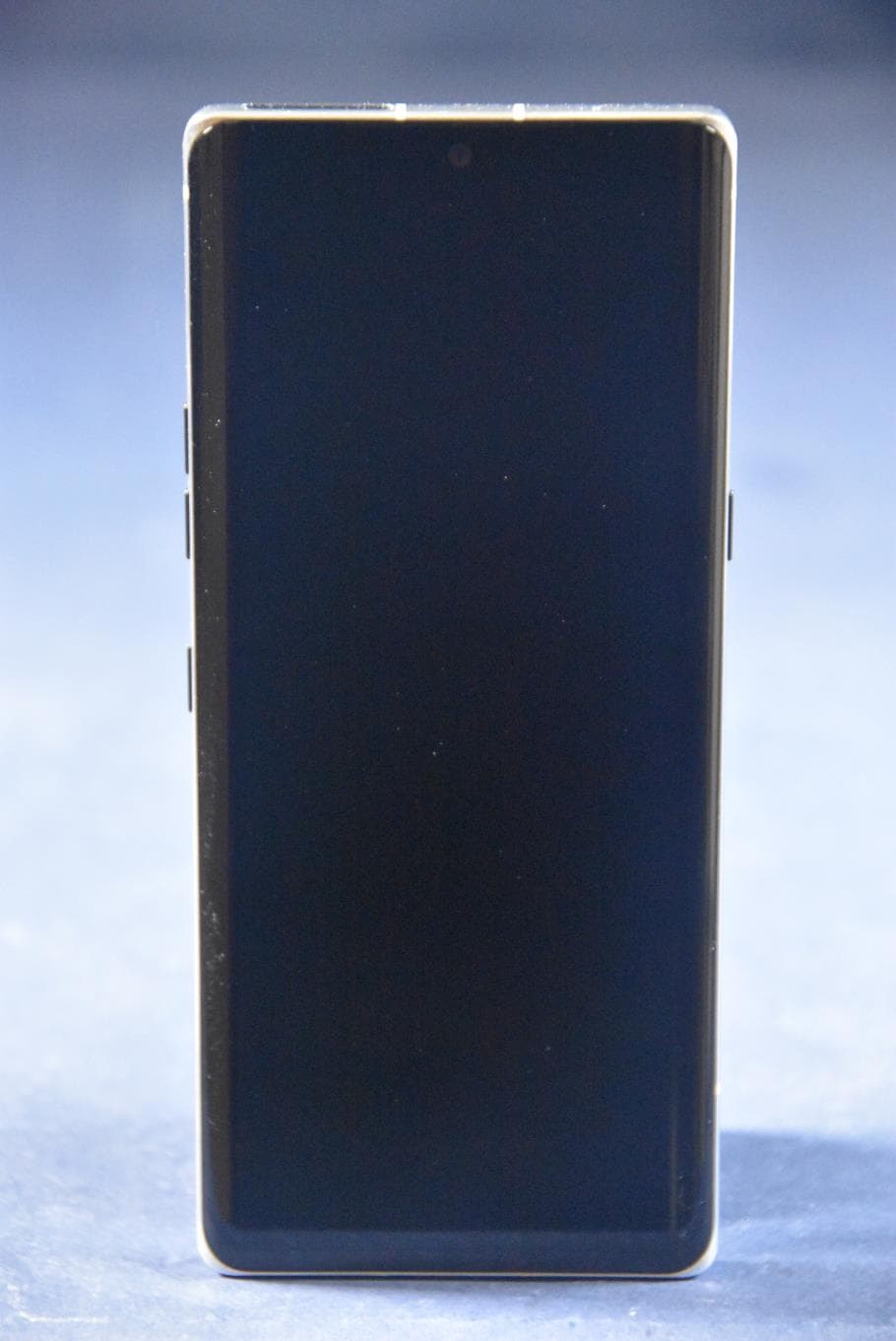

LG Electronics USA, Inc. FCC ID: ZNFG900VM Model: LM-G900VM External Photos EUT Type: Portable Handset Page 1 of 5 © 2020 PCTEST V 9.0 02/01/2019 E X T E R N A L P H O T O G R A P H S LG Electronics USA, Inc. FCC ID: ZNFG900VM Model: LM-G900VM External Photos EUT Type: Portable Handset Page 2 of 5 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFG900VM Model: LM-G900VM External Photos EUT Type: Portable Handset Page 3 of 5 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFG900VM Model: LM-G900VM External Photos EUT Type: Portable Handset Page 4 of 5 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFG900VM Model: LM-G900VM External Photos EUT Type: Portable Handset Page 5 of 5 © 2020 PCTEST V 9.0 02/01/2019

Description of E-Label on the ZNFG900VM ※FCC ID is applied by E-Label on the device ※Instruction of E-Label on the user manual ※FCC ID is Applied on packaging Label Settings Menu Step 1 Select “Settings” Step 2 Select “System” Step 3 Select “Regulatory & safety” FCC ID : ZNFG900VM

LG Electronics USA, Inc. FCC ID: ZNFG900VM Model: LM-G900VM Internal Photos EUT Type: Portable Handset Page 1 of 5 © 2020 PCTEST V 9.0 02/01/2019 I N T E R N A L P H O T O G R A P H S LG Electronics USA, Inc. FCC ID: ZNFG900VM Model: LM-G900VM Internal Photos EUT Type: Portable Handset Page 2 of 5 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFG900VM Model: LM-G900VM Internal Photos EUT Type: Portable Handset Page 3 of 5 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFG900VM Model: LM-G900VM Internal Photos EUT Type: Portable Handset Page 4 of 5 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFG900VM Model: LM-G900VM Internal Photos EUT Type: Portable Handset Page 5 of 5 © 2020 PCTEST V 9.0 02/01/2019

FCC ID: ZNFG900VM SAR EVALUATION REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 135 1M2004230076-01-R1.ZNF 05/20/20 – 07/10/20 Portable Handset © 2020 PCTEST REV 21.4 M 09/11/2019 © 2020 PCTEST. All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Date of Testing: LG Electronics U.S.A., Inc. 05/20/20 - 07/10/20 111 Sylvan Avenue, North Building Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST, Columbia, MD, USA United States Document Serial No.: 1M2004230076-01-R1.ZNF FCC ID: ZNFG900VM APPLICANT: LG ELECTRONICS U.S.A., INC. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model: Additional Model(s): LM-G900VM LMG900VM, G900VM, LM-G900QM6, LMG900QM6, G900QM6, LM-G902V, LMG902V, G902V Note: This revised Test Report (1M2004230076-01-R1.ZNF) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.9 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile & Wireless Forum (MWF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MWF. Further details can be obtained by emailing: [email protected]. 1g Head (W/kg) 1g Body- Worn (W/kg) 1g Hotspot (W/kg) 10g Phablet (W/kg) PCEGSM/GPRS/EDGE 850 824.20 - 848.80 MHz0.180.550.60 N/A PCE GSM/GPRS/EDGE 19001850.20 - 1909.80 MHz< 0.10.571.02N/A PCEUMTS 850826.40 - 846.60 MHz0.190.590.59N/A PCEUMTS 19001852.4 - 1907.6 MHz 0.141.140.95 2.88 PCECell. CDMA/EVDO824.70 - 848.31 MHz 0.190.580.63 N/A PCEPCS CDMA/EVDO 1851.25 - 1908.75 MHz0.14 1.060.782.47 PCE LTE Band 12 699.7 - 715.3 MHz0.16 0.330.33 N/A PCELTE Band 13779.5 - 784.5 MHz0.160.470.47N/A PCELTE Band 5 (Cell) 824.7 - 848.3 MHz0.190.620.62N/A PCELTE Band 66 (AWS) 1710.7 - 1779.3 MHz0.16 0.960.91 2.51 PCELTE Band 4 (AWS)1710.7 - 1754.3 MHzN/AN/AN/AN/A PCELTE Band 2 (PCS) 1850.7 - 1909.3 MHz0.141.191.192.96 CBELTE Band 483552.5 - 3697.5 MHz 0.120.350.35 N/A PCENR Band n5 (Cell)826.5 -846.5 MHz0.110.500.50N/A PCENR Band n66 (AWS)1712.5 -1777.5 MHz 0.140.330.89N/A PCE NR Band n2 (PCS)1852.5 - 1907.5 MHz0.20 0.541.193.09 DTS2.4 GHz WLAN2412 - 2462 MHz0.580.300.47N/A NIIU-NII-15180 - 5240 MHzN/AN/A0.26 N/A NIIU-NII-2A 5260 - 5320 MHz0.170.25 N/A1.12 NIIU-NII-2C5500 - 5720 MHz0.41 0.36N/A0.71 NIIU-NII-3 5745 - 5825 MHz0.230.340.34N/A DSS/DTSBluetooth 2402 - 2480 MHz0.13< 0.1< 0.1N/A 1.111.591.59 3.94 Simultaneous SAR per KDB 690783 D01v01r03: Band & Mode Tx Frequency Equipment Class SAR PCTEST 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctest.com SAR EVALUATION REPORT FCC ID: ZNFG900VM SAR EVALUATION REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 135 1M2004230076-01-R1.ZNF 05/20/20 – 07/10/20 Portable Handset © 2020 PCTEST REV 21.4 M 09/11/2019 © 2020 PCTEST. All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. TABLE OF CONTENTS 1 DEVICE UNDER TEST .................................................................................................................................3 2 LTE AND NR INFORMATION .................................................................................................................... 14 3 INTRODUCTION ........................................................................................................................................ 16 4 DOSIMETRIC ASSESSMENT ................................................................................................................... 17 5 DEFINITION OF REFERENCE POINTS.................................................................................................... 18 6 TEST CONFIGURATION POSITIONS....................................................................................................... 19 7 RF EXPOSURE LIMITS ............................................................................................................................. 23 8 FCC MEASUREMENT PROCEDURES ..................................................................................................... 24 9 RF CONDUCTED POWERS ...................................................................................................................... 31 10 SYSTEM VERIFICATION ........................................................................................................................... 7…

Text truncated - open the document above for the full version.

© 2020 PCTEST APPENDIX A: SAR TEST DATA A1 PCTEST DUT: ZNFG900VM; Type: Portable Handset; Serial: 00227 Communication System: UID 0, GSM GPRS; 2 Tx slots; Frequency: 836.6 MHz; Duty Cycle: 1:4.15 Medium: 835 Head; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.903 S/m; ε r = 40.824; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 05/20/2020; Ambient Temp: 21.9°C; Tissue Temp: 21.8°C Probe: EX3DV4 - SN7551; ConvF(9.88, 9.88, 9.88) @ 836.6 MHz; Calibrated: 9/19/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1333; Calibrated: 9/17/2019 Phantom: Twin-SAM V5.0; Type: QD 000 P40 CD; Serial: 1792 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: GPRS 850, Left Head, Cheek, Mid.ch, 2 Tx slots Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.05 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.202 W/kg SAR(1 g) = 0.154 W/kg A2 PCTEST DUT: ZNFG900VM; Type: Portable Handset; Serial: 00227 Communication System: UID 0, GSM GPRS; 2 Tx slots; Frequency: 1880 MHz; Duty Cycle: 1:4.15 Medium: 1900 Head; Medium parameters used: f = 1880 MHz; σ = 1.388 S/m; ε r = 40.304; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 06/26/2020; Ambient Temp: 24.6°C; Tissue Temp: 21.8°C Probe: EX3DV4 - SN7410; ConvF(8.11, 8.11, 8.11) @ 1880 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V8.0; Type: QD 000 P41 Ax; Serial: 1966 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: GPRS 1900, Right Head, Cheek, Mid.ch, 2 Tx slots Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.853 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.0900 W/kg SAR(1 g) = 0.059 W/kg A3 PCTEST DUT: ZNFG900VM; Type: Portable Handset; Serial: 00227 Communication System: UID 0, UMTS; Frequency: 836.6 MHz; Duty Cycle: 1:1 Medium: 835 Head; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.903 S/m; ε r = 40.824; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 05/20/2020; Ambient Temp: 21.9°C; Tissue Temp: 21.8°C Probe: EX3DV4 - SN7551; ConvF(9.88, 9.88, 9.88) @ 836.6 MHz; Calibrated: 9/19/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1333; Calibrated: 9/17/2019 Phantom: Twin-SAM V5.0; Type: QD 000 P40 CD; Serial: 1792 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: UMTS 850, Left Head, Cheek, Mid.ch Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.87 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 0.245 W/kg SAR(1 g) = 0.189 W/kg A4 PCTEST DUT: ZNFG900VM; Type: Portable Handset; Serial: 00268 Communication System: UID 0, UMTS; Frequency: 1880 MHz; Duty Cycle: 1:1 Medium: 1900 Head; Medium parameters used: f = 1880 MHz; σ = 1.388 S/m; ε r = 40.304; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 06/26/2020; Ambient Temp: 24.6°C; Tissue Temp: 21.8°C Probe: EX3DV4 - SN7410; ConvF(8.11, 8.11, 8.11) @ 1880 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V8.0; Type: QD 000 P41 Ax; Serial: 1966 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: UMTS 1900, Right Head, Cheek, Mid.ch Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.37 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.203 W/kg SAR(1 g) = 0.136 W/kg A5 PCTEST DUT: ZNFG900VM; Type: Portable Handset; Serial: 00227 Communication System: UID 0, Cellular CDMA; Frequency: 836.52 MHz; Duty Cycle: 1:1 Medium: 835 Head; Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.903 S/m; ε r = 40.825; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 05/20/2020; Ambient Temp: 21.9°C; Tissue Temp: 21.8°C Probe: EX3DV4 - SN7551; ConvF(9.88, 9.88, 9.88) @ 836.52 MHz; Calibrated: 9/19/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1333; Calibrated: 9/17/2019 Phantom: Twin-SAM V5.0; Type: QD 000 P40 CD; Serial: 1792 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: Cell. CDMA, BC 0, Left Head, Cheek, Mid.ch Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.53 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.249 W/kg SAR(1 g) = 0.191 W/kg 0 dB = 0.226 W/kg = -6.46 dBW/kg A6 PCTEST DUT: ZNFG900VM; Type: Portable Handset; Serial: 00268 Communication System: UID 0, CDMA; Frequency: 1880 MHz; Duty Cycle: 1:1 Medium: 1900 Head; Medium parameters used: f = 1880 MHz; σ = 1.388 S/m; ε r = 40.304; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 06/26/2020; Ambient Temp: 24.6°C; Tissue Temp: 21.8°C Probe: EX3DV4 - SN7410; ConvF(8.11, 8.11, 8.11) @ 1880 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V8.0; Type: QD 000 P41 Ax; Serial: 1966 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: PCS CDMA, Right Head, Cheek, Mid.ch Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.35 V/m; Power Drift = 0.20 dB Peak SAR (extrapolated) = 0.202 W/kg SAR(1 g) = 0.137 W/kg A7 PCTEST DUT: ZNFG900VM; Type: Portable Handset; Serial: 00383 Communication System: UID 0, LTE Band 12; Frequency: 707.5 MHz; Duty Cycle: 1:1 Medium: 750 Head; Medium parameters used (interpolated): f = 707.5 MHz; σ = 0.872 S/m; ε r = 43.141; ρ = 1000 kg/m …

Text truncated - open the document above for the full version.

Object: Date Issued: Page 1 of 4 D2450V2 – SN: 981 08/09/2019 Certification of Calibration Object D2450V2 – SN: 981 Calibration procedure(s) Procedure for Calibration Extension for SAR Dipoles. Calibration date: 08/09/2019 Description: SAR Validation Dipole at 2450 MHz. Calibration Equipment used: Measurement Uncertainty = ±23% (k=2) Name Function Signature Calibrated By: Brodie Halbfoster Test Engineer Approved By: Kaitlin O’Keefe Senior Technical Manager Manufacturer Model Description Cal Date Cal Interval Cal Due Serial Number Agilent 8753ES S-Parameter Network Analyzer 10/2/2018 Annual 10/2/2019 US39170118 Agilent N5182A MXG Vector Signal Generator 6/27/2019 Annual 6/27/2020 US46240505 Amplifier Research 15S1G6 Amplifier CBTN/A CBT343972 Anritsu ML2495A Power Meter 10/21/2018 Annual 10/21/2019 941001 Anritsu MA2411B Pulse Power Sensor 10/30/2018 Annual 10/30/2019 1207470 Anritsu MA2411B Pulse Power Sensor 11/20/2018 Annual 11/20/2019 1339007 Control Company 4040Temperature / Humidity Monitor 2/28/2018 Biennial 2/28/2020 150761911 Control Company 4352Ultra Long Stem Thermometer 2/28/2018 Biennial 2/28/2020 170330160 Keysight 772D Dual Directional Coupler CBTN/A CBT MY52180215 Keysight Technologies 85033E Standard Mechanical Calibration Kit (DC to 9GHz, 3.5mm) 7/2/2019 Annual 7/2/2020 MY53401181 Mini-Circuits BW-N20W5+ DC to 18 GHz Precision Fixed 20 dB Attenuator CBTN/A CBTN/A Mini-Circuits NLP-2950+ Low Pass Filter DC to 2700 MHz CBTN/A CBTN/A Narda 4772-3 Attenu…
