ZNFG910EMWPortable Handset

LG Electronics USA, Inc.

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jul 09, 2020
Application Purpose: Original Equipment
Date of Application: Jul 09, 2020
Equipment Note: Portable Handset
Frequency Range: 2500.00000000 - 2570.00000000
Company: LG Electronics USA, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

MFLXXXXXXXX (1.0) Copyright ©2020 LG Electronics Inc. All rights reserved. www.lg.com ENGLISH USER GUIDE LM-G910EMW 1 About this user guide Thank you for choosing this LG product. Please carefully read this user guide before using the device for the first time to ensure safe and proper use. • Always use genuine LG accessories. The supplied items are designed only for this device and may not be compatible with other devices. • Descriptions are based on the device default settings. • Default apps on the device are subject to updates, and support for these apps may be withdrawn without prior notice. If you have any questions about an app provided with the device, please contact an LG Service Centre. For user-installed apps, please contact the relevant service provider. • Modifying the device’s operating system or installing software from unofficial sources may damage the device and lead to data corruption or data loss. Such actions will violate your LG licence agreement and void your warranty. • Some content and illustrations may differ from your device, depending on the area, service provider, software version, or OS version, and are subject to change without prior notice. • Software, audio, wallpaper, images, and other media supplied with your device are licenced for limited use. If you extract and use these materials for commercial or other purposes, you may be infringing copyright laws. As a user, you are fully responsible for the illegal use of media. • Additional charges may incur for data services, such as messaging, uploading, downloading, auto-syncing and location services. To avoid additional charges, select a data plan suitable to your needs. Contact your service provider to obtain additional details. • This user guide is written in major languages for each country. Depending on the language used, content may partly differ. ENGLISH 2About this user guide Instructional notices WARNING: Situations that could cause injury to the user and third parties. CAUTION: Situations that may cause minor injury or damage to the device. NOTE: Notices or additional information. 3 Table of contents 01 Custom-designed Features 16 Camera features 17 Audio recording features 18 Google Assistant 20 Finger print recognition 24 Multi- tasking feature 28 AOD(alw ays-on display) 29 No tes on Water Resistant Properties 02 Basic Functions 33 Product components and accessories 34 P arts overview 37 Turning the power on or off 38 Installing the SIM c ard 41 Inserting the memory card 42 R emoving the memory card 42 Battery 46 T ouch screen 49 Home screen 58 Scr een lock 61 Memory card encryption 62 Taking screenshots 63 Entering text 67 Cont ent sharing 69 D o not disturb 6 Guidelines for safe and efficient use 4Table of contents 03 Useful Apps 71 Installing and uninstalling apps 73 App Shor tcuts 74 Phone 78 Messaging 79 Camera 96 Gallery 101 Contacts 103 QuickMemo+ 106 Clock 108 Music 109 Calculator 109 ThinQ 110 LG Health 111 HD Audio Recorder 112 Game Launcher 112 Smart Doctor 113 LG Mobile Switch 113 App trash 114 SmartWorld 115 RemoteCall Service 115 Cell Broadcast 116 Google apps 04 Settings 120 Settings 120 Network & internet 127 Connected devices 131 Sound 132 Notifications 133 Display 134 Wallpaper & theme 135 Lock scr een & security 137 Privacy 138 Location 138 Extensions 143 Apps 143 Battery 144 Storage 144 Accounts 144 Digital W ellbeing & parental controls 145 Google 145 System 149 Accessibility 5Table of contents 05 Appendix 152 LG Language Settings 152 LG Bridge 153 Phone software update 155 Anti-Thef t Guide 156 Open Source Software Notice Information 156 Regulatory information (Regulation ID number, E-labeling, etc.) 157 Trademarks 158 Laser safety statement 158 DECLARATION OF CONFORMITY 159 Contact of fice for compliance of this product 159 Wi-Fi (WLAN) 160 More information 164 FAQ 6 Guidelines for safe and efficient use Please read these simple guidelines. Not following these guidelines may be dangerous or illegal. Should a fault occur, a software tool is built into your device that will gather a fault log. This tool gathers only data specific to the fault, such as signal strength, cell ID position in sudden call drop and applications loaded. The log is used only to help determine the cause of the fault. These logs are encrypted and can only be accessed by an authorised LG Repair centre should you need to return your device for repair. Radio Frequency (RF) Signals THIS MODEL PHONE MEETS THE U.S. GOVERNMENT'S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone contains a radio transmitter and receiver. Your phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR limit set by the FCC is 1.6 W/kg.* Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at mult iple power levels so as to use only the power required to reach the network. In general, t he closer you are to a wireless base station antenna, the lower the output. 7Guidelines for safe and efficient use Information about the RF exposure from FCC In August 1996, the Federal Communications Commission (FCC) of the United States, with its action in Report and Order FCC 96-32…

Text truncated - open the document above for the full version.

Attestation Statements

Date: July 3, 2020 PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc. 7185 Oakland Mills Rd, Columbia, MD 21046 U.S.A SUBJECT: LG Electronics USA, Inc. FCC ID: ZNFG910EMW LTE MPR for FCC SAR testing To whom it may concern: We, LG Electronics USA, Inc. hereby confirm that MPR specified in 3GPP will be permanently implemented in ZNFG910EMW so that the powers found in this application will not be found to exceed the levels indicated. Additionally, A-MPR (Additional MPR) was disabled for all SAR samples for SAR testing purposes. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Kyung-Su Han Director LG Electronics USA, Inc. LG Electronics USA, Inc. 111 Sylvan Avenue , North Building Englewood Cliffs, NJ 07632

Cover Letter(s)

Date: July 3, 2020 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFG910EMW Equipment Class: PCE: PCS Licensed Transmitter held to ear To whom it may concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA, Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA, Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Part Lists and Tune-Up Procedure 4 Schematics SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual This applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the grant for this application. Sincerely, Kyung-Su Han Director On behalf of LG Electronics USA, Inc. LG Electronics USA, Inc. 111 Sylvan Avenue, North Building Englewood Cliffs, NJ 07632

External Photos

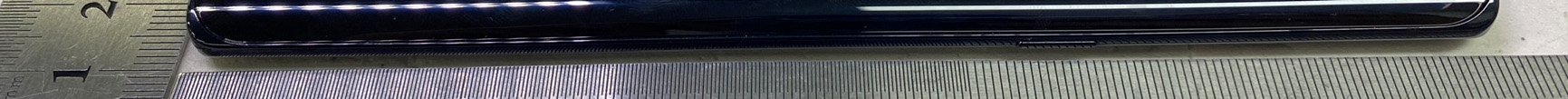

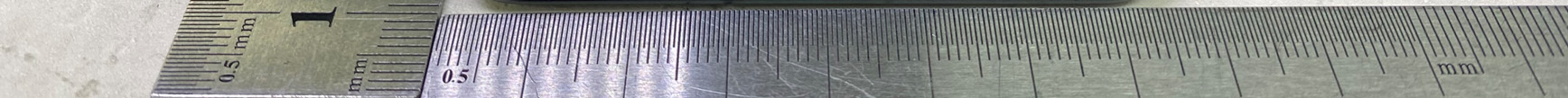

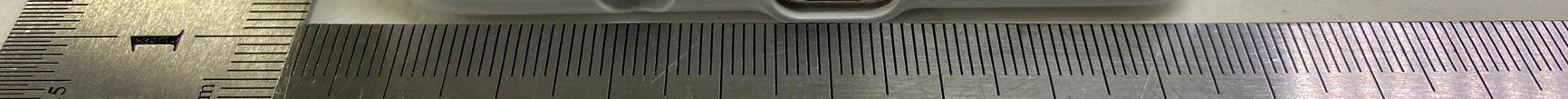

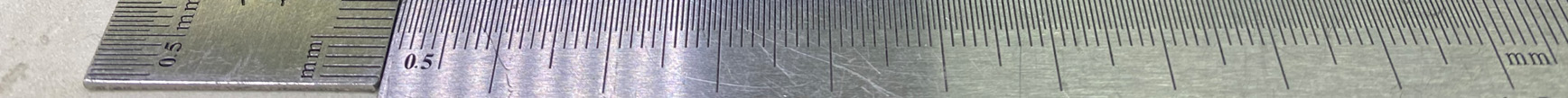

FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page1 / 7 View 1 FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page2 / 7 View 2 FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page3 / 7 View 3 FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page4 / 7 <Dual Display> View 1 FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page5 / 7 <Dual Display> View 2 FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page6 / 7 <Dual Display> View 3 FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page7 / 7 <Dual Display> View 4

ID Label/Location Info

Description of E-Label on the ZNFG910EMW 1. FCC ID is applied by E-label on device. [Step2] [Step3] FCC ID E-Label display Step1Select Settings Step2Select System Step 3Select Regulatory& safety [Step1] FCC ID: ZNFG910EMW 2. FCC ID is applied on packaging. FCC ID : ZNFG910EMW 3. Instruction of E-label on the user manual Description of E-Label on the ZNFG910EMW

Internal Photos

FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page1 / 20 View 1 FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page2 / 20 View 2 FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page3 / 20 View 3 FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page4 / 20 View 4 FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page5 / 20 View 5

Internal Photos

FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page6 / 20 View 6 FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page7 / 20 View 7 FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page8 / 20 View 8 FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page9 / 20 View 9

Internal Photos

FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page10 / 20 View 10 FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page11 / 20 View 10 FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page12 / 20 View 11 FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page13 / 20 View 12

Internal Photos

FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page14 / 20 View 13 FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page15 / 20 View 14 FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page16 / 20 View 15 FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page17 / 20 View 16

Internal Photos

FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page18 / 20 View 17 <Antenna> <Antenna> FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page19 / 20 View 18 <Antenna> <Antenna> FCC ID: ZNFG910EMW Copyright Ⓒ 2020, DT&C Co., Ltd. Page20 / 20 View 19 <Antenna>

RF Exposure Info

Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 2 /327 Test Report Version Test Report No. Date Description Tested by Reviewed by DRRFCC2007-0053 Jul. 3, 2020 Initial issue BumJun Park HakMin Kim Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 3 /327 Table of Contents 1. DESCRIPTION OF DEVICE ................................................................................................................................................ 5 1.1 General Information ..................................................................................................................................................... 5 1.2 Power Reduction for SAR ............................................................................................................................................ 7 1.3 Nominal and Maximum Output Power Specifications .................................................................................................. 7 1.4 DUT Antenna Locations ............................................................................................................................................... 7 1.5 Simultaneous Transmission Capabilities ..................................................................................................................... 7 1.6 Miscellaneous SAR Test Considerations ..................................................................................................................... 8 1.7 Guidance Applied ........................................................................................................................................................ 9 1.8 Device Serial Numbers ................................................................................................................................................ 9 2. LTE INFORMATION ........................................................................................................................................................... 10 3. INTROCUCTION ................................................................................................................................................................ 11 4. DOSIMETRIC ASSESSMENT ........................................................................................................................................... 12 4.1 Measurement Procedure ........................................................................................................................................... 12 5. DEFINITION OF REFERENCE POINTS ........................................................................................................................... 14 5.1 Ear Reference Point .................................................................................................................................................. 14 5.2 Handset Reference Points ......................................................................................................................................... 14 6. TEST CONFIGURATION POSITIONS FOR HANDSETS ................................................................................................. 15 6.1 Device Holder ............................................................................................................................................................ 15 6.2 Positioning for Cheek/Touch ...................................................................................................................................... 15 6.3 Positioning for Ear / 15 ° Tilt ...................................................................................................................................... 15 6.4 Body-Worn Accessory Configurations ....................................................................................................................... 16 6.5 Extremity Exposure Configurations ........................................................................................................................... 16 6.6 Wireless Router Configurations ................................................................................................................................. 17 6.7 Phablet Configurations .............................................................................................................................................. 17 6.8 Proximity Sensor Configurations ............................................................................................................................... 17 7. RF EXPOSURE LIMITS ..................................................................................................................................................... 18 8. FCC MEASUREMENT PROCEDURES ............................................................................................................................ 19 8.1 Measured and Reported SAR ................................................................................................................................... 19 8.2 Procedures Used to Establish RF Signal for SAR ..................................................................................................... 19 8.3 SAR Measurement Conditions for WCDMA (UMTS) ................................................................................................. 19 8.3.1 Output Power Verification ..................................................................................................................................... 19 8.3.2 Head SAR Measurements for Handsets .............................................................................................................. 19 8.3.3 Body SAR Measurements .................................................................................................................................... 20 8.3.4 Release 5 HSD…

Text truncated - open the document above for the full version.

RF Exposure Info

Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 168 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 169 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 170 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 171 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 172 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 173 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 174 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 175 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 176 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 177 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 178 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 179 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 180 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 181 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 182 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 183 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 184 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 185 /327

RF Exposure Info

Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 186 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 187 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 188 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 189 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 190 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 191 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 192 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 193 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 194 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 195 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 196 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 197 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 198 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 199 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 200 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 201 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 202 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 203 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 204 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 205 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 206 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 207 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 208 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 209 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 210 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 211 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 212 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 213 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 214 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 215 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 216 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 217 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 218 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 219 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 220 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 221 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 222 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 223 /327

RF Exposure Info

Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 224 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 225 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 226 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 227 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 228 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 229 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 230 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 231 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 232 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 233 /327 APPENDIX B. – Dipole Calibration Data Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 234 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 235 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 236 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 237 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 238 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 239 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 240 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 241 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 242 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 243 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 244 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 245 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 246 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 247 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 248 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 249 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 250 /327 Report No.: DRRFCC2007-0053 FCC ID: ZNFG910EMW TRF-RF-601(03)161101 Prohibit…

Text truncated - open the document above for the full version.

Contact Information

Applicant

David Kim(Team leader, LGEUS NA Policy & Regulatory Affairs)

[email protected]201-266-2215Fax: 201-816-2003

Technical Contact

PCTEST Engineering Laboratory, LLCRandy Ortanez

[email protected]410-290-6652

7185 Oakland Mills Road · Columbia, Maryland · United States

Test Firm

Dt&C Co., Ltd.Lee Sang-Wook

[email protected]82-31-321-2664Fax: 82-31-321-1664

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
21	27	2.50 GHz - 2.57 GHz	138.00 mW	17M9W7D	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output power listed is ERP for Part 22 and 27 for frequencies below 1 GHz, and EIRP for Part 24 and 27 for frequencies above 1 GHz. SAR compliance for body-worn operations is limited to the specific configurations tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.0 cm separation between the device and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure. This device supports bandwidths of 1.4/3/5/10 MHz for LTE Bands 5/12, bandwidths of 5/10 MHz for LTE Bands 17/13, bandwidths of 1.4/3/5/10/15/20 MHz for LTE Bands 4/66/2, bandwidths of 5/10/15/20 MHz for LTE Bands 7/41. The highest reported SAR for head, body-worn accessory, product specific (wireless router), simultaneous transmission and product specific (phablet) use conditions is 0.17 W/kg, 0.81 W/kg, 1.10 W/kg, 1.29 W/kg, and 3.20 W/kg, respectively. This device also contains functions that are not operational in US Territories. This filing is only applicable for US operations.
