ZNFH340NCellular/PCS GSM/EDGE and Cellular WCDMA Phone with WLAN, Bluetooth and RFID

MFL00000000 (1.0) www.lg.com ENGLISH User Guide LG-H340n 21 Important notice Please check to see whether any problems you encountered with your phone are described in this section before taking the phone in for service or calling a service representative. 1. Phone memory When there is less than 10% of space available in your phone memory, your phone cannot receive new messages. You need to check your phone memory and delete some data, such as applications or messages, to make more memory available. To uninstall applications: 1 Ta p > > Apps tab > Settings > General tab > Apps. 2 Once all applications appear, scroll to and select the application you want to uninstall. 3 Ta p Uninstall. 2. Optimizing battery life Extend your battery's power by turning off features that you don't have to run constantly in the background. You can monitor how applications and system resources consume battery power. Extending your phone's battery life: • Turn off radio communications when you are not using. If you are not using Wi-Fi, Bluetooth or GPS, turn them off. • Reduce screen brightness and set a shorter screen timeout. • Turn off automatic syncing for Gmail, Calendar, Contacts and other applications. • Some applications you have downloaded may reduce battery power. • While using downloaded applications, check the battery charge level. Please read this before you start using your phone! 22 NOTE: If you accidently press the Power/Lock Key while the device is in your pocket, the screen will turn off automatically in order to save battery power. To check the battery power level: • Ta p > > Apps tab > Settings > General tab > About phone > Battery. The battery status (charging or discharging) and battery level (percentage charged) is displayed at the top of the screen. To monitor and control how battery power is being used: • Ta p > > Apps tab > Settings > General tab > About phone > Battery > Battery use. Battery usage time is displayed on the screen. It tells you how long it has been since you last connected your phone to a power source or, if currently connected, how long the phone was last running on battery power. The screen shows the applications or services using battery power, listed in order from the greatest to smallest amount used. 3. Before installing an open source application and OS WARNING If you install and use an OS other than the one provided by the manufacturer it may cause your phone to malfunction. In addition, your phone will no longer be covered by the warranty. WARNING To protect your phone and personal data, only download applications from trusted sources, such as Play Store™. If there are improperly installed applications on your phone, the phone may not work normally or a serious error may occur. You must uninstall those applications and all associated data and settings from the phone. Important notice 23 4. Using an unlock pattern Set an unlock pattern to secure your phone. Tap > > Apps tab > Settings > Display tab > Lock screen > Select screen lock > Pattern. This opens a screen that will guide you through how to draw a screen unlock pattern. You have to create a Backup PIN as a safety measure in case you forget your unlock pattern. Caution: Create a Google account before setting an unlock pattern and remember the Backup PIN you created when creating your pattern lock. WARNING Precautions to take when using pattern lock. It is very important to remember the unlock pattern you set. You will not be able to access your phone if you use an incorrect pattern 5 times. You have 5 opportunities to enter your unlock pattern, PIN or password. If you have used all 5 opportunities, you can try again after 30 seconds. When you can’t recall your unlock Pattern, PIN or Password: < If you have forgotten your pattern > If you logged in to your Google account on the phone but failed to enter the correct pattern 5 times, tap the Forgot pattern? button at the bottom of the screen. You are then required to log in with your Google Account or you have to enter the Backup PIN which you entered when creating your Pattern Lock. If you have not created a Google account on the phone or you forgot Backup PIN, you have to perform a hard reset. < If you have forgotten your PIN or Password > If you forget your PIN or Password, you will need to perform a hard reset. Caution: If you perform a hard reset, all user applications and user data will be deleted. 24 NOTE: If you have not logged into your Google Account and have forgotten your Unlock Pattern, you will need to enter your Backup PIN. 5. Using the Hard Reset (Factory Reset) If your phone does not restore to its original condition, use a Hard Reset (Factory Reset) to initialize it. 1 Turn the power off. 2 Press and hold the Po wer/Lock key + Volume Down key on the back of the phone. 3 Release the Po wer/Lock Key only when the LG logo is displayed, then immediately press and hold the Power/Lock Key again. 4 Release all keys when the Factory hard reset screen is displayed. 5 Press the Po wer/Lock Key to continue or either of the Volume Keys to cancel. 6 Press the Po wer/Lock Key once more to confi rm or either of the Volume Keys to cancel. WARNING If you perform a Hard Reset, all user applications, user data and DRM licenses will be deleted. Please remember to backup any important data before performing a Hard Reset. 6. Opening and switching applications Multi-tasking is easy with Android, you can keep more than one application running at the same time. There is no need to quit an application before opening another one. Use and switch between several open applications. Android manages each application, stopping and starting them as needed to ensure that idle applications don't consume resources unnecessarily. Important notice 25 1 Ta p Recent Key . A list of recently used applications will be displayed. 2 Tap the application you want to access. This does not stop the previous app running in the background on the phone. Make sure to tap Back Key to exit an app…

Text truncated - open the document above for the full version.

Date: January 23, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFH340N Equipment Class: DTS: Digital Transmission System To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics MobileComm USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics MobileComm USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram, Part list, Antenna specification and Tune-up procedure 2 Operational Descriptions and PCB layout PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jongchul Lee Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

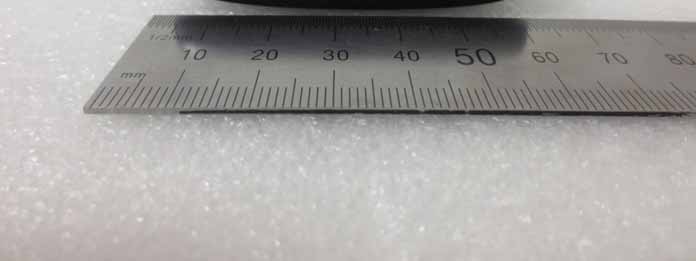

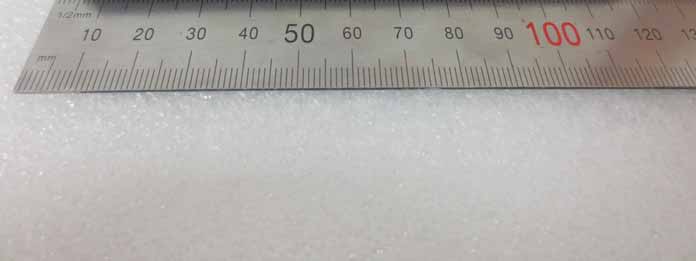

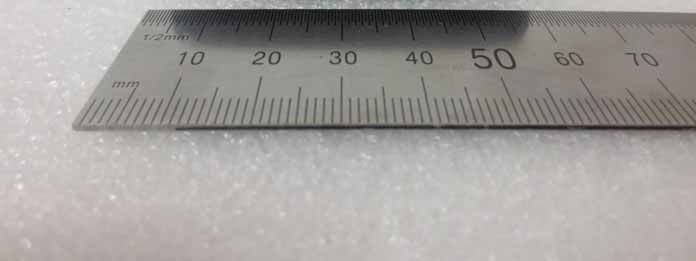

FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 EXTERNAL PHOTOGRAPHS FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 7 ■ EXTERNAL PHOTO

※ FCC ID Label Form Note: The FCC ID shown will be readily visible at the time of purchase. Note! The label of the EUT is made of a white polypropylene laminate film and it's attached to the EUT by an adhesive. The adhesive is permanent type with strong strength. Additionally, the FCC ID is readily visible to the purchaser at the time of purchase because the phone will be marketed without the battery installed. Model No : LG-H340n FCC ID : ZNFH340N S/N : Made in Korea

FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 INTERNAL PHOTOGRAPHS FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ Main Antenna INTERNAL PHOTO Main Antenna FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ BT&WLAN Antenna_INTERNAL PHOTO BT / WLAN Antenna FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO FCC ID: ZNFH340N HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 18 ■ INTERNAL PHOTO

FCC ID: ZNFH340N Issue Date: Jan. 29, 2015 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 2 of 127 HCT-A-1501-F001-2 TEL: +82 31 645 6300 FAX: +82 31 645 6401 Revision History Rev. Issue DATE DESCRIPTION HCT-A-1501-F001 Jan. 15, 2015 Initial Issue HCT-A-1501-F001-1 Jan. 26, 2015 Removed additional model names (LG-H340, LGH340, H340) - Revised cover page. (Revised additional model names) - Revised Sec. 3 (Revised additional model names) HCT-A-1501-F001-2 Jan. 29, 2015 Revised GSM 850 Tune-up procedure. - Sec. 11.1 was revised. - Sec. 13.1-1 was revised. - Sec. 13.3-2 was revised. - Sec. 15.1 was revised. - Sec. 15.2 was reivsed. FCC ID: ZNFH340N Issue Date: Jan. 29, 2015 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 3 of 127 HCT-A-1501-F001-2 TEL: +82 31 645 6300 FAX: +82 31 645 6401 Table of Contents 1. INTRODUCTION .......................................................................................................................................... 2. TEST METHODOLOGY ............................................................................................................................... 3. DESCRIPTION OF DEVICE ......................................................................................................................... 4. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... 6. DESCRIPTION OF TEST POSITION ....................................................................................................... 7. MEASUREMENT UNCERTAINTY ........................................................................................................... 8. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS .................................................................................. 9. SAR SYSTEM VALIDATION ..................................................................................................................... 10. SYSTEM VERIFICATION ....................................................................................................................... 11. RF CONDUCTED POWER MEASUREMENT ....................................................................................... 11.5 SAR Test Exclusions Applied ................................................................................................................ 11.6 Test Exclusions Applied ........................................................................................................................ 12. SAR Test configuration ........................................................................................................................... 13. SAR TEST DATA SUMMARY ................................................................................................................. 13.1-1 Measurement Results (GSM850 Head SAR) ............................................................................ 13.1-2 Measurement Results (GSM1900 Head SAR) .......................................................................... 13.1-3 Measurement Results (WCDMA850 Head SAR) ....................................................................... 13.1-4 Measurement Results (DTS Head SAR) ................................................................................... 13.2-1 Measurement Results (GSM850 Hotspot SAR) ......................................................................... 13. 2-2 Measurement Results (GSM1900 Hotspot SAR)...................................................................... 13.2-3 Measurement Results (WCDMA850 Hotspot SAR) ................................................................... 13. 2-4 Measurement Results (WLAN Hotspot SAR) ........................................................................... 13.3-1 Measurement Results (DTS Body-worn SAR) ........................................................................... 13.3-2 Measurement Results (Body-worn SAR) ................................................................................... 13.3 SAR Test Notes ............................................................................................................................. 14. SAR Measurement Variability and Uncertainty ...................................................................................... 15. SAR Summation Scenario ...................................................................................................................... 17. REFERENCES ....................................................................................................................................... Attachment 1. – SAR Test Plots ................................................................................................................... Attachment 2. – Dipole Verification Plots...................................................................................................... Attachment 3. – Probe Calibration Data ....................................................................................................... FCC ID: ZNFH340N Issue Date: Jan. 29, 2015 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 4 of 127 HCT-A-1501-F001-2 TEL: +82 31 645 6300 FAX: +82 31 645 6401 1. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. 1992 by the …

Text truncated - open the document above for the full version.

Report No.: HCT-R-1501-F022-1 Model: LG-H340n Page 2 of 52 Version TEST REPORT NO. DATE DESCRIPTION HCT-R-1501-F022 January 16, 2015 - First Approval Report HCT-R-1501-F022-1 January 29, 2015 -Add Duty Cycle Plot on Page 9 F-01P-02-014 (Rev.00) FCC ID: ZNFH340N HCT CO.,LTD. Report No.: HCT-R-1501-F022-1 Model: LG-H340n Page 3 of 52 Table of Contents 1. GENERAL INFORMATION ........................................................................................................................... 4 2. EUT DESCRIPTION ...................................................................................................................................... 4 3. TEST METHODOLOGY ................................................................................................................................ 5 3.1 EUT CONFIGURATION ....................................................................................................................... 5 3.2 EUT EXERCISE ................................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES ....................................................................................................... 5 3.4 DESCRIPTION OF TEST MODES ...................................................................................................... 5 4. INSTRUMENT CALIBRATION...................................................................................................................... 6 5. FACILITIES AND ACCREDITATIONS .......................................................................................................... 6 5.1 FACILITIES .......................................................................................................................................... 6 5.2 EQUIPMENT ........................................................................................................................................ 6 6. ANTENNA REQUIREMENTS ....................................................................................................................... 6 7. SUMMARY TEST OF RESULTS .................................................................................................................. 7 8. TEST RESULT .............................................................................................................................................. 8 8.1 DUTY CYCLE ....................................................................................................................................... 8 8.2 6dB BANDWIDTH MEASUREMENT ................................................................................................ 10 8.3 OUTPUT POWER MEASUREMENT ................................................................................................. 13 8.4 POWER SPECTRAL DENSITY ......................................................................................................... 20 8.5 OUT OF BAND EMISSIONS AT THE BAND EDGE/ CONDUCTED SPURIOUS EMISSIONS ...... 24 8.6 RADIATED MEASUREMENT. ........................................................................................................... 35 8.6.1 RADIATED SPURIOUS EMISSIONS. ..................................................................................... 35 8.6.2 RADIATED RESTRICTED BAND EDGES ............................................................................. 44 8.7 POWERLINE CONDUCTED EMISSIONS ........................................................................................ 46 9. LIST OF TEST EQUIPMENT ...................................................................................................................... 51 9.1 LIST OF TEST EQUIPMENT(Conducted Test) ............................................................................... 51 9.2 LIST OF TEST EQUIPMENT(Radiated Test) ................................................................................... 52 F-01P-02-014 (Rev.00) FCC ID: ZNFH340N HCT CO.,LTD. Report No.: HCT-R-1501-F022-1 Model: LG-H340n Page 4 of 52 1. GENERAL INFORMATION Applicant: LG Electronics MobileComm U.S.A., Inc. Address: 1000 Sylvan Avenue, Englewood Cliffs NJ 07632 FCC ID: ZNFH340N EUT Type: Cellular/PCS GSM/WCDMA Phone with WLAN and Bluetooth, NFC Model name(s): Additional Model(s): LG-H340n LG-H340n, LGH340n, H340n, LG-H340N, LGH340N, H340N Date(s) of Tests: January 06, 2015 ~ January 14, 2015 Place of Tests: HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea (IC Recognition No. : 5944A-3) 2. EUT DESCRIPTION FCC Model Name LG-H340n Additional Model LG-H340n, LGH340n, H340n, LG-H340N, LGH340N, H340N EUT Type Cellular/PCS GSM/WCDMA Phone with WLAN and Bluetooth, NFC Power Supply DC 3.8 V Battery type Li-ion Battery(Standard) Frequency Range TX: 2402 MHz ~ 2480 MHz RX: 2402 MHz ~ 2480 MHz Max. RF Output Power Peak -1 .245 dBm (0.751 mW) Average -1.483 dBm (0.711mW) BT Operating Mode BT 4.0_Low Energy Mode Modulation Type GFSK Number of Channels 40 Channels Antenna Specification Manufacturer: Ace Technology Antenna type: Internal Antenna Peak Gain : -0.80 dBi F-01P-02-014 (Rev.00) FCC ID: ZNFH340N HCT CO.,LTD. Report No.: HCT-R-1501-F022-1 Model: LG-H340n Page 5 of 52 3. TEST METHODOLOGY FCC KDB 558074 D01 DTS Meas Guidance v03r02 dated June 05, 2014 entitled “Guidance for Performing Compliance Measurements on Digital Transmission Systems(DTS) and the measurement procedure described in the American National Standard for Testing Unlicensed Wireless Devices(ANSI C63.4-2003) Operating Under §15.247” were used in the measurement. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose of the measure…

Text truncated - open the document above for the full version.

Report No.: HCT-R-1501-F020 Model: LG-H340n Page 2 of 60 Version TEST REPORT NO. DATE DESCRIPTION HCT-R-1501-F020 January 16, 2015 - First Approval Report F-01P-02-014 (Rev.00) FCC ID: ZNFH340N HCT CO.,LTD. Report No.: HCT-R-1501-F020 Model: LG-H340n Page 3 of 60 Table of Contents 1. GENERAL INFORMATION ........................................................................................................................... 4 2. EUT DESCRIPTION ...................................................................................................................................... 4 3. TEST METHODOLOGY ................................................................................................................................ 5 3.1 EUT CONFIGURATION ....................................................................................................................... 5 3.2 EUT EXERCISE ................................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES ....................................................................................................... 5 3.4 DESCRIPTION OF TEST MODES ...................................................................................................... 5 4. INSTRUMENT CALIBRATION...................................................................................................................... 6 5. FACILITIES AND ACCREDITATIONS .......................................................................................................... 6 5.1 FACILITIES .......................................................................................................................................... 6 5.2 EQUIPMENT ........................................................................................................................................ 6 6. ANTENNA REQUIREMENTS ....................................................................................................................... 7 7. SUMMARY TEST OF RESULTS .................................................................................................................. 8 8. TEST RESULT .............................................................................................................................................. 9 8.1 DUTY CYCLE ....................................................................................................................................... 9 8.2 6dB BANDWIDTH (802.11b/g/n) ....................................................................................................... 11 8.3 OUTPUT POWER (802.11b/g/n) ....................................................................................................... 15 8.4 POWER SPECTRAL DENSITY (802.11b/g/n) .................................................................................. 22 8.5 OUT OF BAND EMISSIONS AT THE BAND EDGE/ CONDUCTED SPURIOUS EMISSIONS ...... 26 8.6 RADIATED MEASUREMENT. ........................................................................................................... 39 8.6.1 RADIATED SPURIOUS EMISSIONS. ..................................................................................... 39 8.6.2 RADIATED RESTRICTED BAND EDGES ............................................................................. 51 8.7 POWERLINE CONDUCTED EMISSIONS ........................................................................................ 53 9. LIST OF TEST EQUIPMENT ...................................................................................................................... 59 9.1 LIST OF TEST EQUIPMENT(Conducted Test) ............................................................................... 59 9.2 LIST OF TEST EQUIPMENT(Radiated Test) ................................................................................... 60 F-01P-02-014 (Rev.00) FCC ID: ZNFH340N HCT CO.,LTD. Report No.: HCT-R-1501-F020 Model: LG-H340n Page 4 of 60 1. GENERAL INFORMATION Applicant: LG Electronics MobileComm U.S.A., Inc. Address: 1000 Sylvan Avenue, Englewood Cliffs NJ 07632 FCC ID: ZNFH340N EUT Type: Cellular/PCS GSM/WCDMA Phone with WLAN and Bluetooth, NFC Model name(s): Additional Model(s): LG-H340n LG-H340n, LGH340n, H340n, LG-H340N, LGH340N, H340N Date(s) of Tests: January 6 , 2015 ~ January 14, 2015 Place of Tests: HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea (IC Recognition No. : 5944A-3) 2. EUT DESCRIPTION FCC Model Name LG-H340n Additional Model(s): LG-H340n, LGH340n, H340n, LG-H340N, LGH340N, H340N EUT Type Cellular/PCS GSM/WCDMA Phone with WLAN and Bluetooth, NFC Power Supply DC 3.8 V Battery type Li-ion Battery(Standard) Frequency Range TX: 2412 MHz ~ 2462 MHz RX: 2412 MHz ~ 2462 MHz Max. RF Output Power Peak Wi-Fi 802.11b(16.74 dBm) / Wi-Fi 802.11g…

Text truncated - open the document above for the full version.
