PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc. 6660-B Dobbin Road Columbia, MD 21045 SUBJECT: LG Electronics MobileComm USA FCC ID: ZNFH650 LTE MPR for FCC SAR testing To WhomIt May C oncern: We, LG Electronics MobileComm USA, hereby confirm that MPR specified in 3GPP will be permanently implemented in ZNFH650 so that the powers found in this application will not be found to exceed the levels indicated. And It is exactly the same under LTE C A co ndition. Additionally, A-MPR(Additional MPR) was disabl ed for al l SAR samples for S AR testi ng purposes. Date: September 16, 2015 Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jongchul Lee Director On behalf of LG Electronics Mobilecomm U.S.A.,Inc LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

          !"# Date: September 16#5 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confide ntiality for FCC ID: ZNFH650 Equipment Class:%&%  '  (  )  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,  MobileComm hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  MobileComm temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: %+,'-./+'0'+,/12-'22' 3) 4 - 5  1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure %+,' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, JRQJFKXO/HH Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

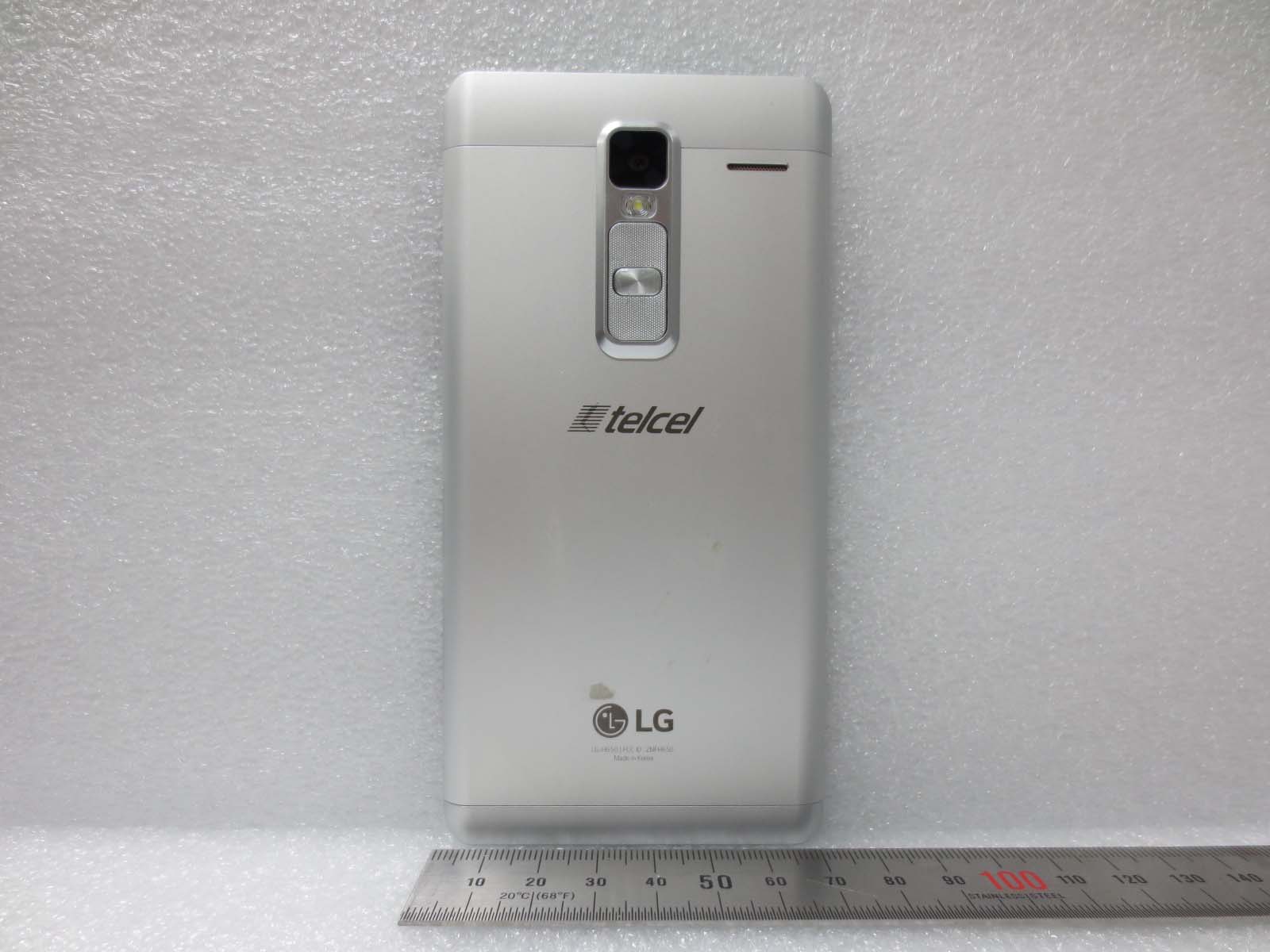

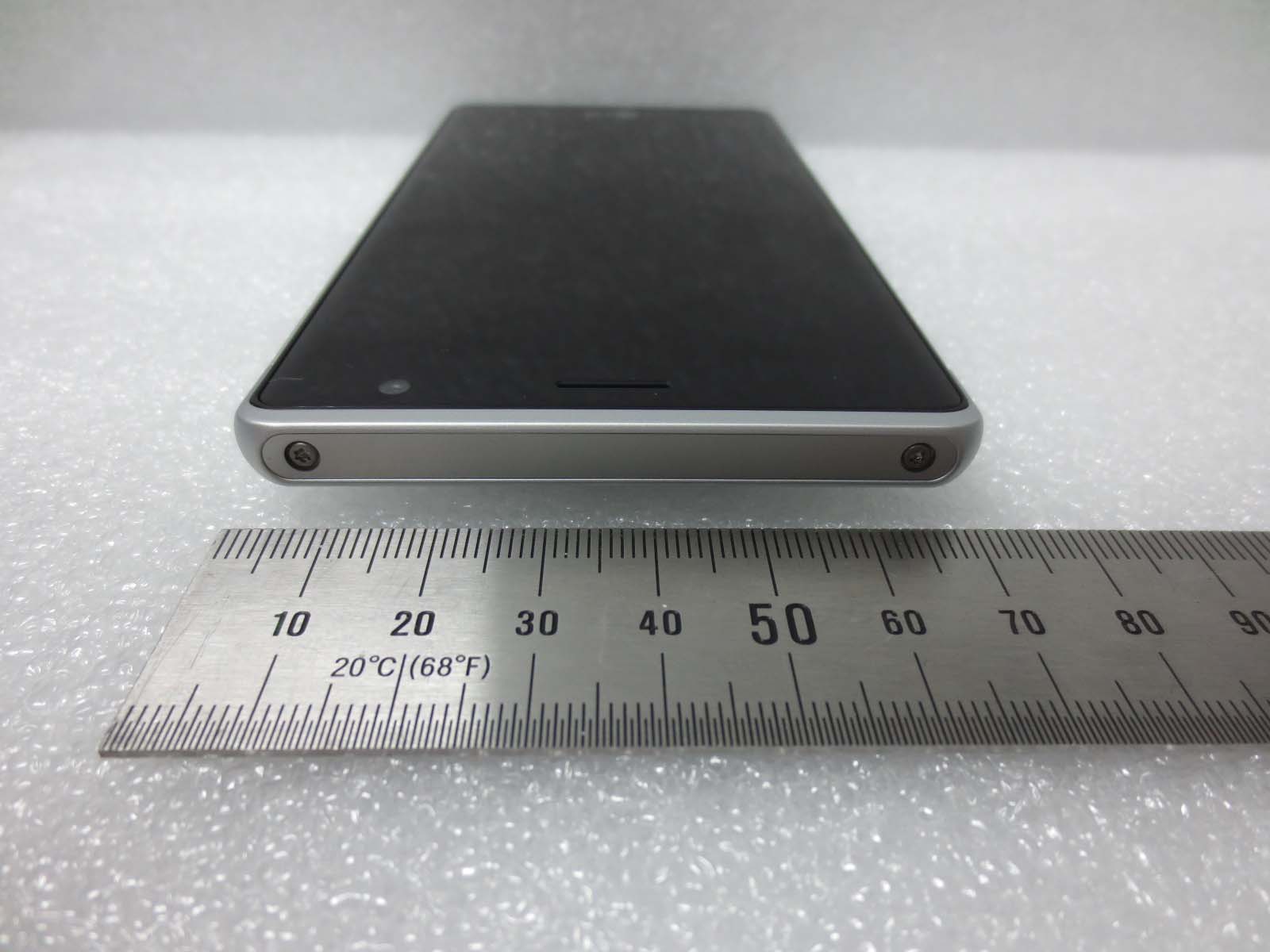

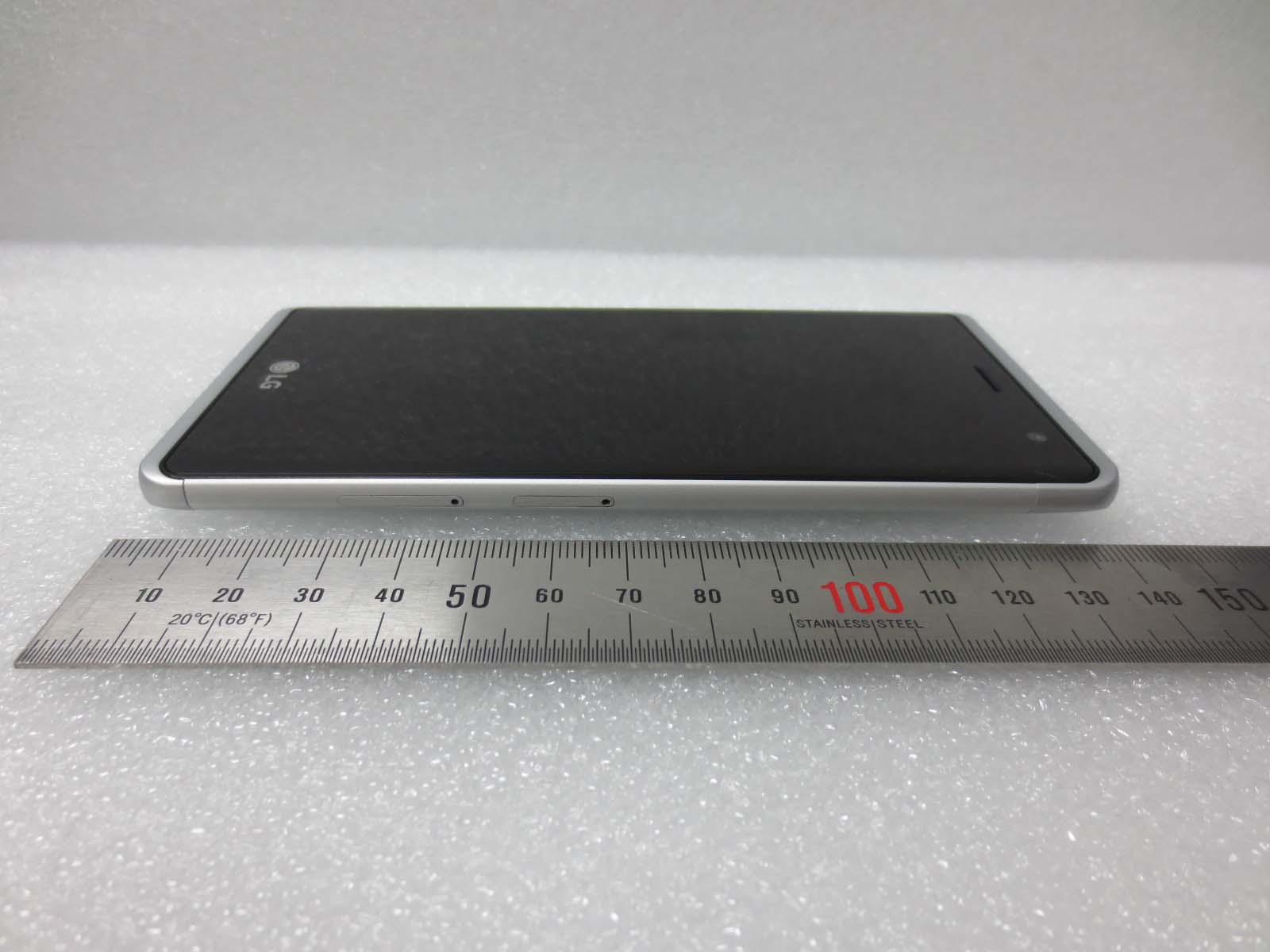

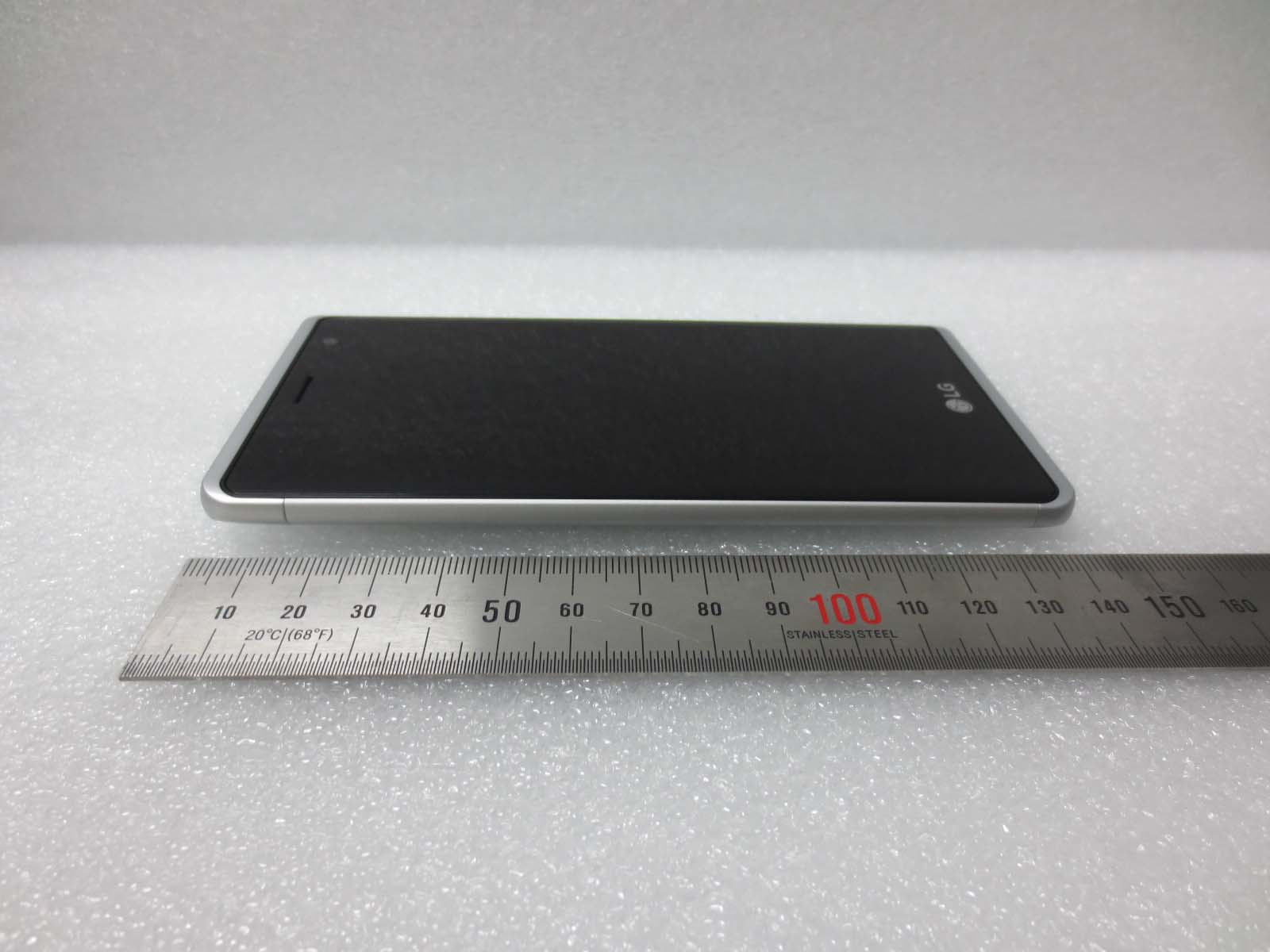

FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 7 EXTERNAL PHOTOGRAPHS FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 7 ■ EXTERNAL PHOTO FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 7 ■ EXTERNAL PHOTO FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 7 ■ EXTERNAL PHOTO FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 7 ■ EXTERNAL PHOTO FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 7 ■ EXTERNAL PHOTO FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 7 ■ EXTERNAL PHOTO

※ FCC ID Label Form *Note: This label and its location complies with 47 CFR 2925(d) that FCC ID is readi ly visible to the purchaser This label and its location complies with 47 CFR 2 . 925(d) that FCC ID is readily visible to the purchaser at the time of purchase, and be permanently affixed to the prod uct. And LG-H650 Model is applied an embedded type battery. And custo mer do not remove this back cover FCC ID is engraved to the outside surface of a battery cov er. so it is visible to the users as they purchase the product. Below Fig.1 is representation of FCC Lab el information, Other information may be include on the label. Fig.1 Representation of FCC Label information Model No: LG-H650 FCC ID: ZNFH650IMEI :IMEI : Made in Korea M F M Model No: LG-H650 CC ID: ZNFH650 Made in Korea

FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 19 INTERNAL PHOTOGRAPHS FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 19 ■ Main Antenna INTERNAL PHOTO Main Antenna FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 19 ■ INTERNAL PHOTO FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 19 ■ INTERNAL PHOTO FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 19 ■ INTERNAL PHOTO FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 19 ■ INTERNAL PHOTO FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 19 ■ BT&WLAN Antenna_INTERNAL PHOTO BT / WLAN Antenna FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 19 ■ INTERNAL PHOTO FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 19 ■ INTERNAL PHOTO FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １０ of 19 ■ INTERNAL PHOTO FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １１ of 19 ■ INTERNAL PHOTO FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １２ of 19 ■ INTERNAL PHOTO FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １３ of 19 ■ INTERNAL PHOTO FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １４ of 19 ■ INTERNAL PHOTO FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １５ of 19 ■ INTERNAL PHOTO FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １６ of 19 ■ INTERNAL PHOTO FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １７ of 19 ■ INTERNAL PHOTO FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １８ of 19 ■ INTERNAL PHOTO FCC ID: ZNFH650 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １９ of 19 ■ INTERNAL PHOTO

FCC ID: ZNFH650 Issue Date: 09. 21, 2015 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383. Rep. of KOREA 2 of 201 HCT-A-1509-F010 TEL: +82 31 645 6300 FAX: +82 31 645 6401 Version Rev. DATE DESCRIPTION HCT-A-1509-F010 09. 21, 2015 First Approval Report FCC ID: ZNFH650 Issue Date: 09. 21, 2015 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383. Rep. of KOREA 3 of 201 HCT-A-1509-F010 TEL: +82 31 645 6300 FAX: +82 31 645 6401 Table of Contents 1. Attestation of Test Result of Device Under Test ...................................................................................... 2. Device Under Test Description .................................................................................................................. 3. INTRODUCTION ...................................................................................................................................... 4. DESCRIPTION OF TEST EQUIPMENT .................................................................................................. 5. SAR MEASUREMENT PROCEDURE ..................................................................................................... 6. DESCRIPTION OF TEST POSITION ....................................................................................................... 7. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................................................. 8. FCC SAR GENERAL MEASUREMENT PROCEDURES ....................................................................... 9. Output Power Specifications ................................................................................................................. 10. SYSTEM VERIFICATION ....................................................................................................................... 11. SAR TEST DATA SUMMARY ................................................................................................................ 12. Simultaneous SAR Analysis ................................................................................................................ 13. SAR Measurement Variability and Uncertainty ................................................................................. 14. MEASUREMENT UNCERTAINTY ......................................................................................................... 16. CONCLUSION ........................................................................................................................................ 17. REFERENCES ....................................................................................................................................... Attachment 1. – SAR Test Plots ................................................................................................................ Attachment 2. – Dipole Verification Plots................................................................................................. Attachment 3. – Probe Calibration Data ................................................................................................ Attachment 4. – Dipole Calibration Data ............................................................................................... Attachment 5. – SAR Tissue Characterization ...................................................................................... Attachment 6. – SAR SYSTEM VALIDATION ......................................................................................... FCC ID: ZNFH650 Issue Date: 09. 21, 2015 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383. Rep. of KOREA 4 of 201 HCT-A-1509-F010 TEL: +82 31 645 6300 FAX: +82 31 645 6401 1. Attestation of Test Result of Device Under Test Attestation of SAR test result Trade Name: LG Electronics, MobileComm U.S.A., Inc. FCC ID: ZNFH650 Model: LG-H650 EUT Type Cellular/PCS GSM/WCDMA/LTE Phone with WLAN and Bluetooth Application Type: Certification The Highest Reported SAR (W/Kg) Band Tx. Frequency Equipment Class Reported 1g SAR (W/kg) (MHz) GSM/GPRS/EDGE 850 824.2 - 848.8 PCE 0.68 0.79 0.79 GSM/GPRS/EDGE 1900 1 850.2 -1 909.8 PCE 0.20 0.62 1.12 UMTS 850 826.4 - 846.6 PCE 0.68 0.49 0.49 UMTS 1700 1 712.4 ~ 1 752.6 PCE 0.26 0.74 0.97 UMTS 1900 1852.4 - 1907.6 PCE 0.17 0.59 1.17 LTE 4 1 710.7 – 1 754.3PCE 0.17 0.72 0.86 LTE 7 2 502.5 – 2 567.5PCE 0.58 1.03 1.15 LTE 17 706.5 ~ 713.5 PCE 0.61 0.34 0.34 802.11b 2 412 - 2 462 DTS 0.52 0.08 0.09 Bluetooth 2 402 - 2 480 DSS/DTS 0.17* Simultaneous SAR per KDB 690783 D01v01r03 1.20 1.20 1.25 Date(s) of Tests: 08/28/2015 ~ 09/16/2015 Note : *1. BT Body-worn SAR value is estimated SAR value that should not be reported standalone SAR on grants of equipment approval. FCC ID: ZNFH650 Issue Date: 09. 21, 2015 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383. Rep. of KOREA 5 of 201 HCT-A-1509-F010 TEL: +82 31 645 6300 FAX: +82 31 645 6401 2. Device Under Test Description 2.1 DUT specification Device Wireless specification overview Band & Mode Operating Mode Tx Frequency GSM/GPRS/EDGE 850 Voice / Data 824.20 – 848.80 MHz GSM/GPRS/EDGE 1900 Voice / Data 1 850.20 – 1 909.80 MHz UMTS 850 Voice / Data 826.40 – 846.60 MHz UMTS 1700 Voice / Data 1 712.4 – 1 752.6 MHz UMTS 1900 Voice / Data 1852.4 – 1907.6 MHz LTE Band 4 (AWS) Data 1710.7 – 1754.3 MHz LTE Band 7 Data 2 502.5 – 2 567.5 MHz LTE Band 17 Data 706.5 ~ 713.5 MHz 2.4 GHz WLAN Data 2 412 – 2 462 MHz Bluetooth Data 2 402 – 2 480 MHz Device Description Device Dimension Overall (Length x Width) : 142 mm x 71.8 mm Back Cover Normal Battery cover Battery Options Standard Device Serial Numbers Mode Serial Number GSM 850, 1900 UMTS 850, 1700, 1900, LTE 4(AWS), LTE 17 507KPCA938563 LTE 7, WiFi 507KPQJ938564 Several samples with identical hardware were used to SAR testing. The manufacturer has confirmed that the devices tes…
