ZNFH731Multi-band GSM/EDGE/WCDMA/LTE Phone with WLAN, Bluetooth, and RFID

www.lg.com/ca ENGLISH MFL00000000 (1.0) USER GUIDE LG-H731 Welcome! Thank you for choosing LG. Please carefully read this user guide before using the device for the first time to ensure safe and proper use. • Always use genuine LG accessories. The supplied items are designed only for this device and may not be compatible with other devices. • This device is not suitable for people who have a visual impairment due to the touchscreen keyboard. • Descriptions are based on the device's default settings. • Default apps on the device are subject to updates and support for these apps may be withdrawn without prior notice. If you have any questions about an app provided with the device, please contact a LG Service Centre. For user- installed apps, please contact the relevant service provider. • Modifying the device’s operating system or installing software from unofficial sources may damage the device and lead to data corruption or data loss. Such actions will violate your LG licence agreement and void your warranty. • Some contents and illustrations may differ from your device depending on the region, service provider, software version, or OS version, and are subject to change without prior notice. Instructional notices WARNINGsituations that could cause injury to yourself or others Caution! situations that could cause damage to the device or other equipment NOTEnotice or additional information TIP!tips for when using the function ENGLISH 1 Table of contents For Your Safety..........................................4 Safety Guidelines ......................................9 Important notice .....................................28 Getting to know your phone ...................31 Phone layout ..........................................31 Installing the microSIM card and battery 33 Charging the battery ..............................35 Inserting a memory card ........................36 Removing the memory card ...................37 Locking and unlocking the device ..........37 Your Home screen ...................................39 Touch screen tips ..................................39 Home screen .........................................40 Customizing the Home screen ...............41 Returning to recently-used applications .42 Notifi cations panel .................................43 On-screen keyboard ..............................46 Special Features .....................................47 Gesture shot ..........................................47 Glance View ...........................................48 KnockON ...............................................48 Knock Code ...........................................49 QuickMemo+ .........................................50 QSlide ....................................................51 Google account setup .............................52 Creating your Google account ................52 Signing into your Google account ...........52 Connecting to Networks and Devices ....54 Wi-Fi .....................................................54 Bluetooth ...............................................55 Wi-Fi Direct ...........................................56 Transferring data between a PC and the device....................................................57 Calls ........................................................58 Making a call .........................................58 Calling your contacts .............................58 Answering and rejecting a call ...............58 Making a second call .............................59 Viewing your call logs ............................59 Call settings ...........................................59 Contacts ..................................................60 Searching for a contact ..........................60 Adding a new contact ............................60 Favourites contacts ................................60 Creating a group ....................................61 Messaging ...............................................62 Sending a message ...............................62 Conversation view .................................63 Changing your messaging settings ........63 Table of contents 2 Table of contents E-mail ......................................................64 Mana ging email accounts ......................64 Working with account folders .................64 Composing and sending an email ..........65 Camera and Video ...................................66 Camera options on the viewfi nder ..........66 Using the advanced settings ..................67 Manual mode on the viewfi nder .............68 Taking a photo .......................................69 Once you have taken a photo .................69 Recording a video ..................................70 After recording a video...........................71 Gallery ...................................................71 Multimedia ..............................................75 Music ....................................................75 Utilities ....................................................77 Clock .....................................................77 Calculator ..............................................78 Calendar ................................................78 Voice Recorder ......................................79 Voice Search..........................................79 Downloads ............................................79 Web Browser ...........................................80 Chrome .................................................80 Settings ...................................................81 Networks ...............................................81 Sound & notifi cation ..............................84 Display ..................................................85 General ..................................................87 LG Bridge Application .............................93 Phone software update ..........................95 Phone software update ..........................95 About this user guide .............................…

Text truncated - open the document above for the full version.

          !"# Date: June 10#5 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE:  Request of Confidentiality for FCC ID: ZNFH731 Equipment Class:%E&%  '  (  held to ear To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,  MobileComm hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  MobileComm temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: %+,'-./+'0'+,/12-'22' 3) 4 - 5  1 Block Diagram 2 Operational Description 3 Parts L ists, Tune-Up Procedure and Antenna Distance %+,' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

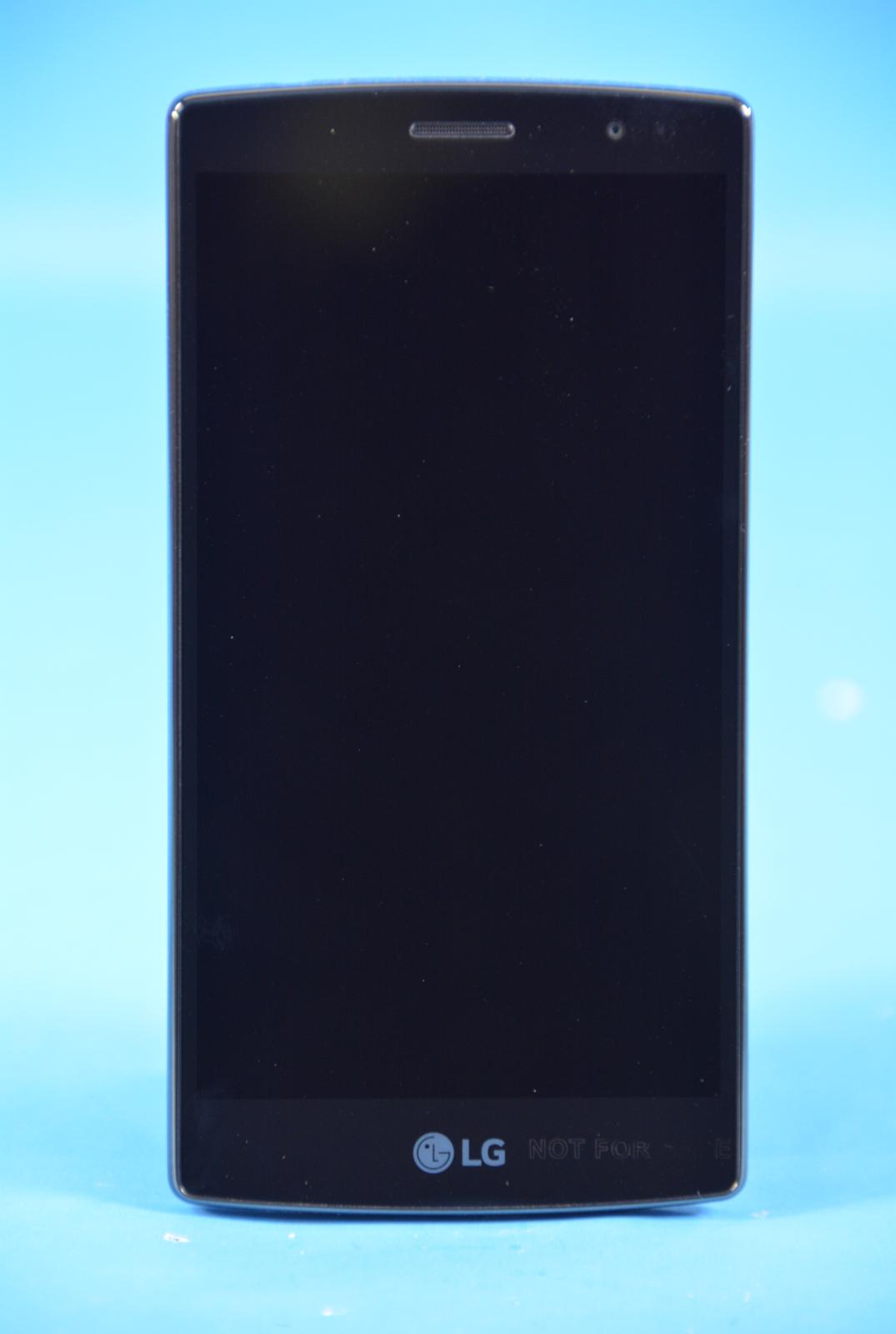

LG Electronics MobileComm U.S.A FCC ID: ZNFH731 Model: LG-H731 External Photos EUT Type: Portable Handset Page 1 of 3 © 2015 PCTEST Engineering Laboratory, Inc. V 2.5 03/20/2015 E X T E R N A L P H O T O G R A P H S LG Electronics MobileComm U.S.A FCC ID: ZNFH731 Model: LG-H731 External Photos EUT Type: Portable Handset Page 2 of 3 © 2015 PCTEST Engineering Laboratory, Inc. V 2.5 03/20/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFH731 Model: LG-H731 External Photos EUT Type: Portable Handset Page 3 of 3 © 2015 PCTEST Engineering Laboratory, Inc. V 2.5 03/20/2015

* Note! We, LG Electronics MobileComm USA, state that our device, FCC ID: ZNFH731, has a battery and has a FCC ID label inside of the battery compartment. Additionally, the battery will not be assembled with the device when delivery, so FCC ID label is visible to the users as they purchase the product and install the battery. The label is attached permanently to the EUT by an adhesive since the adhesive is a permanent type with strong strength. ※ LG-H731 FCC ID Label Form Model: LG-H731 Position of FCC ID Label HW: IMEI : S/N: FCC ID : ZNFH731 IC ID: 2703C-H731

LG Electronics MobileComm U.S.A FCC ID: ZNFH731 Model: LG-H731 Internal Photos EUT Type: Portable Handset Page 1 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.5 03/20/2015 I N T E R N A L P H O T O G R A P H S LG Electronics MobileComm U.S.A FCC ID: ZNFH731 Model: LG-H731 Internal Photos EUT Type: Portable Handset Page 2 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.5 03/20/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFH731 Model: LG-H731 Internal Photos EUT Type: Portable Handset Page 3 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.5 03/20/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFH731 Model: LG-H731 Internal Photos EUT Type: Portable Handset Page 4 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.5 03/20/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFH731 Model: LG-H731 Internal Photos EUT Type: Portable Handset Page 5 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.5 03/20/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFH731 Model: LG-H731 Internal Photos EUT Type: Portable Handset Page 6 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.5 03/20/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFH731 Model: LG-H731 Internal Photos EUT Type: Portable Handset Page 7 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.5 03/20/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFH731 Model: LG-H731 Internal Photos EUT Type: Portable Handset Page 8 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.5 03/20/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFH731 Model: LG-H731 Internal Photos EUT Type: Portable Handset Page 9 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.5 03/20/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFH731 Model: LG-H731 Internal Photos EUT Type: Portable Handset Page 10 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.5 03/20/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFH731 Model: LG-H731 Internal Photos EUT Type: Portable Handset Page 11 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.5 03/20/2015

FCC ID:ZNFH731 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 58 0Y1505180904.ZNF 05/18/15 - 05/28/15 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 15.0 M 01/27/2015 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. 05/18/15 - 05/28/15 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Document Serial No.: 0Y1505180904.ZNF FCC ID: ZNFH731 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A., INC. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): LG-H731, LGH731, H731 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.8 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile Manufacturers Forum (MMF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MMF. Further details can be obtained by emailing: [email protected]. 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz0.430.630.73 PCEUMTS 850826.40 - 846.60 MHz0.290.410.44 PCEUMTS 17501712.4 - 1752.5 MHz0.230.590.59 PCEGSM/GPRS/EDGE 1900 1850.20 - 1909.80 MHz0.360.350.43 PCEUMTS 19001852.4 - 1907.6 MHz0.910.750.89 PCELTE Band 12699.7 - 715.3 MHz0.200.400.40 PCELTE Band 5 (Cell)824.7 - 848.3 MHz0.290.380.38 PCELTE Band 4 (AWS)1710.7 - 1754.3 MHz0.380.610.61 PCELTE Band 2 (PCS)1850.7 - 1909.3 MHz0.760.640.89 PCELTE Band 72502.5 - 2567.5 MHz0.210.350.48 DTS2.4 GHz WLAN2412 - 2462 MHz0.83< 0.10.12 DTSBluetooth LE2402 - 2480 MHz DSSBluetooth2402 - 2480 MHzN/A< 0.1N/A 1.360.821.00 N/A SAR Band & ModeTx Frequency Equipment Class Simultaneous SAR per KDB 690783 D01v01r03: PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID:ZNFH731 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 58 0Y1505180904.ZNF 05/18/15 - 05/28/15 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 15.0 M 01/27/2015 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ........................................................................................................................ 8 3 INTRODUCTION ............................................................................................................................. 9 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 10 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 12 7 RF EXPOSURE LIMITS ................................................................................................................ 15 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 16 9 RF CONDUCTED POWERS ......................................................................................................... 20 10 SYSTEM VERIFICATION .............................................................................................................. 36 11 SAR DATA SUMMARY ................................................................................................................. 38 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 48 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 52 14 EQUIPMENT LIST ......................................................................................................................... 53 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 54 16 CONCLUSION ............................................................................................................................... 56 17 REFERENCES .............................................................................................................................. 57 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: DUT ANTENNA DIAGRAM & SAR TEST SETUP PHOTOGRAPHS FCC ID:ZNFH731 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 58 0Y1505180904.ZNF 05/18/15 - 05/28/15 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 15.0 M 01/27/2015 1 DEVICE UNDER TEST 1.1 Device Overview 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D01v05. GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz UMTS 1750Voice/Data1712.4 - 1752.5 MHz GSM/GPRS/EDGE 1900Voice/Data185…

Text truncated - open the document above for the full version.

FCC ID: ZNFH731 FCC Pt. 22, 24, & 27 GSM / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 77 0Y1505180905.ZNF 5/18 - 6/2/2015 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. V 2.5 03/20/2015 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A 5/18 - 6/2/2015 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1505180905.ZNF F C C I D : ZNF H731 AP P L I C AN T : LG ELE CT RONI CS MOB ILE COM M U. S.A Application Type: Certification Model(s): LG-H731, LGH731, H731 EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2 §22(H) §24(E) §27(L) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r02 Test Device Serial No.: identical prototype [S/N: 18MAY08. 18MAY09] GSM850824.2 - 848.8243KGXW1.13030.53 EDGE850824.2 - 848.8234KG7W0.15922.00 GSM19001850.2 - 1909.8244KGXW1.40631.48 EDGE19001850.2 - 1909.8243KG7W0.59727.76 WCDMA850826.4 - 846.64M15F9W0.07618.79 WCDMA17001712.4 - 1752.54M17F9W0.14021.45 WCDMA19001852.4 - 1907.64M17F9W0.39225.94 Emission Designator Tx Frequency (MHz) Mode ERP/EIRP Max. Power (W) Max. Power (dBm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22, 24, & 27 FCC ID: ZNFH731 FCC Pt. 22, 24, & 27 GSM / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 77 0Y1505180905.ZNF 5/18 - 6/2/2015 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. V 2.5 03/20/2015 T A B L E O F C O N T E N T S FCC PART 22, 24, & 27 MEASUREMENT REPORT ................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES ....................................................................................................................... 5 2.3 TEST CONFIGURATION ..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 EVALUATION PROCEDURE .............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 AWS - BASE FREQUENCY BLOCKS ................................................................................................. 7 3.7 AWS - MOBILE FREQUENCY BLOCKS ............................................................................................. 7 3.8 RADIATED MEASUREMENTS ............................................................................................................ 8 4.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 9 5.0 SAMPLE CALCULATIONS ............................................................................................................ 10 6.0 TEST RESULTS ............................................................................................................................. 11 6.1 SUMMARY ......................................................................................................................................... 11 6.2 OCCUPIED BANDWIDTH ................................................................................................................. 12 6.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ............................................ 17 6.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL ...................................................................... 41 6.5 PEAK-AVERAGE RATIO ................................................................................................................... 50 6.6 RADIATED POWER (ERP/EIRP) .............................................................................…

Text truncated - open the document above for the full version.

FCC ID: ZNFH731 FCC Pt. 22, 24, & 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 152 0Y1505180906.ZNF 5/18 - 6/2/2015 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. V 2.5 03/20/2015 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A 5/18 - 6/2/2015 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1505180906.ZNF F C C I D : Z N F H 7 3 1 A P P L I C A N T : L G E L E C T RO N I C S M O B I L E C O M M U . S.A Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22; §24; §27 Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r02 EUT Type: Portable Handset Model(s): LG-H731, LGH731, H731 Test Device Serial No.: identical prototype [S/N: 18MAY09] LTE Band 12699.7 - 715.31M12G7DQPSK0.09219.63 LTE Band 12699.7 - 715.31M12W7D16QAM0.07918.99 LTE Band 12700.5 - 714.52M73G7DQPSK0.09519.80 LTE Band 12700.5 - 714.52M72W7D16QAM0.08519.31 LTE Band 12701.5 - 713.54M52G7DQPSK0.08719.41 LTE Band 12701.5 - 713.54M50W7D16QAM0.07218.57 LTE Band 12704 - 7119M00G7DQPSK0.09719.85 LTE Band 12704 - 7118M97W7D16QAM0.08119.09 LTE Band 5824.7 - 848.31M11G7DQPSK0.09419.75 LTE Band 5824.7 - 848.31M12W7D16QAM0.07318.64 LTE Band 5825.5 - 847.52M73G7DQPSK0.07118.49 LTE Band 5825.5 - 847.52M73W7D16QAM0.06017.75 LTE Band 5826.5 - 846.54M51G7DQPSK0.07518.76 LTE Band 5826.5 - 846.54M50W7D16QAM0.06217.94 LTE Band 5829 - 8448M98G7DQPSK0.08719.41 LTE Band 5829 - 8448M95W7D16QAM0.07318.65 LTE Band 41710.7 - 1754.31M12G7DQPSK0.14721.68 LTE Band 41710.7 - 1754.31M12W7D16QAM0.11720.69 LTE Band 41711.5 - 1753.52M73G7DQPSK0.15621.94 LTE Band 41711.5 - 1753.52M71W7D16QAM0.14421.58 LTE Band 41712.5 - 1752.54M51G7DQPSK0.13221.20 LTE Band 41712.5 - 1752.54M49W7D16QAM0.11720.67 LTE Band 41715 - 17509M00G7DQPSK0.15321.84 LTE Band 41715 - 17508M97W7D16QAM0.14321.57 LTE Band 41717.5 - 1747.513M5G7DQPSK0.16422.15 LTE Band 41717.5 - 1747.513M5W7D16QAM0.15221.81 LTE Band 41720 - 174518M0G7DQPSK0.15922.01 LTE Band 41720 - 174518M0W7D16QAM0.14121.48 LTE Band 21850.7 - 1909.31M12G7DQPSK0.20623.13 LTE Band 21850.7 - 1909.31M12W7D16QAM0.16622.21 LTE Band 21851.5 - 1908.52M73G7DQPSK0.22023.42 LTE Band 21851.5 - 1908.52M72W7D16QAM0.17622.45 LTE Band 21852.5 - 1907.54M60G7DQPSK0.19422.87 LTE Band 21852.5 - 1907.54M59W7D16QAM0.15221.83 LTE Band 21855 - 19059M00G7DQPSK0.22323.47 LTE Band 21855 - 19059M00W7D16QAM0.17022.29 LTE Band 21857.5 - 1902.513M5G7DQPSK0.20023.01 LTE Band 21857.5 - 1902.513M5W7D16QAM0.17622.45 LTE Band 21860 - 190018M0G7DQPSK0.15021.77 LTE Band 21860 - 190017M9W7D16QAM0.12921.10 LTE Band 72502.5 - 2567.54M51G7DQPSK0.13421.29 LTE Band 72502.5 - 2567.54M50W7D16QAM0.11920.75 LTE Band 72505 - 25658M99G7DQPSK0.13321.25 LTE Band 72505 - 25658M97W7D16QAM0.11720.67 LTE Band 72507.5 - 2562.513M5G7DQPSK0.14121.49 LTE Band 72507.5 - 2562.513M5W7D16QAM0.12721.05 LTE Band 72510 - 256018M0G7DQPSK0.14421.58 LTE Band 72510 - 256018M0W7D16QAM0.13121.18 Modulation ERP/EIRP Max. Pow er (W) Max. Pow er (dBm) Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22, 24, & 27 LTE FCC ID: ZNFH731 FCC Pt. 22, 24, & 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 152 0Y1505180906.ZNF 5/18 - 6/2/2015 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. V 2.5 03/20/2015 T A B L E O F C O N T E N T S FCC PART 22, 24, & 27 MEASUREMENT REPORT ................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES ....................................................................................................................... 5 2.3 TEST CONFIGURATION ..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 MEASUREMENT PROCEDURE ......................................................................................................... 6 3.2 BLOCK A FREQUENCY RANGE ........................................................................................................ 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS ..........…

Text truncated - open the document above for the full version.

FCC ID: ZNFH731 FCC Pt. 22, 24, & 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 74 of 152 0Y1505180906.ZNF 5/18 - 6/2/2015 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. V 2.5 03/20/2015 6.4 Band Edge Emissions at Antenna Terminal §2.1051 §22.917(a) §24.238(a) §27.53(g) §27.53(h) §27.53(m) Test Overview All out of band emissions are measured with a spectrum analyzer connected to the antenna terminal of the EUT while the EUT is operating at its maximum duty cycle, at maximum power, and at the appropriate frequencies. All data rates were investigated to determine the worst case configuration. All modes of operation were investigated and the worst case configuration results are reported in this section. The minimum permissible attenuation level of any spurious emission is 43 + log 10 (P [Watts] ), where P is the transmitter power in Watts. The minimum permissible attenuation level…

Text truncated - open the document above for the full version.
