ZNFK120ARMulti-band GSM/WCDMA/LTE Phone with Bluetooth and WLAN

LG Electronics USA, Inc.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jan 27, 2016
Application Purpose: Original Equipment
Date of Application: Jan 27, 2016
Equipment Note: Multi-band GSM/WCDMA/LTE Phone with Bluetooth and WLAN
Frequency Range: 2402.00000000 - 2480.00000000
Company: LG Electronics USA, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

www.lg.com MFL00000000 (1.0) ENGLISH USER GUIDE LG-K120AR About this user guide Thank you for choosing LG. Please carefully read this user guide before using the device for the first time to ensure safe and proper use. • Always use genuine LG accessories. The supplied items are designed only for this device and may not be compatible with other devices. • This device is not suitable for people who have a visual impairment due to the touchscreen keyboard. • Descriptions are based on the device default settings. • Default apps on the device are subject to updates and support for these apps may be withdrawn without prior notice. If you have any questions about an app provided with the device, please contact a LG Service Centre. For user-installed apps, please contact the relevant service provider. • Modifying the device’s operating system or installing software from unofficial sources may damage the device and lead to data corruption or data loss. Such actions will violate your LG licence agreement and void your warranty. • Some contents and illustrations may differ from your device depending on the region, service provider, software version, or OS version, and are subject to change without prior notice. • Software, audio, wallpaper, images, and other media supplied with your device are licensed for limited use. If you extract and use these materials for commercial or other purposes, you may be infringing copyright laws. As a user, you are fully are entirely responsible for the illegal use of media. • Additional charges may apply for data services, such as messaging, uploading,downloading, auto-syncing and location services. To avoid additional charges, select a data plan suitable to your needs. Contact your service provider to obtain additional details. Instructional notices WARNING Situations that could cause injury to yourself and others, or damage to device or other property. NOTE Notices or additional information. ENGLISH 2 Guidelines for safe and effi cient use ......... 5 Safety instructions ..................................12 Features you will love ................. 19 QuickMemo+ ............................................20 Using Capture+ ............................................................ 20 Viewing the saved memo ....................................... 20 Basics .......................................... 21 Accessories ..............................................22 Device layout ............................................23 Turning Your Device On and Off ..............25 Installing the SIM card and battery .........25 Charging the battery ...............................27 Optimizing battery life .............................28 Inserting the memory card ......................29 Removing the memory card .....................30 Touch screen tips .....................................30 Tap or touch ................................................................... 30 Touch and hold.............................................................. 31 Drag..................................................................................... 31 Swipe or slide ................................................................ 31 Double-tap ...................................................................... 32 Pinch-to-Zoom ............................................................. 32 Google account setup ..............................33 Creating your Google account ............................ 33 Signing into your Google account..................... 33 Locking and unlocking the device ............34 KnockON .......................................................................... 34 Knock Code .................................................................... 34 Changing the screen lock method.................... 35 Smart Lock...................................................................... 35 Home screen ............................................36 Getting to Know the Home Screen ................. 36 Returning to recently-used applications ...... 37 Customizing the Home screen .......................... 38 Notifi cations panel ..................................................... 39 Capturing a screenshot ............................41 On-screen keyboard .................................41 Using the keypad and entering text ................ 41 Entering special characters................................... 42 Transferring data between a PC and the device .......................................................43 Transferring data using USB connection ...... 43 LG Bridge ..................................................44 Features of LG Bridge ............................................. 44 To download the LG Bridge software ............. 44 Apps ............................................ 45 Installing or uninstalling apps ..................46 To open the Play Store app ................................... 46 To open a screen with details about an app 46 To uninstall applications .......................................... 46 Calls ..........................................................47 Making a call .................................................................. 47 Calling your contacts ................................................ 47 Answering and rejecting a call ............................ 47 Making a second call ................................................. 48 Viewing your call logs ............................................... 48 Change your call settings ...................................... 48 Table of contents 3 Contacts ...................................................49 Searching for a contact ........................................... 49 Adding a new contact .............................................. 49 Favourites contacts ................................................... 49 Creating a group .......................................................... 50 Messaging ................................................51 Sending a mes…

Text truncated - open the document above for the full version.

Cover Letter(s)

Date: January 05, 2016 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFK120AR Equipment Class: DTS: Digital Transmission System To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics MobileComm USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics MobileComm USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 User’s Manual The Applicant understands that pu rsuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Part Lists, PCB Layout

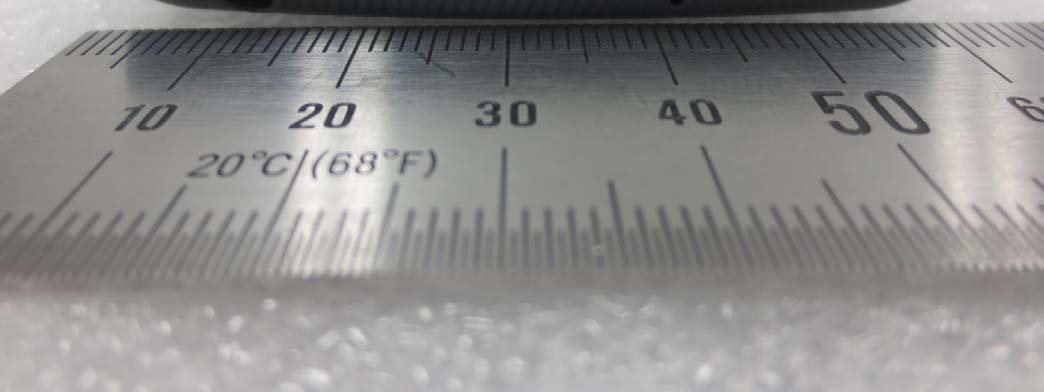

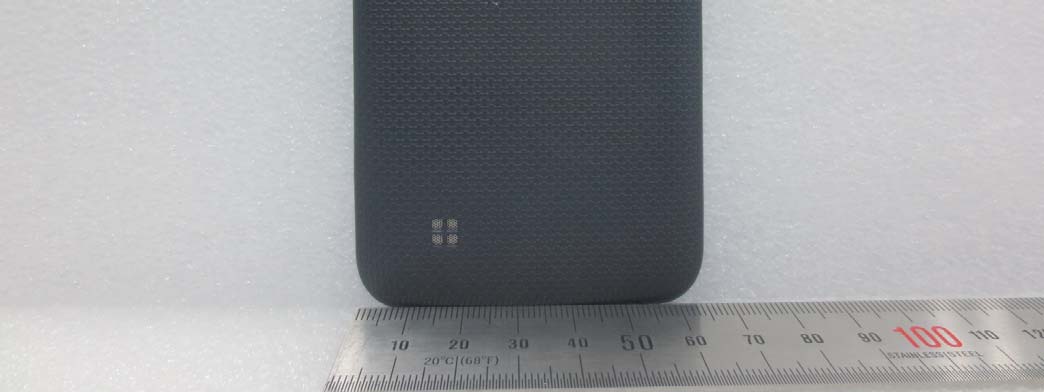

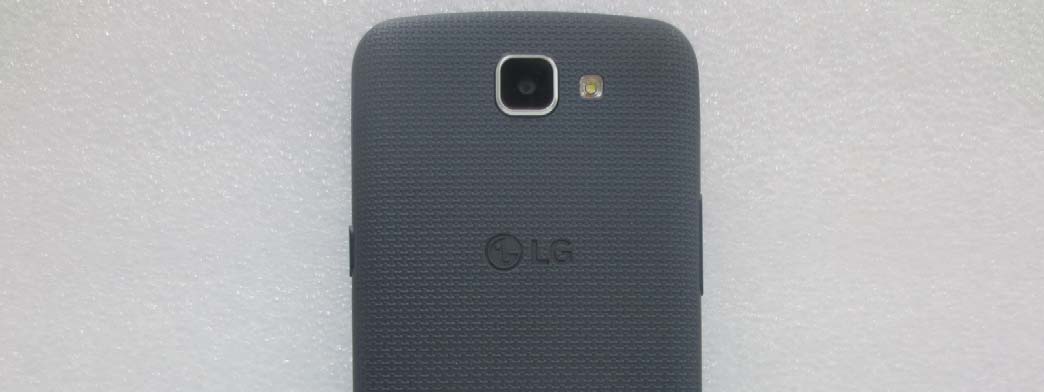

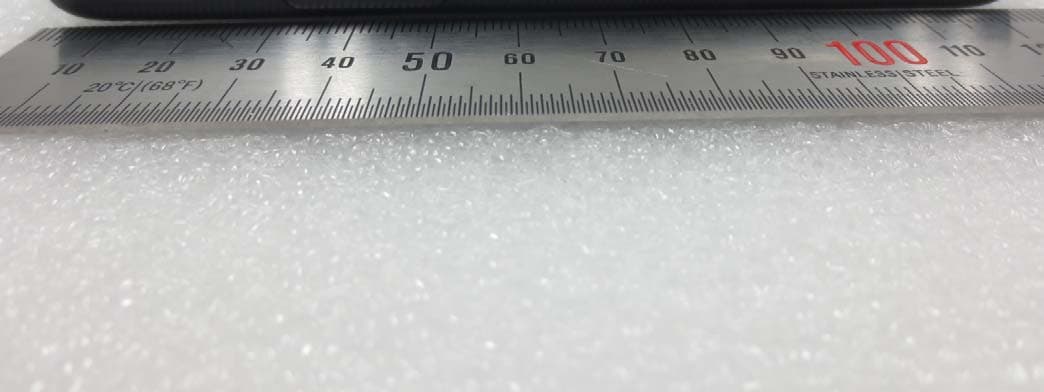

External Photos

ID Label/Location Info

※ FCC ID Label Form Model No: LG-K120AR FCC ID : ZNFK120AR S/N : Made in XXXXX IMEI : * Note! We, LG Electronics MobileComm USA, State that our device, FCC ID ZNFK120AR, has a FCC ID label inside of the battery compartment. Additionally, the battery will not be assembled with the device when delivery, so FCC ID label is visible to the users as they purchase the product and install the battery, The label is attached permanently to the EUT by an adhesive since the adhesive is a permanent type with strong strength.

Internal Photos

FCC ID: ZNFK120AR HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 19 INTERNAL PHOTOGRAPHS FCC ID: ZNFK120AR HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 19 ■ Main Antenna INTERNAL PHOTO Main Antenna FCC ID: ZNFK120AR HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 19 ■ INTERNAL PHOTO FCC ID: ZNFK120AR HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 19 ■ INTERNAL PHOTO FCC ID: ZNFK120AR HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 19 ■ INTERNAL PHOTO FCC ID: ZNFK120AR HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 19 ■ BT & WLAN Antenna_INTERNAL PHOTO BT / WLAN Antenna FCC ID: ZNFK120AR HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 19 ■ INTERNAL PHOTO FCC ID: ZNFK120AR HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 19 ■ INTERNAL PHOTO FCC ID: ZNFK120AR HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 19 ■ INTERNAL PHOTO FCC ID: ZNFK120AR HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １０ of 19 ■ INTERNAL PHOTO FCC ID: ZNFK120AR HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １１ of 19 ■ INTERNAL PHOTO FCC ID: ZNFK120AR HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １２ of 19 ■ INTERNAL PHOTO FCC ID: ZNFK120AR HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １３ of 19 ■ INTERNAL PHOTO FCC ID: ZNFK120AR HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １４ of 19 ■ INTERNAL PHOTO FCC ID: ZNFK120AR HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １５ of 19 ■ INTERNAL PHOTO FCC ID: ZNFK120AR HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １６ of 19 ■ INTERNAL PHOTO FCC ID: ZNFK120AR HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １７ of 19 ■ INTERNAL PHOTO FCC ID: ZNFK120AR HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １８ of 19 ■ INTERNAL PHOTO FCC ID: ZNFK120AR HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １９ of 19 ■ INTERNAL PHOTO

RF Exposure Info

FCC ID: ZNFK120AR Issue Date: 01. 12, 2016 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383. Rep. of KOREA 2 of 142 HCT-A-1601-F006 TEL: +82 31 645 6300 FAX: +82 31 645 6401 Version Rev. DATE DESCRIPTION HCT-A-1601-F006 01. 12, 2016 First Approval Report FCC ID: ZNFK120AR Issue Date: 01. 12, 2016 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383. Rep. of KOREA 3 of 142 HCT-A-1601-F006 TEL: +82 31 645 6300 FAX: +82 31 645 6401 Table of Contents 1. Attestation of Test Result of Device Under Test ............................................................................................ ４ 2. Device Under Test Description ..................................................................................................................... ５ 3. INTRODUCTION ...................................................................................................................................... １３ 4. DESCRIPTION OF TEST EQUIPMENT .................................................................................................. １４ 5. SAR MEASUREMENT PROCEDURE ..................................................................................................... １８ 6. DESCRIPTION OF TEST POSITION ....................................................................................................... ２０ 7. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS .................................................................................. ２３ 8. FCC SAR GENERAL MEASUREMENT PROCEDURES ........................................................................ ２４ 9. Output Power Specifications .................................................................................................................... ２８ 10. SYSTEM VERIFICATION ....................................................................................................................... ３９ 11. SAR TEST DATA SUMMARY ................................................................................................................. ４１ 12. Simultaneous SAR Analysis ................................................................................................................... ４９ 13. SAR Measurement Variability and Uncertainty....................................................................................... ５１ 14. MEASUREMENT UNCERTAINTY ......................................................................................................... ５２ 16. CONCLUSION ........................................................................................................................................ ５４ 17. REFERENCES ....................................................................................................................................... ５５ Attachment 1. – SAR Test Plots.................................................................................................................... ５７ Attachment 2. – Dipole Verification Plots ...................................................................................................... ６４ Attachment 3. – Probe Calibration Data ....................................................................................................... ８４ Attachment 4. – Dipole Calibration Data ................................................................................................... １０８ Attachment 5. – SAR Tissue Characterization .......................................................................................... １４１ Attachment 6. – SAR SYSTEM VALIDATION ........................................................................................... １４２ FCC ID: ZNFK120AR Issue Date: 01. 12, 2016 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383. Rep. of KOREA 4 of 142 HCT-A-1601-F006 TEL: +82 31 645 6300 FAX: +82 31 645 6401 1. Attestation of Test Result of Device Under Test Attestation of SAR test result Trade Name: LG Electronics, MobileComm U.S.A., Inc. FCC ID: ZNFK120AR Model: LG-K120AR Additional Model Name: K120AR, LGK120AR EUT Type GSM, WCDMA and LTE Phone with BT and WLAN Application Type: Certification The Highest Reported SAR (W/Kg) Band Tx. Frequency Equipment Class Reported 1g SAR (W/kg) (MHz) Head Body-Worn Hotspot GSM/GPRS 850 824.2 - 848.8 PCE 0.76 0.95 0.95 GSM/GPRS 1900 1 850.2 -1 909.8 PCE 0.31 0.74 0.74 UMTS 850 826.4 - 846.6 PCE 0.52 0.73 0.73 UMTS 1900 1852.4 - 1907.6 PCE 0.49 0.90 0.90 LTE 2 (PCS) 1 850.7 ~ 1 909.3 PCE 0.39 0.83 0.83 LTE 4 (AWS) 1 710.7 – 1 754.3 PCE 0.31 0.46 0.46 802.11b 2 412 - 2 462 DTS 0.81 0.11 0.11 Bluetooth 2 402 - 2 480 DSS/DTS 0.13 *1) Simultaneous SAR per KDB 690783 D01v01r03 1.57 1.08 1.06 Date(s) of Tests: 12/02/2015 ~ 12/18/2015 NOTE; *1) BT Body-worn SAR value is estimated SAR value that should not be reported standalone SAR on grants of equipment approval. ※ The device, LG-K120AR (FCC ID: ZNFK120AR) is electrically identical compare to LG-K120H(FCC ID: ZNFK120H), with spot-checks test done to confirm. All SAR test data of this model were reused from LG-K120H (FCC ID: ZNFK120H). FCC ID: ZNFK120AR Issue Date: 01. 12, 2016 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383. Rep. of KOREA 5 of 142 HCT-A-1601-F006 TEL: +82 31 645 6300 FAX: +82 31 645 6401 2. Device Under Test Description 2.1 DUT specification Device Wireless specification overview Band & Mode Operating Mode Tx Frequency GSM/GPRS/EDGE 850 Voice / Data 824.2 – 848.8 MHz GSM/GPRS/EDGE 1900 Voice / Data 1 850.2 – 1 909.8 MHz UMTS 850 Voice / Data 826.4 – 846.6 MHz UMTS 1900 Voice / Data 1 852.4 – 1 907.6 MHz LTE Band 2 (PCS) Data 1 850.7 – 1 909.3 MHz LTE Band 4 (AWS) Data 1 710.7 – 1 754.3 MHz 2.4 GHz WLAN Data 2 412.0 – 2 462.0 MHz Bluetooth Data 2 402.0 – 2 480.0 MHz Device Description Device Dimension Overall (Length x Width) : 131.9 mm x 66.7 mm Back Cover Normal Battery cover Battery Options Standar…

Text truncated - open the document above for the full version.

Test Report

Report No.: HCT-R-1512-F064 Model: LG-K120AR Page 2 of 54 F-TP22-03 (Rev.00) FCC ID: ZNFK120AR 2 / 54 HCT CO.,LTD. Version TEST REPORT NO. DATE DESCRIPTION HCT-R-1512-F064 December 30, 2015 - First Approval Report Report No.: HCT-R-1512-F064 Model: LG-K120AR Page 3 of 54 F-TP22-03 (Rev.00) FCC ID: ZNFK120AR 3 / 54 HCT CO.,LTD. Table of Contents 1. GENERAL INFORMATION ........................................................................................................................... 4 2. EUT DESCRIPTION ...................................................................................................................................... 4 3. TEST METHODOLOGY ................................................................................................................................ 5 3.1 EUT CONFIGURATION ....................................................................................................................... 5 3.2 EUT EXERCISE ................................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES ....................................................................................................... 5 3.4 DESCRIPTION OF TEST MODES ...................................................................................................... 5 4. INSTRUMENT CALIBRATION...................................................................................................................... 6 5. FACILITIES AND ACCREDITATIONS .......................................................................................................... 6 5.1 FACILITIES .......................................................................................................................................... 6 5.2 EQUIPMENT ........................................................................................................................................ 6 6. ANTENNA REQUIREMENTS ....................................................................................................................... 6 7. SUMMARY TEST OF RESULTS .................................................................................................................. 7 8. TEST RESULT .............................................................................................................................................. 8 8.1 DUTY CYCLE ....................................................................................................................................... 8 8.2 6dB BANDWIDTH MEASUREMENT ................................................................................................ 10 8.3 OUTPUT POWER MEASUREMENT ................................................................................................. 13 8.4 POWER SPECTRAL DENSITY ......................................................................................................... 20 8.5 OUT OF BAND EMISSIONS AT THE BAND EDGE/ CONDUCTED SPURIOUS EMISSIONS ...... 24 8.6 RADIATED MEASUREMENT. ........................................................................................................... 35 8.6.1 RADIATED SPURIOUS EMISSIONS. ..................................................................................... 35 8.6.2 RADIATED RESTRICTED BAND EDGES ............................................................................. 45 8.7 POWERLINE CONDUCTED EMISSIONS ........................................................................................ 48 9. LIST OF TEST EQUIPMENT ...................................................................................................................... 53 9.1 LIST OF TEST EQUIPMENT(Conducted Test) ............................................................................... 53 9.2 LIST OF TEST EQUIPMENT(Radiated Test) ................................................................................... 54 Report No.: HCT-R-1512-F064 Model: LG-K120AR Page 4 of 54 F-TP22-03 (Rev.00) FCC ID: ZNFK120AR 4 / 54 HCT CO.,LTD. 1. GENERAL INFORMATION Applicant: LG Electronics MobileComm U.S.A., Inc Address: 1000 Sylvan Avenue, Englewood Cliffs NJ 07632 FCC ID: ZNFK120AR EUT Type: GSM WCDMA and LTE Phone with BT & WLAN Model name(s): Additional Model(s): LG-K120AR K120AR, LGK120AR Date(s) of Tests: November 23, 2015 ~ December 01, 2015 Place of Tests: HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea (IC Recognition No. : 5944A-5 ) 2. EUT DESCRIPTION FCC Model Name LG-K120AR Additional Model(s): K120AR, LGK120AR EUT Type GSM WCDMA and LTE Phone with BT & WLAN Power Supply DC 3.8 V Battery Infomation Model: BL-49JH Type: Li-ion Battery Frequency Range TX: 2402 MHz ~ 2480 MHz RX: 2402 MHz ~ 2480 MHz Max. RF Output Power Peak -0.366 dBm (0.919 mW) Average -0.559 dBm (0.879 mW) BT Operating Mode BT _Low Energy Mode Modulation Type GFSK Number of Channels 40 Channels Antenna Specification Manufacturer: Ace Technology Antenna type: INTERNAL ANTENNA Peak Gain : 0.67 dBi Report No.: HCT-R-1512-F064 Model: LG-K120AR Page 5 of 54 F-TP22-03 (Rev.00) FCC ID: ZNFK120AR 5 / 54 HCT CO.,LTD. 3. TEST METHODOLOGY FCC KDB 558074 D01 DTS Meas Guidance v03r03 dated June 09, 2015 entitled “Guidance for Performing Compliance Measurements on Digital Transmission Systems(DTS) and the measurement procedure described in the American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices (ANSI C63.10-2013) Operating Under §15.247” were used in the measurement. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose of the measurements. According to its specifications, the EUT mus…

Text truncated - open the document above for the full version.

Test Report

Report No.: HCT-R-1512-F065 Model: LG-K120AR Page 2 of 66 F-TP22-03 (Rev.00) FCC ID: ZNFK120AR 2 / 66 HCT CO.,LTD. Version TEST REPORT NO. DATE DESCRIPTION HCT-R-1512-F065 December 30, 2015 - First Approval Report Report No.: HCT-R-1512-F065 Model: LG-K120AR Page 3 of 66 F-TP22-03 (Rev.00) FCC ID: ZNFK120AR 3 / 66 HCT CO.,LTD. Table of Contents 1. GENERAL INFORMATION ........................................................................................................................... 4 2. EUT DESCRIPTION ...................................................................................................................................... 4 3. TEST METHODOLOGY ................................................................................................................................ 5 3.1 EUT CONFIGURATION ....................................................................................................................... 5 3.2 EUT EXERCISE ................................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES ....................................................................................................... 5 3.4 DESCRIPTION OF TEST MODES ...................................................................................................... 5 4. INSTRUMENT CALIBRATION...................................................................................................................... 6 5. FACILITIES AND ACCREDITATIONS .......................................................................................................... 6 5.1 FACILITIES .......................................................................................................................................... 6 5.2 EQUIPMENT ........................................................................................................................................ 6 6. ANTENNA REQUIREMENTS ....................................................................................................................... 7 7. SUMMARY TEST OF RESULTS .................................................................................................................. 8 8. TEST RESULT .............................................................................................................................................. 9 8.1 DUTY CYCLE ....................................................................................................................................... 9 8.2 6dB BANDWIDTH.............................................................................................................................. 10 8.3 OUTPUT POWER (802.11b/g/n) ....................................................................................................... 15 8.4 POWER SPECTRAL DENSITY (802.11b/g/n) .................................................................................. 22 8.5 OUT OF BAND EMISSIONS AT THE BAND EDGE/ CONDUCTED SPURIOUS EMISSIONS ...... 26 8.6 RADIATED MEASUREMENT. ........................................................................................................... 39 8.6.1 RADIATED SPURIOUS EMISSIONS. ..................................................................................... 39 8.6.2 RADIATED RESTRICTED BAND EDGES ............................................................................. 54 8.7 POWERLINE CONDUCTED EMISSIONS ........................................................................................ 60 9. LIST OF TEST EQUIPMENT ...................................................................................................................... 65 9.1 LIST OF TEST EQUIPMENT(Conducted Test) ............................................................................... 65 9.2 LIST OF TEST EQUIPMENT(Radiated Test) ................................................................................... 66 Report No.: HCT-R-1512-F065 Model: LG-K120AR Page 4 of 66 F-TP22-03 (Rev.00) FCC ID: ZNFK120AR 4 / 66 HCT CO.,LTD. 1. GENERAL INFORMATION Applicant: LG Electronics MobileComm U.S.A., Inc Address: 1000 Sylvan Avenue, Englewood Cliffs NJ 07632 FCC ID: ZNFK120AR EUT Type: GSM WCDMA and LTE Phone with BT and WL…

Text truncated - open the document above for the full version.

Contact Information

Applicant

David Kim(Team leader, LGEUS NA Policy & Regulatory Affairs)

[email protected]201-266-2215Fax: 201-816-2003

Technical Contact

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

HCT Co., Ltd.Lee MyoungLim

[email protected]82-31-645-6918Fax: 82-31-645-6401

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.40 GHz - 2.48 GHz	1.00 mW

Confidentiality

Long Term

Grant Notes

Power output is peak conducted. SAR compliance for body-worn operating configurations is limited to the specific configurations tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.0 cm separation between the device and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), and simultaneous transmission use conditions is 0.81 W/kg, 0.11 W/kg, 0.11 W/kg, and 1.57 W/kg, respectively.
