ZNFK300TMPortable Handset

Date : January 2, 2020 PCTEST Lab. 7185 Oakland Mills Road, Columbia, MD 21046 USA To whom it may concern: I, the undersigned, hereby authorize PCTEST Lab. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by PCTEST lab. on our behalf shall have the same effect as acts of our own. In authorizing PCTEST Lab. as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; LG Electronics USA, Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Kyung-Su Han Director LG Electronics U.S.A, Inc.

LG Electronics USA, Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: April 6, 2020 PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc. 7185 Oakland Mills Rd, Columbia, MD 21046 U.S.A SUBJECT: LG Electronics USA, Inc. FCC ID: ZNFK300TM HPUE configurations for FCC SAR testing To whom it may concern: We, LG Electronics USA, Inc. hereby confirm that frame configuration 0 and 6 will be permanently disabled when the UE is operating as Power Class 2 (HPUE mode). Additionally, these configuration 0 to 6 can not be enabled for by any third party including end- user or carrier. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Kyung-Su Han Director LG Electronics USA, Inc.

LG Electronics USA, Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: April 6, 2020 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Electronics USA, Inc. FCC ID: ZNFK300TM Part 20.19 Certification To whom it may concern: We, LG Electronics USA, Inc., hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Kyung-Su Han Director LG Electronics USA, Inc.

LG Electronics USA, Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: April 6, 2020 PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc. 7185 Oakland Mills Rd, Columbia, MD 21046 U.S.A SUBJECT: LG Electronics USA, Inc. FCC ID: ZNFK300TM LTE MPR for FCC SAR testing To whom it may concern: We, LG Electronics USA, Inc. hereby confirm that MPR specified in 3GPP will be permanently implemented in ZNFK300TM so that the powers found in this application will not be found to exceed the levels indicated. Additionally, A-MPR (Additional MPR) was disabled for all SAR samples for SAR testing purposes. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Kyung-Su Han Director LG Electronics USA, Inc.

LG Electronics USA, Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: April 6, 2020 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFK300TM Equipment Class: PCE: PCS Licensed Transmitter held to ear To whom it may concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA, Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA, Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Part Lists and Tune-Up Procedure 4 Schematics SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual This applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the grant for this application. Sincerely, Kyung-Su Han Director On behalf of LG Electronics USA, Inc.

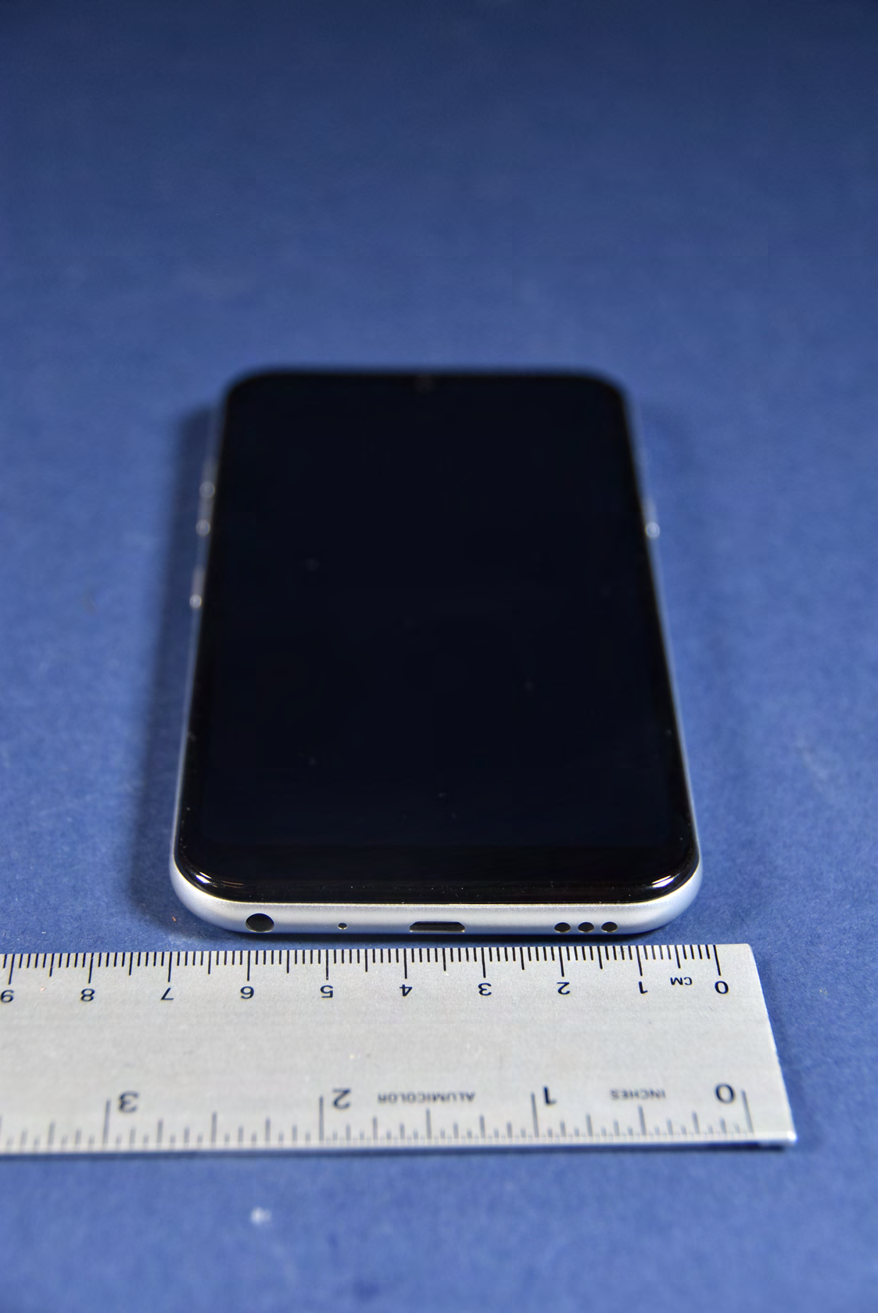

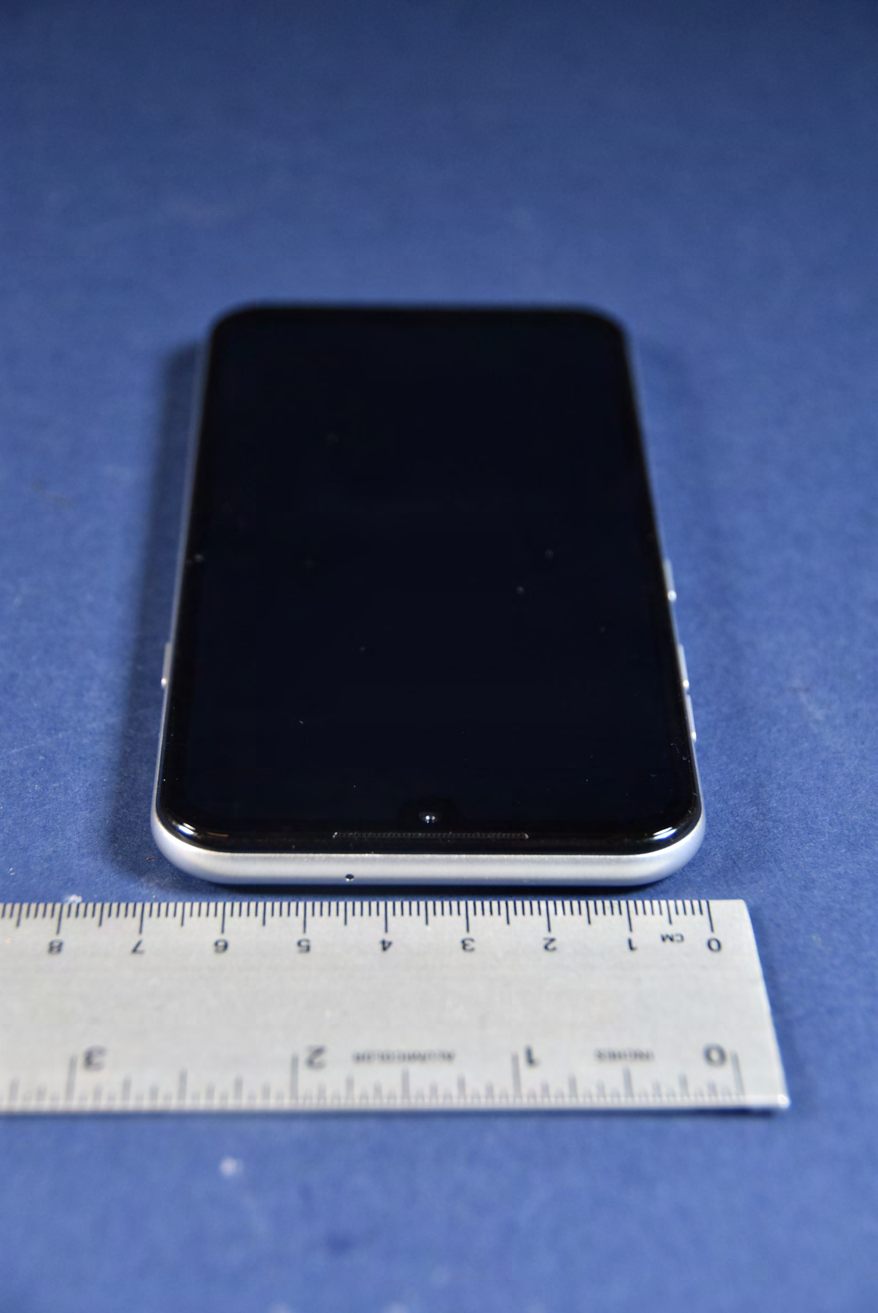

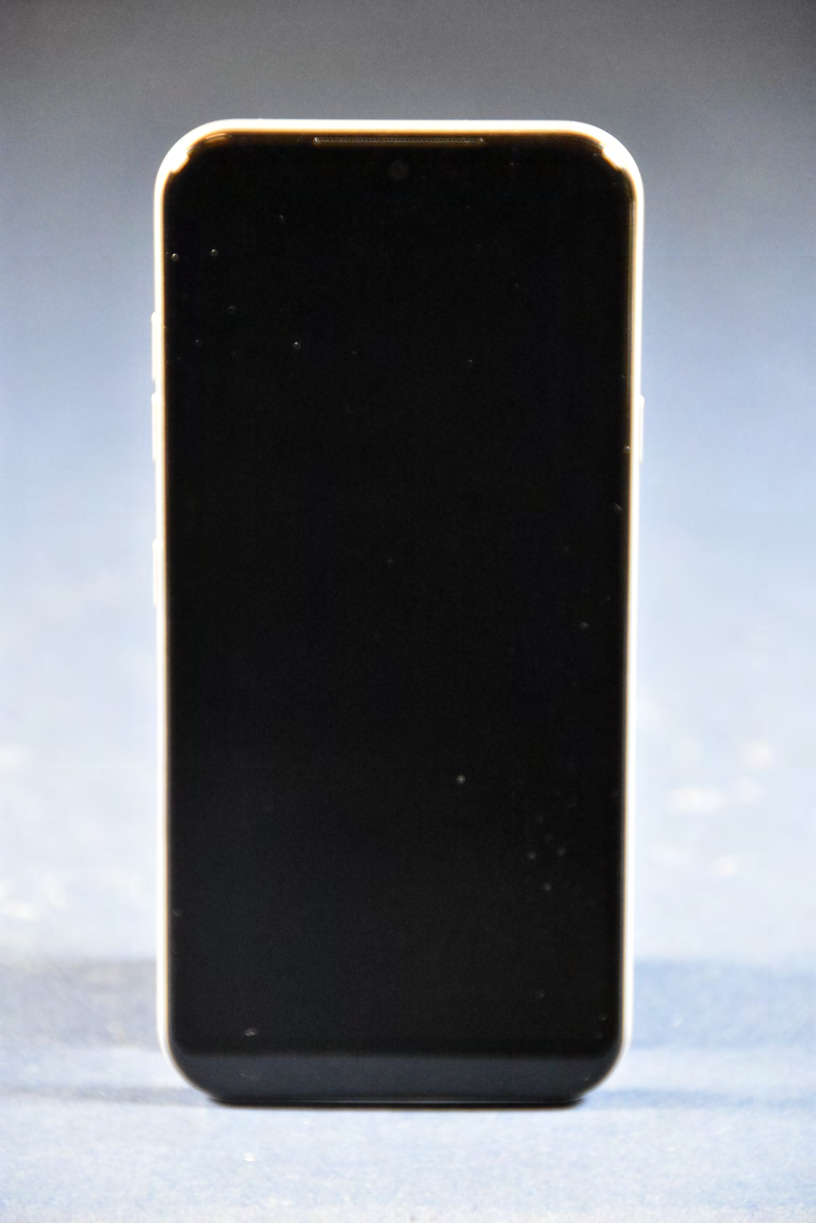

LG Electronics USA, Inc. FCC ID: ZNFK300TM Model: LM-K300TM External Photos EUT Type: Portable Handset Page 1 of 7 © 2020 PCTEST V 9.0 02/01/2019 EXTERNAL PHOTOGRAPHS LG Electronics USA, Inc. FCC ID: ZNFK300TM Model: LM-K300TM External Photos EUT Type: Portable Handset Page 2 of 7 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK300TM Model: LM-K300TM External Photos EUT Type: Portable Handset Page 3 of 7 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK300TM Model: LM-K300TM External Photos EUT Type: Portable Handset Page 4 of 7 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK300TM Model: LM-K300TM External Photos EUT Type: Portable Handset Page 5 of 7 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK300TM Model: LM-K300TM External Photos EUT Type: Portable Handset Page 6 of 7 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK300TM Model: LM-K300TM External Photos EUT Type: Portable Handset Page 7 of 7 © 2020 PCTEST V 9.0 02/01/2019

Description of E-Label on the ZNFK300TM 1. FCC ID is applied by E-label on device. [Step2] [Step3] FCC ID E-Label display Step1Select Settings Step2Select System Step 3Select Regulatory& safety [Step1] 2. FCC ID is applied on packaging. FCC ID : ZNFK300TM 3. Instruction of E-label on the user manual Description of E-Label on the ZNFK300TM

LG Electronics USA, Inc. FCC ID: ZNFK300TM Model: LM-K300TM Internal Photos EUT Type: Portable Handset Page 1 of 11 © 2020 PCTEST V 9.0 02/01/2019 INTERNAL PHOTOGRAPHS LG Electronics USA, Inc. FCC ID: ZNFK300TM Model: LM-K300TM Internal Photos EUT Type: Portable Handset Page 2 of 11 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK300TM Model: LM-K300TM Internal Photos EUT Type: Portable Handset Page 3 of 11 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK300TM Model: LM-K300TM Internal Photos EUT Type: Portable Handset Page 4 of 11 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK300TM Model: LM-K300TM Internal Photos EUT Type: Portable Handset Page 5 of 11 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK300TM Model: LM-K300TM Internal Photos EUT Type: Portable Handset Page 6 of 11 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK300TM Model: LM-K300TM Internal Photos EUT Type: Portable Handset Page 7 of 11 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK300TM Model: LM-K300TM Internal Photos EUT Type: Portable Handset Page 8 of 11 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK300TM Model: LM-K300TM Internal Photos EUT Type: Portable Handset Page 9 of 11 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK300TM Model: LM-K300TM Internal Photos EUT Type: Portable Handset Page 10 of 11 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK300TM Model: LM-K300TM Internal Photos EUT Type: Portable Handset Page 11 of 11 © 2020 PCTEST V 9.0 02/01/2019

© 2020 PCTEST APPENDIX A: SAR TEST DATA A1 PCTEST DUT: ZNFK300TM; Type: Portable Handset; Serial: 10342 Communication System: UID 0, GSM GPRS; 4 Tx slots; Frequency: 836.6 MHz; Duty Cycle: 1:2.076 Medium: 835 Head; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.879 S/m; ε r = 39.74; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 03/02/2020; Ambient Temp: 22.7°C; Tissue Temp: 21.3°C Probe: EX3DV4 - SN7406; ConvF(9.78, 9.78, 9.78) @ 836.6 MHz; Calibrated: 5/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn728; Calibrated: 5/8/2019 Phantom: Twin-SAM V5.0 Left 30; Type: QD 000 P40 CD; Serial: 1715 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: GPRS 850, Left Head, Cheek, Mid.ch, 4 Tx slots Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.46 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.491 W/kg SAR(1 g) = 0.393 W/kg 0 dB = 0.454 W/kg = -3.43 dBW/kg A2 PCTEST DUT: ZNFK300TM; Type: Portable Handset; Serial: 10342 Communication System: UID 0, GSM GPRS; 4 Tx slots; Frequency: 1880 MHz; Duty Cycle: 1:2.076 Medium: 1900 Head; Medium parameters used: f = 1880 MHz; σ = 1.413 S/m; ε r = 40.665; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 03/05/2020; Ambient Temp: 22.7°C; Tissue Temp: 22.4°C Probe: EX3DV4 - SN7409; ConvF(8.01, 8.01, 8.01) @ 1880 MHz; Calibrated: 6/19/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1334; Calibrated: 6/20/2019 Phantom: Front; Type: QD 000 P40 CD; Serial: 1686 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: GPRS 1900, Left Head, Cheek, Mid.ch, 4 Tx slots Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.40 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.298 W/kg SAR(1 g) = 0.182 W/kg 0 dB = 0.244 W/kg = -6.13 dBW/kg A3 PCTEST DUT: ZNFK300TM; Type: Portable Handset; Serial: 10342 Communication System: UID 0, UMTS; Frequency: 836.6 MHz; Duty Cycle: 1:1 Medium: 835 Head; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.879 S/m; ε r = 39.74; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 03/02/2020; Ambient Temp: 22.7°C; Tissue Temp: 21.3°C Probe: EX3DV4 - SN7406; ConvF(9.78, 9.78, 9.78) @ 836.6 MHz; Calibrated: 5/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn728; Calibrated: 5/8/2019 Phantom: Twin-SAM V5.0 Left 30; Type: QD 000 P40 CD; Serial: 1715 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: UMTS 850, Left Head, Cheek, Mid.ch Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.69 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.404 W/kg SAR(1 g) = 0.322 W/kg 0 dB = 0.376 W/kg = -4.25 dBW/kg A4 PCTEST DUT: ZNFK300TM; Type: Portable Handset; Serial: 10227 Communication System: UID 0, UMTS; Frequency: 1732.4 MHz; Duty Cycle: 1:1 Medium: 1750 Head; Medium parameters used (interpolated): f = 1732.4 MHz; σ = 1.331 S/m; ε r = 38.444; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 02/26/2020; Ambient Temp: 21.2°C; Tissue Temp: 20.40°C Probe: EX3DV4 - SN7410; ConvF(8.46, 8.46, 8.46) @ 1732.4 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V8.0; Type: QD 000 P41 Ax; Serial: 1966 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: UMTS 1750, Right Head, Cheek, Mid.ch Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.06 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.374 W/kg SAR(1 g) = 0.242 W/kg 0 dB = 0.600 W/kg = -2.22 dBW/kg A5 PCTEST DUT: ZNFK300TM; Type: Portable Handset; Serial: 10334 Communication System: UID 0, UMTS; Frequency: 1880 MHz; Duty Cycle: 1:1 Medium: 1900 Head; Medium parameters used: f = 1880 MHz; σ = 1.413 S/m; ε r = 40.665; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 03/05/2020; Ambient Temp: 22.7°C; Tissue Temp: 22.4°C Probe: EX3DV4 - SN7409; ConvF(8.01, 8.01, 8.01) @ 1880 MHz; Calibrated: 6/19/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1334; Calibrated: 6/20/2019 Phantom: Front; Type: QD 000 P40 CD; Serial: 1686 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: UMTS 1900, Right Head, Cheek, Mid.ch Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.07 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.654 W/kg SAR(1 g) = 0.396 W/kg 0 dB = 0.700 W/kg = -1.55 dBW/kg A6 PCTEST DUT: ZNFK300TM; Type: Portable Handset; Serial: 10334 Communication System: UID 0, Cellular CDMA; Frequency: 820.1 MHz; Duty Cycle: 1:1 Medium: 835 Head; Medium parameters used (interpolated): f = 820.1 MHz; σ = 0.863 S/m; ε r = 39.962; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 03/02/2020; Ambient Temp: 22.7°C; Tissue Temp: 21.3°C Probe: EX3DV4 - SN7406; ConvF(9.78, 9.78, 9.78) @ 820.1 MHz; Calibrated: 5/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn728; Calibrated: 5/8/2019 Phantom: Twin-SAM V5.0 Left 30; Type: QD 000 P40 CD; Serial: 1715 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: Cell. CDMA, BC 10, Right Head, Cheek, Mid.ch Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.96 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.418 W/kg SAR(1 g) = 0.332 W/kg 0 dB = 0.386 W/kg = -4.13 dBW/kg A7 PCTEST DUT: ZNFK300TM; Type: Portable Handset; Serial: 10334 Communi…

Text truncated - open the document above for the full version.

Object: Date Issued: Page 1 of 4 D1900V2 – SN: 5d148 02/21/2020 Certification of Calibration Object D1900V2 – SN: 5d148 Calibration procedure(s) Procedure for Calibration Extension for SAR Dipoles. Extension Calibration date: 2/21/2020 Description: SAR Validation Dipole at 1900 MHz. Calibration Equipment used: Measurement Uncertainty = ±23% (k=2) Name Function Signature Calibrated By: Brodie Halbfoster Test Engineer Approved By: Kaitlin O’Keefe Senior Technical Manager Manufacturer Model Description Cal Date Cal Interval Cal Due Serial Number Control Company 4040Therm./Clock/Humidity Monitor 6/29/2019 Biennial 6/29/2021 192291470 Control Company 4352Ultra Long Stem Thermometer 8/2/2018 Biennial 8/2/2020 181334684 Amplifier Research 15S1G6 Amplifier CBTN/A CBT433971 Narda 4772-3 Attenuator (3dB) CBTN/A CBT9406 Keysight Technologies 85033E Standard Mechanical Calibration Kit (DC to 9GHz, 3.5mm) 7/2/2019 Annual 7/2/2020 MY53401181 Rohde & Schwarz ZNLE6 Vector Network Analyzer 10/11/2019 Annual 10/11/2020 101307 Mini-Circuits BW-N20W5+ DC to 18 GHz Precision Fixed 20 dB Attenuator CBTN/A CBTN/A SPEAG DAKS-3.5 Portable DAK 9/10/2019 Annual 9/10/2020 1045 Anritsu MA2411B Pulse Power Sensor 8/14/2019 Annual 8/14/2020 1315051 Anritsu MA2411B Pulse Power Sensor 8/8/2019 Annual 8/8/2020 1339008 Anritsu ML2495A Power Meter 12/17/2019 Annual 12/17/2020 941001 Agilent N5182A MXG Vector Signal Generator 8/19/2019 Annual 8/19/2020 MY47420837 Seekonk NC-100 Torque Wrench 5/9/2018 Biennial 5/9/2020 22217 MiniCircuits ZHDC-16-63-S+Bidirectional Coupler CBTN/ACBTN/A MiniCircuits VLF-6000+ Low Pass Filter CBTN/ACBTN/A SPEAG EX3DV4 SAR Probe 9/19/2019 Annual 9/19/2020 7551 SPEAG EX3DV4 SAR Probe 7/16/2019 Annual 7/16/2020 7410 SPEAG DAE4 Dasy Data Acquisition Electronics 9/17/2019 Annual 9/17/2020 1333 SPEAG DAE4 Dasy Data Acquisition Electronics 7/11/2019 Annual 7/11/2020 1322 PCTEST 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctest.com Object: Date Issued: Page 2 of 4 D1900V2 – SN: 5d148 02/21/2020 DIPOLE CALIBRATION EXTENSION Per KDB 865664 D01, calibration intervals of up to three years may be considered for reference dipoles when it is demonstrated that the SAR target, impedance and return loss of a dipole have remained stable according to the following requirements: 1. The measured SAR does not deviate more than 10% from the target on the calibration certificate. 2. The return-loss does not deviate more than 20% from the previous measurement and meets the required 20dB minimum return-loss requirement. 3. The measurement of real or imaginary parts of impedance does not deviate more than 5Ω from the previous measurement. The following dipole was checked to pass the above 3 requirements to have 2-year calibration period from the calibration date: Calibration Date Extension Date Certificate Electrical Delay (ns) Certificate SAR Target Head (1g) W/kg @ 20.0 dBm Measured Head SAR (1g) W/kg @ 20.0 dBm Deviation 1g (%) Certificate SAR Target Head (10g) W/kg @ 20.0 dBm Measured Head SAR (10g) W/kg @ 20.0 dBm Deviation 10g (%) Certificate Impedance Head (Ohm) Real Measured Impedance Head (Ohm) Real Difference (Ohm) Real Certificate Impedance Head (Ohm) Imaginary Measured Impedance Head (Ohm) Imaginary Difference (Ohm) Imaginary Certificate Return Loss Head (dB) Measured Return Loss Head (dB) Deviation (%) PASS/FAIL 2/21/20192/21/20201.173.914.156.14%2.042.134.41%51.853.71.96.82.74.1-23.2-27.1-16.70%PASS Calibration Date Extension Date Certificate Electrical Delay (ns) Certificate SAR Target Body (1g) W/kg @ 20.0 dBm Measured Body SAR (1g) W/kg @ 20.0 dBm Deviation 1g (%) Certificate SAR Target Body (10g) W/kg @ 20.0 dBm Measured Body SAR (10g) W/kg @ 20.0 dBm Deviation 10g (%) Certificate Impedance Body (Ohm) Real Measured I m pedance Body (Ohm) Real Difference (Ohm) Real Certificate Impedance Body (Ohm) Imaginary Measured Impedance Body (Ohm) Imaginary Difference (Ohm) Imaginary Certificate Return Loss Body (dB) Measured Return Loss Body (dB) Deviation (%) PASS/FAIL 2/21/20192/21/20201.173.914.063.84%2.052.081.46%48.450.92.57.85.42.4-21.9-25.3-15.60%PASS Object: Date Issued: Page 3 of 4 D1900V2 – SN: 5d148 02/21/2020 Impedance & Return-Loss Measurement Plot for Head TSL Object: Date Issued: Page 4 of 4 D1900V2 – SN: 5d148 02/21/2020 Impedance & Return-Loss Measurement Plot for Body TSL Object: Date Issued: Page 1 of 4 D1900V2 – SN: 5d149 10/18/2019 Certification of Calibration Object D1900V2 – SN:5d149 Calibration procedure(s) Procedure for Calibration Extension for SAR Dipoles. Extended Calibration date: October 18, 2019 Description: SAR Validation Dipole at 1900 MHz. Calibration Equipment used: Note: CBT (Calibrated Before Testing). Prior to testing, the measurement paths containing a cable, amplifier, attenuator, coupler or filter were connected to a calibrated source (i.e. a signal generator) to determine the losses of the measurement path. Measurement Uncertainty = ±23% (k=2) Name Function Signature Calibrated By: Brodie Halbfoster Team Lead Engineer Approved By: Kaitlin O’Keefe Senior Technical Manager Manufacturer Model Description Cal Date Cal Interval Cal Due Serial Number Control Company 4040Therm./Clock/Humidity Monitor 6/29/2019 Biennial 6/29/2021 192291470 Control Company 4352Ultra Long Stem Thermometer 8/2/2018 Biennial 8/2/2020 181334684 Amplifier Research 15S1G6 Amplifier CBTN/A CBT433971 Narda 4772-3 Attenuator (3dB) CBTN/A CBT9406 Keysight Technologies 85033E Standard Mechanical Calibration Kit (DC to 9GHz, 3.5mm) 7/2/2019 Annual 7/2/2020 MY53401181 Rohde & Schwarz ZNLE6 Vector Network Analyzer 10/11/2019 Annual 10/11/2020 101307 Mini-Circuits BW-N20W5+ DC to 18 GHz Precision Fixed 20 dB Attenuator CBTN/A CBTN/A SPEAG DAKS-3.5 Portable Dielectric Assessment Kit 8/13/2019 Annual 8/13/2020 1041 Anritsu MA2411B Pulse Power Sensor 8/14/2019 Annual 8/14/2020 1315051 Anritsu MA2411B Pulse Power Sensor 8/8/2019 Annual 8/8/2020 1339008 Anritsu…

Text truncated - open the document above for the full version.

FCC ID: ZNFK300TM SAR EVALUATION REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 105 1M2002250026-01-R1.ZNF 02/26/20 - 03/17/20 Portable Handset © 2020 PCTEST REV 21.4 M 09/11/2019 © 2020 PCTEST All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Date of Testing: LG Electronics U.S.A., Inc. 02/26/20 - 03/17/20 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Document Serial No.: 1M2002250026-01-R1.ZNF FCC ID: ZNFK300TM APPLICANT: LG ELECTRONICS U.S.A., INC. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model: LM-K300TM Additional Model(s): LM-K300TMS, LMK300TM, LMK300TMS, K300TM, K300TMS, LM-K300MM, LMK300MM, K300MM N ote: This revised Test Report (S/N: 1M2002250026-01-R1.ZNF) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile & Wireless Forum (MWF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MWF. Further details can be obtained by emailing: [email protected]. 1g Head (W/kg) 1g Body- Worn (W/kg) 1g Hotspot (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz0.390.560.56 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz0.180.270.38 PCEUMTS 850826.40 - 846.60 MHz0.340.440.44 PCEUMTS 17501712.4 - 1752.6 MHz0.260.750.75 PCEUMTS 19001852.4 - 1907.6 MHz0.420.650.79 PCECDMA/EVDO BC10 (§90S)8 17.90 - 823.10 MHz0.360.400.36 PCECDMA/EVDO BC0 (§22H)8 24.70 - 848.31 MHz0.380.520.36 PCEPCS CDMA/EVDO1 851.25 - 1908.75 MHz0.480.540.62 PCELTE Band 71665.5 - 695.5 MHz0.220.410.41 PCELTE Band 12699.7 - 715.3 MHz0.300.440.44 PCELTE Band 13779.5 - 784.5 MHz0.350.600.60 PCELTE Band 26 (Cell)814.7 - 848.3 MHz0.360.410.41 PCELTE Band 5 (Cell)824.7 - 848.3 MHzN/AN/AN/A PCELTE Band 66 (AWS)1710.7 - 1779.3 MHz0.270.750.75 PCELTE Band 4 (AWS)1710.7 - 1754.3 MHzN/AN/AN/A PCELTE Band 25 (PCS)1850.7 - 1914.3 MHz0.420.580.92 PCELTE Band 2 (PCS)1850.7 - 1909.3 MHzN/AN/AN/A PCELTE Band 412498.5 - 2687.5 MHz0.131.141.14 DTS2.4 GHz WLAN2412 - 2462 MHz0.420.570.57 NIIU-NII-15180 - 5240 MHzN/AN/A0.44 NIIU-NII-2A5260 - 5320 MHz0.380.49N/A NIIU-NII-2C5500 - 5720 MHz0.670.56N/A NIIU-NII-35745 - 5825 MHz0.640.600.60 DSS/DTSBluetooth2402 - 2480 MHz< 0.1< 0.1< 0.1 1.191.381.55 Equipment Class SAR Simultaneous SAR per KDB 690783 D01v01r03: Band & ModeTx Frequency PCTEST 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctest.com SAR EVALUATION REPORT FCC ID: ZNFK300TM SAR EVALUATION REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 105 1M2002250026-01-R1.ZNF 02/26/20 - 03/17/20 Portable Handset © 2020 PCTEST REV 21.4 M 09/11/2019 © 2020 PCTEST All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. TABLE OF CONTENTS 1 DEVICE UNDER TEST .................................................................................................................................3 2 LTE INFORMATION ................................................................................................................................... 15 3 INTRODUCTION ........................................................................................................................................ 16 4 DOSIMETRIC ASSESSMENT ................................................................................................................... 17 5 DEFINITION OF REFERENCE POINTS.................................................................................................... 18 6 TEST CONFIGURATION POSITIONS....................................................................................................... 19 7 RF EXPOSURE LIMITS ............................................................................................................................. 22 8 FCC MEASUREMENT PROCEDURES ..................................................................................................... 23 9 RF CONDUCTED POWERS ...................................................................................................................... 30 10 SYSTEM VERIFICATION ........................................................................................................................... 61 11 SAR DATA SUMMARY ...…

Text truncated - open the document above for the full version.

FCC ID: ZNFK300TM MEASUREMENT REPORT (CERTIFICATION) Approved by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 109 1M2002250026-01-R1.ZNF 2/24 - 3/25/2020 Portable Handset © 2020 PCTEST V 9.0 02/01/2019 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: LG Electronics USA, Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 United States Date of Testing: 2/24 - 3/25/2020 Test Site/Location: PCTEST Lab. Columbia, MD, USA Test Report Serial No.: 1M2002250026-01-R1.ZNF FCC ID: ZNFK300TM APPLICANT: LG Electronics USA, Inc. Application Type: Certification Model: LM-K300TM Additional Model(s): LM-K300TMS, LMK300TM, LMK300TMS, K300TM, K300TMS, LM-K300MM, LMK300MM, K300MM EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): 22, 24, & 27 Test Procedure(s): ANSI C63.26-2015, ANSI/TIA-603-E-2016, KDB 971168 D01 v03r01 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. This revised test report (S/N: 1M2002250026-01-R1.ZNF) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctest.com MEASUREMENT REPORT GSM / GPRS / EDGE / CDMA / WCDMA FCC ID: ZNFK300TM MEASUREMENT REPORT (CERTIFICATION) Approved by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 109 1M2002250026-01-R1.ZNF 2/24 - 3/25/2020 Portable Handset © 2020 PCTEST V 9.0 02/01/2019 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mecha…

Text truncated - open the document above for the full version.
