ZNFK330Multi-band GSM/EDGE/UMTS/LTE Phone with Bluetooth and WLAN

www.lg.com MFL00000000 (1.0) ENGLISH USER GUIDE LG-K330 About this user guide Thank you for choosing LG. Please carefully read this user guide before using the device for the first time to ensure safe and proper use. Ţ Always use genuine LG accessories. The supplied items are designed only for this device and may not be compatible with other devices. Ţ This device is not suitable for people who have a visual impairment due to the touchscreen keyboard. Ţ Descriptions are based on the device default settings. Ţ Default apps on the device are subject to updates and support for these apps may be withdrawn without prior notice. If you have any questions about an app provided with the device, please contact a LG Service Center. For user-installed apps, please contact the relevant service provider. Ţ Modifying the device’s operating system or installing software from unofficial sources may damage the device and lead to data corruption or data loss. Such actions will violate your LG licence agreement and void your warranty. Ţ Some contents and illustrations may differ from your device depending on the region, service provider, software version, or OS version, and are subject to change without prior notice. Ţ Software, audio, wallpaper, images, and other media supplied with your device are licensed for limited use. If you extract and use these materials for commercial or other purposes, you may be infringing copyright laws. As a user, you are fully are entirely responsible for the illegal use of media. Ţ Additional charges may apply for data services, such as messaging, uploading,downloading, auto-syncing and location services. To avoid additional charges, select a data plan suitable to your needs. Contact your service provider to obtain additional details. Instructional notices WARNINGSituations that could cause injury to yourself or others. CAUTION Situations that could cause damage to the device or other equipment. NOTE Notices or additional information. ENGLISH 2 LIMITED WARRANTY STATEMENT ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING DISPUTES” BELOW. Warranty Laws The following laws govern warranties that arise in retail sales of consumer goods: Ţ The California Song-Beverly Consumer Warranty Act [CC §§1790 et seq], Ţ The California Uniform Commercial Code, Division Two [Com C §§2101 et seq], and Ţ The federal Magnuson-Moss Warranty Federal Trade Commission Improvement Act [15 USC §§2301 et seq; 16 CFR Parts 701– 703]. A typical Magnuson-Moss Act warranty is a written promise that the product is free of defects or a written promise to refund, repair, or replace defective goods. [See 15 USC §2301(6).] Remedies include damages for failing to honor a written warranty or service contract or for violating disclosure provisions. [See 15 USC §2310(d).] Except for some labeling and disclosure requirements, the federal Act does not preempt state law. [See 15 USC §2311.] 1. WHAT THIS WARRANTY COVERS: LG offers you a limited warranty that the enclosed subscriber unit and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions: (1) The limited warranty for the product extends for TWELVE (12) MONTHS beginning on the date of purchase of the product with valid proof of purchase, or absent valid proof of purchase, FIFTEEN (15) MONTHS from date of manufacture as determined by the unit's manufacture date code. 3 (2) The limited warranty extends only to the original purchaser of the product and is not assignable or transferable to any subsequent purchaser/end user. (3) This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the U.S., including Alaska, Hawaii, U.S. Territories and Canada. (4) The external housing and cosmetic parts shall be free of defects at the time of shipment and, therefore, shall not be covered under these limited warranty terms. (5) Upon request from LG, the consumer must provide information to reasonably prove the date of purchase. (6) The customer shall bear the cost of shipping the product to the Customer Service Department of LG. LG shall bear the cost of shipping the product back to the consumer after the completion of service under this limited warranty. 2. WHAT THIS WARRANTY DOES NOT COVER: (1) Defects or damages resulting from use of the product in other than its normal and customary manner. (2) Defects or damages from abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of LG, including damage caused by shipping, blown fuses, spills of food or liquid. (3) Breakage or damage to antennas unless caused directly by defects in material or workmanship. (4) That the Customer Service Department at LG was not notified by consumer of the alleged defect or malfunction of the product during the applicable limited warranty period. (5) Products which have had the serial number removed or made illegible. (6) This limited warranty is in lieu of all other warranties, express or implied either in fact or by operations of law, statutory or otherwise, including, but not limited to any implied warranty of marketability or fitness for a particular use. 4 (7) Damage resulting from use of non LG approved accessories. (8) All plastic surfaces and all other externally exposed parts that are scratched or damaged due to normal customer use. (9) Products operated outside published maximum ratings. (10) Products used or obtained in a rental program. (11) Consumables (such as fuses). 3. WHAT LG WILL DO: LG…

Text truncated - open the document above for the full version.

LG Electronics Inc. LGE LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: NOV 16, 2015 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 SUBJECT: LG Electronics MobileComm U.S.A FCC ID: ZNFK330 Part 20.19 Certification To Whom It May Concern: The following are the model designations and their associated key features for this FCC ID, according to requirement in the TCB guidance issued on June 20, 2008. FCC ID:FCC ID ZNFK330 Air Interfaces: GSM/WCDMA/LTE Wireless Technologies: GPRS/EDGE/HSPA+/LTE Bands: 2G 8 50/1900, 3G B2/4/5, LTE B2/4/5/12/17 Key Features: Should you have any questions or comments concerning the above, please contact the undersigned. Bluetooth4.1, WiFi (802.11b/g/n) WiFi Hotspot, WiFi direct, GPS, Camera, MP3 player, VoWiFi Sincerely,

Date: NOV 16, 2015 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 SUBJECT: LG Electronics Mobilecomm U.S.A FCC ID: ZNFK330 Part 20.19 Certification Gentlemen: We, LG Electronics MobileComm USA, hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc. 6660-B Dobbin Road Columbia, MD 21045 SUBJECT:LGElectronicsMobileCommUSA FCCID: ZNFK330 LTEMPRforFCCSARtesting ToWhomIt MayConcern: We, LG Electronics MobileCommUSA, hereby confirm that MPR specified in 3GPP will be permanently implemented in ZNFK330 so that the powers found in this application will not be found to exceed the levels indicated. Additionally, A-MPR(Additional MPR) was disabled for all SAR samples for SAR testing purposes. Date: NOV 16, 2015 Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jongchul Lee Director On behalf of LG Electronics Mobilecomm U.S.A.,Inc LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

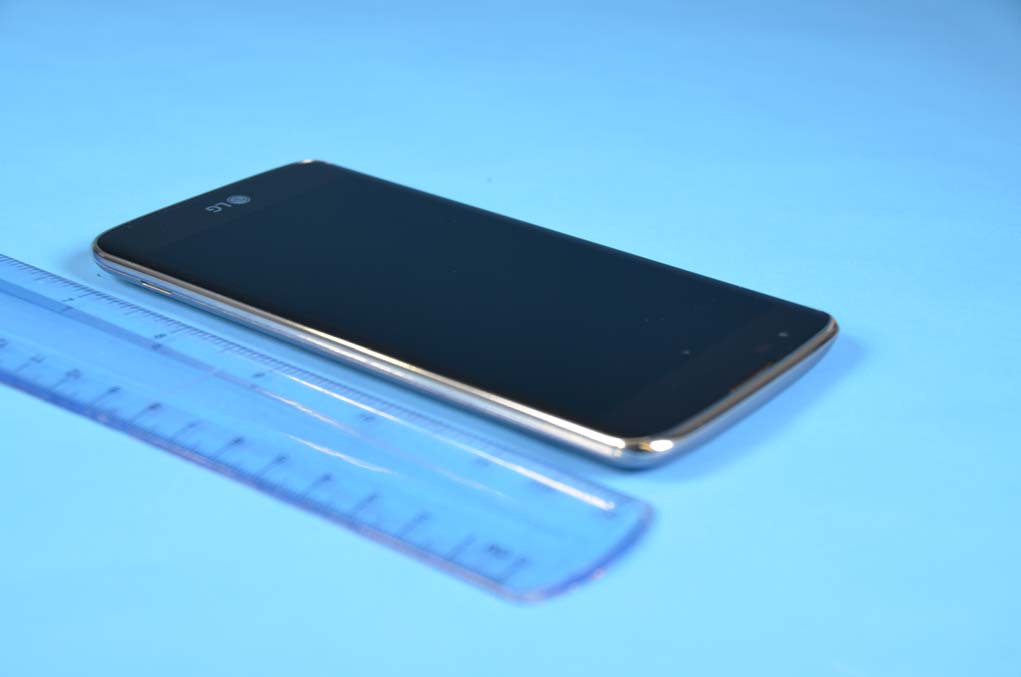

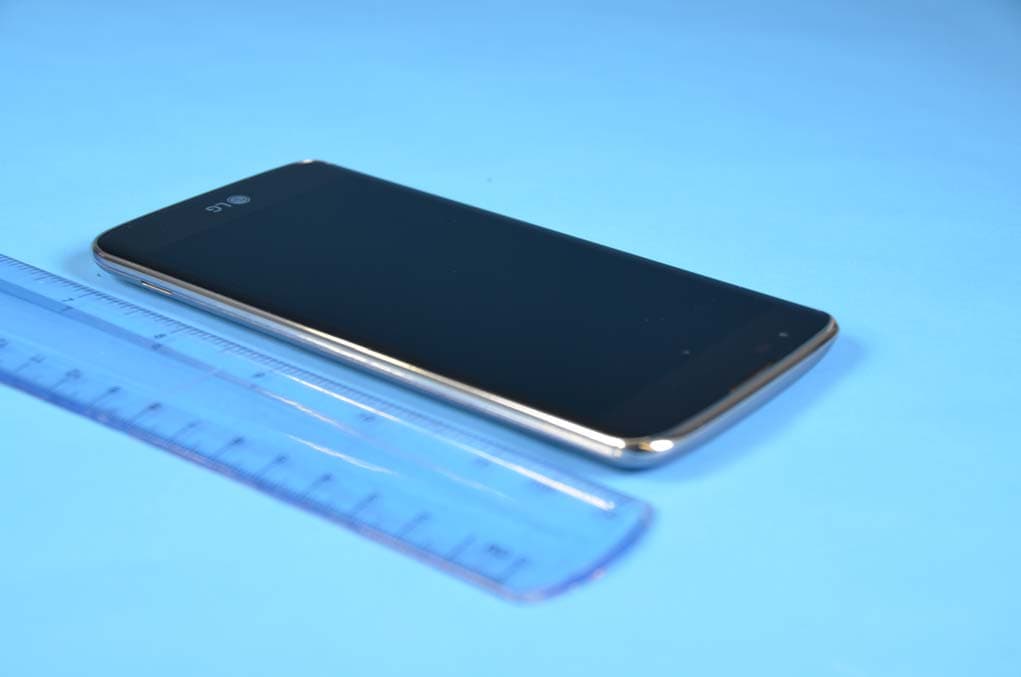

LG Electronics MobileComm U.S.A FCC ID: ZNFK330 Model: LG-K330 External Photos EUT Type: Portable Handset Page 1 of 4 © 2015 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 EXTERNAL PHOTOGRAPHS LG Electronics MobileComm U.S.A FCC ID: ZNFK330 Model: LG-K330 External Photos EUT Type: Portable Handset Page 2 of 4 © 2015 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFK330 Model: LG-K330 External Photos EUT Type: Portable Handset Page 3 of 4 © 2015 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFK330 Model: LG-K330 External Photos EUT Type: Portable Handset Page 4 of 4 © 2015 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015

FCC ID Label Form The FCC ID shown will be readily visible at the time of purchase. Note! The label of the EUT is made of a white polypropylene laminate film and it's attached to the EUT by an adhesive. The adhesive is permanent type with strong strength. Additionally, the FCC ID is readily visible to the purchaser at the time of purchase because the phone will be marketed without the battery installed. FCC ID located inside the battery compartment of the device. LG Electronics LG-K330, LGK330, K330, LG-MS330, LGMS330, MS330, LGL51AL FCC ID : ZNFK330 Rear

LG Electronics MobileComm U.S.A FCC ID: ZNFK330 Model: LG-K330 Internal Photos EUT Type: Portable Handset Page 1 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 INTERNAL PHOTOGRAPHS LG Electronics MobileComm U.S.A FCC ID: ZNFK330 Model: LG-K330 Internal Photos EUT Type: Portable Handset Page 2 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFK330 Model: LG-K330 Internal Photos EUT Type: Portable Handset Page 3 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFK330 Model: LG-K330 Internal Photos EUT Type: Portable Handset Page 4 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFK330 Model: LG-K330 Internal Photos EUT Type: Portable Handset Page 5 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFK330 Model: LG-K330 Internal Photos EUT Type: Portable Handset Page 6 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFK330 Model: LG-K330 Internal Photos EUT Type: Portable Handset Page 7 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFK330 Model: LG-K330 Internal Photos EUT Type: Portable Handset Page 8 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFK330 Model: LG-K330 Internal Photos EUT Type: Portable Handset Page 9 of 9 © 2015 PCTEST Engineering Laboratory, Inc. V 3.3 12/01/2015

FCC ID:ZNFK330 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 52 0Y1511161958-R1.ZNF 11/16/15 – 12/07/15 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 16.8 M 10/16/2015 © 2015 PCTEST Engineering Laboratory, Inc. All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Date of Testing: LG Electronics USA 11/16/15 – 12/07/15 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Document Serial No.: 0Y1511161958-R1.ZNF FCC ID: ZNFK330 APPLICANT: LG ELECTRONICS USA DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): LG-K330, LGK330, K330, LG-MS330, LGMS330, MS330, LGL51AL Note: This revised Test Report (S/N: 0Y1511161958-R1.ZNF) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile Manufacturers Forum (MMF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MMF. Further details can be obtained by emailing: [email protected]. 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) PCEGSM/GPRS/EDGE 850 824.20 - 848.80 MHz0.490.510.51 PCEUMTS 850826.40 - 846.60 MHz0.350.400.40 PCEUMTS 17501712.4 - 1752.5 MHz0.471.031.03 PCEGSM/GPRS/EDGE 1900 1850.20 - 1909.80 MHz0.380.450.45 PCEUMTS 19001852.4 - 1907.6 MHz0.500.620.62 PCELTE Band 12699.7 - 715.3 MHz0.340.570.57 PCELTE Band 5 (Cell)824.7 - 848.3 MHz0.360.470.47 PCELTE Band 4 (AWS)1710.7 - 1754.3 MHz0.511.031.03 PCELTE Band 2 (PCS)1850.7 - 1909.3 MHz0.520.580.61 DTS2.4 GHz WLAN2412 - 2462 MHz0.970.140.14 DSS/DTSBluetooth2402 - 2480 MHz 1.491.311.17 Simultaneous SAR per KDB 690783 D01v01r03: Band & ModeTx Frequency Equipment Class N/A SAR PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID:ZNFK330 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 52 0Y1511161958-R1.ZNF 11/16/15 – 12/07/15 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 16.8 M 10/16/2015 © 2015 PCTEST Engineering Laboratory, Inc. All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ........................................................................................................................ 8 3 INTRODUCTION ............................................................................................................................. 9 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 10 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 12 7 RF EXPOSURE LIMITS ................................................................................................................ 15 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 16 9 RF CONDUCTED POWERS ......................................................................................................... 20 10 SYSTEM VERIFICATION .............................................................................................................. 33 11 SAR DATA SUMMARY ................................................................................................................. 35 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 44 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 47 14 EQUIPMENT LIST ......................................................................................................................... 48 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 49 16…

Text truncated - open the document above for the full version.

FCC ID: ZNFK330 FCC Pt. 22, 24, & 27 GSM / GPRS / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 81 0Y1511161959.ZNF 10/13 - 10/21/2015, 11/17 - 11/30/2015 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A 10/13 - 10/21/2015, 11/17 - 11/30/2015 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1511161959.ZNF FCC ID: ZNFK330 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A Application Type: Certification Model(s): LG-K330, LGK330, K330, LG-MS330, LGMS330, MS330, LGL51AL EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2 §22(H) §24(E) §27(L) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 D01 v02r02 Test Device Serial No.: identical prototype [S/N: 511CYXM970218] GPRS850 824.2 - 848.8 246KGXW 0.53727.30 EDGE850 824.2 - 848.8 242KG7W 0.08619.32 GPRS1900 1850.2 - 1909.8 241KGXW 0.62427.95 EDGE1900 1850.2 - 1909.8 246KG7W 0.20223.06 WCDMA850 826.4 - 846.6 4M14F9W 0.05317.23 WCDMA1700 1712.4 - 1752.5 4M17F9W 0.16422.14 WCDMA1900 1852.4 - 1907.6 4M15F9W 0.16922.28 ERP/EIRP Max. Power (W) Max. Power (dBm) Tx Frequency (MHz) Mode Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22, 24, & 27 FCC ID: ZNFK330 FCC Pt. 22, 24, & 27 GSM / GPRS / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 81 0Y1511161959.ZNF 10/13 - 10/21/2015, 11/17 - 11/30/2015 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 TABLE OF CONTENTS FCC PART 22, 24, & 27 MEASUREMENT REPORT ................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 Scope ................................................................................................................................................... 4 1.2 Testing Facility ..................................................................................................................................... 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 Equipment Description ......................................................................................................................... 5 2.2 Device Capabilities .............................................................................................................................. 5 2.3 Test Configuration ................................................................................................................................ 5 2.4 EMI Suppression Device(s)/Modifications ............................................................................................ 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 Evaluation Procedure ........................................................................................................................... 6 3.2 Cellular - Base Frequency Blocks ........................................................................................................ 6 3.3 Cellular - Mobile Frequency Blocks ...................................................................................................... 6 3.4 PCS - Base Frequency Blocks ............................................................................................................. 6 3.5 PCS - Mobile Frequency Blocks .......................................................................................................... 7 3.6 AWS - Base Frequency Blocks ............................................................................................................ 7 3.7 AWS - Mobile Frequency Blocks .......................................................................................................... 7 3.8 Radiated Measurements ...................................................................................................................... 8 4.0 MEASUREMENT UNCERTAINTY ................................................................................................... 9 5.0 TEST EQUIPMENT CALIBRATION DATA .................................................................................... 10 6.0 SAMPLE CALCULATIONS ............................................................................................................ 12 7.0 TEST RESULTS ............................................................................................................................. 13 7.1 Summary ............................................................................................................................................ 13 7.2 Occupied Bandwidth .......................................................................................................................... 14 7.3 Spurious and Harmonic Emissions at Antenna Terminal …

Text truncated - open the document above for the full version.

FCC ID: ZNFK330 FCC Pt. 22, 24, & 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 123 0Y1511161960.ZNF 10/13 - 10/21/2015, 11/17 - 11/30/2015 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A 10/13 - 10/21/2015, 11/17 - 11/30/2015 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1511161960.ZNF FCC ID : ZNFK330 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22; §24; §27 Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r02 EUT Type: Portable Handset Model(s): LG-K330, LGK330, K330, LG-MS330, LGMS330, MS330, LGL51AL Test Device Serial No.: identical prototype [S/N: 511CYXM970218] LTE Band 12 699.7 - 715.3 1M12G7D QPSK0.08219.14 LTE Band 12 699.7 - 715.3 1M11W7D 16QAM 0.06918.37 LTE Band 12 700.5 - 714.5 2M73G7D QPSK0.07818.92 LTE Band 12 700.5 - 714.5 2M71W7D 16QAM 0.06418.05 LTE Band 12/17 701.5 - 713.5 4M55G7D QPSK0.08019.03 LTE Band 12/17 701.5 - 713.5 4M52W7D 16QAM 0.06418.08 LTE Band 12/17 704 - 7118M98G7D QPSK0.08719.40 LTE Band 12/17 704 - 7118M99W7D 16QAM 0.07418.72 LTE Band 5 824.7 - 848.3 1M12G7D QPSK0.06918.36 LTE Band 5 824.7 - 848.3 1M12W7D 16QAM 0.05717.53 LTE Band 5 825.5 - 847.5 2M73G7D QPSK0.06618.21 LTE Band 5 825.5 - 847.5 2M72W7D 16QAM 0.05617.47 LTE Band 5 826.5 - 846.5 4M56G7D QPSK0.07118.51 LTE Band 5 826.5 - 846.5 4M52W7D 16QAM 0.06017.76 LTE Band 5829 - 8448M99G7D QPSK0.06818.31 LTE Band 5829 - 8448M99W7D 16QAM 0.05817.64 LTE Band 4 1710.7 - 1754.3 1M13G7D QPSK0.14221.52 LTE Band 4 1710.7 - 1754.3 1M12W7D 16QAM 0.11320.55 LTE Band 4 1711.5 - 1753.5 2M73G7D QPSK0.14821.72 LTE Band 4 1711.5 - 1753.5 2M74W7D 16QAM 0.12020.80 LTE Band 4 1712.5 - 1752.5 4M52G7D QPSK0.14921.73 LTE Band 4 1712.5 - 1752.5 4M52W7D 16QAM 0.11820.74 LTE Band 41715 - 17508M98G7D QPSK0.15021.77 LTE Band 41715 - 17508M99W7D 16QAM 0.13121.19 LTE Band 4 1717.5 - 1747.5 13M5G7D QPSK0.18122.57 LTE Band 4 1717.5 - 1747.5 13M5W7D 16QAM 0.15421.88 LTE Band 41720 - 174517M9G7D QPSK0.15121.78 LTE Band 41720 - 174517M9W7D 16QAM 0.12520.97 Mode Tx Frequency (MHz) Emission Designator Modulation ERP/EIRP Max. Power (W) Max. Power (dBm) LTE Band 2 1850.7 - 1909.3 1M13G7D QPSK0.17422.41 LTE Band 2 1850.7 - 1909.3 1M12W7D 16QAM 0.14621.63 LTE Band 2 1851.5 - 1908.5 2M73G7D QPSK0.17422.40 LTE Band 2 1851.5 - 1908.5 2M72W7D 16QAM 0.14821.71 LTE Band 2 1852.5 - 1907.5 4M51G7D QPSK0.19022.78 LTE Band 2 1852.5 - 1907.5 4M53W7D 16QAM 0.15521.91 LTE Band 21855 - 19058M98G7D QPSK0.18922.76 LTE Band 21855 - 19059M01W7D 16QAM 0.15421.86 LTE Band 2 1857.5 - 1902.5 13M5G7D QPSK0.17922.53 LTE Band 2 1857.5 - 1902.5 13M5W7D 16QAM 0.15421.88 LTE Band 21860 - 190018M0G7D QPSK0.18322.63 LTE Band 21860 - 190018M0W7D 16QAM 0.15121.80 Mode Tx Frequency (MHz) Emission Designator Modulation EIRP Max. Power (W) Max. Power (dBm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22, 24, & 27 LTE FCC ID: ZNFK330 FCC Pt. 22, 24, & 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 123 0Y1511161960.ZNF 10/13 - 10/21/2015, 11/17 - 11/30/2015 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 TABLE OF CONTENTS FCC PART 22, 24, & 27 MEASUREMENT REPORT ................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 Scope ................................................................................................................................................... 4 1.2 Testing Facility ..................................................................................................................................... 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 Equipment Description ......................................................................................................................... 5 2.2 Device Capabilities .............................................................................................................................. 5 2.3 Test Configuration ................................................................................................................................ 5 2.4 EMI Suppression Device(s)/Modifications ............................................................................................ 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 Measurement Procedure...................................................................................................................... 6 3.2 Block A Frequency Range ................................................................................................................... 6 3.3 Cellular - Base Frequency Blocks ...............…

Text truncated - open the document above for the full version.

FCC ID: ZNFK330 FCC Pt. 22, 24, & 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 54 of 123 0Y1511161960.ZNF 10/13 - 10/21/2015, 11/17 - 11/30/2015 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 7.4 Band Edge Emissions at Antenna Terminal §2.1051 §22.917(a) §24.238(a) §27.53(g) §27.53(h) Test Overview All out of band emissions are measured with a spectrum analyzer connected to the antenna terminal of the EUT while the EUT is operating at its maximum duty cycle, at maximum power, and at the appropriate frequencies. All data rates were investigated to determine the worst case configuration. All modes of operation were investigated and the worst case configuration results are reported in this section. The minimum permissible attenuation level of any spurious emission is 43 + log 10 (P [Watt…
