ZNFK400AMPortable Handset

ENGLISH MFLXXXXXXXX (1.0)www.lg.com Copyright ©2019 LG Electronics Inc. All rights reserved. USER GUIDE LM-K400AM 1 About this user guide Thank you for choosing this LG product. Please carefully read this user guide before using the device for the first time to ensure safe and proper use. • Always use genuine LG accessories. The supplied items are designed only for this device and may not be compatible with other devices. • Descriptions are based on the device default settings. • Default apps on the device are subject to updates, and support for these apps may be withdrawn without prior notice. If you have any questions about an app provided with the device, please contact an LG Service Center. For user-installed apps, please contact the relevant service provider. • Modifying the device’s operating system or installing software from unofficial sources may damage the device and lead to data corruption or data loss. Such actions will violate your LG license agreement and void your warranty. • Some content and illustrations may differ from your device, depending on the area, service provider, software version, or OS version, and are subject to change without prior notice. • Software, audio, wallpaper, images, and other media supplied with your device are licensed for limited use. If you extract and use these materials for commercial or other purposes, you may be infringing copyright laws. As a user, you are fully responsible for the illegal use of media. • Additional charges may incur for data services, such as messaging, uploading, downloading, auto-syncing and location services. To avoid additional charges, select a data plan suitable to your needs. Contact your service provider to obtain additional details. 2 Instructional notices WARNING: Situations that could cause injury to the user and third parties. CAUTION: Situations that may cause minor injury or damage to the device. NOTE: Notices or additional information. 3 39 Memory card encryption 40 Taking screenshots 41 Entering text 49 Do not disturb 03 Useful Apps 51 Installing and uninstalling apps 52 App tr ash 53 App Shortcuts 54 Phone 59 Messages 60 Camera 70 Gallery 73 Chrome 74 Google apps 75 Contacts 77 QuickMemo+ 80 Clock 81 Calendar 82 Music 83 Calculator 83 Email Table of contents 01 Custom-designed Features 6 Camera features 7 Galler y features 10 Google Assistant 11 Multi-tasking feature 02 Basic Functions 14 Product components and accessories 15 Parts overview 18 Turning the power on or off 19 Installing the SIM card 21 Inserting the memory card 22 Removing the memory card 22 Battery 24 T ouch screen 27 Home scr een 36 Scr een lock 4Table of contents 84 FM Radio 84 File Manager 84 Smar t cleaning 04 Settings 86 Settings 86 Network & internet 93 Connect ed devices 96 Sound 97 Display 98 Lock scr een & security 100 Extensions 101 Apps & notifications 101 Battery 102 Storage 102 Accounts 103 Accessibility 105 Google 105 System 05 Appendix 109 LG Language Settings 109 Phone so ftware update 110 Anti-Theft Guide 111 Open Source Software Notice Information 111 Regulatory information (FCC ID number, etc.) 111 Trademarks 112 FAQ 06 For Your Safety 07 Limited Warranty – USA Custom-designed Features 01 Custom-designed Features6 Camera features Portrait You can take a sharp portrait by applying the camera lens blur effect. 1 Tap , switch to the front camera, then tap Portrait. 2 When Portrait is available appears on the screen, tap to take a photo. • To adjust blur strength, drag the slide bar up, down (depending on the orientation of the phone). • This feature is not available if the surroundings are too dark. • After applying this feature, touch and hold the the desired position on the preview screen to automatically apply the exposure value and focus. In this case, the Portrait feature and blur strength stay the same. Flash Jump-Cut You can create a GIF by taking photos at three second intervals. 1 Tap , then tap MODE Flash Jump-Cut . 2 Tap to set how many cuts you want to take. 3 Tap to take photos. Custom-designed Features7 Gallery features Creating a movie You can create a new movie by putting images and videos together. 1 Tap , select an album, then tap Create movie. 2 Select images or videos for your movie and tap NEXT. 3 Edit the selected images and videos and then tap SAVE. Deleting files You can select images or videos to delete from your video by tapping at the top right corner of its thumbnail. Custom-designed Features8 Adding files You can select images or videos to add after tapping at the bottom of the screen. You can also select the images or videos you have already previously added. • Touch and hold a file, and then tap another file for multiple selection. Rearranging files To rearrange the images and videos, touch and hold the file you want to move, then dragging it to the desired location. Adding file effects Tap to add a theme or background music, or change the font. Resetting the movie edits You can reset the edits made to the movie (e.g. play time) by tapping . Previewing a file Check your new video before saving it by tapping . After the playback time elapses, the next file is played automatically. • A maximum of 50 images and videos can be used to create a video. • The playback time for an image is 3 seconds by default and it cannot be changed. Videos can be trimmed down to a minimum of 1 second. • This feature may not support some image or video formats. Custom-designed Features9 Making a GIF You can easily make a GIF file using recorded video. 1 At the desired starting point while watching a video, tap . 2 Select the length of the GIF you want to create. • GIF is generated for the time selected from the current time. • For videos less than 5 seconds, GIF images are automatically generated for the remaining time. • You may use this feature solely for creative purposes. The use of this feature involving infringement of any other person’s rights, such as copyright or defamatory or offensive statements, may be su…

Text truncated - open the document above for the full version.

Date : January 2, 2020 PCTEST Lab. 7185 Oakland Mills Road, Columbia, MD 21046 USA To whom it may concern: I, the undersigned, hereby authorize PCTEST Lab. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by PCTEST lab. on our behalf shall have the same effect as acts of our own. In authorizing PCTEST Lab. as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; LG Electronics USA, Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Kyung-Su Han Director LG Electronics U.S.A, Inc.

LG Electronics USA, Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: April 01, 2020 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Electronics USA, Inc. FCC ID: ZNFK400AM Part 20.19 Certification To whom it may concern: We, LG Electronics USA, Inc., hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Kyung-Su Han Director LG Electronics USA, Inc.

LG Electronics USA, Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: April 01, 2020 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFK400AM Equipment Class: DTS: Digital Transmission System To whom it may concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA, Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA, Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 User’s Manual This applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the grant for this application. Sincerely, Kyung-Su Han Director On behalf of LG Electronics USA, Inc.

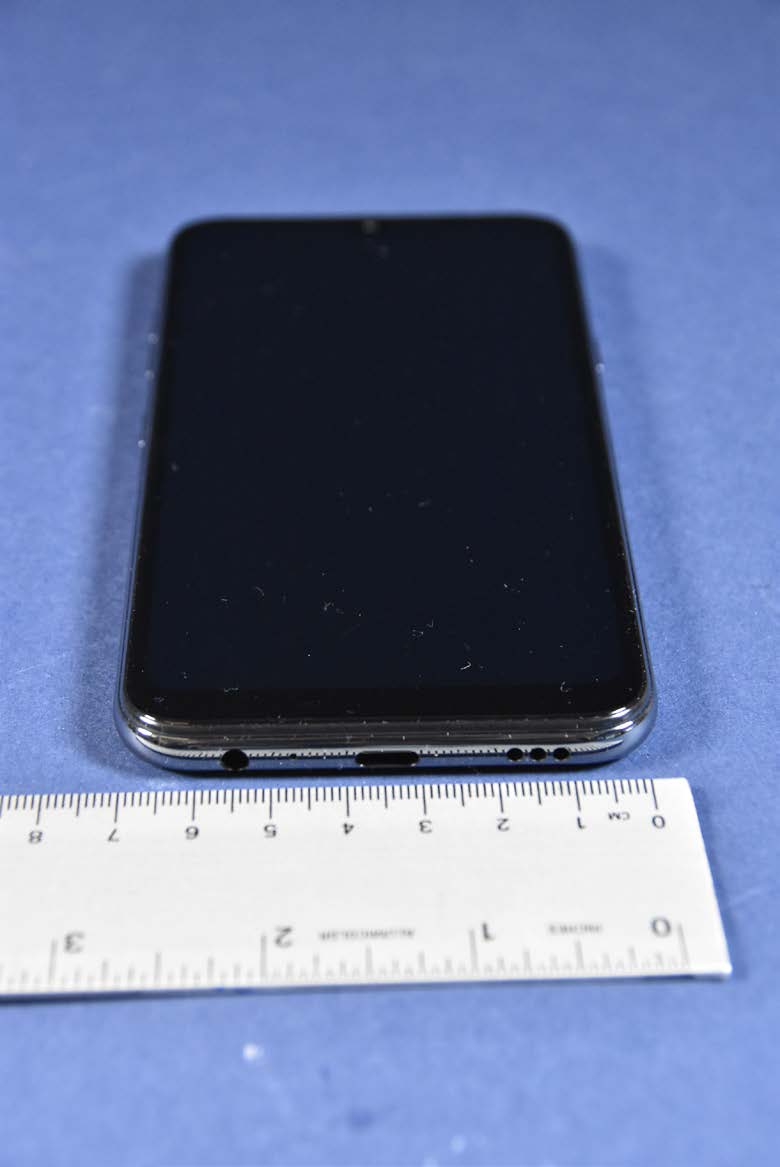

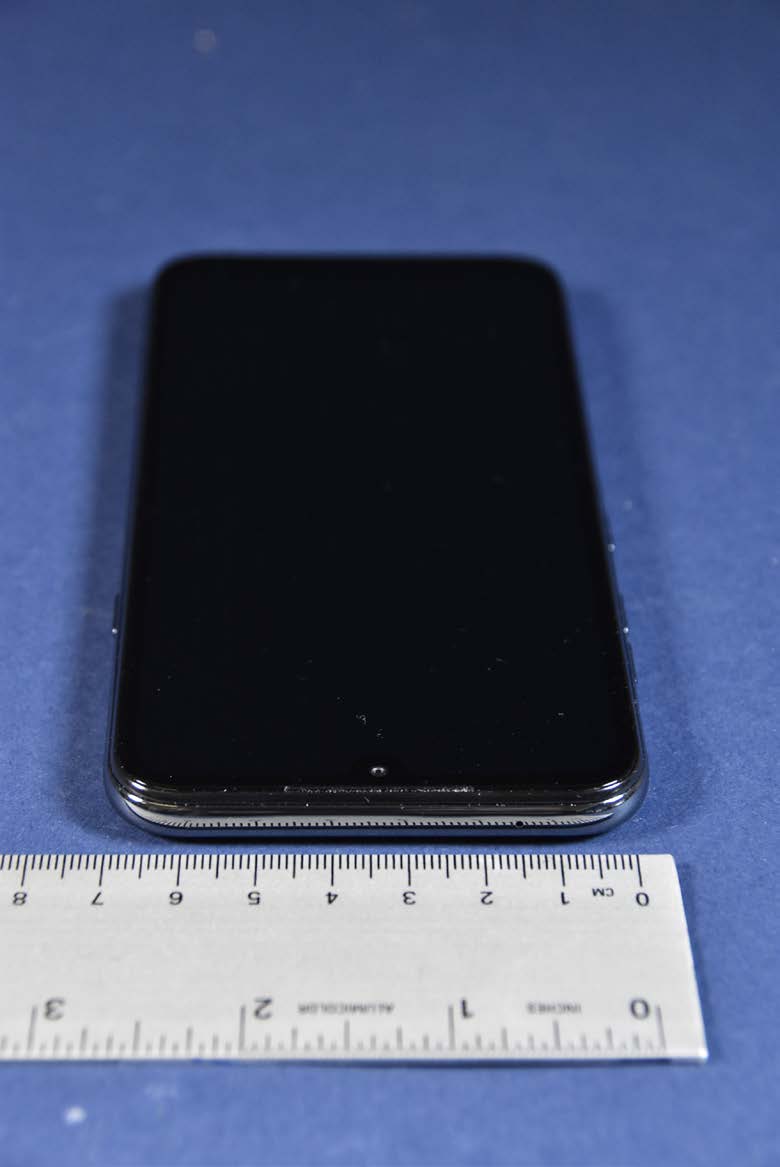

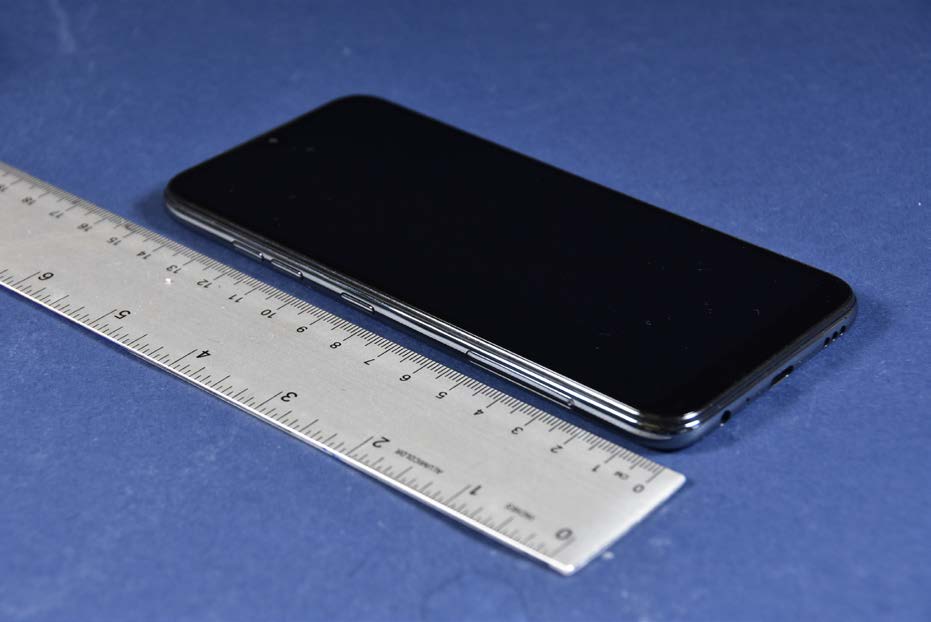

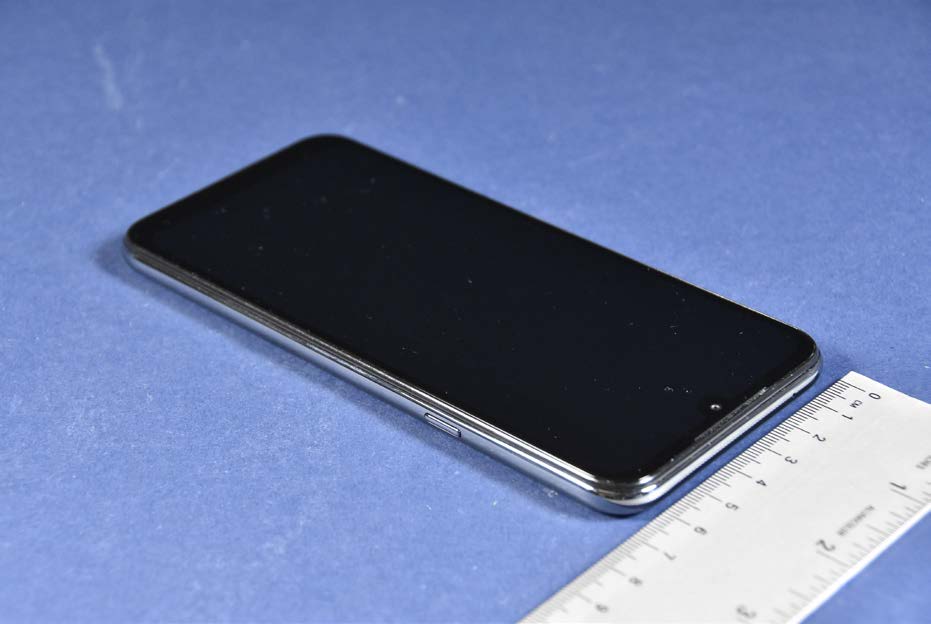

LG Electronics USA, Inc. FCC ID: ZNFK400AM Model: LM-K400AKR External Photos EUT Type: Portable Handset Page 1 of 6 © 2020 PCTEST V 9.0 02/01/2019 EXTERNAL PHOTOGRAPHS LG Electronics USA, Inc. FCC ID: ZNFK400AM Model: LM-K400AKR External Photos EUT Type: Portable Handset Page 2 of 6 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK400AM Model: LM-K400AKR External Photos EUT Type: Portable Handset Page 3 of 6 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK400AM Model: LM-K400AKR External Photos EUT Type: Portable Handset Page 4 of 6 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK400AM Model: LM-K400AKR External Photos EUT Type: Portable Handset Page 5 of 6 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK400AM Model: LM-K400AKR External Photos EUT Type: Portable Handset Page 6 of 6 © 2020 PCTEST V 9.0 02/01/2019

DescriptionofE-Labelon the ZNFK400AM 1. FCC IDisapplied by E-labelondevice. [Step2] [Step3] FCC ID [Step1] E-Labeldisplay Step1SelectSettings Step2SelectSystem Step3Select Regulatory&safety 2.FCC IDisapplied onpackaging. FCCID:ZNFK400AM 3.Instruction ofE-labelontheusermanual DescriptionofE-LabelontheZNFK400AM

LG Electronics USA, Inc. FCC ID: ZNFK400AM Model: LM-K400AKR Internal Photos EUT Type: Portable Handset Page 1 of 10 © 2020 PCTEST V 9.0 02/01/2019 INTERNAL PHOTOGRAPHS LG Electronics USA, Inc. FCC ID: ZNFK400AM Model: LM-K400AKR Internal Photos EUT Type: Portable Handset Page 2 of 10 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK400AM Model: LM-K400AKR Internal Photos EUT Type: Portable Handset Page 3 of 10 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK400AM Model: LM-K400AKR Internal Photos EUT Type: Portable Handset Page 4 of 10 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK400AM Model: LM-K400AKR Internal Photos EUT Type: Portable Handset Page 5 of 10 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK400AM Model: LM-K400AKR Internal Photos EUT Type: Portable Handset Page 6 of 10 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK400AM Model: LM-K400AKR Internal Photos EUT Type: Portable Handset Page 7 of 10 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK400AM Model: LM-K400AKR Internal Photos EUT Type: Portable Handset Page 8 of 10 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK400AM Model: LM-K400AKR Internal Photos EUT Type: Portable Handset Page 9 of 10 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFK400AM Model: LM-K400AKR Internal Photos EUT Type: Portable Handset Page 10 of 10 © 2020 PCTEST V 9.0 02/01/2019

FCC ID: ZNFK400AM SAR EVALUATION REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 80 1M2003020032-01-R1.ZNF 03/02/2020 – 03/17/2020 Portable Handset © 2020 PCTEST REV 21.4 M 09/11/2019 © 2020 PCTEST All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Date of Testing: LG Electronics U.S.A., Inc. 03/02/2020 – 03/17/2020 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Document Serial No.: 1M2003020032-01-R1.ZNF F C C I D : ZNF K400AM A P P L I C A N T : LG ELE CT RONI CS U.S. A., I NC. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model: LM-K400AKR Additional Model(s): LMK400AKR, K400AKR, LM-K400AKR, LMK400AM, K400AM Note: This revised Test Report (S/N: 1M2003020032-01-R1.ZNF) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile & Wireless Forum (MWF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MWF. Further details can be obtained by emailing: [email protected]. 1g Head (W/kg) 1g Body- Worn (W/kg) 1g Hotspot (W/kg) 10g Phablet (W/kg) PCE GSM/GPRS/EDGE 850 824.20 - 848.80 MHz 0.30 0.58 0.58 N/A PCE GSM/GPRS/EDGE 1900 1850.20 - 1909.80 MHz 0.26 0.49 0.49 N/A PCE UMTS 850 826.40 - 846.60 MHz 0.33 0.49 0.49 N/A PCE UMTS 1750 1712.4 - 1752.6 MHz 0.37 0.89 0.89 2.98 PCE UMTS 1900 1852.4 - 1907.6 MHz 0.31 0.78 0.78 2.27 PCE LTE Band 12 699.7 - 715.3 MHz 0.33 0.64 0.64 N/A PCE LTE Band 14 790.5 - 795.5 MHz 0.27 0.53 0.58 N/A PCE LTE Band 5 (Cell) 824.7 - 848.3 MHz 0.35 0.57 0.57 N/A PCE LTE Band 66 (AWS) 1710.7 - 1779.3 MHz 0.30 0.94 0.94 2.73 PCE LTE Band 4 (AWS) 1710.7 - 1754.3 MHz N/A N/A N/A N/A PCE LTE Band 2 (PCS) 1850.7 - 1909.3 MHz 0.37 0.69 0.69 3.19 PCE LTE Band 30 2307.5 - 2312.5 MHz 0.15 0.75 1.10 2.91 DTS 2.4 GHz WLAN 2412 - 2462 MHz 1.04 0.22 0.22 N/A DSS/DTS Bluetooth 2402 - 2480 MHz 0.23 < 0.1 < 0.1 N/A 1.41 1.16 1.32 3.19 Equipment Class SAR Simultaneous SAR per KDB 690783 D01v01r03: Band & Mode Tx Frequency PCTEST 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctest.com SAR EVALUATION REPORT FCC ID: ZNFK400AM SAR EVALUATION REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 80 1M2003020032-01-R1.ZNF 03/02/2020 – 03/17/2020 Portable Handset © 2020 PCTEST REV 21.4 M 09/11/2019 © 2020 PCTEST All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. T A B L E O F C O N T E N T S 1 DEVICE UNDER TEST .................................................................................................................................3 2 LTE INFORMATION ................................................................................................................................... 11 3 INTRODUCTION ........................................................................................................................................ 12 4 DOSIMETRIC ASSESSMENT ................................................................................................................... 13 5 DEFINITION OF REFERENCE POINTS.................................................................................................... 14 6 TEST CONFIGURATION POSITIONS....................................................................................................... 15 7 RF EXPOSURE LIMITS ............................................................................................................................. 19 8 FCC MEASUREMENT PROCEDURES ..................................................................................................... 20 9 RF CONDUCTED POWERS ...................................................................................................................... 25 10 SYSTEM VERIFICATION ........................................................................................................................... 50 11 SAR DATA SUMMARY .............................................................................................................................. 53 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ...................................................................... 71 13 SAR MEASUREMENT VARIABILITY .......…

Text truncated - open the document above for the full version.

© 2020 PCTEST A P P E N D I X A : S A R T E S T D A T A A1 PCTEST DUT: ZNFK400AM; Type: Portable Handset; Serial: 10534 Communication System: UID 0, GSM GPRS; 2 Tx slots; Frequency: 836.6 MHz; Duty Cycle: 1:4.15 Medium: 835 Head; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.887 S/m; ε r = 40.274; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 03/05/2020; Ambient Temp: 22.5°C; Tissue Temp: 21.9°C Probe: EX3DV4 - SN7406; ConvF(9.78, 9.78, 9.78) @ 836.6 MHz; Calibrated: 5/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn728; Calibrated: 5/8/2019 Phantom: Twin-SAM V5.0 Left 30; Type: QD 000 P40 CD; Serial: 1715 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: GPRS 850, Right Head, Cheek, Mid.ch, 2 Tx slots Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.84 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.384 W/kg SAR(1 g) = 0.301 W/kg 0 dB = 0.355 W/kg = -4.50 dBW/kg A2 PCTEST DUT: ZNFK400AM; Type: Portable Handset; Serial: 10526 Communication System: UID 0, GSM GPRS; 2 Tx slots; Frequency: 1880 MHz; Duty Cycle: 1:4.15 Medium: 1900 Head; Medium parameters used: f = 1880 MHz; σ = 1.374 S/m; ε r = 38.473; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 03/17/2020; Ambient Temp: 23.0°C; Tissue Temp: 21.3°C Probe: EX3DV4 - SN7406; ConvF(8.18, 8.18, 8.18) @ 1880 MHz; Calibrated: 5/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn728; Calibrated: 5/8/2019 Phantom: Twin-SAM V5.0 Right 30; Type: QD 000 P40 CD; Serial: 1759 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: GPRS 1900, Left Head, Cheek, Mid.ch, 2 Tx slots Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.48 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 0.397 W/kg SAR(1 g) = 0.239 W/kg 0 dB = 0.317 W/kg = -4.99 dBW/kg A3 PCTEST DUT: ZNFK400AM; Type: Portable Handset; Serial: 10526 Communication System: UID 0, UMTS; Frequency: 836.6 MHz; Duty Cycle: 1:1 Medium: 835 Head; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.887 S/m; ε r = 40.274; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 03/05/2020; Ambient Temp: 22.5°C; Tissue Temp: 21.9°C Probe: EX3DV4 - SN7406; ConvF(9.78, 9.78, 9.78) @ 836.6 MHz; Calibrated: 5/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn728; Calibrated: 5/8/2019 Phantom: Twin-SAM V5.0 Left 30; Type: QD 000 P40 CD; Serial: 1715 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: UMTS 850, Right Head, Cheek, Mid.ch Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.81 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 0.398 W/kg SAR(1 g) = 0.311 W/kg 0 dB = 0.367 W/kg = -4.35 dBW/kg A4 PCTEST DUT: ZNFK400AM; Type: Portable Handset; Serial: 10526 Communication System: UID 0, UMTS; Frequency: 1732.4 MHz; Duty Cycle: 1:1 Medium: 1750 Head; Medium parameters used (interpolated): f = 1732.4 MHz; σ = 1.351 S/m; ε r = 39.013; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 03/02/2020; Ambient Temp: 22.2°C; Tissue Temp: 20.1°C Probe: EX3DV4 - SN7410; ConvF(8.46, 8.46, 8.46) @ 1732.4 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V8.0; Type: QD 000 P41 Ax; Serial: 1966 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: UMTS 1750, Left Head, Cheek, Mid.ch Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.77 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.568 W/kg SAR(1 g) = 0.356 W/kg 0 dB = 0.488 W/kg = -3.12 dBW/kg A5 PCTEST DUT: ZNFK400AM; Type: Portable Handset; Serial: 10526 Communication System: UID 0, UMTS; Frequency: 1880 MHz; Duty Cycle: 1:1 Medium: 1900 Head; Medium parameters used: f = 1880 MHz; σ = 1.374 S/m; ε r = 38.473; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 03/17/2020; Ambient Temp: 23.0°C; Tissue Temp: 21.3°C Probe: EX3DV4 - SN7406; ConvF(8.18, 8.18, 8.18) @ 1880 MHz; Calibrated: 5/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn728; Calibrated: 5/8/2019 Phantom: Twin-SAM V5.0 Right 30; Type: QD 000 P40 CD; Serial: 1759 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: UMTS 1900, Left Head, Cheek, Mid.ch Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.35 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.505 W/kg SAR(1 g) = 0.307 W/kg 0 dB = 0.417 W/kg = -3.80 dBW/kg A6 PCTEST DUT: ZNFK400AM; Type: Portable Handset; Serial: 10542 Communication System: UID 0, LTE Band 12; Frequency: 707.5 MHz; Duty Cycle: 1:1 Medium: 700 Head; Medium parameters used (interpolated): f = 707.5 MHz; σ = 0.87 S/m; ε r = 40.308; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 03/11/2020; Ambient Temp: 22.3°C; Tissue Temp: 21.3°C Probe: EX3DV4 - SN7410; ConvF(9.95, 9.95, 9.95) @ 707.5 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V8.0; Type: QD 000 P41 Ax; Serial: 1966 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: LTE Band 12, Right Head, Cheek, Mid.ch, 10 MHz Bandwidth QPSK, 1 RB, 25 RB Offset Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.61 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.363 W/kg SAR(1 g) = 0.308 W/kg 0 dB = 0.349 W/kg = -4.57 dBW/k…

Text truncated - open the document above for the full version.

ft!yPCTE!ST' ... '""""""'.''""·"' Object PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctest.com Certification of Calibration D2450V2 - SN: 797 Calibration procedure(s) Extended Calibration date: Procedure for Calibration Extension for SAR Dipoles. September 11, 2018 Description: SAR Validation Dipole at 2450 MHz. C l'b E aI ration ,c uIpment used: . Manufacturer Model Control Company 4040 Control Company 4352 Amplifier Research 1551G6 Narda 4772-3 Keyslght 7720 Keys!ght Technologies 85033E Agl!ent 8753ES Mini-Circuits BW-N20WSt- SPEAG DAK-3.5 SPEAG EX3DV4 SPEAG DAE4 SPEAG ES3DV3 SPEAG DAE4 Anrltsu MA2411B Anritsu MA24118 Anritsu Ml2495A Agilent NS182A Seekonk NC-100 M!niCircuits VLF-6000+ Narda 4014C-6 Oesi::rlption . . Therm./Clock/Humfdity Monitor Ultra long Stem Thermometer Amplifier Attenuator (3dB) Dual Directlonal Coupler . Standard Mechankal Callbratlon Kit (DC to 9GHz, 3.5mm) S--Parameter Vector Network Analyzer DC to 18 GHz Precision Fixed 20 d8 Attenuator Dlelectr!c Assessment Klt SAR Probe Dasy Data Acquisition Electronics SAR Probe Dasy Data Acquls!t!on Electron!cs Pulse Power Sensor Pulse Power Sensor Power Meter MXG Vector Signal Generator Torque Wrench low Pass F!lter 4 - 8 GHi SMA 6 dB Directional Coupler . Cal Date Cal Interval Cal Due· Serial Number 3/31/2017 Biennial 3/31/2019 170232394 5/2/2017 Blenn!al 5/2/2019 170330156 CBT N/A CBT 433971 CBT N/A CBT 9406 CBT N/A CBT MY52180215 6/4/2018 Annual 6/4/2019 MY53401181 8/30/2018 Annual 8/30/2019 MY40003841 CBT N/A CBT N/A S/lS/2018 Annual 5/15/2019 1070 7/20/2018 Annual 7/20/2019 7410 7/11/2018 Armual 7/11/2019 1322 3/13/2018 Annual 3/13/2019 3319 3/7/2018 Annual 3/7/2019 1368 3/2/2018 Annual 3/2/2019 1207364 3/2/2018 Annual 3/2/2019 1339018 10/22/2017 Annual 10/22/2018 1328004 4/18/2018 Annual 4/18/2019 MY47420800 7/11/2018 Annual 7/11/2019 N/A CBT N/A CBT N / A CBT N/A CBT N/A Note: CBT (Calibrated Before Testing). Prior to testing, the measurement paths containing a cable, amplifier, attenuator, coupler or filter were connected to a calibrated source (i.e. a signal generator) to determine the losses of the measurement path. Measurement Uncertainty= ±23% (k=2) Calibrated By: Approved By: Object: D2450V2 -SN: 797 Name Brodie Halbfoster Kaitlin O'Keefe Date Issued: 09/11/2018 Function Signature Team Lead Engineer }JMl'r£ ffN.$ro5rrc._ Senior Technical °N,lt-- Manager Page 1 of 4 Object: Date Issued: Page 2 of 4 D2450V2 – SN: 797 09/11/2018 DIPOLE CALIBRATION EXTENSION Per KDB 865664 D01, calibration intervals of up to three years may be considered for reference dipoles when it is demonstrated that the SAR target, impedance and return loss of a dipole have remained stable according to the following requirements: 1. The measured SAR does not deviate more than 10% from the target on the calibration certifi c ate. 2. The return-loss does not deviate more than 20% from the previous measurement and meets the required 20dB minimum return-loss requirement. 3. The measurement of real or imaginary parts of impedance does not deviate more than 5Ω from the previous measurement. The following dipole was checked to pass the above 3 requirements to have 2-year calibration period from the calibration date: Calibration Date Extension Date Certificate Electrical Delay (ns) Certificate SAR Target Head (1g) W/kg @ 20.0 dBm Measured Head SAR (1g) W/kg @ 20.0 dBm Deviation 1g (%) Certificate SAR Target Head (10g) W/kg @ 20.0 dBm Measured Head SAR (10g) W/kg @ 20.0 dBm Deviation 10g (%) Certificate Impedance Head (Ohm) Real Measured Impedance Head (Ohm) Real Difference (Ohm) Real Certificate Impedance Head (Ohm) Imaginary Measured Impedance Head (Ohm) Imaginary Difference (Ohm) Imaginary Certificate Return Loss Head (dB) Measured Return Loss Head (dB) Deviation (%) PASS/FAIL 9/11/20179/11/20181.1525.275.524.74%2.482.542.42%53.849.847.47.10.3-21.9-23-4.80%PASS Calibration Date Extension Date Certificate Electrical Delay (ns) Certificate SAR Target Body (1g) W/kg @ 20.0 dBm Measured Body SAR (1g) W/kg @ 20.0 dBm Deviation 1g (%) Certificate SAR Target Body (10g) W/kg @ 20.0 dBm Measured Body SAR (10g) W/kg @ 20.0 dBm Deviation 10g (%) Certificate Impedance Body (Ohm) Real Measured Impedance Body (Ohm) Real Difference (Ohm) Real Certificate Impedance Body (Ohm) Imaginary Measured Impedance Body (Ohm) Imaginary Difference (Ohm) Imaginary Certificate Return Loss Body (dB) Measured Return Loss Body (dB) Deviation (%) PASS/FAIL 9/11/20179/1…

Text truncated - open the document above for the full version.
