Bluetooth® Keyboard User Guide KBB-700 www.lge.com 1 2 Before Using y There may be compatibility issues when connected to some other products. LG Electronics does not guarantee compatibility with all peripherals. y Functions may vary depending on the device and OS. y The stand may not hold a particular device depending on the type and orientation of the device. The angle may vary depending on the device. Product Overview a LED indicator c Rolling magnets b Key pad b Battery cover a Stand Using Product Install the batteries - When using the keyboard for the first time, open the battery cover at the top center of the keyboard by pressing your fingernail against the slit on the battery cover. - Remove the protective film between the AAA battery included in the keyboard and the positive (+) and negative (-) poles. Insert the battery in the correct direction, then close the cover. Position a device - Open out the stand by pressing your fingernail against the slits on the top left and right of the keyboard, then place your device on the stand. 3 4 Power off - When you turn off the product, be sure to close it in the direction of the arrows. * Failure to follow the instructions in this manual may result in fault or malfunction and the product may not turn off properly. Pair the Keyboard with a Device This product can be connected and used with up to two Bluetooth devices. Set up your Bluetooth device by following the instructions below: Pair the keyboard with Android OS or iOS device 1. Turn on the keyboard by opening it completely. 2*. Press and hold down the “Fn + B (Pair)” keys for at least two seconds. - When in pairing mode, the LED indicator blinks at one-second intervals for two minutes. 3. Search for the device on the device you want to pair with, or select Rolly Keyboard among the searched devices. - Some devices may require you to enter a PIN. Enter a PIN and press Enter. 4. When pairing is complete, the LED indicator turns blue for three seconds and then dims. To pair with the second device, do the following instructions before step 2*. Press the “Fn + D (Shift)” keys on the keyboard to enter pairing standby mode for the second device. Check if the LED color changes from blue to purple. Pair the keyboard with a device running Windows 7 or 8 1. Turn on the keyboard by opening it completely. 2. Press and hold down the “Fn + B (Pair)” keys for at least two seconds. - When in pairing mode, the LED indicator blinks at one-second intervals for two minutes. 3. Select Control Panel > Add devices and printers > Add a device. 4. Select “LG-Rolly Keyboard”. - Follow the onscreen instructions to complete the pairing. 5. When pairing is complete, the LED indicator lights up for three seconds and then dims. y Some keys may not be supported by Windows OS. y Once paired, the pairing process above does not need to be repeated. y If you pair a new device when the keyboard has already been paired with two devices, the last paired device is unpaired. LED Indicator To check the paired device and the battery level, press the “Fn + Space” keys. The LED indicator lights up accordingly. Paired device 1st DeviceBlue LED 2nd DevicePurple LED Battery level StatusAction Battery level is at 15% or aboveBlinks blue five times Battery level is at 5 to 15%Blinks red five times The LED blinks when the battery level is low. When the battery runs low or is fully discharged, replace it with a new AAA battery. 5 6 7 8 9 10 Battery precautions . Warning : Batteries can overheat, explode and catch fire. Follow the instructions below to ensure safe and efficient use of the battery. y Keep the battery out of reach of pets and children. y When visibly swollen or corroded, the battery may be hazardous. Please contact the manufacturer or seller. y Keep the battery away from heat sources. (Never place in a microwave oven.) y Do not keep the product in a confined space for a long time with the power on. y Ensure the battery connectors do not come into contact with metal objects such as necklaces, coins, keys and watches. y Only use batteries approved by the manufacturer. y Never disassemble, modify, compress or pierce the battery. If the battery has been severely impacted, discard and replace it immediately. y Do not drop the battery from a height or subject it to impact or shock. y Store the battery at room temperature (0ºC to 50ºC) and never expose it to temperatures of 60ºC or above. y Do not touch the battery with wet hands or allow it to come into contact with moisture. y There is a risk of explosion if the battery is not replaced correctly. Dispose of used battery according to the manufacturer’s instructions. y For safety purposes, be sure to read the user guide before using the product. y Always store the battery in a protective battery case to prevent external shock. WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. Part 15.19 statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Part15.21 statement Changes or modifications not expressly approved by the manufacturer (or party responsible) for compliance could void the user’s authority to operate the equipment. Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occu…

Text truncated - open the document above for the full version.

          !"# Date: June 25, #5 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE:  Request of Confidentiality for FCC ID: ZNFKBB700 Equipment Class:%&' () ) *+  *  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act MobileComm hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for , days after the grant as outlined in Public Notice DA 04-1705. This provision will give  MobileComm temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: '-.+%/0-+1+-.023%+33+ 45 6  %e )  1 Block Diagram 2 Operationa Descriptions, Part Lists, PCB Lay out '-.+ 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos /0-+1+-. 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

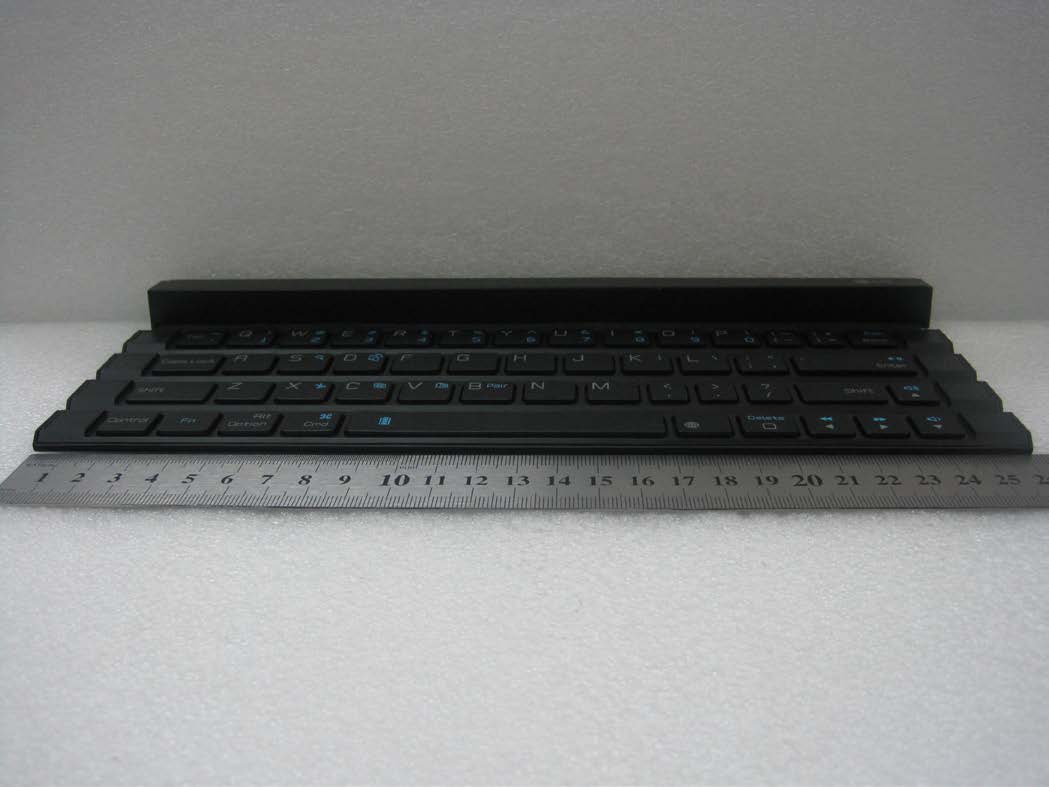

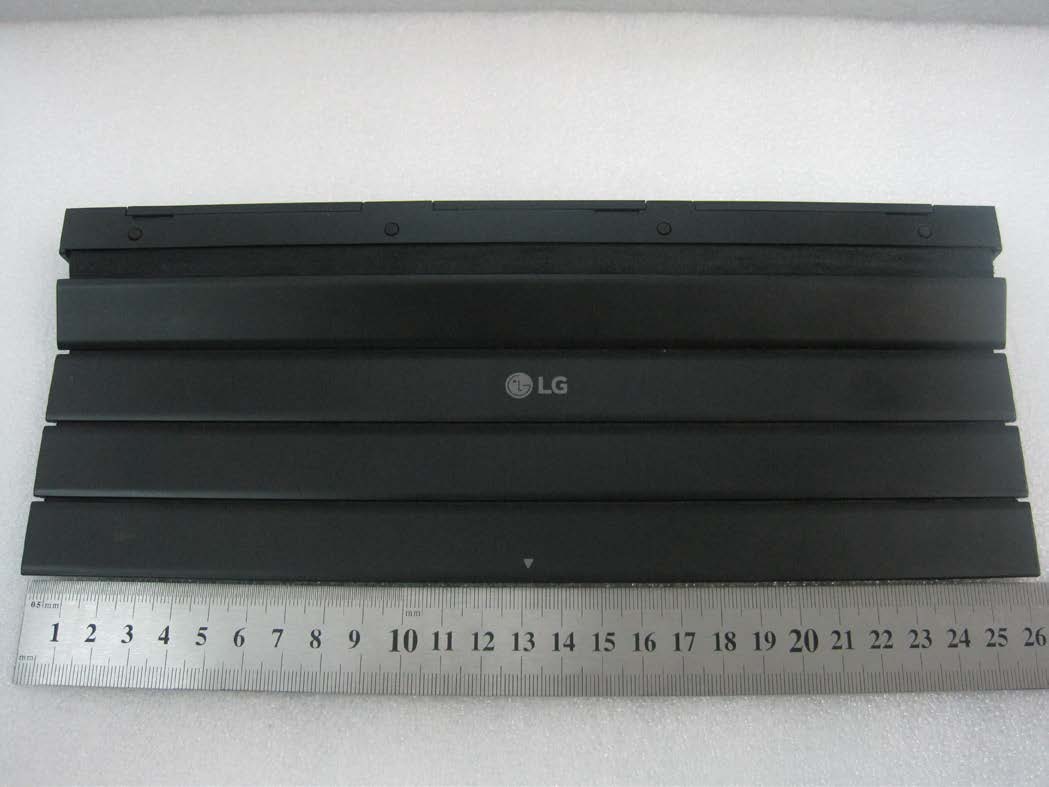

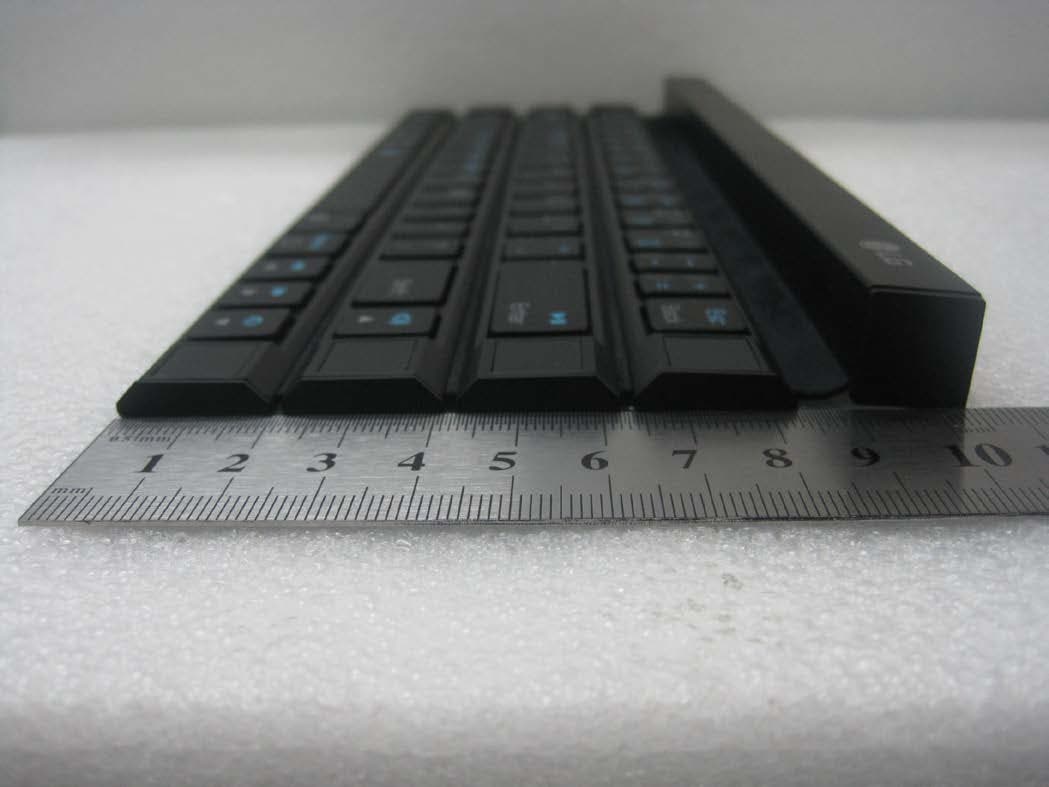

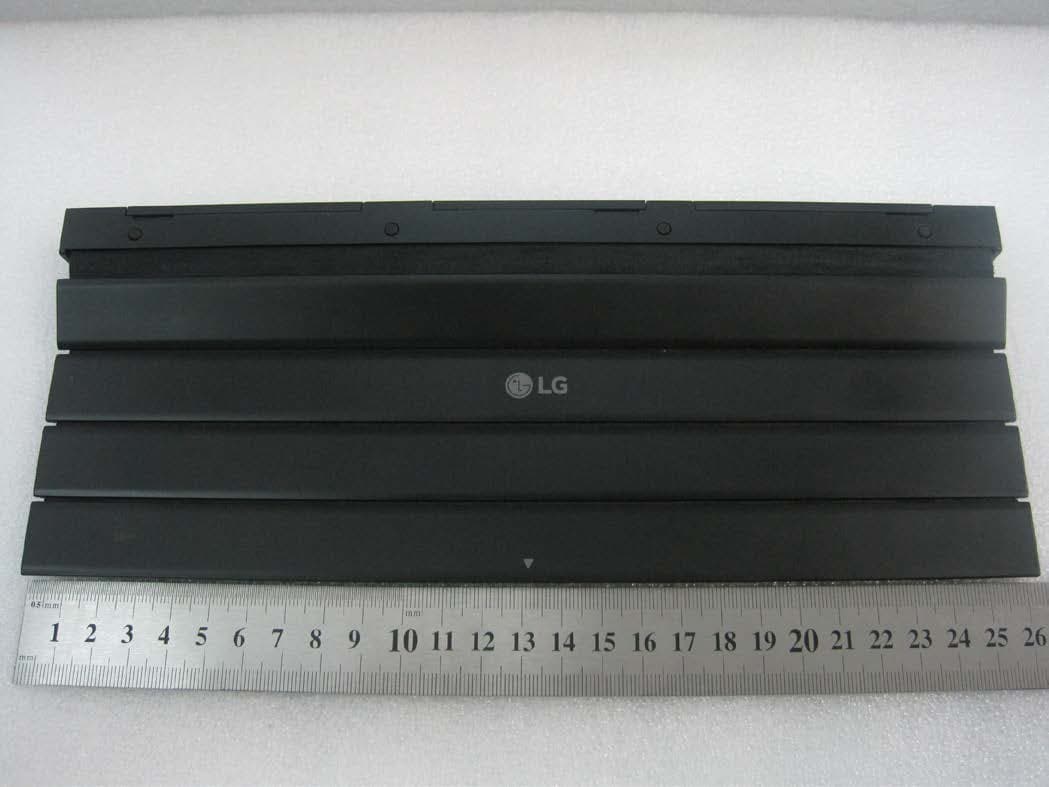

FCC ID: ZNFKBB700 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 7 EXTERNAL PHOTOGRAPHS FCC ID: ZNFKBB700 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 7 ■ EXTERNAL PHOTO FCC ID: ZNFKBB700 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 7 ■ EXTERNAL PHOTO FCC ID: ZNFKBB700 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 7 ■ EXTERNAL PHOTO FCC ID: ZNFKBB700 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 7 ■ EXTERNAL PHOTO FCC ID: ZNFKBB700 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 7 ■ EXTERNAL PHOTO FCC ID: ZNFKBB700 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 7 ■ EXTERNAL PHOTO

Note: The FCC ID shown will be readily visible at the time of purchase. Note! We, LG Electronics MobileComm USA, state that our device, FCC ID: ZNFKBB700, FCC ID label is visible to the users as they purchase the product. The label is attached permanently to the EUT by an adhesive since the adhesive is a permanent type with strong strength. ※ FCC ID Label Form KBB-700 FCC ID:ZNFKBB700 Back Side Keyboard

FCC ID: ZNFKBB700 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 5 INTERNAL PHOTOGRAPHS FCC ID: ZNFKBB700 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 5 ■ Antenna INTERNAL PHOTO BT Antenna FCC ID: ZNFKBB700 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 5 ■ INTERNAL PHOTO FCC ID: ZNFKBB700 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 5 ■ INTERNAL PHOTO FCC ID: ZNFKBB700 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 5 ■ INTERNAL PHOTO

FCC ID : ZNFKBB700 According to KDB 447498 D01 General RF Exposure Guidance v05r02, sec. 4.3.1 At 100 MHz to 6 GHz and for test separation distances ≤ 50 mm, the SAR test exclusion threshold is determined according to the following 1. SAR test exclusion threshold Frequency : 2 480 MHz (min. separation distance = 5mm) SAR test exclusion thresholds (5mm) Mode Frequency Maximum Allowed Power Separation Distance ≤ 3.0 [MHz] [mW] [mm] Bluetooth 2 480 1 5 0.3 Based on the maximum conducted power of Bluetooth and antenna to use separation distance, Bluetooth SAR test was not required [(1/5)*√2.480] = 0.3 < 3.0 Note: The frequency of Bluetooth using for estimated SAR was selected highest channel of Bluetooth for highest SAR test exclusion thresholds. 2. Conclusion This EUT (FCC ID:ZNFKBB700) is not required SAR test.
