ZNFL125DLPortable Handset

ENGLISH MFLXXXXXXXX (1.0)www.lg.com Copyright ©2019 LG Electronics Inc. All rights reserved. USER GUIDE LG L125DL 1 About this user guide Thank you for choosing this LG product. Please carefully read this user guide before using the device for the first time to ensure safe and proper use. • Always use genuine LG accessories. The supplied items are designed only for this device and may not be compatible with other devices. • Descriptions are based on the device default settings. • Default apps on the device are subject to updates, and support for these apps may be withdrawn without prior notice. If you have any questions about an app provided with the device, please contact an LG Service Center. For user-installed apps, please contact the relevant service provider. • Modifying the device’s operating system or installing software from unofficial sources may damage the device and lead to data corruption or data loss. Such actions will violate your LG license agreement and void your warranty. • Some content and illustrations may differ from your device, depending on the area, service provider, software version, or OS version, and are subject to change without prior notice. • Software, audio, wallpaper, images, and other media supplied with your device are licensed for limited use. If you extract and use these materials for commercial or other purposes, you may be infringing copyright laws. As a user, you are fully responsible for the illegal use of media. • Additional charges may incur for data services, such as messaging, uploading, downloading, auto-syncing and location services. To avoid additional charges, select a data plan suitable to your needs. Contact your service provider to obtain additional details. 2 Instructional notices WARNING: Situations that could cause injury to the user and third parties. CAUTION: Situations that may cause minor injury or damage to the device. NOTE: Notices or additional information. 3 39 Memory card encryption 40 Taking screenshots 41 Entering text 49 Do not disturb 03 Useful Apps 51 Installing and uninstalling apps 52 App tr ash 53 App Shortcuts 54 Phone 59 Messages 60 Camera 70 Gallery 73 Chrome 74 Google apps 75 Contacts 77 QuickMemo+ 80 Clock 81 Calendar 82 Music 83 Calculator 83 Email Table of contents 01 Custom-designed Features 6 Camera features 7 Galler y features 10 Google Assistant 11 Multi-tasking feature 02 Basic Functions 14 Product components and accessories 15 Parts overview 18 Turning the power on or off 19 Installing the SIM card 21 Inserting the memory card 22 Removing the memory card 22 Battery 24 T ouch screen 27 Home scr een 36 Scr een lock 4Table of contents 84 FM Radio 84 File Manager 84 Smart cleaning 04 Settings 86 Settings 86 Network & internet 93 Connected devic es 96 Sound 97 Display 98 Lock screen & securit y 100 Extensions 101 Apps & notifications 101 Battery 102 Stor age 102 Accounts 103 Acc essibility 105 Google 105 System 05 Appendix 109 LG Language Settings 109 Phone soft ware update 110 Anti-Theft Guide 111 Open Source Software Notice Information 111 Trademarks 112 FAQ 06 For Your Safety 07 Limited Warranty – USA Custom-designed Features 01 Custom-designed Features6 Camera features Portrait You can take a sharp portrait by applying the camera lens blur effect. 1 Tap , switch to the front camera, then tap Portrait. 2 When Portrait is available appears on the screen, tap to take a photo. • To adjust blur strength, drag the slide bar up, down (depending on the orientation of the phone). • This feature is not available if the surroundings are too dark. • After applying this feature, touch and hold the the desired position on the preview screen to automatically apply the exposure value and focus. In this case, the Portrait feature and blur strength stay the same. Flash Jump-Cut You can create a GIF by taking photos at three second intervals. 1 Tap , then tap MODE Flash Jump-Cut . 2 Tap to set how many cuts you want to take. 3 Tap to take photos. Custom-designed Features7 Gallery features Creating a movie You can create a new movie by putting images and videos together. 1 Tap , select an album, then tap Create movie. 2 Select images or videos for your movie and tap NEXT. 3 Edit the selected images and videos and then tap SAVE. Deleting files You can select images or videos to delete from your video by tapping at the top right corner of its thumbnail. Custom-designed Features8 Adding files You can select images or videos to add after tapping at the bottom of the screen. You can also select the images or videos you have already previously added. • Touch and hold a file, and then tap another file for multiple selection. Rearranging files To rearrange the images and videos, touch and hold the file you want to move, then dragging it to the desired location. Adding file effects Tap to add a theme or background music, or change the font. Resetting the movie edits You can reset the edits made to the movie (e.g. play time) by tapping . Previewing a file Check your new video before saving it by tapping . After the playback time elapses, the next file is played automatically. • A maximum of 50 images and videos can be used to create a video. • The playback time for an image is 3 seconds by default and it cannot be changed. Videos can be trimmed down to a minimum of 1 second. • This feature may not support some image or video formats. Custom-designed Features9 Making a GIF You can easily make a GIF file using recorded video. 1 At the desired starting point while watching a video, tap . 2 Select the length of the GIF you want to create. • GIF is generated for the time selected from the current time. • For videos less than 5 seconds, GIF images are automatically generated for the remaining time. • You may use this feature solely for creative purposes. The use of this feature involving infringement of any other person’s rights, such as copyright or defamatory or offensive statements, may be subject to civil, criminal, or administrative liab…

Text truncated - open the document above for the full version.

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: January 08, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFL125DL Equipment Class: JBP: Part 15 Class B Computing Device Peripheral To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA, Inc. hereby requests confidentiality and confidential treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA, Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram PERMANENT 2 Operational Descriptions 3 External Photos 4 Internal Photos 5 Test-Setup Photos SHORT-TERM 6 User’s Manual The Applicant understands tha t pu rsuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Kyung-Su Han Director LG Electronics USA, Inc. LG Electronics USA, Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

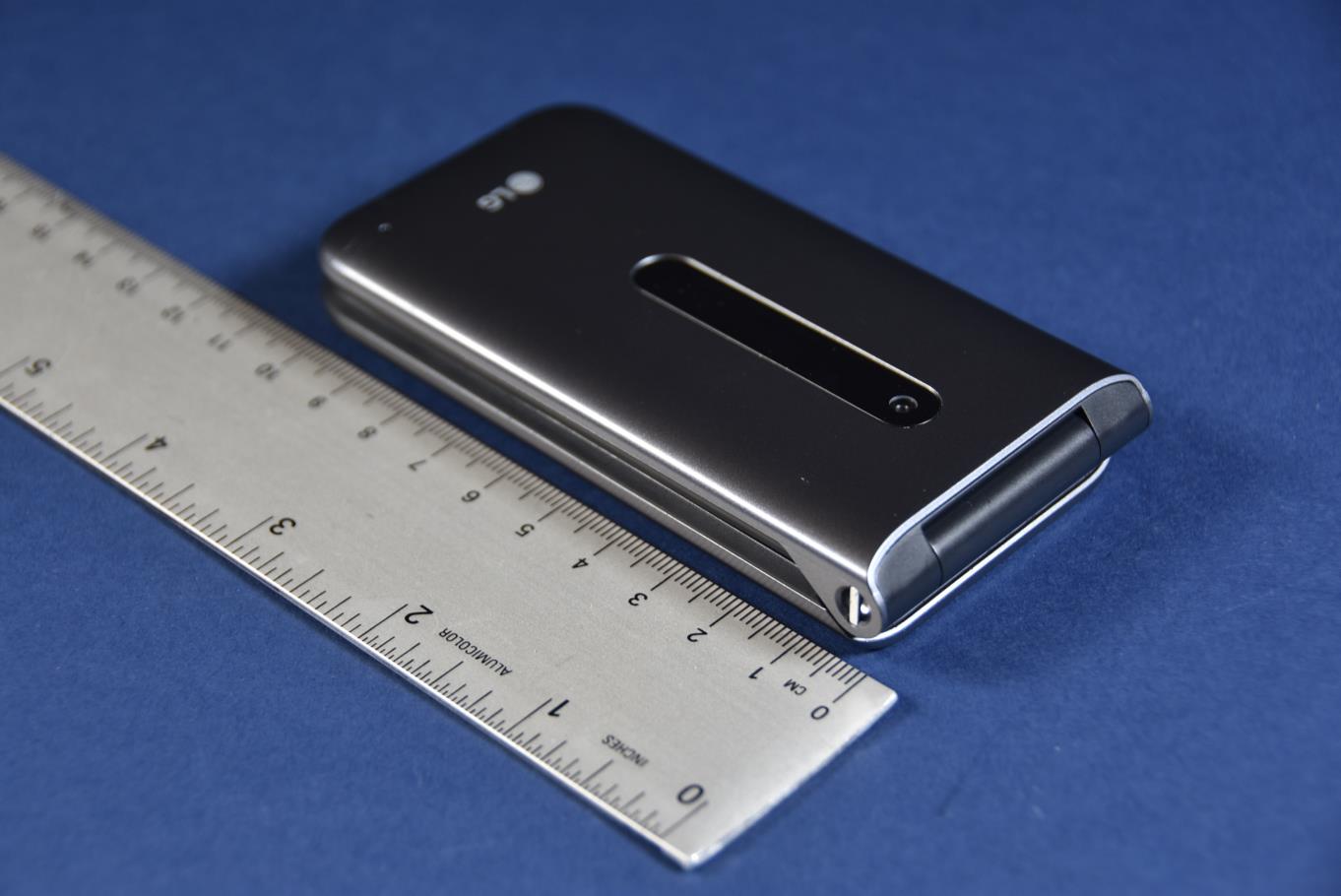

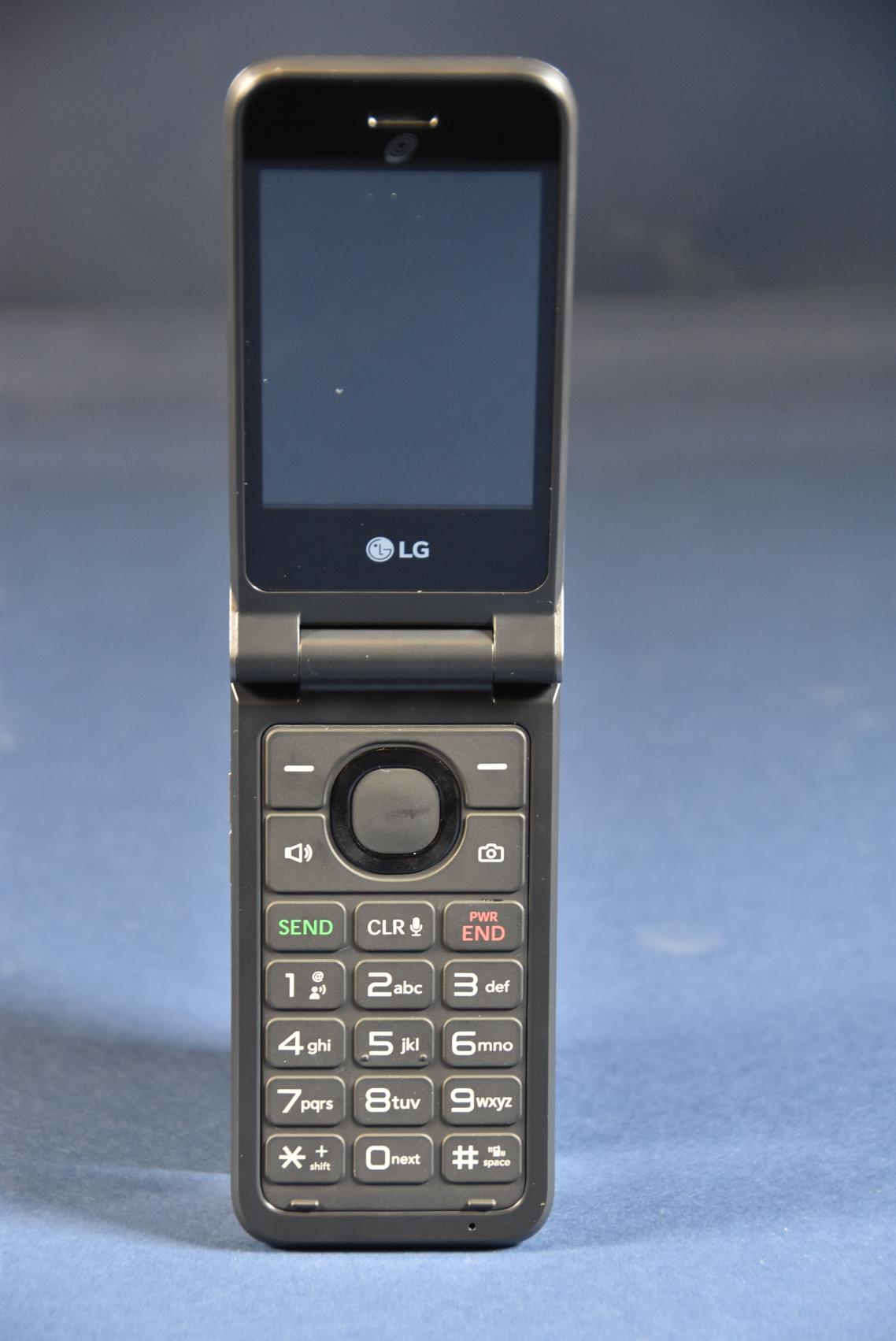

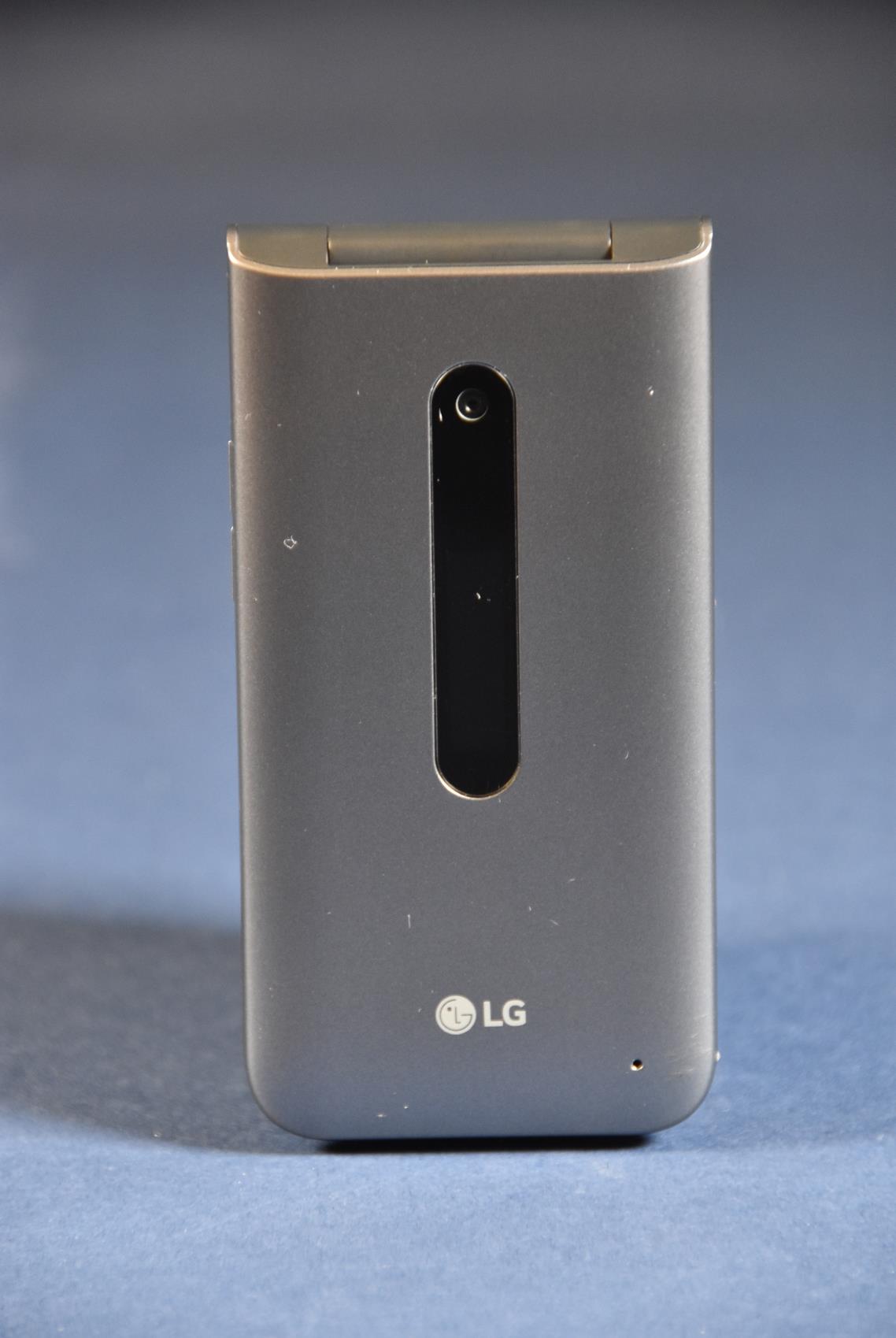

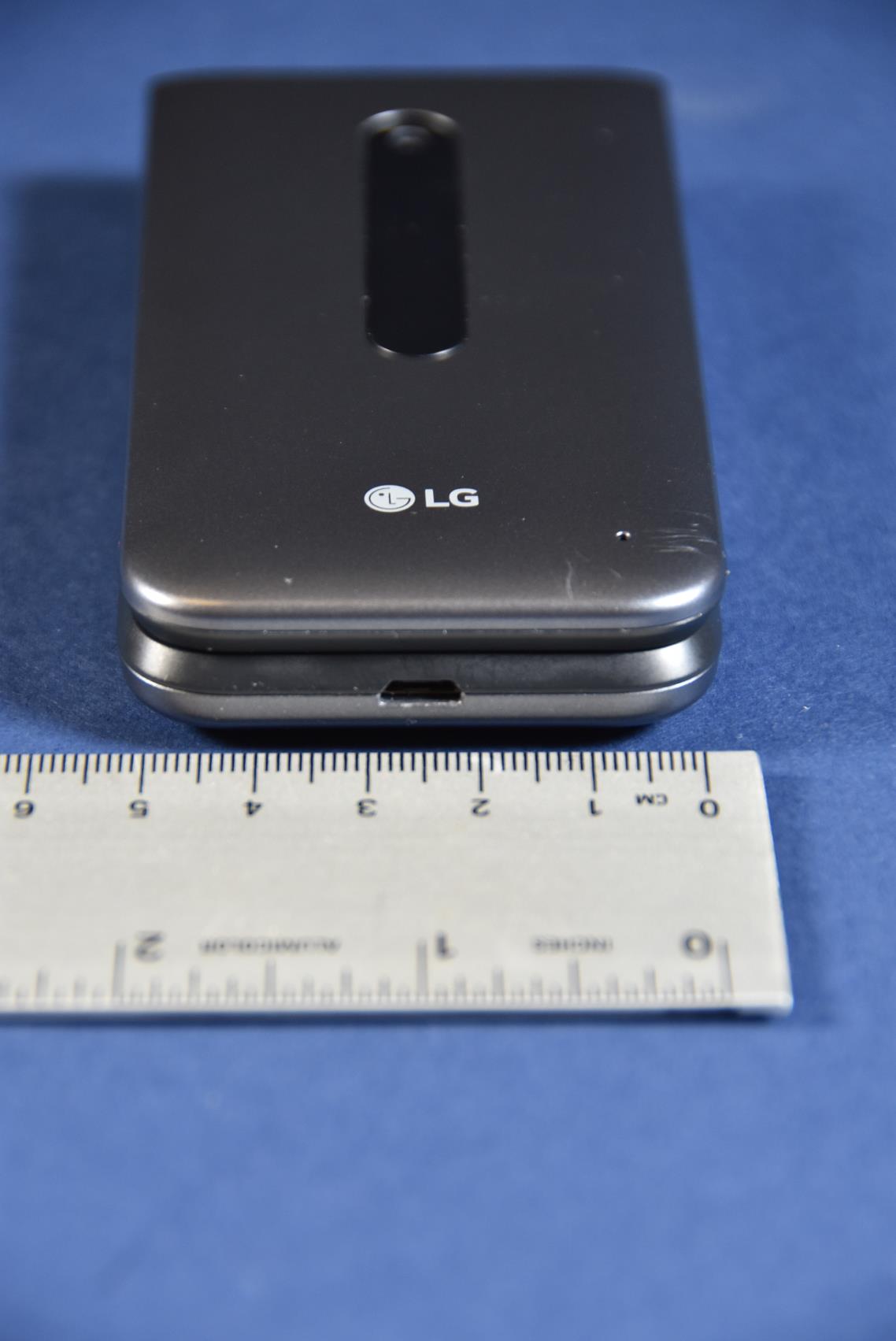

LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL External Photos EUT Type: Portable Handset Page 1 of 10 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 E X T E R N A L P H O T O G R A P H S LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL External Photos EUT Type: Portable Handset Page 2 of 10 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL External Photos EUT Type: Portable Handset Page 3 of 10 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL External Photos EUT Type: Portable Handset Page 4 of 10 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL External Photos EUT Type: Portable Handset Page 5 of 10 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL External Photos EUT Type: Portable Handset Page 6 of 10 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL External Photos EUT Type: Portable Handset Page 7 of 10 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL External Photos EUT Type: Portable Handset Page 8 of 10 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL External Photos EUT Type: Portable Handset Page 9 of 10 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL External Photos EUT Type: Portable Handset Page 10 of 10 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019

* Note! We, LG Electronics USA, state that our device, FCC ID: ZNFL125DL has a battery and has a FCC ID label inside of the battery compartment. Additionally, the battery will not be assembled with the device when delivery, so FCC ID label is visible to the users as they purchase the product and install the battery. The label is attached permanently to the EUT by an adhesive since the adhesive is a permanent type with strong strength. ※ LG L125DL FCC ID Label Form Model No: LG L125DL Position of FCC ID Label HW: IMEI : S/N: FCC ID : ZNFL125DL

LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL Internal Photos EUT Type: Portable Handset Page 1 of 14 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 I N T E R N A L P H O T O G R A P H S LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL Internal Photos EUT Type: Portable Handset Page 2 of 14 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL Internal Photos EUT Type: Portable Handset Page 3 of 14 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL Internal Photos EUT Type: Portable Handset Page 4 of 14 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL Internal Photos EUT Type: Portable Handset Page 5 of 14 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL Internal Photos EUT Type: Portable Handset Page 6 of 14 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL Internal Photos EUT Type: Portable Handset Page 7 of 14 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL Internal Photos EUT Type: Portable Handset Page 8 of 14 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL Internal Photos EUT Type: Portable Handset Page 9 of 14 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL Internal Photos EUT Type: Portable Handset Page 10 of 14 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL Internal Photos EUT Type: Portable Handset Page 11 of 14 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL Internal Photos EUT Type: Portable Handset Page 12 of 14 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL Internal Photos EUT Type: Portable Handset Page 13 of 14 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFL125DL Model: LG L125DL Internal Photos EUT Type: Portable Handset Page 14 of 14 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019

O n your side HCT C o 74, Seoic Tel. +82 3 TE EMI Te APPLICAN LG Electro REPORT N HCT-EM- DATE OF Novemb e o., Ltd. cheon-ro 578be 31 645 6300 F EST est for FCC NT onics USA, Inc NO. 1911-FC011 ISSUE er 29, 2019 eon-gil, Majang Fax. +82 31 645 REP C Certificati . g-myeon, Icheo 6401 POR ion of LG L on-si, Gyeonggi- RT L125DL Mo -do, 17383 KOR odel REA F-TP22-03 (Rev. 01) Page 3 of 27 Report No. HCT-EM-1911-FC011 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 November 29, 2019 Initial Release The above Test Report is not related to the accredited test result by KOLAS(Korea Laboratory Accreditation Scheme) / A2LA(American Association for Laboratory Accreditation), which signed the ILAC-MRA. The device bearing the trade name and model specified above, has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2014. (See Test Report if any modifications were made for compliance) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. HCT certifies that no party to application has been denial the FCC benefits pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C 862 F-TP22-03 (Rev. 01) Page 4 of 27 Report No. HCT-EM-1911-FC011 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. CONTENTS 1. GENERAL INFORMATION 5 1.1 Description of EUT 5 1.2 Tested System Details 7 1.3 Cable Description 8 1.4 Noise Suppression Parts on Cable. (I/O Cable) 8 1.5 Test Facility 9 1.6 Calibration of Measuring Instrument 9 1.7 Measurement Uncertainty 9 2. DESCRIPTION OF TEST 10 2.1 Measurement of Conducted Emission 10 2.2 Measurement of Radiated Emission 11 2.3 Configuration of Tested System 12 3. PRELIMINARY TEST 13 3.1 Conducted Emission 13 3.2 Radiated Emission 13 4. CONDUCTED EMISSION AND RADIATED EMISSION TEST SUMMARY 14 4.1 Conducted Emission 14 4.2 Radiated Emission Below 1 GHz 21 4.3 Radiated Emission Above 1 GHz 23 5. CONCLUSION 26 6. APPENDIX A. TEST SETUP PHOTO 27 F-TP22-03 (Rev. 01) Page 5 of 27 Report No. HCT-EM-1911-FC011 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. 1. GENERAL INFORMATION 1.1 Description of EUT FCC ID ZNFL125DL Model Name LG L125DL Series Model Name LGL125DL, L125DL, LM-Y120QM, LMY120QM, Y120QM, LM-Y120UM, LMY120UM, Y120UM, LM-Y120QM6, LMY120QM6, Y120QM6 Product Name CDMA/GSM/WCDMA/LTE Phone with BT & WLAN TX Frequency 824.70 MHz to 848.31 MHz (CDMA BC0) 1 851.25 MHz to 1 908.75 MHz (CDMA BC1) 824.20 MHz to 848.80 MHz (GSM 850) 1 850.20 MHz to 1 909.80 MHz (GSM 1 900) 1 852.4 MHz to 1 907.6 MHz (WCDMA B2) 1712.4 MHz to 1752.6 MHz (WCDMA B4) 826.40 MHz to 846.60 MHz (WCDMA B5) 1 850 MHz to 1 910 MHz (LTE B2) 1 710 MHz to 1 755 MHz (LTE B4) 824 MHz to 849 MHz (LTE B5) 699 MHz to 716 MHz (LTE B12) 777 MHz to 787 MHz (LTE B13) 1 850 MHz to 1 915 MHz (LTE B25) 814 MHz to 849 MHz (LTE B26) 2 496 MHz to 2 690 MHz (LTE B41) 1 710 MHz to 1 780 MHz (LTE B66) 2 402 MHz to 2 480 MHz (Bluetooth) 2 412 MHz to 2 462 MHz (WiFi 2.4 GHz) RX Frequency 869.70 MHz to 893.31 MHz (CDMA BC0) 1 931.25 MHz to 1 988.75 MHz (CDMA BC1) 869.20 MHz to 893.80 MHz (GSM 850) 1 930.20 MHz to 1 989.80 MHz (GSM 1 900) 1 932.4 MHz to 1 987.6 MHz (WCDMA B2) 2 112.4 MHz to 2 152.6 MHz (WCDMA B4) F-TP22-03 (Rev. 01) Page 6 of 27 Report No. HCT-EM-1911-FC011 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. RX Frequency 871.40 MHz to 891.60 MHz (WCDMA B5) 1 930 MHz to 1 990 MHz (LTE B2) 2 110 MHz to 2 155 MHz (LTE B4) 869 MHz to 894 MHz (LTE B5) 729 MHz to 746 MHz (LTE B12) 746 MHz to 756 MHz (LTE B13) 1 925 MHz to 1 990 MHz (LTE B25) 859 MHz to 894 MHz (LTE B26) 2 496 MHz to 2 690 MHz (LTE B41) 2 110 MHz to 2 200 MHz (LTE B66) 2 402 MHz to 2 480 MHz (Bluetooth) 2 412 MHz to 2 462 MHz (WiFi 2.4 GHz) F-TP22-03 (Rev. 01) Page 7 of 27 Report No. HCT-EM-1911-FC011 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. 1.2 Tested System Details All equipment descriptions used in the tested system (including inserted cards) are: Device Type Model Name Serial Number Manufacturer EUT LG L125DL - LG Notebook PC ProBook6560b 5CB2053MXF HP Notebook PC Adaptor Series PPP009L-E - LITE-ON TECHNOLOGY (CHANGZHOU) Gateway DIR-806M - D-Link Gateway Adaptor AMS1-0501200FK - D-Link Serial Mouse Serial 2 Button mouse 02031069 Radio Shack RJ45 cable - - - Data Cable EAD62377928 - Ningbo Broad Earphone EAB64468444 - CRESYN Micro SD Card Extreme MicroSDHC UHS-I CLASS 10 (32 GB) - SANDISK F-TP22-03 (Rev. 01) Page 8 of 27 Report No. HCT-EM-1911-FC011 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. 1.3 Cable Description Product Name Port Power Cord Shielded (Y/N) I/O Cable Shielded (Y/N) Length (m) EUT Micro USB Y Y (P,D) 1.0 Earphone N/A N (D) 1.2 Notebook PC RJ 45 N/A N (D) 1.6 Serial(Mouse) N/A Y (D) 1.8 DC IN N N/A (P) 1.8 Gateway DC IN N N/A (P) 1.8 NOTE. The marked “(D)” means the data cable and “(P)” means the power cable. 1.4 Noise Suppression Parts on Cable (I/O Cable) Product Name Port Ferrite Bead (Y/N) Location Metal Hood (Y/N) Location EUT Micro USB N N/A Y Both End Earphone N N/A Y EUT End Notebook PC RJ 45 N N/A N N/A S…
