www.lg.com MFL69366201 (1.0) ENGLISH LG L17AG USEr GUIdE LG L17AG www.lg.com Printed in China ESPAÑOL LG L17AG GUÍA dEL USUArIO LG L17AG About this user guide Thank you for choosing LG. Please carefully read this user guide before using the device for the first time to ensure safe and proper use. Ţ
Always use genuine LG accessories. The supplied items are designed only for this device and may not be compatible with other devices. Ţ
This device is not suitable for people who have a visual impairment due to the touchscreen keyboard. Ţ
Descriptions are based on the device default settings. Ţ
Default apps on the device are subject to updates and support for these apps may be withdrawn without prior notice. If you have any questions about an app provided with the device, please contact a LG Service center. For user-installed apps, please contact the relevant service provider. Ţ
Modifying the device’s operating system or installing software from unofficial sources may damage the device and lead to data corruption or data loss. Such actions will violate your LG licence agreement and void your warranty. Ţ
Some contents and illustrations may differ from your device depending on the region, service provider, software version, or OS version, and are subject to change without prior notice. Ţ
Software, audio, wallpaper, images, and other media supplied with your device are licensed for limited use. If you extract and use these materials for commercial or other purposes, you may be infringing copyright laws. As a user, you are fully are entirely responsible for the illegal use of media. Ţ
Additional charges may apply for data services, such as messaging, uploading,downloading, auto-syncing and location services. To avoid additional charges, select a data plan suitable to your needs. Contact your service provider to obtain additional details. ENGLISH 2 Instructional notices WARNING Situations that could cause injury to yourself or others, or damage to phone or other property. NOTE Notices or additional information. 3 LIMITED WARRANTY STATEMENT ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING DISPUTES” BELOW. Warranty Laws The following laws govern warranties that arise in retail sales of consumer goods: Ţ
The California Song-Beverly Consumer Warranty Act [CC §§1790 et seq], Ţ
The California Uniform Commercial Code, Division Two [Com C §§2101 et seq], and Ţ
The federal Magnuson-Moss Warranty Federal Trade Commission Improvement Act [15 USC §§2301 et seq; 16 CFR Parts 701– 703]. A typical Magnuson-Moss Act warranty is a written promise that the product is free of defects or a written promise to refund, repair, or replace defective goods. [See 15 USC §2301(6).] Remedies include damages for failing to honor a written warranty or service contract or for violating disclosure provisions. [See 15 USC §2310(d).] Except for some labeling and disclosure requirements, the federal Act does not preempt state law. [See 15 USC §2311.] 4 1. WHAT THIS WARRANTY COVERS: LG offers you a limited warranty that the enclosed subscriber unit and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions: (1) The limited warranty for the product extends for TWELVE (12) MONTHS beginning on the date of purchase of the product with valid proof of purchase, or absent valid proof of purchase, FIFTEEN (15) MONTHS from date of manufacture as determined by the unit's manufacture date code. (2) The limited warranty extends only to the original purchaser of the product and is not assignable or transferable to any subsequent purchaser/end user. (3) This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the U.S., including Alaska, Hawaii, U.S. Territories and Canada. (4) The external housing and cosmetic parts shall be free of defects at the time of shipment and, therefore, shall not be covered under these limited warranty terms. (5) Upon request from LG, the consumer must provide information to reasonably prove the date of purchase. (6) The customer shall bear the cost of shipping the product to the Customer Service Department of LG. LG shall bear the cost of shipping the product back to the consumer after the completion of service under this limited warranty. 5 2. WHAT THIS WARRANTY DOES NOT COVER: (1) Defects or damages resulting from use of the product in other than its normal and customary manner. (2) Defects or damages from abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of LG, including damage caused by shipping, blown fuses, spills of food or liquid. (3) Breakage or damage to antennas unless caused directly by defects in material or workmanship. (4) That the Customer Service Department at LG was not notified by consumer of the alleged defect or malfunction of the product during the applicable limited warranty period. (5) Products which have had the serial number removed or made illegible. (6) This limited warranty is in lieu of all other warranties, express or implied either in fact or by operations of law, statutory or otherwise, including, but not limited to any implied warranty of marketability or fitness for a particular use. (7) Damage resulting from use of non LG approved accessories. (8) All plastic surfaces and all other externally exposed parts that are scratched or damaged due to normal customer use. (9) Products operated outside published maximum ratings. (10) Products used or obtained in a rental program. …

Text truncated - open the document above for the full version.

Date: Dec 4, 2015 Federal Com munic ati ons Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJEC T : LG Electronics MobileComm U.S.A. FCC ID : ZNFL17AG Part 20.19 Certification To Whom It May Concern: The f ollowing are the model designations and their associated key features for this FCC ID, according to requirement in the TCB Guidance issued on June 20, 2008. FCC ID: ZNFL17AG Air Interface: GSM/WCDMA Wireless Technologies: GPRS/EDGE/HSDPA/HSUPA Band: GSM850/1900, WCDMA B2/B5 Key Features: Bluetooth 4.0+LE, WIFI802.11b/g/n 2.4GHz Camera, MP3, GPS Should y ou have any questions or comments concerning the above, please contact the undersigned Sincerely Yours, Jongchul Lee Director On behalf of LG El ectronics Mobilecomm U.S.A.,Inc

Date: Dec 04, 2015 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 SUBJECT: LG Electronics Mobilecomm U.S.A FCC ID: ZNFL17AG Part 20.19 Certification Gentlemen: We, LG Electronics MobileComm USA, hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jongchul Lee Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

          !"# Date: Nov 24#5 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE:  Request of Confidentiality for FCC ID: ZNFL17AG Equipment Class:%&%  '  (  )  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,  MobileComm hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  MobileComm temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: %+,'-./+'0'+,/12-'22' 3) 4 - 5  1 Block Di agram and Antenna specification 2 Operational Descriptions and PCB layout 3 Parts Lists and Tune-Up Procedure %+,' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jongchul Lee Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

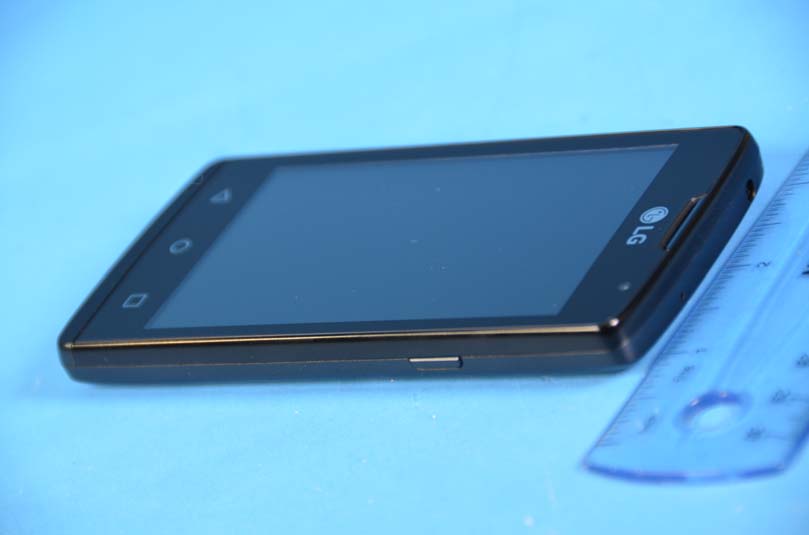

LG Electronics MobileComm U.S.A FCC ID: ZNFL17AG Model: L17AG External Photos EUT Type: Portable Handset Page 1 of 3 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 EXTERNAL PHOTOGRAPHS LG Electronics MobileComm U.S.A FCC ID: ZNFL17AG Model: L17AG External Photos EUT Type: Portable Handset Page 2 of 3 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFL17AG Model: L17AG External Photos EUT Type: Portable Handset Page 3 of 3 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015

※ FCC ID Label Form Note: The FCC ID shown will be readily visible at the time of purchase. Note! The label of the EUT is made of a white polypropylene laminate film and it's attached to the EUT by an adhesive. The adhesive is permanent type with strong strength. Additionally, the FCC ID is readily visible to the purchaser at the time of purchase because the phone will be marketed without the battery installed. Model No : LGL17AG FCC ID : ZNFL17AG S/N : Made in Korea

LG Electronics MobileComm U.S.A FCC ID: ZNFL17AG Model: L17AG Internal Photos EUT Type: Portable Handset Page 1 of 7 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 INTERNAL PHOTOGRAPHS LG Electronics MobileComm U.S.A FCC ID: ZNFL17AG Model: L17AG Internal Photos EUT Type: Portable Handset Page 2 of 7 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFL17AG Model: L17AG Internal Photos EUT Type: Portable Handset Page 3 of 7 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFL17AG Model: L17AG Internal Photos EUT Type: Portable Handset Page 4 of 7 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFL17AG Model: L17AG Internal Photos EUT Type: Portable Handset Page 5 of 7 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFL17AG Model: L17AG Internal Photos EUT Type: Portable Handset Page 6 of 7 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 LG Electronics MobileComm U.S.A FCC ID: ZNFL17AG Model: L17AG Internal Photos EUT Type: Portable Handset Page 7 of 7 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015

FCC ID: ZNFL17AG SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 33 0Y1511091919-R3.ZNF 11/09/15 – 11/18/15 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 16.8 M 10/16/2015 © 2015 PCTEST Engineering Laboratory, Inc. All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. 11/09/15 – 11/18/15 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Document Serial No.: 0Y1511091919-R3.ZNF FCC ID: ZNFL17AG APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A., INC. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): LGL17AG, L17AG, LG-L17AG Note: This revised Test Report (S/N: 0Y1511091919-R3.ZNF) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.6 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile Manufacturers Forum (MMF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MMF. Further details can be obtained by emailing: [email protected]. 1 gm Head (W /kg) 1 gm Body- Worn (W/kg) PCEGSM/GPRS/EDGE 850 824.20 - 848.80 MHz 0.70 0.97 PCEUMTS 850826.40 - 846.60 MHz0.680.95 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz 0.850.58 PCEUMTS 19001852.4 - 1907.6 MHz 0.98 0.79 DTS2.4 GHz WLAN2412 - 2462 MHz0.370.50 DSS/DTSBluetooth2402 - 2480 MHz 1.351.47 Simultaneous SAR per KDB 690783 D01v01r03: Band & ModeTx Frequency Equipment Class SAR N/A PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: ZNFL17AG SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 33 0Y1511091919-R3.ZNF 11/09/15 – 11/18/15 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 16.8 M 10/16/2015 © 2015 PCTEST Engineering Laboratory, Inc. All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 INTRODUCTION ..............................................................................................................................6 3 DOSIMETRIC ASSESSMENT .........................................................................................................7 4 DEFINITION OF REFERENCE POINTS .........................................................................................8 5 TEST CONFIGURATION POSITIONS FOR HANDSETS ...............................................................9 6 RF EXPOSURE LIMITS ................................................................................................................ 12 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 13 8 RF CONDUCTED POWERS ......................................................................................................... 16 9 SYSTEM VERIFICATION .............................................................................................................. 19 10 SAR DATA SUMMARY ................................................................................................................. 21 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 26 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 28 13 EQUIPMENT LIST ......................................................................................................................... 29 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 30 15 CONCLUSION ............................................................................................................................... 31 16 REFERENCES .............................................................................................................................. 32 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFIC…
