ZNFL34CCellular/PCS CDMA Phone with WLAN and Bluetooth

User Guide LG L34C MFL68086501 (1.0) ENGLISH www.lg.com Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 0.59 inches (1.5cm) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.59 in ches (1.5cm) must be maintained between the user’s body and the back of the phone. Third-party belt-clips, holsters and similar accessories containing metallic components may not be used. Body-worn accessories that cannot maintain 0.59 inch (1.5cm) se parat ion distance between the user’s body and the back of the phone, and have not been tested for typical body-worn operations may not comply with FCC RF exposure limits and should be avoided. FCC Part 15.19 statement This device complies with part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause un desired operation. FCC Part 15.21 statement Changes or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. FCC Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules . These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be d etermined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. User Guide ENGLISH • Screen displays and illustrations may differ from those you see on actual phone. • Some of the contents of this guide may not apply to your phone, depending on the software and your service provider. All information in this document is subject to change without notice. • This handset is not suitable for people who have a visual impairment due to the touch screen keyboard. • Copyright ©2013 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners. • Google™, Google Maps™, Gmail™, YouTube™, Hangouts™ and Play Store™ are trademarks of Google, Inc. Table of contents 2 Important notice ................................... 5 Getting to know your phone ............... 12 Phone overview ................................. 12 Installing the battery .......................... 15 Charging the phone ........................... 17 Using the memory card...................... 18 Locking and unlocking the screen ...... 18 Your Home screen ............................... 20 Touch screen tips .............................. 20 Home screen ..................................... 21 Customizing the Home screen .......... 22 Notifications ...................................... 23 Accessing notifications ..................... 23 Quick Settings ................................. 23 Notification icons on the Status Bar ... 25 On-screen keyboard .......................... 27 Entering special characters .............. 27 Google account setup ......................... 28 Connecting to Networks and Devices 30 Wi-Fi ................................................. 30 Connecting to Wi-Fi networks ........... 30 Turning Wi-Fi on and connecting to a Wi-Fi network .................................. 30 Bluetooth ........................................... 31 Connecting to Virtual Private Networks 33 PC connections with a USB cable ....... 33 Calls .................................................... 35 Making a call ..................................... 35 Calling your contacts ......................... 35 Answering and rejecting a call ........... 35 When the screen is locked ............... 35 When the screen is unlocked ............ 35 Adjusting the in-call volume ............... 36 Making a second call ......................... 36 Viewing your call logs ........................ 37 Call settings ....................................... 37 Contacts .............................................. 38 Searching for a contact ...................... 38 Adding a new contact ........................ 38 Favorite contacts ............................... 38 Creating a group ................................ 39 Messaging ........................................... 40 Sending a message ........................... 40 View mode ....................................... 41 Changing your message settings ....... 41 3 E-mail .................................................. 42 Managing an email account ............... 42 Working with account folders ............. 42 Composing and sending email ........... 43 Camera ................................................ 44 Getting to know the viewfinder .......... 44 Using the advanced settings .............. 45 Taking a quick photo ......................... 46 Once you've taken a photo................. 46 Viewing your saved photos ................ 48 Video camera ...................................... 49 Getting to know the viewfinder .......... 49 Using the advanced settings .............. 50 Recording a quick video ..................... 51 After recording a video....................... 51 Watching your saved video…

Text truncated - open the document above for the full version.

Date: December 13, 2013 Federa l Comm unications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : LG Electronics MobileComm U.S.A. FCC ID : ZNFL34C Part 20.19 Certification To Whom It May Concern: The f ollowing are the model designations and their associated key features for this FCC ID, according to requirement in the TCB Guidance issued on June 20, 2008. FCC ID: ZNFL34C Air Interface: CDMA Wireless Technologies: EVDO Rev.0/A Band: CDMA835/PCS1900 Key Features: Bluetooth 4.0, WiFi 2.4GHz(802.11 b/g/n), WiFi direct MP3 player, Camera GPS Should you have any questions or comments concerning the above, please contact the undersigned Sincerely Yours, Jacop Cho Director On behalf of LG Electronics Mobilecomm U.S.A.,Inc

Date: December 13, 2013 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 SUBJECT: LG Electronics Mobilecomm U.S.A FCC ID: ZNFL34C Part 20.19 Certification Gentlemen: We, LG Electronics MobileComm USA, hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

          !"# Date: December 13#3 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality fo r FCC ID: ZNFL34C Equipment Class:%&%  '  (  )  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,  MobileComm hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the pu blic. The public disclosure of these matt ers might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  MobileComm temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: %+,'-./+'0'+,/12-'22' 3) 4 - 5  1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure %+,' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

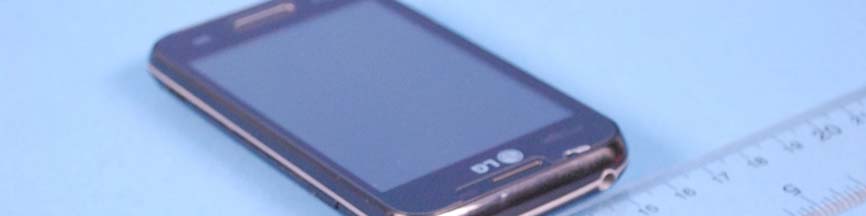

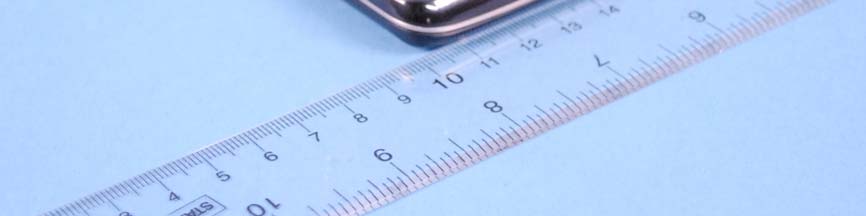

LG Electronics MobileComm U.S.A FCC ID: ZNFL34C Model: LGL34C External Photos EUT Type: Portable Handset Page 1 of 4 © 2013 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG Electronics MobileComm U.S.A FCC ID: ZNFL34C Model: LGL34C External Photos EUT Type: Portable Handset Page 2 of 4 © 2013 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A FCC ID: ZNFL34C Model: LGL34C External Photos EUT Type: Portable Handset Page 3 of 4 © 2013 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A FCC ID: ZNFL34C Model: LGL34C External Photos EUT Type: Portable Handset Page 4 of 4 © 2013 PCTEST Engineering Laboratory Inc.

※FCC ID Label Form Note: The FCC ID shown will be readily visible at the time of purchase. Note! We, LG Electronics MobileComm USA, state that our device, FCC ID ZNFL34C, has a battery. However, the battery will not be placed in the battery compartment when delivery, so it is visible to the users as they purchase the product and install the battery. Additionally, the label is permanently attached. The label it’s attached to the EUT by an adhesive. Model No : LGL34C FCC ID : ZNFL34C The label is placed inside of the battery compartment in back of the phone. When the user install the battery, the user can be the label. The adhesive is permanent type with strong strength.

LG Electronics MobileComm U.S.A FCC ID: ZNFL34C Model: LGL34C Internal Photos EUT Type: Portable Handset Page 1 of 7 © 2013 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG Electronics MobileComm U.S.A FCC ID: ZNFL34C Model: LGL34C Internal Photos EUT Type: Portable Handset Page 2 of 7 © 2013 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A FCC ID: ZNFL34C Model: LGL34C Internal Photos EUT Type: Portable Handset Page 3 of 7 © 2013 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A FCC ID: ZNFL34C Model: LGL34C Internal Photos EUT Type: Portable Handset Page 4 of 7 © 2013 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A FCC ID: ZNFL34C Model: LGL34C Internal Photos EUT Type: Portable Handset Page 5 of 7 © 2013 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A FCC ID: ZNFL34C Model: LGL34C Internal Photos EUT Type: Portable Handset Page 6 of 7 © 2013 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A FCC ID: ZNFL34C Model: LGL34C Internal Photos EUT Type: Portable Handset Page 7 of 7 © 2013 PCTEST Engineering Laboratory Inc.

FCC ID: ZNFL34C SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 35 0Y1311152177.ZNF 11/18/13-11/20/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. 11/18/13-11/20/13 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Document Serial No.: 0Y1311152177.ZNF FCC ID: ZNFL34C APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A., INC. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): LGL34C, L34C, LG-VS415PP, VS415PP, LGVS415PP, LG-VS415, VS415, LGVS415 1 gm Head (W /kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W /kg) PCECell. CDMA/EVDO824.70 - 848.31 MHz24.44 0.880.931.01 PCEPCS CDMA/EVDO1851.25 - 1908.75 MHz24.130.940.980.93 DTS2.4 GHz WLAN2412 - 2462 MHz14.740.260.220.22 DSS/DTSBluetooth2402 - 2480 MHz9.98 1.201.211.24 Equipment Class N/A SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: ZNFL34C SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 35 0Y1311152177.ZNF 11/18/13-11/20/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 INTRODUCTION ..............................................................................................................................7 3 DOSIMETRIC ASSESSMENT .........................................................................................................8 4 DEFINITION OF REFERENCE POINTS .........................................................................................9 5 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 10 6 RF EXPOSURE LIMITS ................................................................................................................ 14 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 15 8 RF CONDUCTED POWERS ......................................................................................................... 18 9 SYSTEM VERIFICATION .............................................................................................................. 20 10 SAR DATA SUMMARY ................................................................................................................. 22 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 27 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 30 13 EQUIPMENT LIST ......................................................................................................................... 31 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 32 15 CONCLUSION ............................................................................................................................... 33 16 REFERENCES .............................................................................................................................. 34 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: ZNFL34C SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 35 0Y1311152177.ZNF 11/18/13-11/20/13 Portable Handset © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 1 DEVICE UNDER TEST 1.1 Device Overview Cell. CDMA/EVDOVoice/Data 824.70 - 848.31 MHz PCS CDMA/EVDOVoice/Data 1851.25 - 1908.75 MHz 2.4 GHz WLAN Data 2412 - 2462 MHz BluetoothData 2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D01v05. Maximum Nominal Maximum Nominal 24.2 Mode / Band PCS CDMA/EVDO Modulated Average (dBm) 24.7 Cell. CDMA/EVDO 24.0 24.5 Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal 11.0 10.5 Bluetooth LE 1.5 1.0 10.0 Modulated Average (dBm) 15.0 Mode / Band IEEE 802.11g (2.4 GHz) IEEE 802.11b (2.4 GHz) 15.5 Bluetooth 10.5 9.5 IEEE 802.11n (2.4 GHz) 10.0 FCC ID: ZNFL34C SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 4 of 35 0Y1311152177.ZNF 11/18…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ZNFL34C FCC Pt. 22, 24 CDMA/EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1311152178.ZNF November 18 - 22, 2013 Portable Handset Page 1 of 40 © 2013 PCTEST Engineering Laboratory, Inc. V 3.0 06/17/2013 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A November 18 - 22, 2013 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1311152178.ZNF FCC ID: ZNFL34C APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A Application Type: Certification Model(s): LGL34C, L34C, LG-VS415PP, VS415PP, LGVS415PP, LG-VS415, VS415, LGVS415 EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2 §22(H) §24(E) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r01 Test Device Serial No.: identical prototype [S/N: RF #2] Max. Power (W) Max. Power (dBm) CDMA850824.70 - 848.311M28F9W0.11520.59 CDMA19001851.25 - 1908.75 1M28F9W0.31825.02 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22, 24 / IC RSS-132 RSS-133 Reviewed by: FCC ID: ZNFL34C FCC Pt. 22, 24 CDMA/EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1311152178.ZNF November 18 - 22, 2013 Portable Handset Page 2 of 40 © 2013 PCTEST Engineering Laboratory, Inc. V 3.0 06/17/2013 TABLE OF CONTENTS FCC PART 22, 24 MEASUREMENT REPORT............................................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 EVALUATION PROCEDURE.............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 RADIATED MEASUREMENTS............................................................................................................ 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .............................................................................................................................11 6.1 SUMMARY......................................................................................................................................... 11 6.2 OCCUPIED BANDWIDTH ................................................................................................................. 12 6.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL............................................ 14 6.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL...................................................................... 21 6.5 PEAK-AVERAGE RATIO ................................................................................................................... 26 6.6 RADIATED POWER (ERP/EIRP) ......................................................................................................28 6.7 RADIATED SPURIOUS EMISSIONS MEASUREMENTS ................................................................. 30 6.8 FREQUENCY STABILITY / TEMPERATURE VARIATION ............................................................... 35 7.0 CONCLUSION................................................................................................................................40 Reviewed by: FCC ID: ZNFL34C FCC Pt. 22, 24 CDMA/EvDO MEASUREMENT REPO…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ZNFL34C HAC (RF EMISSIONS) TEST REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1311152182.ZNF November 20-21, 2013 Portable Handset Page 1 of 63 © 2013 PCTEST Engineering Laboratory, Inc. REV 8.2U 04/05/10 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. November 20-21, 2013 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1311152182.ZNF FCC ID: ZNFL34C APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A., INC. Scope of Test: RF Emissions Testing Application Type: Certification FCC Rule Part(s): § 20.19(b), §6.3(v), §7.3(v) HAC Standard: ANSI C63.19-2011 EUT Type: Portable Handset Model(s): LGL34C, L34C, LG-VS415PP, VS415PP, LGVS415PP, LG-VS415, VS415, LGVS415 Test Device Serial No.: Pre-Production Sample [S/N: HAC #2] C63.19-2011 HAC Category: M4 (RF EMISSIONS CATEGORY) This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2011 and has been tested in accordance with the specified measurement procedures. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com HEARING AID COMPATIBILITY Reviewed by: FCC ID: ZNFL34C HAC (RF EMISSIONS) TEST REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1311152182.ZNF November 20-21, 2013 Portable Handset Page 2 of 63 © 2013 PCTEST Engineering Laboratory, Inc. REV 8.2U 04/05/10 TABLE OF CONTENTS 1. INTRODUCTION ............................................................................................................................. 3 2. TEST SITE LOCATION ................................................................................................................... 4 3. EUT DESCRIPTION ........................................................................................................................ 5 4. ANSI/IEEE C63.19 PERFORMANCE CATEGORIES .................................................................... 6 5. SYSTEM SPECIFICATIONS...........................................................................................................7 6. TEST PROCEDURE ..................................................................................................................... 12 7. SYSTEM CHECK .......................................................................................................................... 14 8. MODULATION INTERFERENCE FACTOR.................................................................................. 17 9. RF CONDUCTED POWER MEASUREMENTS............................................................................ 19 10. JUSTIFICATION OF HELD TO EAR MODES TESTED ............................................................... 20 11. OVERALL MEASUREMENT SUMMARY ..................................................................................... 21 12. EQUIPMENT LIST......................................................................................................................... 23 13. MEASUREMENT UNCERTAINTY ................................................................................................ 24 14. TEST DATA ................................................................................................................................... 25 15. CALIBRATION CERTIFICATES.................................................................................................... 30 16. CONCLUSION............................................................................................................................... 58 17. REFERENCES .............................................................................................................................. 59 18. TEST PHOTOGRAPHS ................................................................................................................61 Reviewed by: FCC ID: ZNFL34C HAC (RF EMISSIONS) TEST REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1311152182.ZNF November 20-21, 2013 Portable Handset Page 3 of 63 © 2013 PCTEST Engineering Laboratory, Inc. REV 8.2U 04/05/10 1. INTRODUCTION On July 10, 2003, the Federal Communications Commission (FCC) adopted new rules requiring wireless manufacturers and service providers to provide digital wireless phones that are compatible with hearing aids. The FCC has modified the exemption for wireless phones under the Hearing Aid Compatibility Act of 1998 (HAC Act) in WT Docket 01-309 RM-8658 1 to extend the benefits of wireless telecommunications to individuals with hearing disabilities. These benefits encompass business, social and emergency communications, which increase the value of the wireless network for everyone. An estimated more than 10% of the population in the United States show signs of hearing impairment and of that fraction, almost 80% use hearing aids. Approximately 500 million people worldwide suffer from hearing loss. Compatibility Tests Involved: The standard calls for wireless communications devices to be measured for:  RF Electric-field emissions  T-coil mode, magnetic-signal strength in the audio band  T-coil mode, magnetic-signal frequency response through the audio band  T-coil mode, magnetic-signal and noise articulation index The hearing aid must be measured for:  RF immunity in microphone mode  RF immunity in T-coil mode In the following tests and res…

Text truncated - open the document above for the full version.

FCC ID: ZNFL34C HAC (T-COIL) TEST REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 37 0Y1311152183.ZNF 11/18/2013 Portable Handset © 2013 PCTEST Engineering Laborato…

Text truncated - open the document above for the full version.
