ZNFL40GCellular/PCS GSM/WCDMA Phone with WLAN and Bluetooth

User Guide LG L40G P/N : MFL67566401 (1.0) www.lg.com E N G L I S H ESPAÑOL Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Part 15 Class B Compliance This device and its accessories comply with part 15 of FCC rules and ICES-003 Class B digital apparatus requirements for Industry Canada. Operation is subject to the following two conditions:(1) This device and its accessories may not cause harmful interference, and (2) this device and its accessories must accept any interference received, including interference that may cause undesired operation. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept cm (0.9 inches) between the user’s body and the back of the phone. To comply with FCC RF exposure requirements, a minimum separation distance of cm (0.9 inches) must be maintained between the user's body and the back of the phone. Third-party belt-clips, holsters, and similar accessories containing metallic components PD\ not be used. Body-worn accessories that cannot maintain cm (0.9 inches) separation distance between the user's body and the back of the phone, and have not been tested for typical body- worn operations may not comply with FCC RF exposure limits and should be avoided. LG L40G User Guide This guide helps you to get started using your phone. Some of the contents of this manual may not apply to your phone, depending on the software and your service provider. This handset is not suitable for people who have a visual impairment due to the touch screen keyboard. Copyright ©2012 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners. Google™, Google Maps™, Gmail™, YouTube™, Google Talk™ and Google Play Store™ are trademarks of Google, Inc. • • • • ENGLISH 4 Please check to see whether any problems you encountered with your phone are described in this section before taking the phone in for service or calling a service representative. 1. Phone memory When there is less than 10% of space available in your phone memory, your phone cannot receive new messages. You need to check your phone memory and delete some data, such as applications or messages, to make more memory available. To uninstall applications: Touch > Apps tab > Settings > Apps from the DEVICE category. Once all applications appear, scroll to and select the application you want to uninstall. Touch Uninstall. 1 2 3 2. Optimising battery life Extend your battery's life between charges by turning off features that you don't need to having running constantly in the background. You can monitor how applications and system resources consume battery power. Extending your phone's battery life: Turn off radio communications you are not using. If you are not using Wi-Fi, Bluetooth or GPS, turn them off. Reduce screen brightness and set a shorter screen timeout. Turn off automatic syncing for Google Mail™, Calendar, Contacts and other applications. Some applications you have downloaded may reduce battery power. To check the battery power level: Touch > Apps tab > Settings > About phone from the SYSTEM > Status The battery status (charging or not charging) and level (percentage charged) is displayed at the top of the screen. • • • • • Getting to know your phone Before you start using the phone, please read this! 5 To monitor and control how battery power is being used: Touch > Apps tab > Settings > Power Saver from the DEVICE > Battery use from the BATTERY. Battery usage time is displayed on the screen. It tells you how long it has been since you last connected your phone to a power source or, if currently connected, how long the phone was last running on battery power. The screen shows the applications or services using battery power, listed in order from the greatest to smallest amount used. 3. Using folders You can combine several app icons in a folder. Drop one app icon over another on a Home screen, and the two icons will be combined. NOTE: To see a smaller collection of frequently used apps, touch the Google Apps folder near the bottom of the screen. As with any folder, you can customize its contents. • NOTE: After you open an app, you can usually adjust its settings by choosing items from its Menu icon near the top or bottom of the screen. 4. Before installing an open source application and OS WARNING If you install and use an OS other than the one provided by the manufacturer it may cause your phone to malfunction. In addition, your phone will no longer be covered by the warranty. WARNING To protect your phone and personal data, only download applications from trusted sources, such as Google Play Store™. If there are improperly installed applications on your phone, it …

Text truncated - open the document above for the full version.

Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ElectronicsMobileCommU S ASUBJECT: LG ElectronicsMobileCommU.S.A FCC ID: ZNFL40G Part 20.19 Certification To Whom It May Concern: The following are the model designations and their associated key features for this FCC ID, according to requirement in the TCB Guidance issued on June 20, 2008. FCC ID: ZNFL40G Air Interfaces: GSM / WCDMA Wireless Technologies: GPRS/EDGE/HSDPA Bands: GSM850/GSM1900/W850/W1900 Bluetooth/WiFi Should you have any questions or comments concerning the above Key Features: Bluetooth/WiFi MP3 player, Camera GPS Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S..A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

Date: May 24, 2012 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 SUBJECT: LG Electronics Mobilecomm U.S.A FCC ID: ZNFL40G Part 20.19 Certification Gentlemen: We, LG Electronics MobileComm USA, hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

          !"# Date: May 12#2 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columb ia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFL40G Equipment Class:%&%  '  (  )  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,  MobileComm hereby requests confidentiality and treatment of certain information accompanying this application . The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  MobileComm temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are list ed as follows: %+,'-./+'0' +,/12-'22' 3) 4 - 5  1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure %+,' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

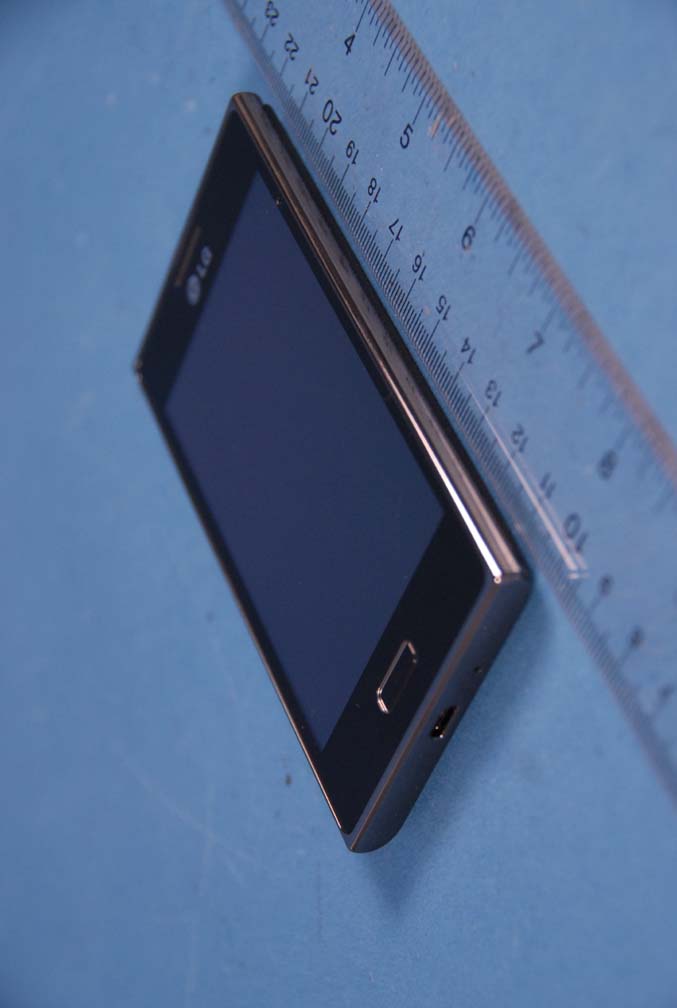

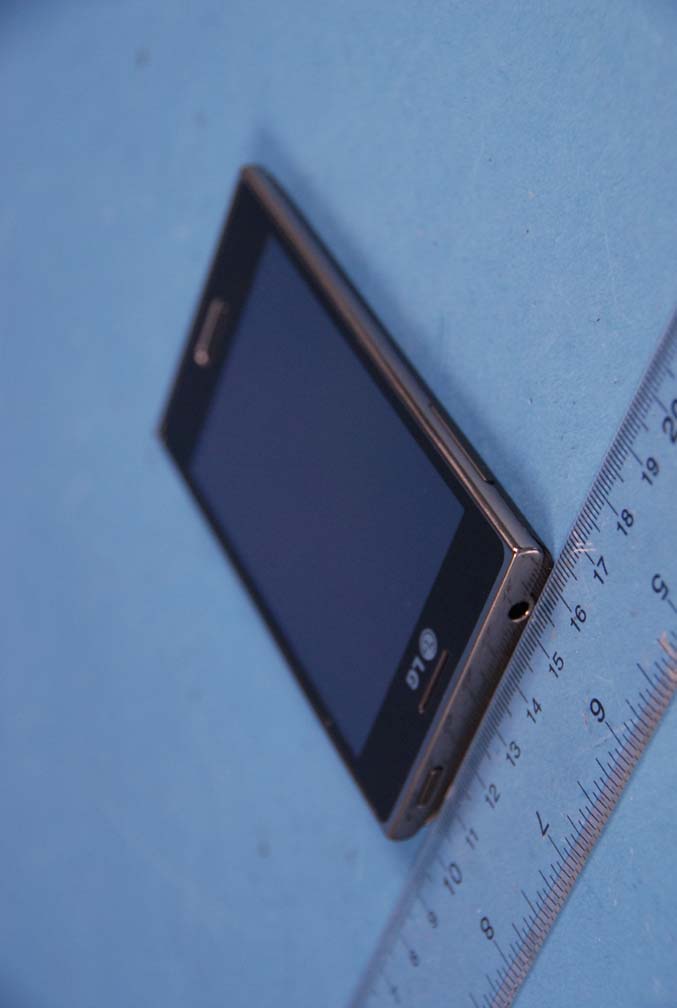

LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL40G Model: LGL40G External Photos EUT Type: Portable Handset Page 1 of 4 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL40G Model: LGL40G External Photos EUT Type: Portable Handset Page 2 of 4 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL40G Model: LGL40G External Photos EUT Type: Portable Handset Page 3 of 4 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL40G Model: LGL40G External Photos EUT Type: Portable Handset Page 4 of 4 © 2012 PCTEST Engineering Laboratory Inc.

Model No: LGL40G FCC ID : ZNFL40G S/N : Made in Korea LG Electronics MobileComm USA, Inc. LGE

LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL40G Model: LGL40G Internal Photos EUT Type: Portable Handset Page 1 of 10 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL40G Model: LGL40G Internal Photos EUT Type: Portable Handset Page 2 of 10 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL40G Model: LGL40G Internal Photos EUT Type: Portable Handset Page 3 of 10 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL40G Model: LGL40G Internal Photos EUT Type: Portable Handset Page 4 of 10 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL40G Model: LGL40G Internal Photos EUT Type: Portable Handset Page 5 of 10 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL40G Model: LGL40G Internal Photos EUT Type: Portable Handset Page 6 of 10 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL40G Model: LGL40G Internal Photos EUT Type: Portable Handset Page 7 of 10 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL40G Model: LGL40G Internal Photos EUT Type: Portable Handset Page 8 of 10 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL40G Model: LGL40G Internal Photos EUT Type: Portable Handset Page 9 of 10 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL40G Model: LGL40G Internal Photos EUT Type: Portable Handset Page 10 of 10 © 2012 PCTEST Engineering Laboratory Inc.

FCC ID: ZNFL40G SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 30 0Y1204180526.ZNF 04/17/12 - 04/19/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. 04/17/12 - 04/19/12 1000 Sylvan Avenue, Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA USA Document Serial No.: 0Y1204180526.ZNF FCC ID: ZNFL40G APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A., INC. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093 LGL40G, LG-L40G, LG-L40g, LGL40g, L40g, L40G Test Device Serial No.: Pre-Production [S/N: 203KPTM165016, 203KPTM165017] 1 gm Head (W/kg) 1 gm Body-Worn (W/kg) GSM/GPRS/EDGE Rx Only 850824.20 - 848.80 MHz33.100.500.74 WCDMA/HSDPA 850826.40 - 846.60 MHz23.550.360.39 GSM/GPRS/EDGE Rx Only 19001850.20 - 1909.80 MHz30.080.370.30 WCDMA/HSDPA 19001852.4 - 1907.6 MHz22.690.690.37 2.4 GHz WLAN2412 - 2462 MHz17.360.810.25 Bluetooth2402 - 2480 MHz10.03 1.500.84 SAR Band & ModeTx Frequency Conducted Power [dBm] N/A Simulta ne ous SAR pe r KDB 690783 D01: Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: ZNFL40G SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 30 0Y1204180526.ZNF 04/17/12 - 04/19/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 INTRODUCTION ............................................................................................................................. 5 3 SAR MEASUREMENT SETUP ....................................................................................................... 6 4 DOSIMETRIC ASSESSMENT ........................................................................................................ 7 5 DEFINITION OF REFERENCE POINTS ........................................................................................ 8 6 TEST CONFIGURATION POSITIONS FOR HANDSETS .............................................................. 9 7 FCC RF EXPOSURE LIMITS ........................................................................................................ 12 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 13 9 RF CONDUCTED POWERS ......................................................................................................... 15 10 SYSTEM VERIFICATION .............................................................................................................. 18 11 SAR DATA SUMMARY ................................................................................................................. 20 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 24 13 EQUIPMENT LIST ......................................................................................................................... 26 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 27 15 CONCLUSION ............................................................................................................................... 28 16 REFERENCES .............................................................................................................................. 29 FCC ID: ZNFL40G SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 30 0Y1204180526.ZNF 04/17/12 - 04/19/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE Rx Only 850824.20 - 848.80 MHz WCDMA/HSDPA 850826.40 - 846.60 MHz GSM/GPRS/EDGE Rx Only 19001850.20 - 1909.80 MHz WCDMA/HSDPA 19001852.4 - 1907.6 MHz 2.4 GHz WLAN2412 - 2462 MHz Bluetooth2402 - 2480 MHz Band & ModeTx Frequency 1.2 DUT Antenna Locations Figure 1-1 DUT Antenna Locations FCC ID: ZNFL40G SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 4 of 30 0Y1204180526.ZNF 04/17/12 - 04/19/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 1.3 SAR Test Exclusions Applied (A) WIFI/BT The separation between the main antenna and the Bluetooth and WLAN antennas is 99.4 mm. RF Conducted Power of Bluetooth Tx is 10.07 mW (Please refer to the EMC DSS Report for a full set of Bluetooth conducted powers). RF Conducte…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ZNFL40G FCC Pt. 22/24 GSM/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1204180523.ZNF April 19 - 21, 2012 Portable Handset Page 1 of 57 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.5GWCFI 02/13/2012 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. April 19 - 21, 2012 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab., Columbia, MD, USA USA Test Report Serial No.: 0Y1204180523.ZNF FCC ID: ZNFL40G APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A., INC. Application Type: Certification Model(s): LGL40G, LG-L40G, LG-L40g, LGL40g, L40g, L40G EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) IC Specification(s): RSS-132 Issue 2; RSS-133 Issue 5 Test Procedure(s): ANSI/TIA-603-C-2004 Test Device Serial No.: identical prototype [S/N: 203KPDT165018] Max. Power (W) Max. Power (dBm) GSM850824.2 - 848.8243KGXW1.84932.67 GSM19001850.2 - 1909.8245KGXW1.63832.14 WCDMA850826.4 - 846.64M18F9W0.27324.36 WCDMA19001852.4 - 1907.64M18F9W0.39926.01 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 / IC RSS-132/RSS-133 Reviewed by: FCC ID: ZNFL40G FCC Pt. 22/24 GSM/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1204180523.ZNF April 19 - 21, 2012 Portable Handset Page 2 of 57 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.5GWCFI 02/13/2012 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.5 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 EVALUATION PROCEDURE.............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 OCCUPIED BANDWIDTH ................................................................................................................... 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 8 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 9 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 9 4.0 TEST EQUIPMENT CALIBRATION DATA ....................................................................................10 5.0 SAMPLE CALCULATIONS ............................................................................................................11 6.0 TEST RESULTS .............................................................................................................................12 6.1 SUMMARY......................................................................................................................................... 12 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ........................................................................... 13 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA ...…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ZNFL40G HAC (RF EMISSIONS) TEST REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1205080646.ZNF May 2-8, 2012 Portable Handset Page 1 of 80 © 2012 PCTEST Engineering Laboratory, Inc. REV 8.2U 04/05/10 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. May 2-8, 2012 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA USA Test Report Serial No.: 0Y1205080646.ZNF FCC ID: ZNFL40G APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A., INC. Scope of Test RF Emissions Testing Application Type: Certification FCC Rule Part(s): § 20.19(b), §6.3(v), §7.3(v) HAC Standard: ANSI C63.19-2007; EUT Type: Portable Handset Model(s): LGL40G, LG-L40G, LG-L40g, LGL40g, L40g, L40G Tx Frequency: 824.20 - 848.80 MHz (GSM 850) 1850.20 - 1909.80 MHz (GSM 1900) 826.40 - 846.60 MHz (WCDMA850) 1852.4 - 1907.6 MHz (WCDMA1900) Test Device Serial No.: Pre-Production Sample [S/N: 203KPTM165016] C63.19-2007 HAC Category: M3 (RF EMISSIONS CATEGORY) This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2007 and had been tested in accordance with the specified measurement procedures. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com HEARING AID COMPATIBILITY Reviewed by: FCC ID: ZNFL40G HAC (RF EMISSIONS) TEST REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1205080646.ZNF May 2-8, 2012 Portable Handset Page 2 of 80 © 2012 PCTEST Engineering Laboratory, Inc. REV 8.2U 04/05/10 TABLE OF CONTENTS 1. INTRODUCTION ............................................................................................................................. 3 2. TEST SITE LOCATION ................................................................................................................... 4 3. EUT DESCRIPTION ........................................................................................................................ 5 4. ANSI/IEEE C63.19 PERFORMANCE CATEGORIES .................................................................... 6 5. SYSTEM SPECIFICATIONS...........................................................................................................7 6. TEST PROCEDURE ..................................................................................................................... 13 7. SYSTEM CHECK .......................................................................................................................... 15 8. MODULATION FACTOR...............................................................................................................18 9. FCC 3G MEASUREMENT PROCEDURES .................................................................................. 20 10. OVERALL MEASUREMENT SUMMARY ..................................................................................... 21 11. EQUIPMENT LIST......................................................................................................................... 24 12. MEASUREMENT UNCERTAINTY ................................................................................................ 25 13. TEST DATA ................................................................................................................................... 26 14. CALIBRATION CERTIFICATES.................................................................................................... 39 15. CONCLUSION............................................................................................................................... 75 16. REFERENCES .............................................................................................................................. 76 17. TEST PHOTOGRAPHS ................................................................................................................78 Reviewed by: FCC ID: ZNFL40G HAC (RF EMISSIONS) TEST REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1205080646.ZNF May 2-8, 2012 Portable Handset Page 3 of 80 © 2012 PCTEST Engineering Laboratory, Inc. REV 8.2U 04/05/10 1. INTRODUCTION On July 10, 2003, the Federal Communications Commission (FCC) adopted new rules requiring wireless manufacturers and service providers to provide digital wireless phones that are compatible with hearing aids. The FCC has modified the exemption for wireless phones under the Hearing Aid Compatibility Act of 1998 (HAC Act) in WT Docket 01-309 RM-8658 1 to extend the benefits of wireless telecommunications to individuals with hearing disabilities. These benefits encompass business, social and emergency communications, which increase the value of the wireless network for everyone. An estimated more than 10% of the population in the United States show signs of hearing impairment and of that fraction, almost 80% use hearing aids. Approximately 500 million people worldwide suffer from hearing loss. Compatibility Tests Involved: The standard calls for wireless communications devices to be measured for: ƒ RF Electric-field emissions ƒ RF Magnetic-field emissions ƒ T-coil mode, magnetic-signal strength in the audio band ƒ T-coil mode, magnetic-signal frequency…

Text truncated - open the document above for the full version.

FCC ID: ZNFL40G SAR EVALUATION REPORT Reviewed by: Quality Manager Test …

Text truncated - open the document above for the full version.
